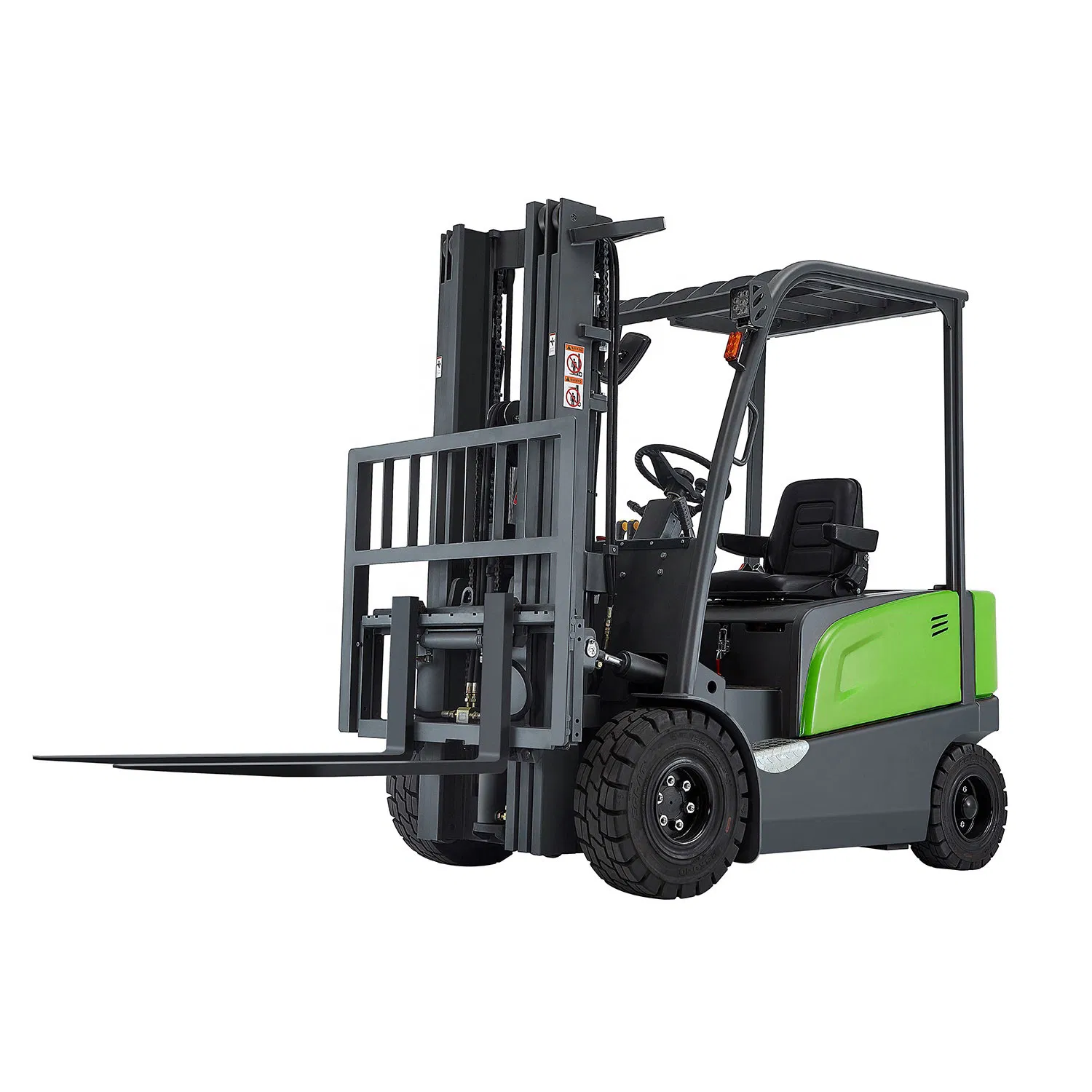

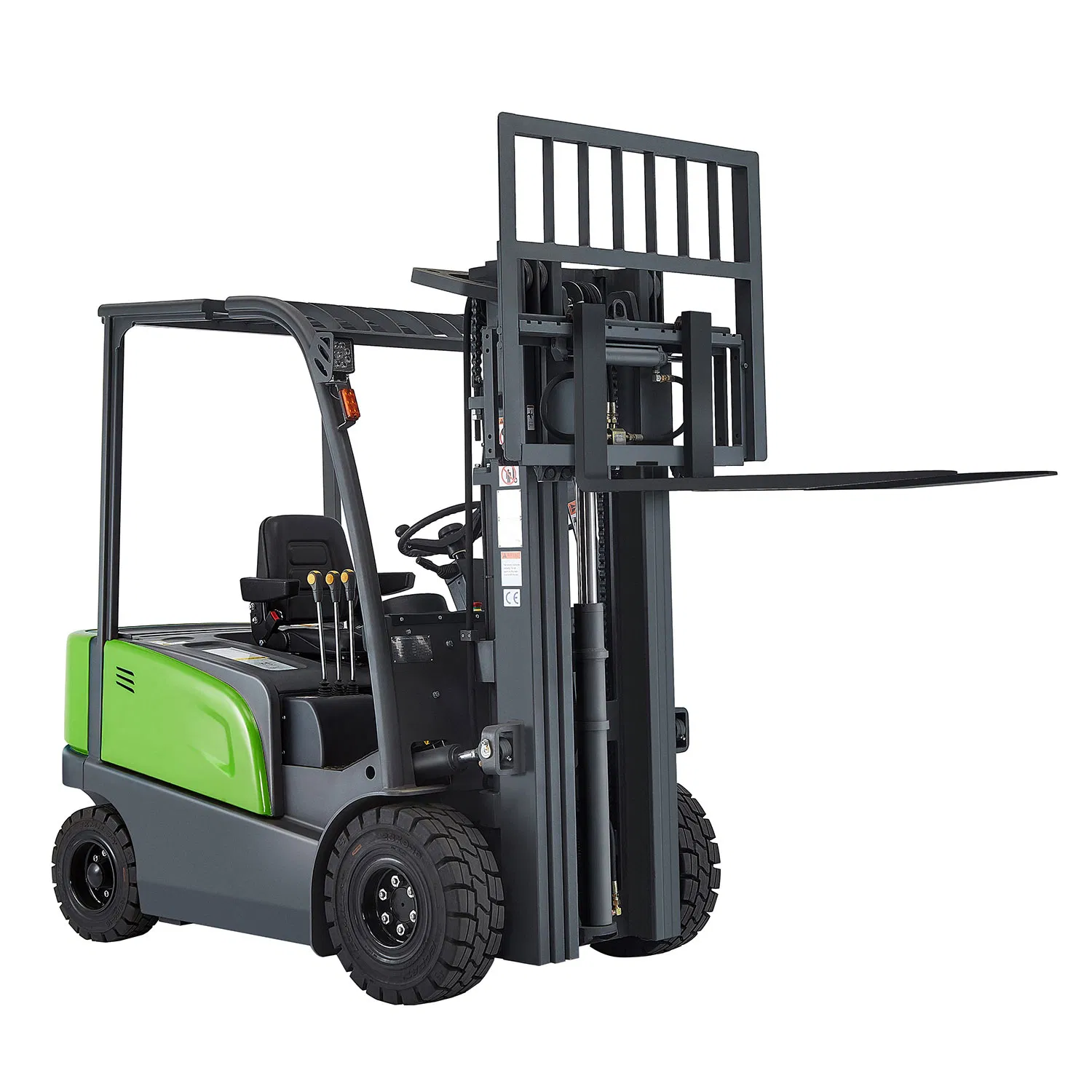

Manufacturer 2/2.5/3/3.5t/Ton 2500kg 3500kg with Side Shift and Solid Tyre Counterbalance CE Mini Electrical/Electric Forklift Price for Pallet/Manual/Warehouse

Still deciding? Get samples of $ !
Order Sample

Product Description

📋 Basic Information
Model NO.
FB25R
Type
Electric Forklift
Power
AC Motor
Load Capacity
1T - 5T
Fuel
Electric
Load Center
500mm
Lift Height
>5000mm
Condition
New
Battery Voltage
48/560(630)Ah
Turning Radius
2180mm
Specification
3270 mm*1130 mm*2160 mm
Service Weight
4150kg

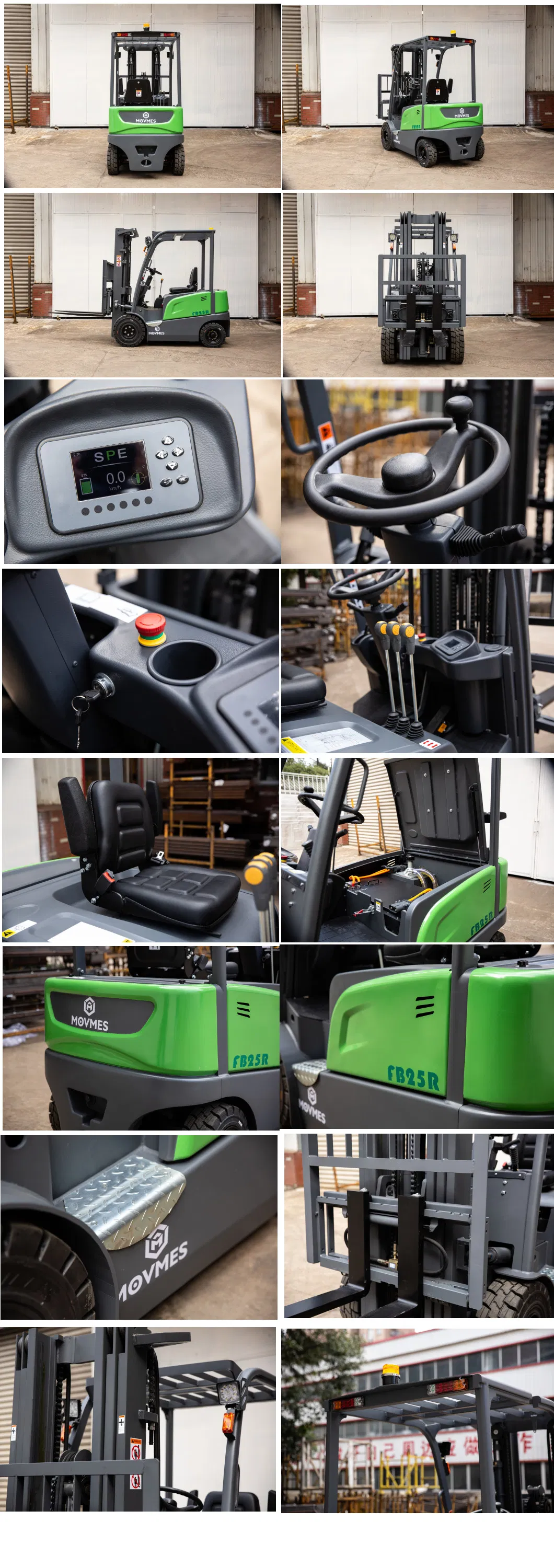

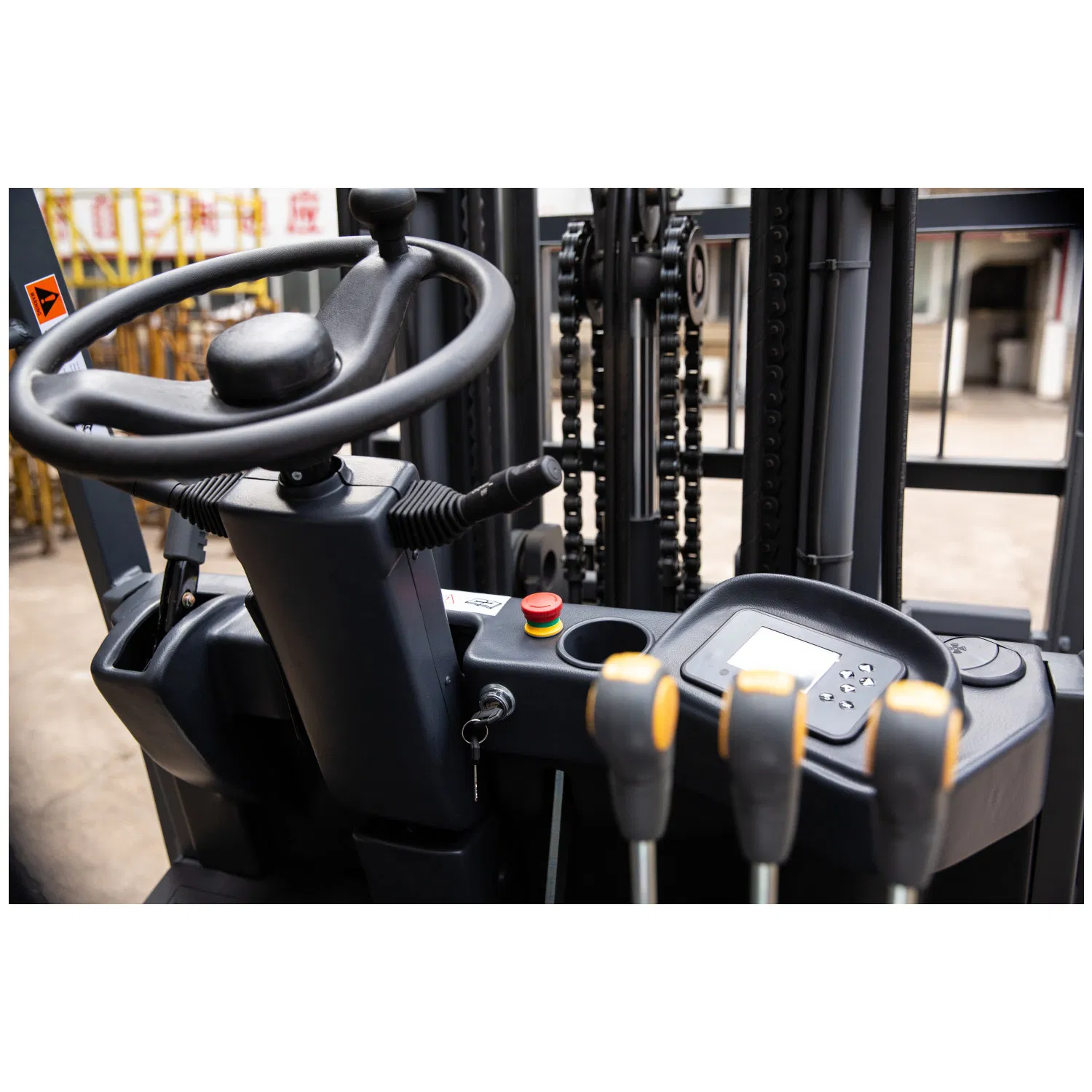

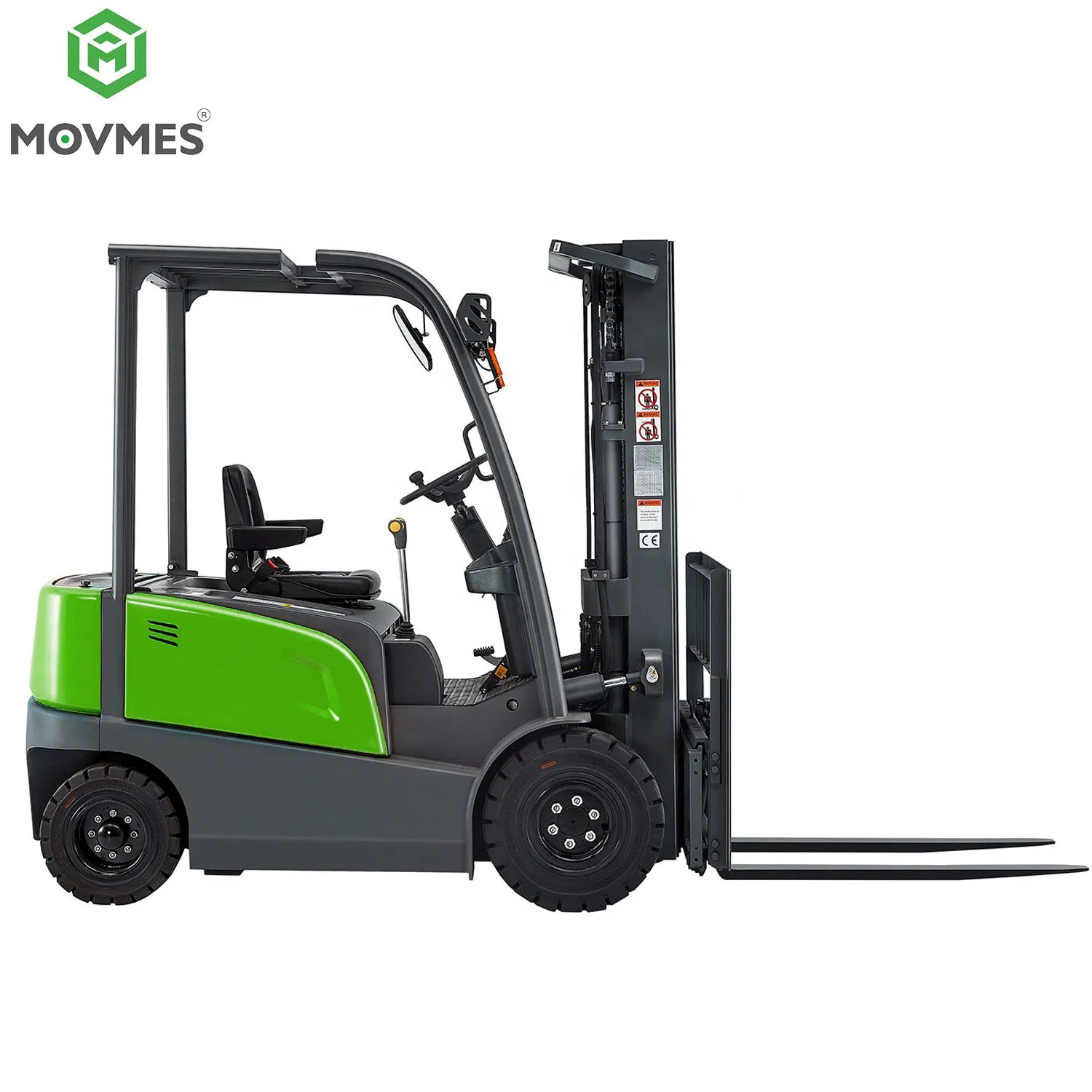

📸 Product Showcase
⚙️ Main Configuration
FeatureStandard Configuration Details
Power System48V FULL AC Power
ControllerJIACHENG controller
TyresPneumatic tyres
Fork1070mm Forged fork
ControlMultiple valve control
Battery48V 500Ah lead-acid battery
Charger48V 65A charger
LightingFront LED light, signal light, rear light
SafetySafety belt, view mirror, reversing buzzer
🛠️ Technical Parameters
Forklift Parameters Chart
Model Unit FB25R (Full AC)
Rated Capacitykg2000 / 2500
Load Centremm500
Lift Heightmm3000-6000
Wheelbasemm1480
Travel Speed (Laden)km/h12/13
Lifting Speed (Laden)m/s0.26/0.3
Mast Height (Lowered)mm2050
Overall Widthmm1200
Max. Gradeability%13/14
🌟 Core Advantages

🛡️ Safety & Stability

  • H-type driving axle for optimized structural layout.
  • High power AC driving motor with heat radiating grooves.
  • Low gravity center thanks to relocated battery position.
  • AC motor is brushless and maintenance-free.

🧘 Ergonomics

  • Large and comfortable operating room.
  • Adjustable steering wheel column for driver comfort.
  • Clear and wide view mast for excellent visibility.
  • Intelligent mast collapse buffering system.

🔧 Serviceability

  • Easy access to controller and steering potentiometer.
  • External encoder for easy replacement and service.
  • Over-discharge protection system (alerts at 20%).
  • Conveniently located braking oil cup on the panel.
📜 Quality Certifications

Our equipment complies with international quality and environmental standards:

  • ISO9001:2008 Quality Management System
  • ISO14001:2004 Environmental Management System
  • CE Standards ISO3691-1, EN1175-1, EN16307-1
  • TUV/GS/CE certified for safe operation
Certification Showcase
📦 Packaging & Delivery
Package Size
3310cm * 1200cm * 2050cm
Gross Weight
4150.00kg
Packing Type
Seaworth Packing
🔗 Related Models

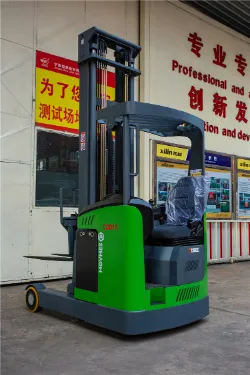

Narrow Aisle Reach Truck1.5 Ton, 5000-8000mm Lift, Curtis Controller
3-Wheel Electric Forklift1.5 Ton, 2500-5600mm Lift, 24V AC Power
Dual Traction Motor Forklift1.6-2.0 Ton, 3000-6200mm Lift, 48V AC Power
Frequently Asked Questions
Q1: What is the continuous working time for the electric forklift series?
The continuous working time is approximately 3-6 hours, depending on the battery volume and intensity of work.
Q2: How long does it take to fully charge the battery?
It typically takes 3 to 6 hours to charge the battery to its full capacity using the standard charger.
Q3: What are the specifications of the included charger?
We provide chargers compatible with 48V 500Ah Lead-acid batteries. The power plug can be customized to USA, UK, Australia, or European standards.
Q4: Do you provide customized or OEM/ODM products?

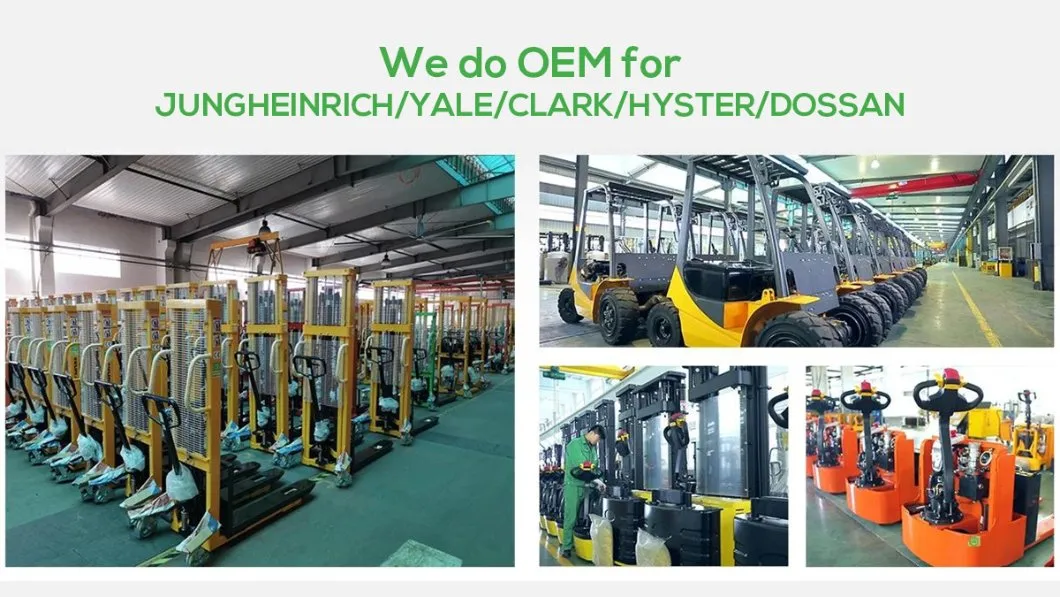

Yes, we have professional experience in developing warehouse logistics equipment since 1985 and can provide OEM services for major global brands.
Q5: What is the warranty period for this forklift?
We provide a one-year warranty. During this period, wearing parts damaged by non-human factors are replaced free of charge.
Q6: What safety features are integrated into the FB25R model?

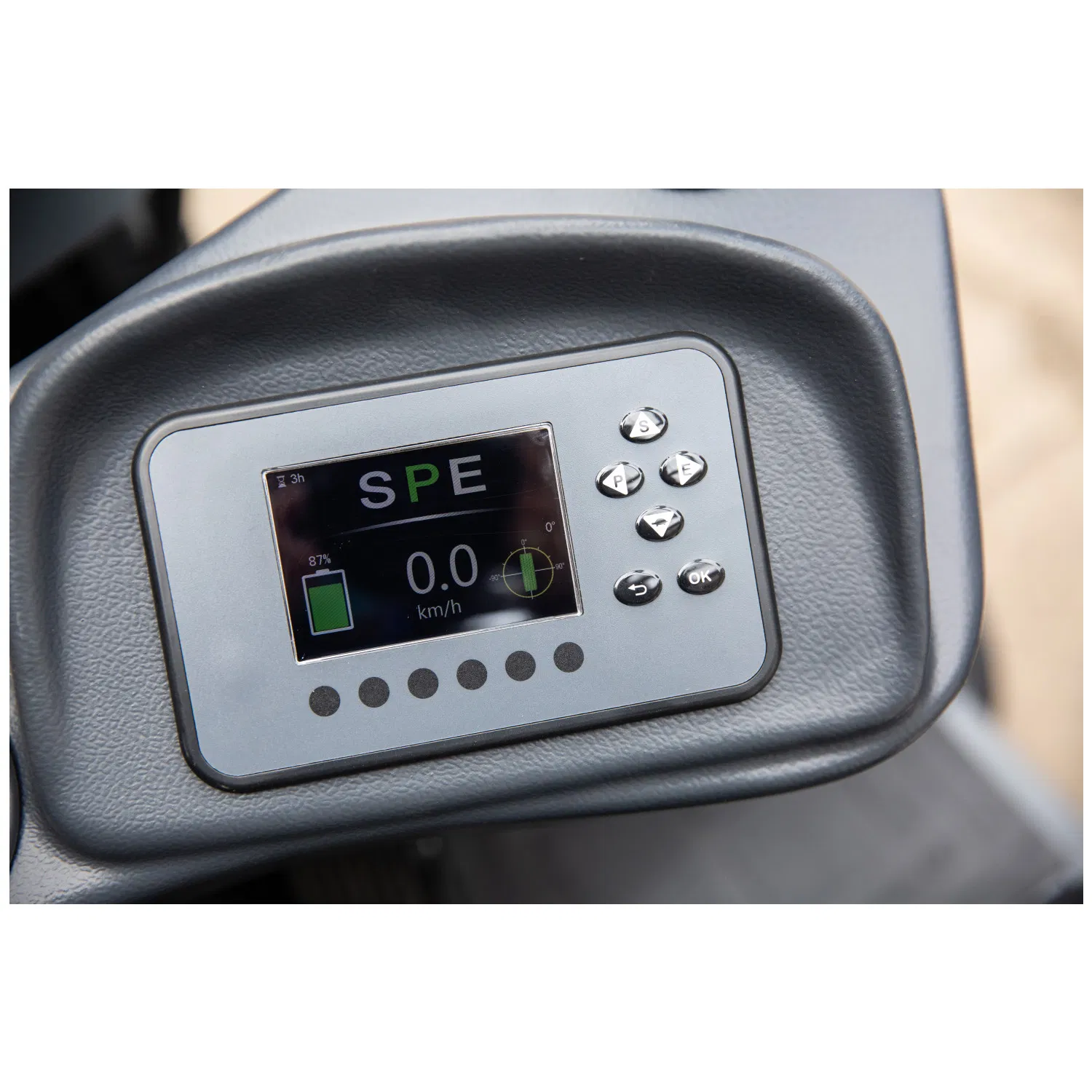

The model includes a low gravity center design, emergency fault codes on the display, an intelligent buffering system for the mast, and full LED safety lighting.
