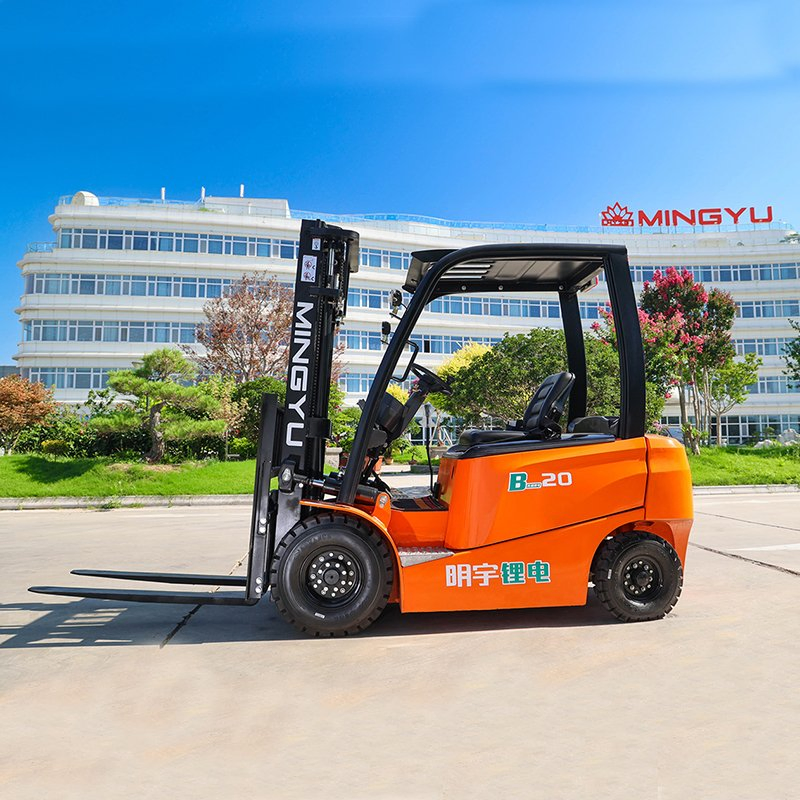

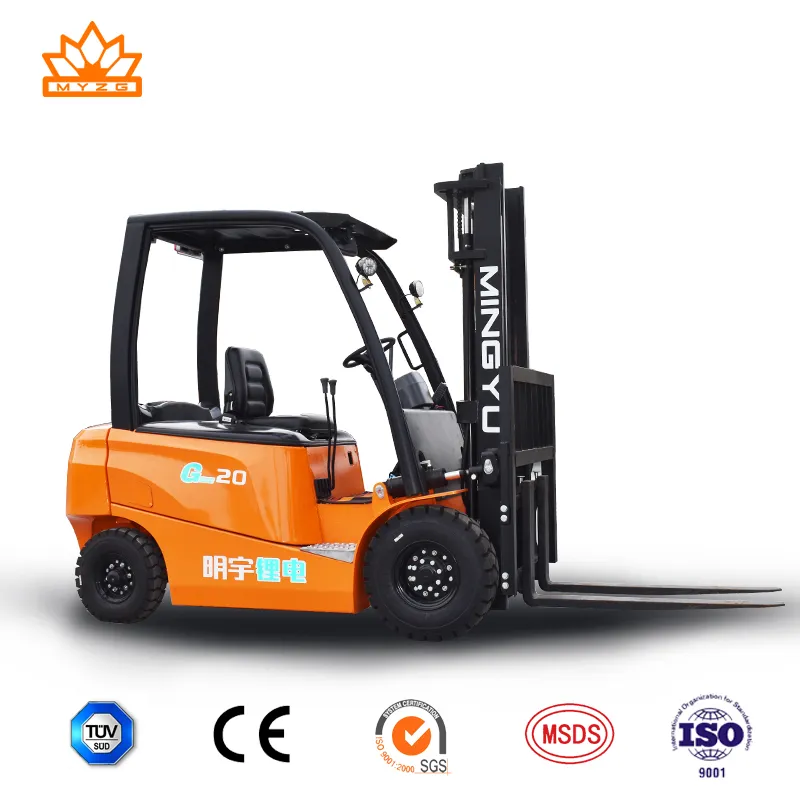

LM Forklift
LM Forklift

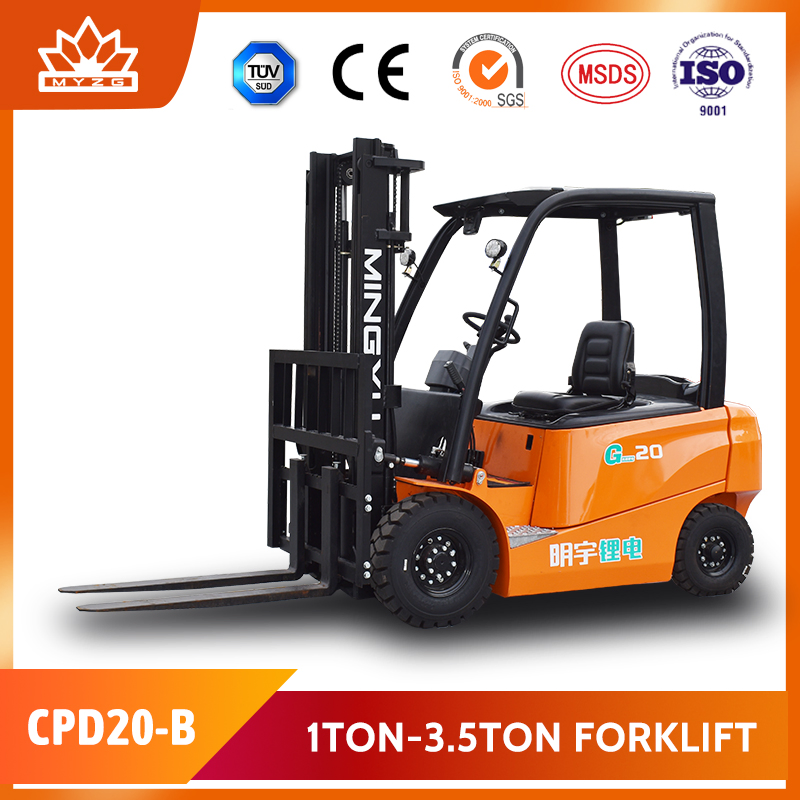

| Model NO. | CPD20-B | Type | Electric Forklift |
| Power | AC Motor | Load Capacity | 1T - 5T |
| Fuel | Electric | Load center | 500mm |
| Lift height | >5000mm | Condition | New |
| Battery Voltage | 80V/105ah | Unladen Weight | 2820 Kg |
| Driving Style | Sit Down | Turning Radius | 2100mm |
| Drive Motor | 8kw | Oil Pump Motor | 14kw |
| Specification | 3290*1100*2010mm | Origin | China |
Adopts internal combustion forklift's design with strong chassis, frame, counterweight and mast. Economical electric forklifts with full AC system and BMS control system.
Only 2 hours fully charge, battery can be charged 4000 times. High performance lithium battery technology.
Low-carbon, clean, lower noise, zero emission, and less vibration compared to fuel models.
| Parameter Item | Data | |
| Rated load lifting capacity | 2000kg | |
| Dimensions (L) | With fork | 3290mm |
| Without fork | 2210mm | |
| Maximum lifting speed (load/no load) | 250 / 325 mm/s | |
| Maximum operating speed (load/no load) | 14 / 15 Km/h | |
| Max gradeability (full load) | 15% | |
| Battery voltage/capacity | 80V/105Ah | |

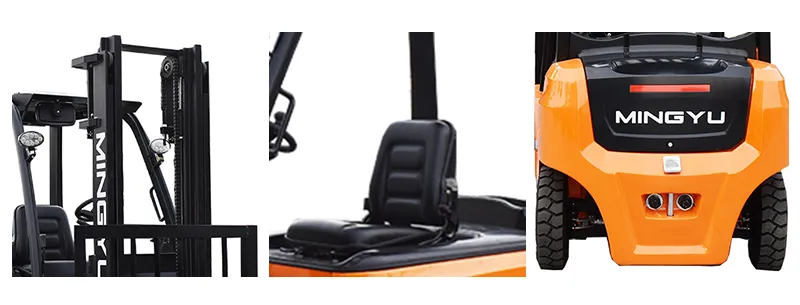

LED work lights and warning lights for poor lighting. New designed overhead guard protective device and thicker reinforcing plate for maximum safety.
Single chain design with reinforced load backrest provides an excellent and wider field of vision for the operator.
New suspension adjustable seat. Step area is 1.5 times larger with lower step height for easy access.
Sunken tilt cylinder builds a broader flat floor. Alloy copper sliders reduce abrasion and narrow the gap between masts.
Strict Quality Control System - ISO9001, CE, SGS, and BV Certified.
