LM Forklift
| Customization: | Available |
|---|---|
| After-sales Service: | 7 Day X 24 Hours Online Service |
| Warranty: | 1 Year |

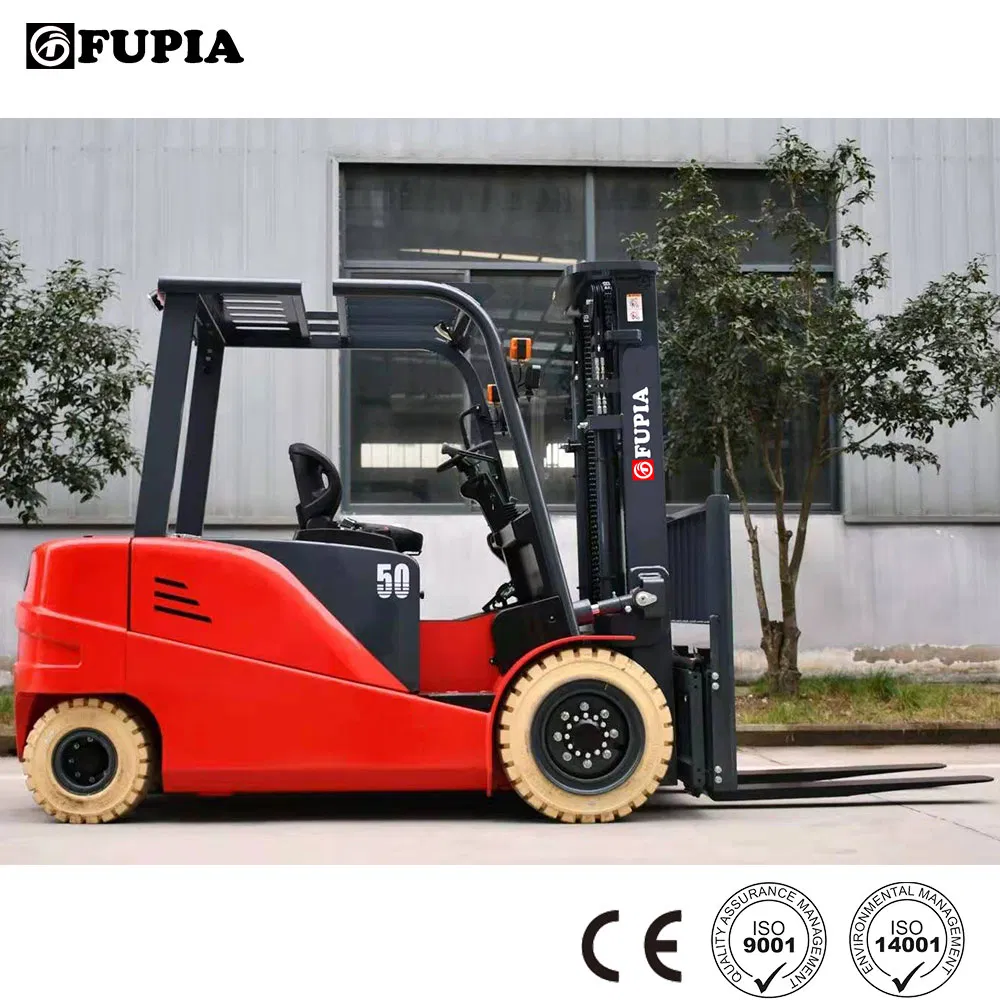

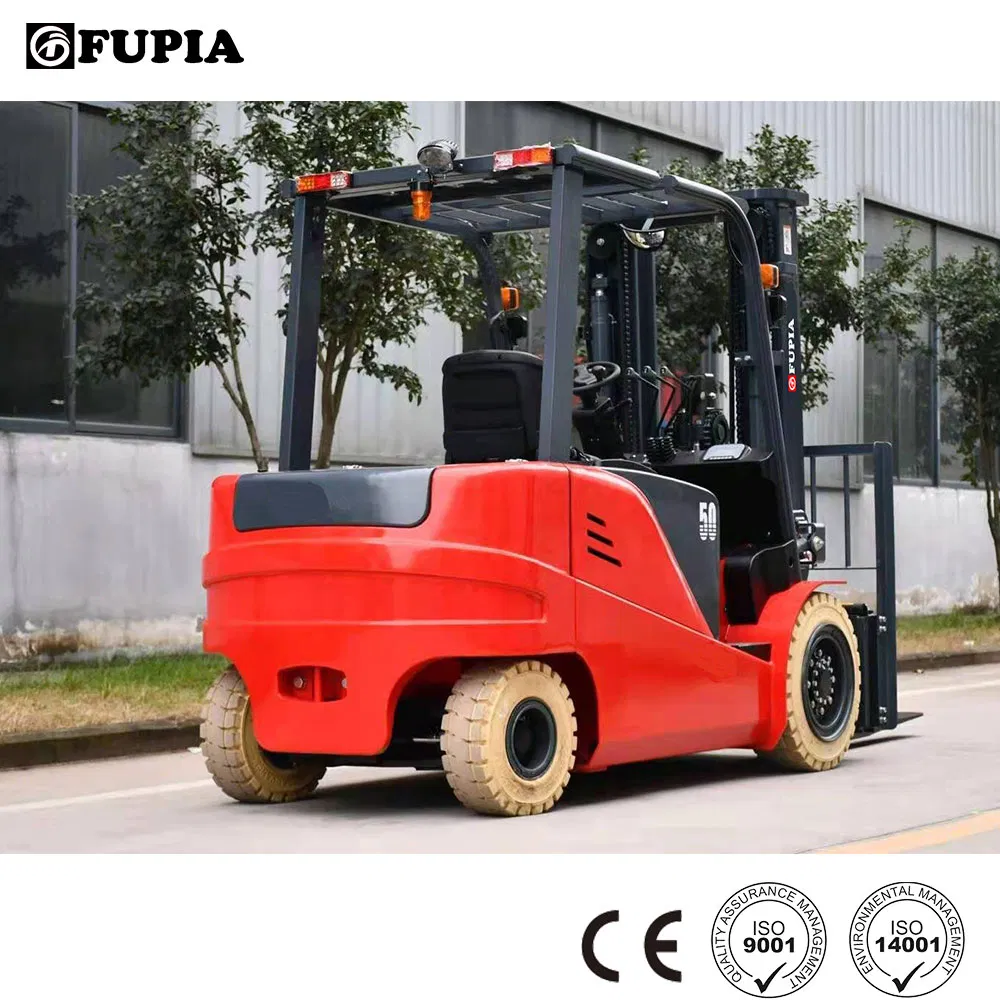

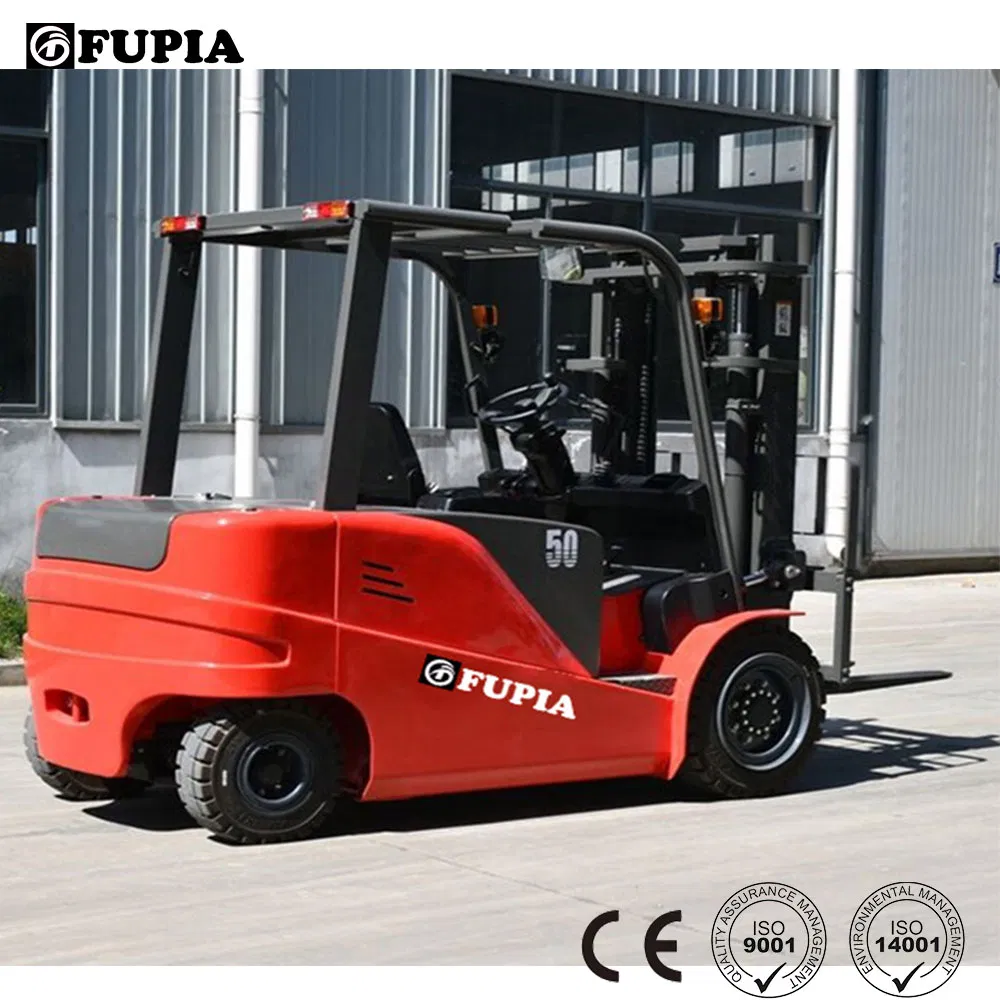

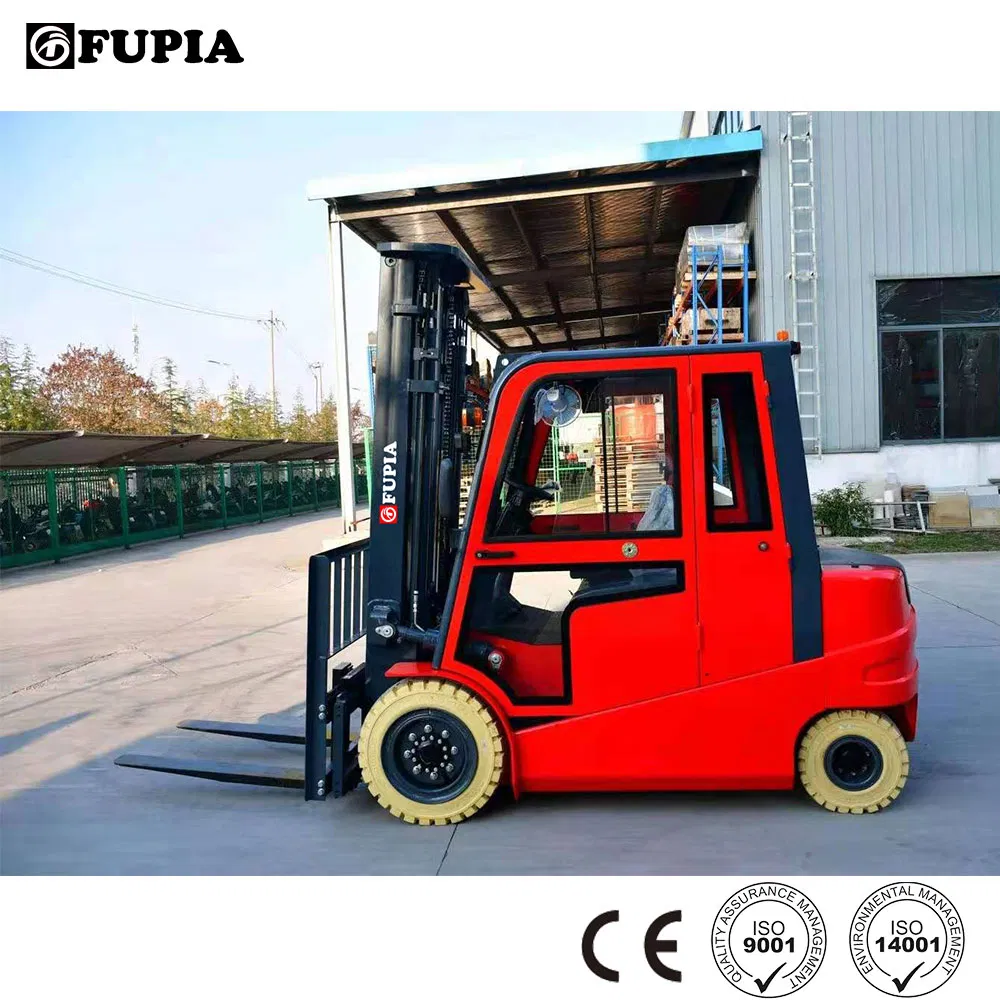

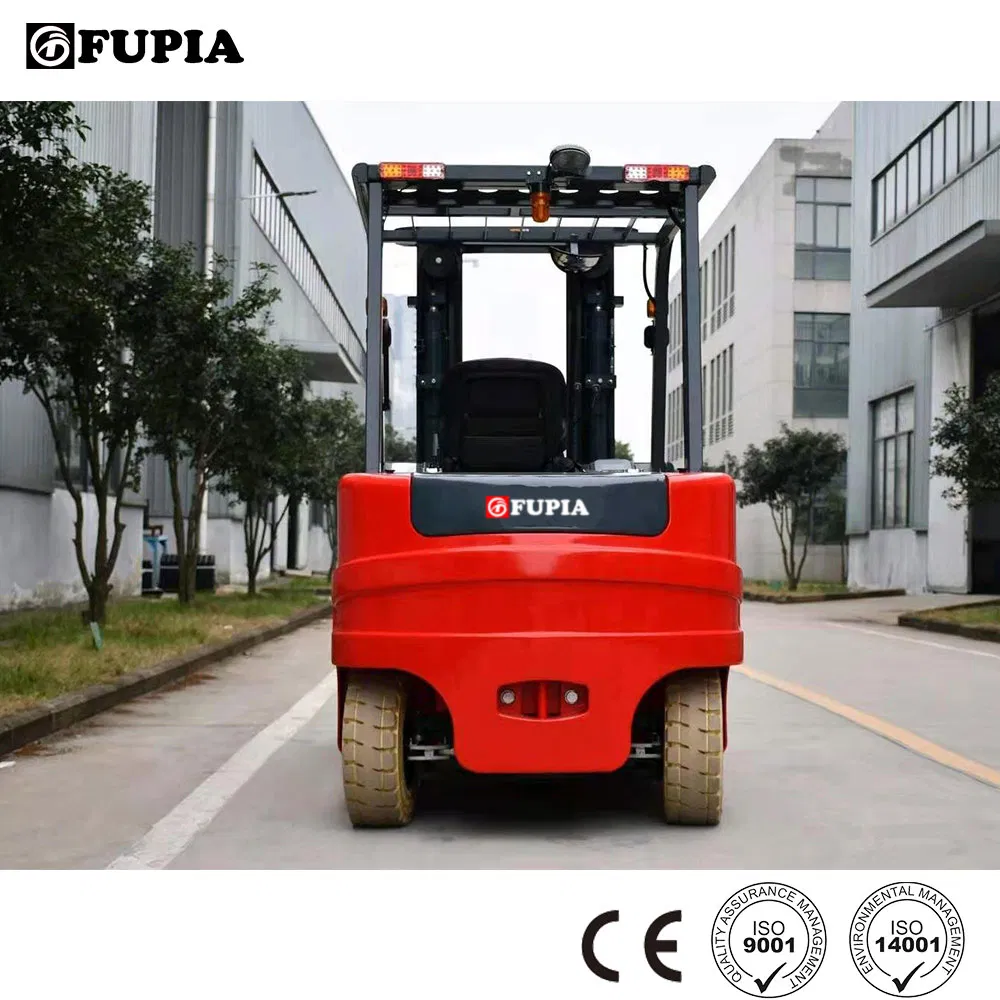

Our 4-5 ton electric forklift is designed with a strong, durable frame, powertrain, and brakes, allowing it to handle demanding loads with ease. These electric models offer a zero-emissions ride, making them perfect for your toughest warehousing challenges, particularly in the food and beverage industries.
| No. | Item | Unit | FB40 | FB45 | FB50 |
|---|---|---|---|---|---|
| 1 | Power Type | - | Battery | ||
| 2 | Rated Load Capacity | Q(kg) | 4000 | 4500 | 5000 |
| 3 | Load Centre | C(mm) | 500 | ||
| 4 | Rated Lift Height | H3(mm) | 3000 | ||
| 5 | Free Lift Height | H2(mm) | 135 | ||
| 6 | Fork Size (L×W×T) | mm | 1070×125*50 | 1070×150*50 | |
| 7 | Mast Tilt Angle (F/R) | deg | 6°/10° | 6°/11° | |
| 8 | Length to Face of Fork | L1(mm) | 2700 | 2960 | |
| 9 | Overall Width | B1(mm) | 1300 | 1430 | 1430 |
| 10 | Turning Radius | mm | 2450 | 2670 | |
| 11 | Drive motor | kw | 11.75 | 16.6 | |
| 12 | Lift motor | kw | 13 | 15 | |
| 13 | Battery | V/AH | 80/450 | 80/560 | 80/630 |
| 14 | Service weight | KG | 5300 | 6950 | 7250 |
