Basic Information
Model NO.:CPDS10-20
Cab Location:Adjustable
Type:Electric Forklift
Power:AC Motor
Load Capacity:1T - 5T
Fuel:Electric
Load center:>500mm
Lift height:>5000mm
Condition:New
Colour:Red/Yellow/Bule
Capacity:1000kg-2000kg
Liftheight:3000mm-6000mm
Power Type:Battery
Tire Type:Solid
Controller:Curtis /Intaliasme
Forksize:920mm-1200mm

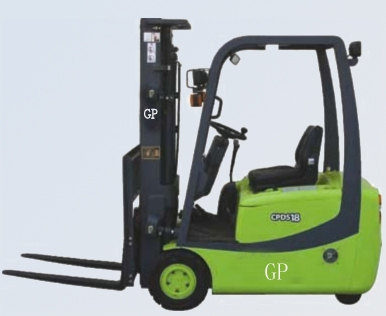

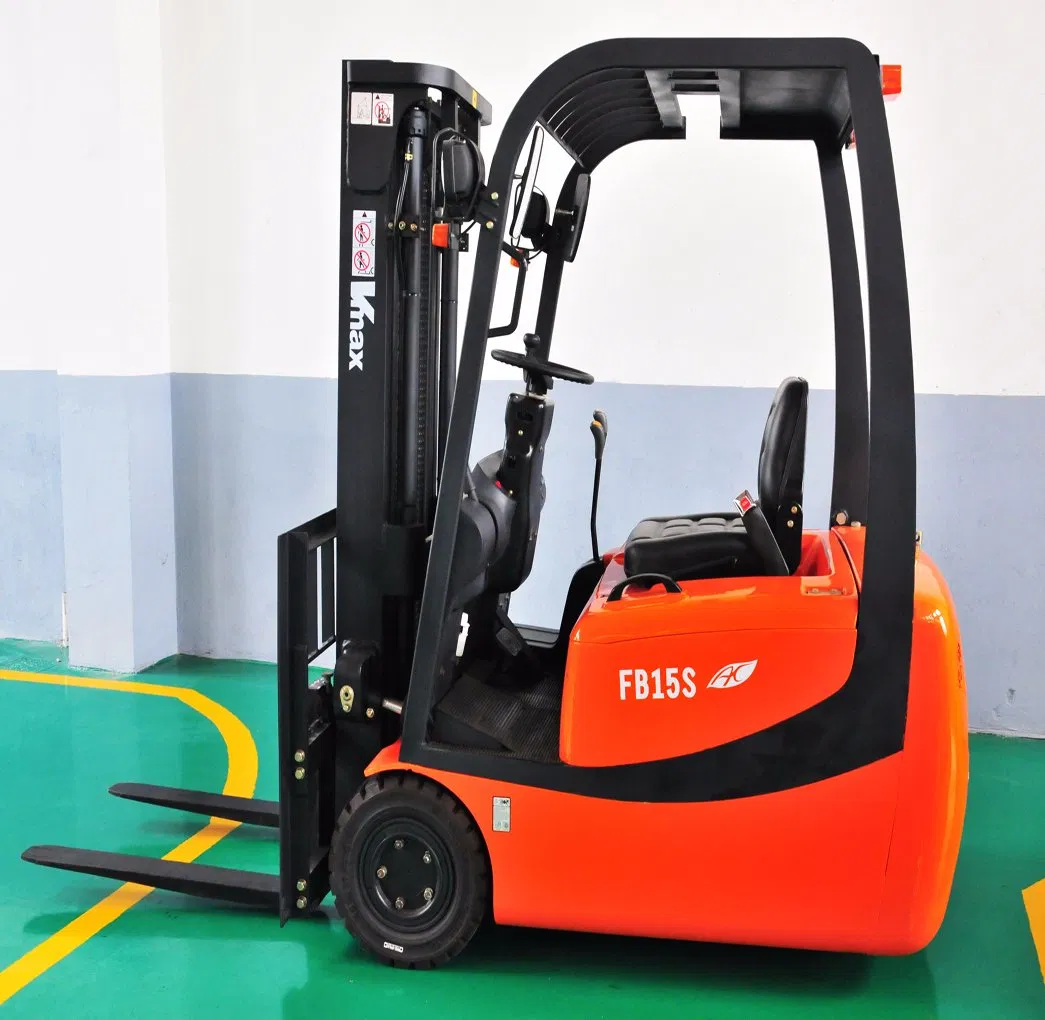

Wheel Type:3-Wheel Electric Forklift
Moto:Full AC/Full DC Power Forklift
Transport Package:Nude Packing
Specification:mini /small/battewry
HS Code:8427209000
Production Capacity:50000units /Years
⚙️
Technical Specifications
| Model |
CPDS10 |
CPDS15 |
CPDS16 |
CPDS18 |
CPDS20 |
| Load capacity (kg) |
1000 |
1500 |
1600 |
1800 |
2000 |
| Load center (mm) |
500 |
500 |
500 |
500 |
500 |
| Lifting height (mm) |
3000 |
3000 |
3000 |
3000 |
3000 |
| Fork size (mm) |
920*100*35 |
920*100*35 |
920*100*35 |
920*100*35 |
920*100*35 |
| Mast tilt (forth/back) |
2°/5° |
2°/5° |
2°/5° |
2°/5° |
2°/5° |
| Overall length (mm) |
2320 |
2420 |
2420 |
2520 |
2520 |
| Overall width (mm) |
850 |
960 |
1050 |
1070 |
1200 |
| Turning radius (mm) |
1167 |
1236 |
1346 |
1456 |
1576 |
| Driving speed (km/h) |
6.3/8.3 |
6.0/8.0 |
5.7/7.7 |
5.4/7.4 |
5/7 |
| Battery 24V |
D-360 |
D-420 |
D-490 |
D-550 |
D-610 |
✔
Easy to drive and simplicity are key elements for the counterbalanced trucks in this series to fit your needs.
✔
The electric counterbalance series includes a choice of forklifts with lifting capacity from 1000 to 2000 kilograms and lift heights up to 6 meters.
✔
Equipped with incline safe lock and oil duct security trip valve for enhanced operational safety.
❓
Frequently Asked Questions
1. What is the load capacity range of these electric forklifts?
The series offers a load capacity ranging from 1000kg (1T) up to 2000kg (2T) for the standard CPDS models, with options reaching up to 5T.
2. What type of motor and controller system is used?
These forklifts utilize a Full AC or Full DC power system and are equipped with high-quality Curtis or Inmotion controllers for precise handling.
3. What are the maximum lifting heights available?
Standard models provide lifting heights from 3000mm up to 6000mm, suitable for various warehouse and industrial stacking requirements.
4. Is the 3-wheel design suitable for narrow aisles?
Yes, the 3-wheel electric forklift is designed for maneuverability with a small turning radius (as low as 1167mm), making it ideal for tight spaces.
5. What safety features are integrated into the mast system?
The forklifts include an incline safe lock and an oil duct security trip valve to ensure load stability and operator safety during lifting operations.
6. What type of tires are fitted on these models?
These forklifts are equipped with durable solid tires, providing stability and low maintenance for indoor and smooth-surface operations.
