LM Forklift
LM Forklift

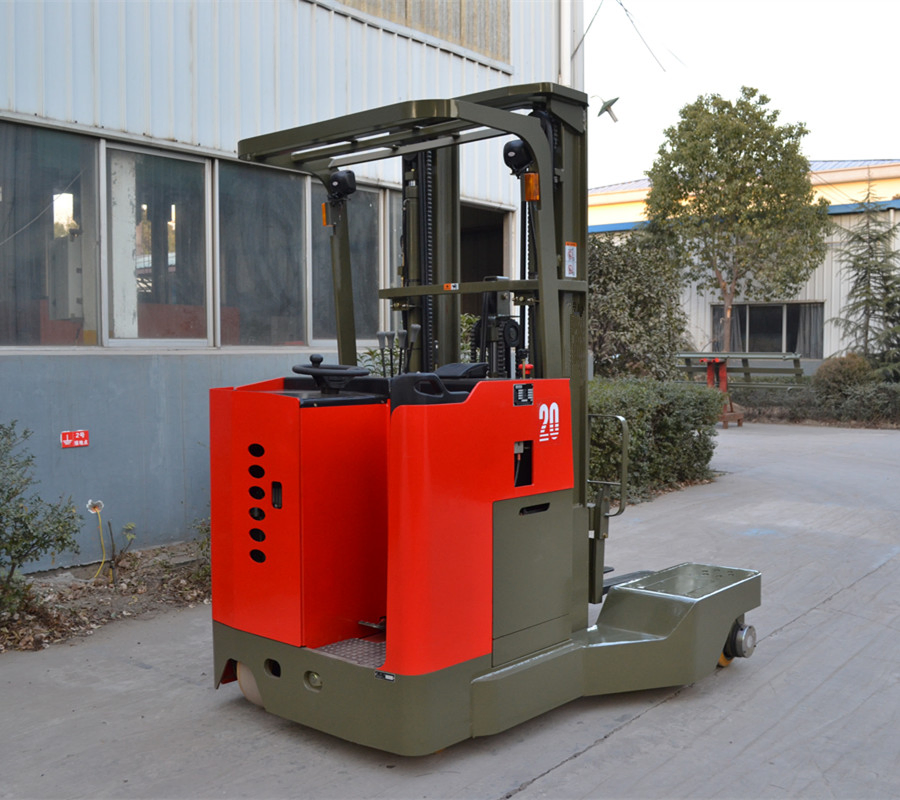

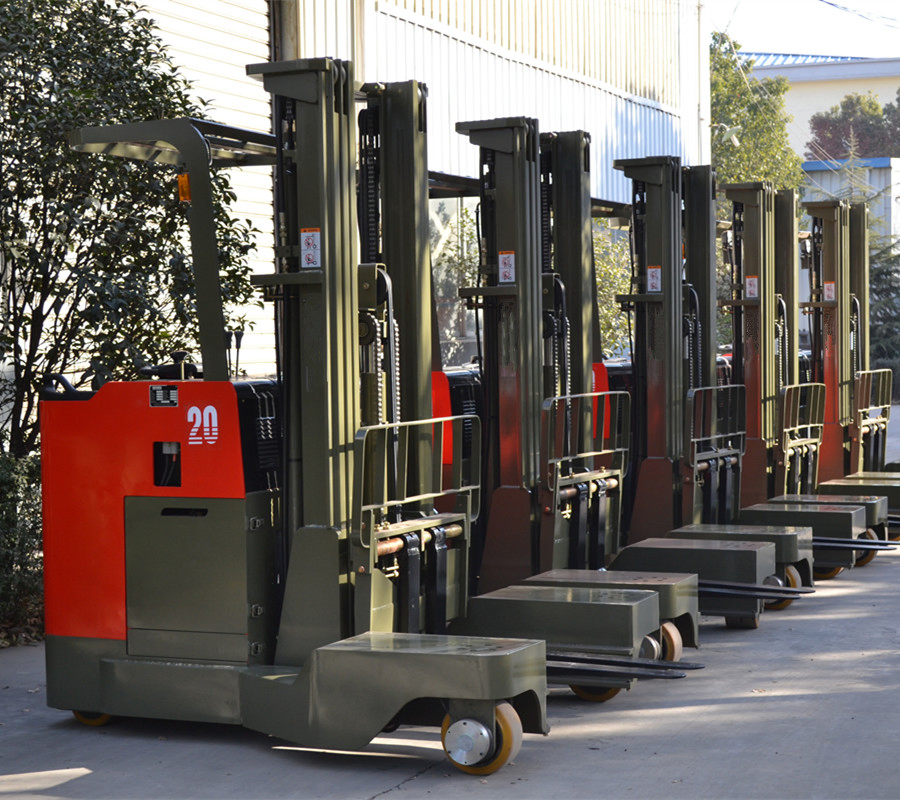

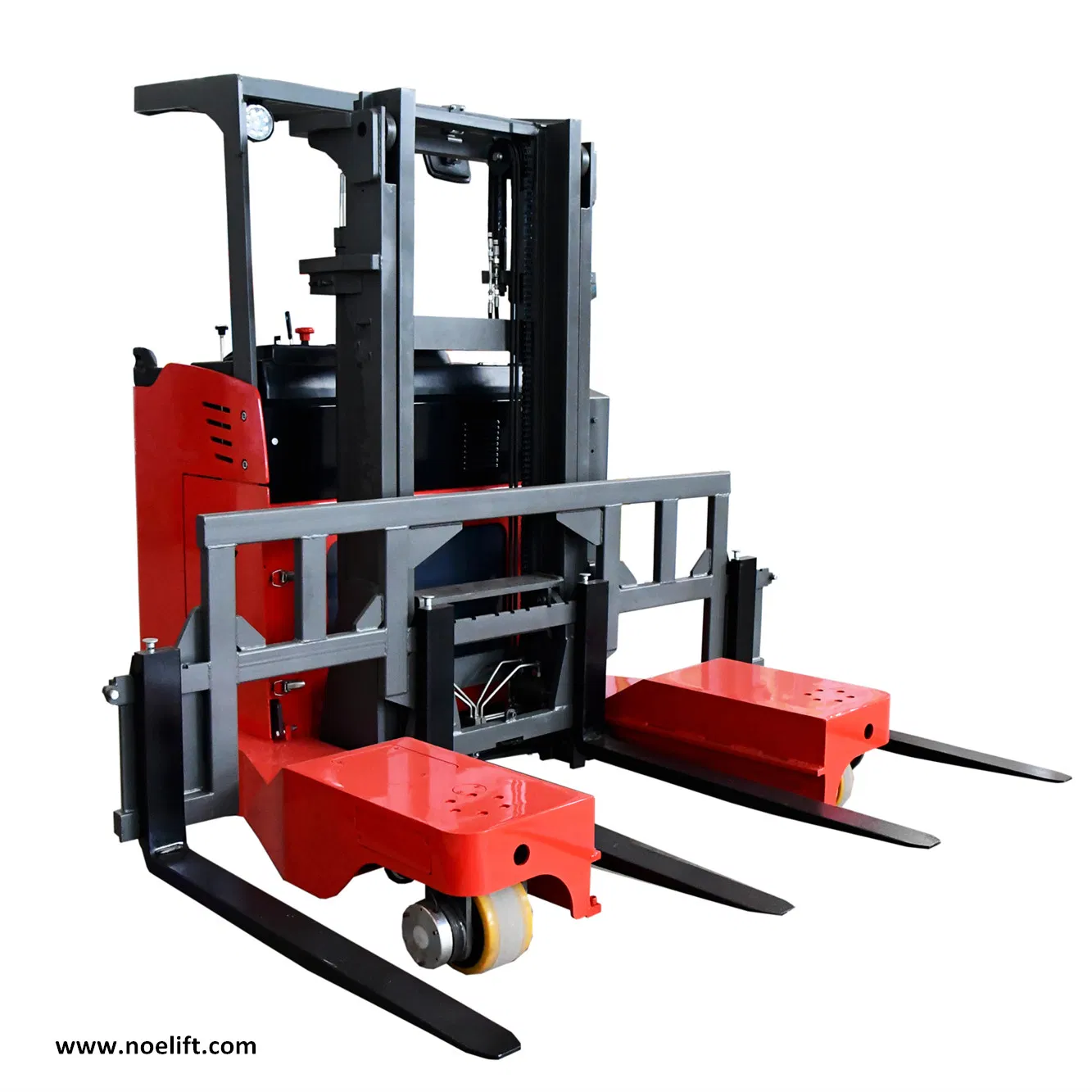

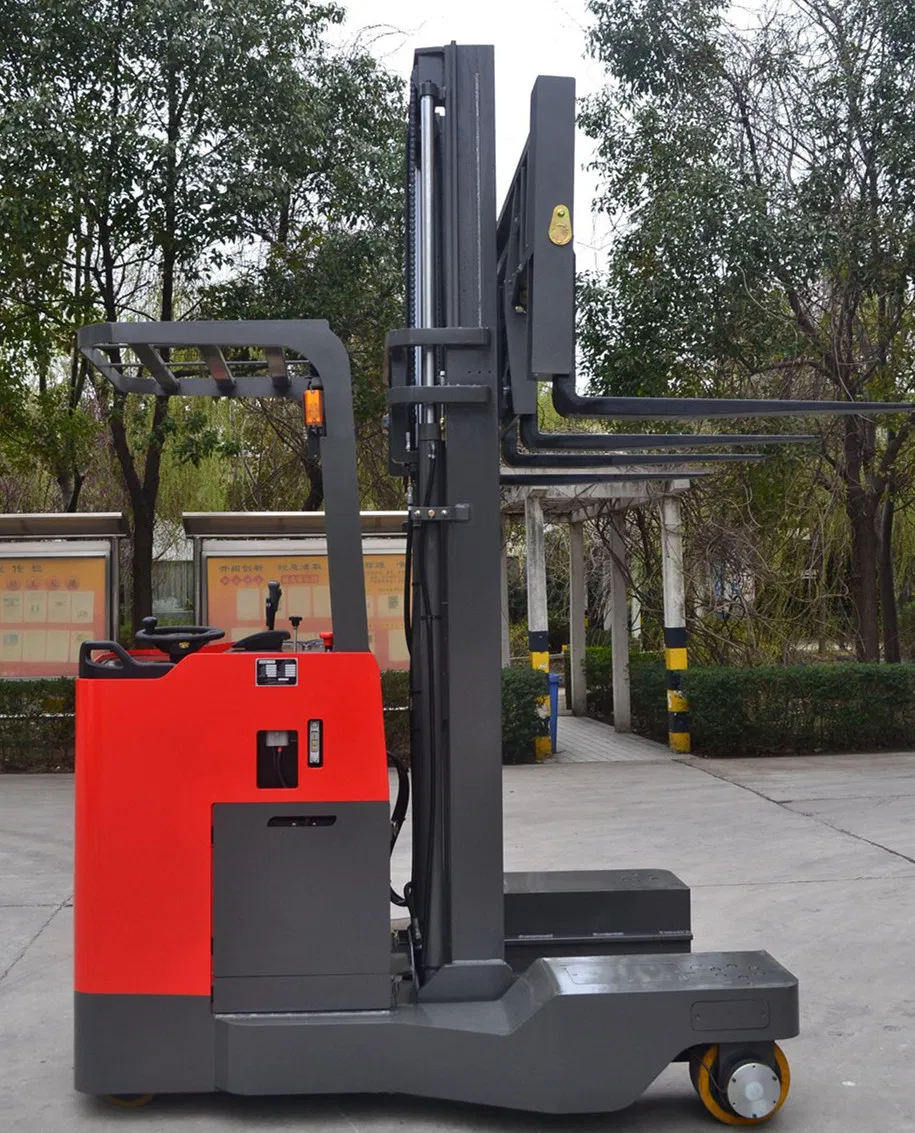

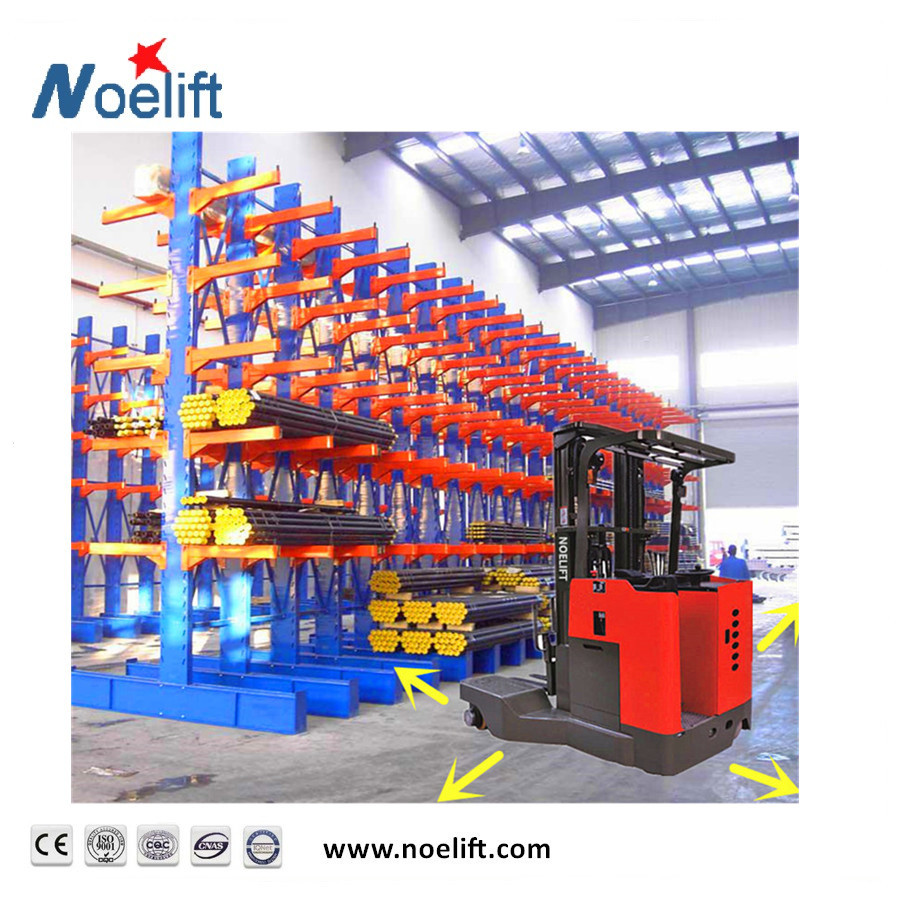

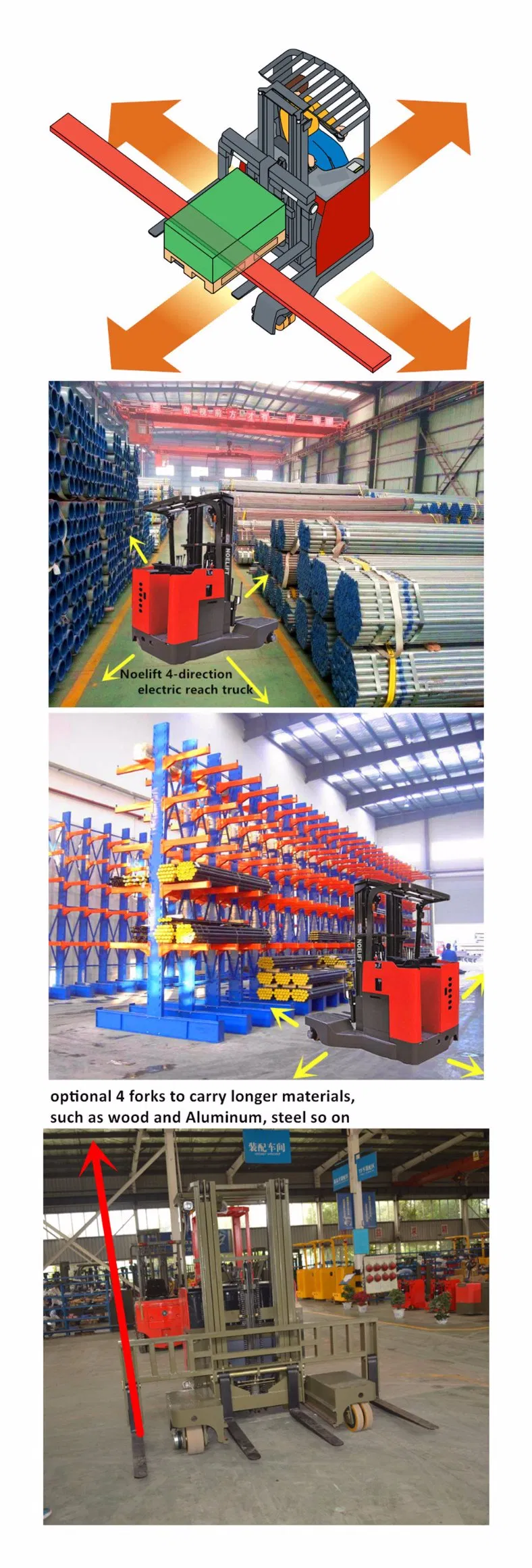

Long materials carrier 4 direction electric reach truck

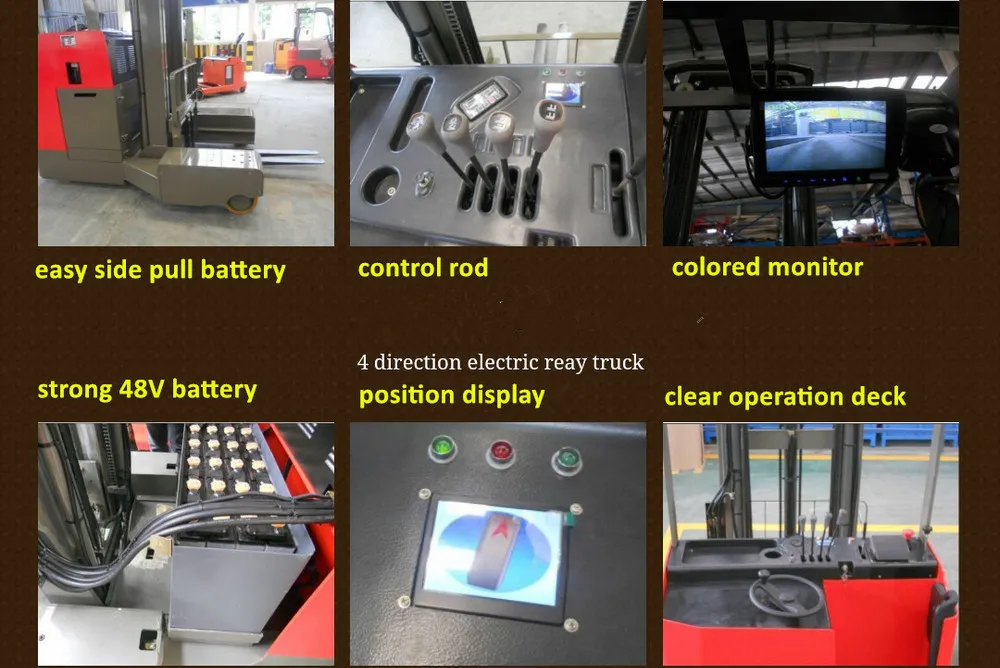

Note: Color monitor + camera equipped when lift height ≥4.5m.
| Description | TFB15 | TFB20 | TFB25 |
|---|---|---|---|
| Loading capacity (kg) | 1500 | 2000 | 2500 |
| Loading center (mm) | 500 | 500 | 500 |
| Lifting height (mm) | 3000 | 3000 | 3000 |
| Fork size (mm) | 1070×100×35 | 1070×100×45 | 1070×100×45 |
| Overall width (mm) | 1640 | 1800 | 1800 |
| Battery (Ah) | 48V/300Ah | 48V/400Ah | 48V/400Ah |
| Driving motor (Kw) | 5.5(AC) | 5.5(AC) | 5.5(AC) |
| Mast Type | Lift Height | Lowered Height | Capacity @ Max Height (1.5T) | Capacity @ Max Height (2.0T) |
|---|---|---|---|---|
| Duplex | 3000mm | 2120mm | 1500kg | 2000kg |
| Duplex | 4000mm | 2620mm | 1000kg | 1200kg |
| Triplex | 5000mm | 2340mm | 900kg | 1000kg |
| Triplex | 6000mm | 2680mm | 700kg | 800kg |
Our facility provides a whole product range including diesel/gasoline/LPG forklift trucks with load capacities of 1 to 10 tons and electric/warehouse trucks, including electric reach trucks, stackers, and tow tractors. The full range encompasses close to 100 different models under ISO9001:2008 and CE norms.
