Very Narrow Aisle Vna Truck Forklift Electric Forklift Truck for Storage Steel Pallet Racking

1 / 5

Very Narrow Aisle Vna Truck Forklift Electric Forklift Truck for Storage Steel Pallet Racking

Customization:	Available
After-sales Service:	1 Year
Warranty:	1 Year

Send Inquiry

Product Description

📋 Basic Info

Model NO.

MC15

Type

Electric Forklift

Power

AC Motor

Load Capacity

1T - 5T

Fuel

Electric

Lift height

3000-9000mm

Load center

500mm

Condition

New

Turning Radius

1880mm

Production Capacity

1000 PCS/Year

📊 Technical Specifications

Model	Unit	MC10	MC10SQ	MC15	MC15SQ
Power type	-	Battery	Battery	Battery	Battery
Operation Type	-	Stand-on	Stand-on	Stand-on	Stand-on
Service weight	kg	4260	4800	4690	5520
Rated capacity	kg	1000	1000	1500	1500
Load center	mm	500	500	600	600
Lift height	mm	3000	4500	3000	4500
Turning radius	mm	1880	1880	1980	1980
Travelling speed	km/h	7.5/8	7.5/8	7.5/8	7.5/8

🏗️ Applications & Main Features

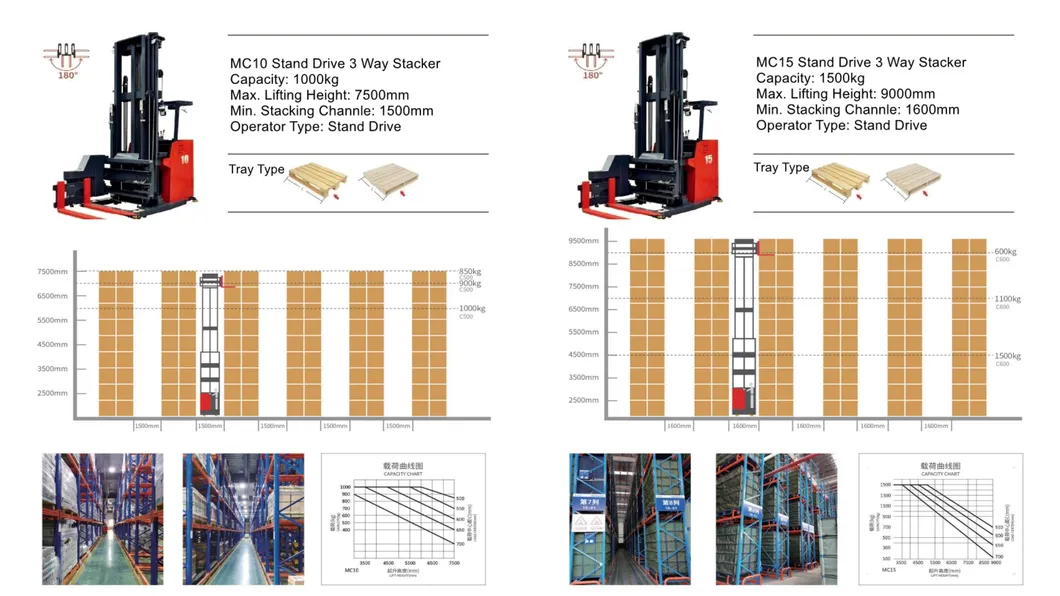

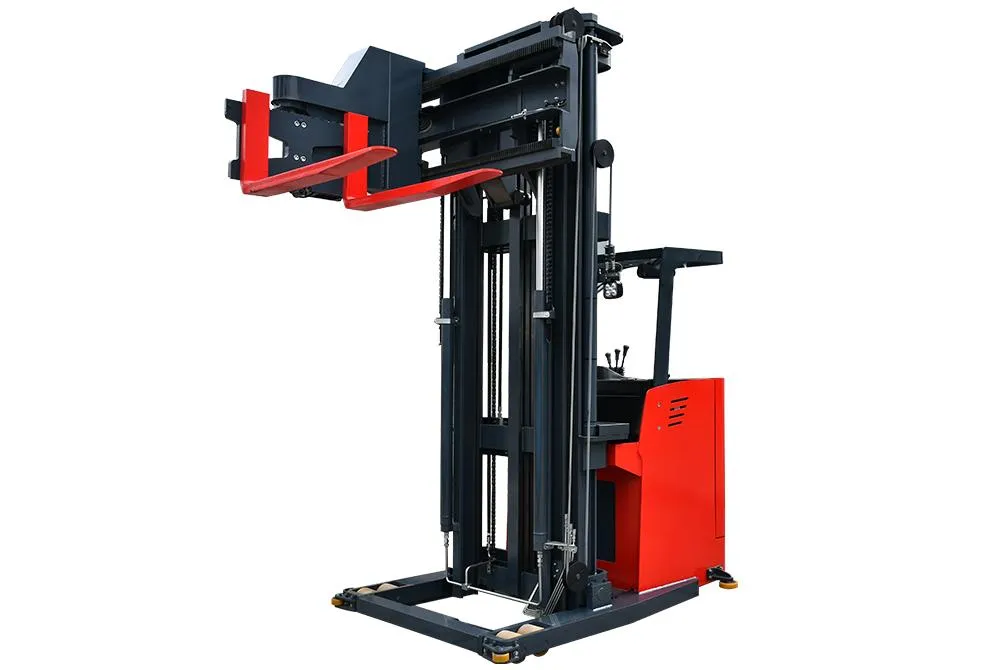

MC Series 1.0-1.5T 3-way pallet stacker (Stand-on Driving type)

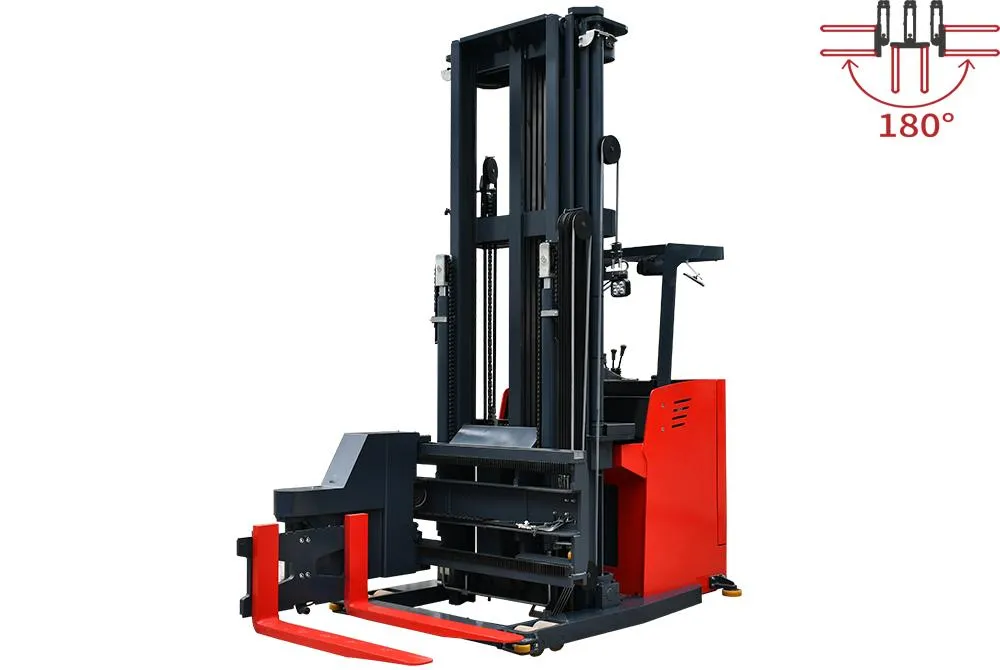

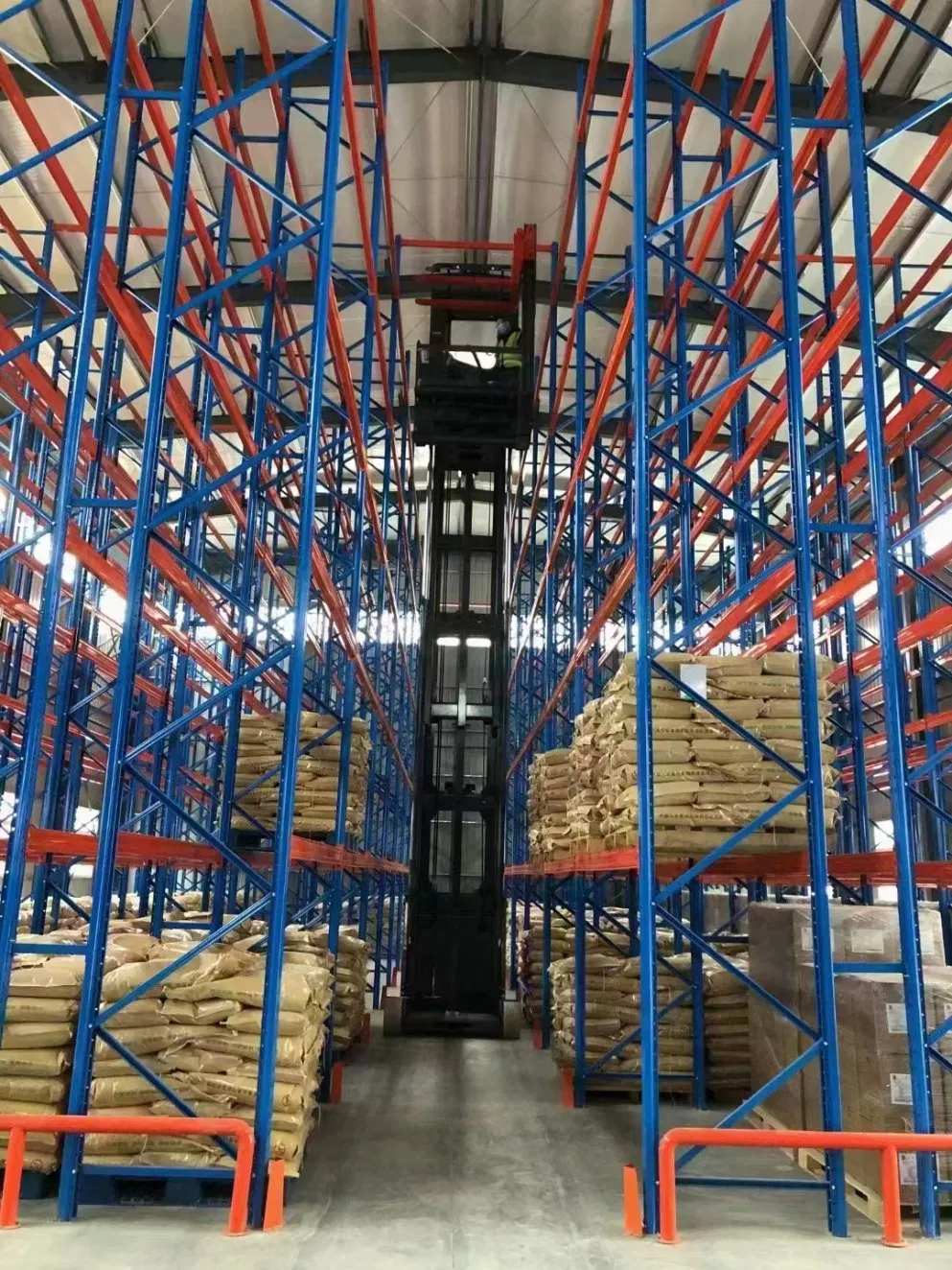

3-way stacking function: forks can rotate 180° and do left-right side shift without body turning. Ideal for intensive storage in logistics, medicine, food, and low-temperature cold storage.

3-Way Stacking: Forks rotate 180° for left-right side shifts. Min. net channel: 1500mm; Max. lifting height: 9000m.

Advanced Control: Curtis controller with a stable whole-AC system for high efficiency and energy conservation.

Low Maintenance: Maintenance-free whole-AC driving system provides quick reaction and low noise.

Robust Construction: Large section mast structure ensures rigidity, perfect for high shelf storage.

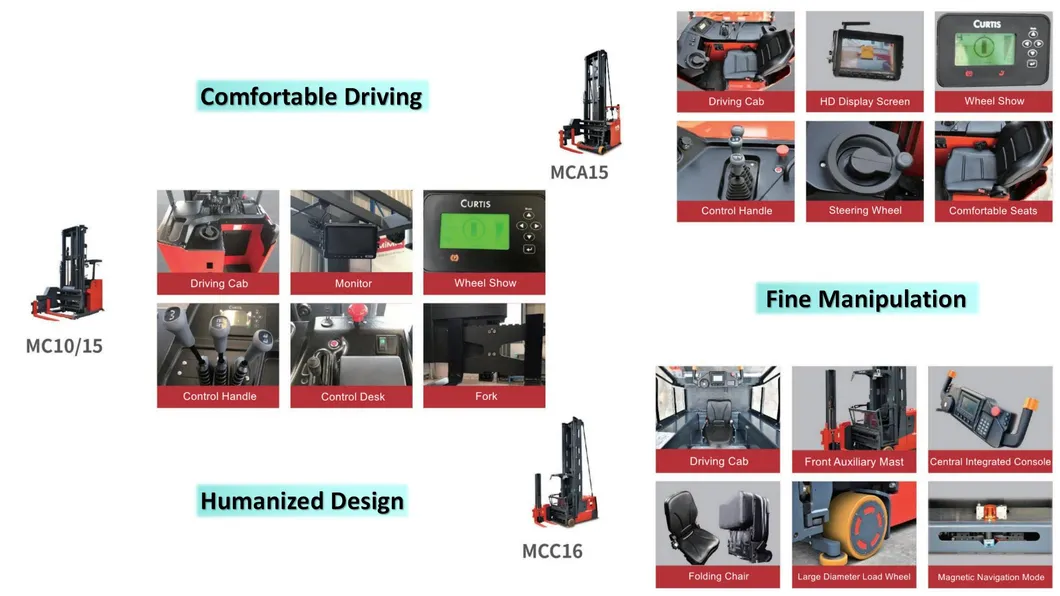

🔧 Quality Components

✔ Gantry channel steel imported from Germany with shock absorption.

✔ Danfoss or Eaton side shift and rotary motors.

✔ American AMP waterproof and dustproof plug-ins.

✔ Japanese NOK seals and German SICK brand steering sensors.

🛠️ Professional Service

Pre-Sales

• Inquiry and consulting support.
• Photos & Videos for order before shipment.
• Factory visiting.

After-Sales

• Machine operation training.
• Life-time supply for spare parts.
• Detailed user manuals and videos.

Warranty

• One year guarantee for main parts.
• 24 hours technical email support.
• Maintenance tool boxes included.

❓ Frequently Asked Questions

What is the advantage of a 3-way pallet stacker?

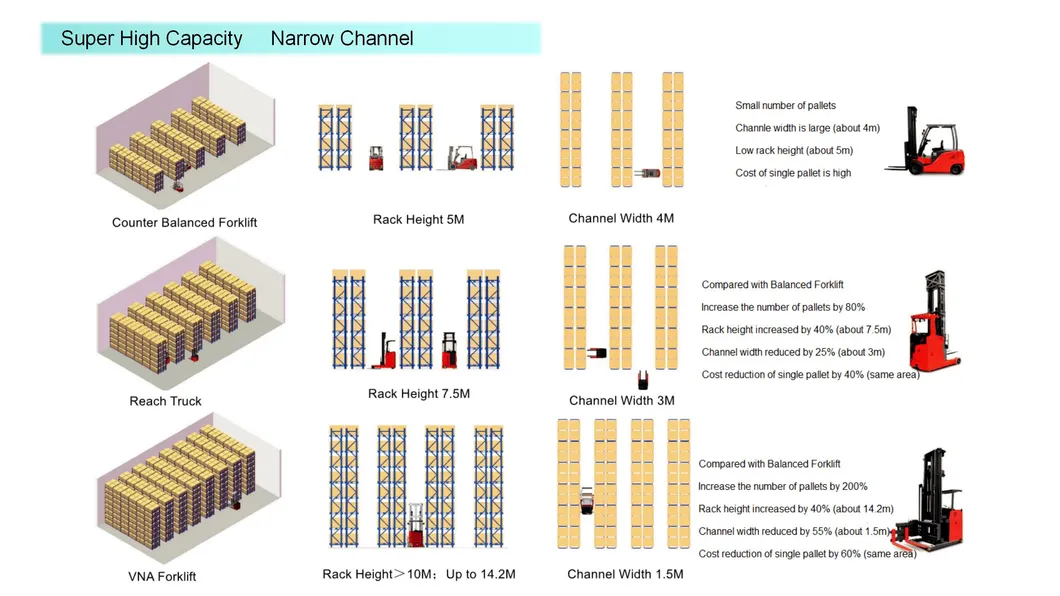

The forks can rotate 180 degrees and perform side shifts without the truck body turning, making it perfect for ultra-narrow aisles as small as 1500mm.

What is the maximum lifting height of the MC series?

The MC series can reach a maximum lifting height of up to 9000mm, designed specifically for high-shelf intensive storage.

Does the electric forklift require frequent maintenance?

The truck uses a maintenance-free whole-AC driving system and motor, which significantly reduces maintenance costs and effort while extending service life.

Can this forklift be used in cold storage environments?

Yes, the 3-way pallet stacker is an ideal choice for low-temperature cold storage, logistics, and food industry applications.

What power control system does the vehicle use?

It is equipped with an advanced Curtis controller for stable and safe AC operation, ensuring high efficiency and energy conservation.

How is the battery charged or replaced?

The design features a side-pull type battery, which allows for convenient charging and quick replacement for continuous operations.
