LM Forklift
LM Forklift
| Model NO. | ZCY | Material | Stainless Steel |
|---|---|---|---|
| Material Feature | Fire Resistant | Certification | ISO9001:2008, ISO9001:2000 |
| Energy Saving | Energy Saving | Warranty | 1 Year |
| Color | Yellow | Customized | Customized |
| Condition | New | After-sales Service | 7*24 Hours |
| Bucket Width | 1480~1770 mm | Maximum Dump Height | 1550~1650 mm |
| Maximum Dump Angle | 55° | Maximum Travel Speed | 34~36 M/Min |
| Minimum Ground Clearance | 180~200 mm | Maximum Underbed Depth | 600 mm |
| Gradability | ±16° | Production Capacity | 1000 pieces/Year |
| Package Size | 4500.00cm * 1200.00cm * 1560.00cm |
|---|---|
| Package Gross Weight | 5200.000kg |

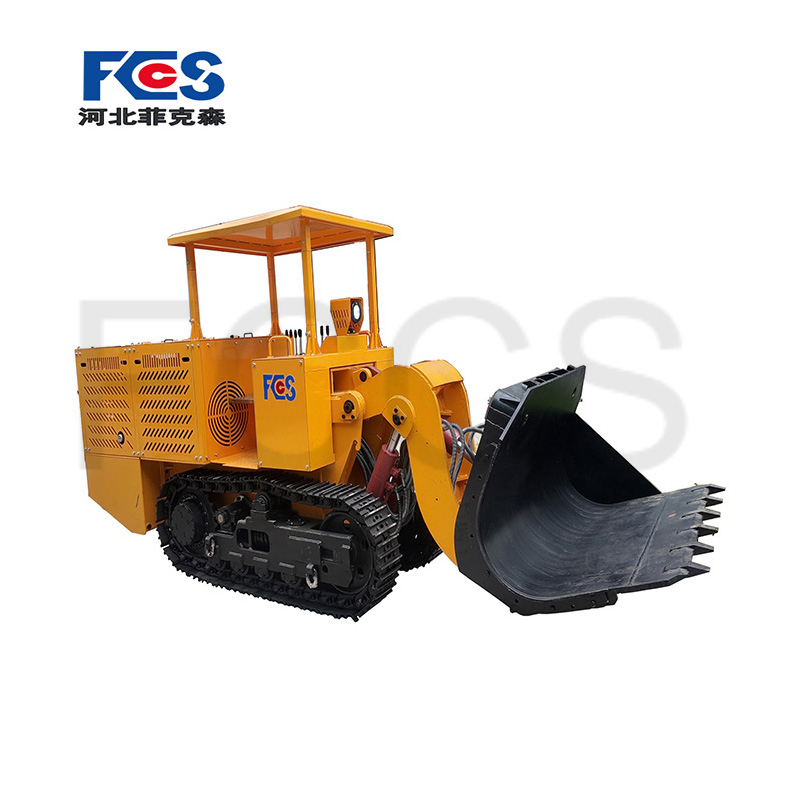

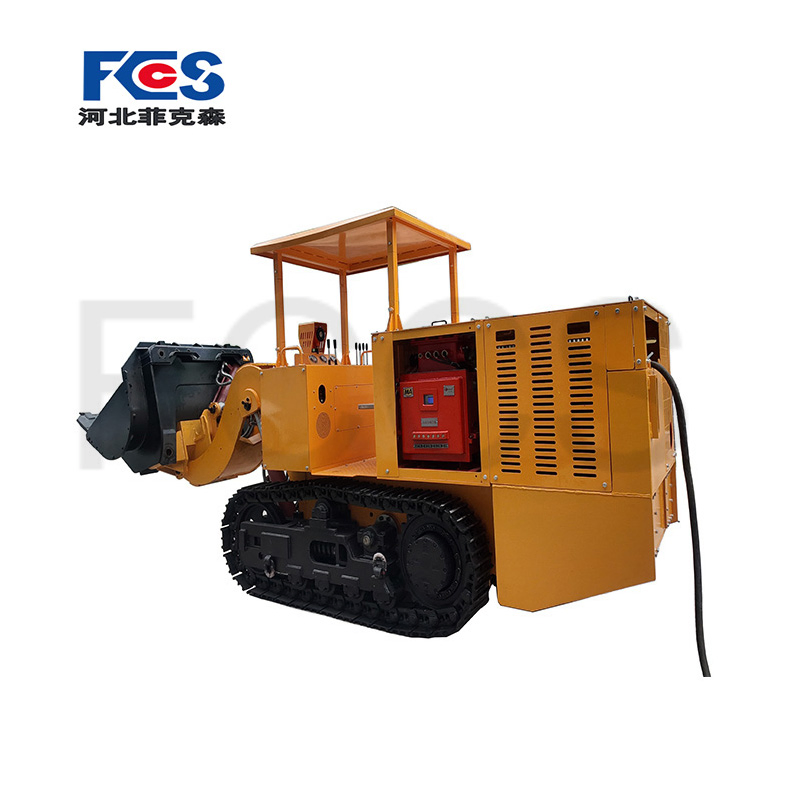

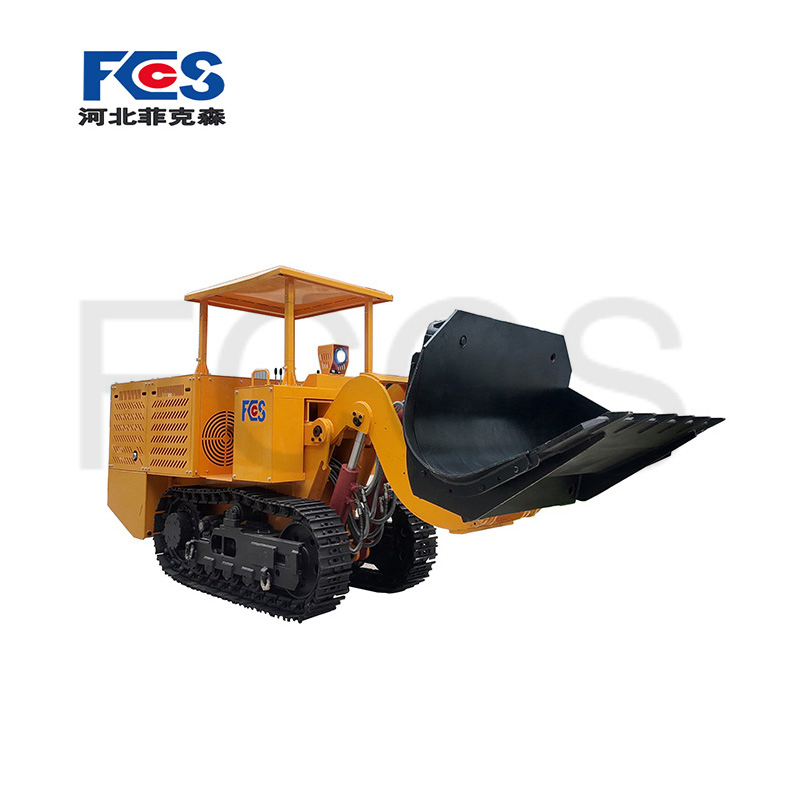

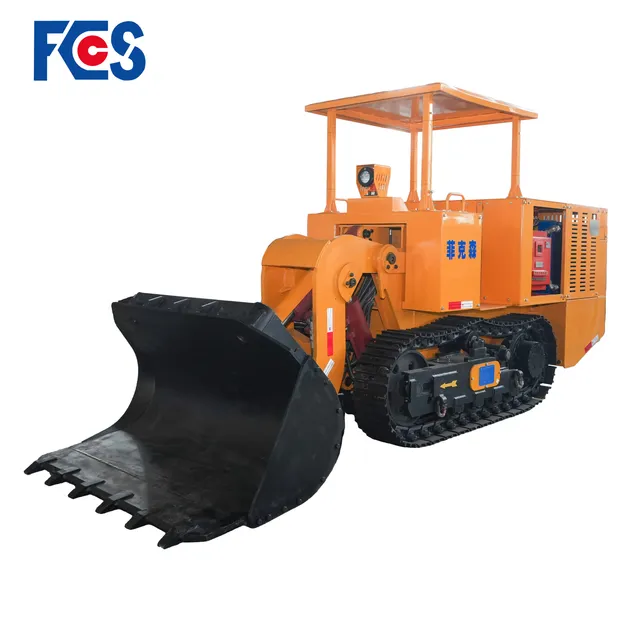

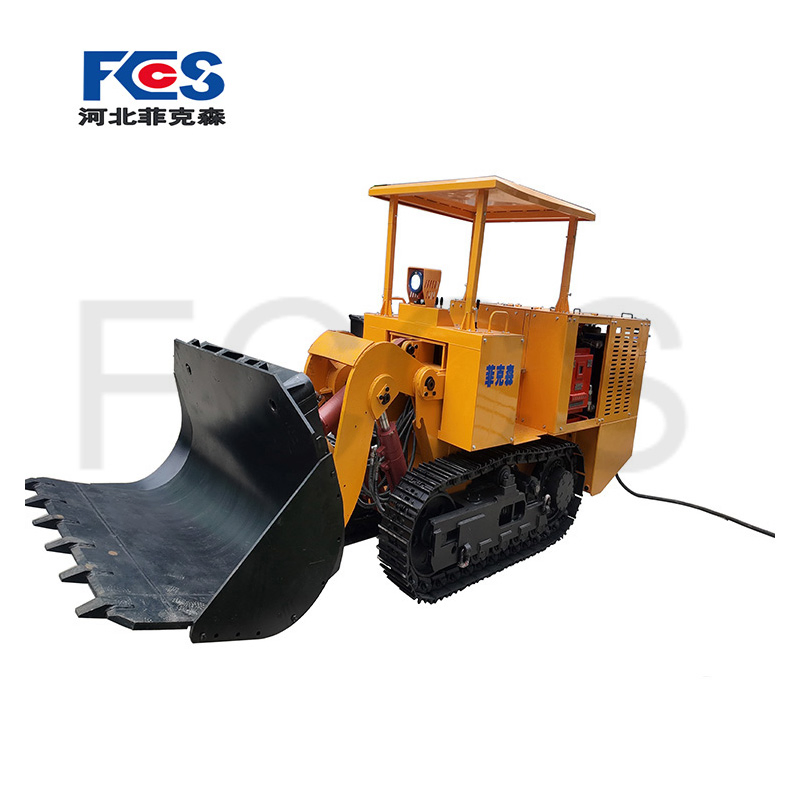

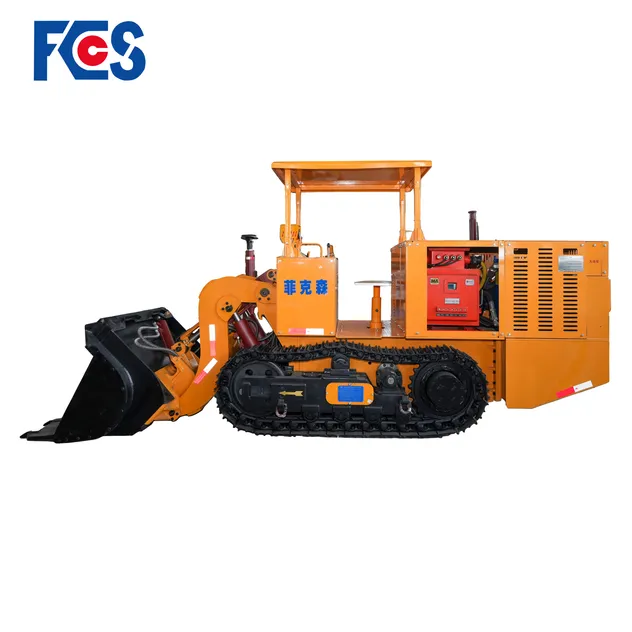

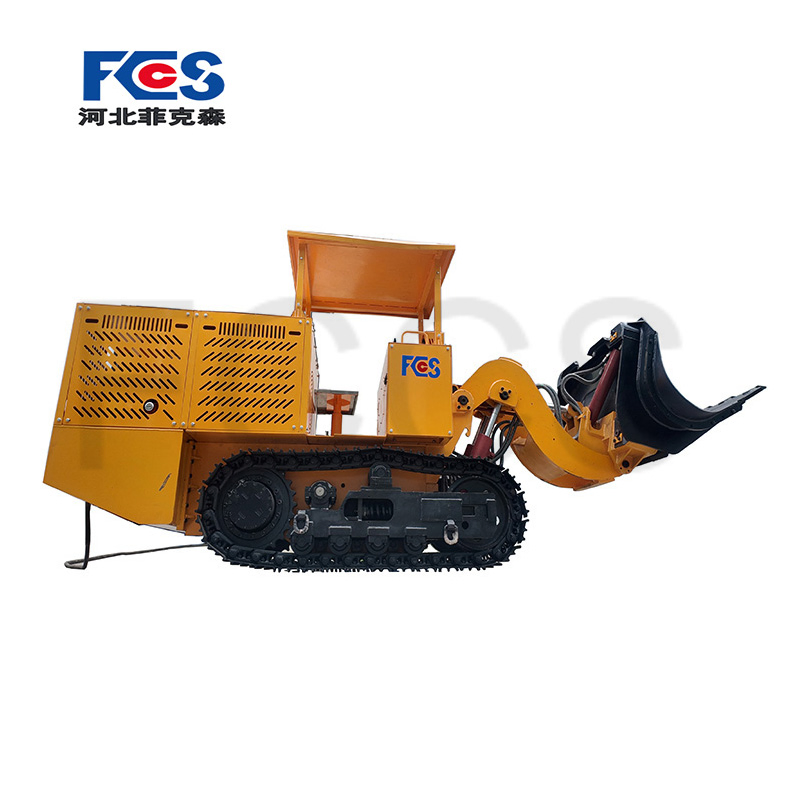

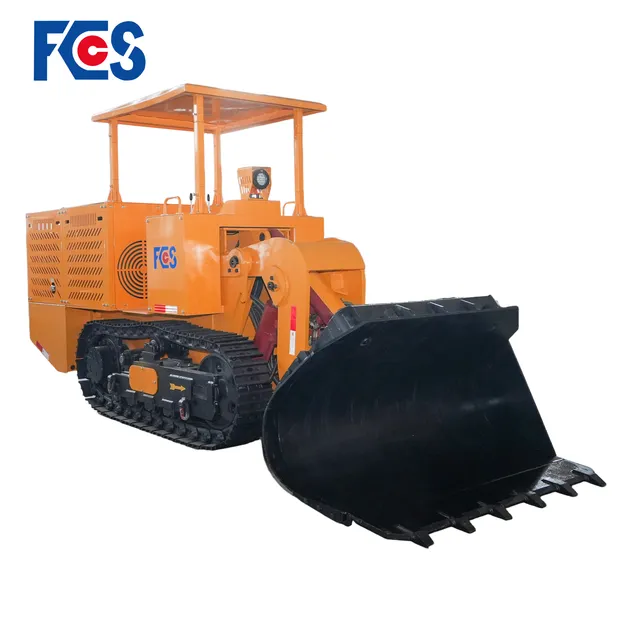

ZCY45R Side Dump Rock loader is a tracked, trackless loading device primarily used in coal and semi-coal-rock roadways, and can also be used in small-section full-rock roadways for loading coal, rock, and other materials. This product features high insertion force, good maneuverability, full-section operation, high safety, and multi-purpose functionality. In addition to loading operations, it can also serve as a working platform during support work, facilitating short-distance transport, bottom-level work, and sidewall cleaning.
(Custom configurations available upon request.)
| SN | Parameter Name | Value (ZCY45R) |
|---|---|---|
| 1 | Overall Dimensions (L×W×H) mm | 4500×1200×1560 |
| 2 | Technical Bucket Volume (m³) | 0.45 |
| 3 | Bucket Width (mm) | 1480 |
| 4 | Maximum Unloading Height (mm) | 1550 |
| 5 | Maximum Unloading Angle (°) | 55 |
| 6 | Maximum Travel Speed(m/min) | 34 |
| 7 | Minimum Ground Clearance (mm) | 180 |
| 8 | Maximum Bottom Depth (mm) | 600 |
| 9 | Climbing Ability (°) | ±16 |
| 10 | Track Shoe Width (mm) | 260 |
| 11 | Track Ground Pressure (MPa) | ≤0.1 |
| 12 | Hydraulic Pump Motor Power (kW) | 30 |
| 13 | Voltage (V) | 1140/660 |
| 14 | Walking working pressure (MPa) | 19 |
| 15 | Machine weight (kg) | 5200 |

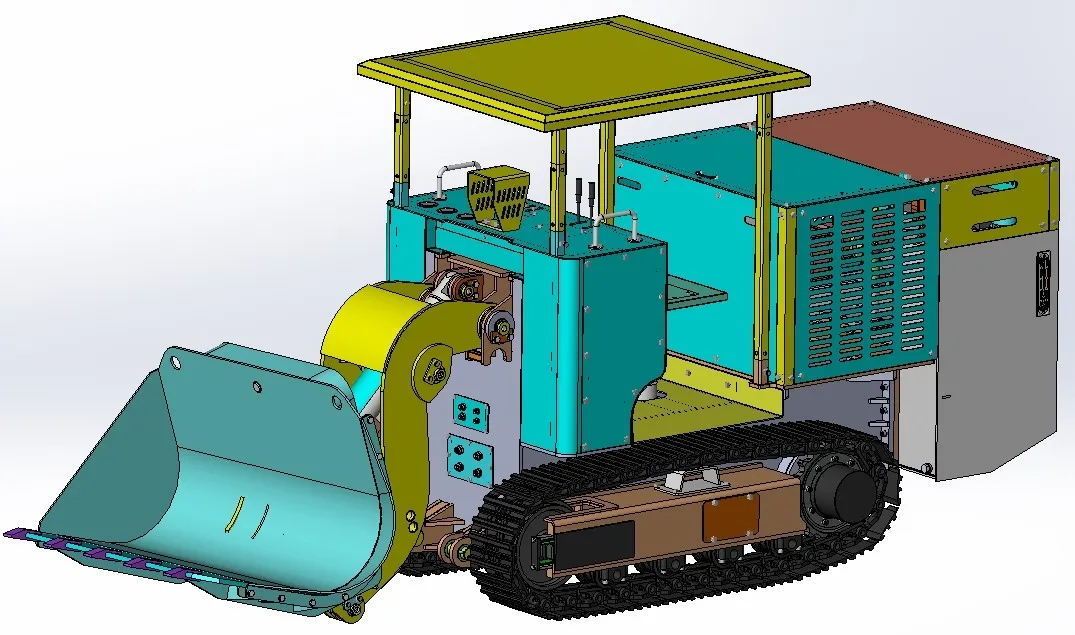

Detailed CAD drawings and dimensional diagrams are available upon inquiry. Our engineering team can provide tailored designs to meet specific project requirements.

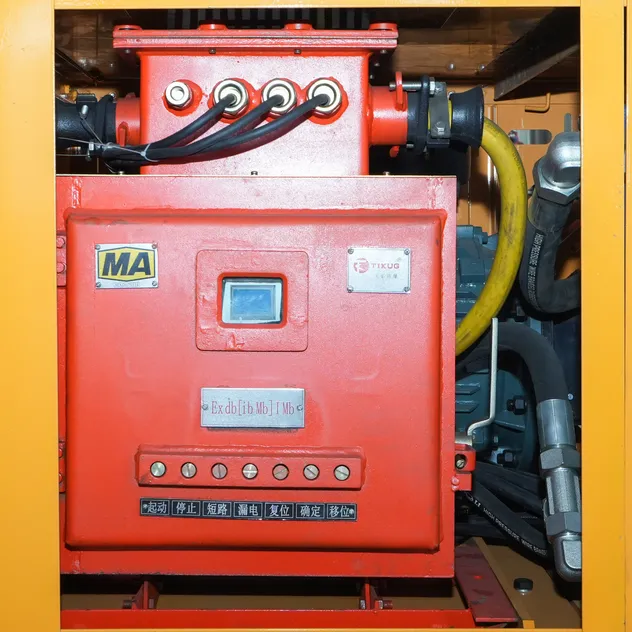

This equipment is a fully hydraulic side-dumping loader powered by an electric motor, with hydraulic motors driving the tracks and hydraulic cylinders operating the bucket. It consists of: 1. Working mechanism, 2. Hydraulic system, 3. Chassis running gear, 4. Air-cooling system, and 6. Electrical system.

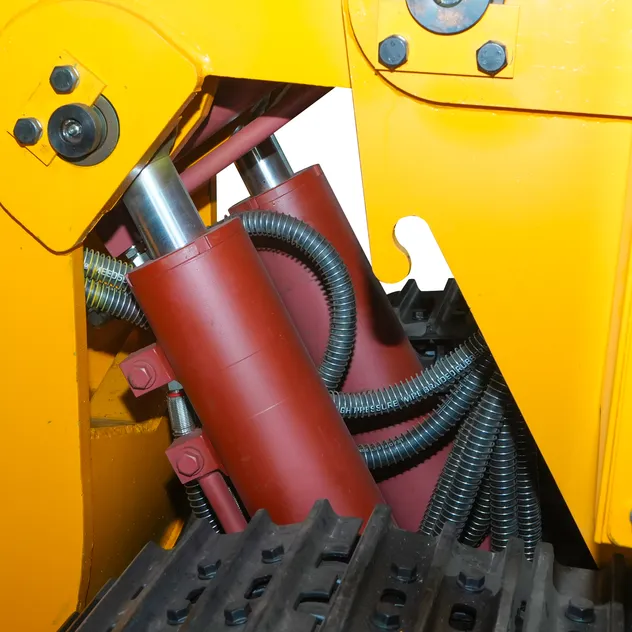

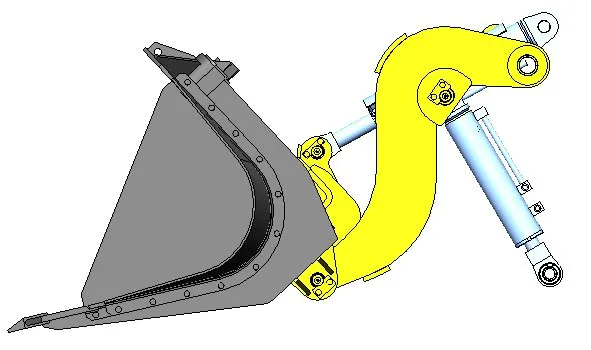

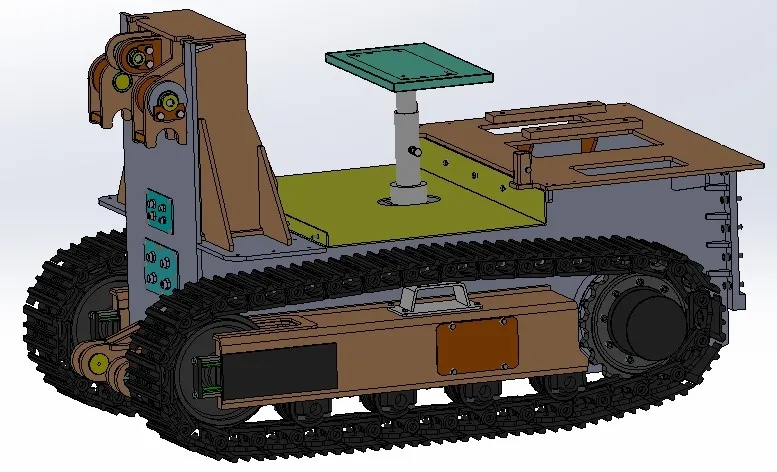

The working mechanism consists of the bucket, bucket base, bucket arm, bucket tilting cylinder, lifting cylinder, side dumping cylinder, etc. Operating the side-dumping cylinder tilts the bucket to one side, achieving unloading. The front shovel plate is made of wear-resistant steel, suitable for loading hard sandstone.
The walking mechanism consists of idler wheels, track rollers, sprockets, track assembly, tensioning device, and chassis frame. The machine uses a parking brake that automatically engages under spring action for maximum safety.
Standard Warranty: 12 months or 2,000 operating hours (whichever comes first).
Extended Warranty: Optional coverage up to 36 months.
Global Support: 24/7 technical assistance and spare parts supply.
Training: On-site or remote operation/maintenance training.

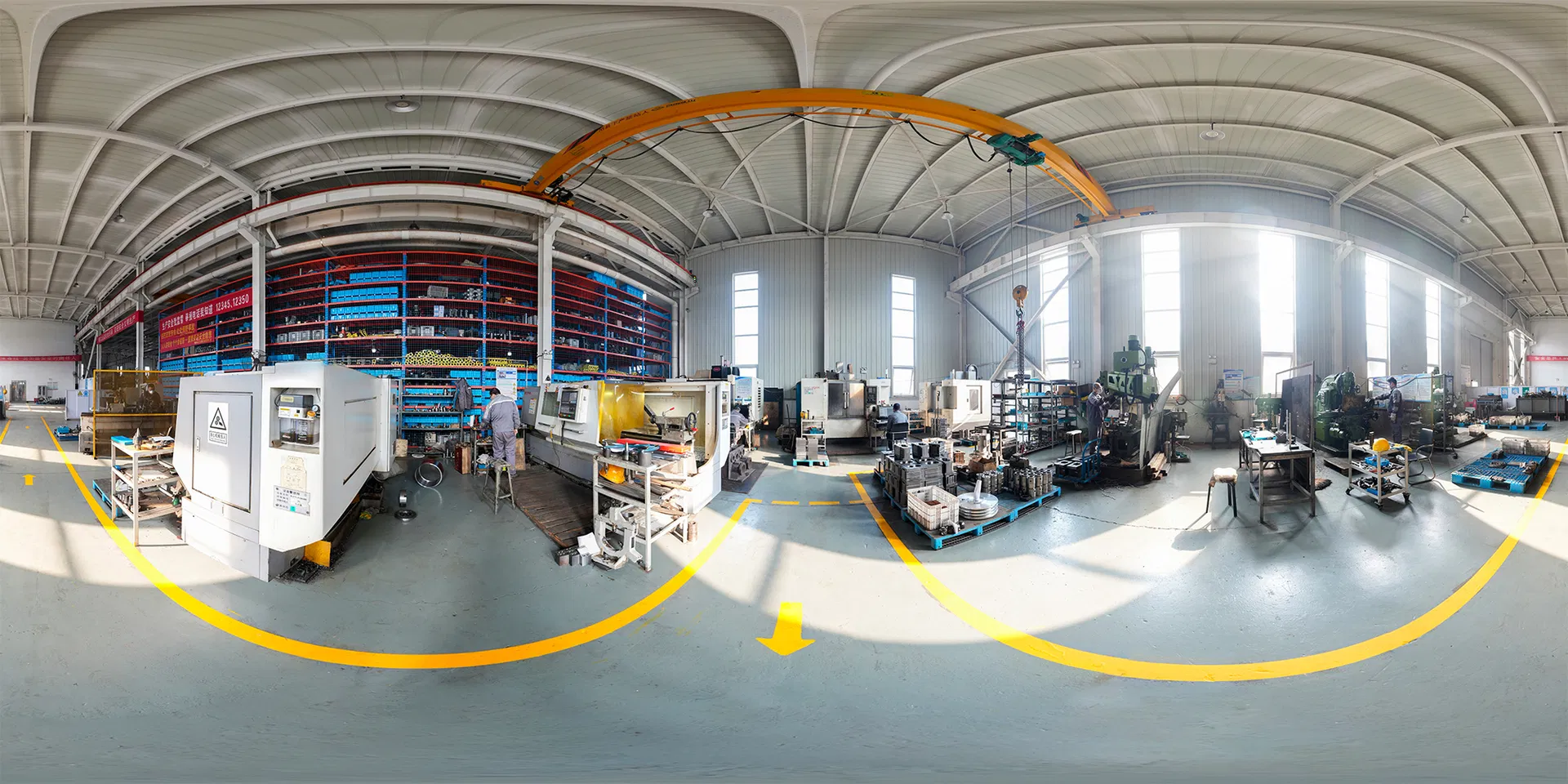

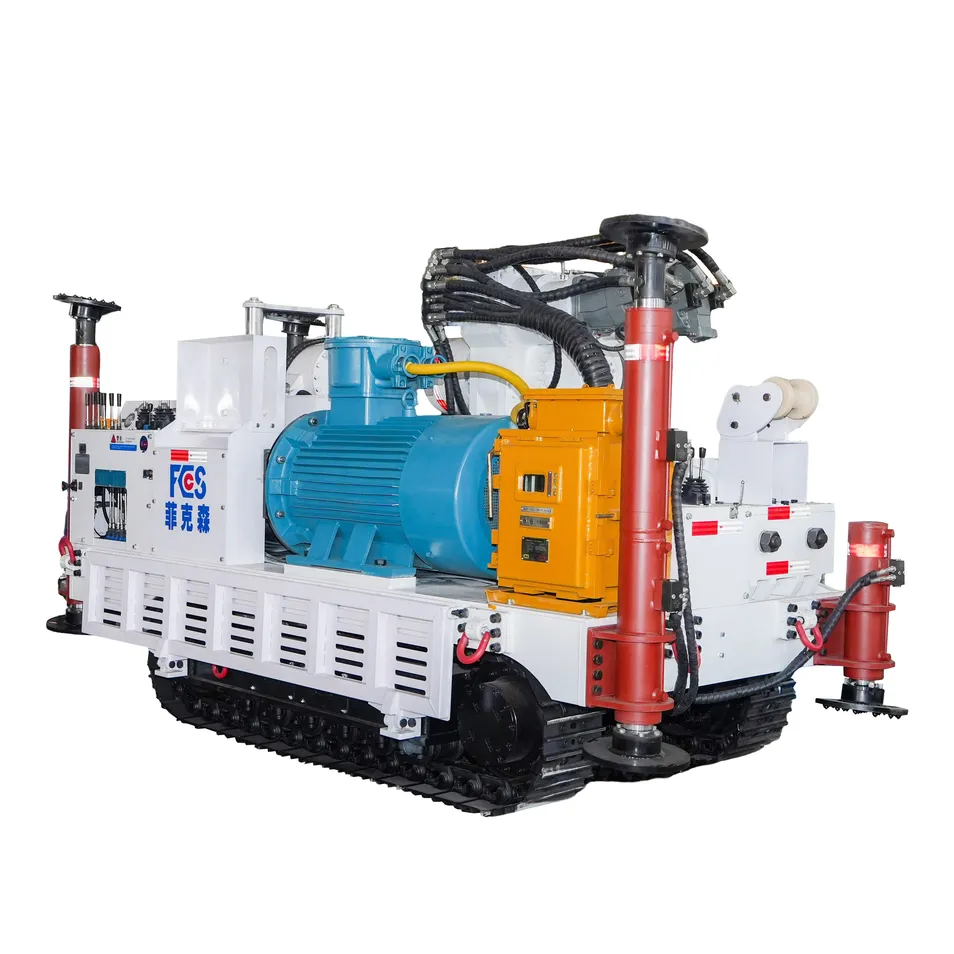

We are a professional manufacturer of coal mining machinery, committed to delivering advanced equipment and integrated solutions for underground operations. Our core product lines include hydraulic and pneumatic drilling rigs, crawler-type transportation vehicles, and auxiliary equipment for tunneling and excavation.
