Underground Coal Mine Explosion-Proof Electric Side Dump Rock Loader

Customization:	Available
Type:	Bucket Conveyor
Structure:	Crawler Conveyor

Basic Information

Model NO.ZCY

MaterialStainless Steel

Material FeatureFire Resistant

CertificationISO9001:2008

Warranty1 Year

Bucket Width1480~1770 mm

Max Dump Height1550~1650 mm

Gradability±16°

Product Description

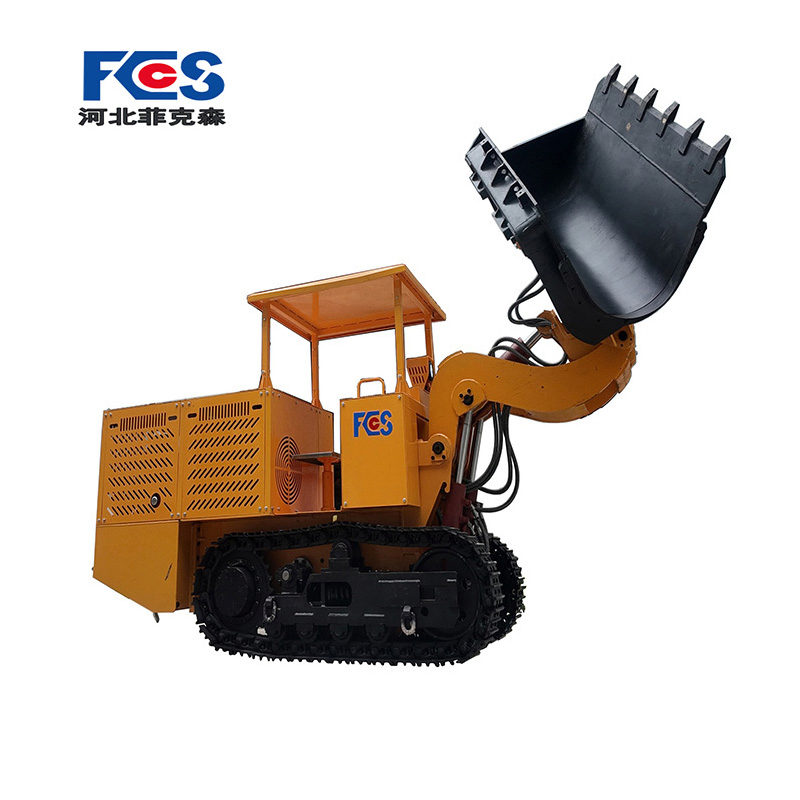

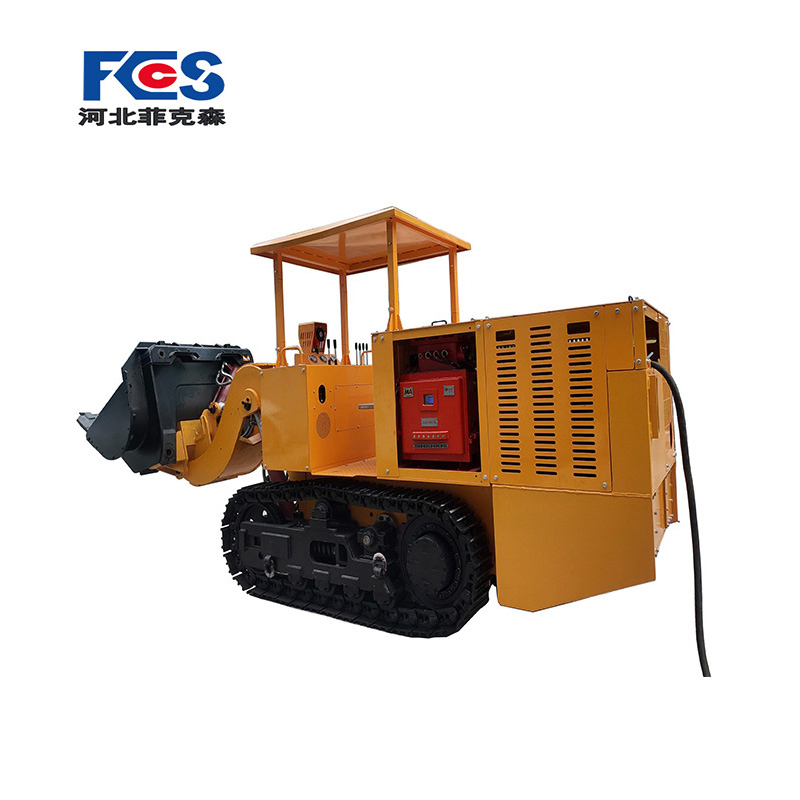

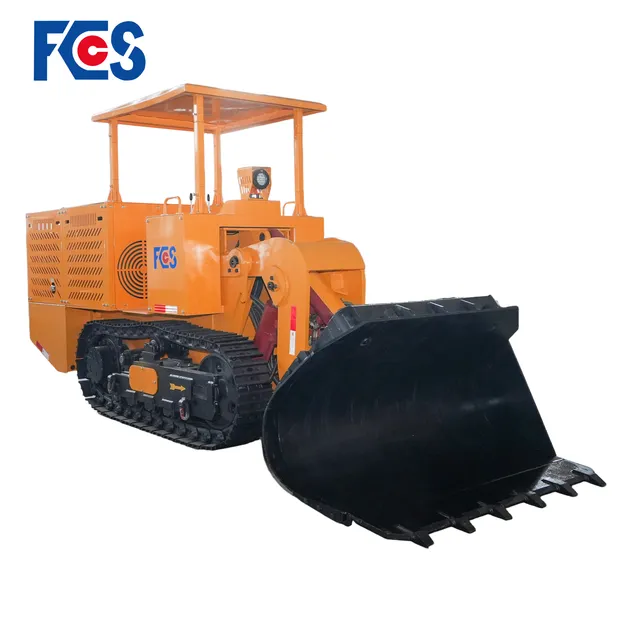

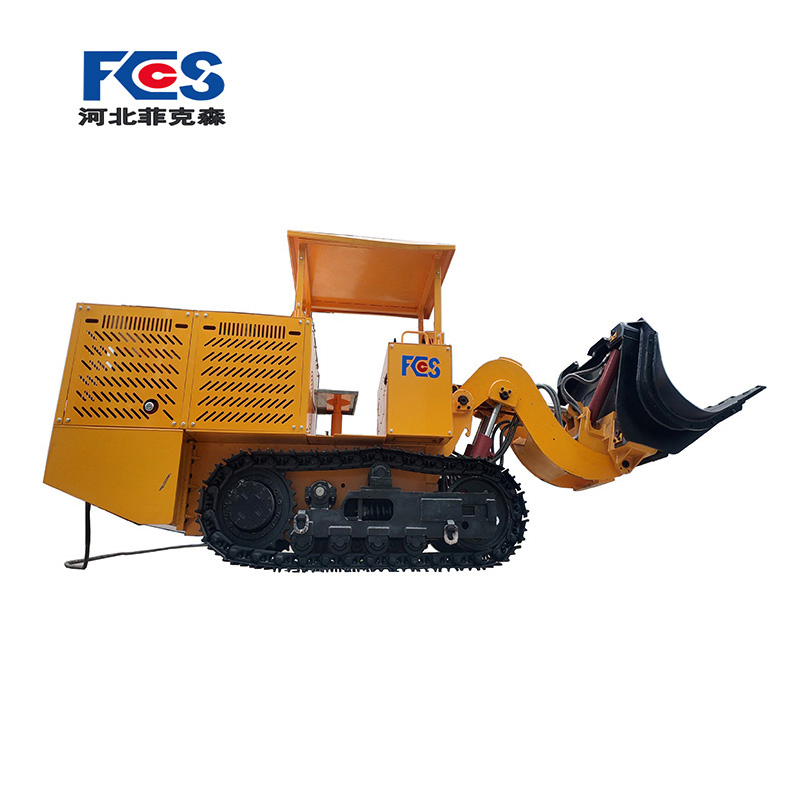

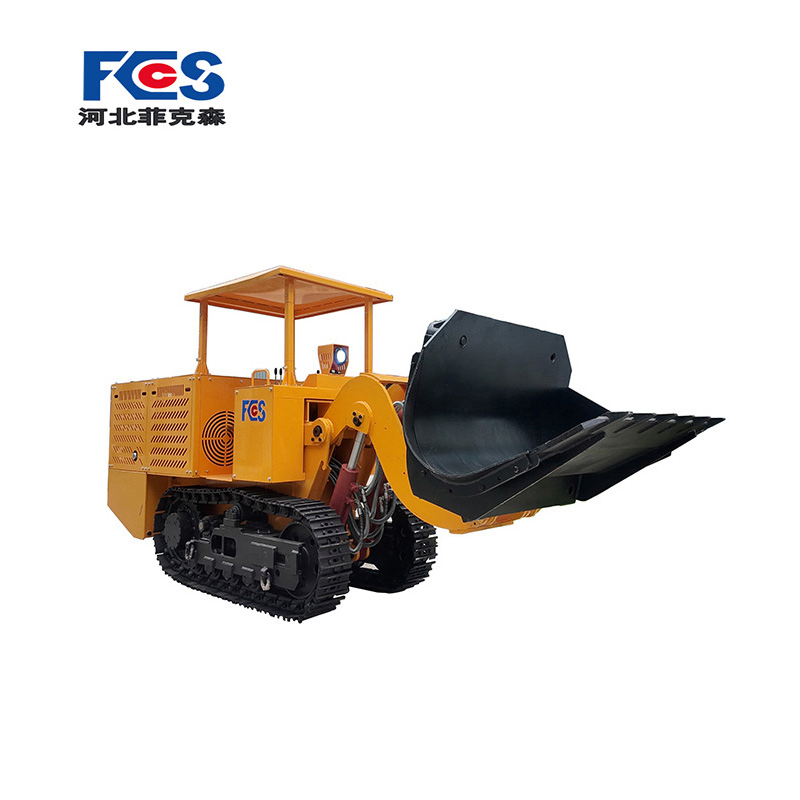

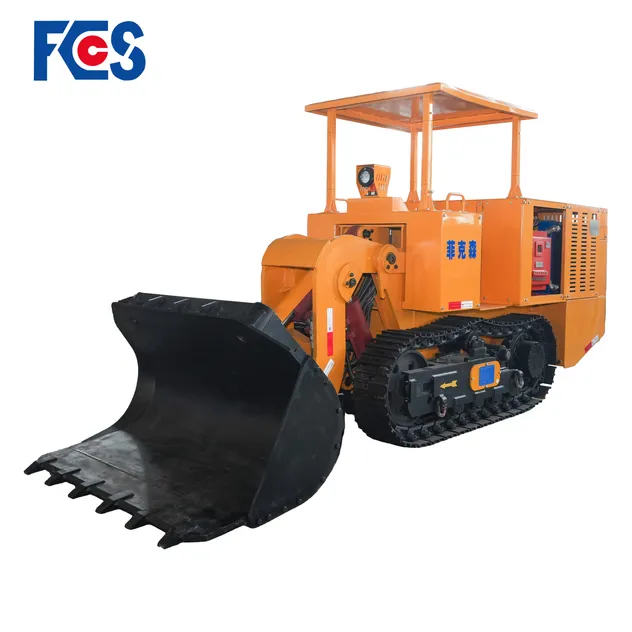

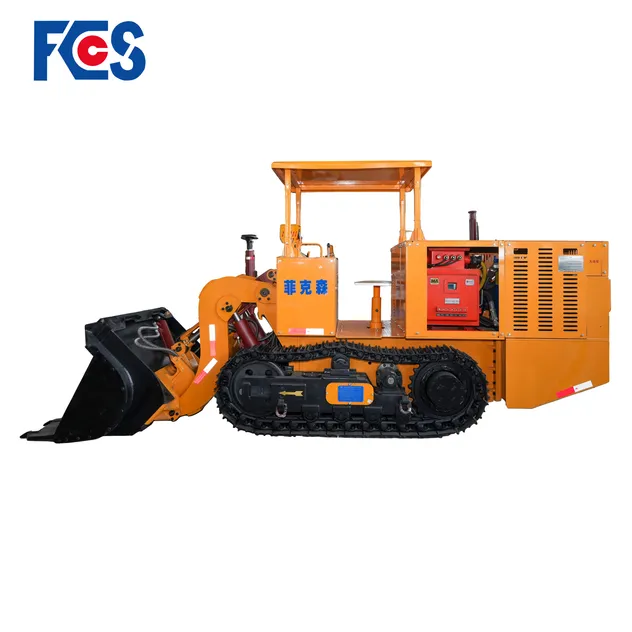

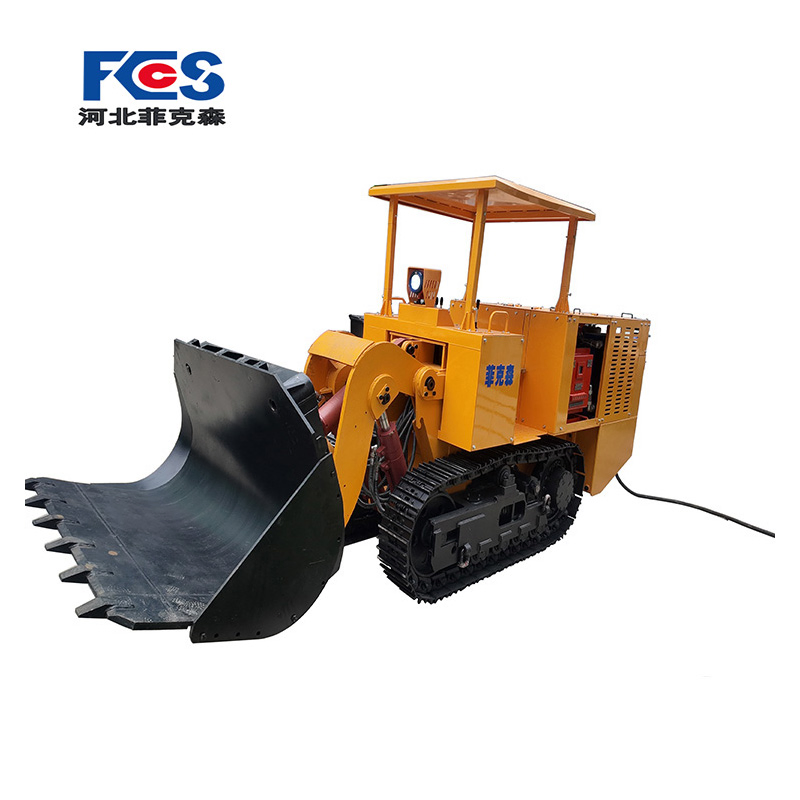

ZCY45R Side Dump Rock Loader for Coal Mine

The Side Dump Rock loader is a tracked, trackless loading device primarily used in coal and semi-coal-rock roadways. It is also highly effective in small-section full-rock roadways for loading coal, rock, and other materials. This equipment features high insertion force, excellent maneuverability, full-section operation, and high safety standards.

Beyond standard loading operations, it serves as a multi-purpose working platform during support work, facilitating short-distance transport, bottom-level work, and sidewall cleaning.

Technical Specifications

Custom configurations are available upon request to meet specific underground requirements.

Serial Number	Parameter Name	ZCY45R Data
1	Overall Dimensions (L×W×H) mm	4500×1200×1560
2	Technical Bucket Volume (m³)	0.45
3	Bucket Width (mm)	1480
4	Maximum Unloading Height (mm)	1550
5	Maximum Unloading Angle (°)	55
6	Maximum Travel Speed(m/min)	34
7	Minimum Ground Clearance (mm)	180
8	Maximum Bottom Depth (mm)	600
9	Climbing Ability (°)	±16
10	Track Shoe Width (mm)	260
11	Hydraulic Pump Motor Power (kW)	30
12	Voltage (V)	1140/660
13	Machine weight (kg)	5200

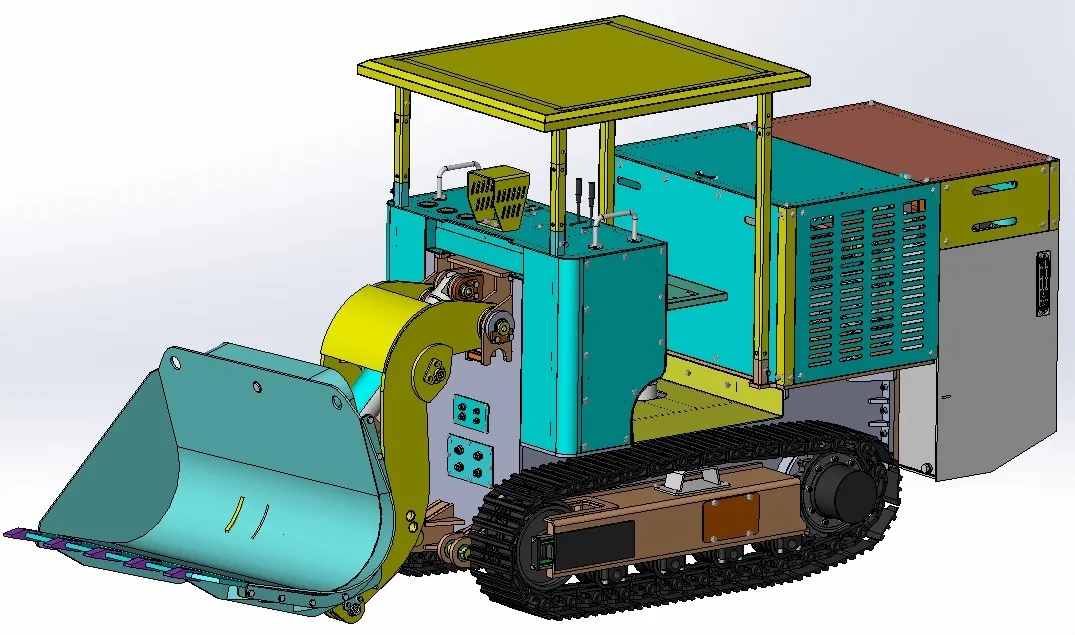

Drawings & Dimensions

Main Components

This equipment is a fully hydraulic side-dumping loader powered by an electric motor. Key modules include:

Working mechanism (bucket, arm, and cylinders)
Hydraulic system

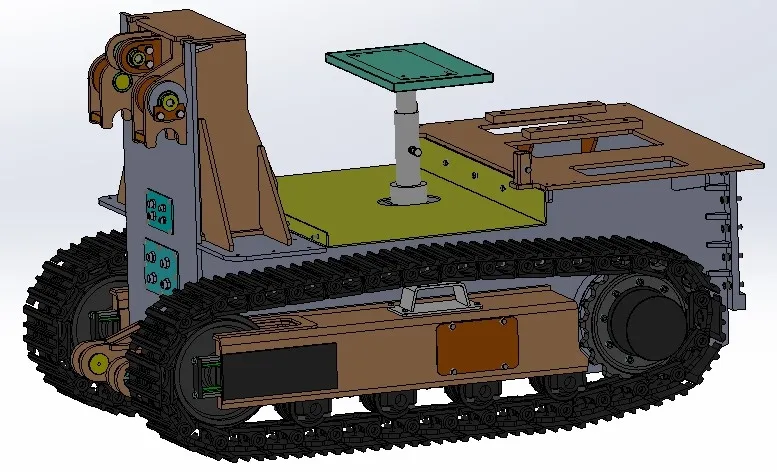

Chassis running gear
Air-cooling system

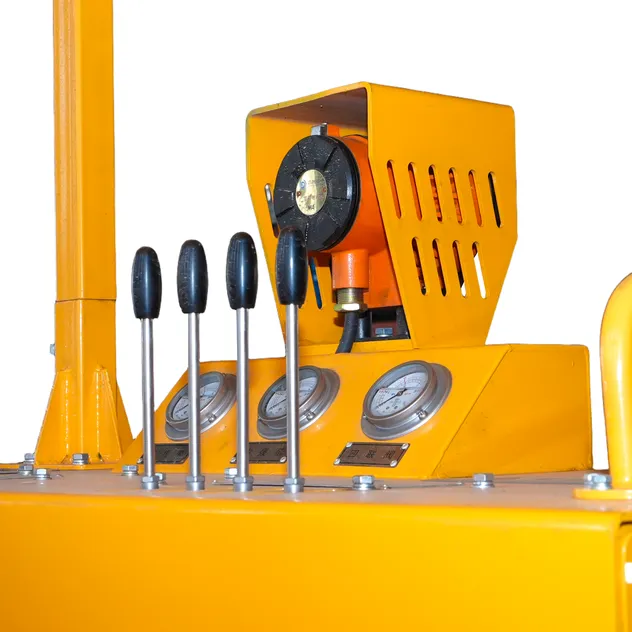

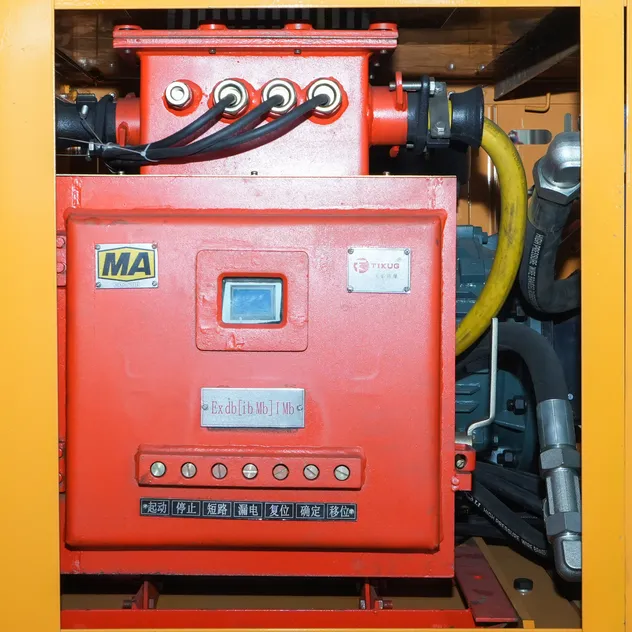

Electrical control system

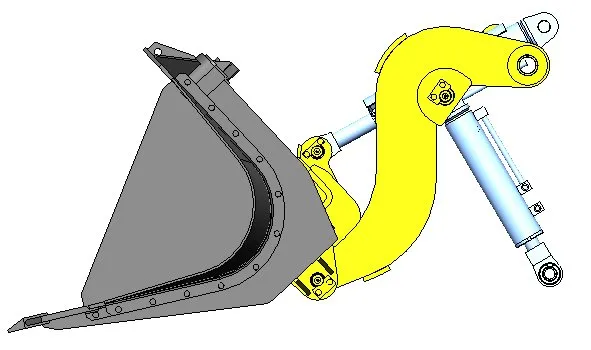

Working Mechanism Details

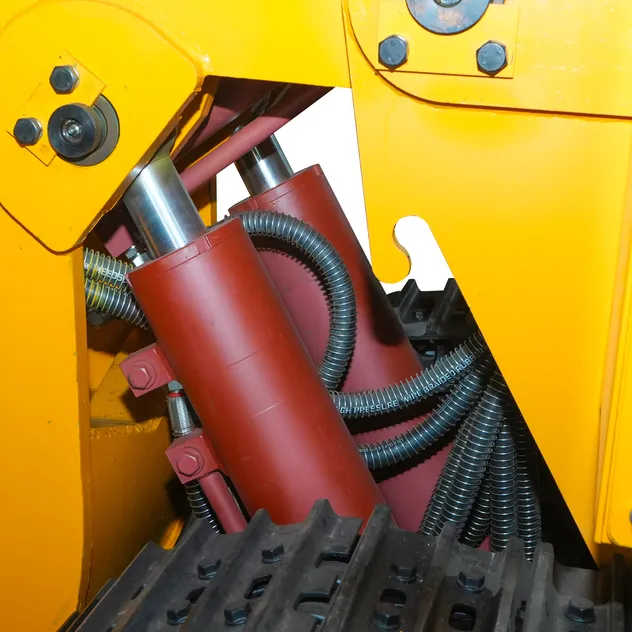

The mechanism consists of the bucket, base, arm, and various hydraulic cylinders. When the piston rod retracts, a parallel mechanism forms, allowing lifting without tilting. The shovel plate is crafted from wear-resistant steel for handling hard sandstone.

After Sales Service

Standard Warranty: 12 months or 2,000 operating hours.

Extended Warranty: Optional coverage up to 36 months.

Global Support: 24/7 technical assistance and spare parts supply.

Training: On-site or remote operation and maintenance training.

Manufacturing Capabilities

We are a professional manufacturer of coal mining machinery, delivering advanced equipment for underground operations. Our core focuses include hydraulic drilling rigs, crawler-type transportation vehicles, and auxiliary excavation equipment.

Our Product Series

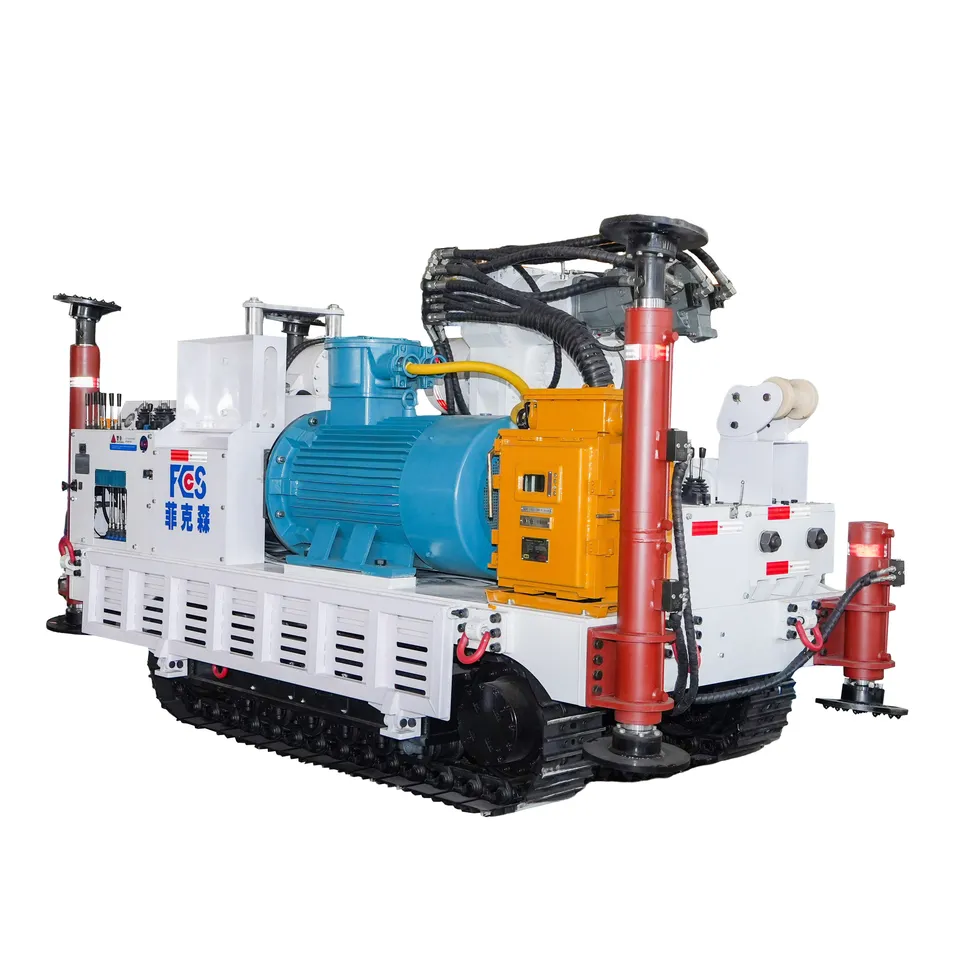

Anchor & Pillar drilling rig series
