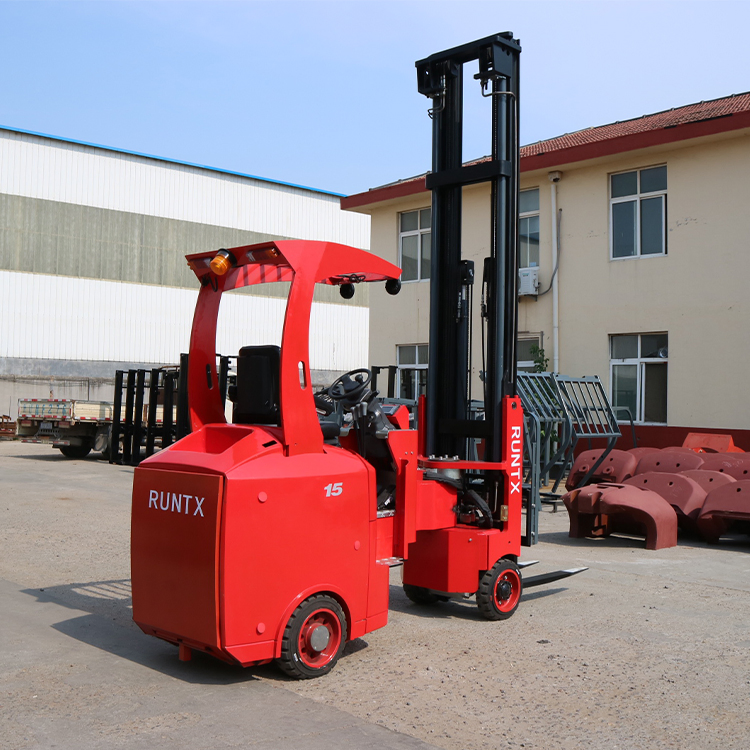

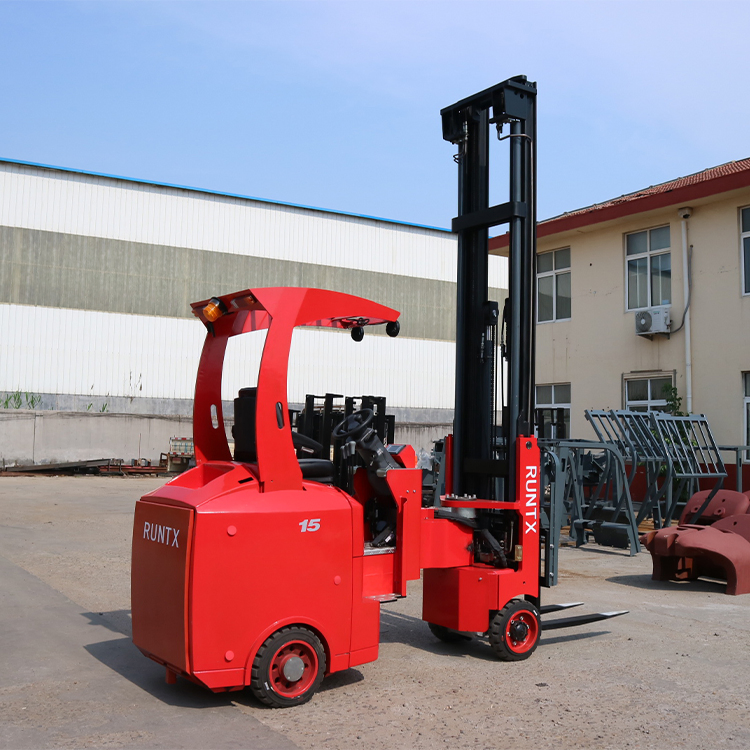

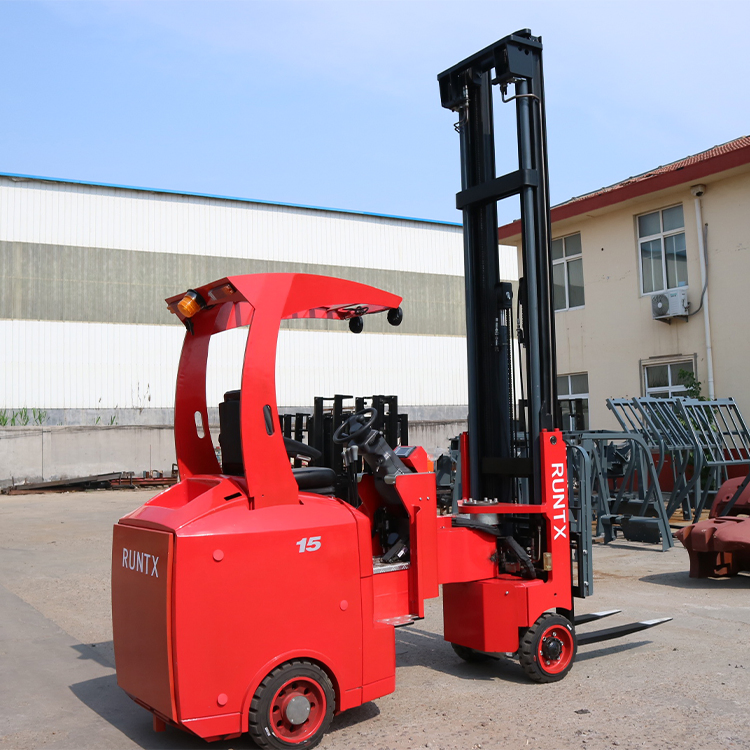

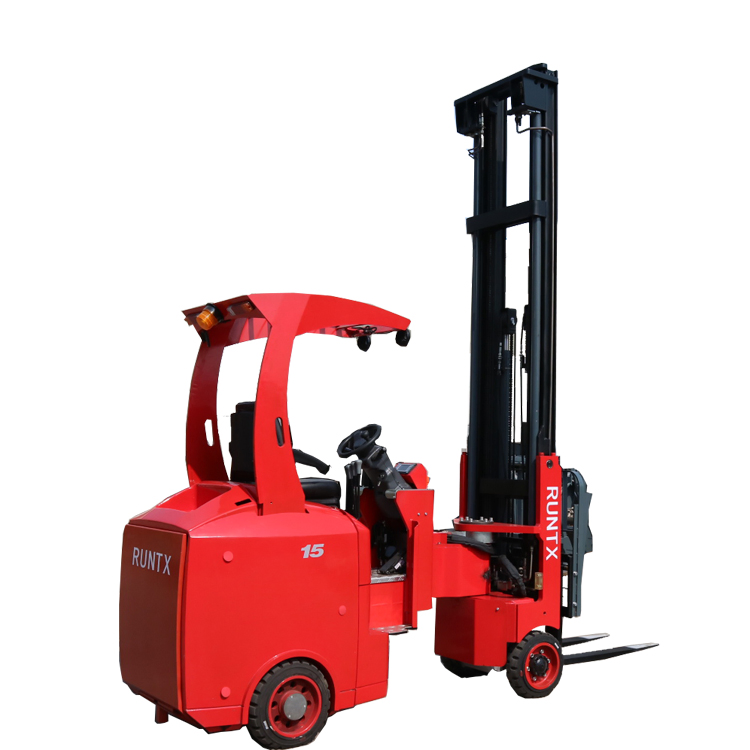

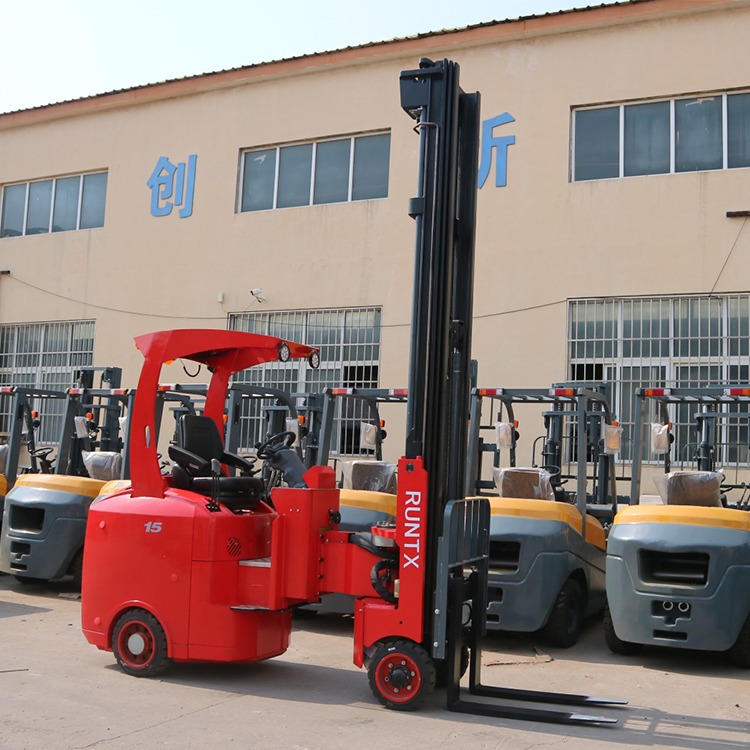

Runtx Very Narrow Aisle Forklift Vna Forklift Truck Vna15 1.5 Ton Forklift Truck for Warehouse Use
Runtx Very Narrow Aisle Forklift Vna Forklift Truck Vna15 1.5 Ton Forklift Truck for Warehouse Use
Runtx Very Narrow Aisle Forklift Vna Forklift Truck Vna15 1.5 Ton Forklift Truck for Warehouse Use
Runtx Very Narrow Aisle Forklift Vna Forklift Truck Vna15 1.5 Ton Forklift Truck for Warehouse Use
Runtx Very Narrow Aisle Forklift Vna Forklift Truck Vna15 1.5 Ton Forklift Truck for Warehouse Use
1 / 5
Runtx Very Narrow Aisle Forklift Vna Forklift Truck Vna15 1.5 Ton Forklift Truck for Warehouse Use
Runtx Very Narrow Aisle Forklift Vna Forklift Truck Vna15 1.5 Ton Forklift Truck for Warehouse Use
Runtx Very Narrow Aisle Forklift Vna Forklift Truck Vna15 1.5 Ton Forklift Truck for Warehouse Use
Runtx Very Narrow Aisle Forklift Vna Forklift Truck Vna15 1.5 Ton Forklift Truck for Warehouse Use
Runtx Very Narrow Aisle Forklift Vna Forklift Truck Vna15 1.5 Ton Forklift Truck for Warehouse Use

Runtx Very Narrow Aisle Forklift Vna Forklift Truck Vna15 1.5 Ton Forklift Truck for Warehouse Use

Customization: Available
After-sales Service: One Year
Warranty: One Year
Send Inquiry

Product Description

📋

Basic Specifications

Model VNA15 Type Stacker
Cab Location Adjustable Power AC Motor
Load Capacity 1.5t-3t Fuel Electric
Load Center 500mm Lift Height 3000mm-12400mm
Condition New Production Capacity 5000 Units/Year
🏗️

Product Description

VNA Forklift View 1

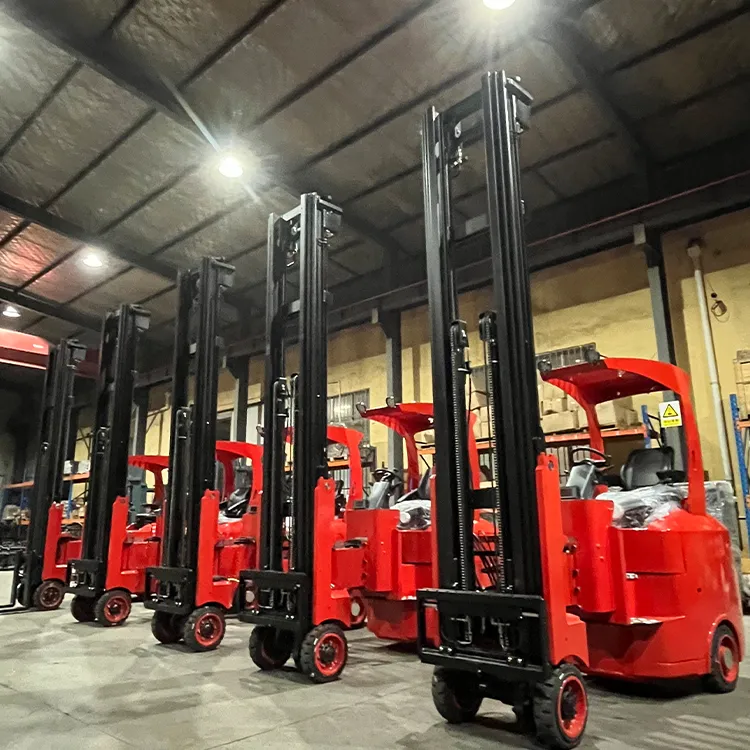

VNA Forklift View 2
Item Unit VNA15 VNA20 VNA25 VNA30
Loading Capacity kg 1500 2000 2500 3000
Loading Center mm 500 500 500 500
System Type - AC AC AC AC
Power Source - Lead acid / Lithium battery
Lifting Height mm 4500-8000 45000-10000 4500-12400 4500-12400
Min Stacking Width mm 1600/1800 1800/2000 2000/2000 2000/2000
Total Weight kg 6500 6900 7200 7800
⚙️

Advanced Technical Features

🛡️ Safety Monitoring: Standard driver presence safety monitoring (OPS) function effectively improves operational safety.
📉 Speed Control: Standard cornering speed limit and ramp stop/descent functions ensure secure high-level operations.
🛑 Automatic Braking: Automatic gap compensation mechanism adjusts the brake gap as friction plates wear.
🚜 Versatile Tires: Patterned solid tires provide excellent handling for both indoor and outdoor warehouse environments.

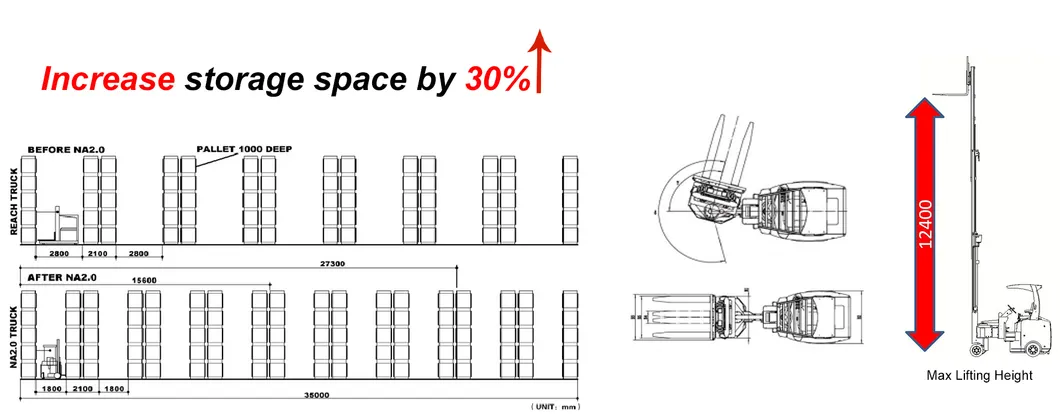

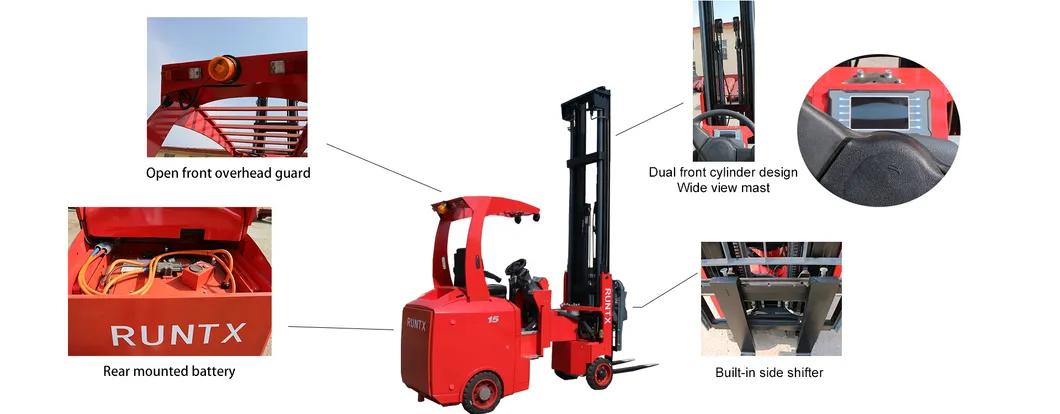

VNA Details 1 VNA Details 2

Narrow aisle electric forklifts can operate freely in aisles of 1700-2200mm, increasing storage space by up to 30% compared to standard reach trucks.

🚢

Shipping & Manufacturing

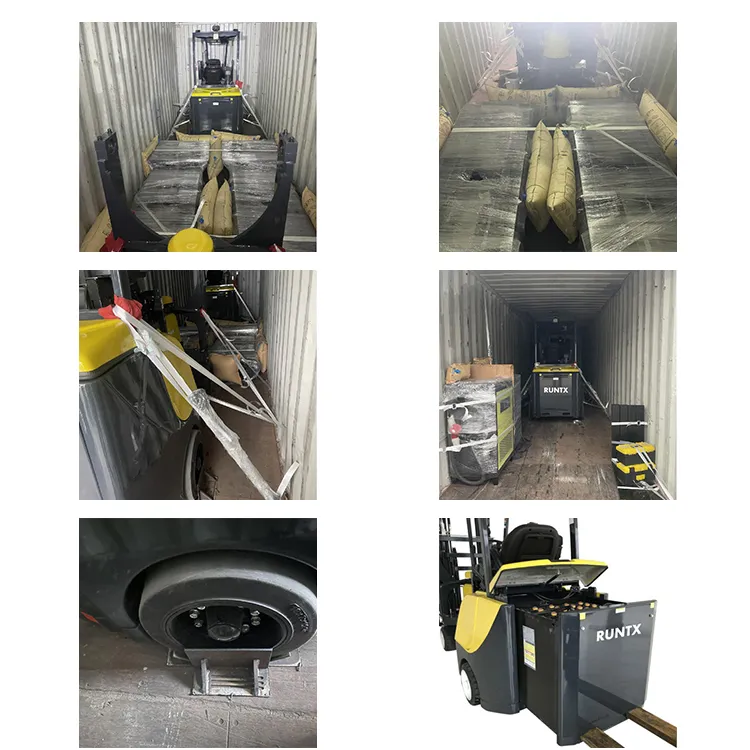

Shipping Logistics

Our manufacturing facility covers over 37,000 square meters, equipped with large-scale CNC cutting machines, vertical machining centers, and welding robots. We maintain rigorous quality control across our full range of electric warehouse equipment and port machinery.

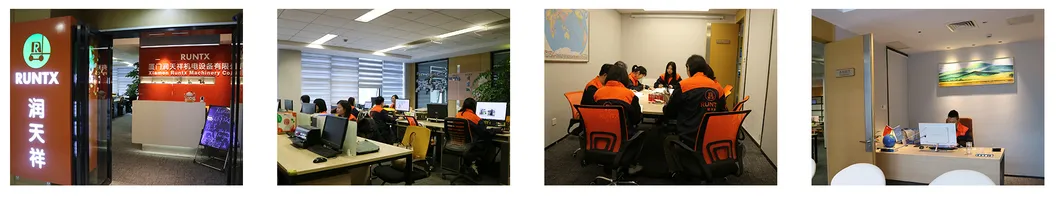

Factory Overview

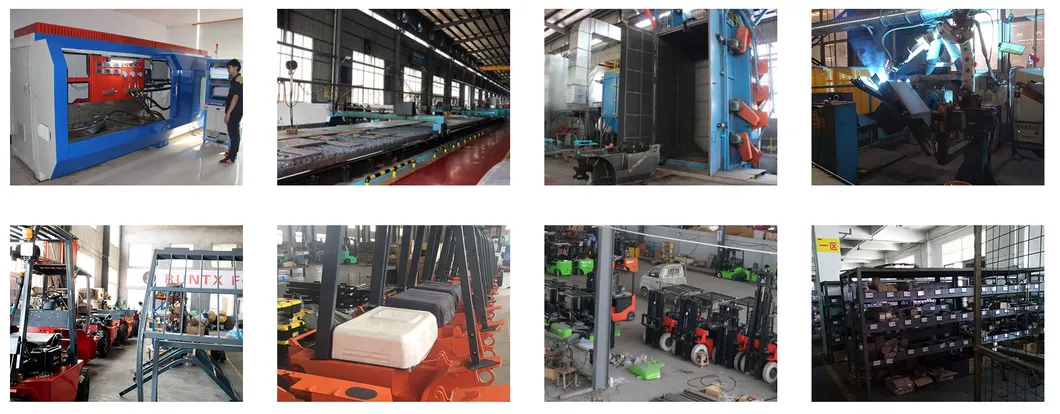

Production Line
📜

Quality Certifications

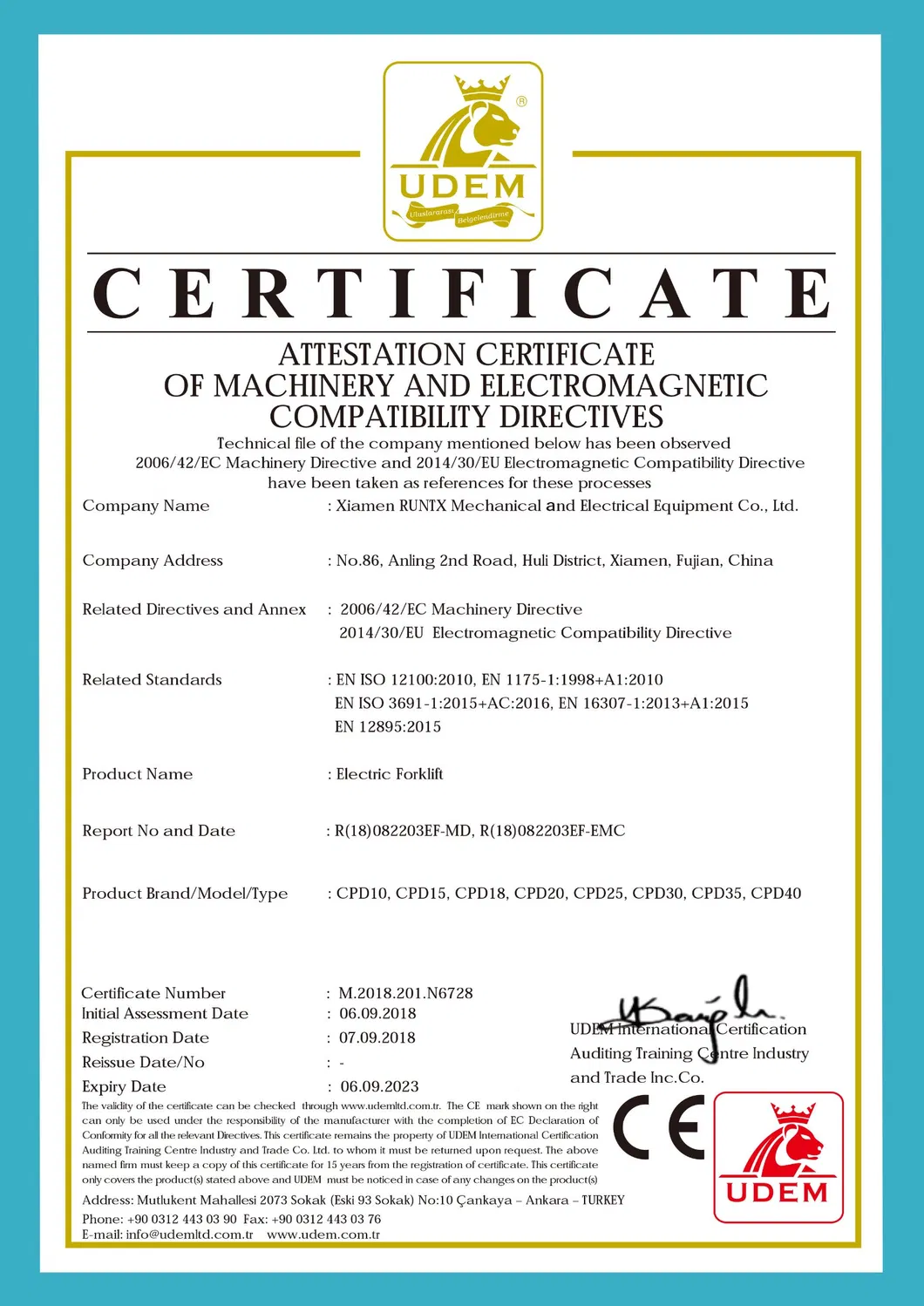

Cert 1

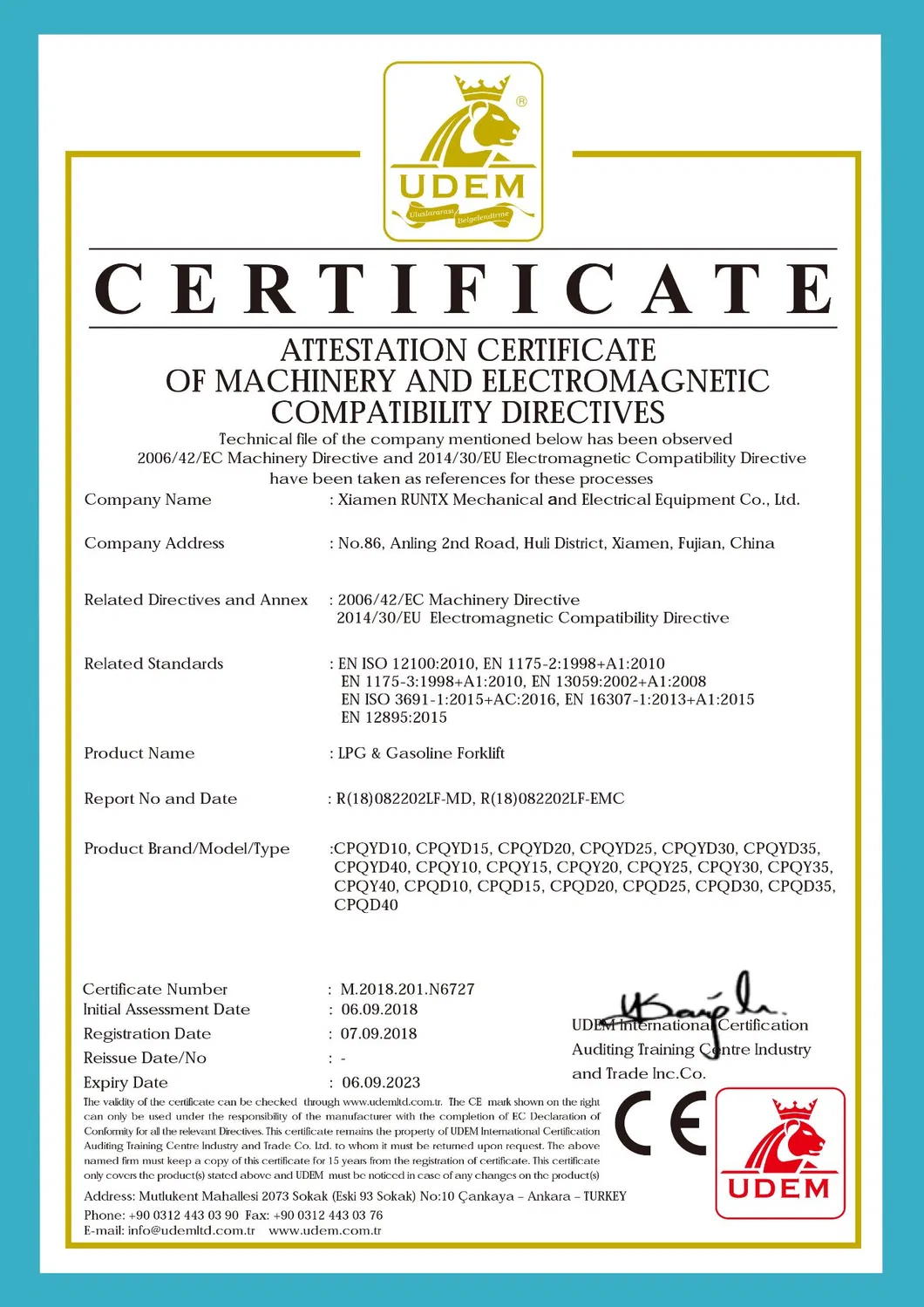

Cert 2

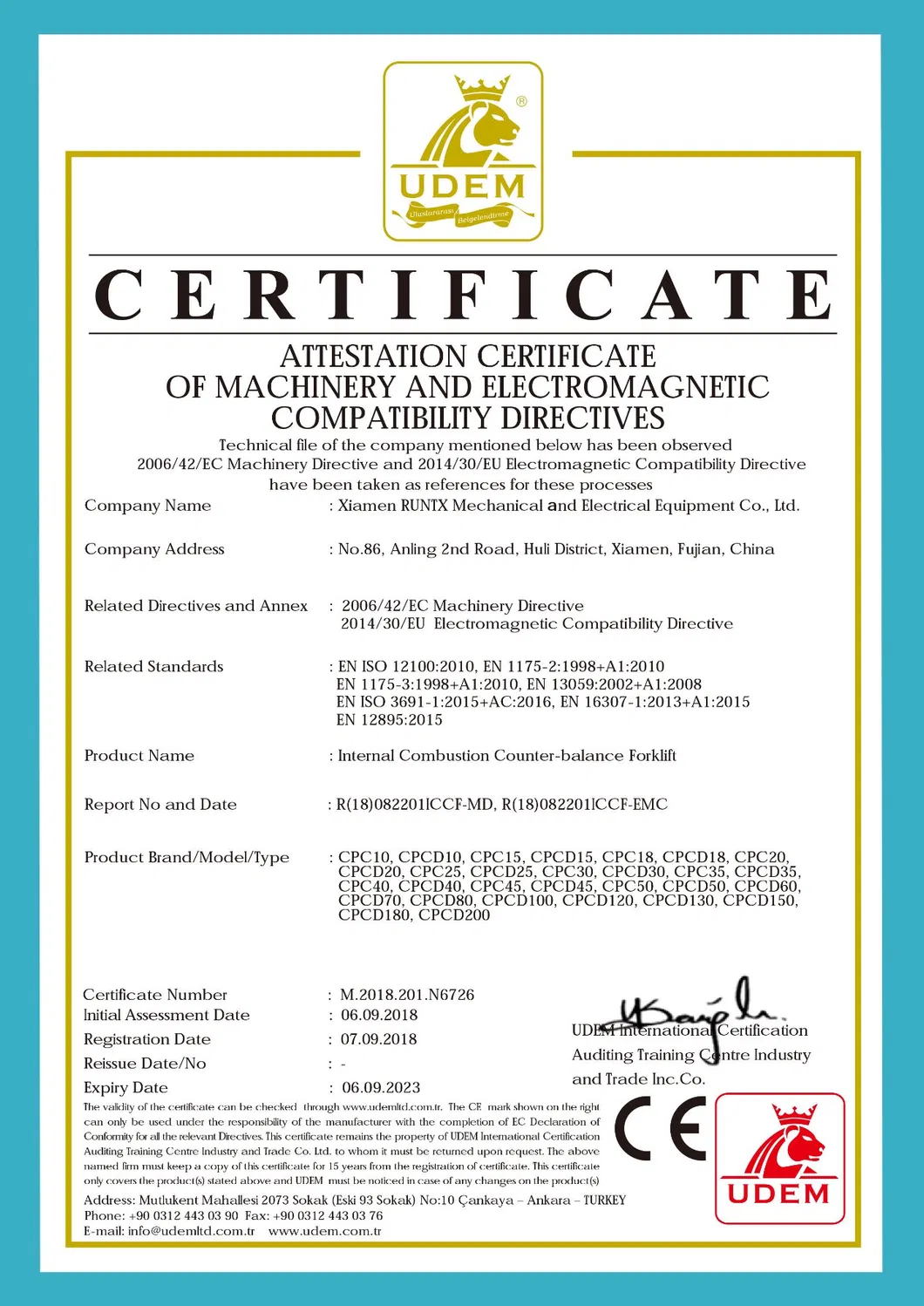

Cert 3
🤝

Service & Global Presence

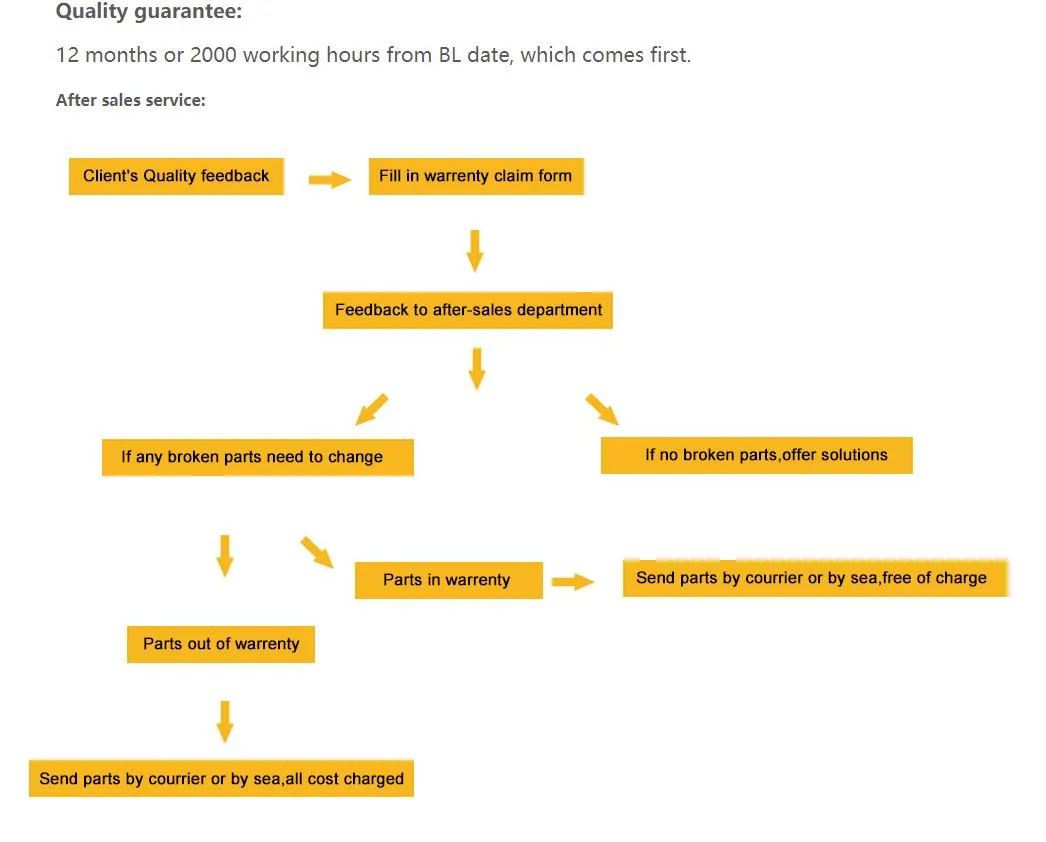

After Sales Service Global Exhibitions
❓

Frequently Asked Questions

1. What is the minimum aisle width required for the VNA forklift? The VNA series can operate efficiently in very narrow aisles ranging from 1700mm to 2200mm, depending on the specific model and pallet size.
2. Can the forklift be equipped with Lithium batteries? Yes, we offer both traditional Lead-acid batteries and high-efficiency Lithium battery options to suit different operational shift requirements.
3. Does it require a guidance system for operation? While guidance systems (like rail or magnetic wire) can be used, these VNA forklifts are designed for high stability and can often operate without a mandatory guidance system in standard setups.
4. What are the key safety features included? Key features include the Operator Presence System (OPS), automatic cornering speed limits, ramp descent control, and high-level lifting speed restrictions.
5. Is the forklift suitable for outdoor use? Yes, the VNA15 and related models come standard with patterned solid tires, allowing them to handle transitions between indoor and outdoor working environments smoothly.
6. What is the maximum lift height available? Depending on the model (VNA25/VNA30), the mast can reach a maximum lifting height of up to 12,400mm.
