Lift height
3000/3500/4000/4500 mm

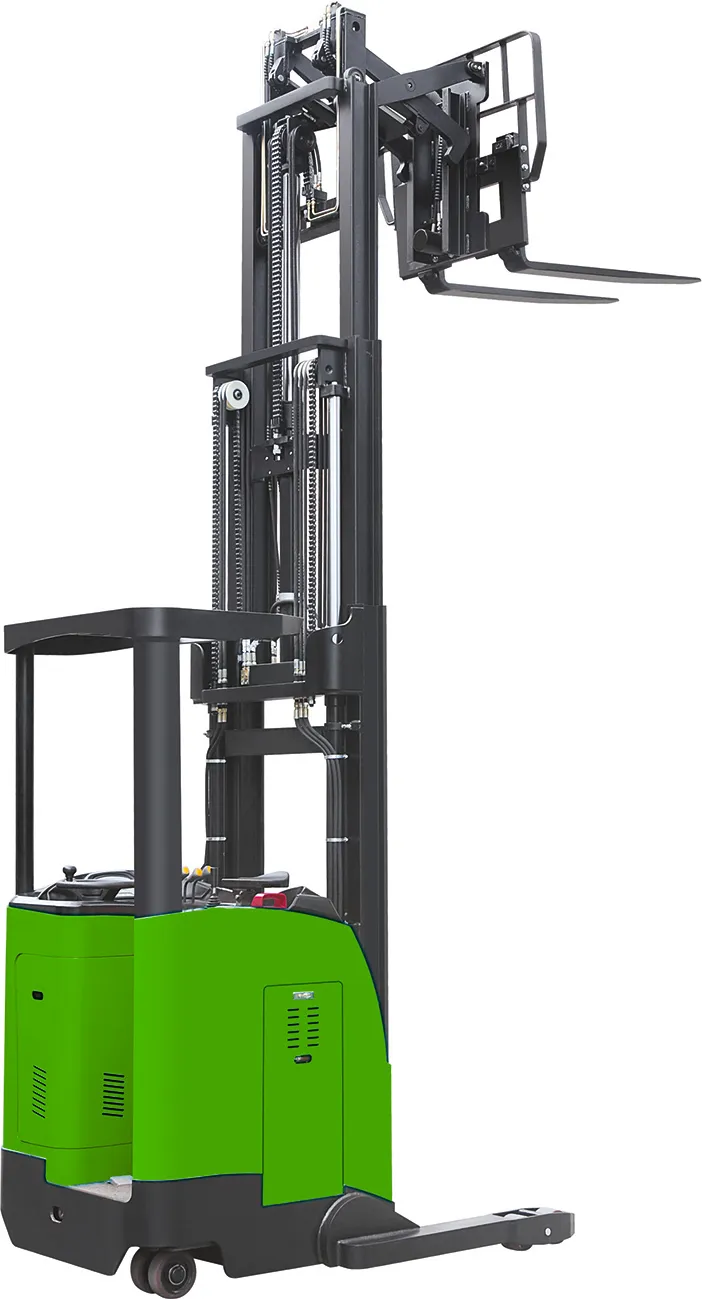

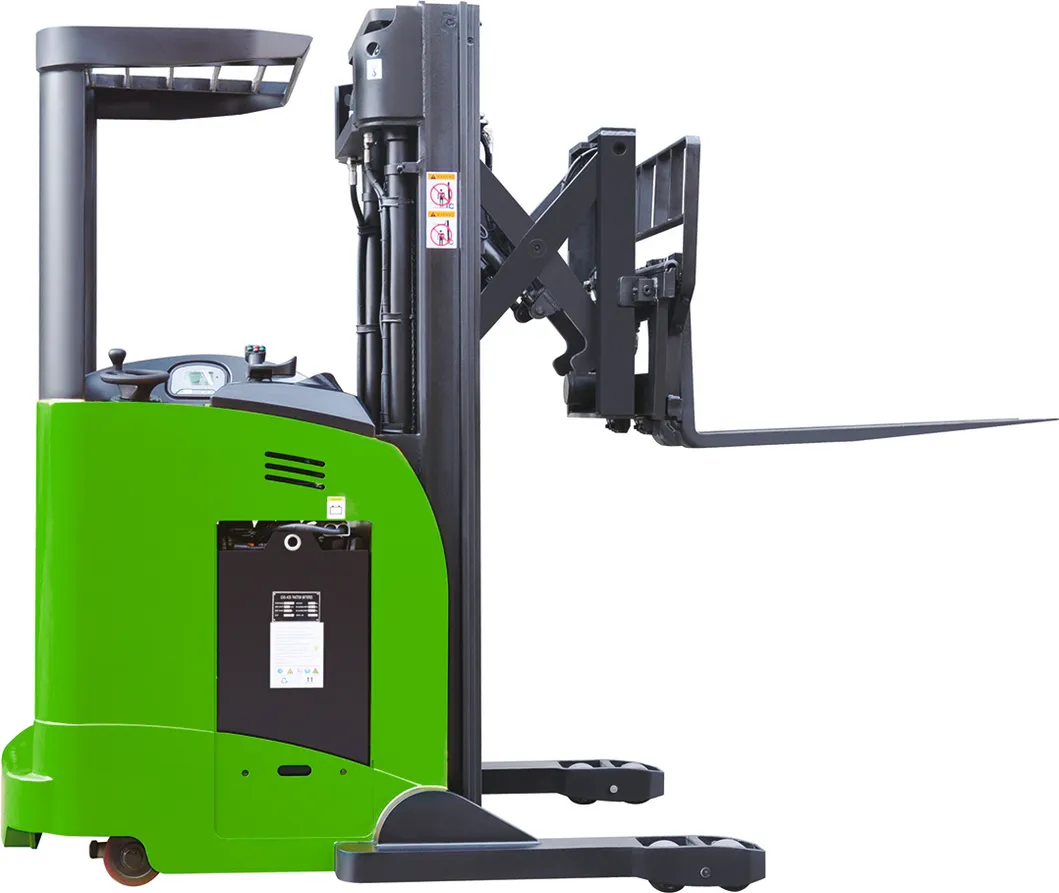

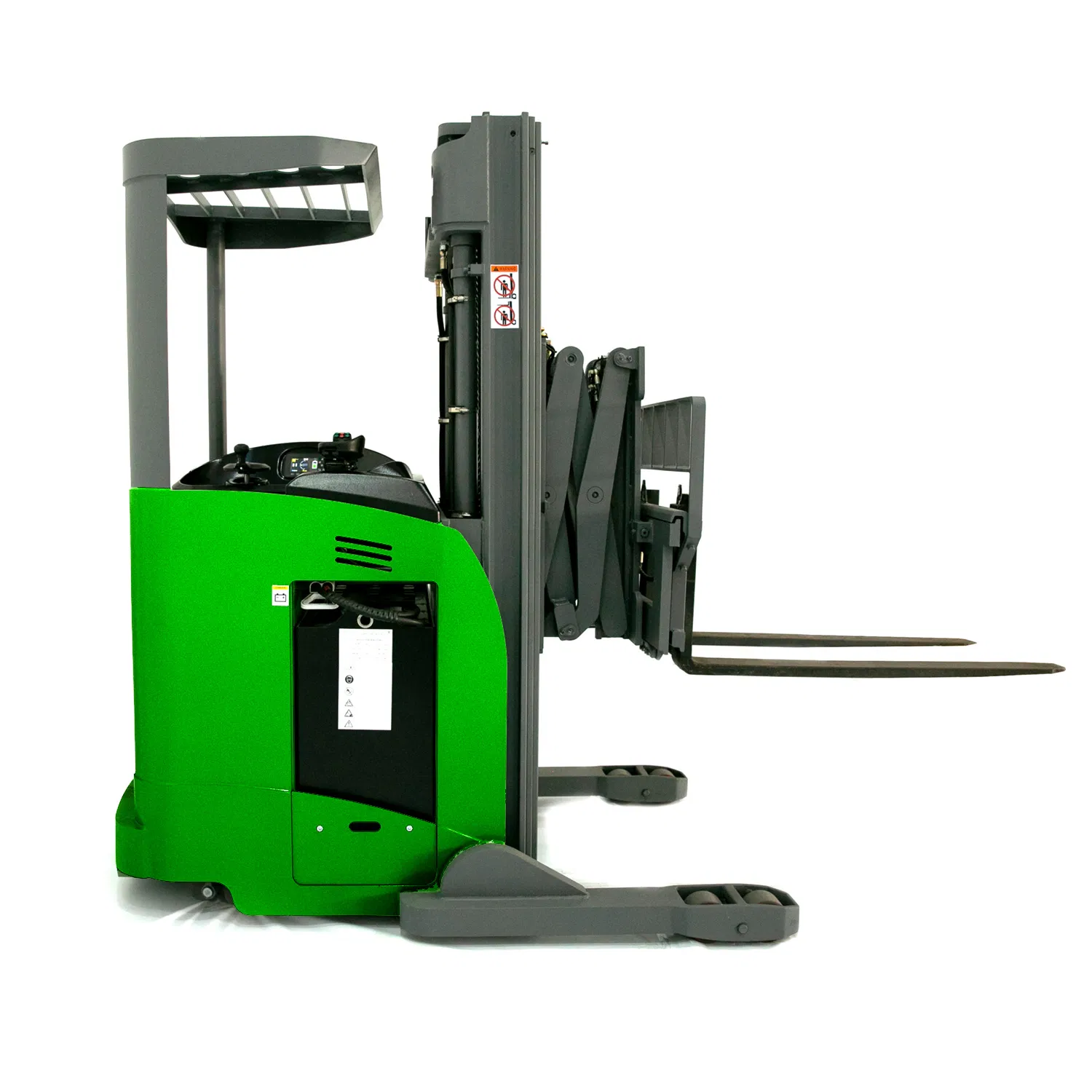

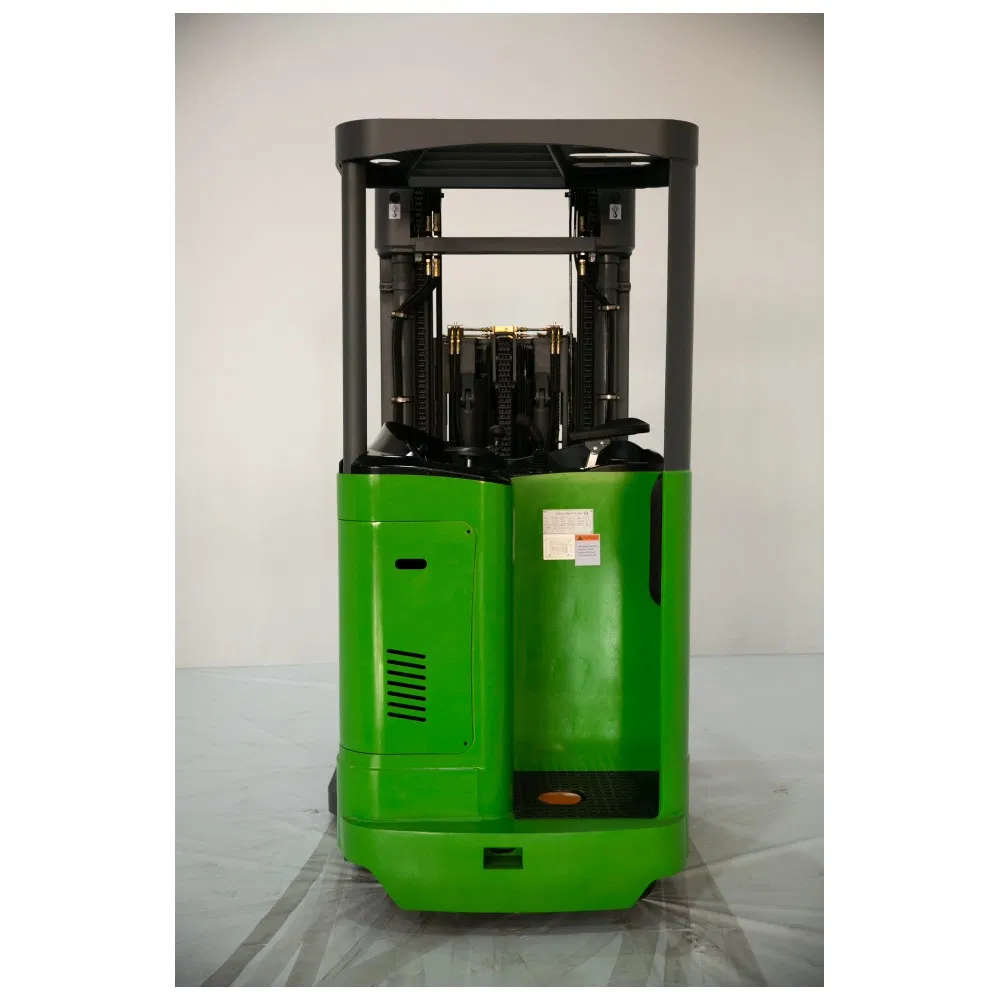

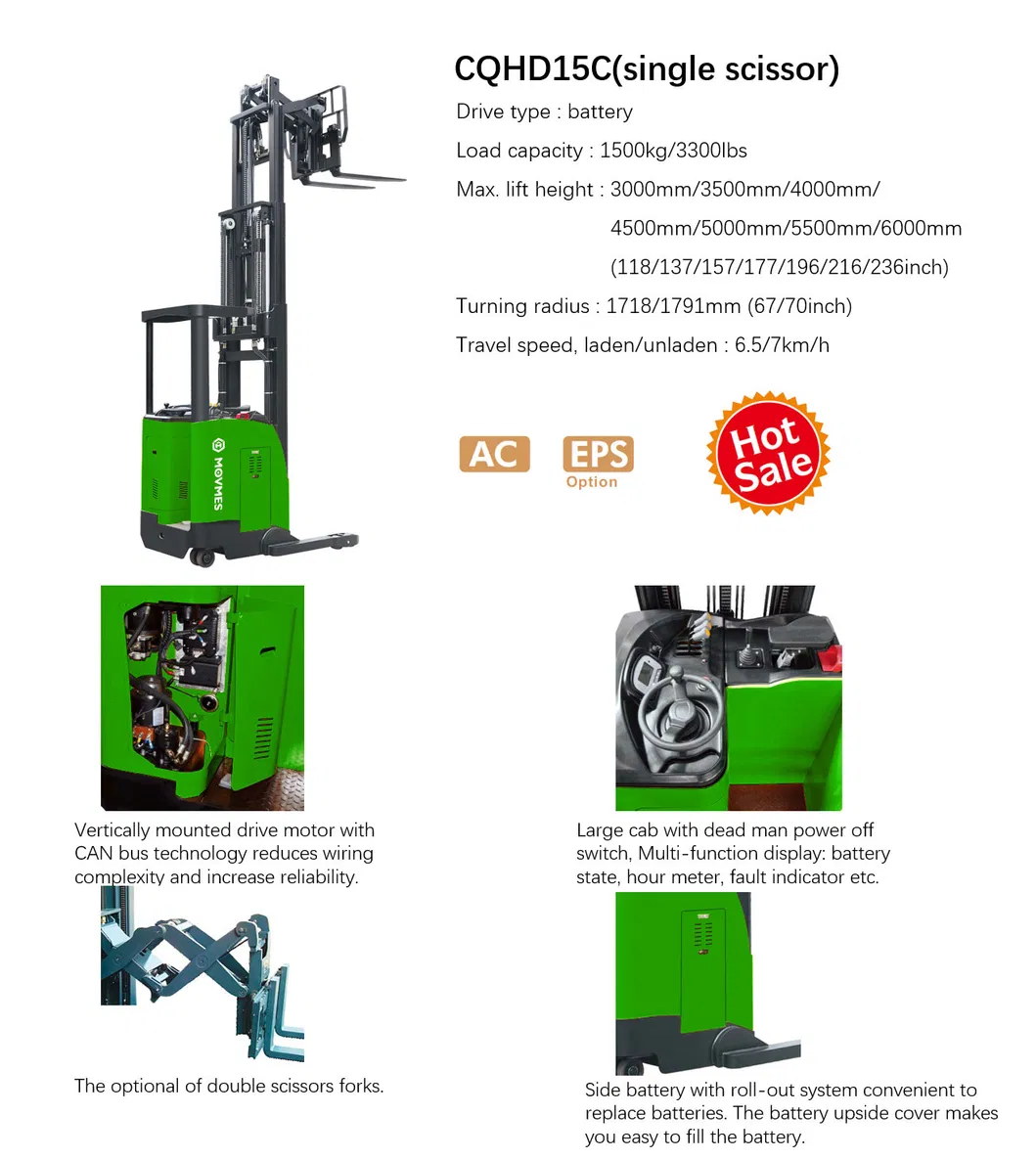

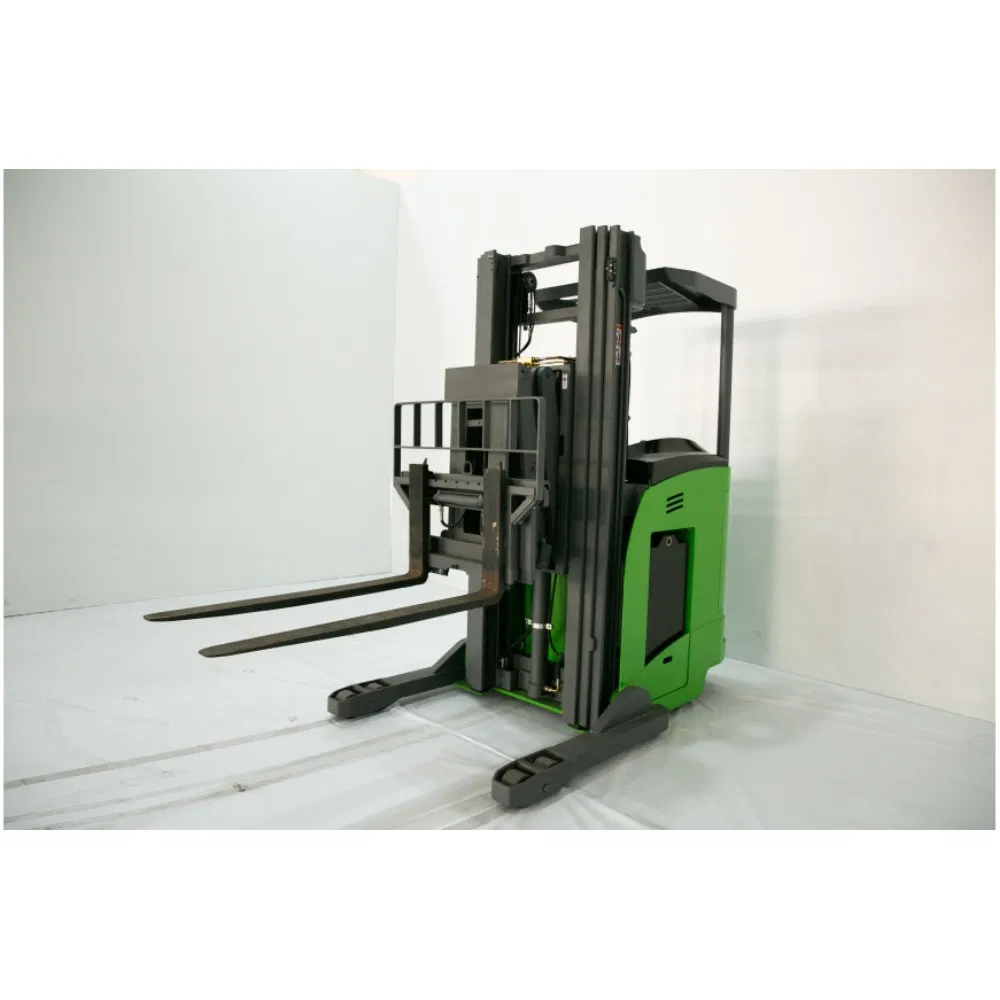

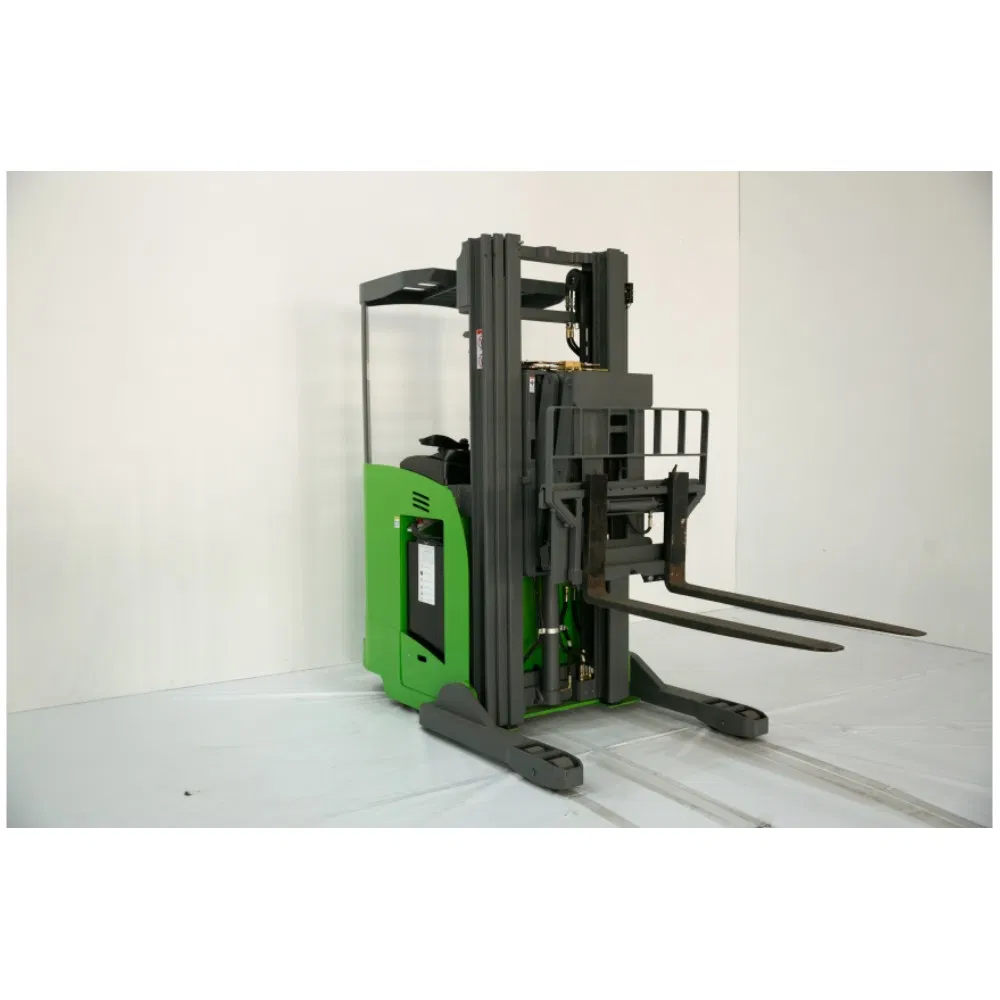

1.5/1.6/2t VNA 3 Ways Order Picker Electric Reach Pallet Fork Lift Truck

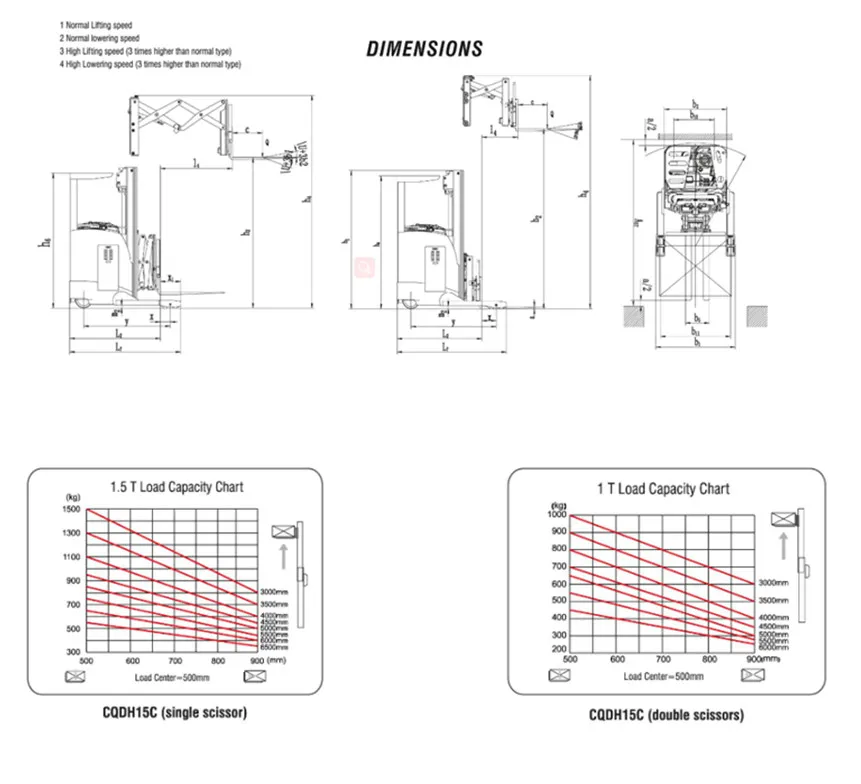

| Model |
Unit |
CQD15 |
| Capacity/rated load | Q(kg) | 1500 |
| Max.lift height | h3(mm) | 3000/5000/6200/7400/8000 |
| Load centre distance | C(mm) | 600 |
| Drive wheel size | mm | Dia310x125 |
| Fork wheel size | mm | Dia285x110 |
| Overall length | I1(mm) | 2370 |
| Overall width | b1(mm) | 1200 |
| Travel speed, laden/unladen | Km/h | 8/8.3 |
| Lift speed, laden/unladen | M/s | 0.45/0.36 |
| Battery voltage, nominal capacity | V/Ah | 48/400 |
| Service weight | kg | 2900/3000/3100/3200/3300 |
The professional design team focuses on reducing costs while improving work efficiency, safety, and customer utilization.
SAFETY AND STABILITY
- Advanced AC control system eliminating motor brushes and directional contactors.
- Stepless speed control intelligent regenerative brake system.
- Equipped with adjustable hand-rest for different operators.

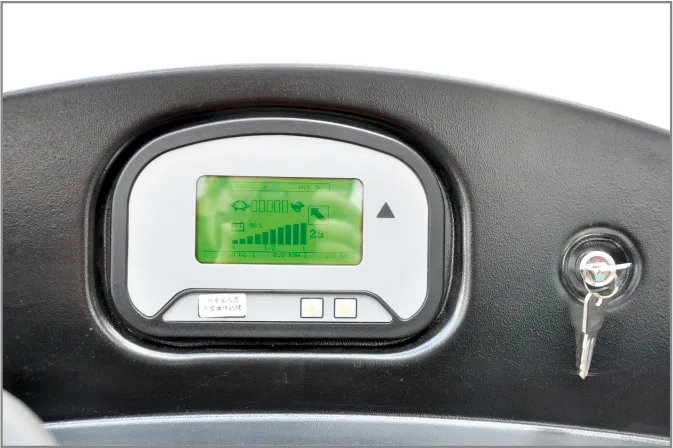

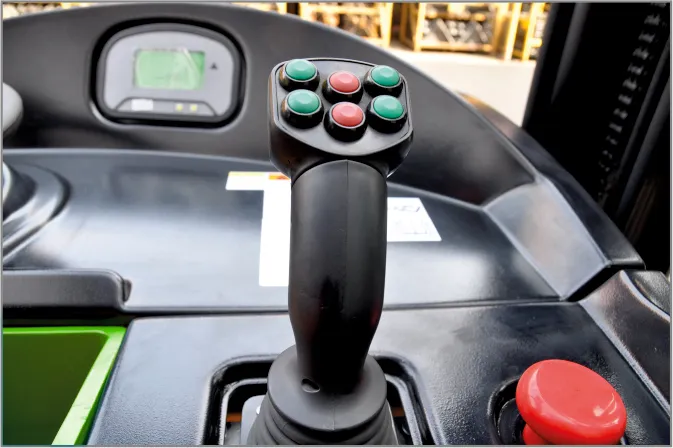

- Multi-function display: battery status, hour meter, fault indicator.
- Emergency power disconnect and built-in pressure relief valve.
STRUCTURAL DESIGN
- Low center of gravity ensures stable operation.
- Vertical driving wheel with a small turning radius.
- Water-proof and dust-proof motor structure.

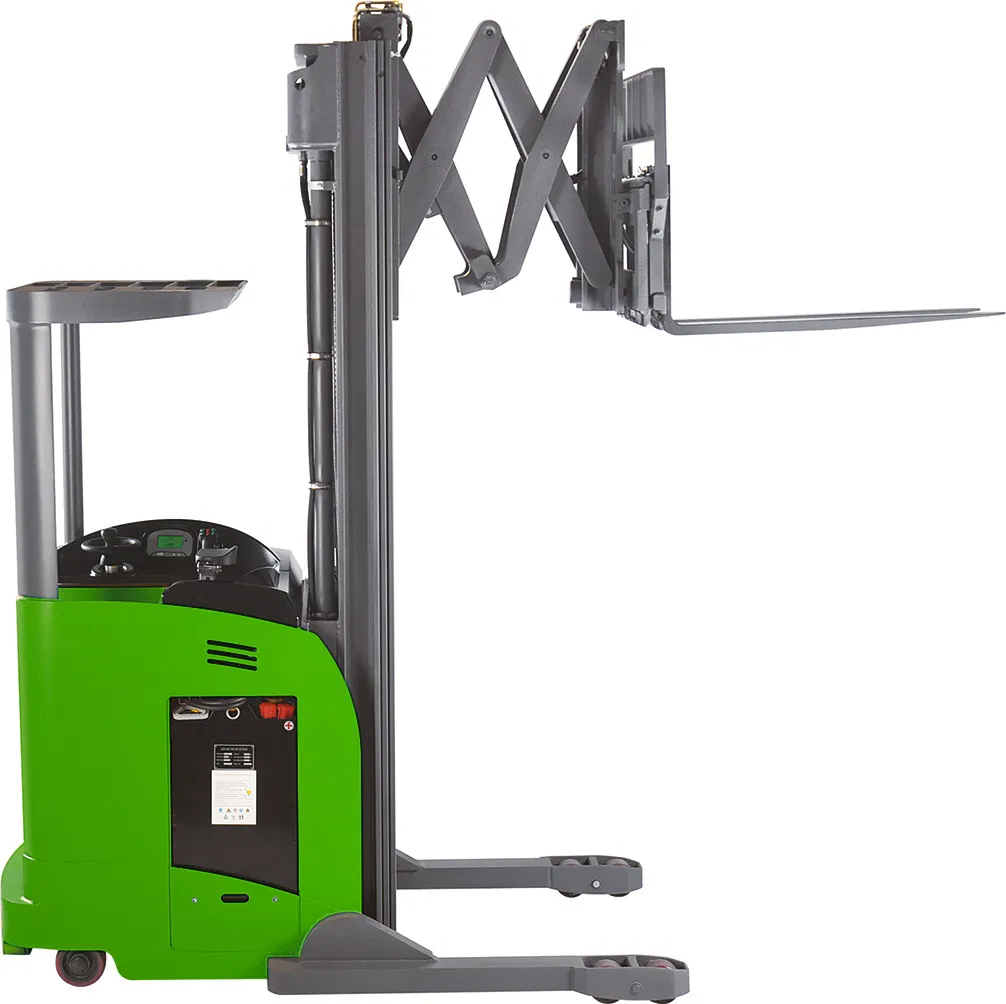

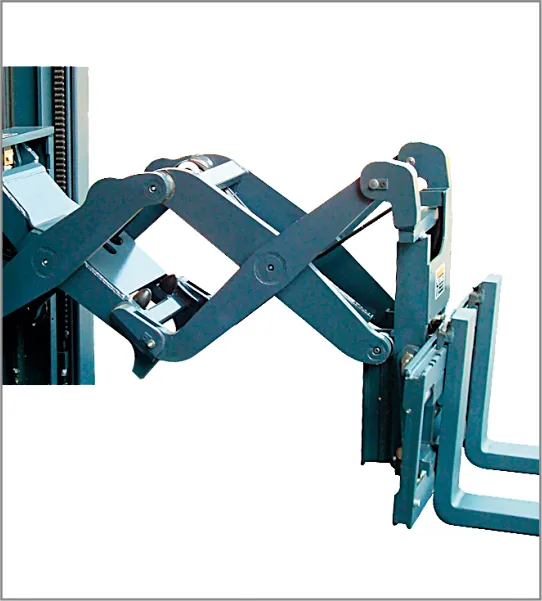

- Electric controller operated scissor reach forks.
SERVICEABILITY
- CANbus technology reduces wiring complexity.
- All pivot points have grease fittings and serviceable bushings.
- Easy-to-open back cover for maintenance and adjustment.
Quality managed under ISO9001:2008, Environmental ISO14001:2004, and OHSAS18001:2007. Products are TUV/GS/CE certified.

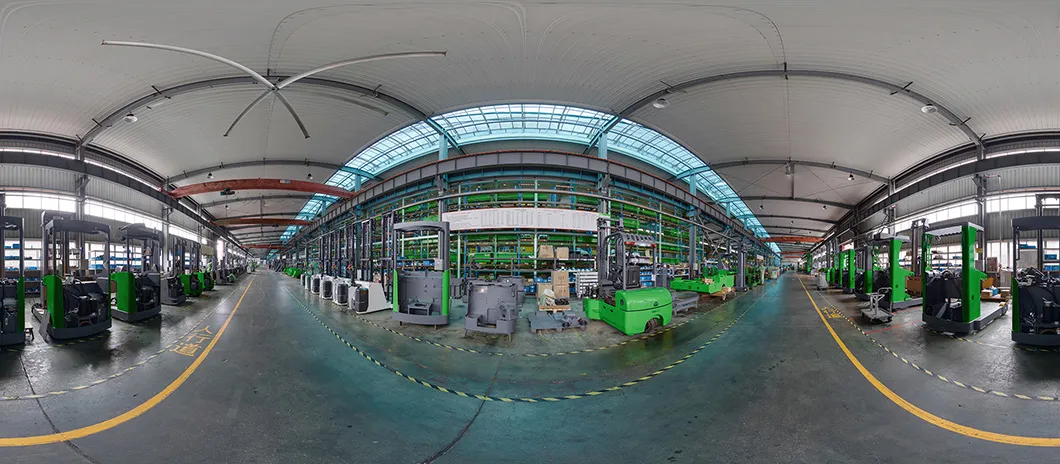

Testing System Before Delivery:
- Strengthening test detection
- Stability detection
- Climbing performance and current detection
- Braking performance debugging
- Technical parameter verification
Standard export packaging. Production time is usually 15-20 days. Each truck is carefully inspected and packaged according to requirements.
Frequently Asked Questions
How long is the continuous working time and charging time?
The battery continuous working time is approximately 3-6 hours, depending on battery volume. A full charge typically requires 3-6 hours.
What are the specifications of the chargers provided?
Chargers are available in 24V or 48V. Power plugs can be customized to USA, UK, Australia, or European standards. The side-way battery with a roll-out system allows for very convenient replacement.
Do you provide customized OEM or ODM products?
Yes, we have been professionally developing and producing warehouse logistic equipment since 1985 and provide OEM services for several global major brands.
What is the warranty period for the products?
We provide a one-year warranty. During this period, we provide free replacement for wearing parts damaged by non-human factors.
What main safety features are included in the reach truck?
Key safety features include an emergency power disconnect, built-in pressure relief valves for overload protection, and an advanced AC control system for stable handling.
Is the equipment tested before shipment?
Yes, every unit undergoes five rigorous tests: strengthening detection, stability detection, climbing performance, braking performance, and technical parameter verification.
