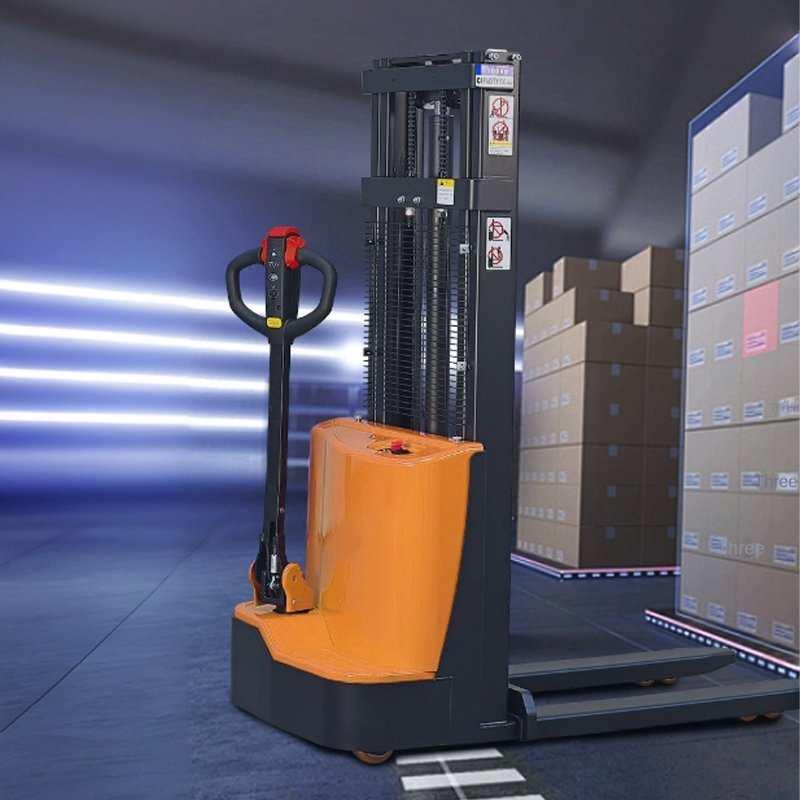

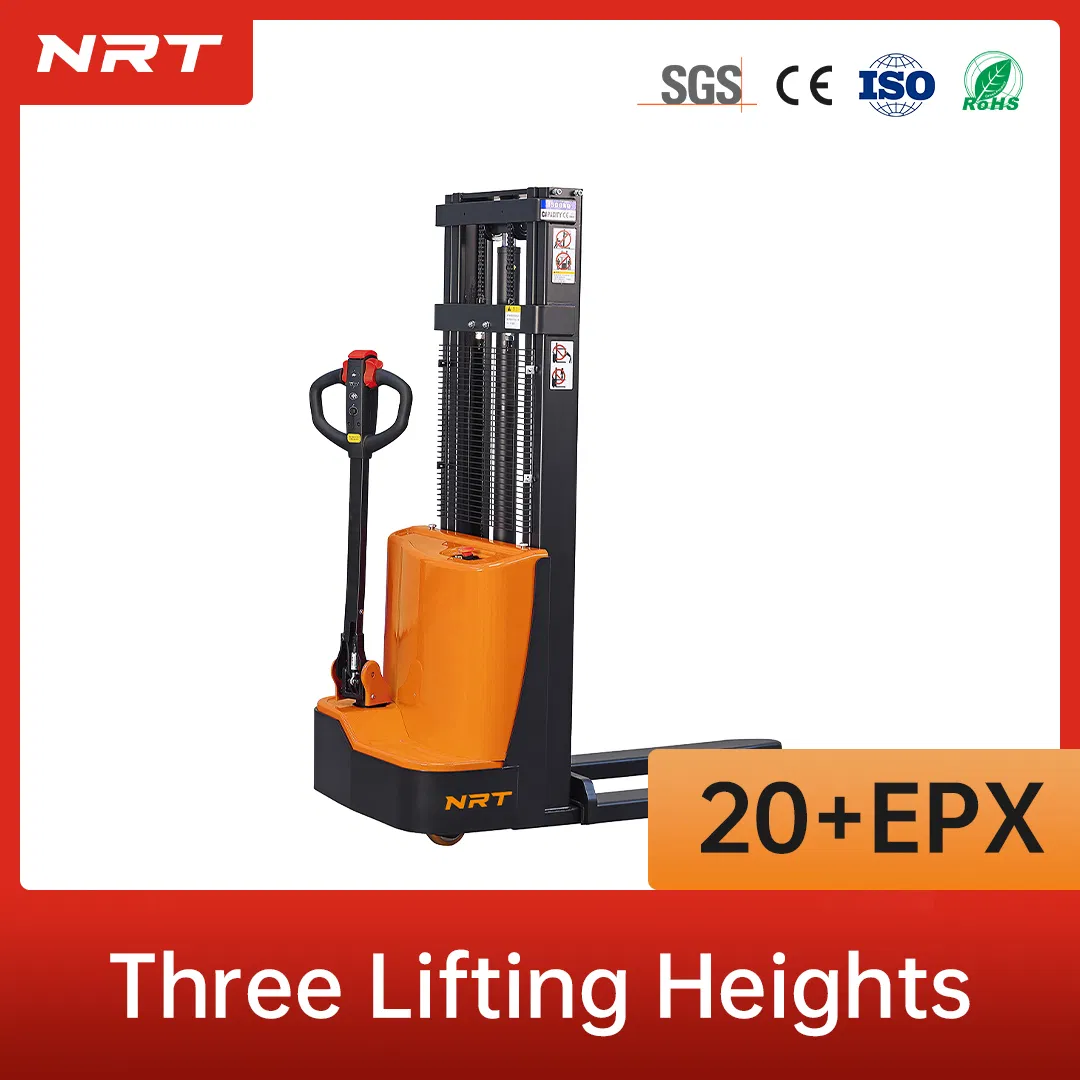

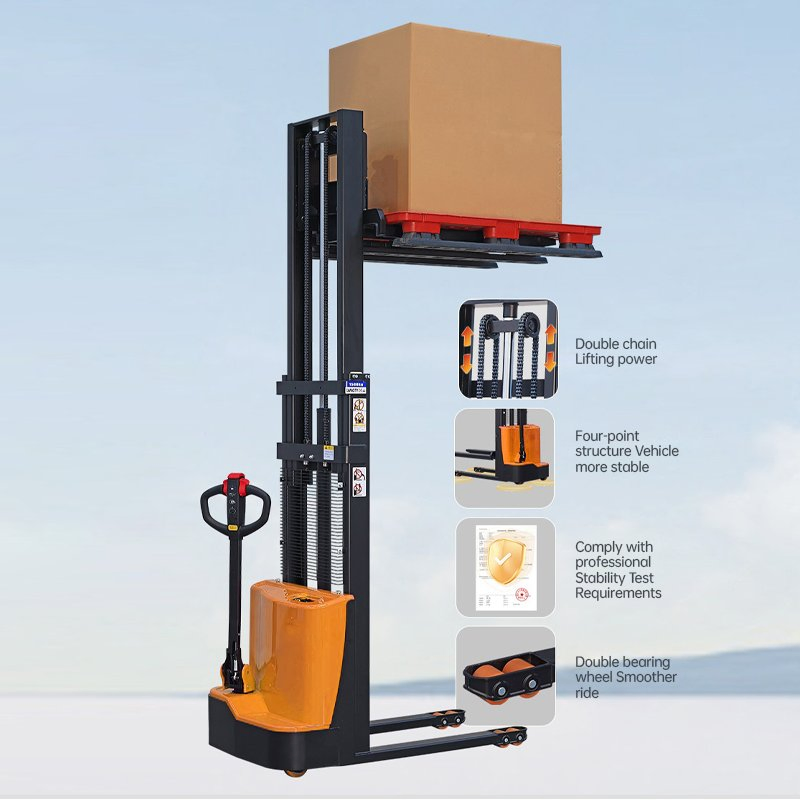

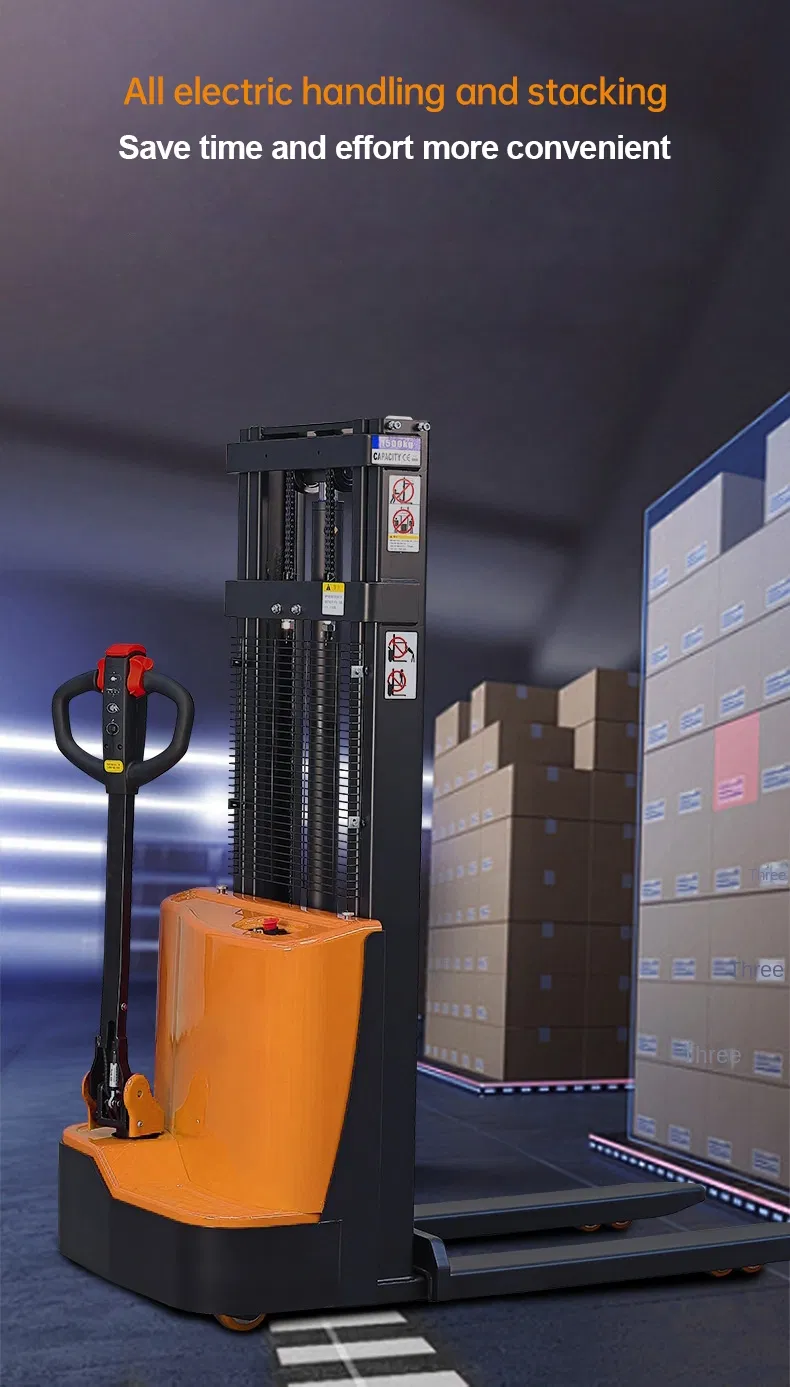

1.5T Electric Pallet Stacker

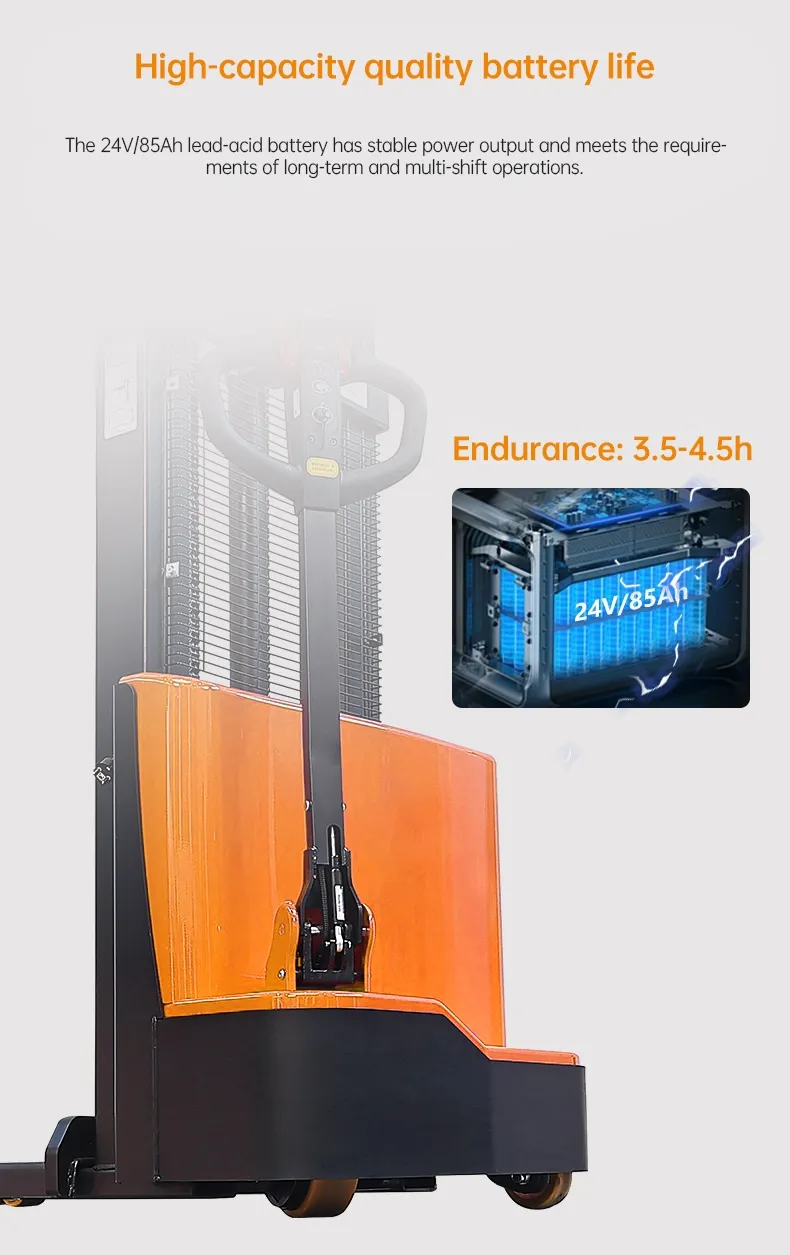

This walk-behind electric pallet stacker is designed for efficient warehouse stacking. It features a 24V85Ah high-capacity battery with low-power protection, a 0.75kW drive motor, and a 2.2kW lifting motor. With speeds reaching up to 4km/h and a maximum lifting height of 2910mm, it is an ideal solution for material handling.

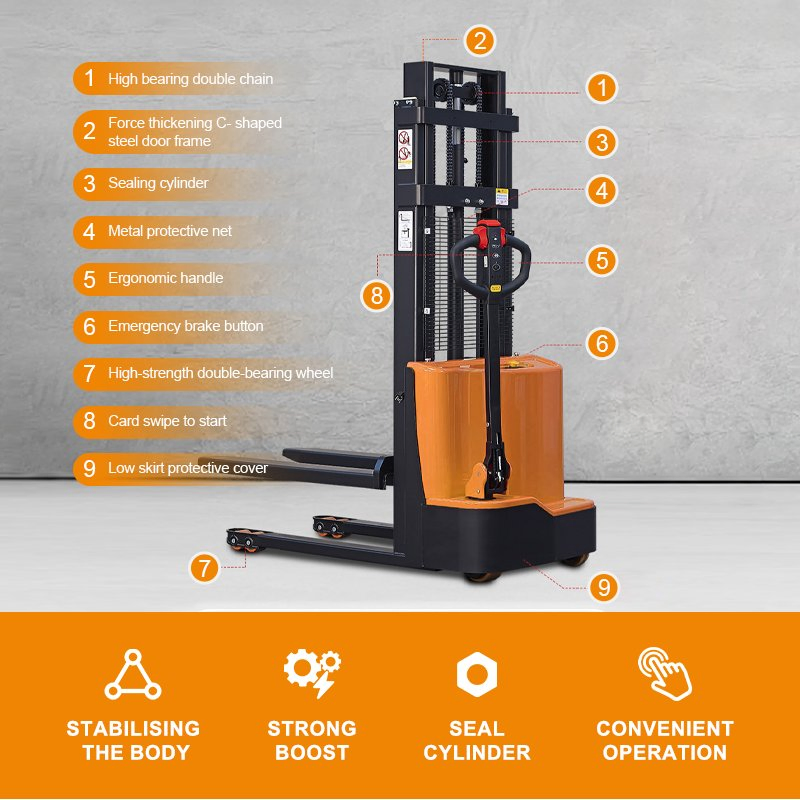

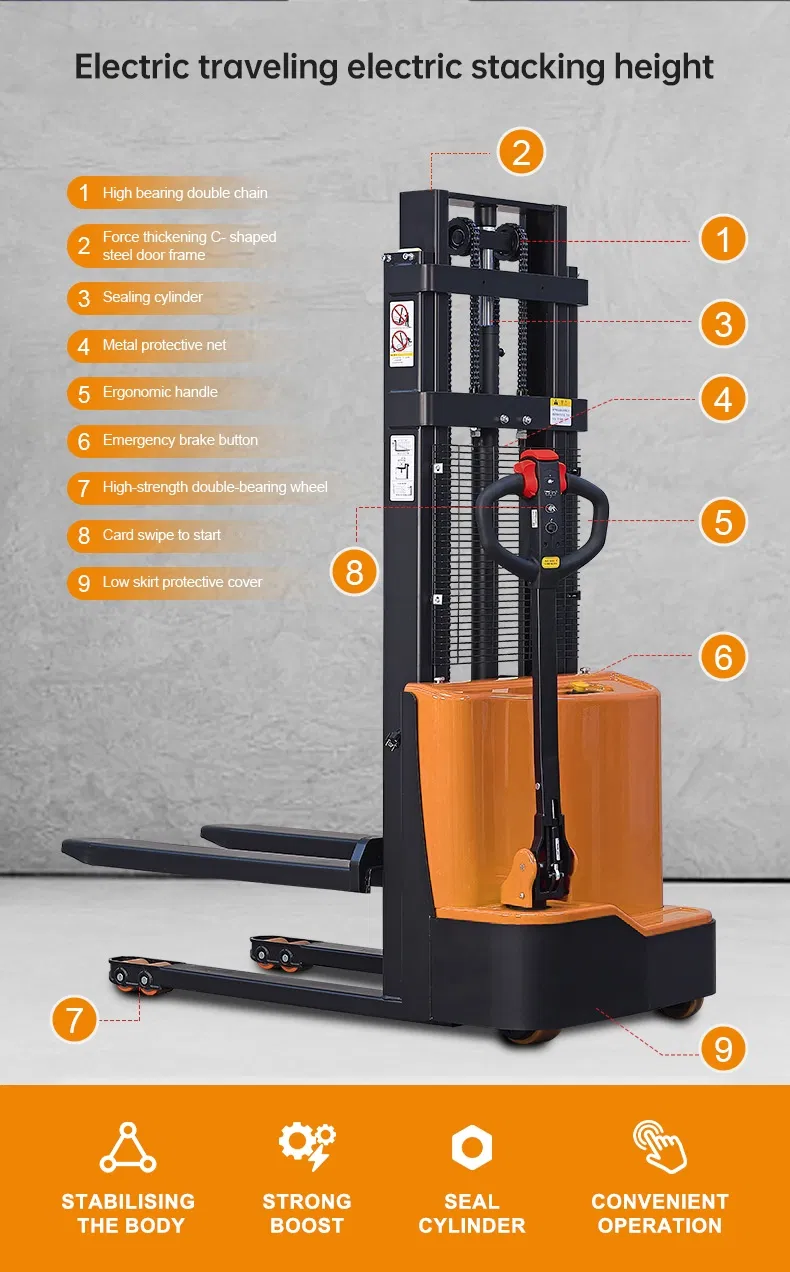

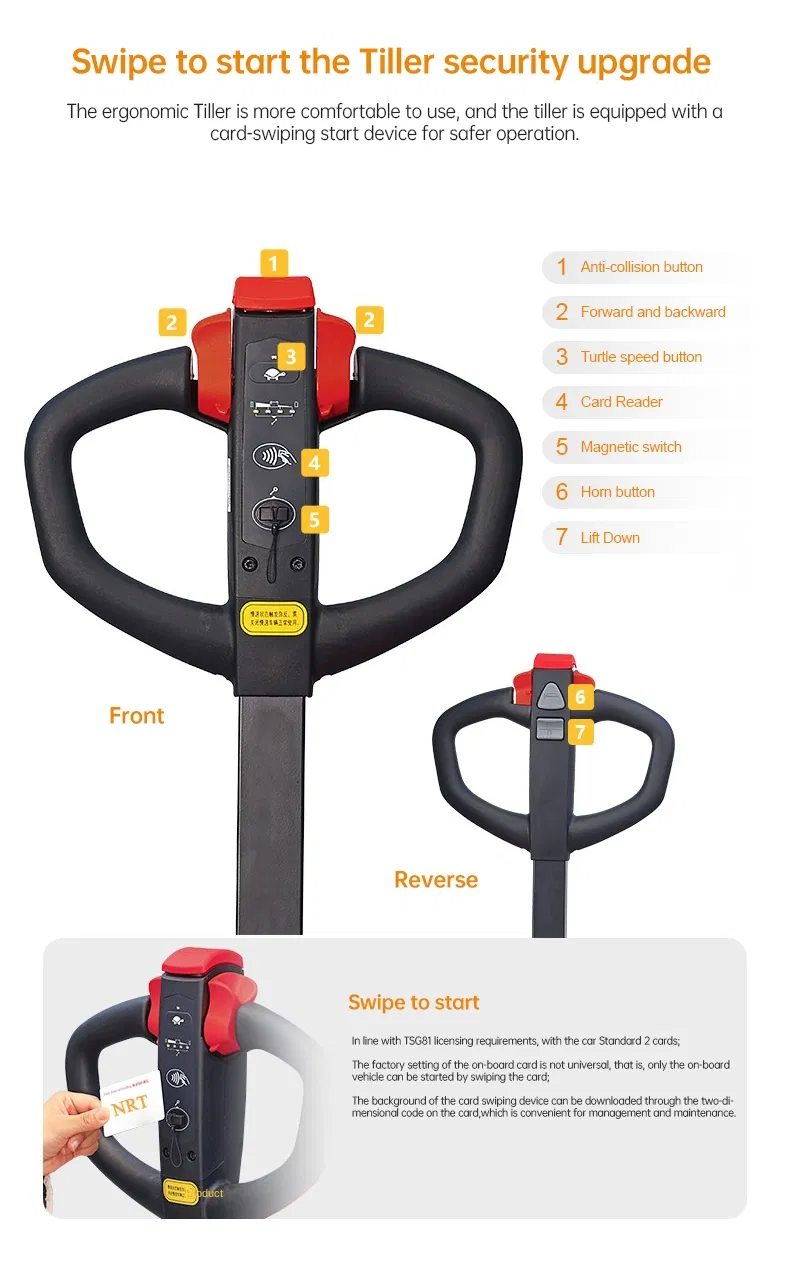

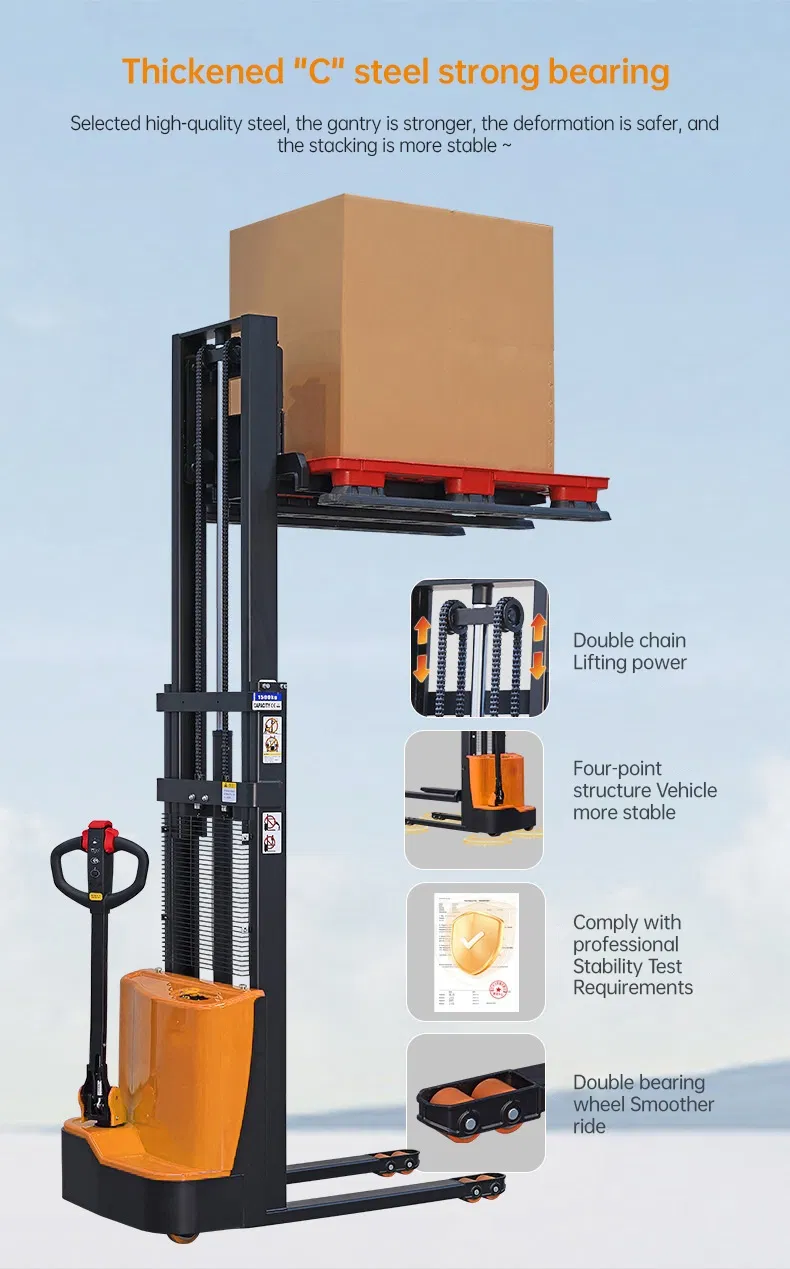

Key features include an integrated rubber-coated handle, one-click creep speed for narrow spaces, safe magnetic card startup, and a C-type alloy steel mast for maximum stability.
| Model NO. | ND15Q01LD |
| Type | Stacker |
| Power | DC Motor |
| Load Capacity | 1.5t |
| Fuel | Electric |
| Load Center | 500mm |

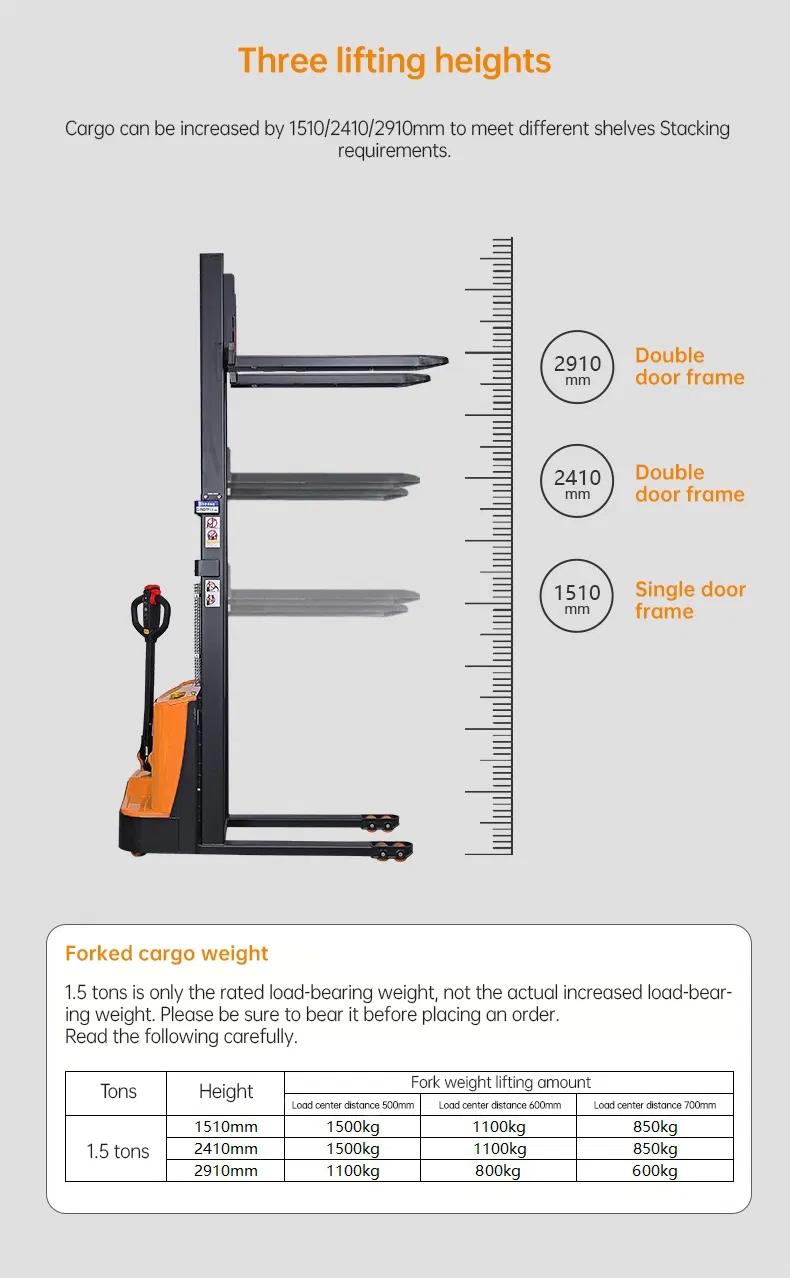

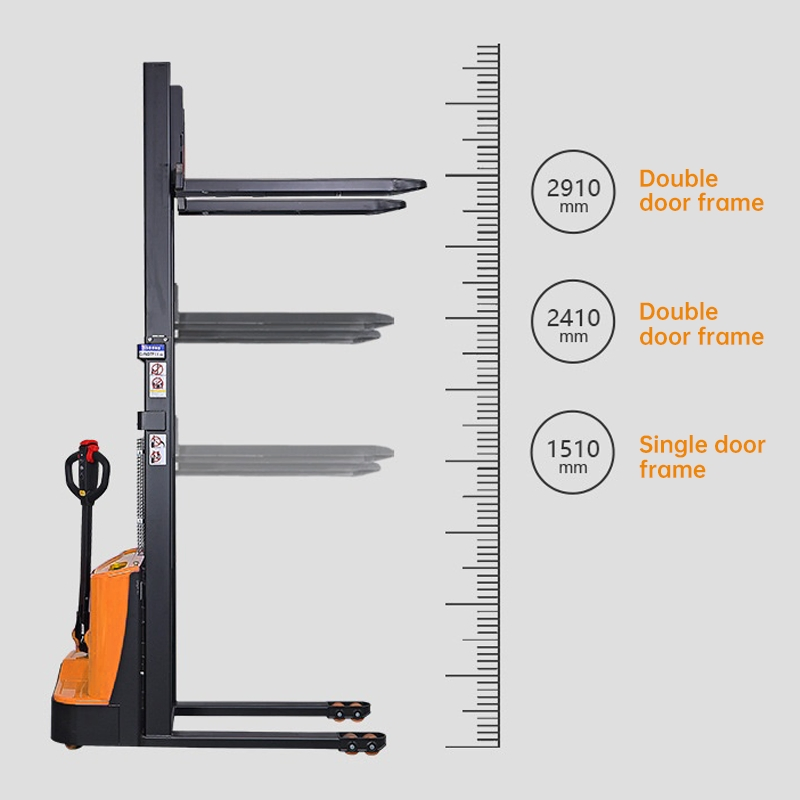

| Lift Height | 1510/2410/2910mm |
| Battery Model | Lead Acid Battery |
| Fork Length | 1070mm |
| Certification | CE, PSE |
| Usage | Supermarket, Warehouse Rack, Material Handling |
| Item | Pallet Stackers |
| Rated Load | 1500kg |
| Fork Size | 60x142x1150mm |
| Height From Ground | 90mm |
| Weight | 470kg |
| Driving Speed (Full/No Load) | 3.5/4km/h |
| Turning Radius | 1357mm |
| Lead-acid Battery | 24V/85Ah |
| Charging Duration | 8h |
| Package Size | 167.30cm * 66.00cm * 209.00cm |
| Gross Weight | 470.000kg |
| Lead Time | 31 days (1 piece); Negotiable (> 1 piece) |
