Next-Gen 2.5t Electric Walkie Pallet Truck: Lithium Battery Technology for Intensive, Sustainable Logistics Operations

1 / 5

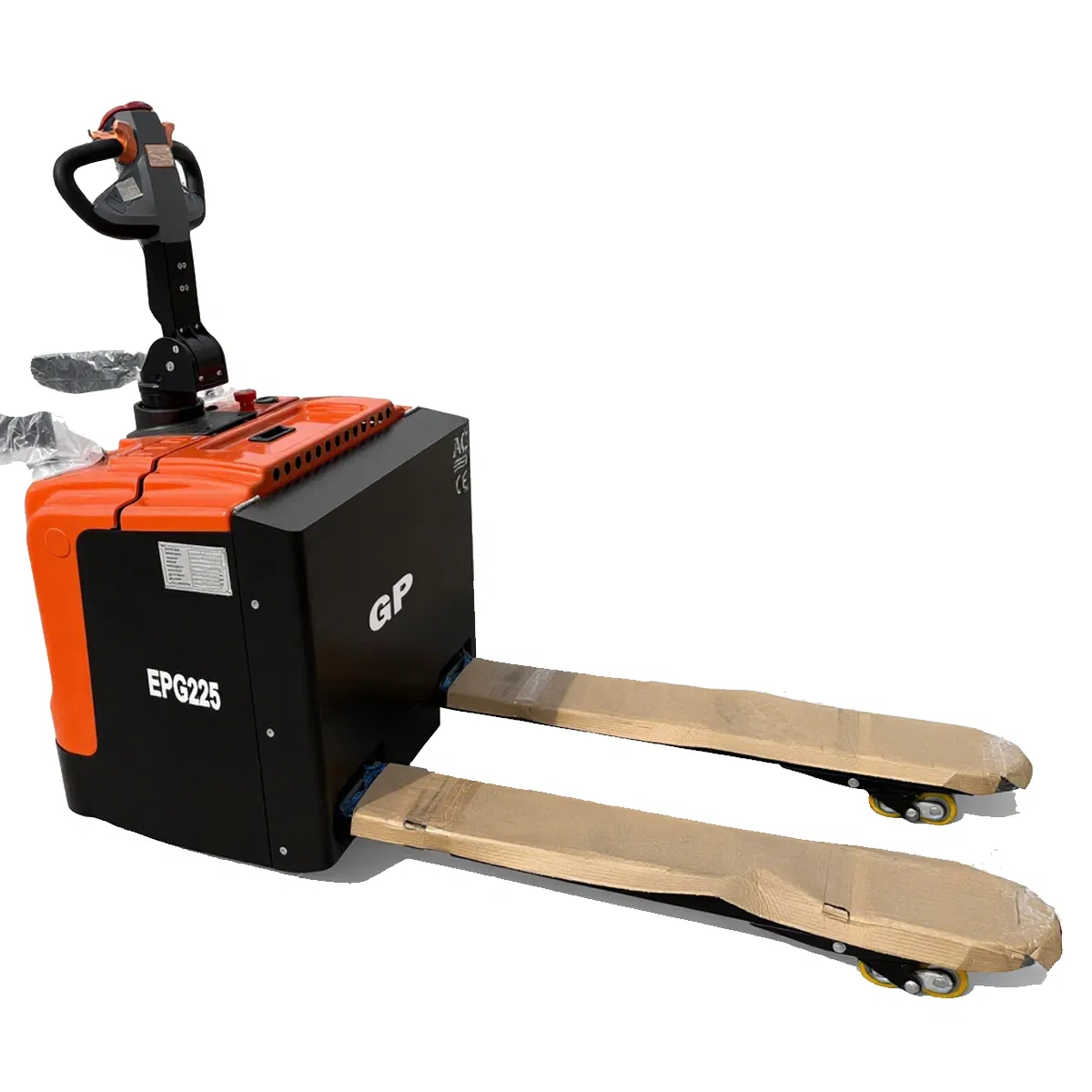

Next-Gen 2.5t Electric Walkie Pallet Truck: Lithium Battery Technology for Intensive, Sustainable Logistics Operations

Customization:	Available
After-sales Service:	1 Years
Warranty:	1 Years

Send Inquiry

Product Description

📋 Overview & Basic Info

Model NO.

EPG225

Type

Stacker

Power

AC Motor

Load Capacity

1T - 5T

Fuel

Electric

Lift Height

3000~5000mm

Condition

New

Mast

2 Stage/3 Stage

Advantage

Low Consumption High Efficiency

HS Code

8427109000

📦 Packaging & Delivery

Package Size

190.10cm * 77.00cm * 45.00cm

Gross Weight

720.000kg

🛠️ Product Description

An electric stacker is a kind of material handling equipment widely used in warehouses, logistics centers, and factories. It is designed to lift and stack pallets or other goods to a certain height, facilitating storage and retrieval operations. Here are its main features:

⚡ Power System It is powered by an electric motor, providing reliable and efficient power. The electric power source offers low noise, zero emissions, and reduced maintenance costs, making it ideal for indoor environments.
⬆️ Lifting Mechanism Equipped with a hydraulic or electric lifting system, it precisely controls fork height (up to 10+ meters in specific models). Smooth and stable operations ensure cargo safety.
🍴 Forks and Load Capacity Adjustable fork widths handle various pallet sizes. Load capacities typically range from 1 ton to 5 tons, meeting diverse handling needs.
🎮 Control System Advanced systems allow easy movement control (forward, backward, turning). Modern models include intelligent functions like automatic height adjustment and speed control.
🛡️ Safety Devices Includes emergency stop buttons, overload protection, safety lights, and interlocks to protect operators and goods.
📐 Compact Design Enables operation in narrow aisles and confined spaces, maximizing warehouse storage utilization.

📊 Product Parameters

Parameter	Unit	EPG120	EPG225
Operating Type	-	Stand on / Walkie	Stand on / Walkie
Load Capacity	kg	2000	2500
Load Center	mm	600	600
Service Weight	kg	650	720
Wheel Base	mm	1310	1310
Overall Width	mm	770	770
Travel Speed (Laden/Unladen)	km/h	5.5/6	5.5/6
Lift Speed (Laden/Unladen)	mm/s	34/40	30/40
Drive Motor (AC)	kw	1.5	1.5
Battery Voltage	V	24	24
Controller	-	CURTIS	CURTIS

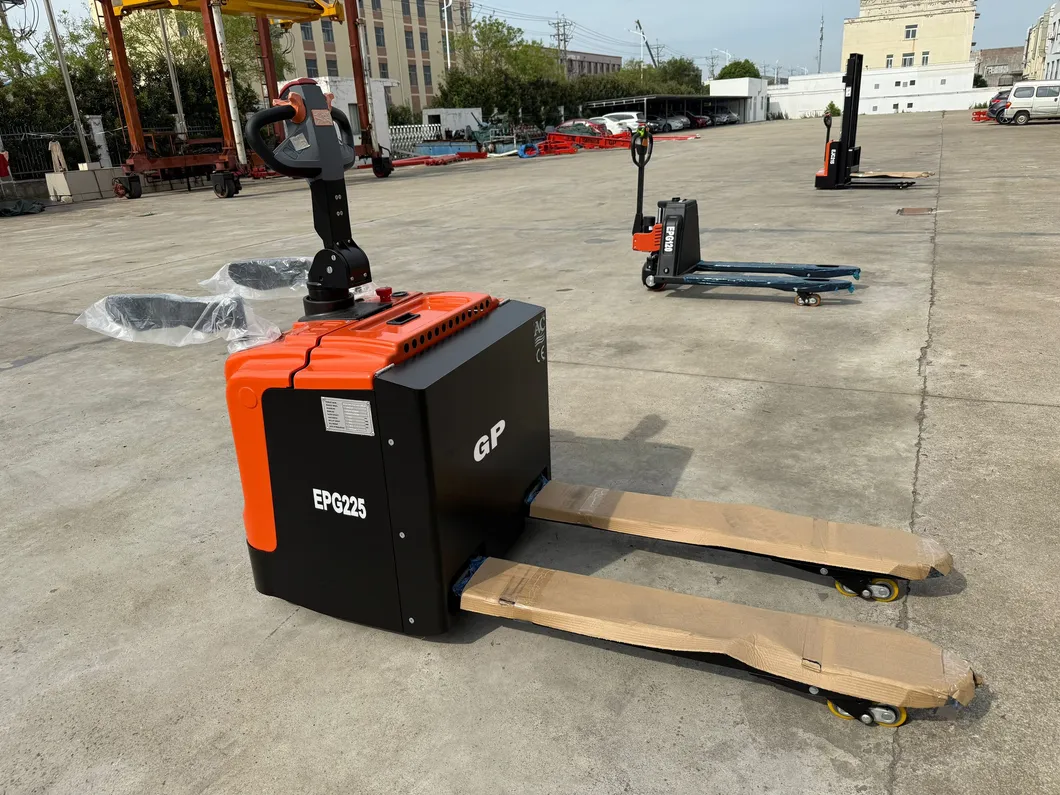

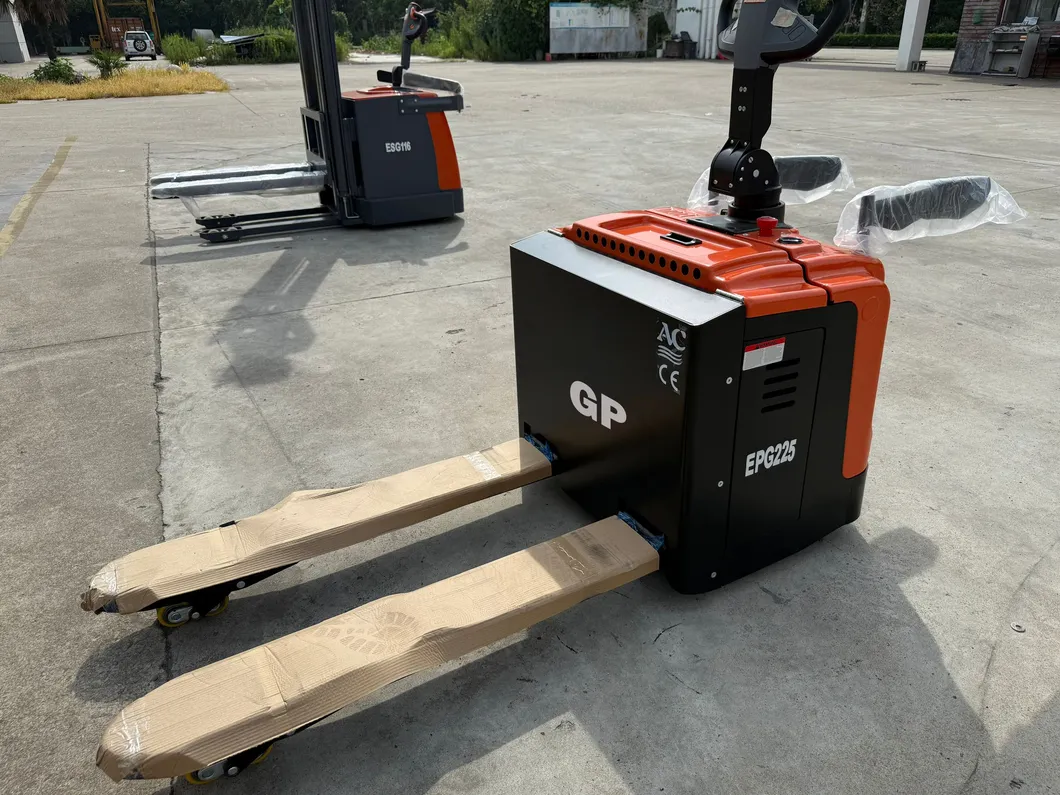

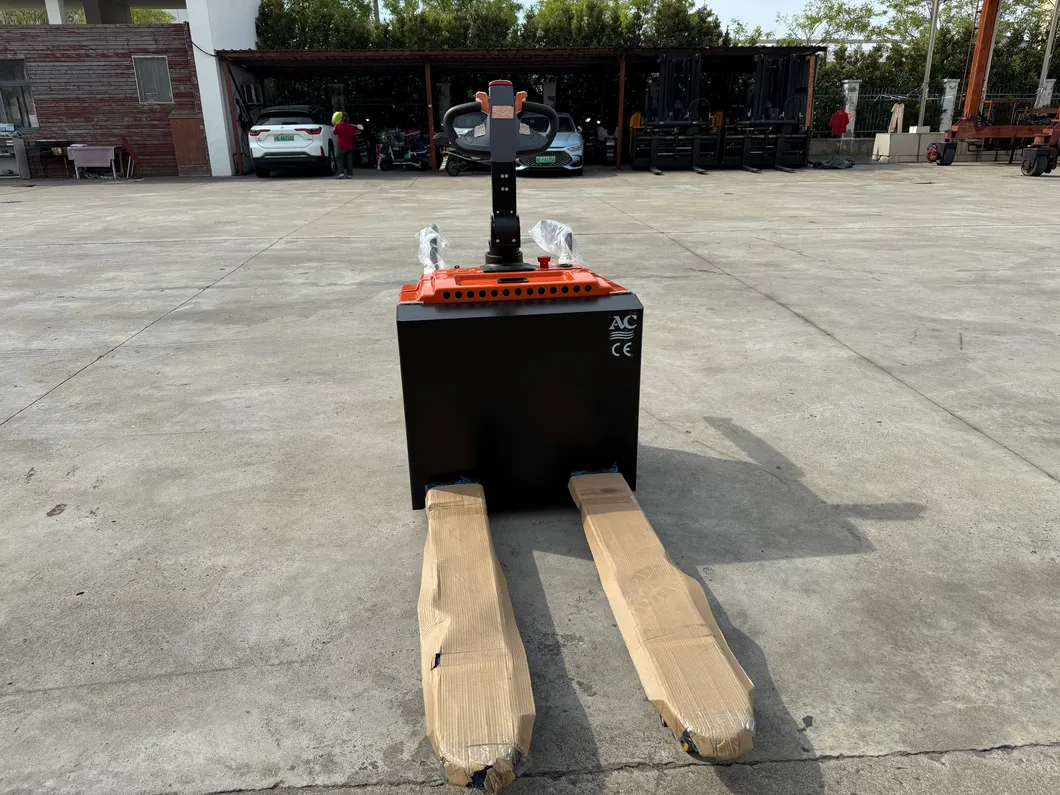

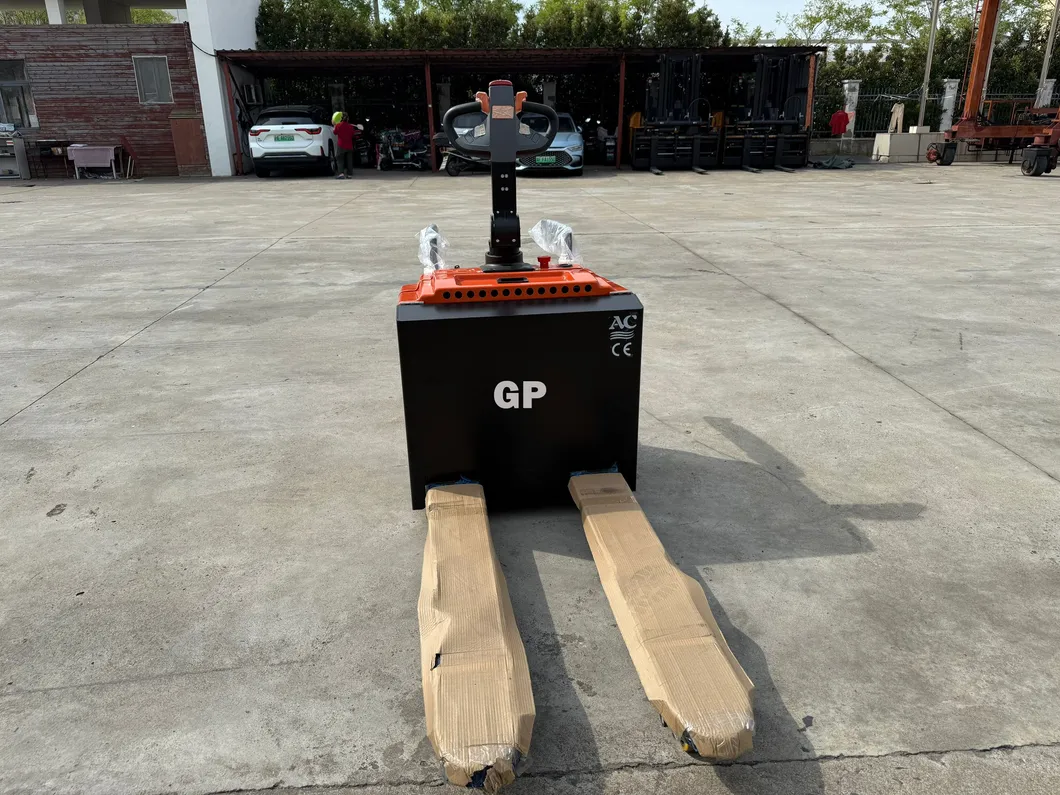

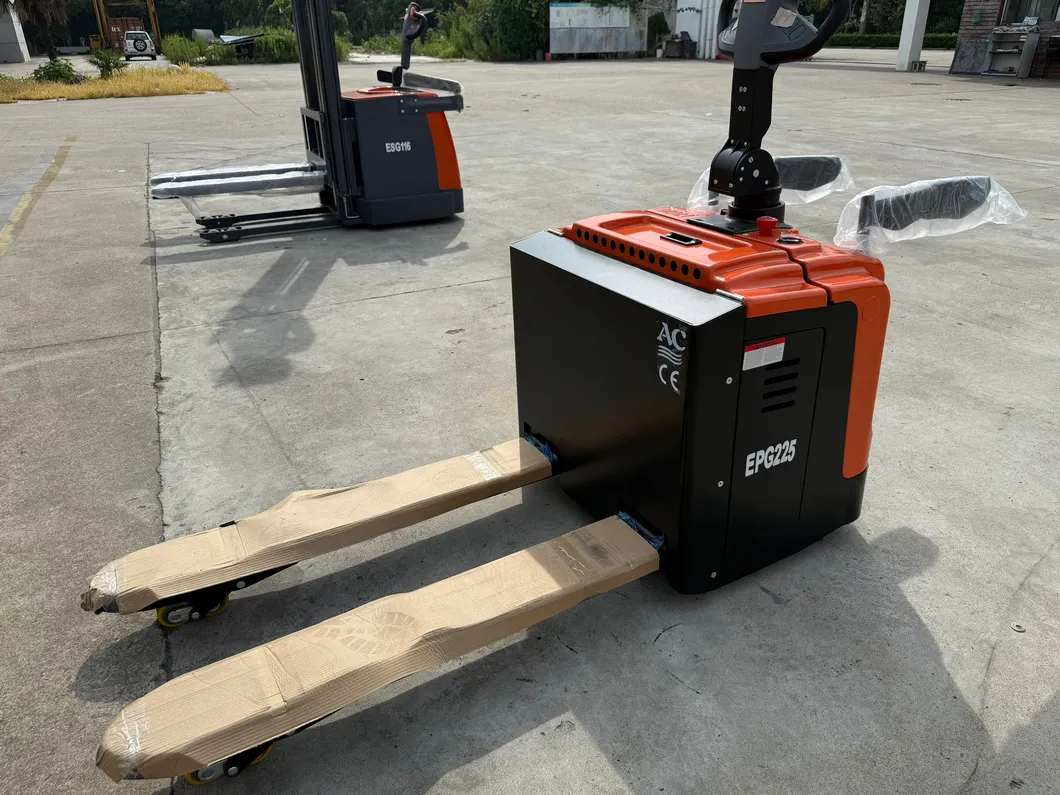

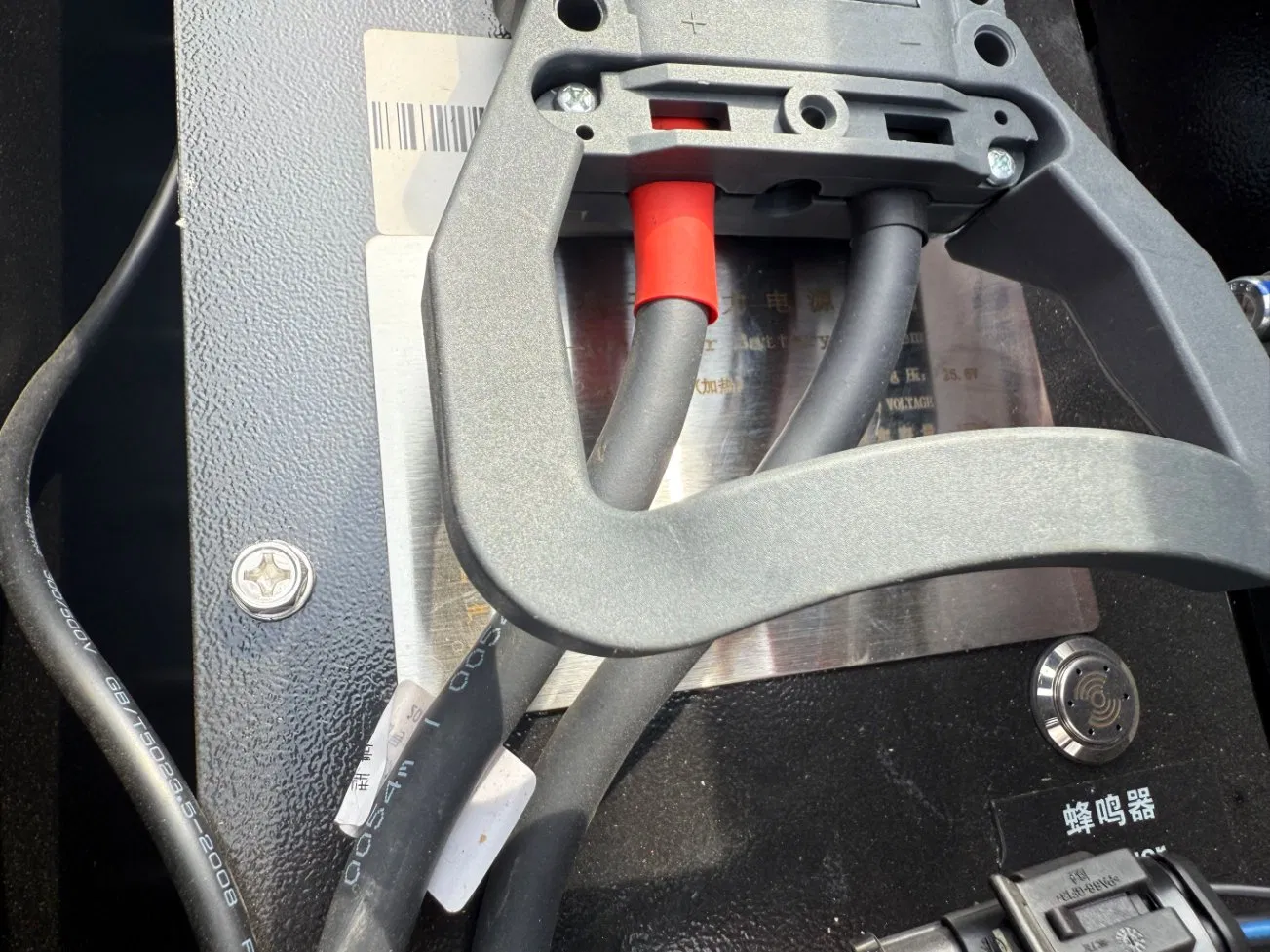

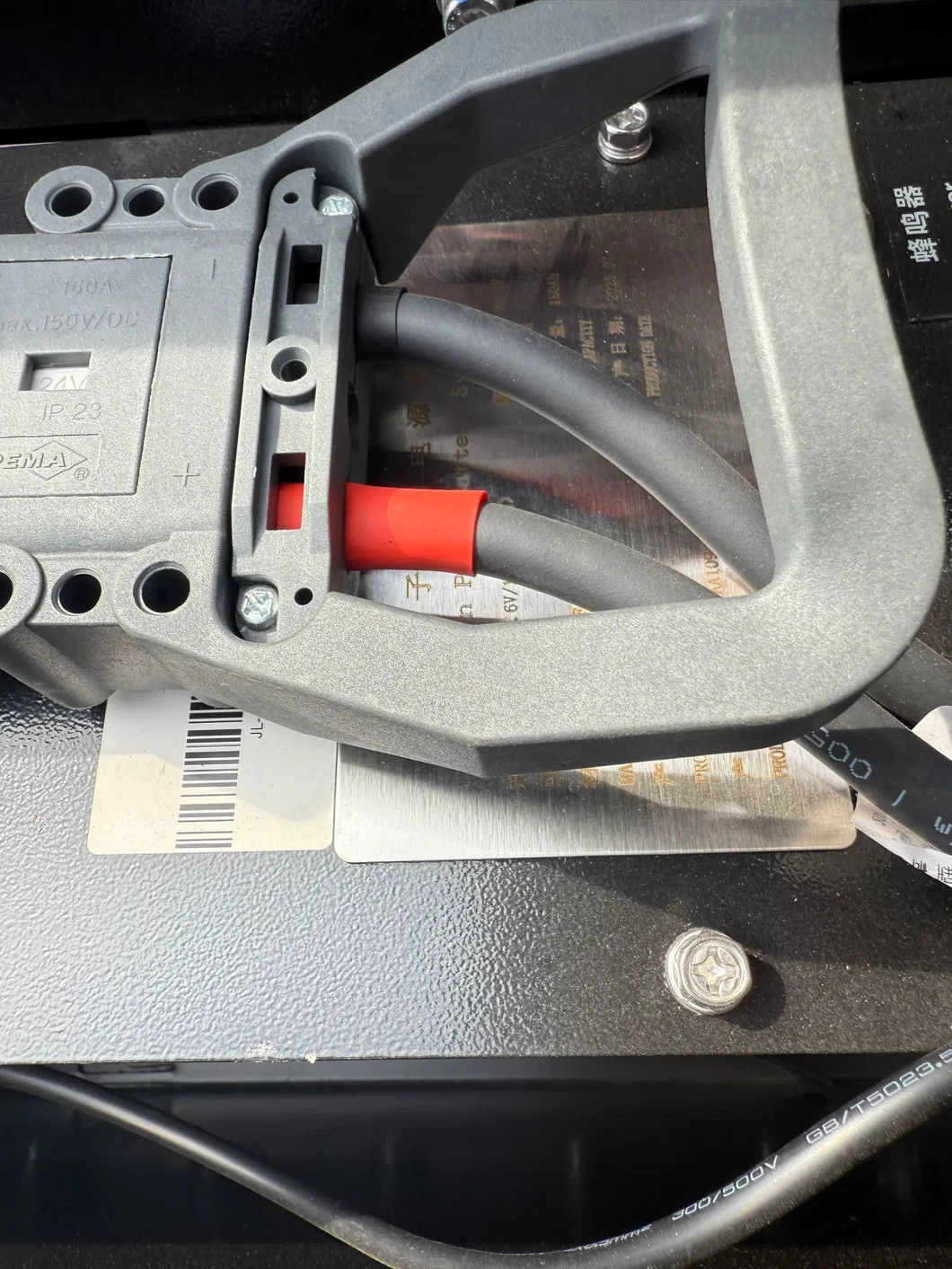

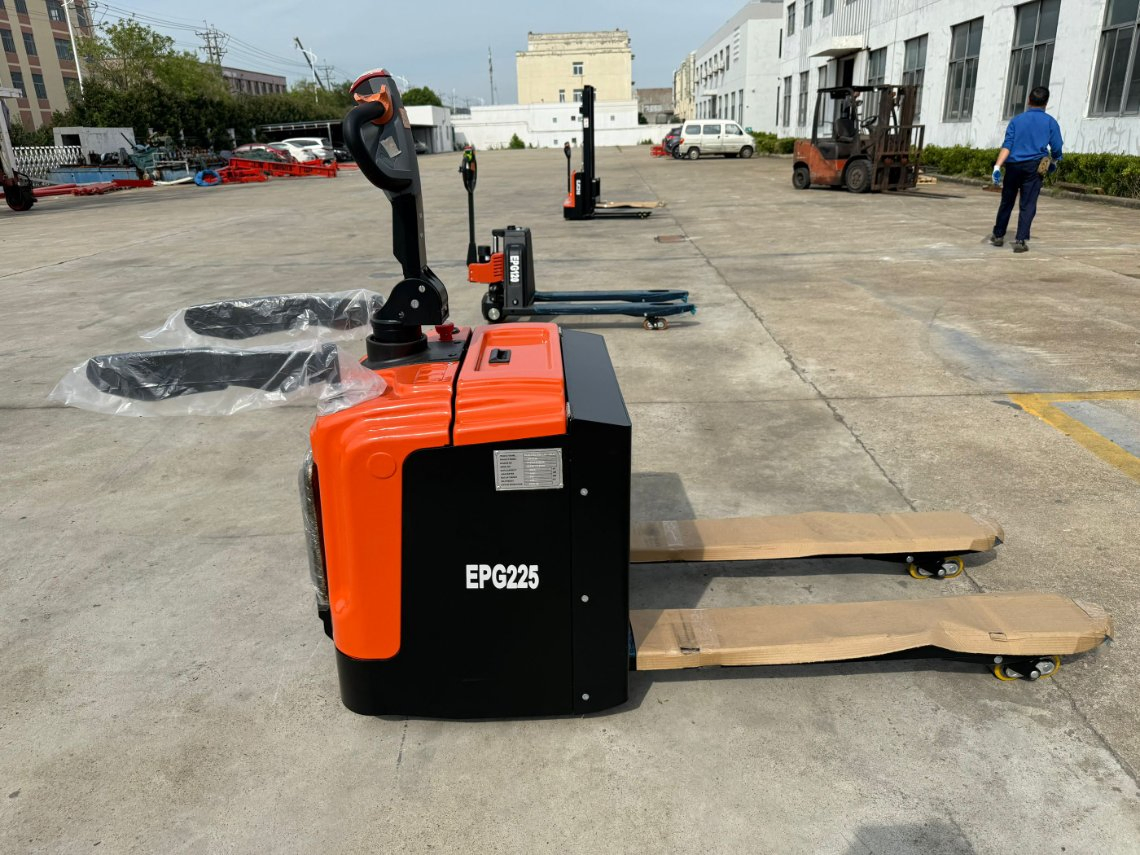

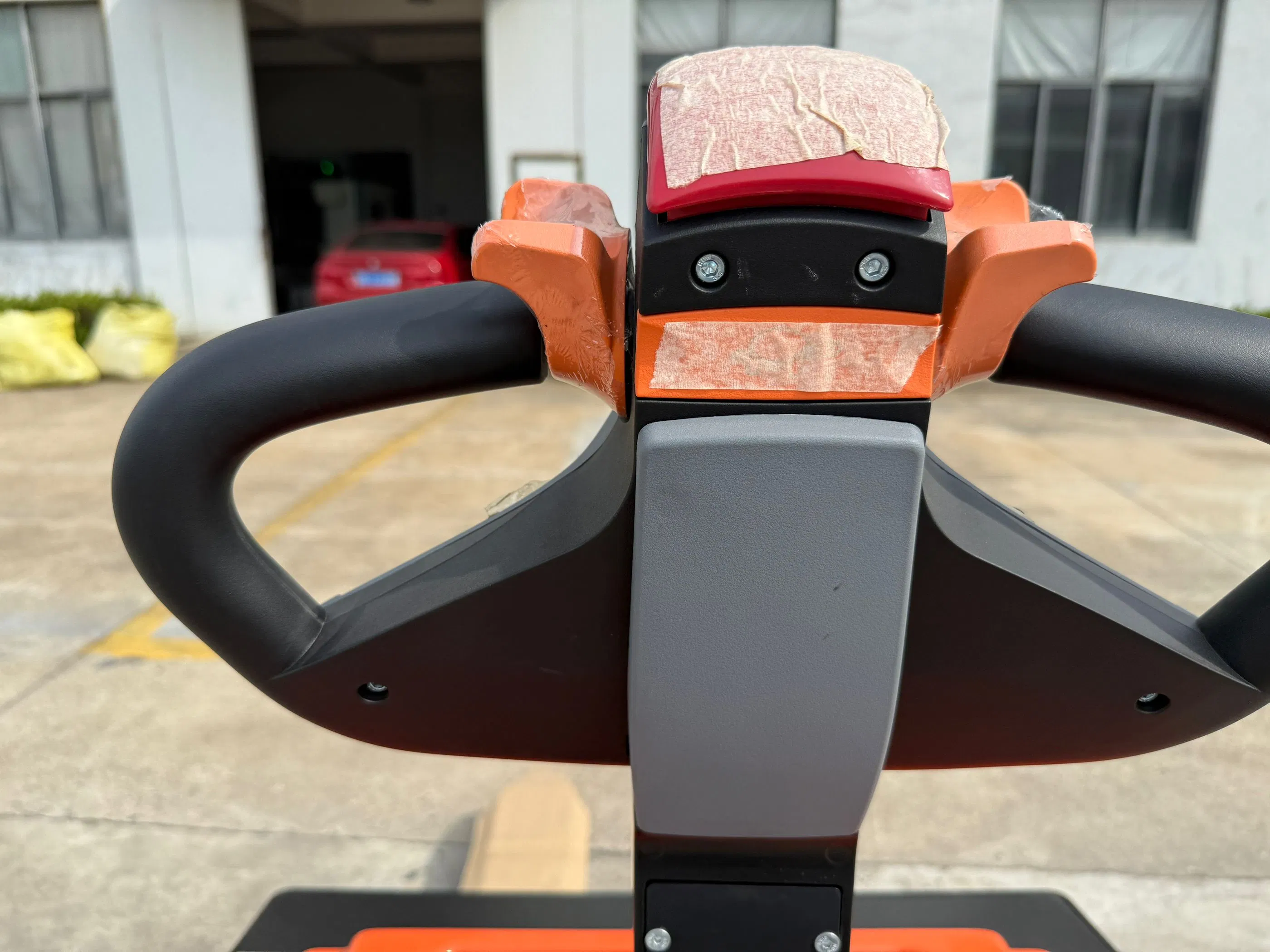

📷 Detailed Photos

❓ Frequently Asked Questions

What are the main applications for the EPG225 electric stacker?

It is ideal for high-intensity logistics operations, warehousing, and factories where efficient lifting and stacking of pallets in narrow aisles is required.

How does the AC motor benefit the operation?

The AC motor provides consistent power, requires less maintenance than DC motors, and operates with zero emissions, making it perfect for indoor use.

What safety features are standard on this model?

Standard features include an electromagnetic brake system, emergency stop buttons, overload protection, and an advanced CURTIS controller for precise handling.

What is the maximum load capacity for the EPG series?

The series offers models with capacities ranging from 1 ton up to 5 tons, with the EPG225 specifically rated for 2500kg.

Is the stacker suitable for narrow aisles?

Yes, with a compact design and a minimum turning radius of 1642mm, it is highly efficient in confined warehouse spaces.

Can the battery be customized?

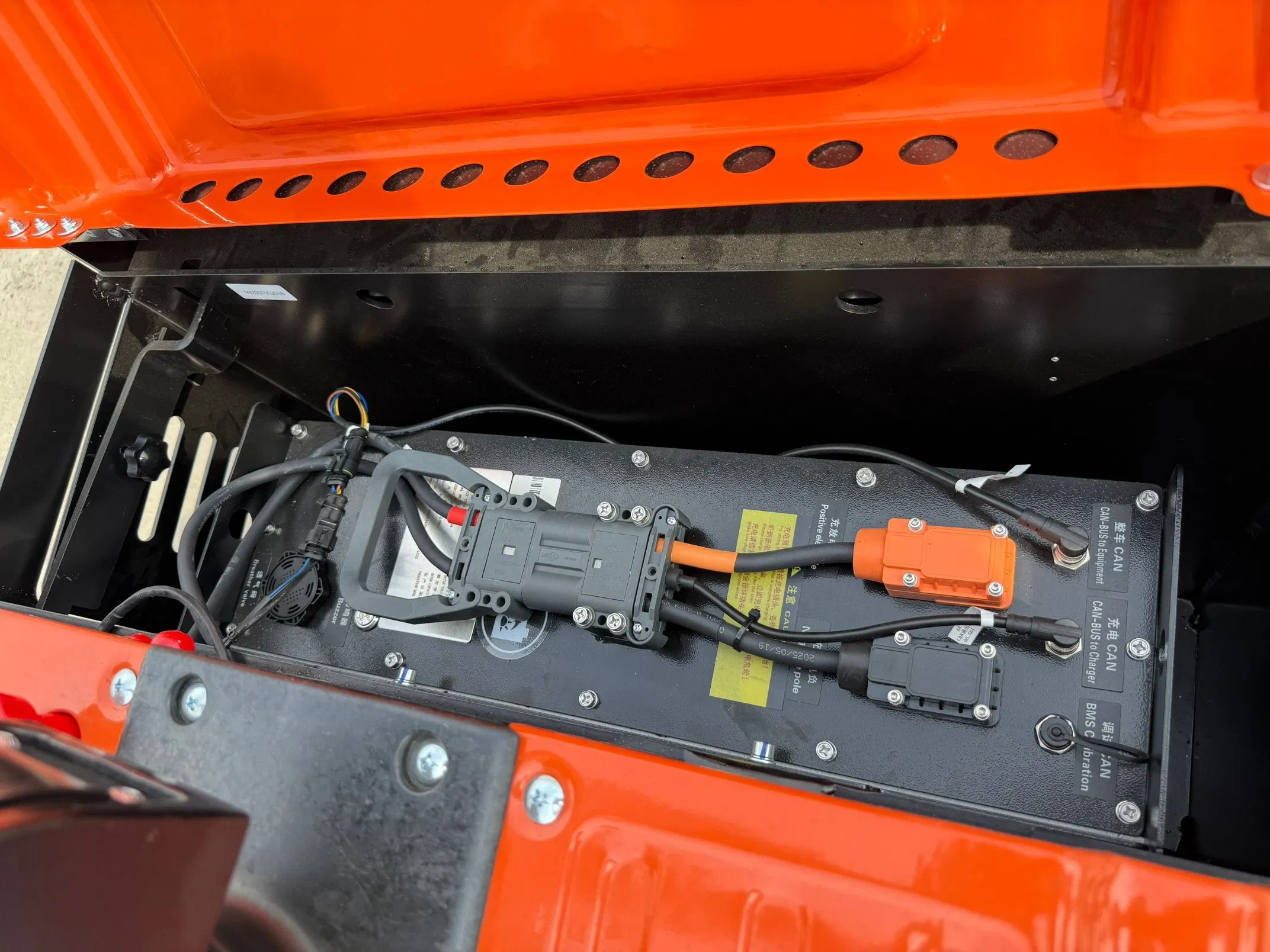

The standard model comes with high-performance lithium or lead-acid battery options (24V/240Ah) to meet different endurance requirements.
