LM Forklift
LM Forklift
| Model | CPCD30S | CPCD40S | CPCD50S | CPCD60S | CPCD70S | CPCD80S |
| Max Lift Capacity (kg) | 3000 | 4000 | 5000 | 6000 | 8000 | 10000 |
| Max Lift Height (mm) | 3500 | 3000 | 3550 | 3550 | 3600 | 3600 |
| Min Turning Radius (mm) | 4300 | 4300 | 4550 | 4450 | 4800 | 5800 |
| Platform Height (mm) | 920 | 920 | 990 | 990 | 990 | 1340 |
| Engine Model | 4D30G31 | 4D30G31 | CY4BG331 | CY4BG331 | CY6BG332 | CY6BG232 |

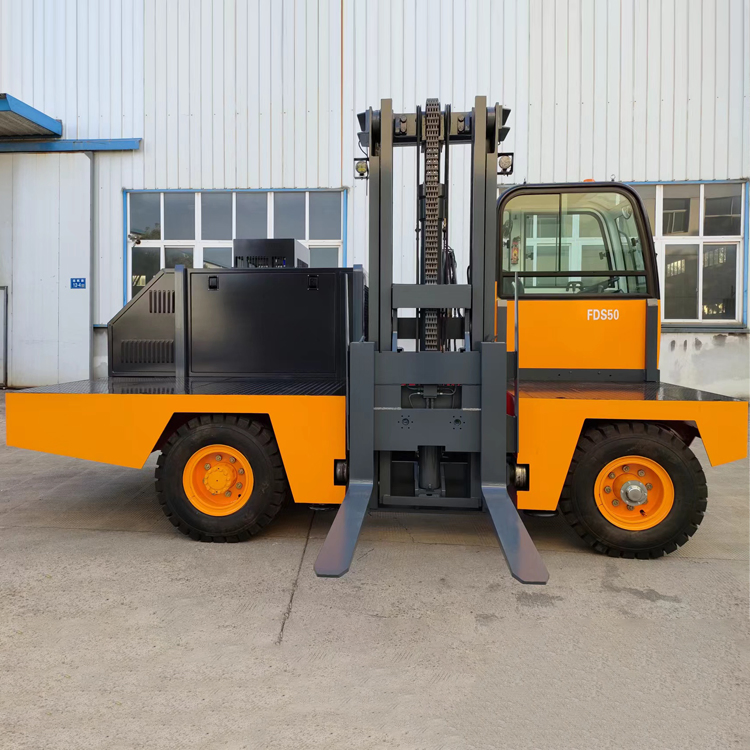

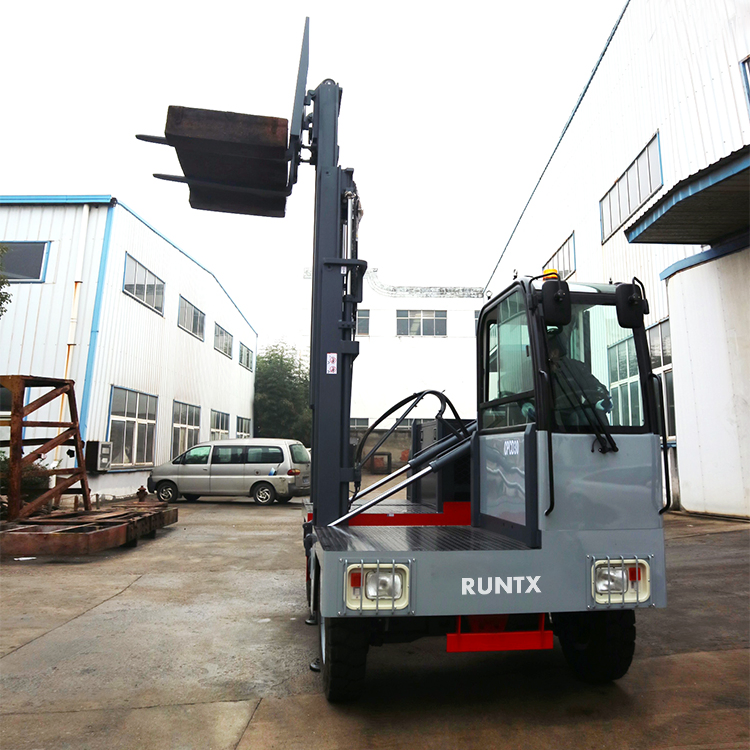

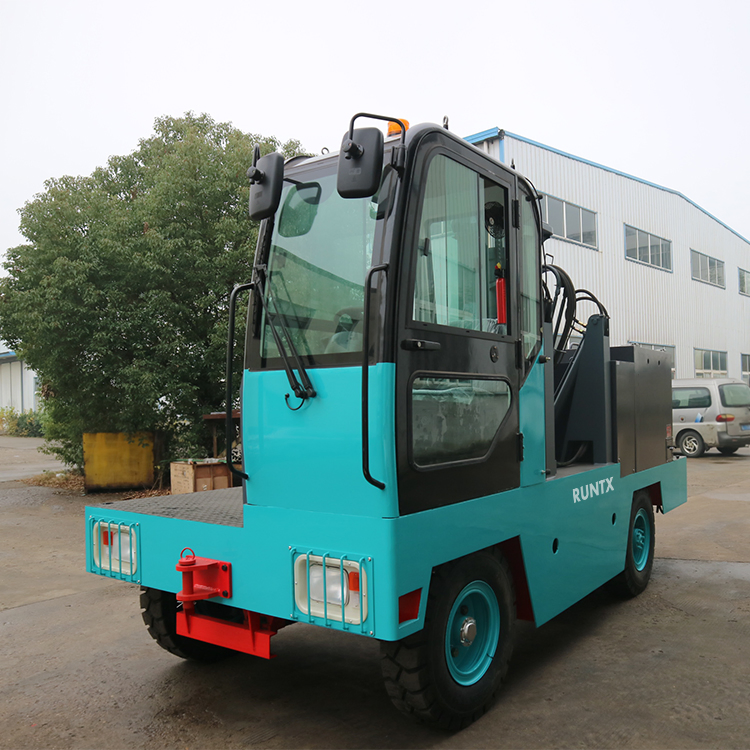

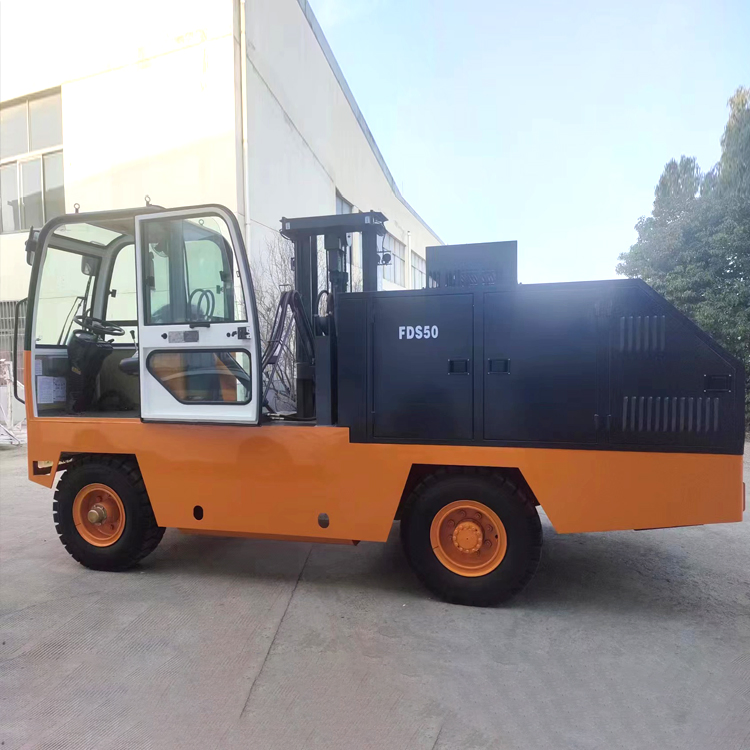

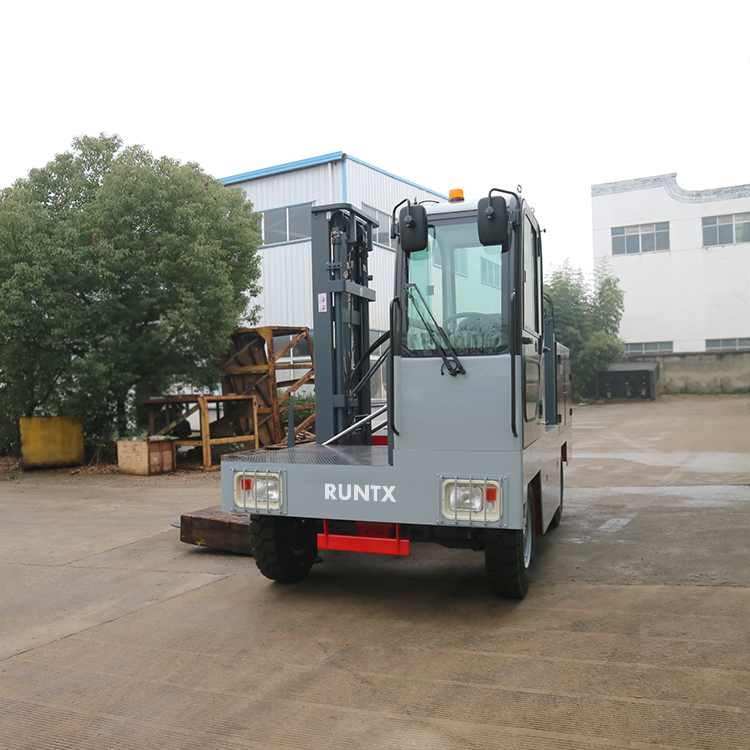

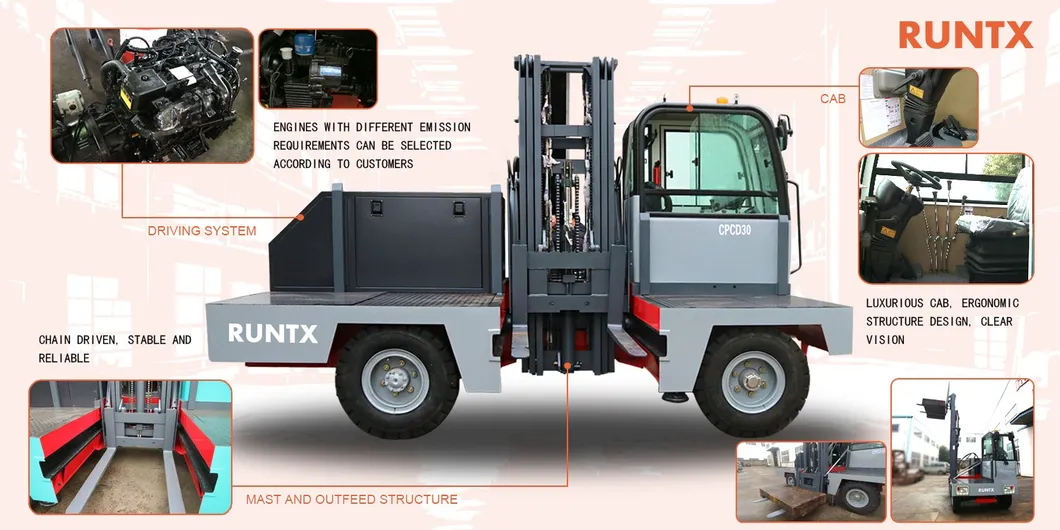

The side forklift truck is a specialized material handling solution. Available in both electric and diesel engine drives, these trucks feature a maximum load capacity of up to 10 tons. Unlike counter-balanced forklifts, the forks are mounted on the side of the body.
Perfect for handling timber, section steels, line poles, cement tubes, plastic pipes, and other bulky, over-length cargoes. It is widely used in forestry departments, railway stations, ports, warehouses, and construction sites.

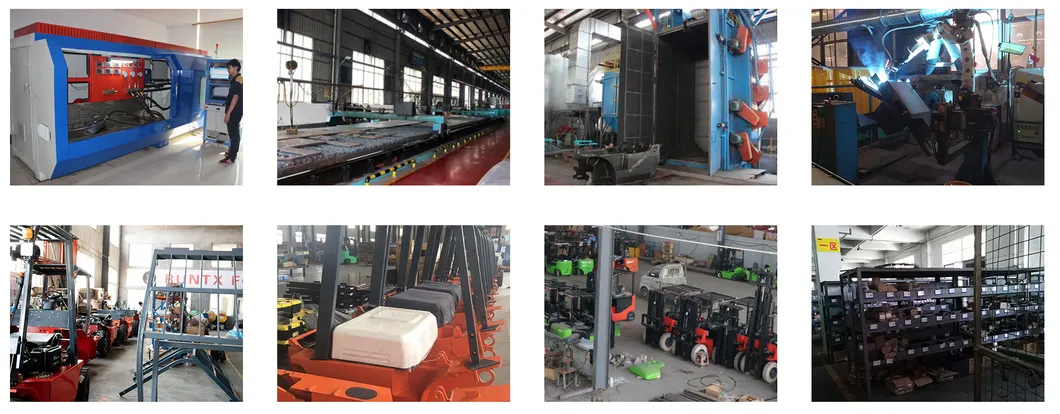

Our manufacturing facility covers more than 10,000 square meters, equipped with CNC cutting machines, vertical machining centers, and welding robots to ensure the highest quality of self-made key components.
