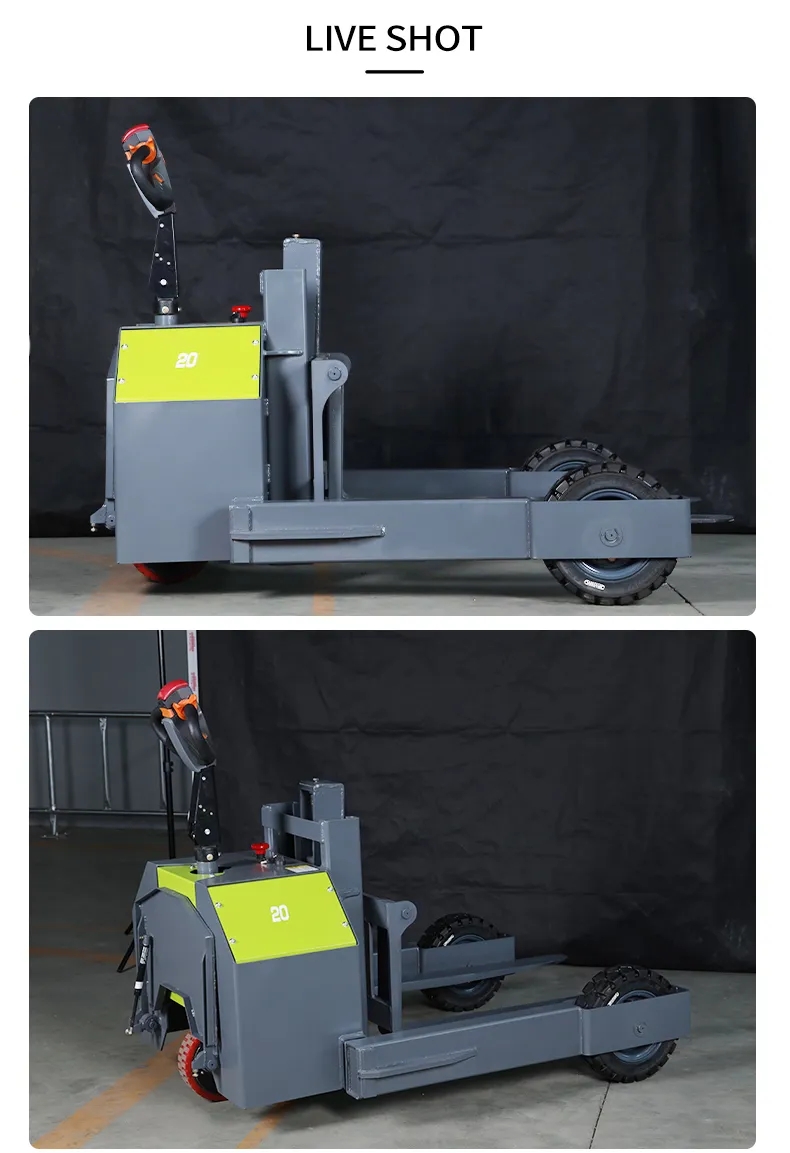

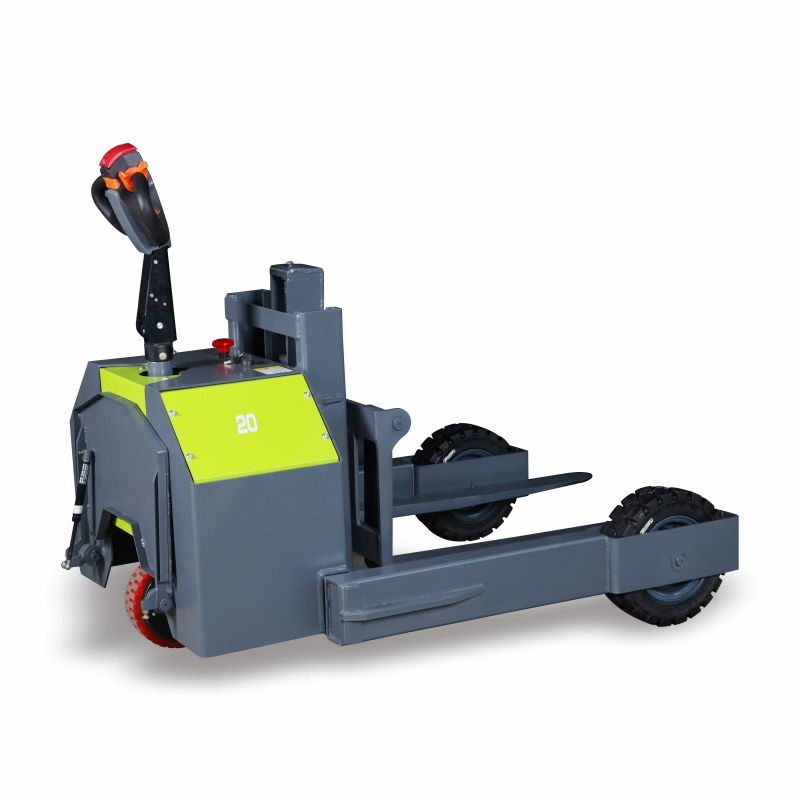

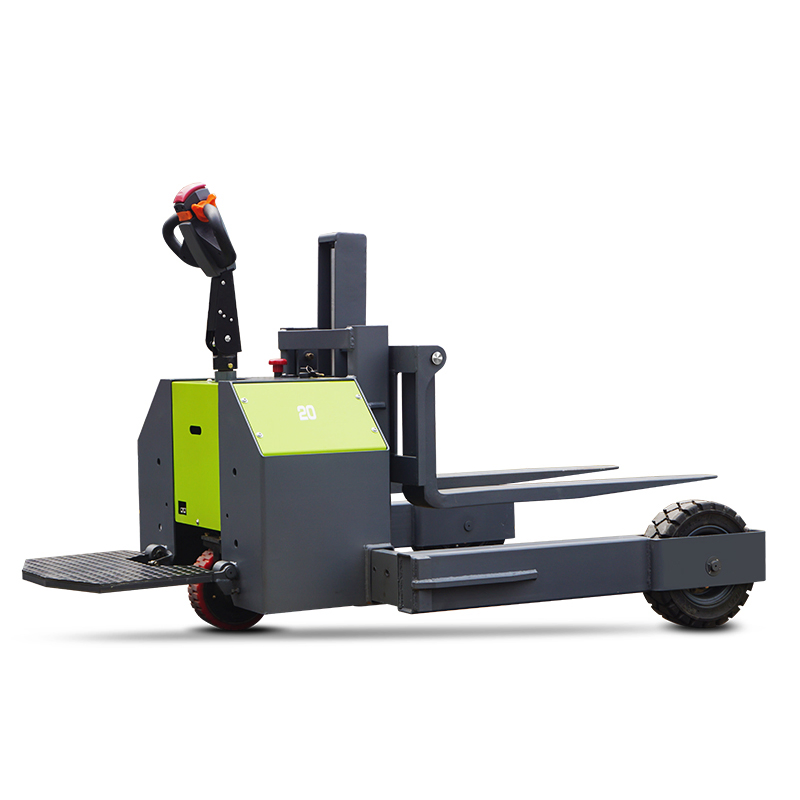

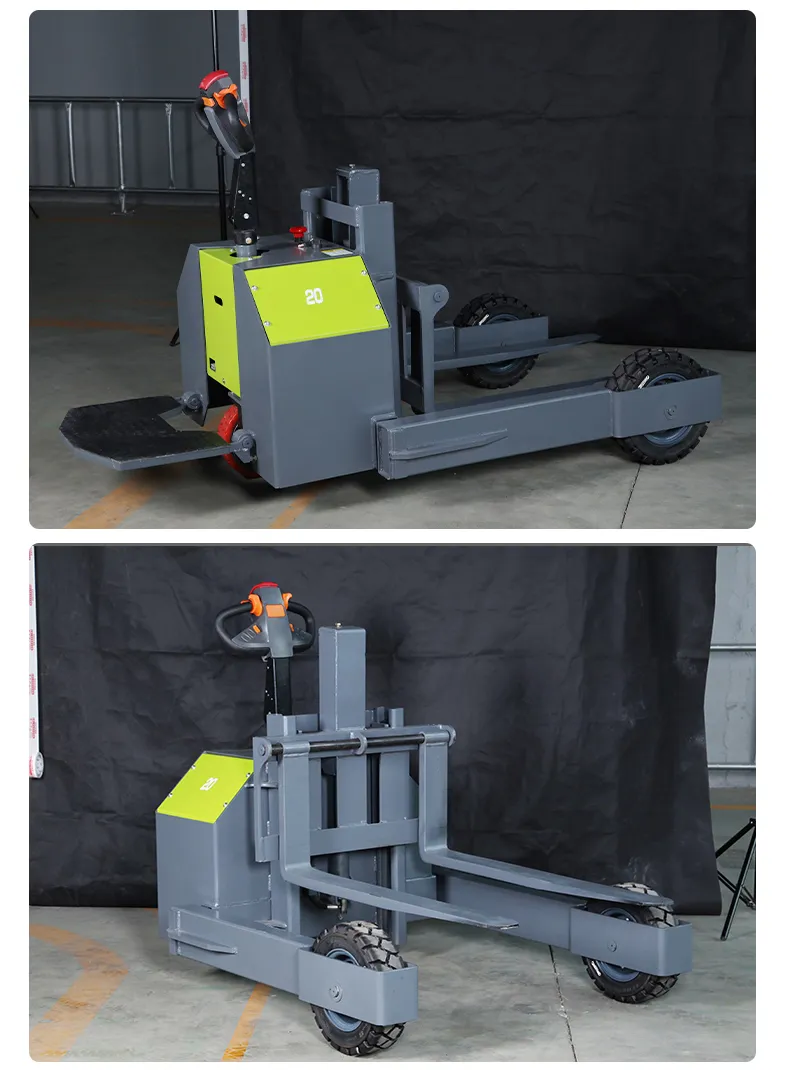

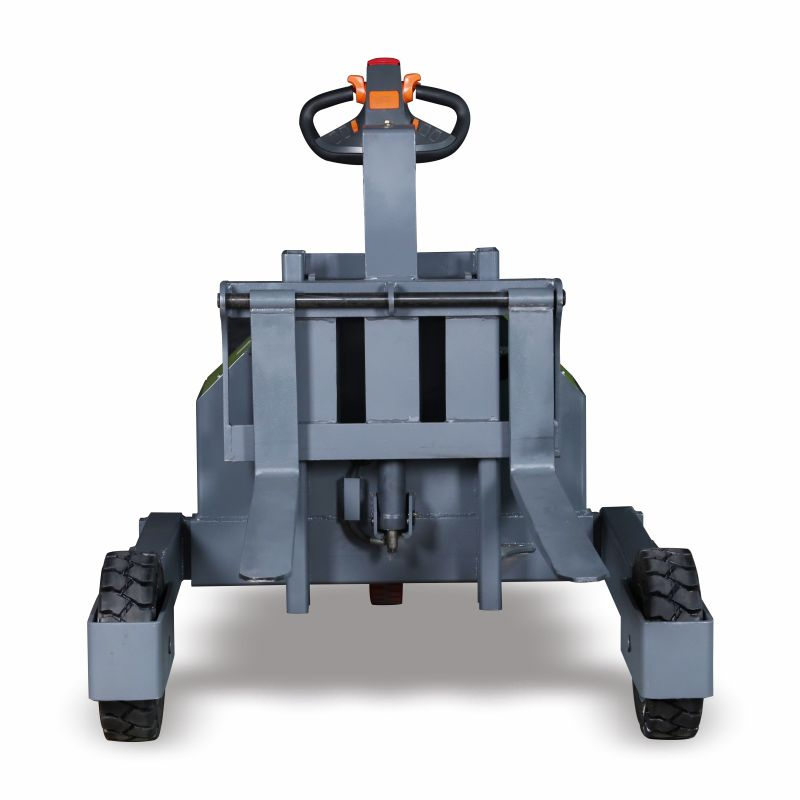

1.5T Electric Pallet Jack - Rough Terrain Semi-Automatic Lifter

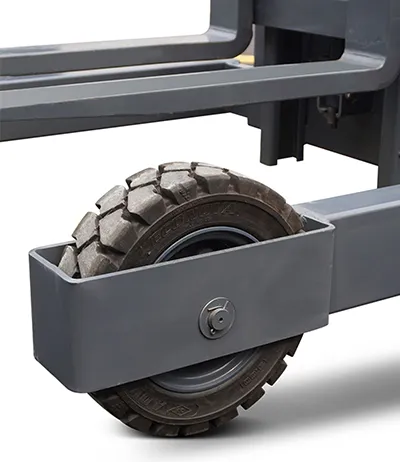

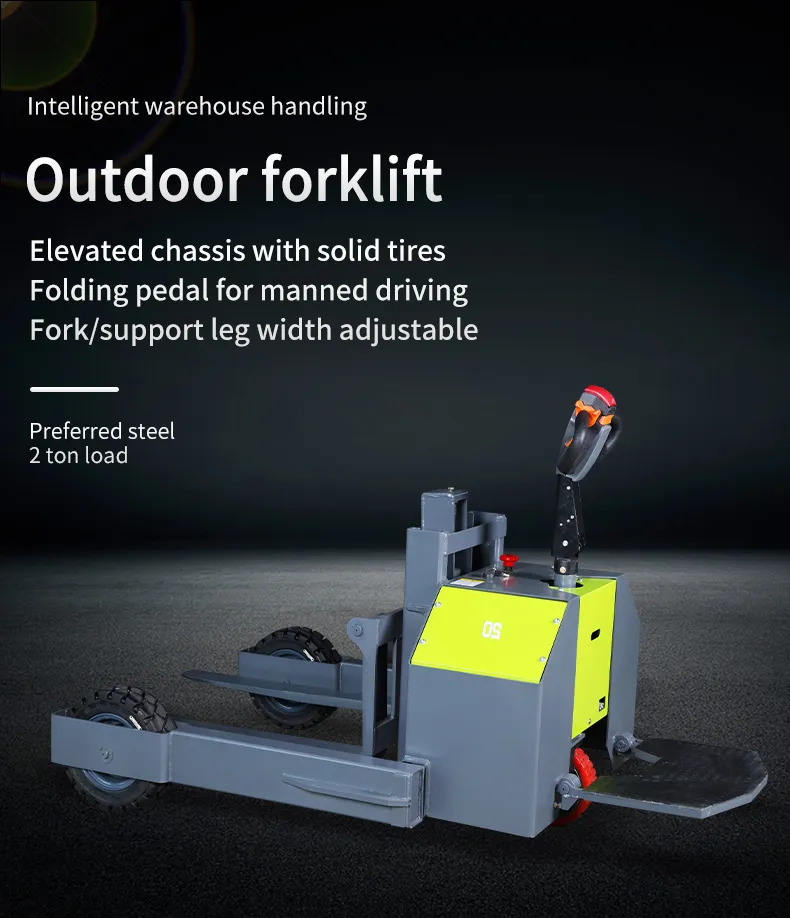

110mm ground clearance and solid rubber tires.

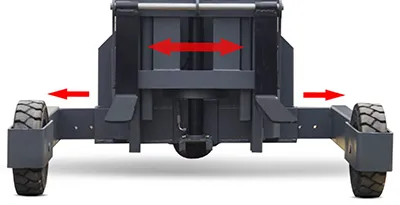

Adjustable fork legs, 390mm lifting height, to meet the needs of a variety of working conditions.

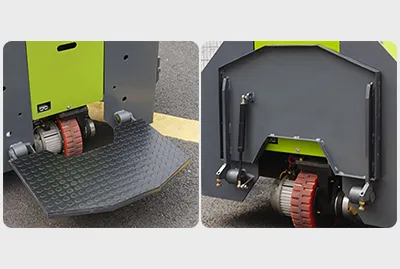

High-torque drive motor (1.5kw), providing strong power.
| Parameter Item | Unit | Specification (CTZY20) |
|---|---|---|
| Power Type | - | Lead Battery |
| Operation Type | - | Standing |
| Rated Capacity | kg | 2000 |
| Load Center | mm | 400 |
| Lifting Height | mm | 400 |
| Overall Dimension (L/W/H) | mm | 1765×1320/1460/1600/1740 |
| Fork Sizes | mm | 1070×150×35 |
| Min. Ground Clearance | mm | 70 |
| Self-weight (with battery) | kg | 550 |
| Driving Motor | kw | 1.2 |
| Lifting Motor | kw | 2.2 |
| Battery Capacity | Ah | 100 |
| Waterproof Grade | - | IP54 |

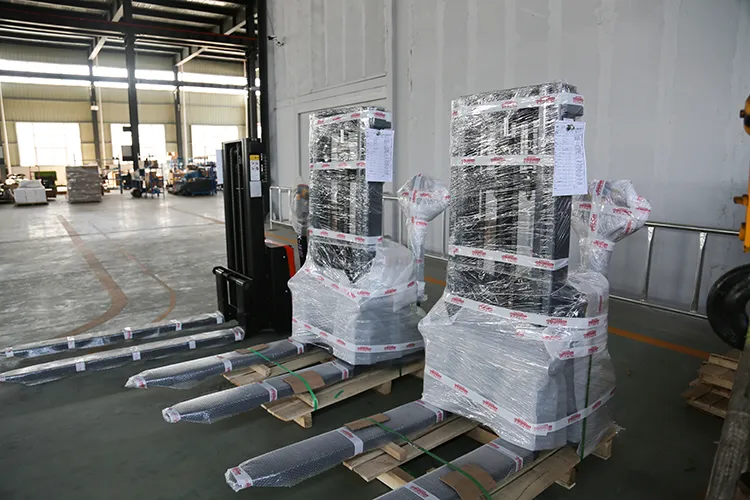

Exporting Package Standards:
Each unit is securely packed into an iron frame and then protected with 5 layers of corrugated carton. Reinforced strips guarantee that the machines remain undamaged during long-distance transportation.
