Basic Specifications
Load Capacity
1500-2000kgs
Color
Orange or Customized
Product Overview

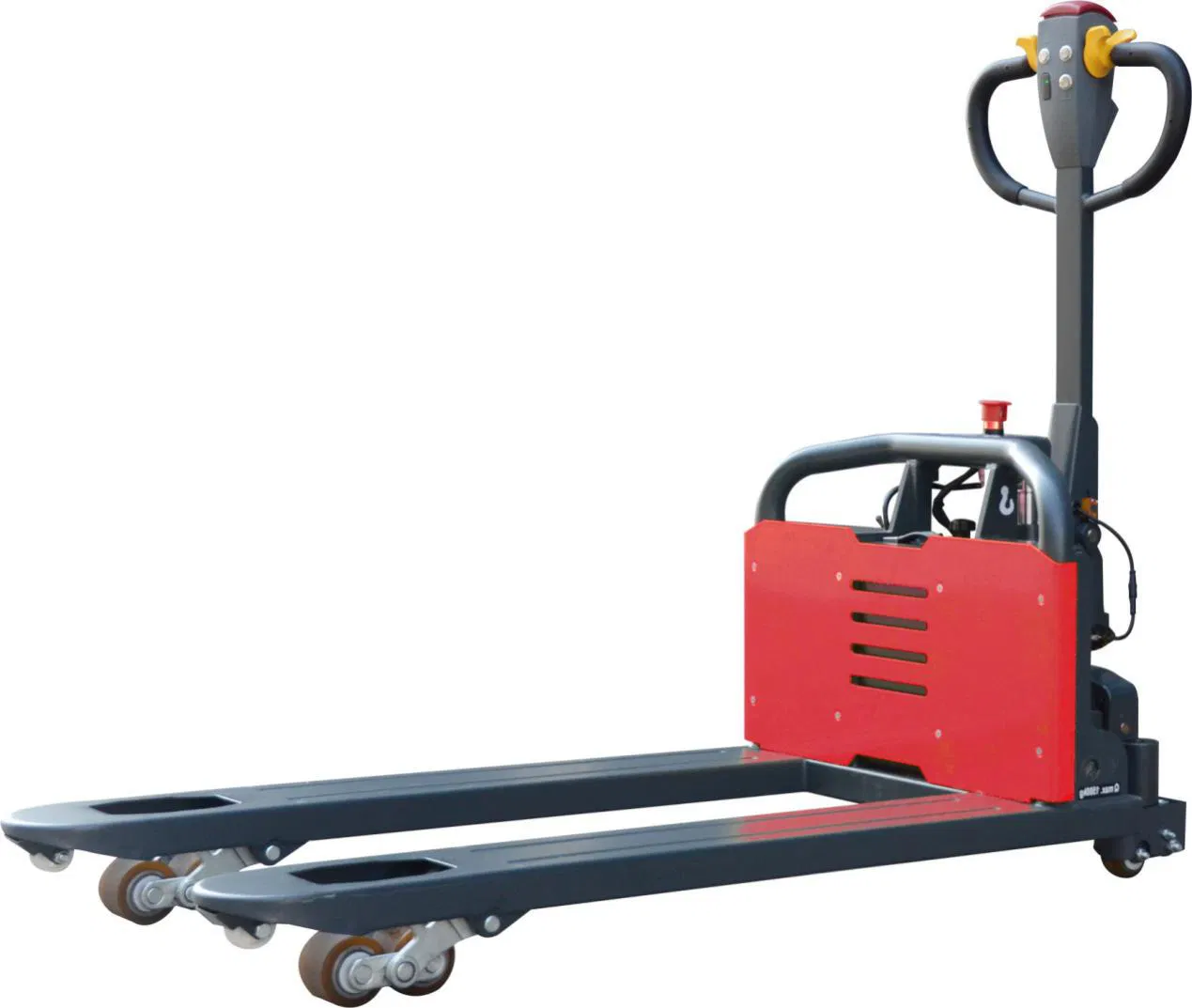

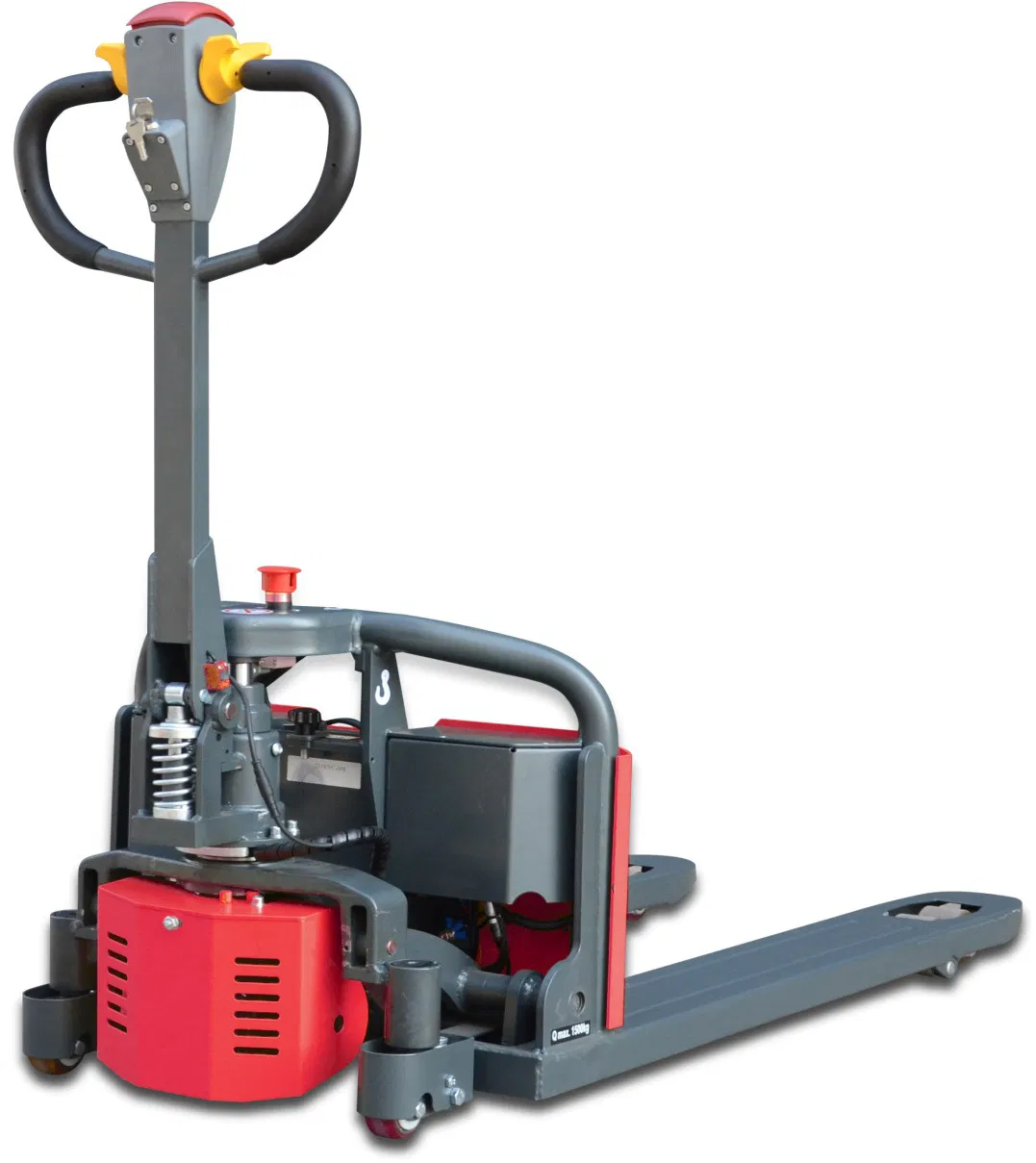

Hand Lift and Electric Drive 1600kgs Lithium Battery Mini Walkie Pallet Truck
1.5Ton 1.6Ton 2Ton Mini Electric Hydraulic Hand Pallet Truck with Lithium Battery
Technical Parameters
| Performance |
Unit |
CBD15A |
| Drive Model | - | Electric |
| Operating Mode | - | Walk |
| Limit Load | t | 1.5 |
| Load Center | mm | 600 |
| Net Weight (incl. battery) | kg | 155/160 |
| Drive Wheel Size | mm | ∮210*70 |
| Front Wheel Size | mm | ∮80*70 |
| Wheels Material | - | PU |
| Vehicle Length (L1) | mm | 1540 |
| Vehicle Width (B) | mm | 560/680 |
| Maximum Fork Height | mm | 190 |
| Minimum Fork Height | mm | 85 |
| Fork Length | mm | 1150 |
| Turning Radius | mm | 1350 |
| Travel Speed (Full/No Load) | km/h | 4.5 |
| Drive Motor | kw | 0.75 |
| Battery Voltage/Capacity | v/Ah | 24/25 |

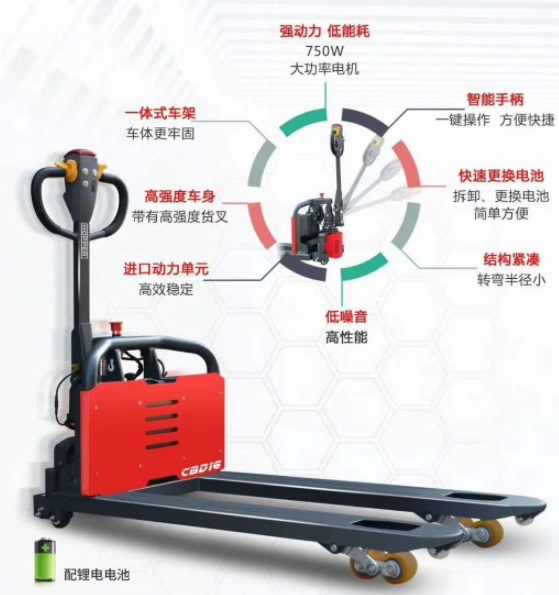

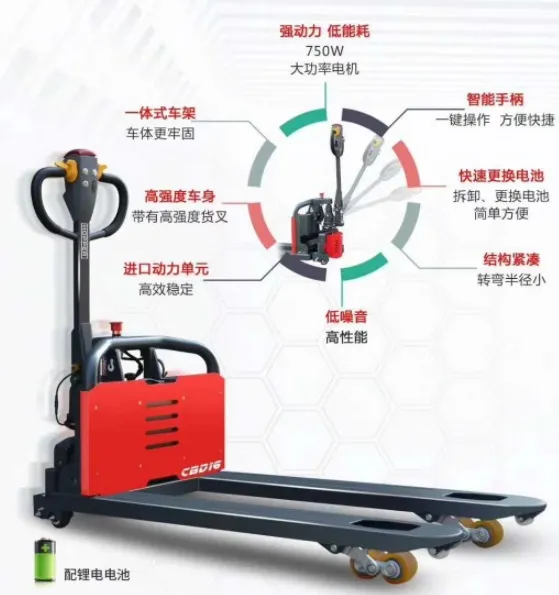

Key Advantages
- High Efficiency: DC permanent magnet drive motor provides low loss and high efficiency.
- Compact Design: Flexible and easy to operate, ideal for narrow aisles, supermarkets, and cargo containers.
- Ergonomic Operation: User-friendly handle design with buttons positioned for easy access.
- Safety First: Features a convenient emergency power-off switch and a strong driving protection cover.

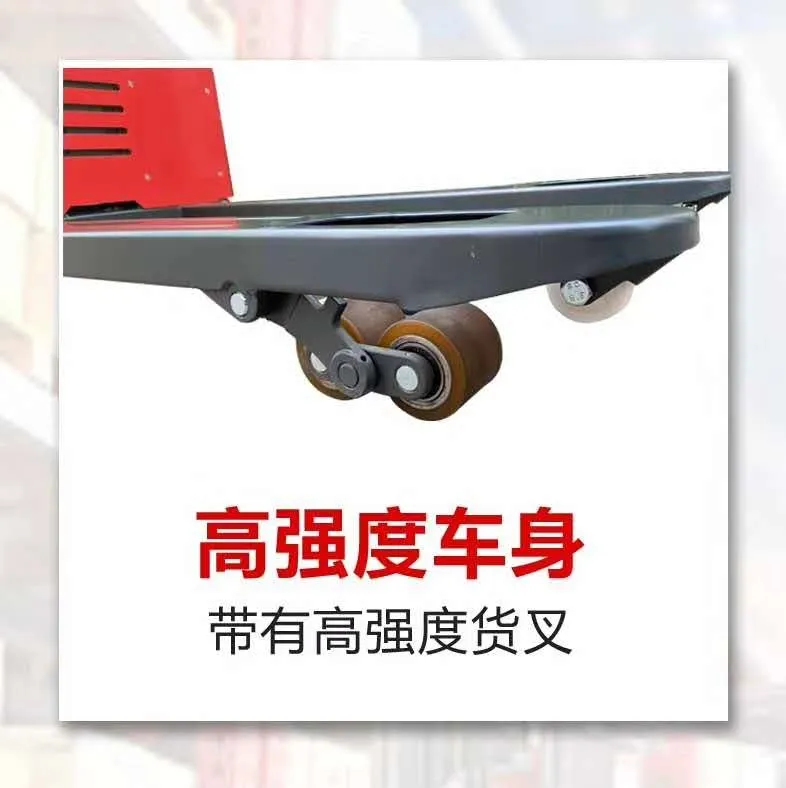

- Durability: Integrated fork design with a high-strength body for long-term reliability.
Core Competencies

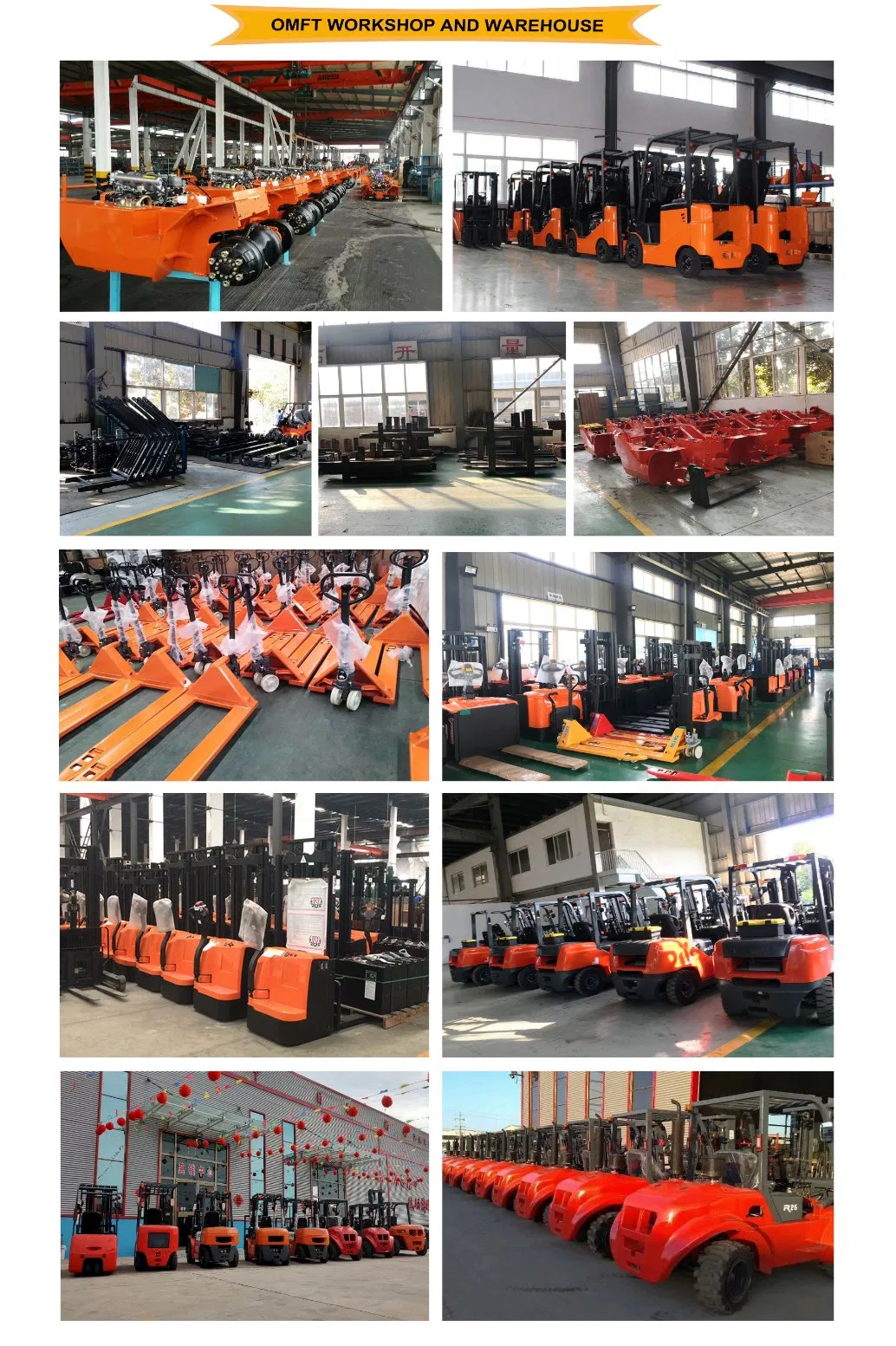

Research & Development
Specializing in the forklift industry for more than 20 years with a 35,000 square meter workshop and 100 R&D staff.

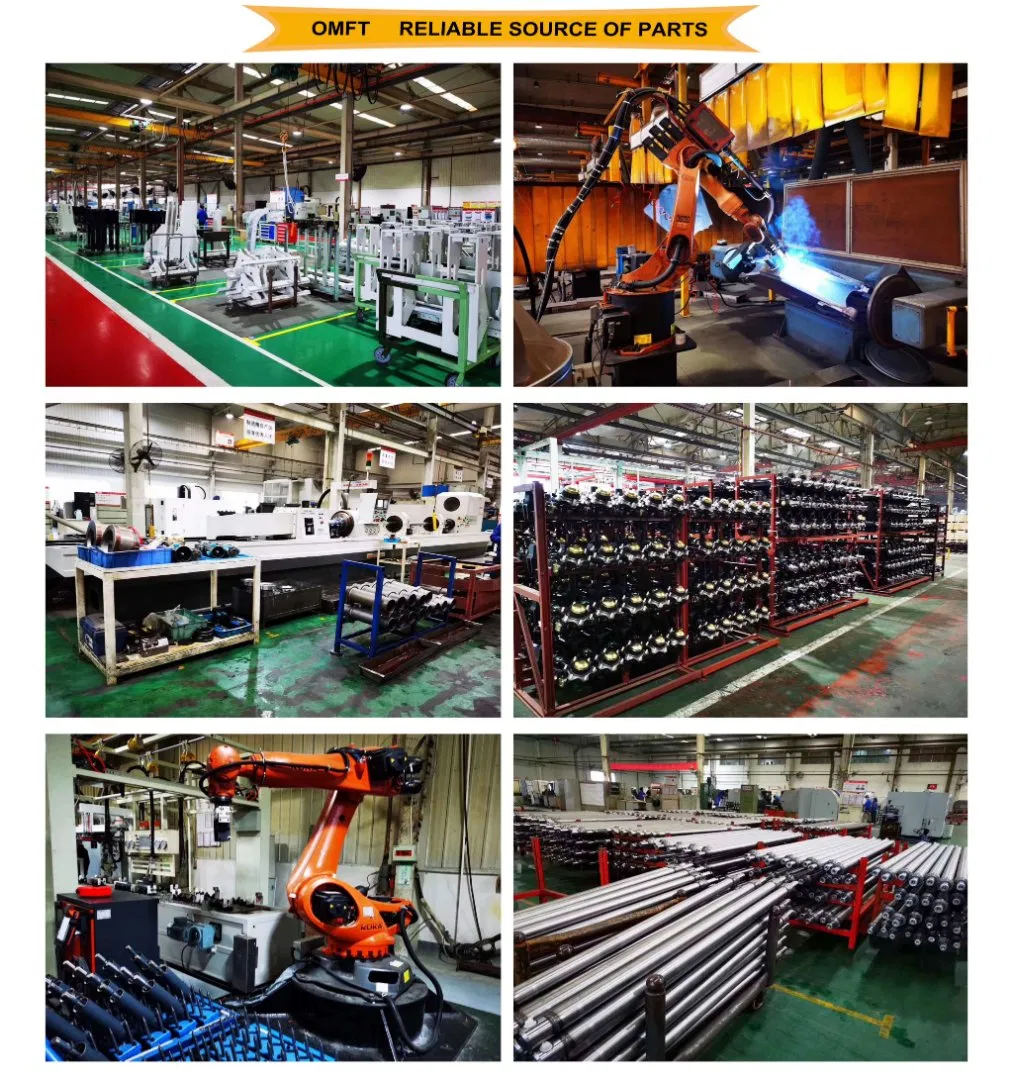

Quality & Spare Parts
Raw materials and steel sourced from well-known manufacturers. Professional painting and welding processes ensure excellent appearance and internal structure.
Fast Delivery
Standard forklifts are available in stock. Production can be finished within 1 week for standard models and 2 weeks for non-standard requirements.
Comprehensive Warranty
2-year or 2000-hour warranty. Free spare parts provided during the warranty period and included with initial shipping (filters, seals, etc.).
Full Product Range
• Diesel Forklift: 1.5ton to 48ton capacity.
• LPG & Gasoline Forklift: 1.5ton to 7ton capacity.
• Electric Forklift: 1ton to 6ton capacity.
• Warehouse Equipment: Manual/Electric pallet trucks, stackers, VNA stackers, and tow tractors.
• Aerial Platforms: Scissor lift platforms from 3.9M to 14M.
• Rough Terrain: Off-road and side forklift trucks from 2ton to 12ton.
Frequently Asked Questions
What is the load capacity of this mini walkie pallet truck?
This model supports a load capacity of 1500kg to 2000kg (1.5 to 2 Tons).

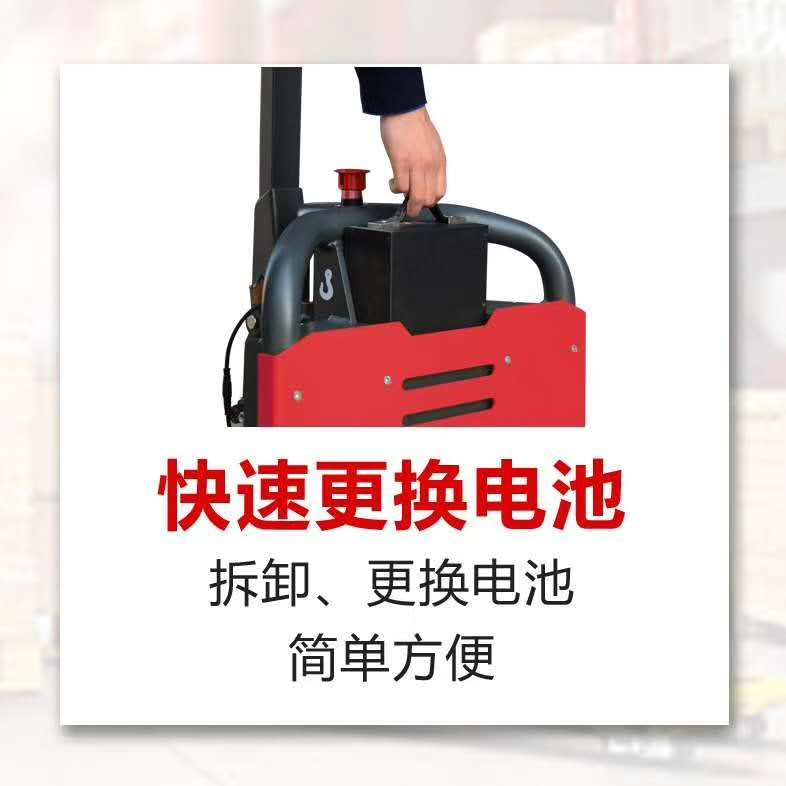

Is the battery included and what type is it?
Yes, it comes equipped with a 24V/25Ah high-efficiency Lithium Battery.
Can this equipment be used in narrow warehouse aisles?
Absolutely. Its compact design and turning radius of 1350mm make it perfect for narrow aisles, supermarkets, and containers.
What is the warranty period for the pallet truck?
We provide a warranty of 2000 working hours or 2 years, whichever comes first, with free parts replacement during this period.
How long does production take if the item is not in stock?
Standard models can be finished within 1 week, while high-mast or non-standard configurations are typically completed within 2 weeks.
Does the pallet truck come with any spare parts?
Yes, we include free maintenance parts like filters, seals, and cylinders with every shipment to ensure a smooth user experience.
