Product Description

Basic Specifications

Model NO.

CQDH20C

Type

Reach Forklift

Power

AC Motor

Load Capacity

1.6 Ton (1600 Kg)

Fuel

Electric

Lift Height

5000 / 7000 / 9000 / 10000 mm

Turning Radius

1865 mm

Battery Voltage

36V / 700Ah

Travel Speed

10.5 / 11 Km/H

Condition

New

Product Overview

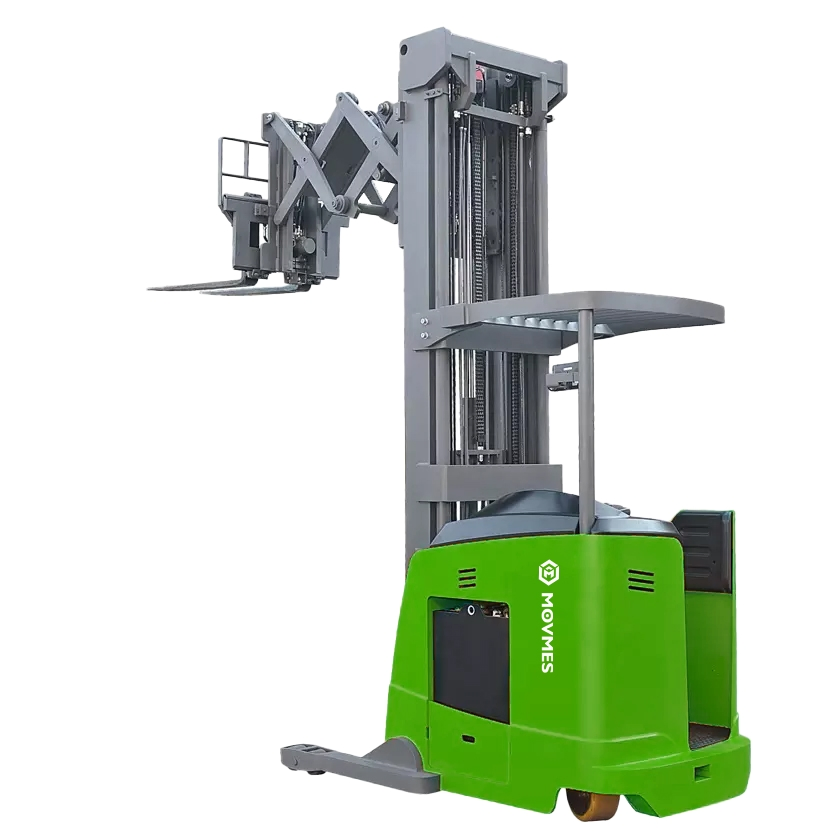

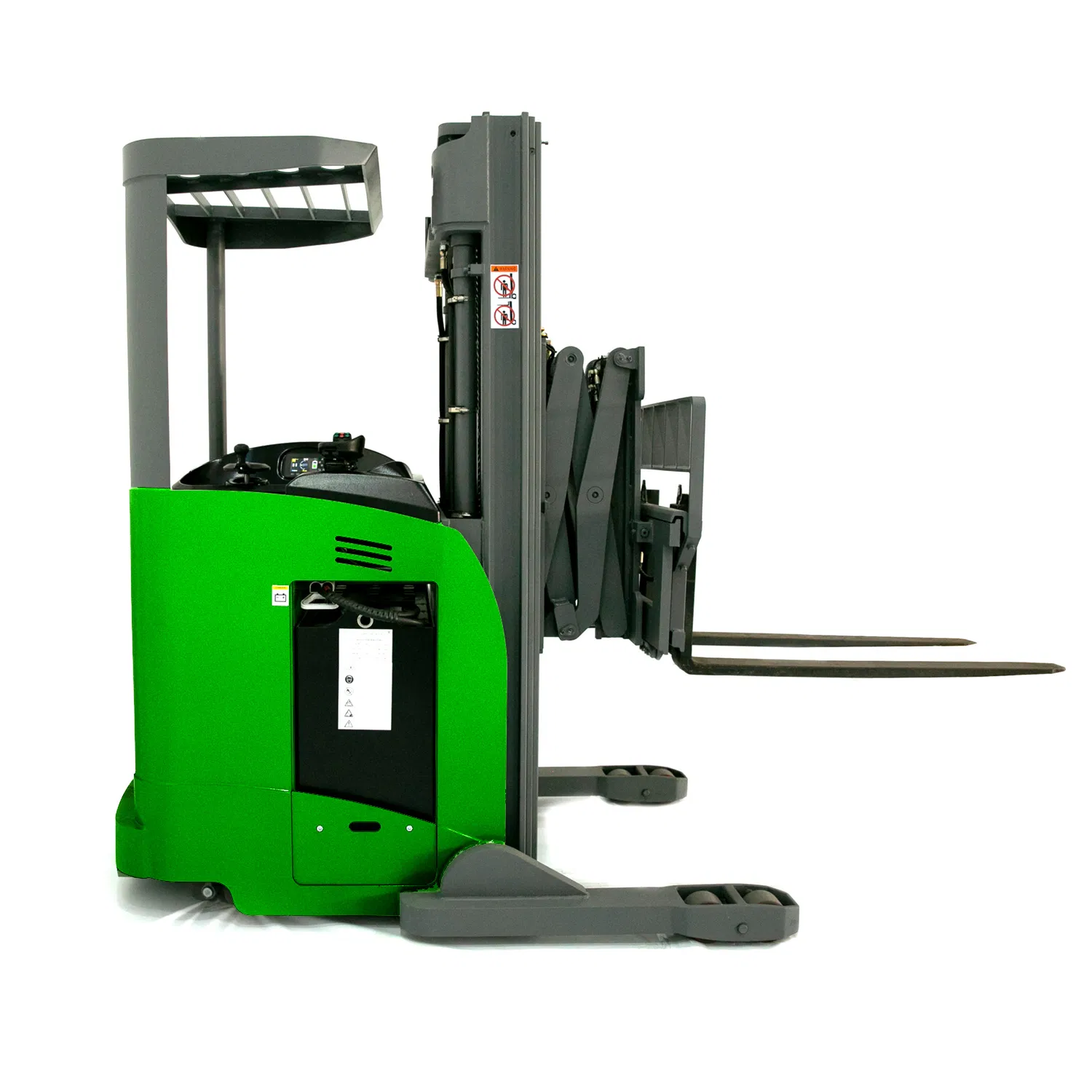

Electric fork reach truck with single or double scissors configuration, designed for high-efficiency material handling in narrow aisle warehouses.

Technical Parameters

Parameter	Unit	Double Scissor Configuration
Drive type	-	Battery
Load capacity/rated load	Q(kg)	1600
Load centre distance	c(mm)	600
Tyre size, front	mm	343*140
Max lift height	h3(mm)	4500-10500
Overall width	b1/b2 (mm)	1352/1070
Fork dimension	s/e/l(mm)	40/100/1070
Reach distance	I4(mm)	1085
Drive motor rating	KW	7.0 (AC)
Lift motor rating	KW	14.0 (AC)
Travel speed (laden/unladen)	Km/h	10.5 / 11
Lift speed (laden/unladen)	m/s	0.29 / 0.29

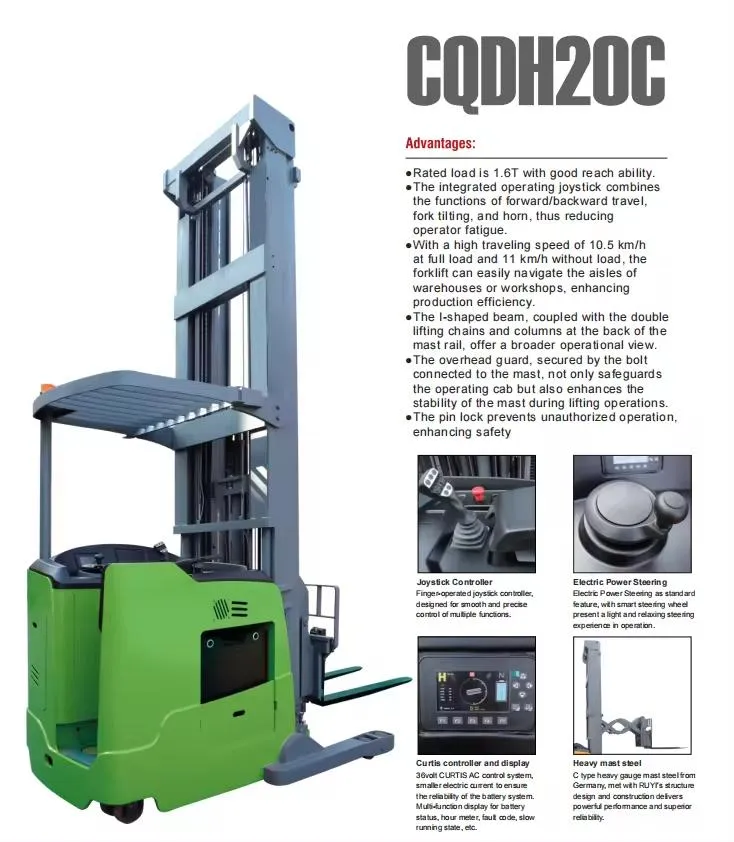

Key Advantages

High Load Efficiency: Rated load of 1.6T with superior reach capability for warehouse optimization.

Ergonomic Operation: Integrated operating joystick combines travel, tilting, and horn to reduce operator fatigue.

Fast Travel Speeds: Speed up to 11 km/h enhances production efficiency in large workshops.

Broad Visibility: I-shaped beam and double lifting chains provide a wider operational view for the driver.

Enhanced Safety: Overhead guard connected to the mast increases stability during high-lifting operations.

Security Control: Integrated pin lock prevents unauthorized operation of the equipment.

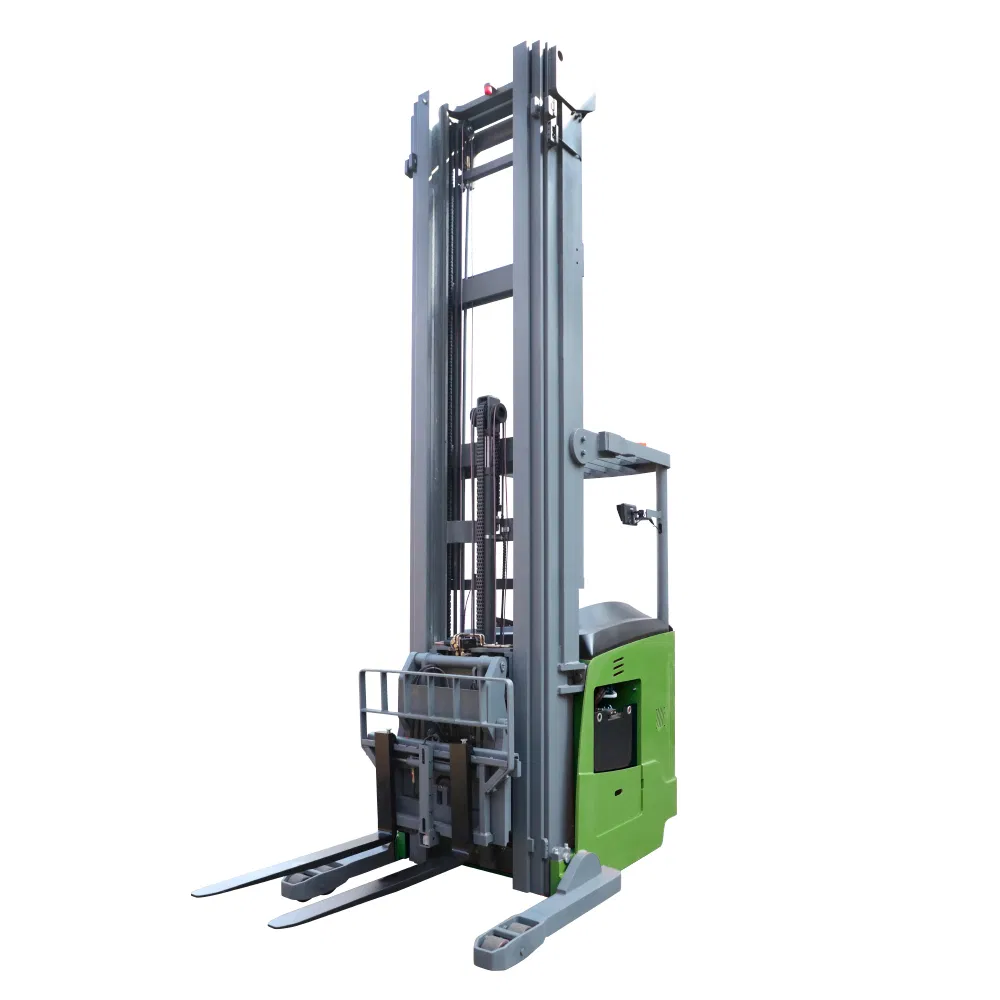

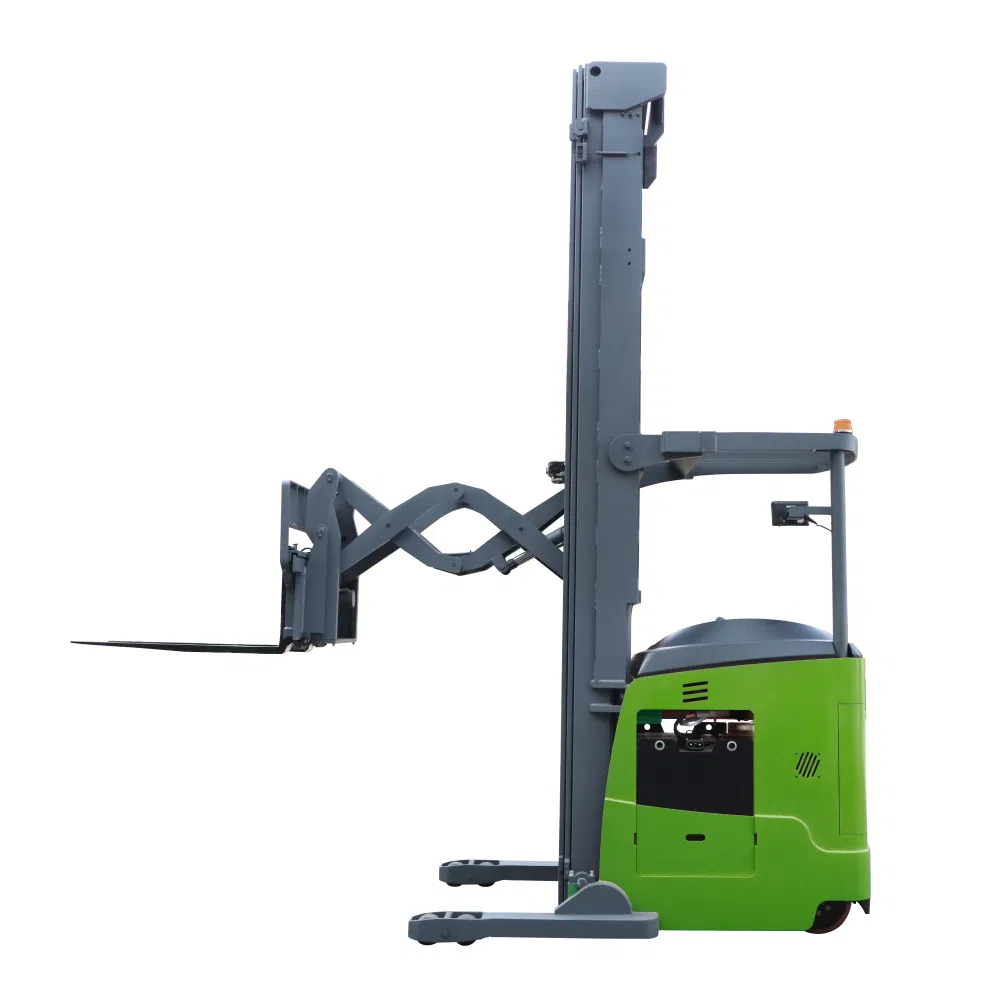

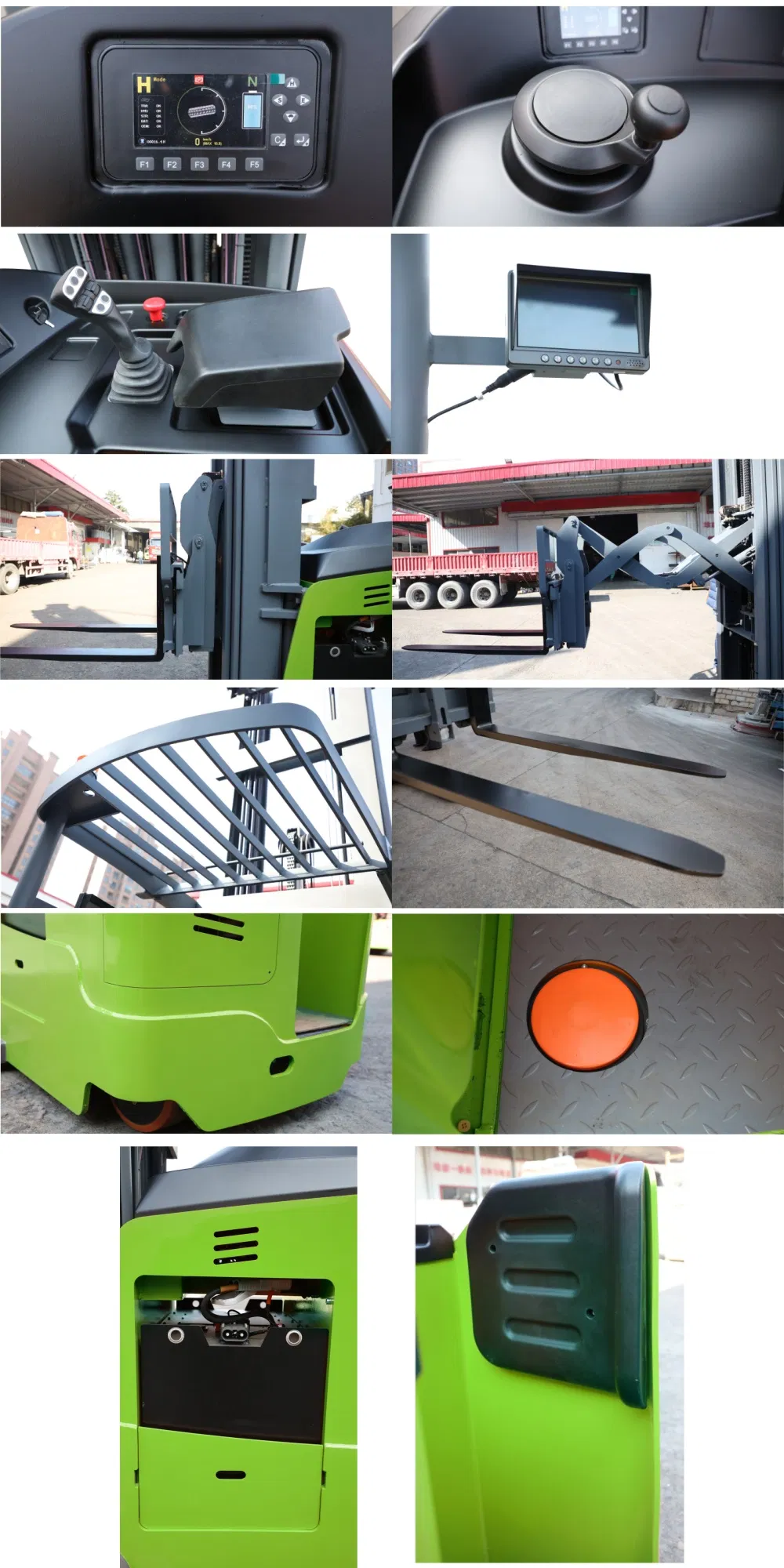

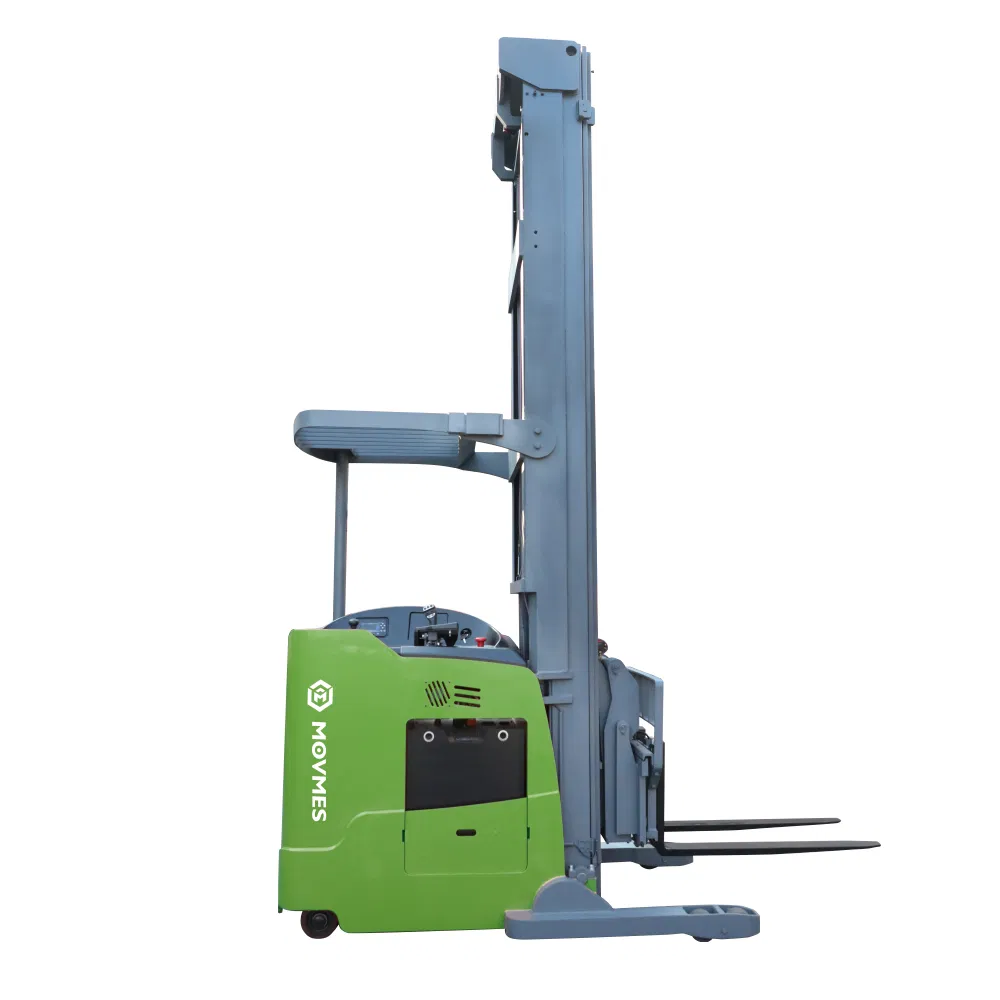

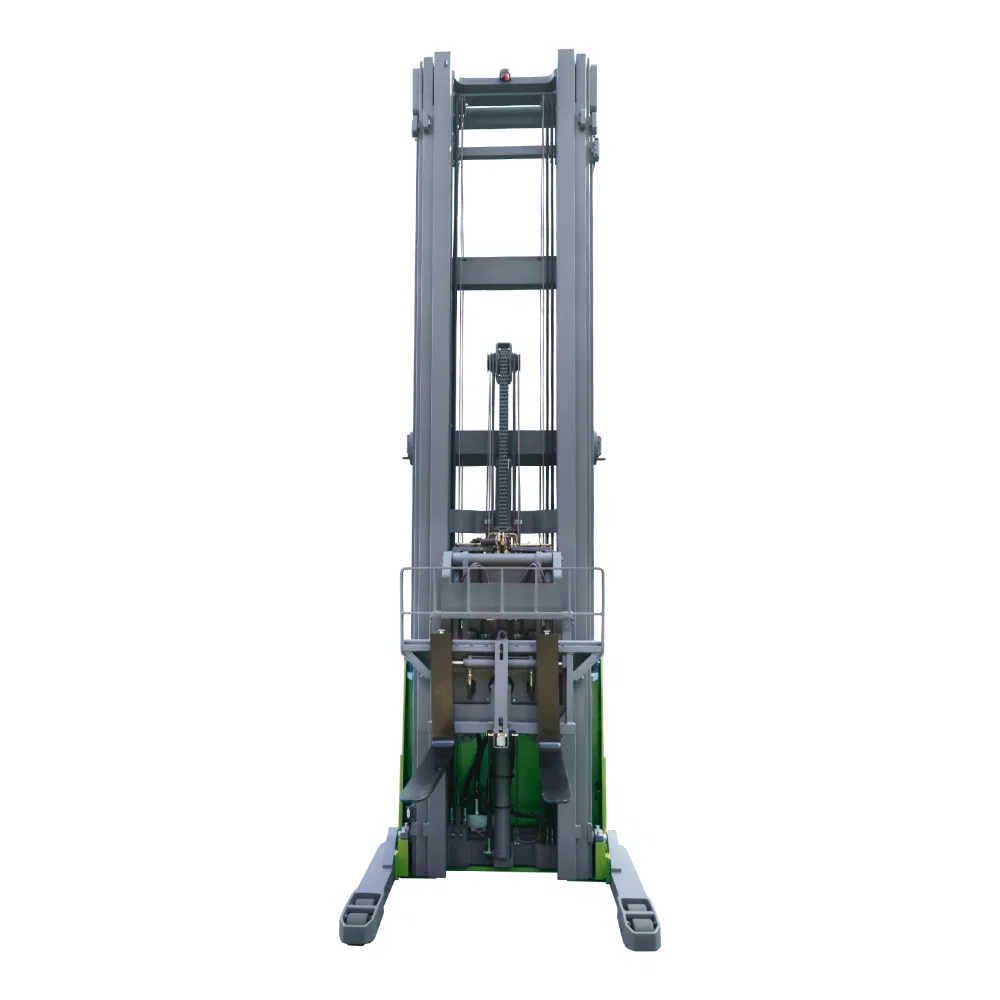

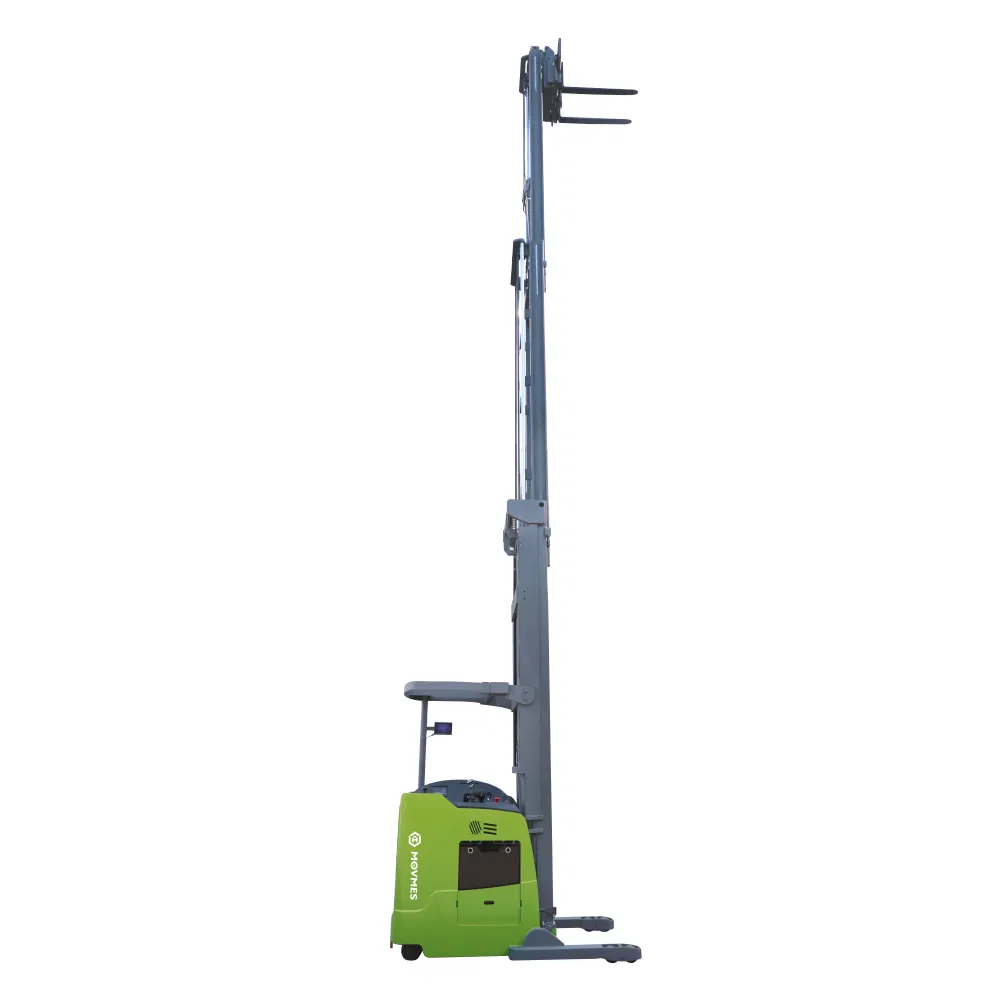

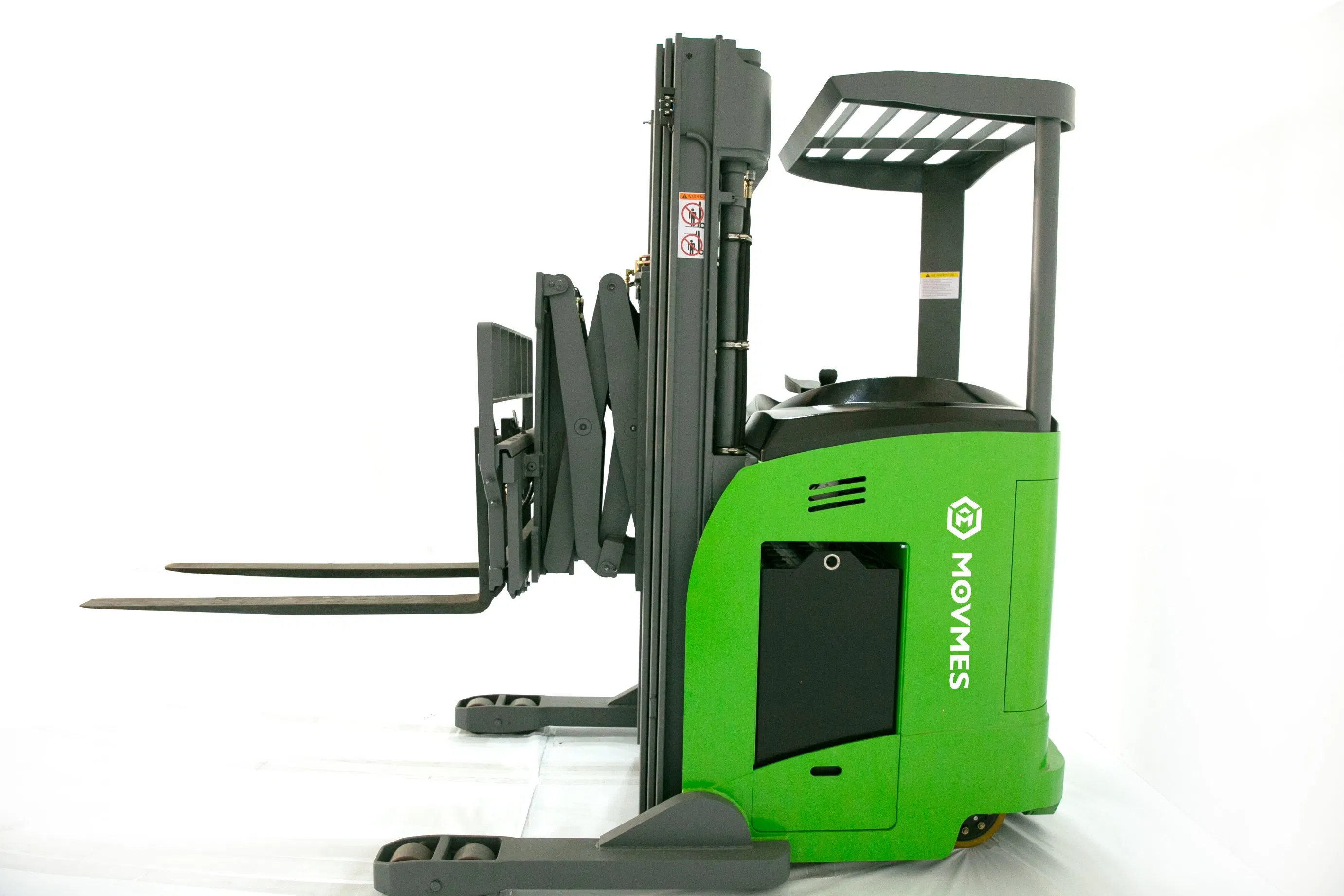

Detailed Views

Quality & Certification

Our products adhere to international quality standards including ISO9001:2008, ISO14001:2004, and OHSAS18001:2007. Up to 90% of our warehouse equipment is CE certified by TUV.

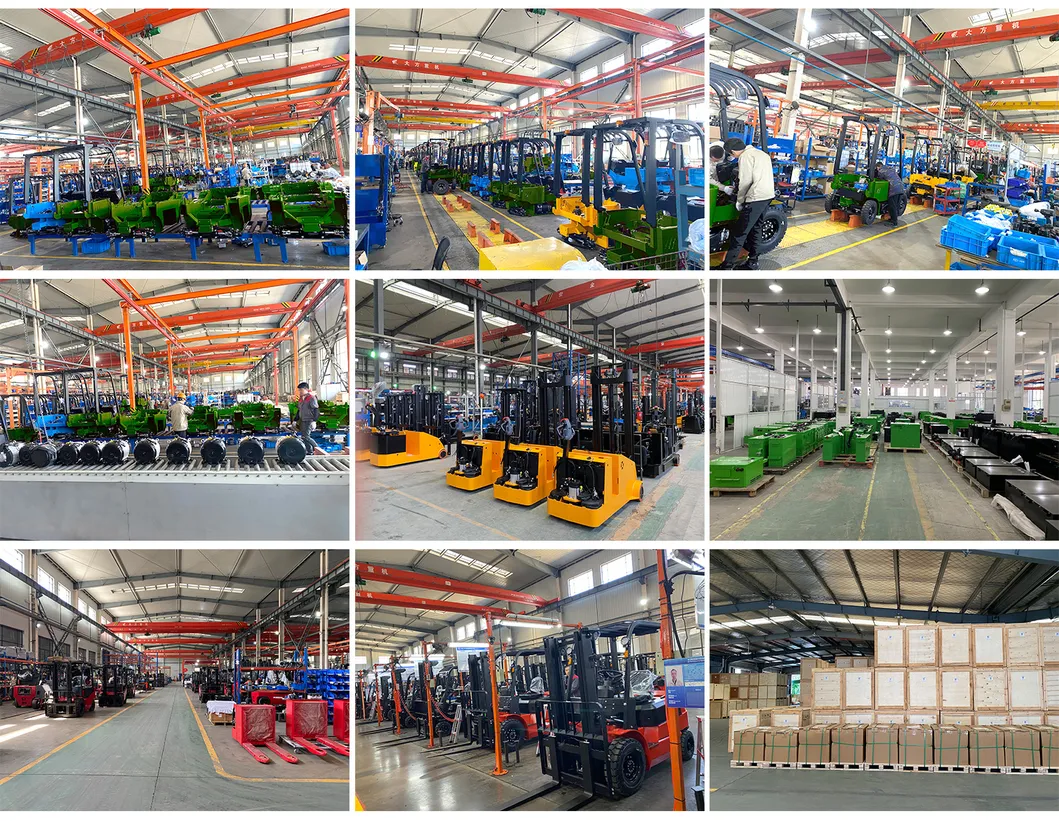

36 Years of Manufacturing Experience

150,000m² Factory Area

188 Professional Mechanical Technicians

Exported to 157 Countries

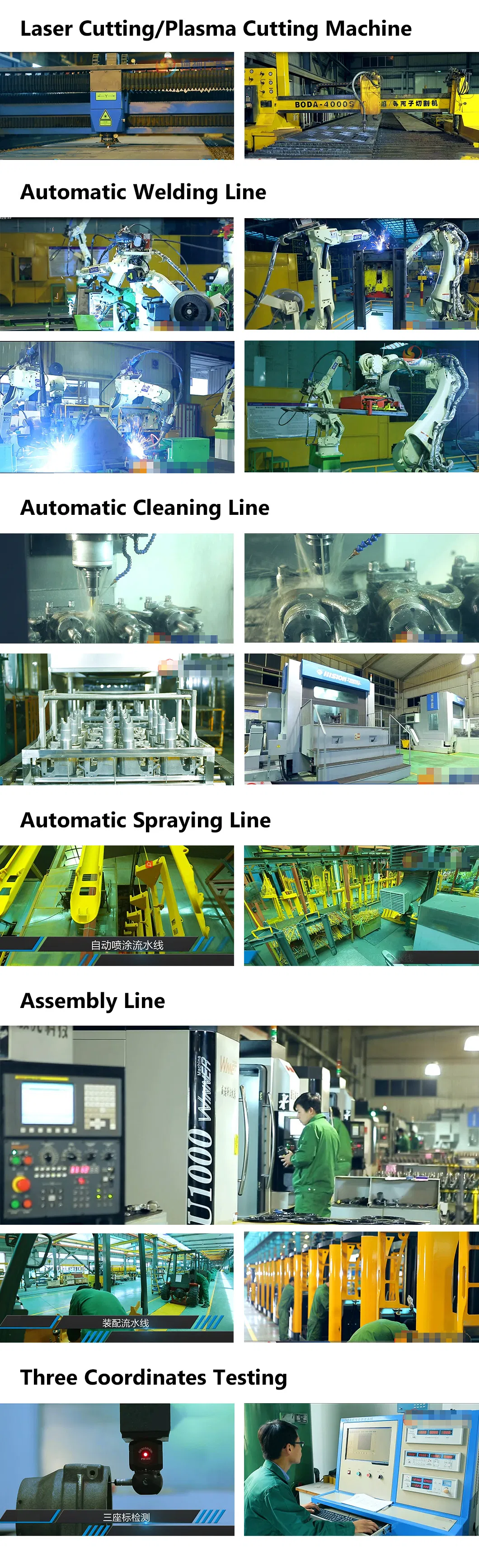

Rigorous Testing System

Every unit undergoes five critical detection stages before delivery:

Strengthening test detection
Stability and balance detection
Climbing performance and current testing
Braking performance debugging
Technical parameter verification

Frequently Asked Questions

Q1: What is the continuous working time and charging duration? A1: The battery provides approximately 3-6 hours of continuous working time depending on the volume. Full charging typically takes between 3 to 6 hours.

Q2: What are the specifications of the battery chargers? A2: Chargers are available in 24V and 48V. We provide power plugs compatible with USA, UK, Australia, and European standards.

Q3: Do you provide customized or OEM/ODM services? A3: Yes, we have been professionally developing warehouse logistics equipment since 1985 and offer comprehensive OEM services for global industry leaders.

Q4: What is the standard warranty period? A4: We provide a one-year warranty. During this period, wearing parts damaged by non-human factors are provided free of charge.

Q5: What is the maximum lift height available for this model? A5: This electric reach truck series can achieve a maximum lift height of up to 10,000mm to 10,500mm depending on the mast configuration.

Q6: Is this truck suitable for narrow aisle operation? A6: Yes, with a compact turning radius of 1865mm and specialized scissor reach mechanism, it is specifically designed for high-density warehouse environments.
