LM Forklift
LM Forklift

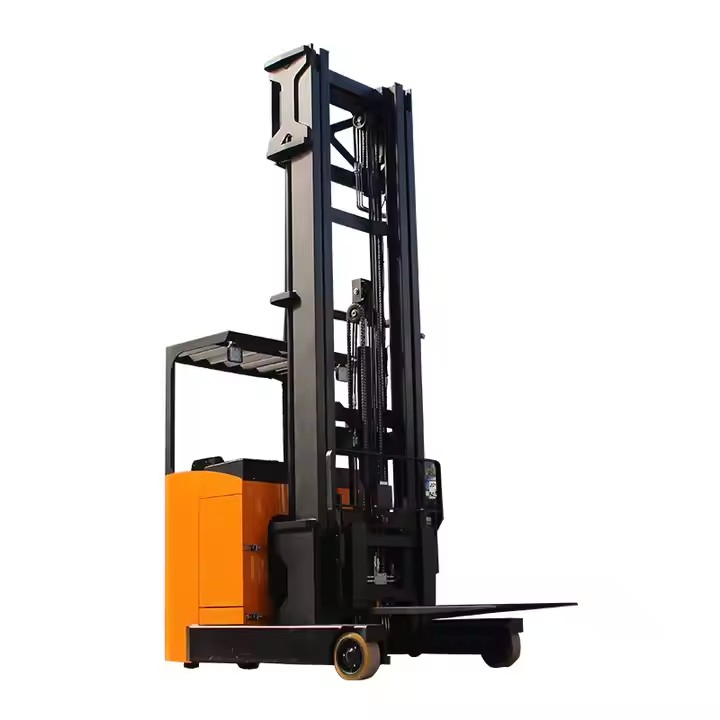

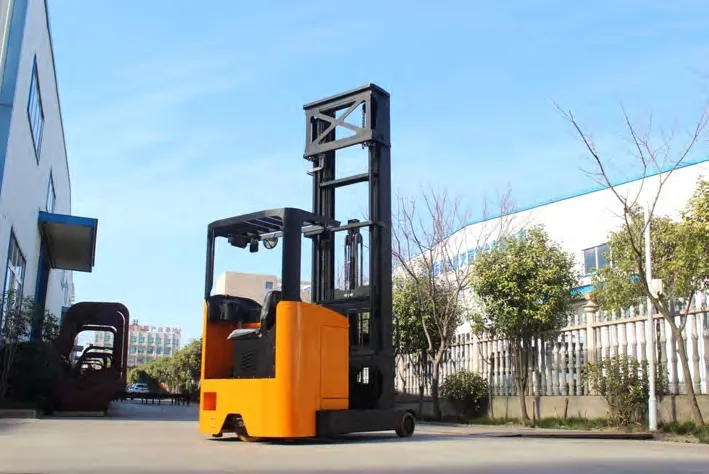

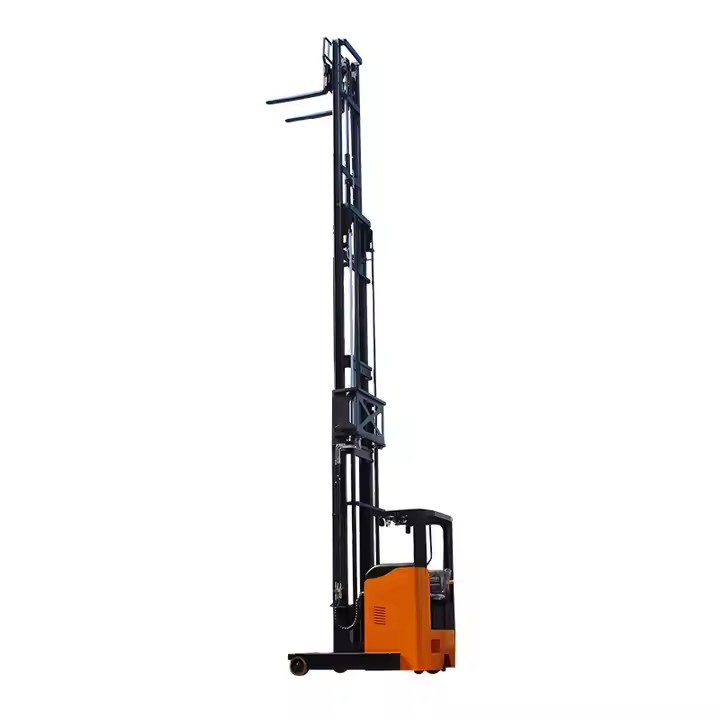

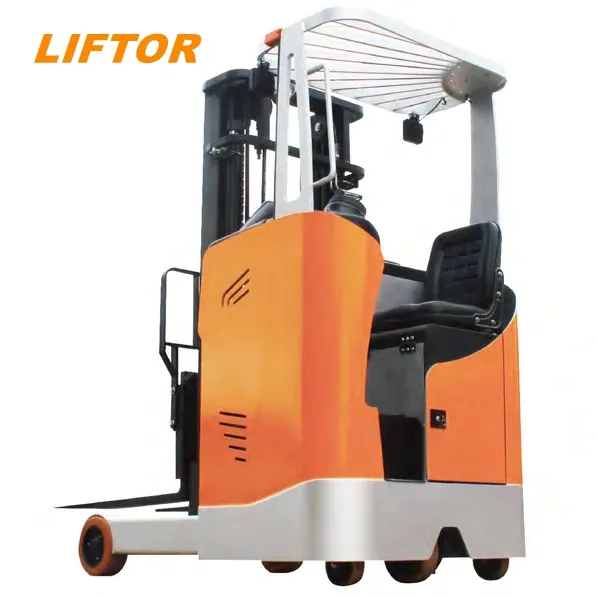

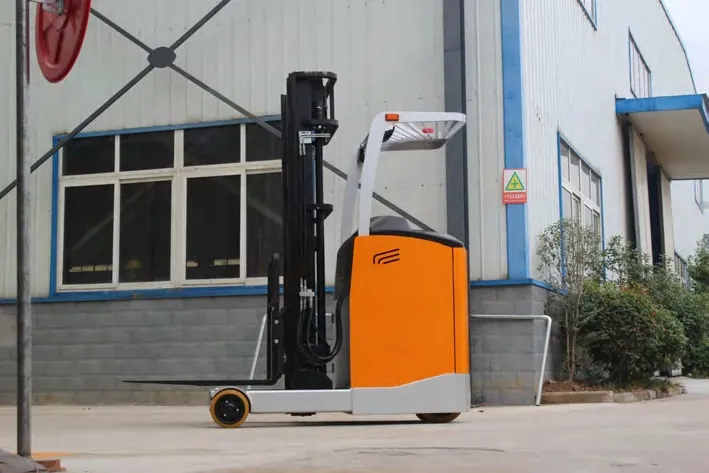

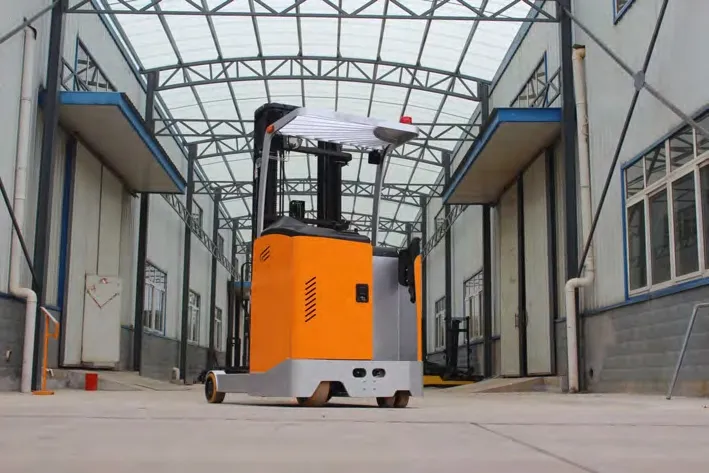

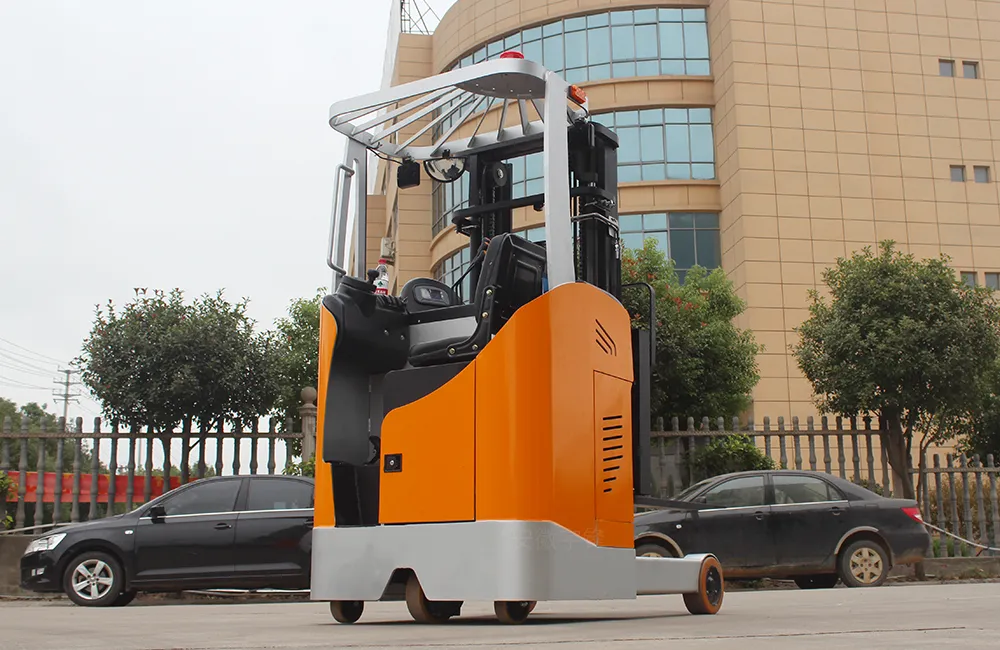

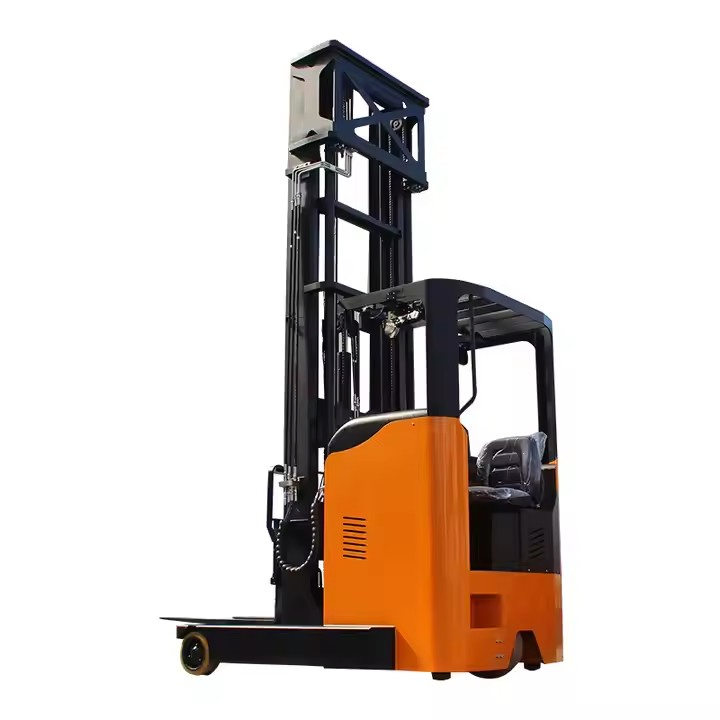

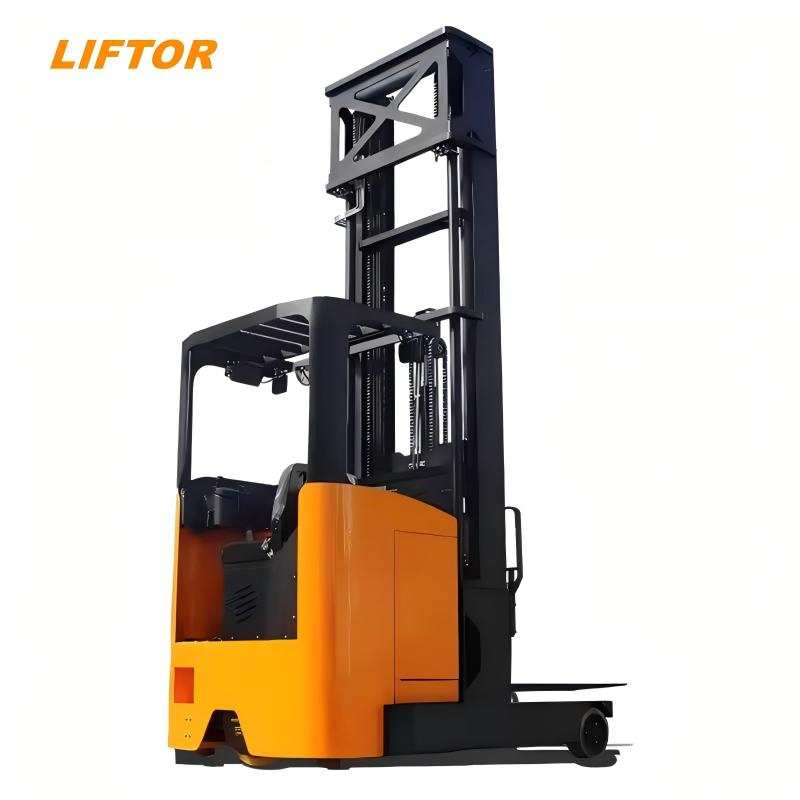

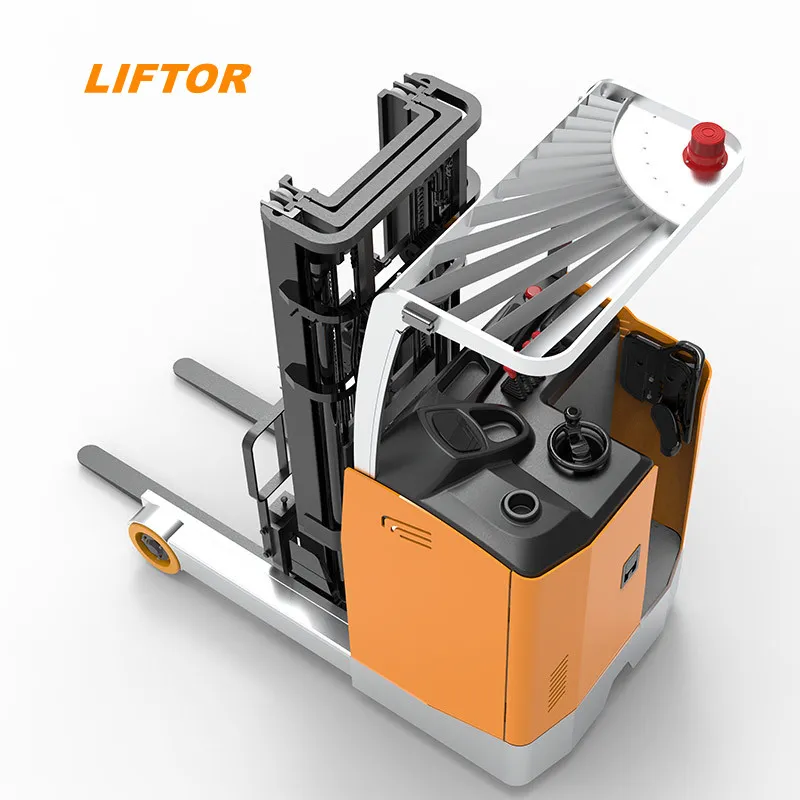

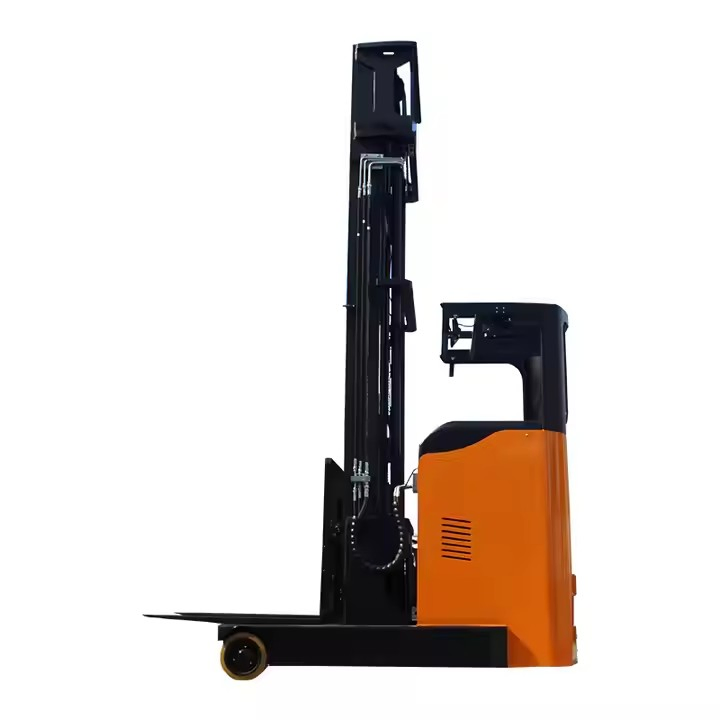

The Electric Reach Truck is designed for efficient warehouse operations, offering excellent maneuverability and high lifting capacity. Powered by an advanced battery system, it ensures energy efficiency and low maintenance. With ergonomic controls, a stable mast, and a compact design, it enhances productivity and safety in narrow aisle applications.
| Model No. | Unit | CQD15-30 | CQD20-30 | CQD25-30 |
|---|---|---|---|---|
| Load Capacity | KG | 1500 | 2000 | 2500 |
| Max lifting height | mm | 3000 | 3000 | 3000 |
| Load center | mm | 500 | 500 | 500 |
| Wheel type | - | Pu solid tire | ||
| Fork dimensions | mm | 1070*100*35 | 1070*122*40 | 1070*122*40 |
| Turning radius | mm | 1615 | 1970 | 1970 |
| Max travel speed | Km/h | 6.5/7.2 | 6.8/7.8 | 6.8/7.8 |
| Battery capacity | V/Ah | 48/300 | 48/400 | 48/400 |
| Driving motor | Kw | 4.5 | 5.0 | 5.0 |

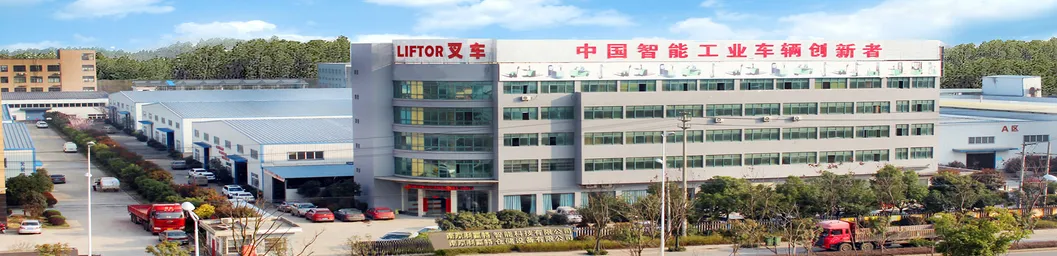

We are a high-tech enterprise professionally specialized in R&D, production, sales, and service of electric forklifts, diesel forklifts, pallet trucks, and stackers. Equipped with advanced manufacturer technology, processing equipment, and a perfect product testing center, we ensure the highest quality for modern logistics.
Our facility has passed ISO9001:2008 and European Union CE certifications, alongside holding multiple national patents for safety and design efficiency.
