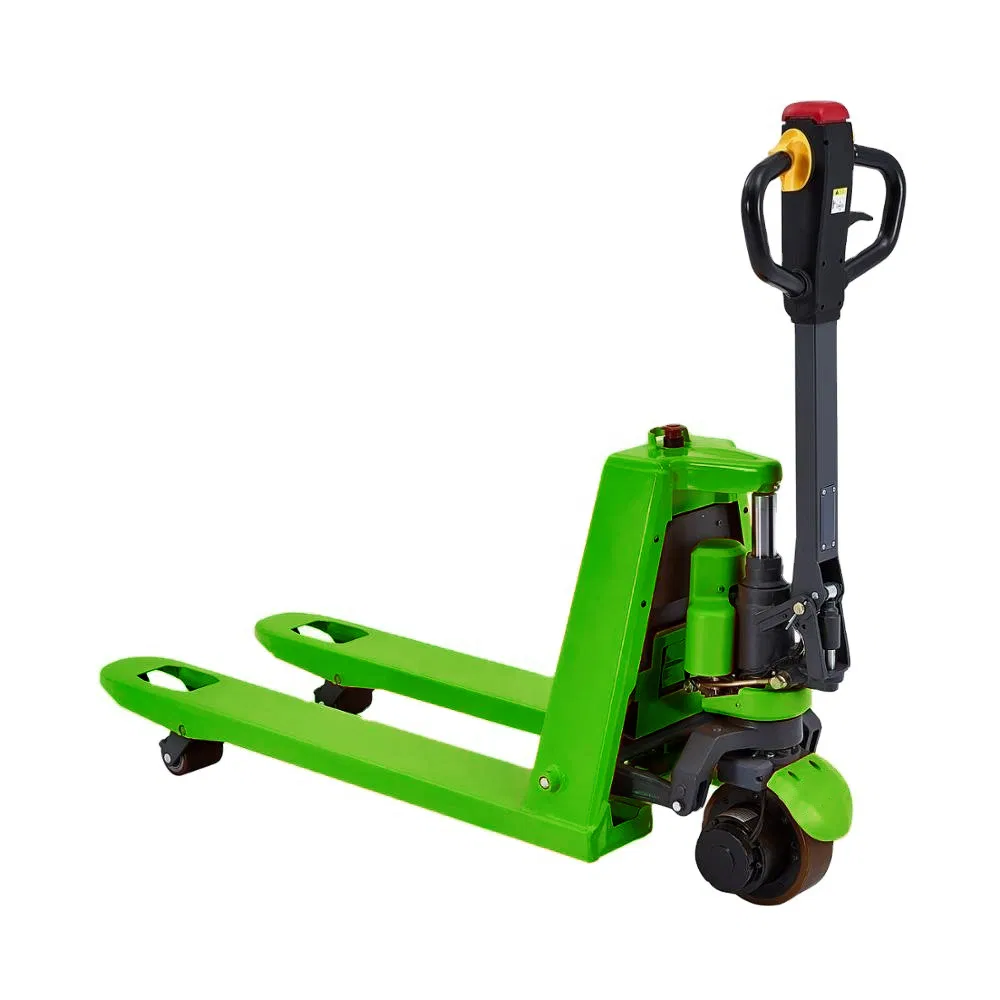

Lead Acid Lion Electric Ride-on Pallet Truck Scales 1.5ton 2 Ton 3 Ton Hand Electric Jack Pallet Lift

1 / 4

Lead Acid Lion Electric Ride-on Pallet Truck Scales 1.5ton 2 Ton 3 Ton Hand Electric Jack Pallet Lift

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Information

Cab Location

Not Adjustable

Type

Powered Pallet Truck

Power

DC Motor

Load Capacity

1.5 Ton

Fuel

Electric

Load Center

>500mm

Lift Height

110 mm

Condition

New

Fork Height, Lowered

50 mm

Drive Wheels

Dia 250 mm

Turning Radius

1424/1494 mm

HS Code

8427109000

Product Description & Configuration

Main Configuration
1. QEXPAND Controller	2. 48V DC Power
3. RUYI Tiller	4. 48V 20AH Battery
5. Charger included

Technical Parameters

Model	Unit	CBD15W-Lix
Load capacity	Q(kg)	1500
Load center distance	c(mm)	600
Fork height, lowered	h13(mm)	80
Tyre size, front	mm	dia250
Tyre size, rear	mm	dia80
Max. lift height	h3(mm)	110
Overall length	l1(mm)	1623/1693
Overall width	b1(mm)	550/685
Travel speed, laden/unladen	Km/h	4/4.5
Battery voltage/capacity	V/Ah	48/20
Service weight	Kg	145

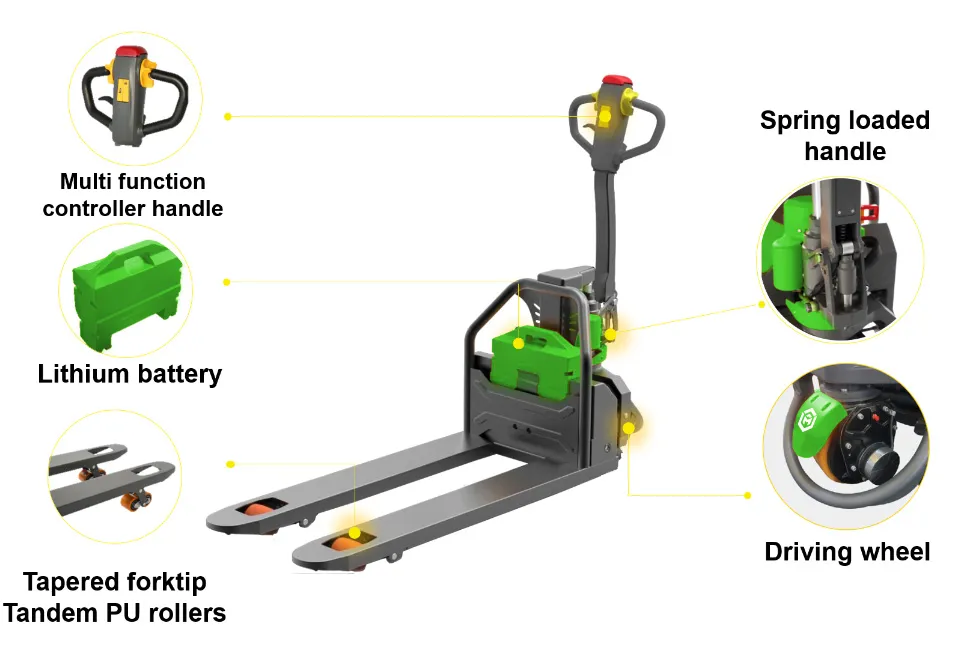

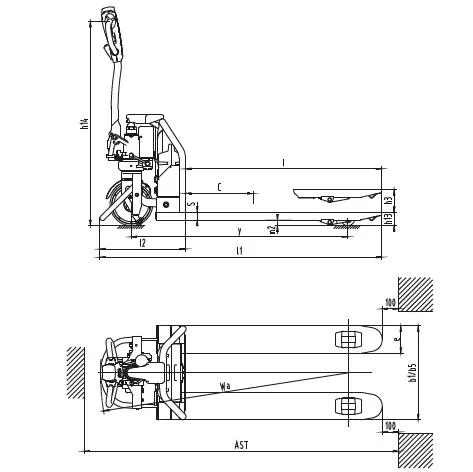

Design Drawing & Professional Engineering

Multi-function Control Handle Incorporates butterfly-style thumb controls, emergency reverse button, horn button and key switch.

Ergonomic Spring-loaded Steering handle with comfort grip for reduced operator fatigue.

Plug-in Battery Design Makes it easier to remove and change, no need for additional tools.

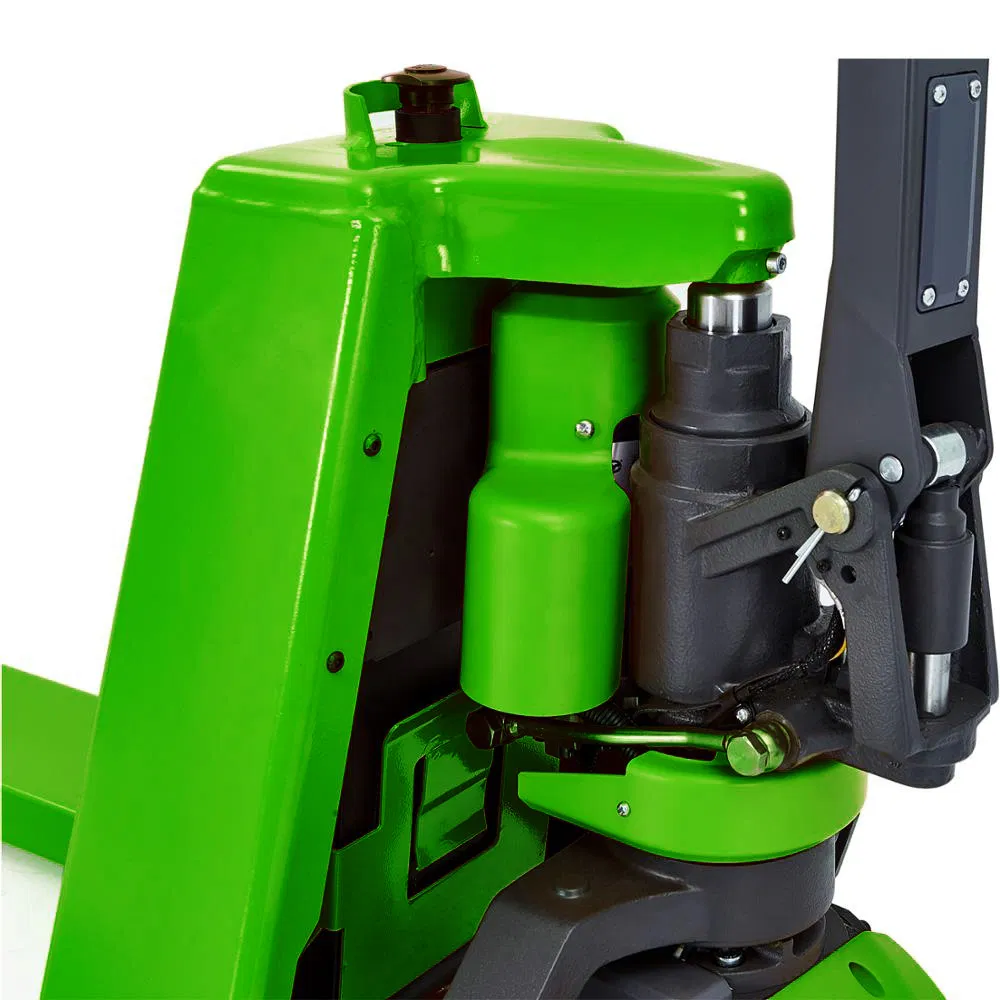

Integrated Rocker Arm Casted in a single piece, intensifying the strength and structure.

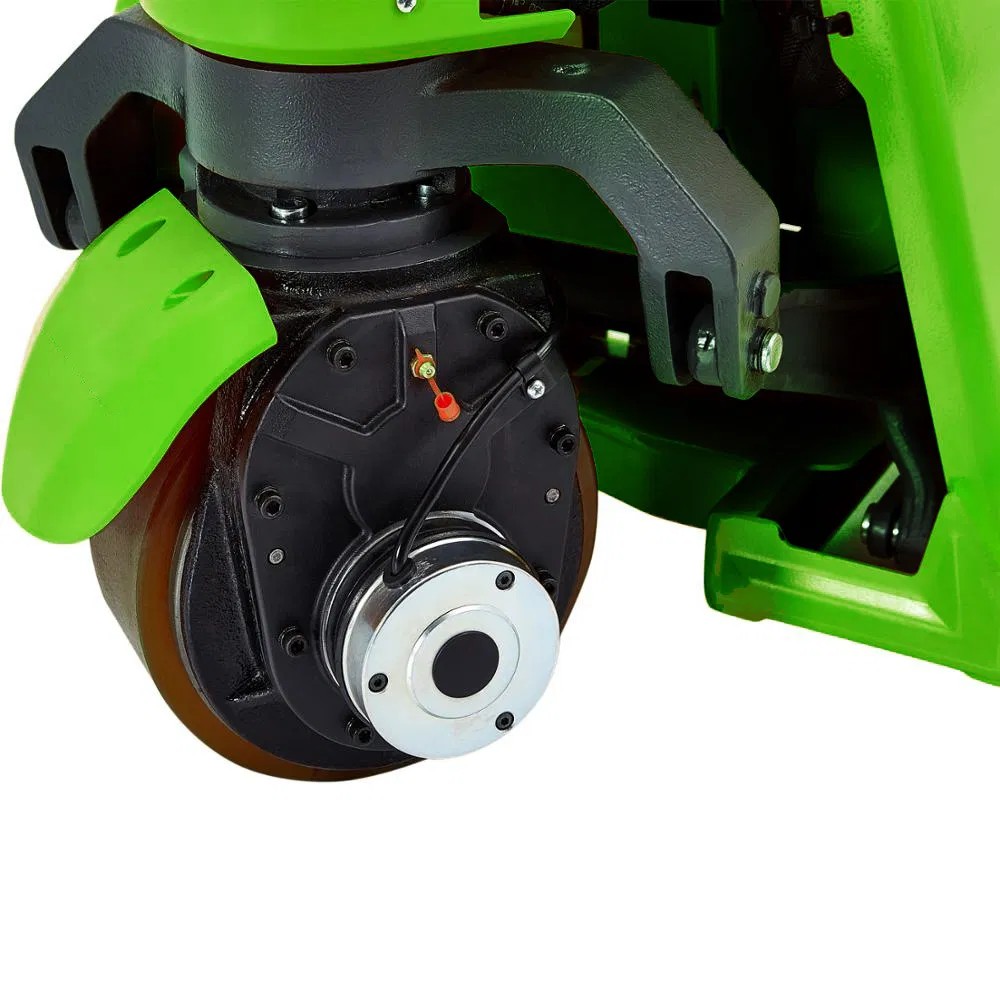

Brushless Motor Equipped with horizontal brushless driving motor, offering high drive speed and low torque output.

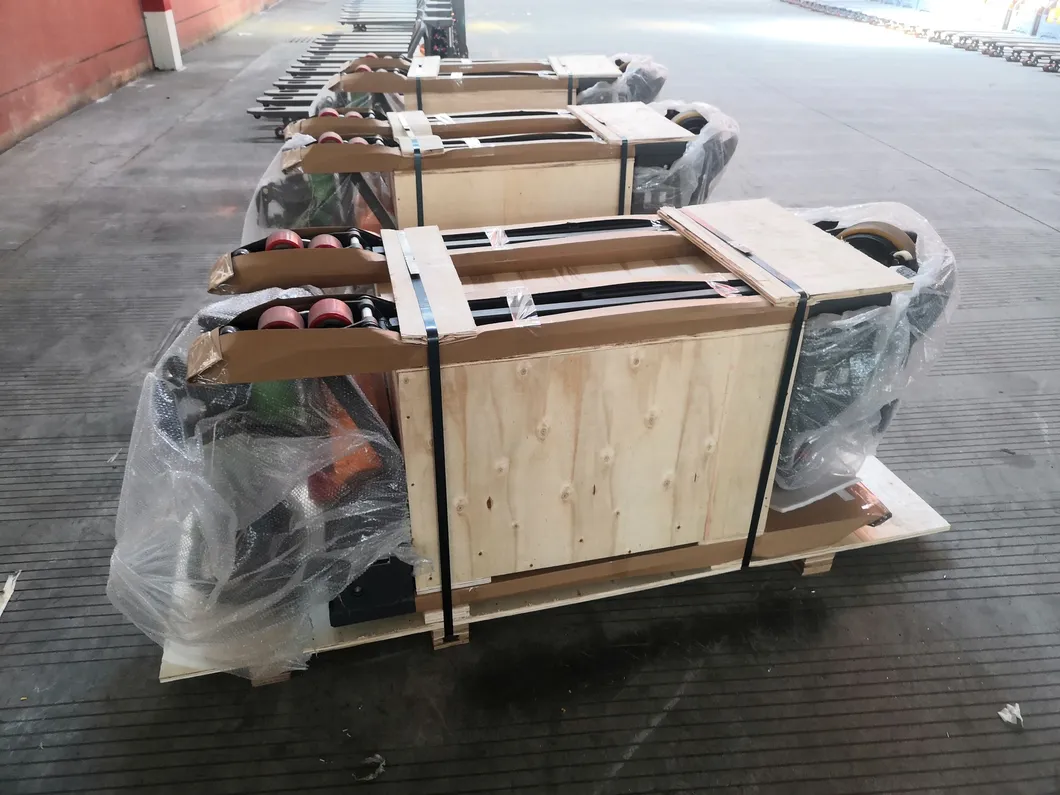

Packing and Delivery

Fork Dimension	Package Volume (2 sets)	20GP Capacity	40GP Capacity
550*1150mm	1800x570x750mm	60 sets	120 sets
685*1220mm	1800x700x750mm	48 sets	96 sets

Related Products

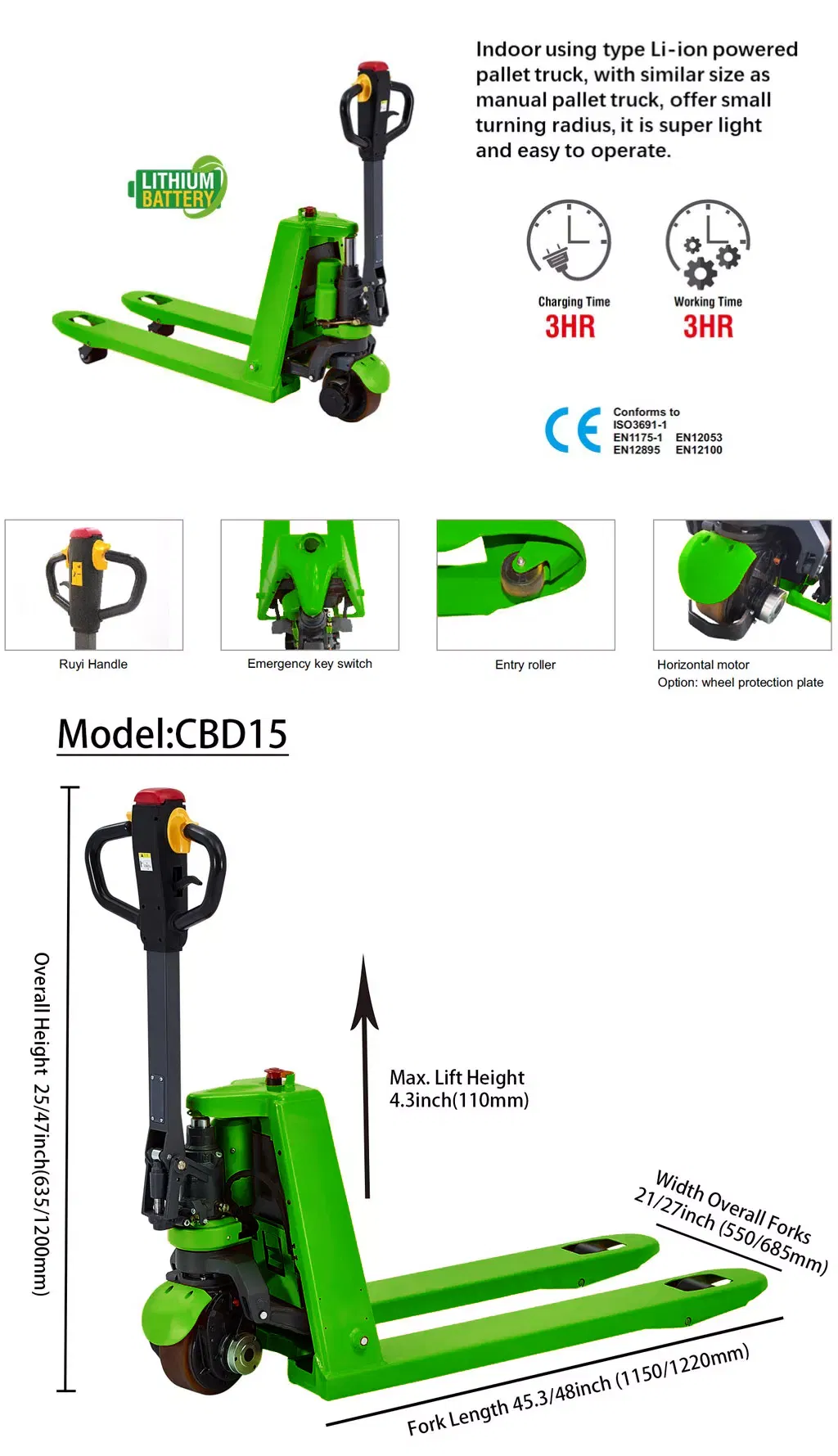

CBD15 Electric Pallet Truck

CBD15W-L Lithium Truck

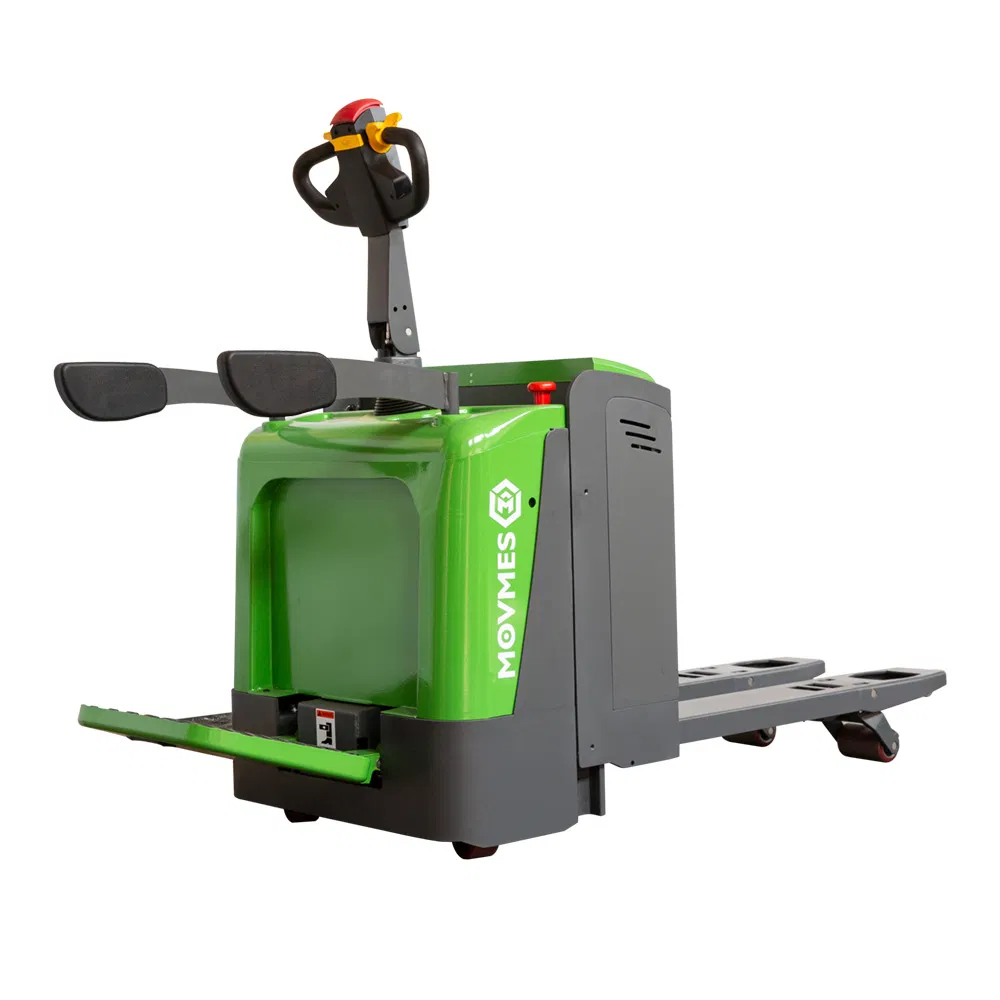

CBD20R-II Rider Truck

Certifications & Quality Control

ISO9001:2008 Quality Management System
ISO14001:2004 Environmental Management System
OHSAS18001:2007 Occupational Health and Safety
TUV/GS/CE Certificates (Approved standards EN3691-5:2014)

Product Test Items Before Delivery:

Strengthening test detection
Stability detection
Climbing performance and current testing
Braking performance debugging
Technical parameters verification

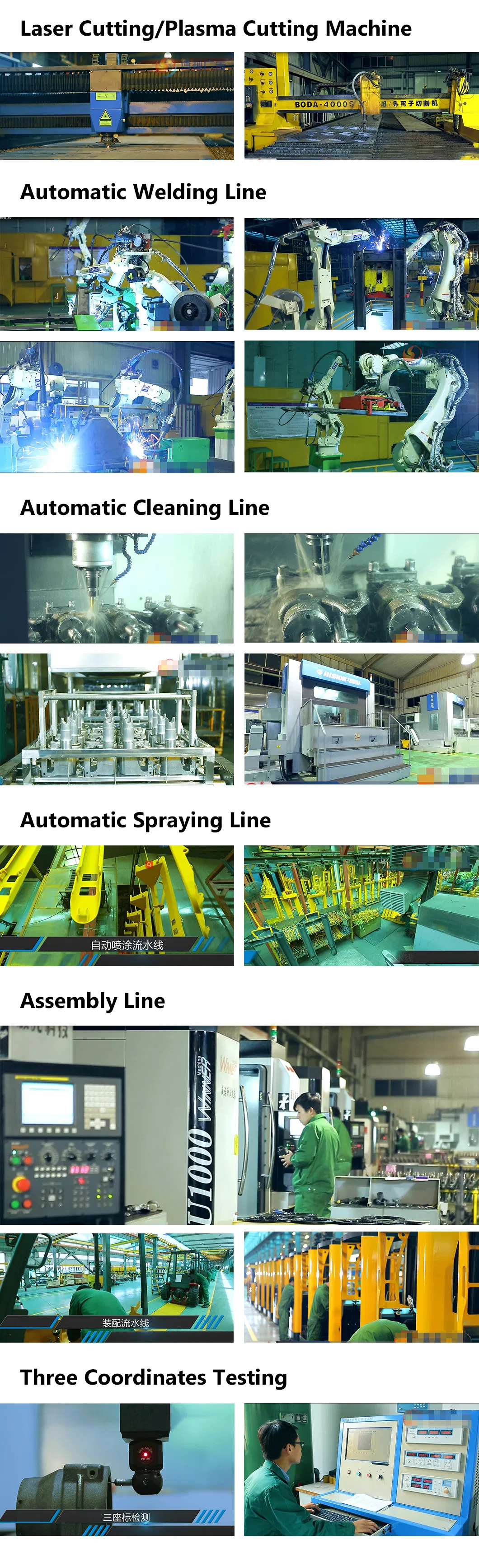

Factory Strength

36 Years Experience

8 International Approvals

150,000m² Factory Area

1,200 Employees

77 Senior Engineers

157 Countries Exported To

Frequently Asked Questions

Q1: What is the continuous working time and charging duration? A: The battery continuous working time is around 3-6 hours depending on volume. Charging typically requires 3-6 hours for a full charge.

Q2: What are the specifications for the chargers? A: Charger voltage can be 24V/48V. Power plugs are available in USA, UK, Australia, and European standards.

Q3: Are customized OEM or ODM products available? A: Yes, we have been professional in developing and producing warehouse equipment since 1985 and provide OEM services for major global brands.

Q4: How long is the warranty period for these products? A: We provide a one-year warranty. During this period, wearing parts damaged by non-human factors are provided for free.

Q5: Which quality certifications does the equipment hold? A: The products are certified under ISO9001, ISO14001, OHSAS18001, and hold TUV/GS/CE certificates meeting EN3691 standards.

Q6: What tests are conducted before the truck is delivered? A: Every unit undergoes five major tests: Strengthening detection, Stability detection, Climbing performance, Braking performance, and Technical parameter verification.
