Heli Forklift 2 Ton Electric Pallet Truck 1.5 Ton Walkie Pallet Trucks with Lithium Battery

Customization:	Available
After-sales Service:	Spare Parts Free
Warranty:	One Year Warranty

Send Inquiry

Product Description

📋 Basic Specifications

Model NO.ELEP-15/20-190

TypePowered Pallet Truck

PowerLithium-Ion Battery

Load Capacity1T - 5T

FuelElectric

Lift height120 mm

ConditionNew

Rated Load1.5ton/2ton

Overall Dimension2120X2530X1155mm

Fork Length900/1150/1200 mm

Fork Width160 mm

Fork Thickness55 mm

HS Code8427109000

Production Capacity1000 Units/Month

🏗️ Product Description

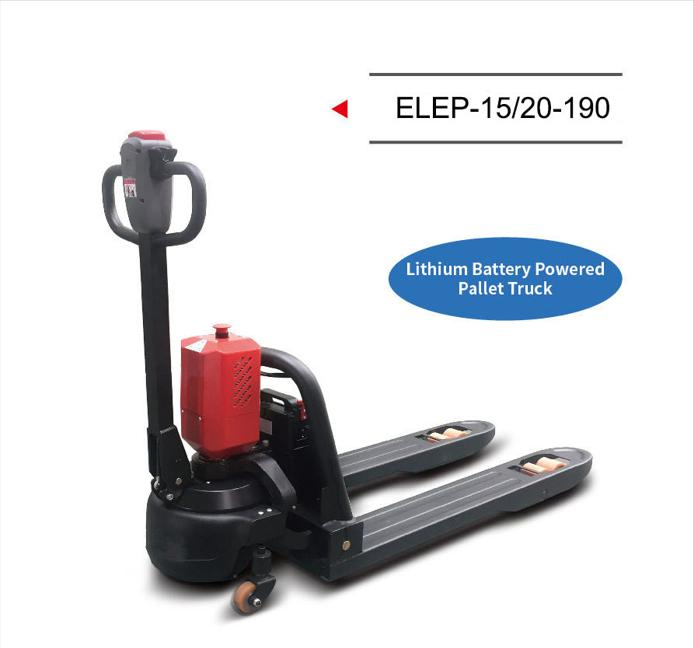

1.5/2 Ton Lithium Battery Powered Pallet Truck ELEP-15/20-190

Main Features:

Compact Chassis Design

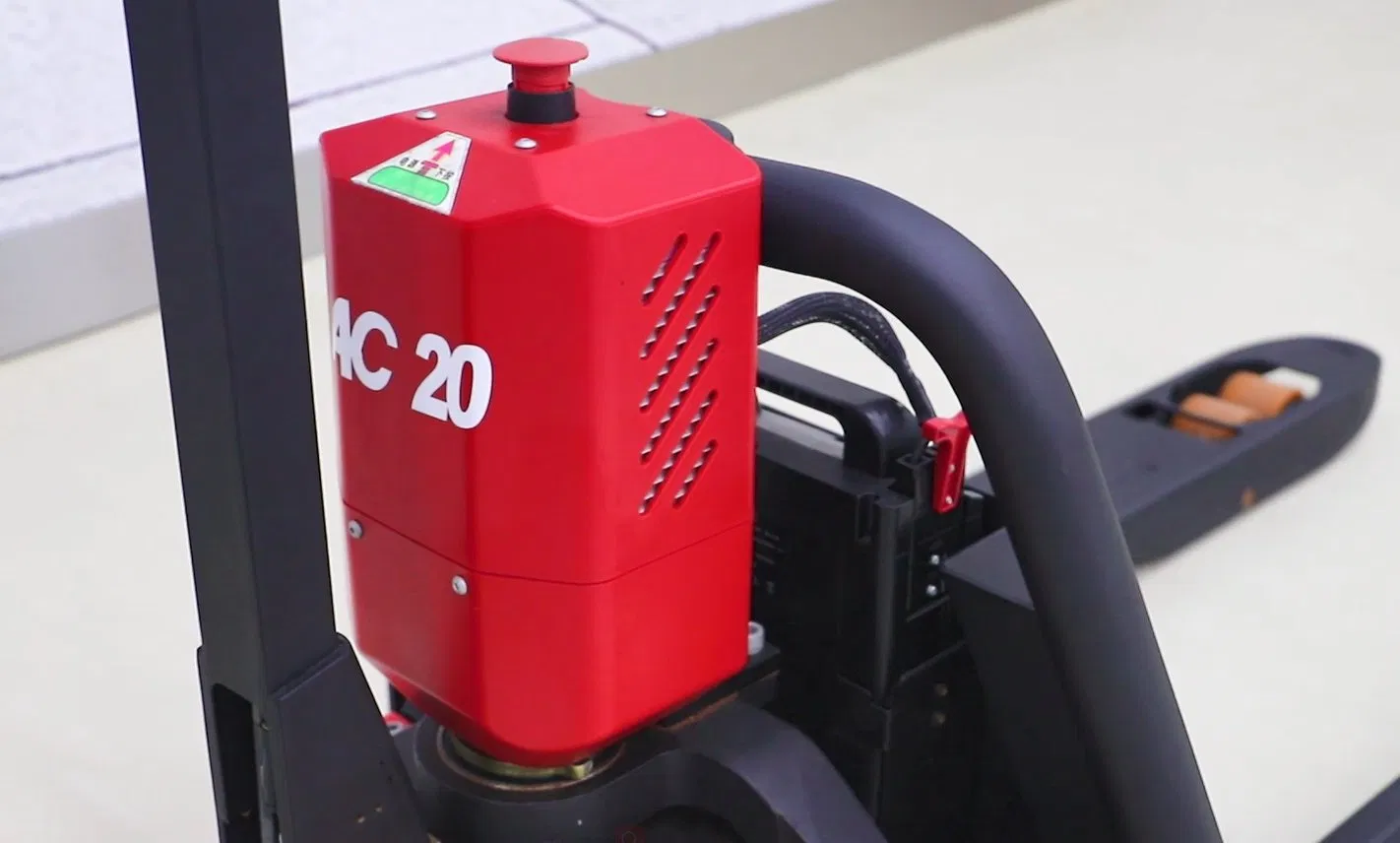

Permanent magnet brushless driving and lifting motor

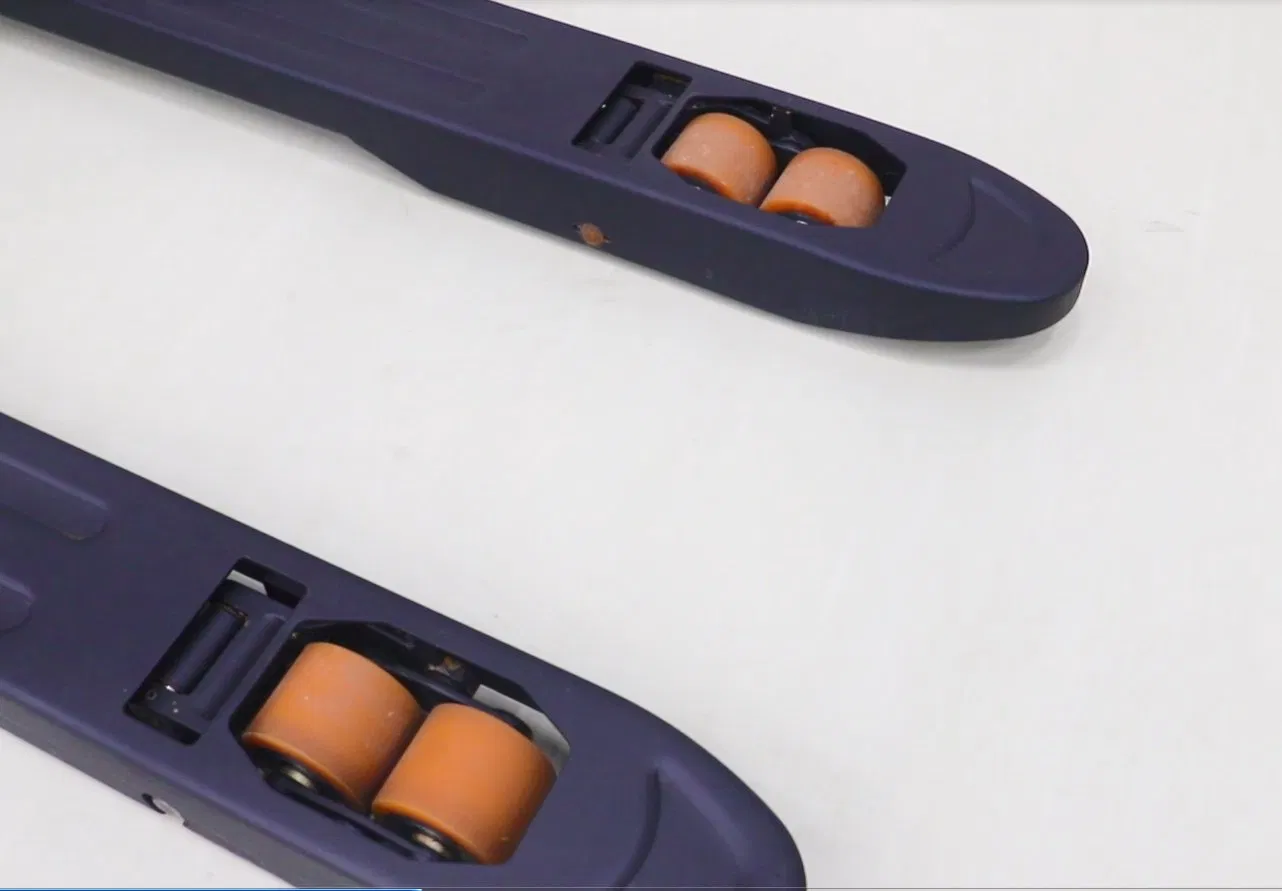

Fork design suitable for double-deck pallets
Portable lithium-battery system
Lifting limitation included as standard configuration

Technical Parameters:

Description	Unit	ELEP-15-190	ELEP-20-190
Loading capacity	kg	1500	2000
Load center	mm	600	600
Operating type	-	Walkie	Walkie
Wheels type	-	PU	PU
Driving wheel size	mm	145x54	145x54
Max. lifting height	mm	120	120
Overall fork width	mm	560/685	560/685
Overall length	mm	1400/1650/1700	1465/1715/1765
Overall height (with handle)	mm	1166	1166
Min. Turning radius	mm	1055/1305/1355	1120/1370/1420
Travel speed (laden/unladen)	km/h	4.5/5.0	3.8/4.5
Driving motor	kW	AC 0.80	AC 1.0
Battery voltage/capacity	V/Ah	72/8	72/16
Service weight with battery	kg	118	166

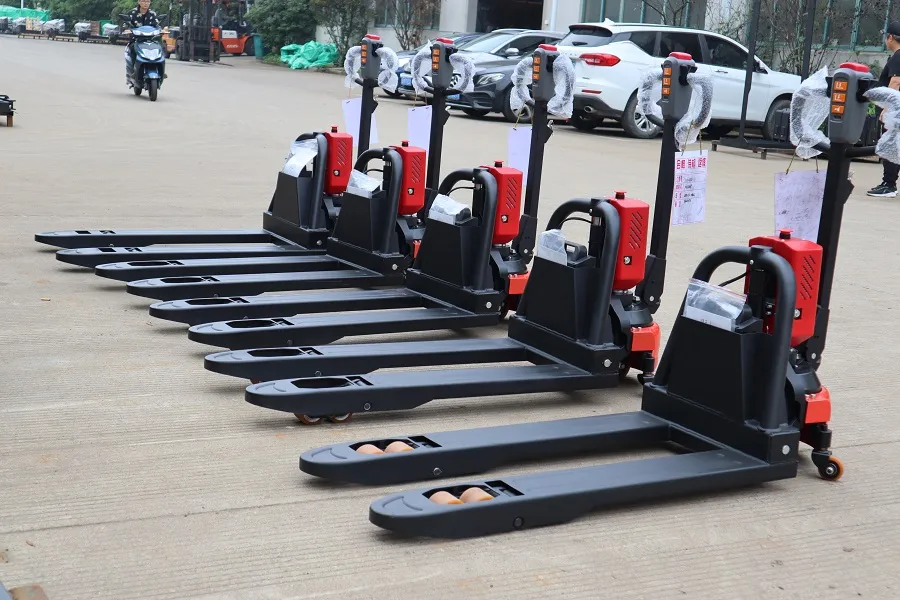

📷 Product Gallery

❓ Frequently Asked Questions

What is the load capacity of the ELEP series?

The ELEP series offers models with rated load capacities of 1.5 tons (1500kg) and 2.0 tons (2000kg) to suit different material handling needs.

What type of battery powers these pallet trucks?

These trucks are powered by advanced, portable Lithium-Ion batteries, providing efficient energy and easy replacement for continuous operation.

Can this truck be used with double-deck pallets?

Yes, the fork design is specifically optimized to fit and handle double-deck pallets effectively.

What are the advantages of the motor used in this model?

It features a permanent magnet brushless driving and lifting motor, which offers higher efficiency, reduced maintenance, and smoother operation compared to traditional motors.

What is the maximum lift height for these pallet trucks?

The standard maximum lift height for both the 1.5-ton and 2.0-ton models is 120 mm.

Is the truck compact enough for narrow aisles?

Yes, with a compact chassis and a minimum turning radius starting from 1055mm (depending on fork length), it is ideal for tight spaces and narrow warehouse aisles.
