New Condition 4t Heavy-Duty Electric Side Loader - 5.5m Ultra-Long Forks & Ai-Assisted Steering for Mega Warehouse Operations

Still deciding? Get samples of $ !
Order Sample

Product Description

ℹ️

Basic Information

Model NO.
CPD30S
Type
Electric Forklift
Power
AC Motor
Load Capacity
1T - 5T
Fuel
Electric
Lift Height
3000~5000mm
Condition
New
Tyre Type
Pneumatic
Fork Size
1220*150*55
HS Code
842720900
📝

Product Description

Side forklift truck is a new type of carrying scraper. It differs from the counter-balanced one mainly in that the forks are mounted on the side of the body. Besides lifting and tilting, the forks can also traverse to the right side of the truck frame, and retract back alongside the well in the middle section of the truck.

Long cargoes can be loaded by the forks on/from the truck deck, as well as transported in limited spaces. As the long cargoes are piled lengthwise along the truck's platform, the width of the passageway required by the forklifter can be reduced remarkably. The side forklift truck is particularly suitable for handling timber, section steels, line poles, cement tubes, plastic pipes and other kind of bulky, over-length cargoes. It finds wide applications in railway stations, oilfields, harbours, warehouses, factories, construction sites, etc.

📊

Product Parameters

Main Parameters and Specification Index Unit CPD30S CPD40S
Rated load capacityKg30004000
Load centremm600600
Maximum Lifting Heightmm35003500
Maximum Lifting Speed (laden)mm/s280280
Tilting Angle of Fork (up/down)°3°/5°3°/5°
Grade Ability (laden)%15%15%
Minimum Ground Clearancemm200205
Length of Carriermm44004400
Dimension (L*W*H)mm4400×2000×23504400×2000×2550
Self-Weightkg55706200
Controller system-USA Curtis
Battery (Lead acid/Lithium option)AH80/50080/550
📷

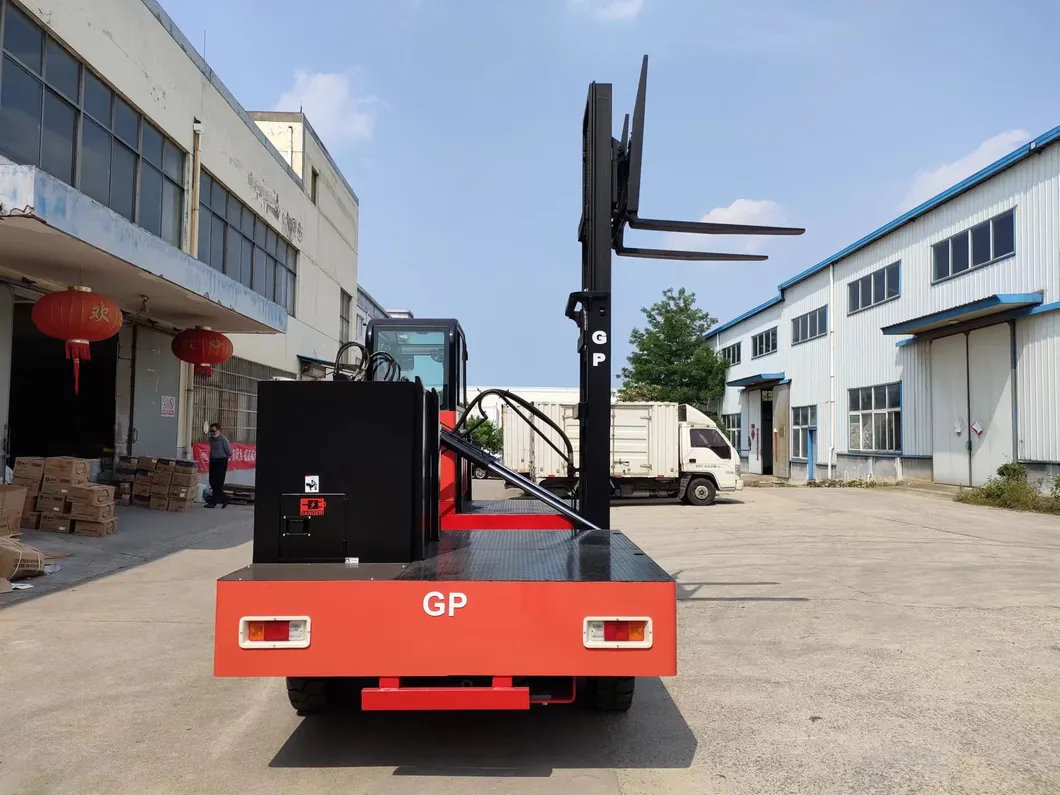

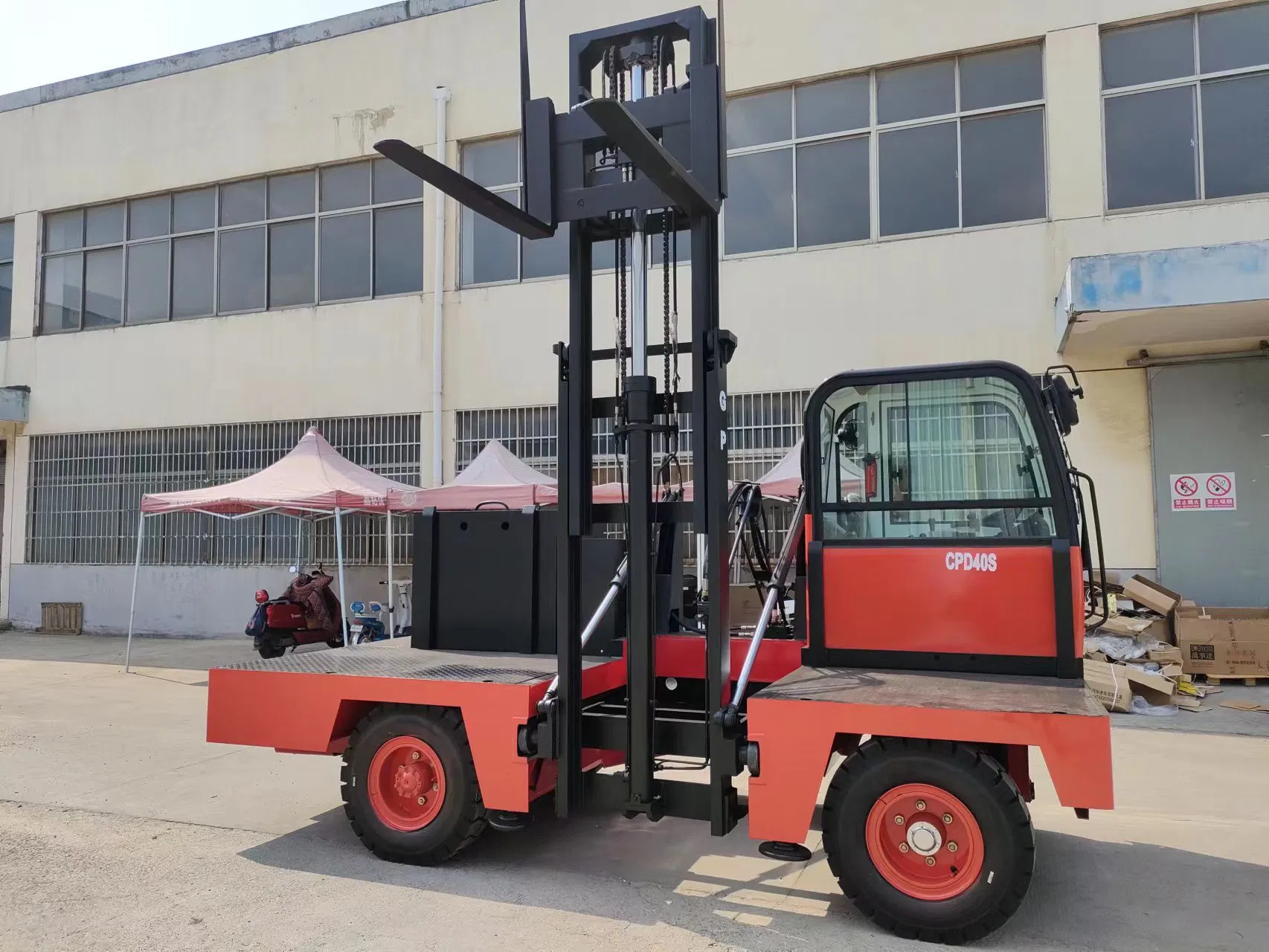

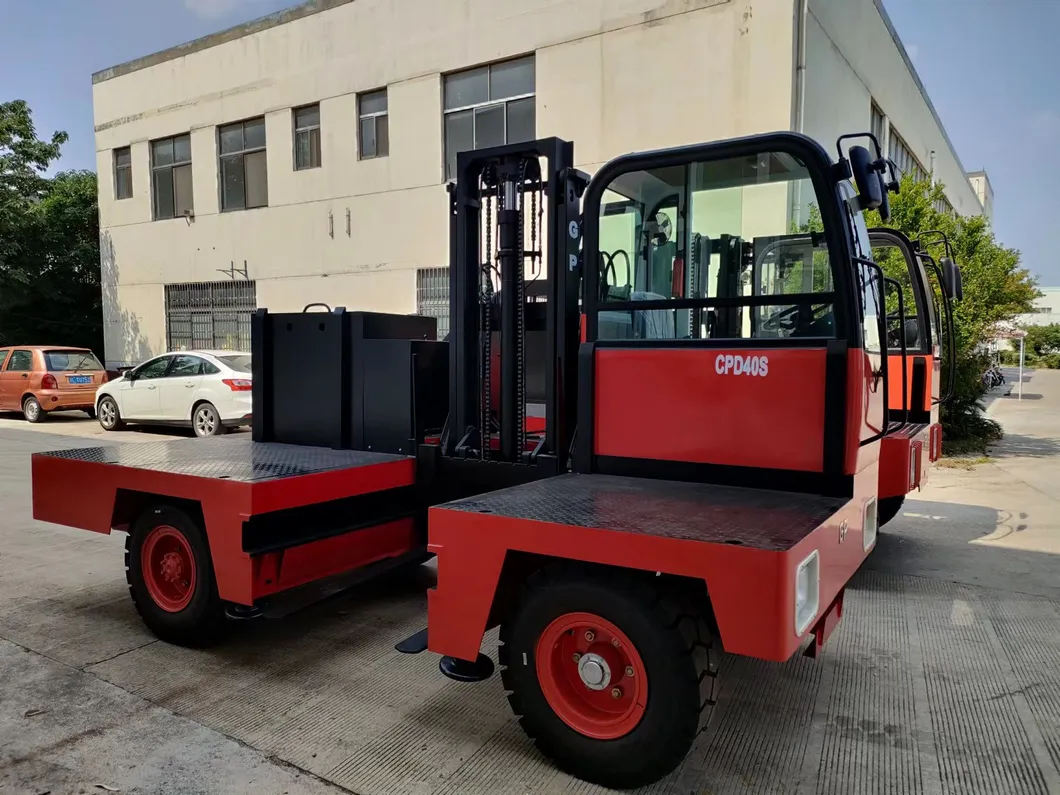

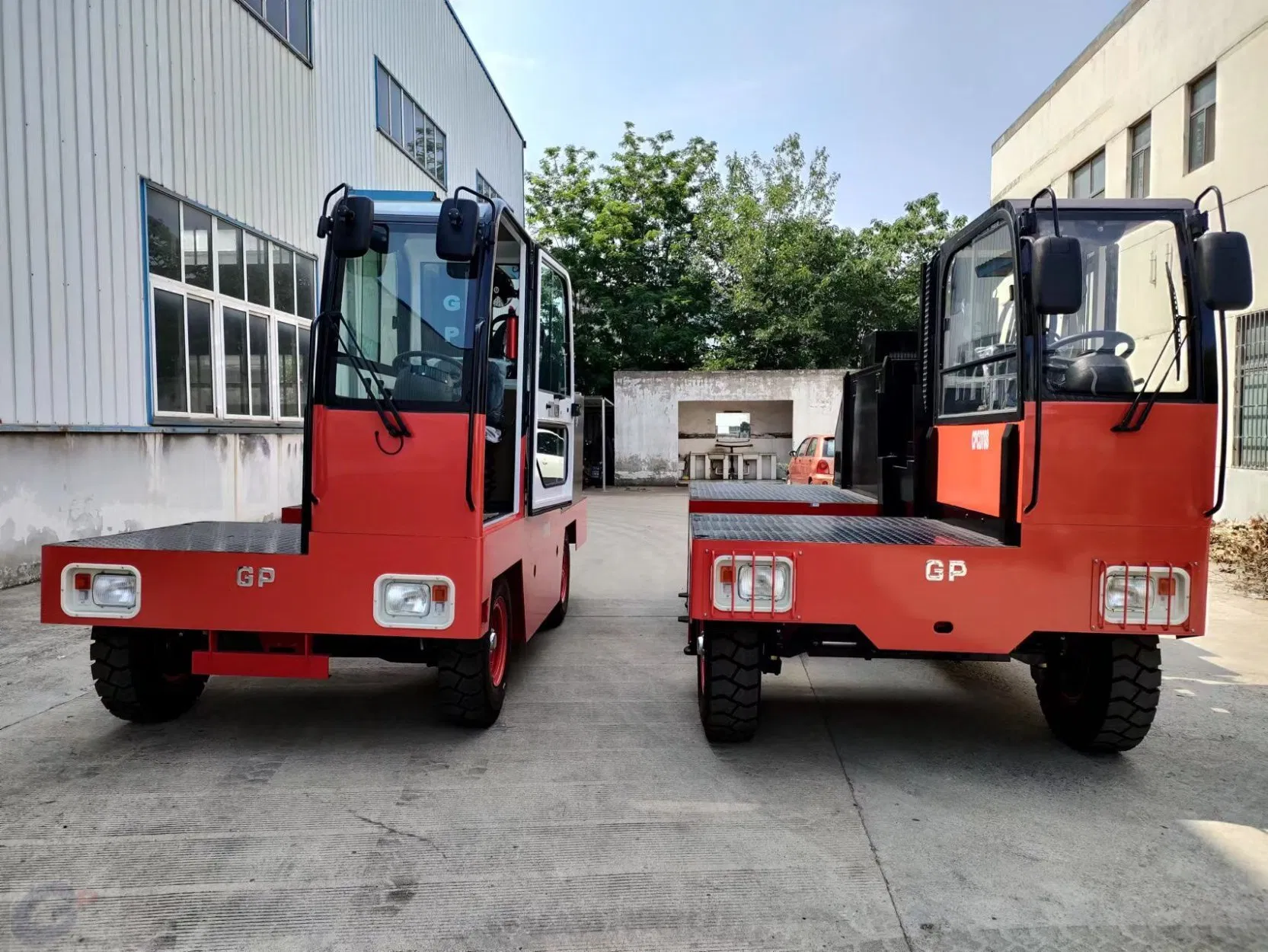

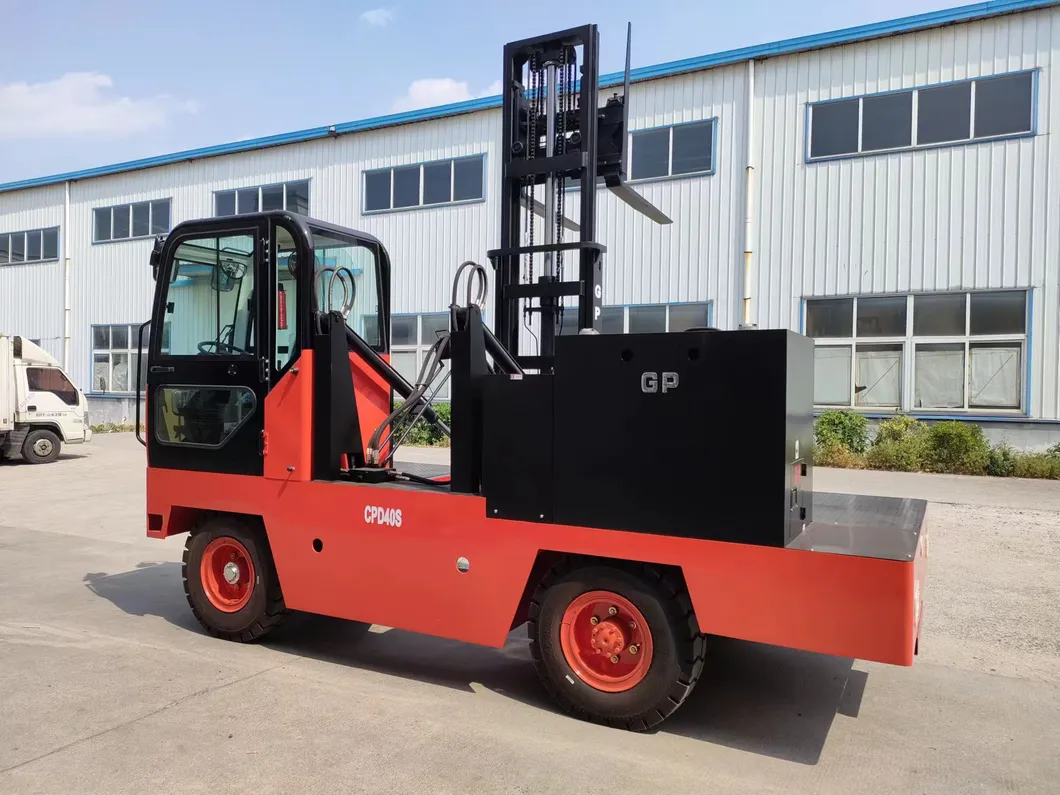

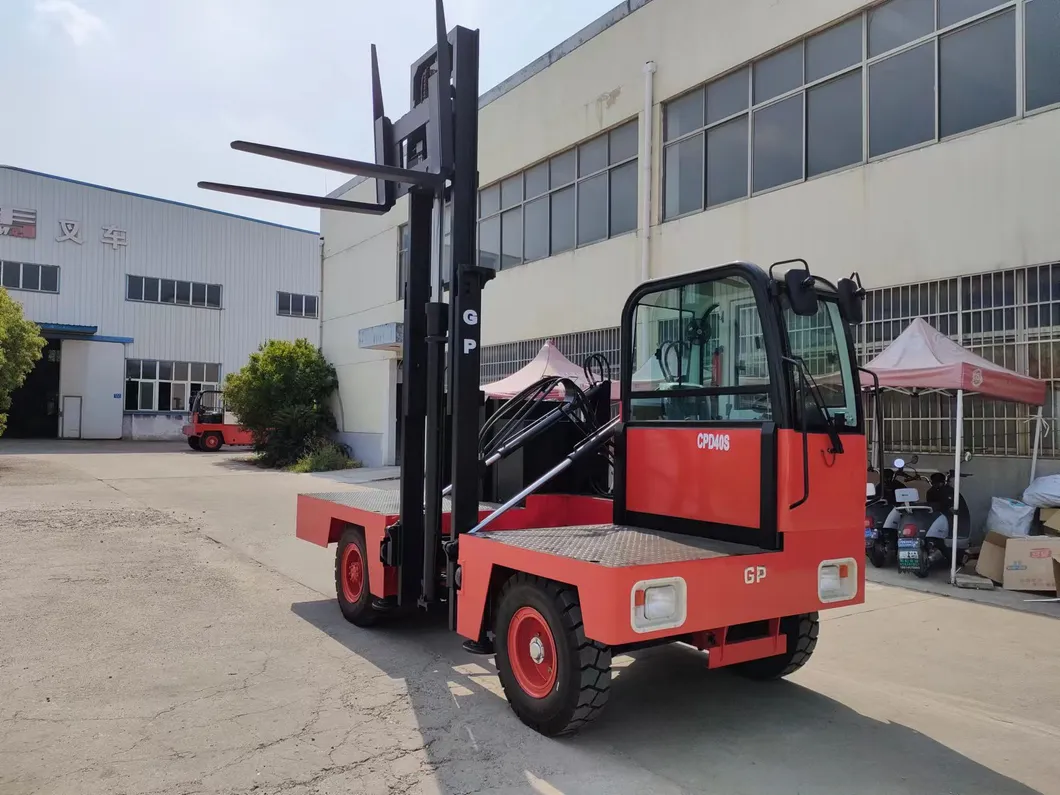

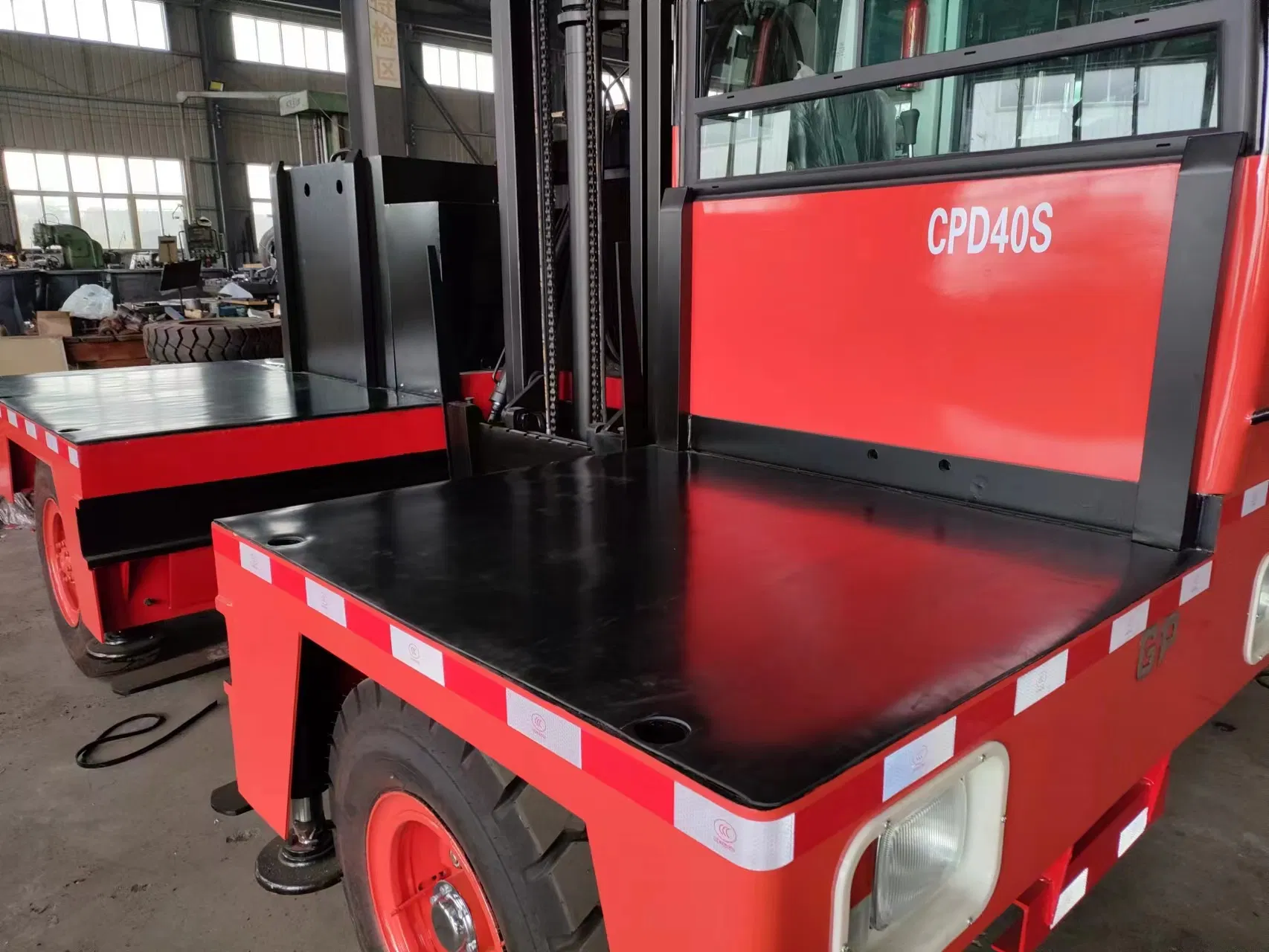

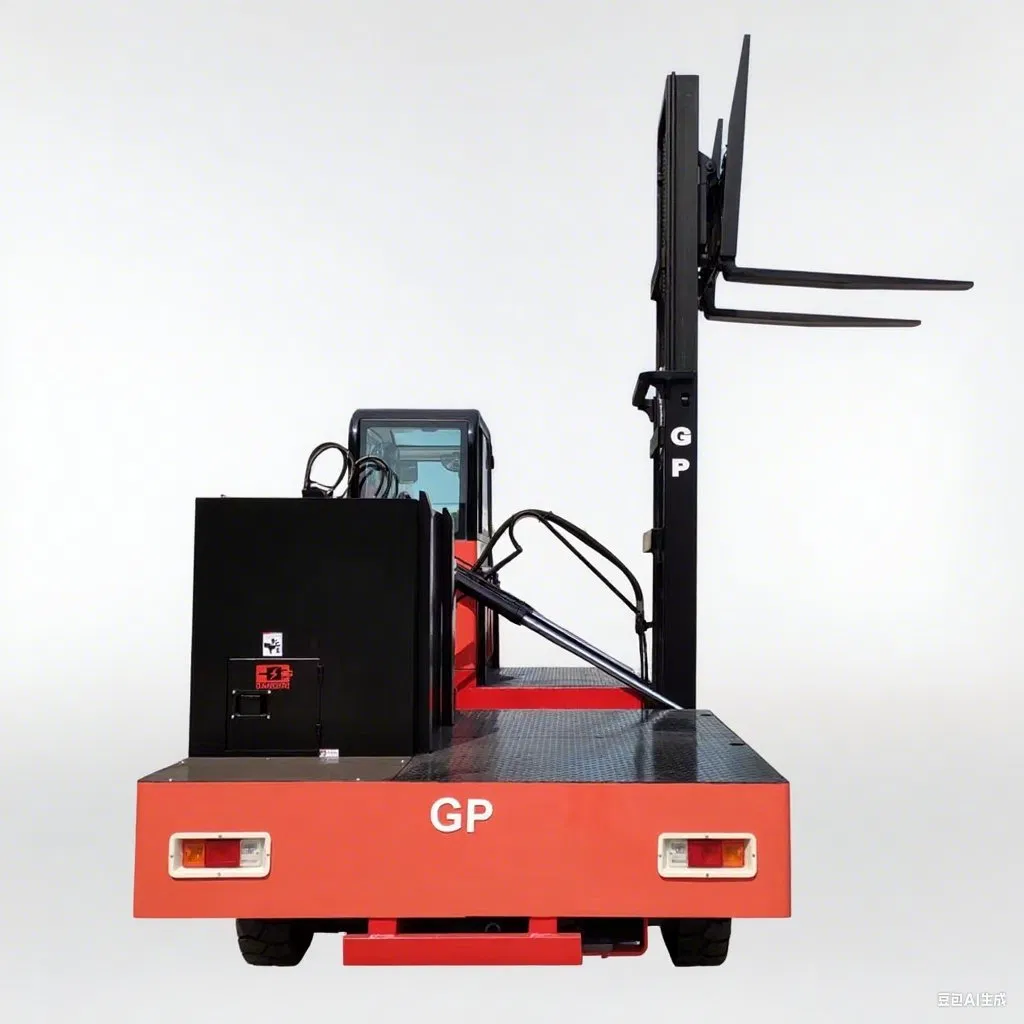

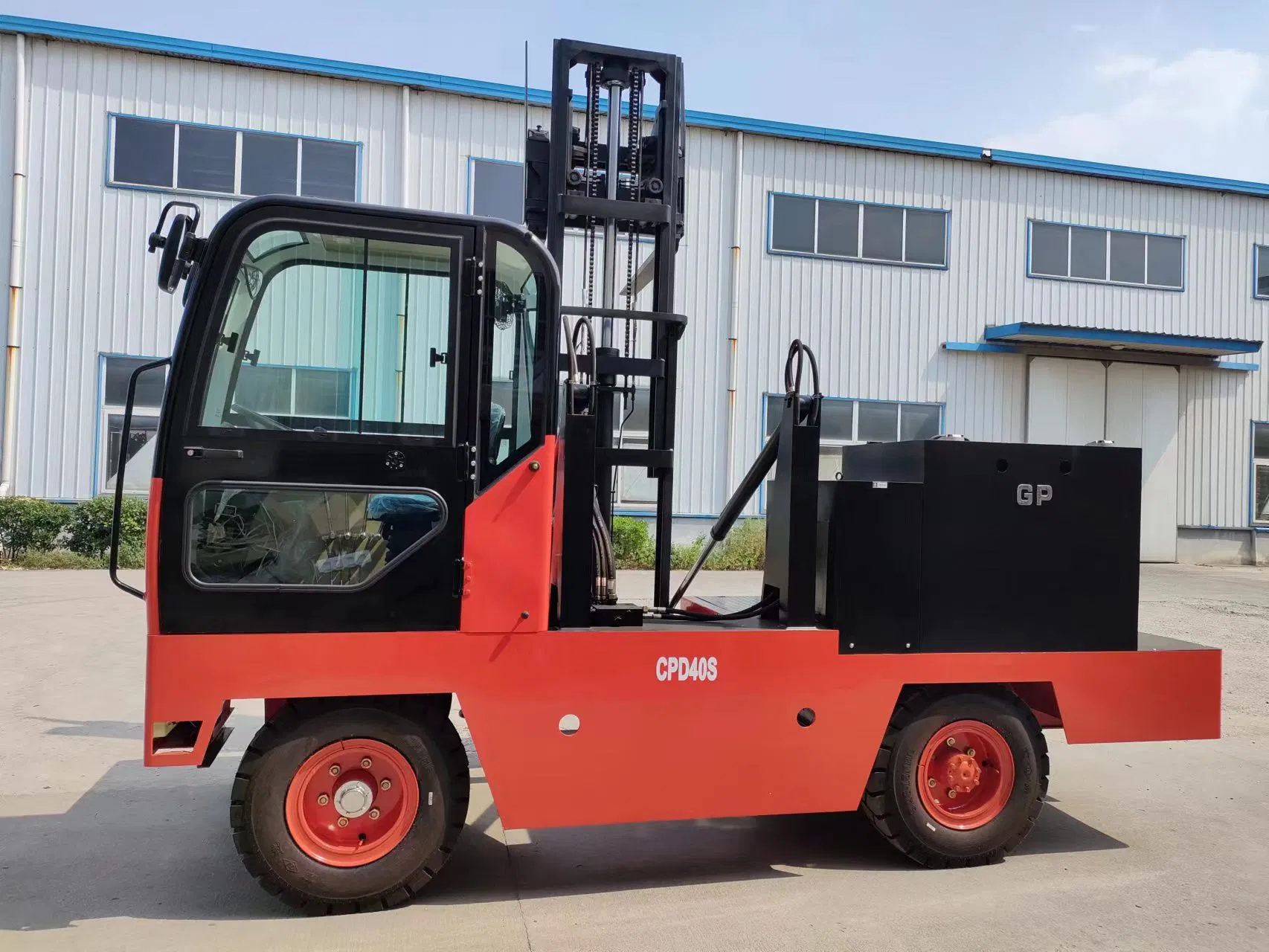

Detailed Photos

Frequently Asked Questions

What is the main advantage of a side forklift truck over standard models?
Side forklifts are specifically designed to handle long cargoes like timber and steel pipes in narrow aisles, as the load is carried lengthwise along the truck's platform.
What type of control system does the CPD30S use?
The CPD30S and CPD40S models are equipped with a high-performance USA Curtis controller system for precise and reliable operation.
What are the lifting capacity and height ranges?
The series offers a load capacity range of 1T to 5T, with standard lifting heights between 3000mm and 5000mm.
Are there different battery options available?
Yes, customers can choose between traditional lead-acid batteries or modern lithium battery options depending on their operational requirements.
In which environments is this side loader most effective?
It is highly effective in railway stations, ports, warehouses, and construction sites, particularly where space is limited and materials are exceptionally long.
What kind of tires are used on these electric side loaders?
These units utilize pneumatic tires, providing good ground clearance (200-205mm) and stability across various industrial surfaces.
