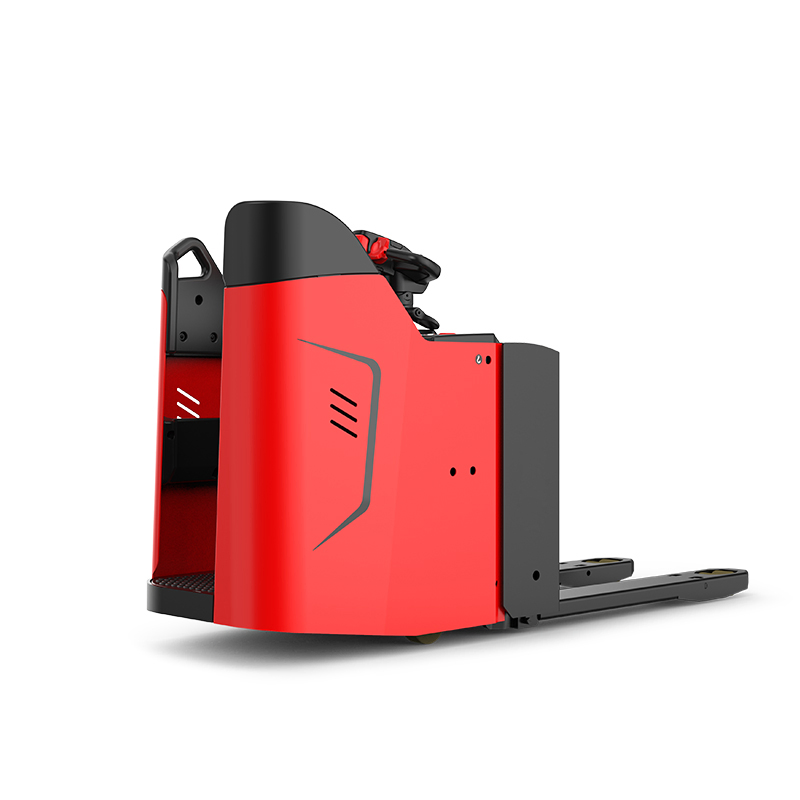

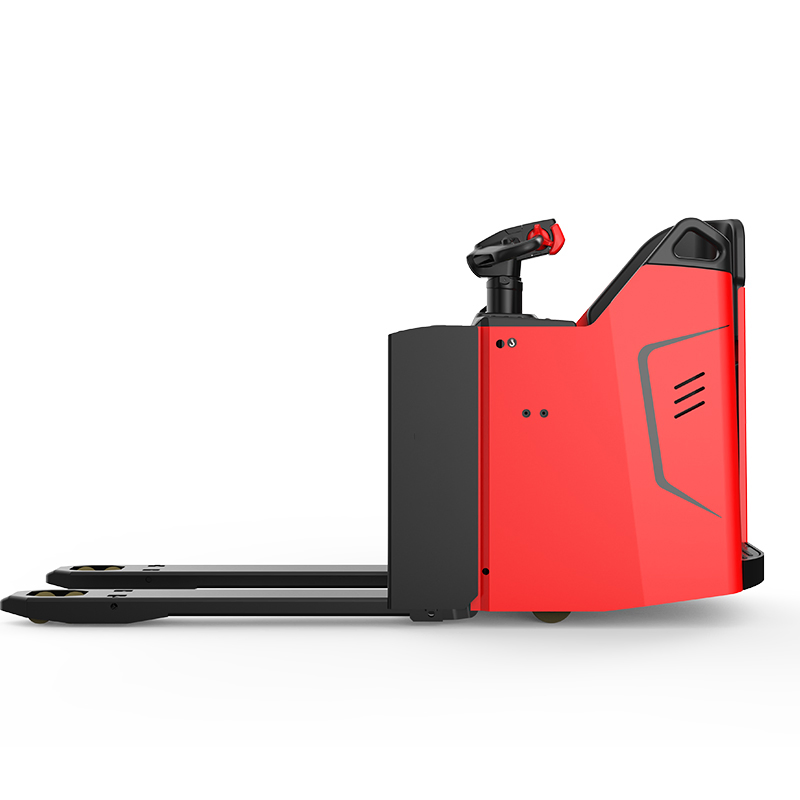

Self Propelled Pallet Truck Electric Pallet Jack Ride-on Heavy Duty 2.0Ton
The KPL201(H) is a heavy-duty ride-on pallet truck with a 2 ton capacity, specifically designed for long-distance and long-duration operations. With a fast acceleration and driving speed, this electric pallet truck can boost your transportation efficiency in no time. Safety and ergonomics are fully considered, making it an ideal choice for tough and demanding work environments.
High Travel Speed: Allows fast acceleration and a maximum speed of 12 km/h, ideal for long-distance transportation.
Quick Charging: Equipped with a 24V/205Ah Li-ion battery for high availability, quick & opportunity charging (7% in 10 minutes), no maintenance, and no gas emission.

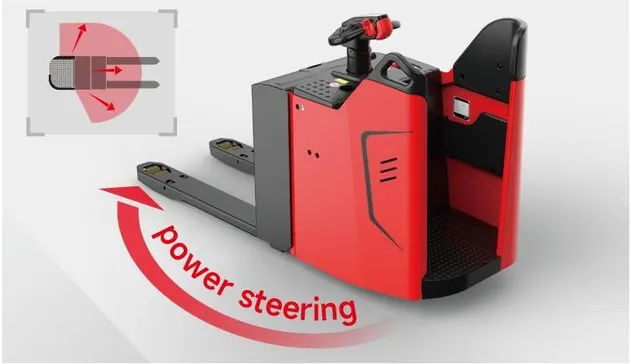

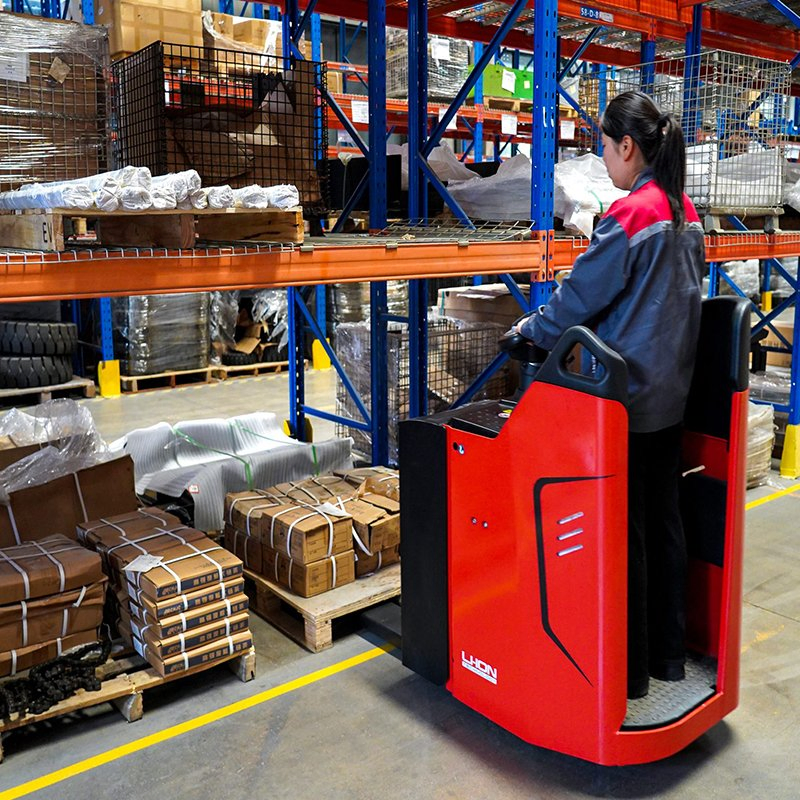

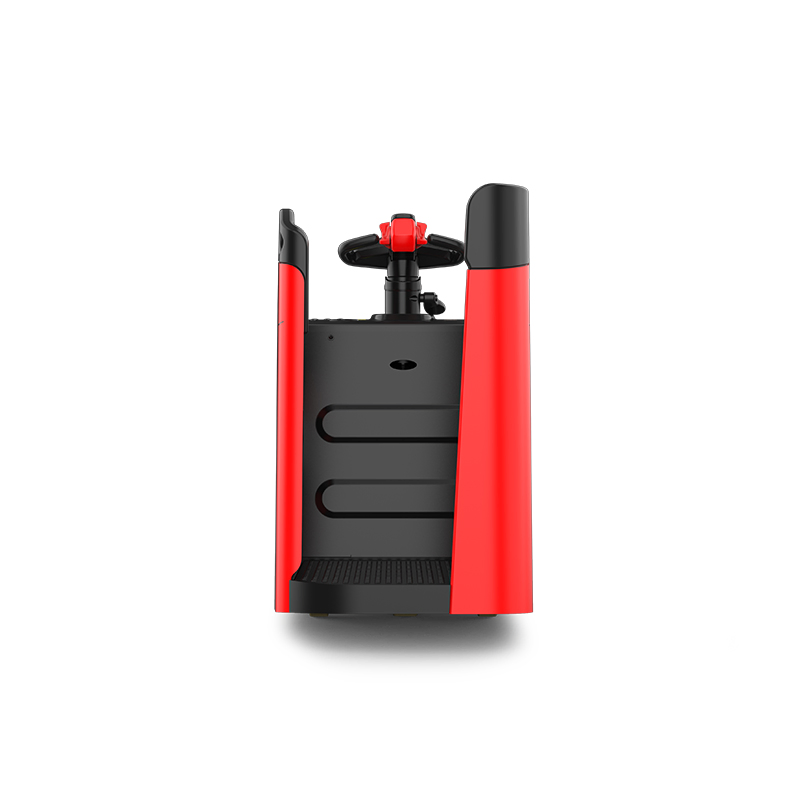

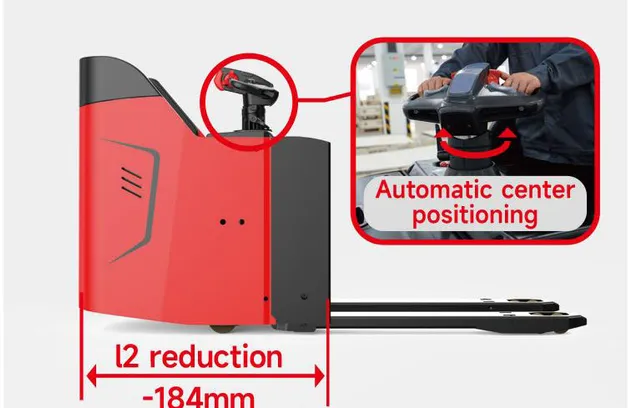

User-Centered Design: Features automatic speed reduction when turning, adjustable tiller head with automatic center positioning, suspended platform, and semi-enclosed operator compartment.
| No. | Description | Unit | Data |
|---|---|---|---|
| 1.2 | Model | - | KPL201H |
| 1.3 | Drive | - | Electric |
| 1.4 | Drive mode | - | Standing |
| 1.5 | Load capacity | Q (kg) | 2000 |
| 1.6 | Load center distance | c (mm) | 600 |
| 2.1 | Service weight | kg | 705 |
| 4.4 | Lift height | h3 (mm) | 120 |
| 4.19 | Overall length | l1 (mm) | 2195 |
| 4.21 | Overall width | b1/ b2 (mm) | 734 |
| 4.35 | Turning radius | Wa (mm) | 2034 |
| 5.1 | Travel speed, laden/unladen | km/h | 12 |
| 6.4 | Battery voltage/nominal capacity | V/Ah | 24 / 205 |

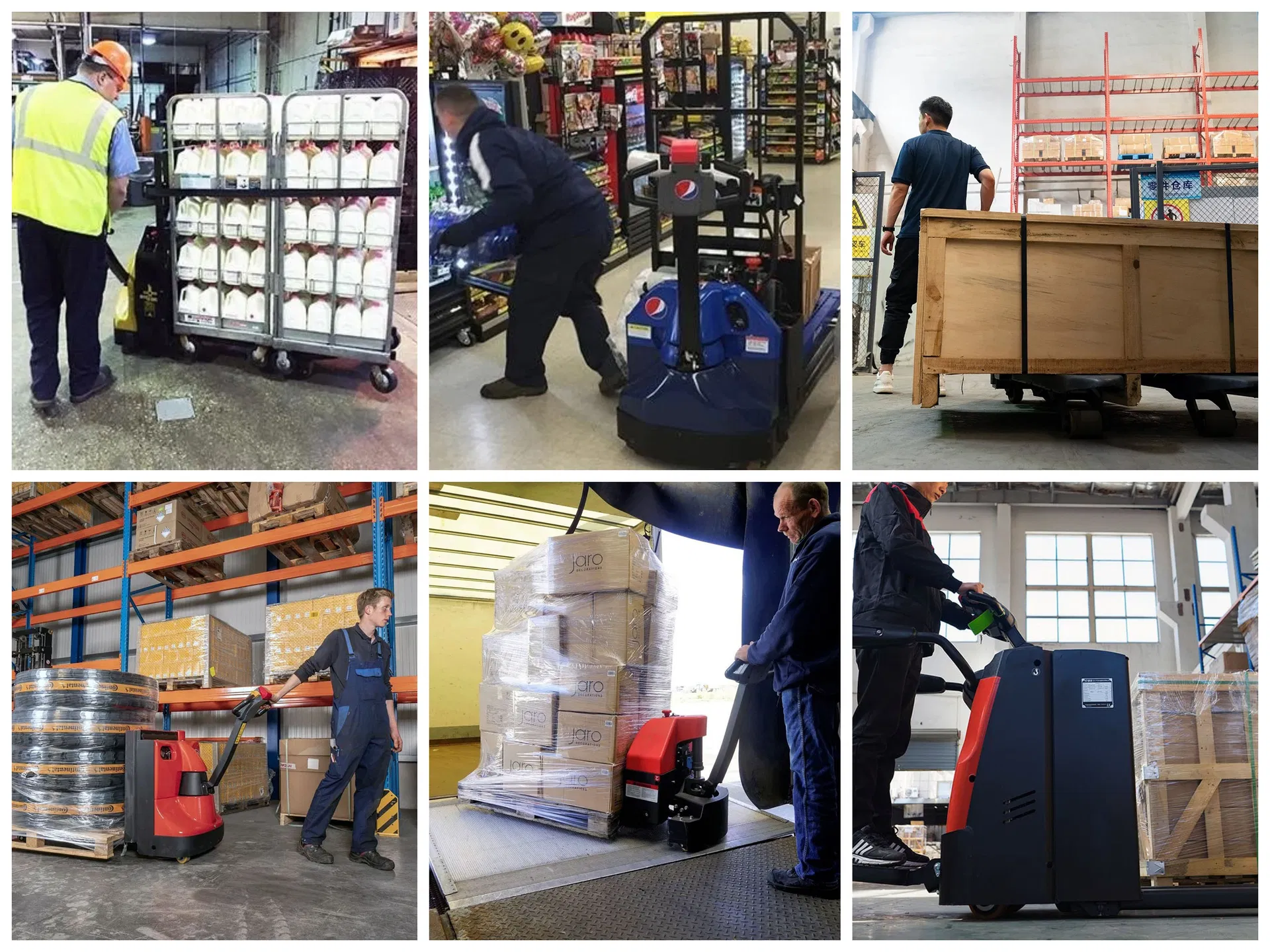

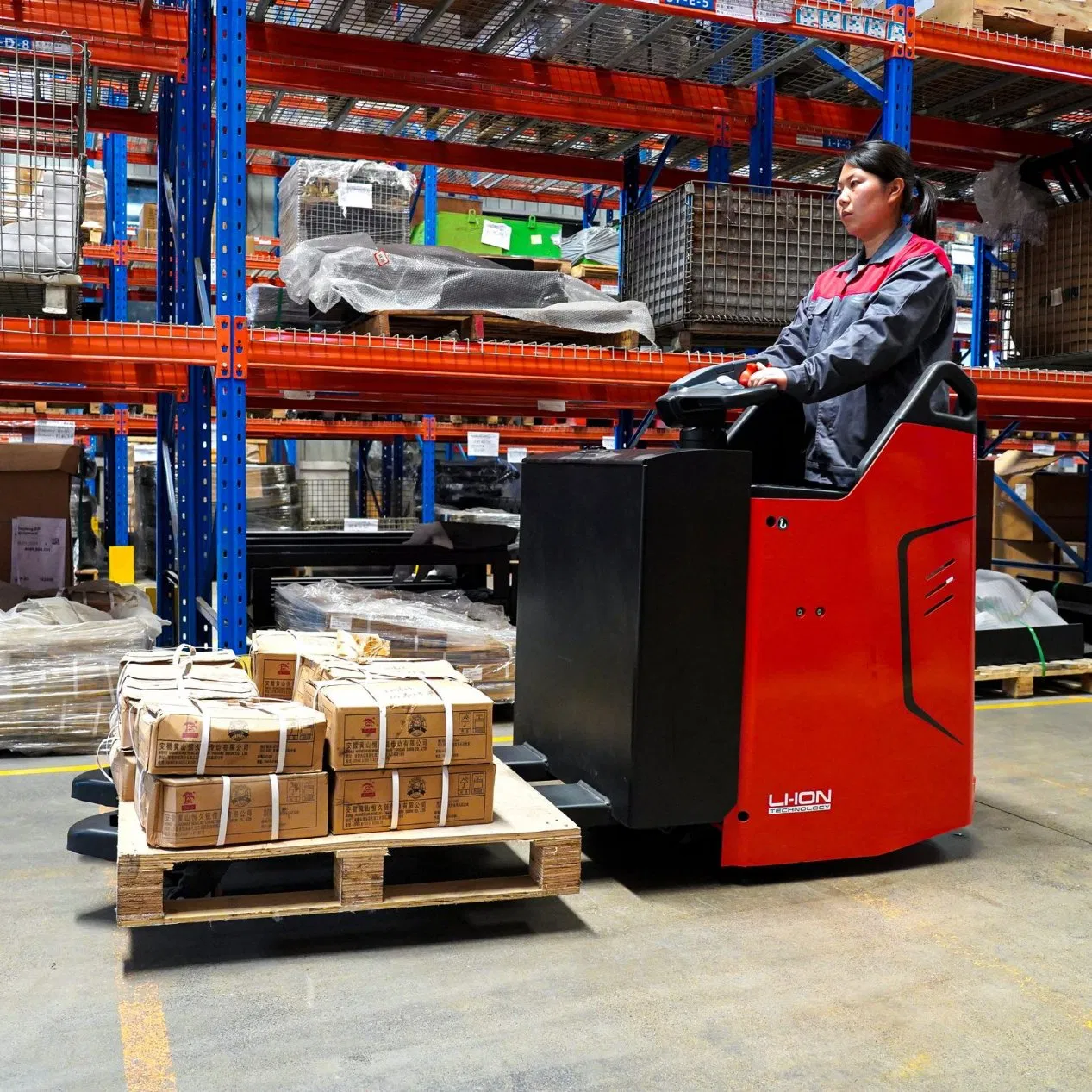

Long distance transportation: With its maximum driving speed of up to 12 km/h, the KPL201H significantly enhances the efficiency of long-distance transport. Ideal for large warehouses, logistics, and distribution centers.

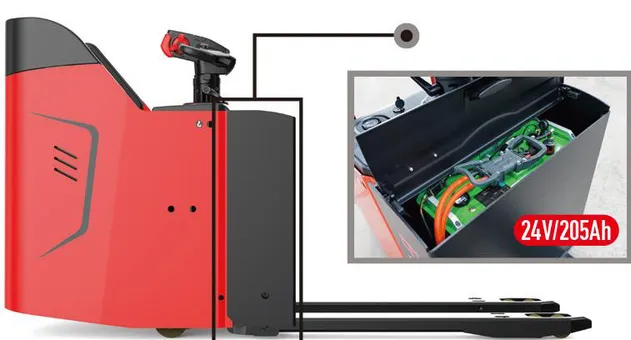

Long duration operation: Equipped with a 24V/205Ah Lithium-ion battery, this unit supports quick opportunity charging during breaks to sustain daily multi-shift operations.

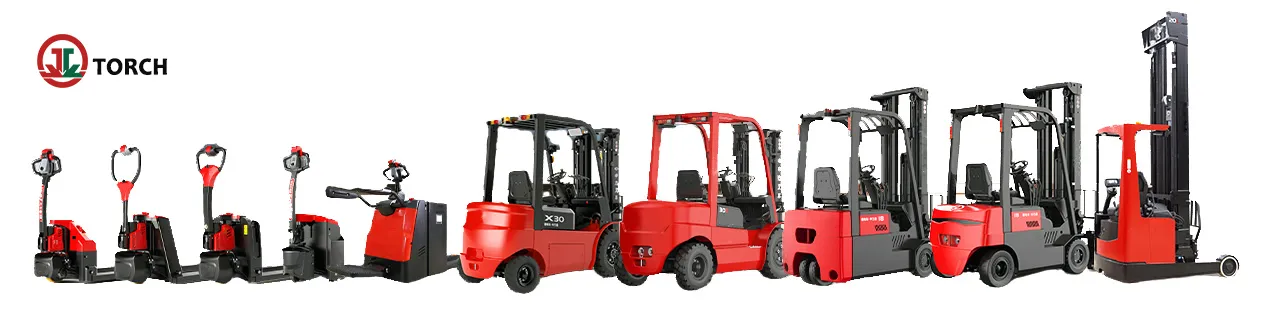

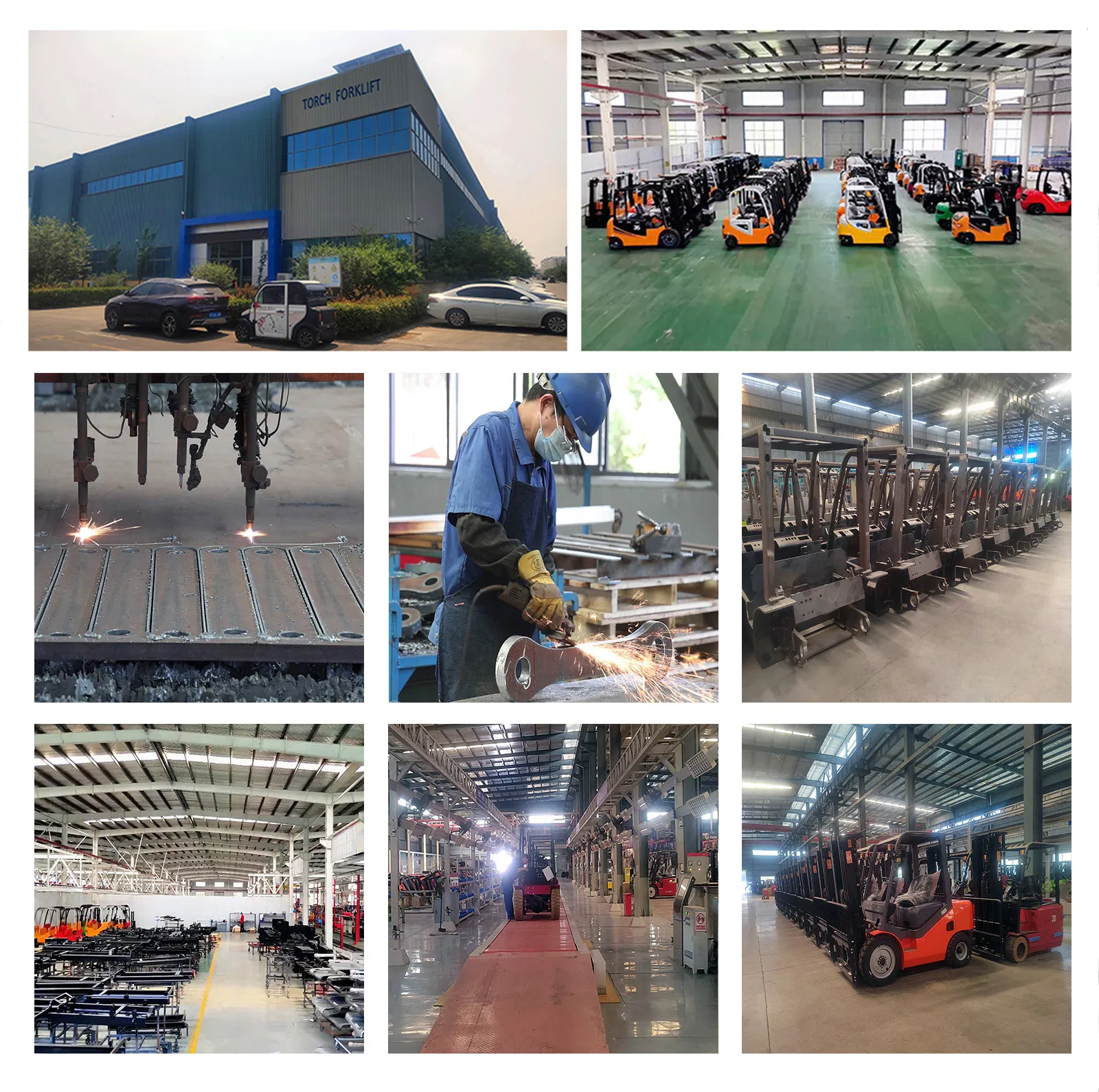

As a leading machinery manufacturer, we specialize in the R&D, production, and service of high-performance material handling equipment. Our product range includes electric forklifts, diesel forklifts, electric stackers, pallet trucks, and industrial AGVs. Our equipment has been exported to more than 100 countries including the United States, Mexico, Canada, and Russia.

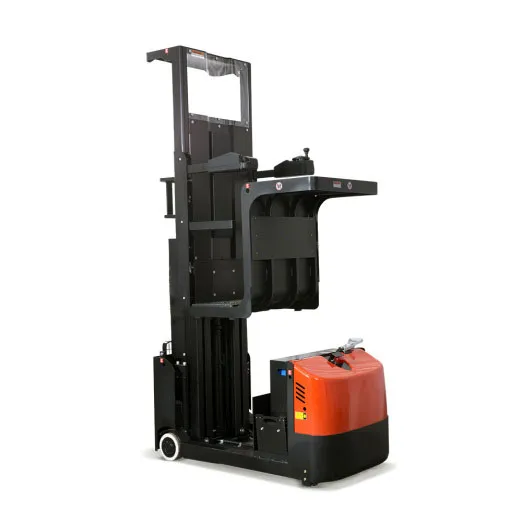

ORDER PICKER

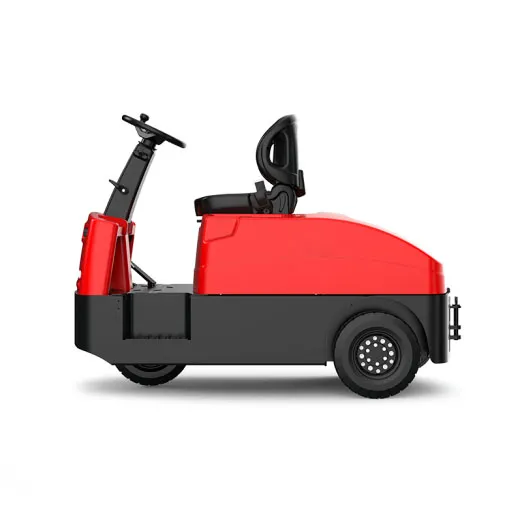

TOW TRACTOR

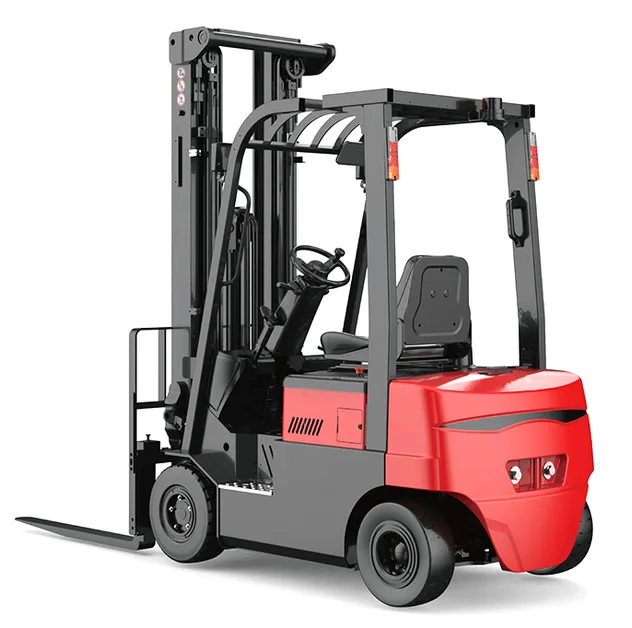

FORKLIFT
