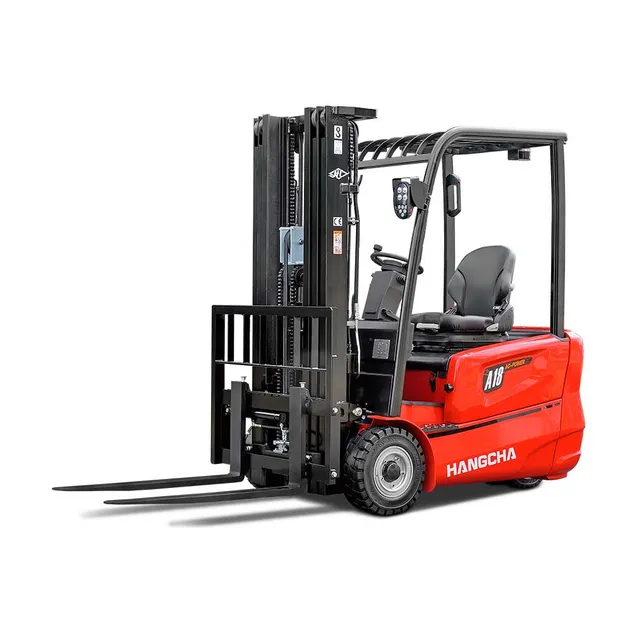

LM Forklift
LM Forklift
A forklift (also called industrial truck, lift truck, jitney, hi-lo, fork truck, fork hoist, and forklift truck) is a powered industrial truck used to lift and move materials over short distances.

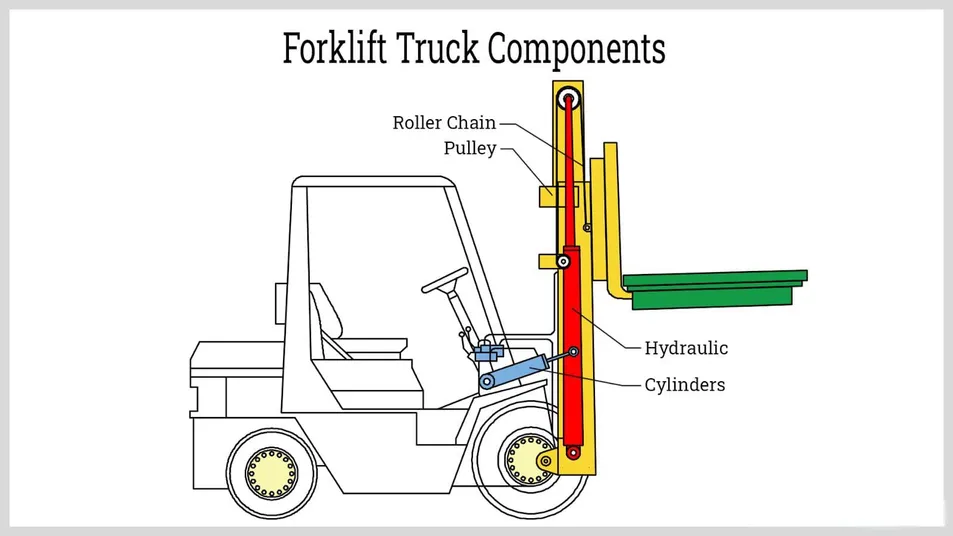

It features a front-facing metal fork platform specifically engineered to lift and move heavy loads. This platform slides beneath cargo, pallets, or machinery, enabling effective transportation and storage. The vehicle's structure encompasses wheels, counterbalances, a carriage, and a mast that all support the lifting system.

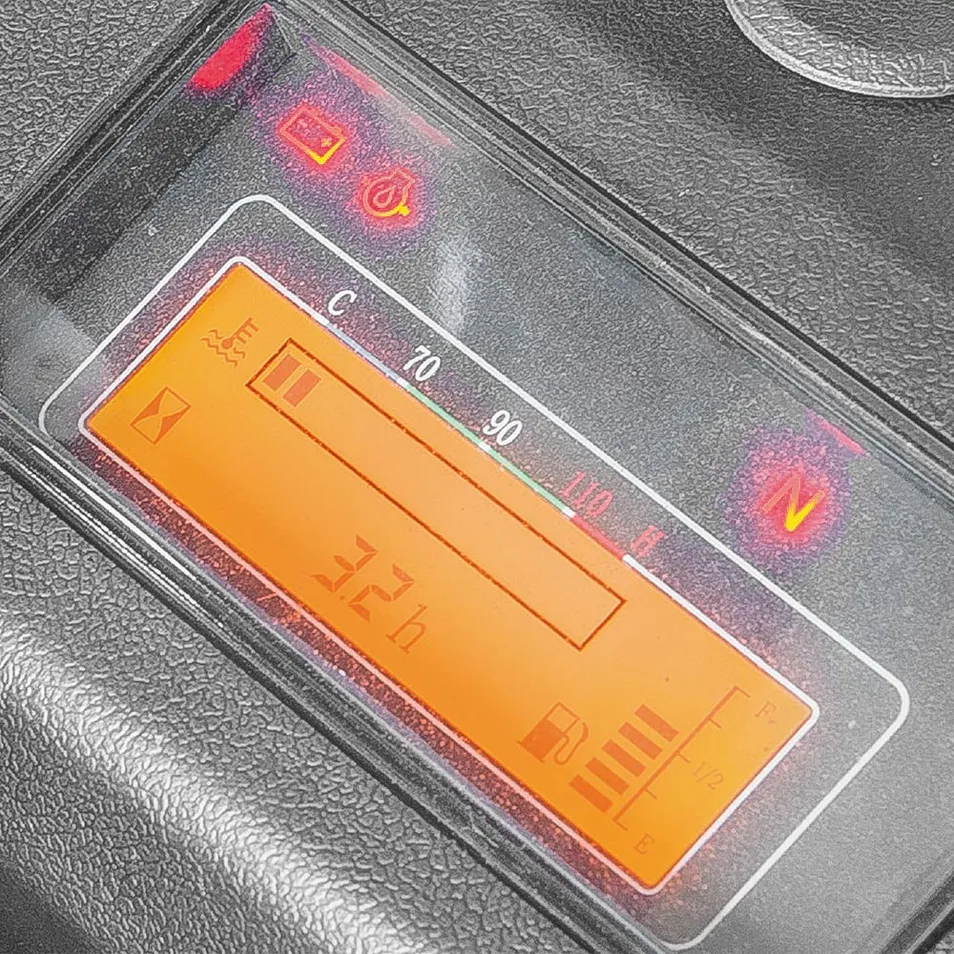

Newly-developed LCD instrument has more comprehensive functions and more stable performance. It displays the full truck state and fault codes, allowing operators to intuitively monitor truck conditions and maintenance needs.

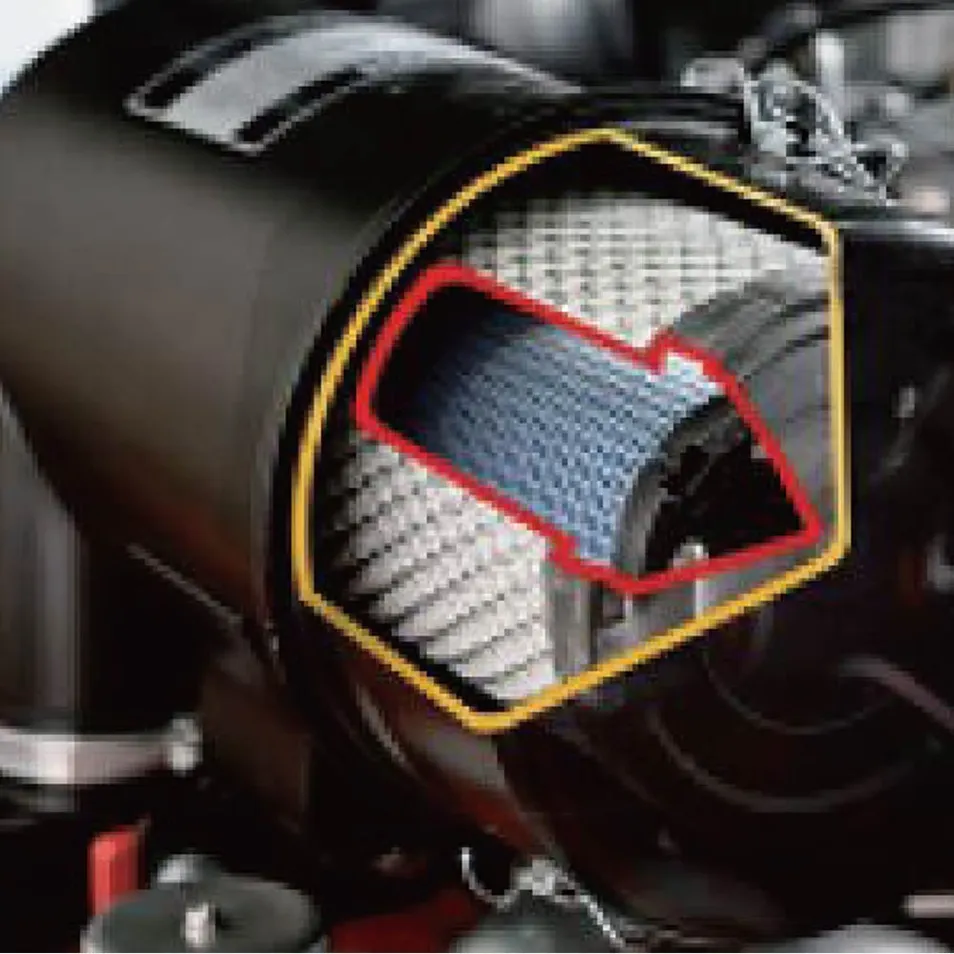

Dual air filters and an optimized heat dissipation channel ensure engine reliability. Rubber dampers between overhead and frames, combined with a full floating power train, significantly reduce traveling vibrations.

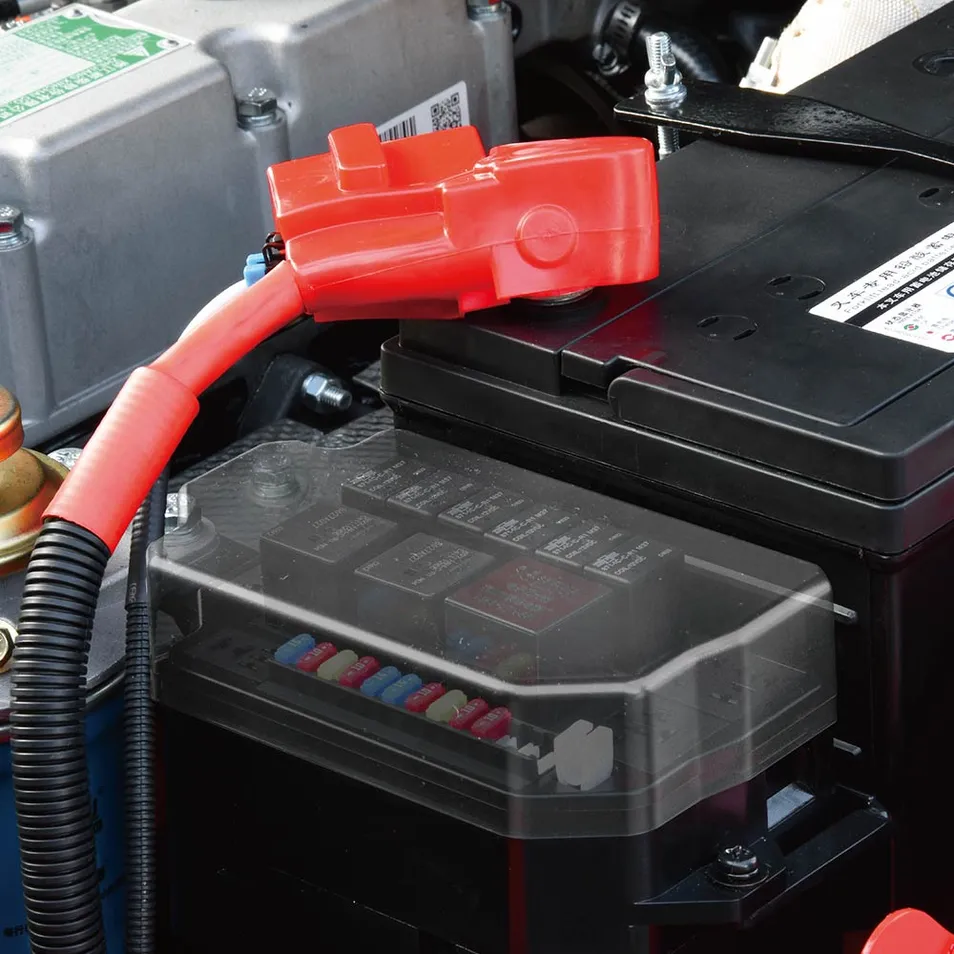

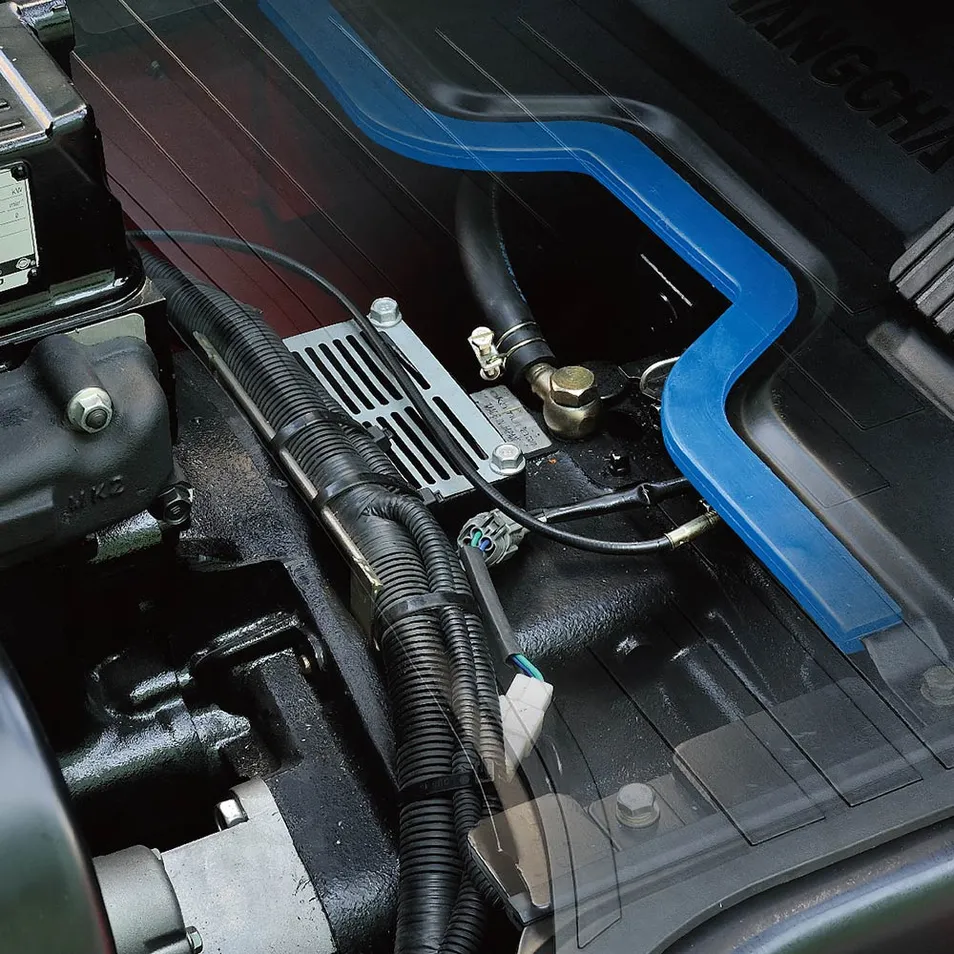

Adoption of new generation integrated electric box makes maintenance and repair convenient. The layout is more reasonable with superior water-proof performance.
Designed for heavy-duty applications with an extra capacity combined radiator to keep heat dissipation optimal even in the toughest environments.
(Custom configurations available upon request.)
| Type | Model | Lifting Height (mm) | Lowered Height (mm) | Tilt Range (°) | Load Capacity (kg) |
| Duplex wide view mast | A2A25M200 | 2000 | 1499 | 6/6 | 2000-2500 |
| A2A25M300 | 3000 | 1999 | 6/12 | 2000-2500 | |
| A2A25M450 | 4500 | 2849 | 6/6 | 2000-2450 | |
| A2A25M600 | 6000 | 3599 | 3/6 | 1550-1900 | |
| Triplex full-free mast | A2A25N450 | 4500 | 2114 | 6/6 | 2000-2350 |
| A2A25N600 | 6000 | 2814 | 3/6 | 1550-1850 |
