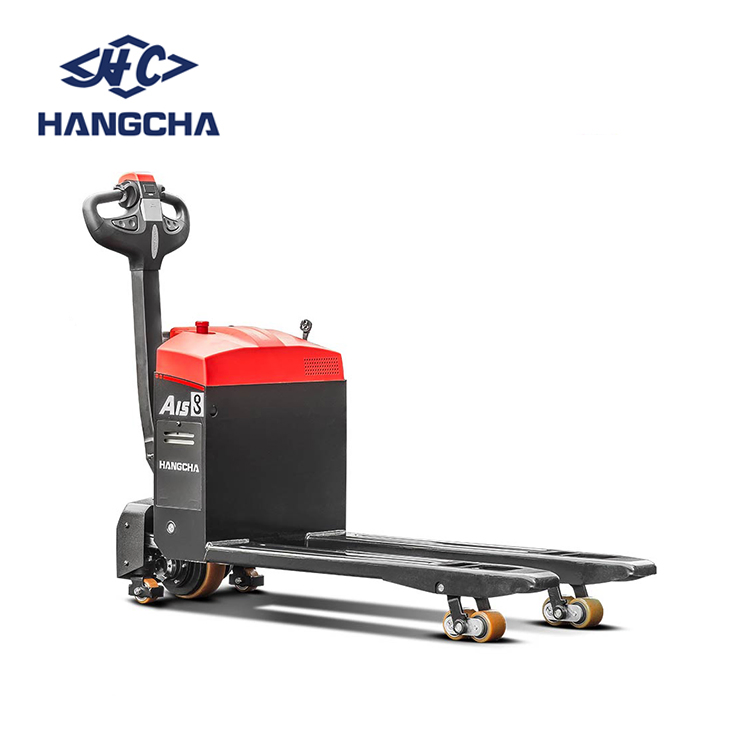

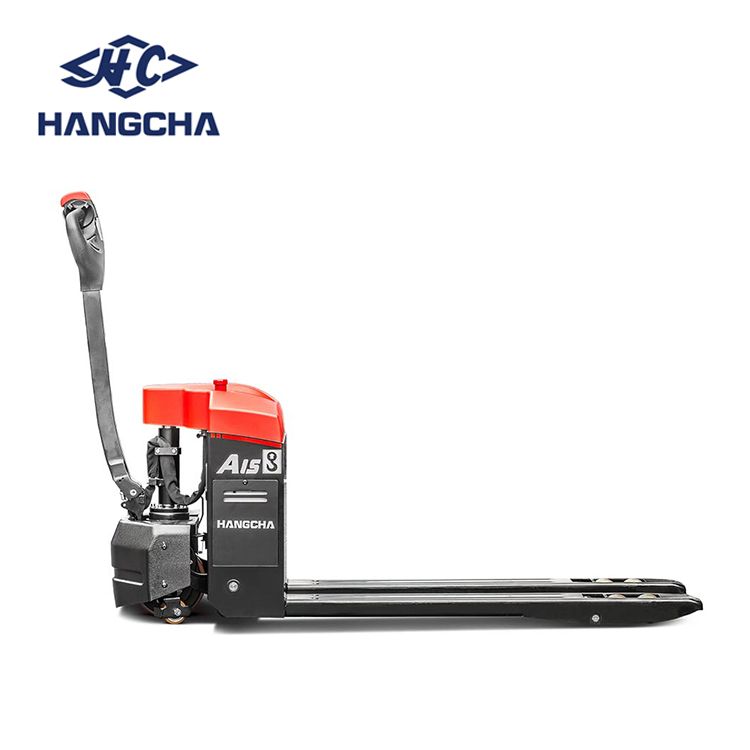

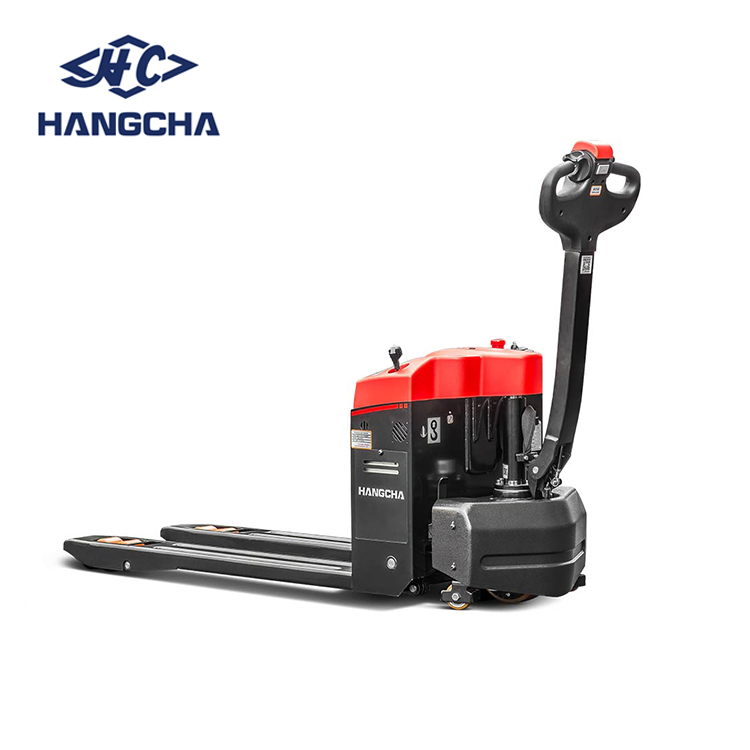

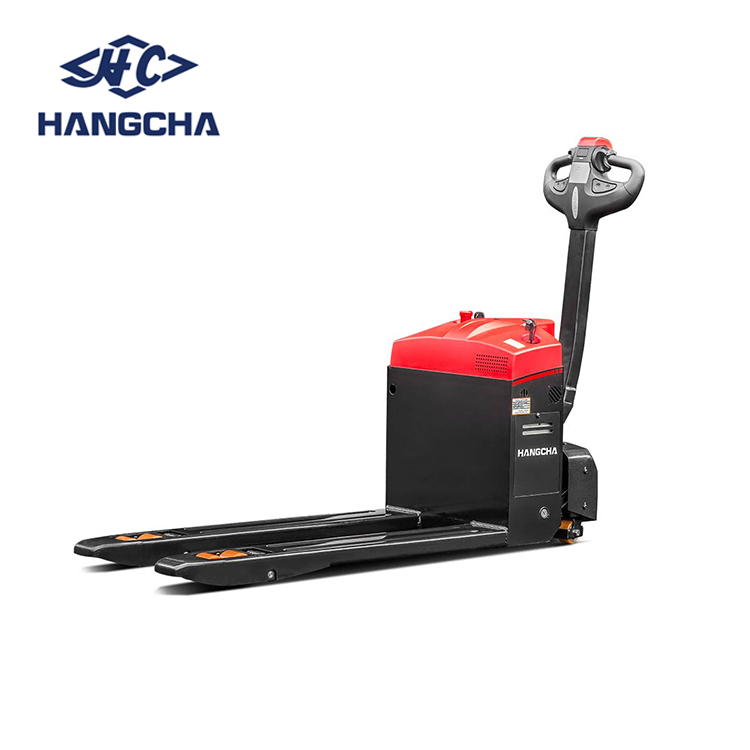

Hangcha 1.5ton Electric Pallet Truck, Pallet Jack Cbd15-A3mc2

Customization: Available
After-sales Service: 1 Year
Warranty: 1 Year

Product Description

📊

Basic Information

Model NO.
CBD15-A3MC2
Type
Pallet Jack
Power
DC Motor
Load Capacity
1500kgs
Fuel
Electric
Load Center
600mm
Lift Height
120mm
Condition
New
Product Name
Electric Pallet Truck
Operator
Stand Type
HS Code
8427109000
Production Capacity
10000 Units
📦

Packaging & Delivery

Package Size
200.00cm * 100.00cm * 200.00cm
Gross Weight
300.000kg
🛡️

Product Overview

The A series pallet truck mini range III has been engineered to be both powerful and flexible to meet the requirements of many demanding applications. Whether it's supermarket work, delivery service, stock replenishment or heavy manufacturing, the A series pallet truck mini range III has the strength and durability to minimise your total cost of ownership.

✨ Appearance

Applied professional industrial design, stream lines, and compact, fully ergonomic consideration in line with the latest design trends. Steel stamping and injection molding processes ensure it is robust, durable, and environmentally compliant.

⚡ High Performance
  • Rated capacity 1500-2000kg to meet diverse customer needs.
  • Traction motor provides excellent acceleration and low heat generation.
  • Regenerative braking for battery recovery and anti-slope protection on gradients.
  • High-quality components for tiller, switches, and indicators.
🔧 Easy Maintenance
  • Built-in charger and maintenance-free gel battery.
  • Integrated battery indicator, hour meter, and self-diagnostic instrument.
  • Full opened hood allows easy accessibility of all components for service.
  • Lubricated shaft sleeves and oil cups for a long service life.
📷

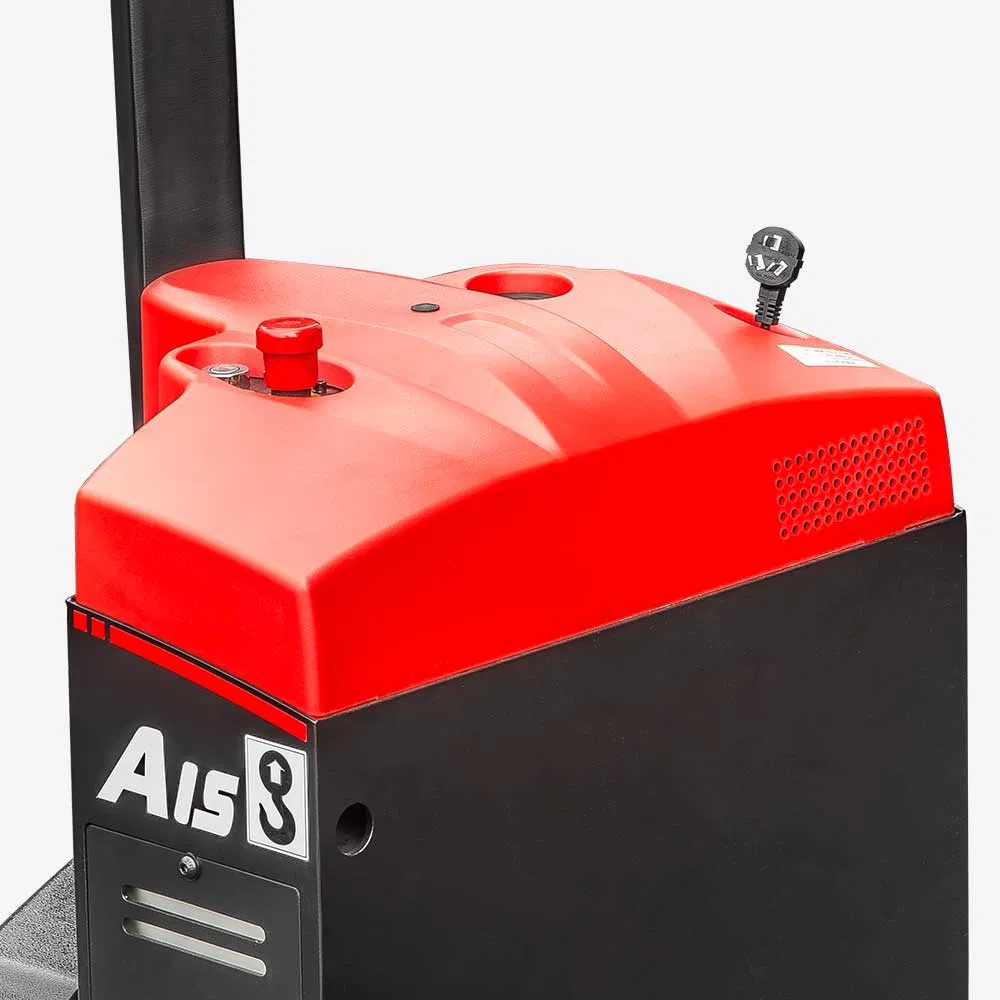

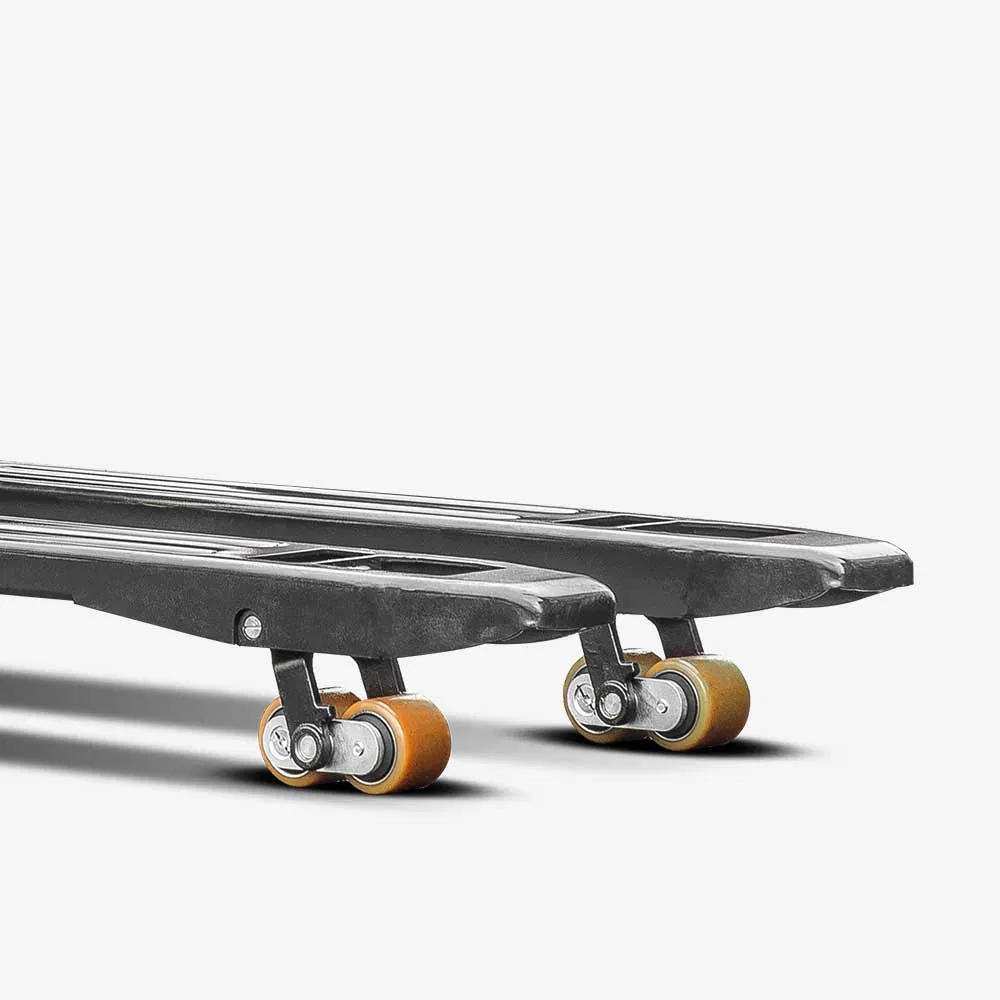

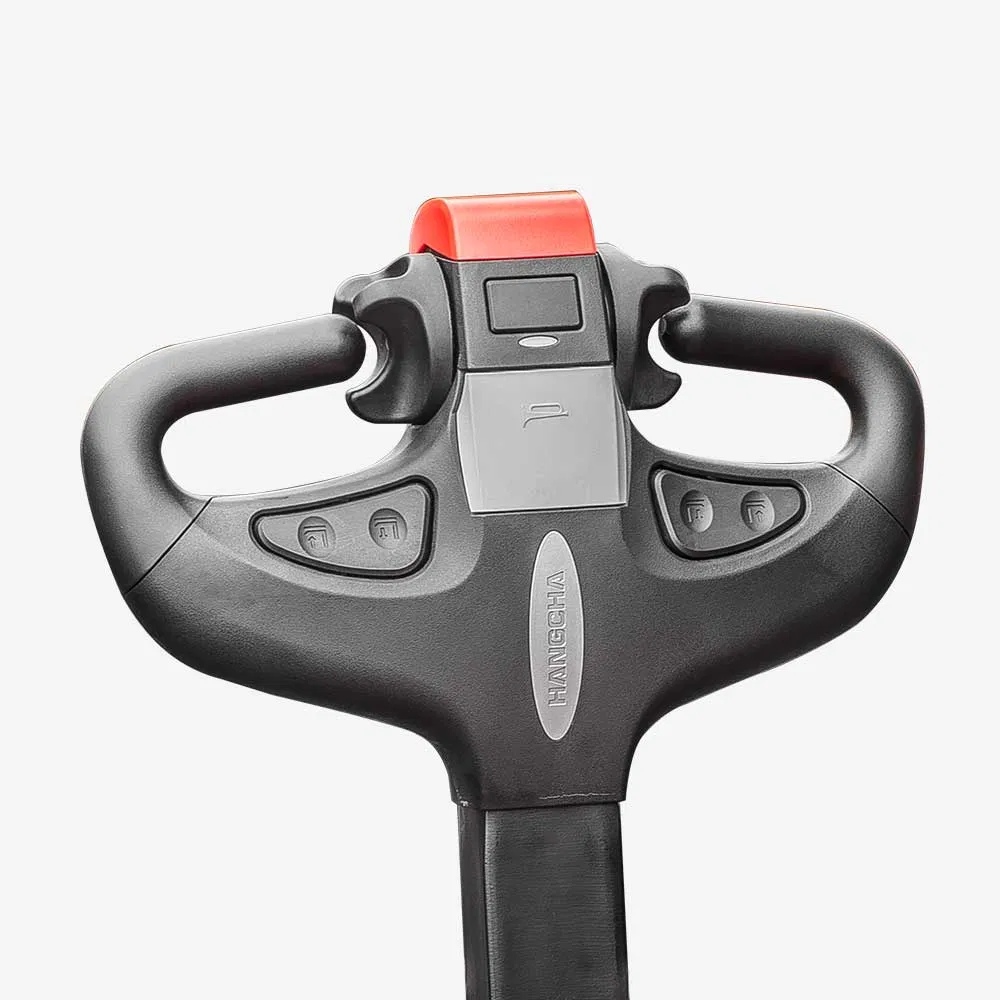

Detailed Photos

Standard Specification

  • Permanent magnet drive motor
  • Emergency switch
  • Multi-function battery indicator
  • PU wheel
  • 1150mm fork length
  • 560mm outside fork width
  • Electronic lifting limitation
  • Horn & Walking upright function
  • Tandem load wheel

Options

  • Different length of fork
  • Different width of outside fork
  • Single load wheel

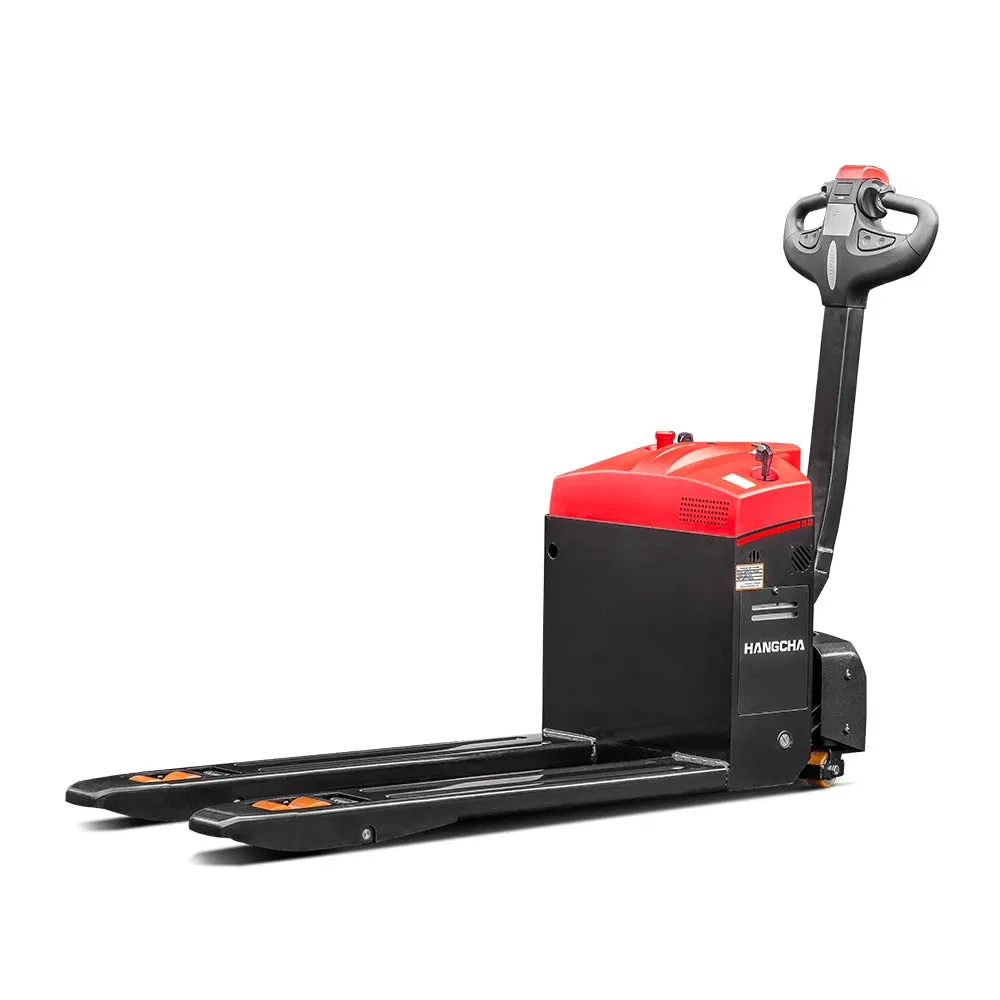

Specifications Diagram

Frequently Asked Questions

What is the maximum load capacity of this electric pallet truck?
The A series mini range III is designed to handle rated capacities between 1500kg and 2000kg.
Does the battery require regular maintenance?
No, this model features a maintenance-free gel battery and a built-in charger for maximum convenience.
Can it be used on ramps or gradients?
Yes, it is equipped with regenerative braking which provides an anti-slope function to ensure safety on gradients.
What are the standard fork dimensions?
The standard specifications include a fork length of 1150mm and an outside fork width of 560mm.
Is the truck easy to service?
Absolutely. It features a fully opened hood that provides easy accessibility to all internal components and a self-diagnostic instrument for quick troubleshooting.
