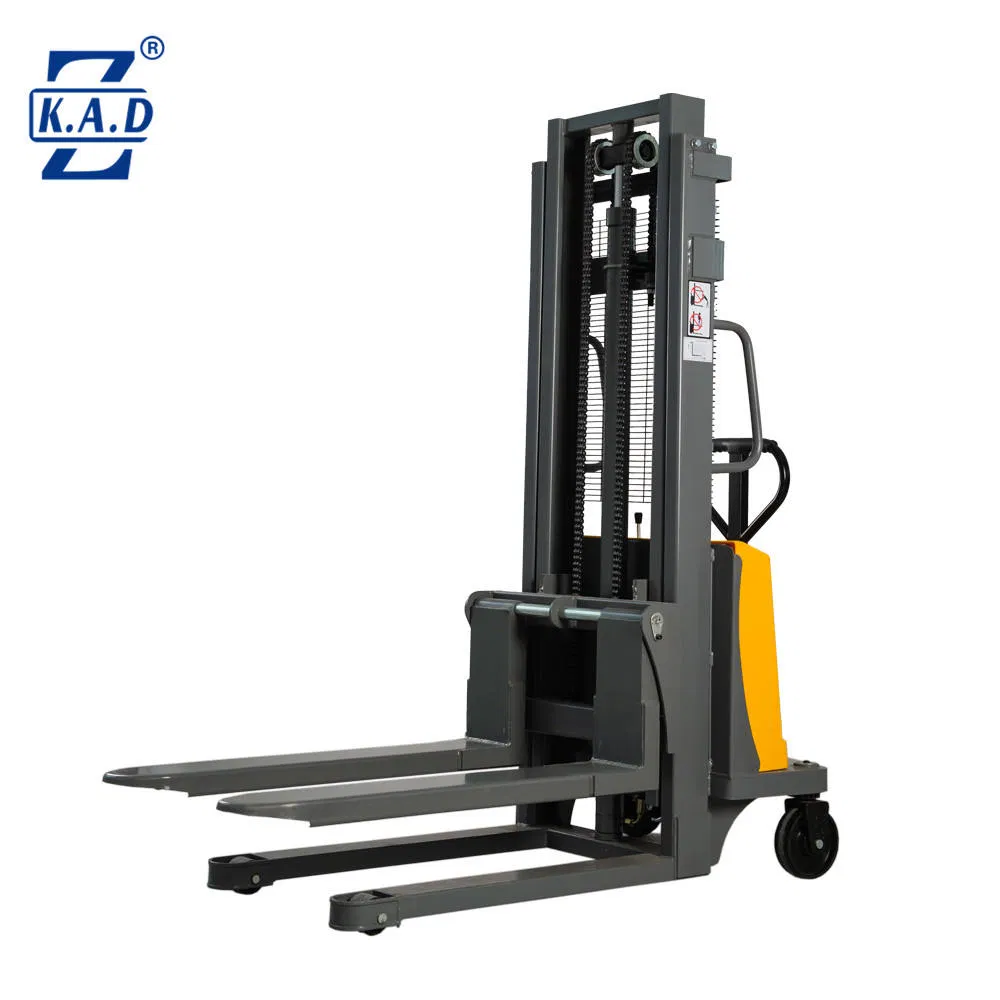

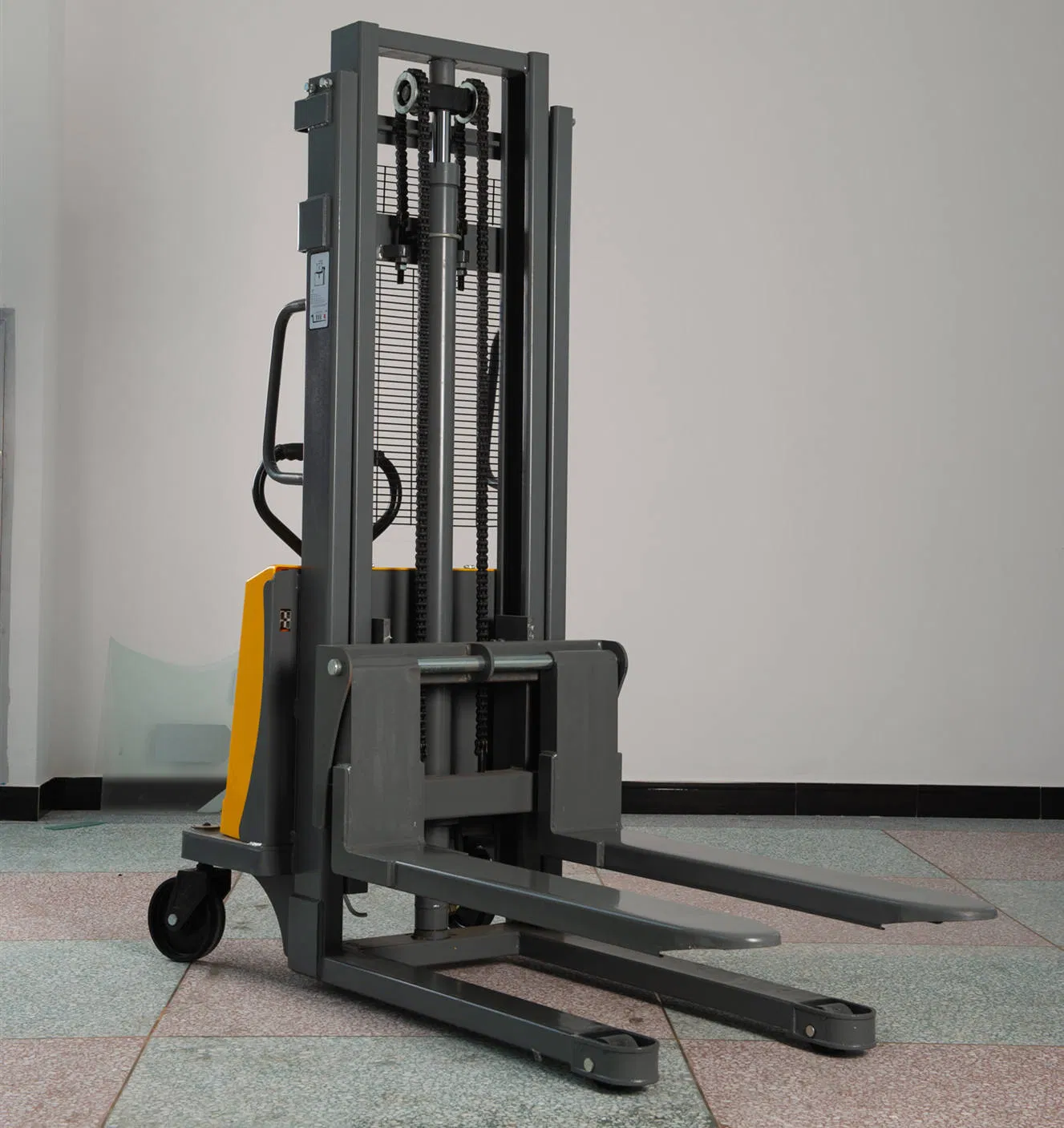

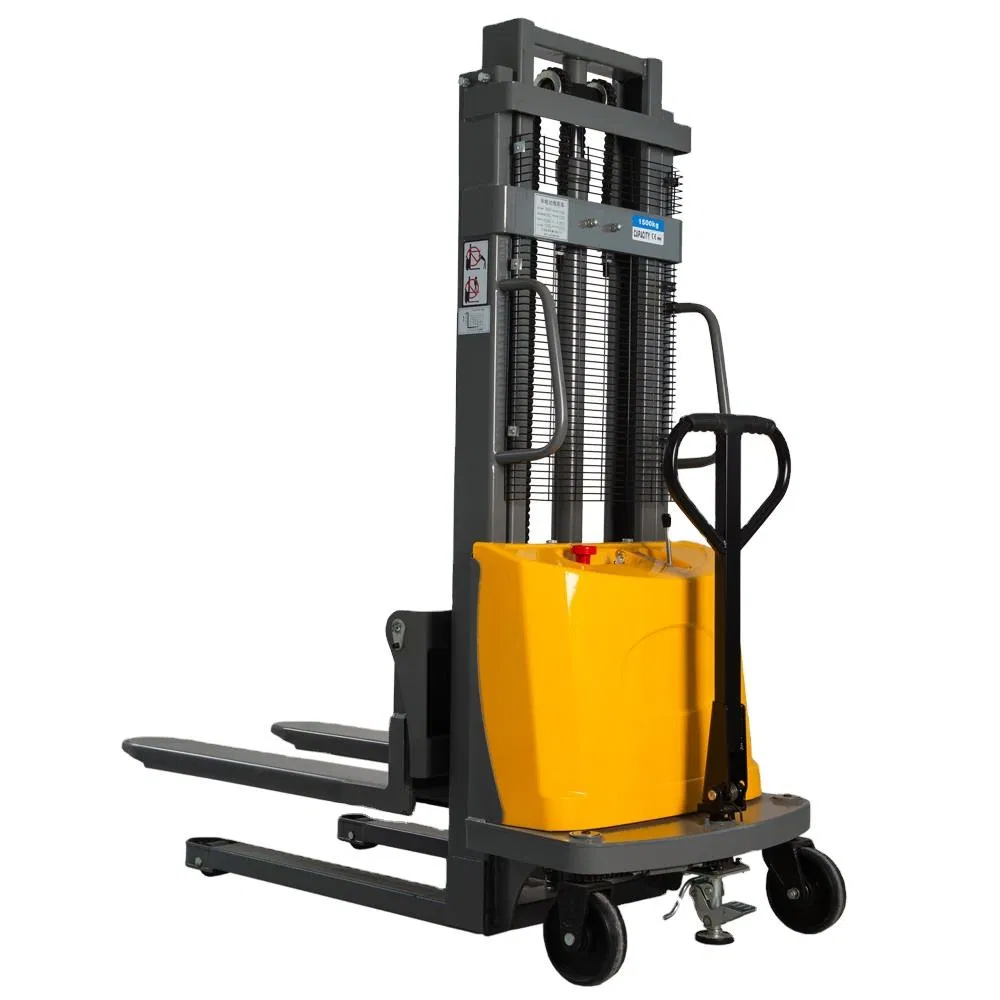

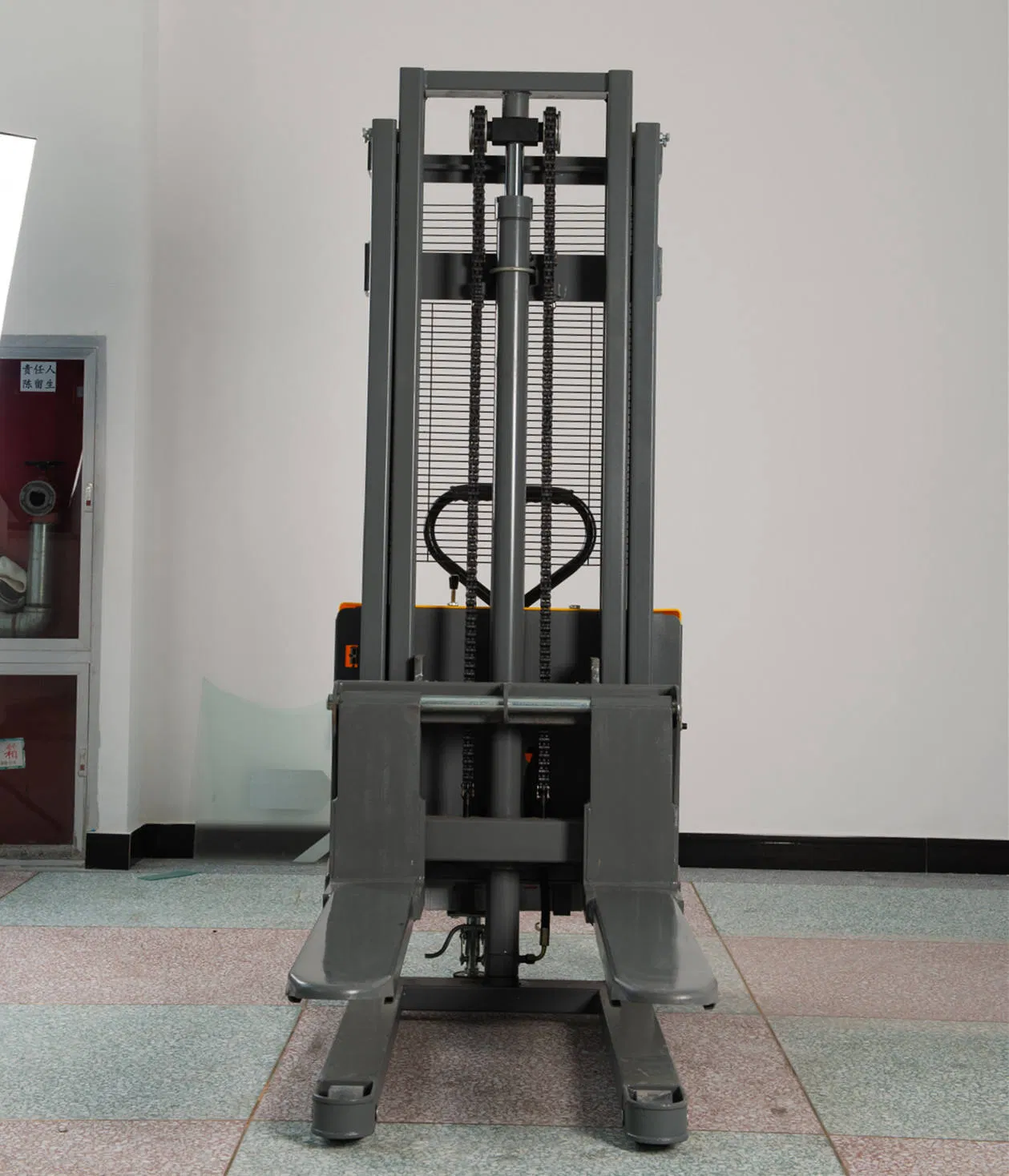

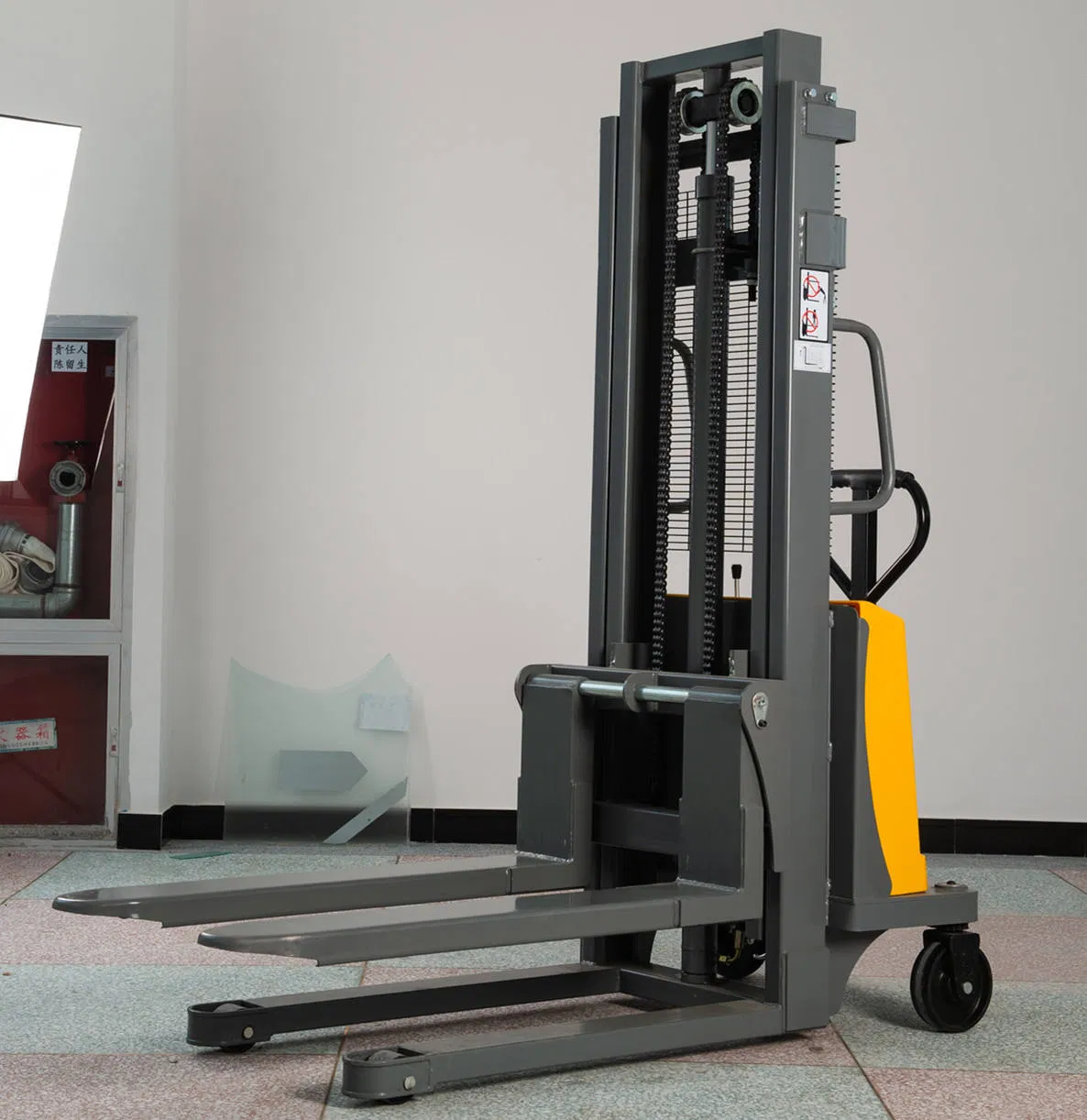

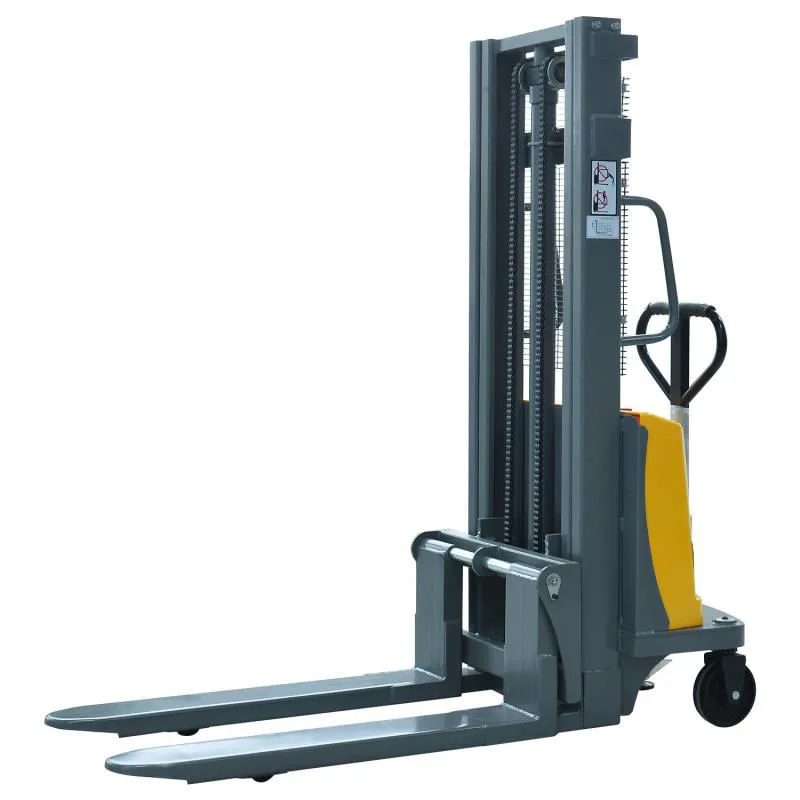

Choosing a semi-electric stacker over a manual one offers significant benefits. It reduces physical strain on operators, enhancing efficiency and safety. Electric lifting makes handling heavier loads easier, while the maneuverability remains comparable to manual stackers. This balance of power and maneuverability makes the semi-electric stacker a superior choice for modern warehousing.
| Category | Description | Unit | Data |
|---|---|---|---|
| Model | - | - | CDS10 / CDS15 / CDS20 |
| Features | Drive system | - | Battery |
| Driving mode | - | Standing | |
| Load Capacity | Q(kg) | 1000/1500/2000 | |
| Load Center | C(mm) | 500 | |
| Weight | With battery | Kg | 345/390/410/430 |
| Wheels | Material | - | PU / NYLON |
| Dimensions | Lifting Height | H3(mm) | 1600 - 3500 |
| Lowest Mast | H1(mm) | 1590 - 2340 | |
| Length / Width | L/B(mm) | 1740 / 770 | |
| Fork Dimensions | L1/B1(mm) | 1070 / (550/680) | |
| Turning Radius | Wa(mm) | 1500 | |
| Motor | Lifting Motor | KW | DC / 2.2 |
| Battery | Capacity | V/Ah | 12 / 120 |

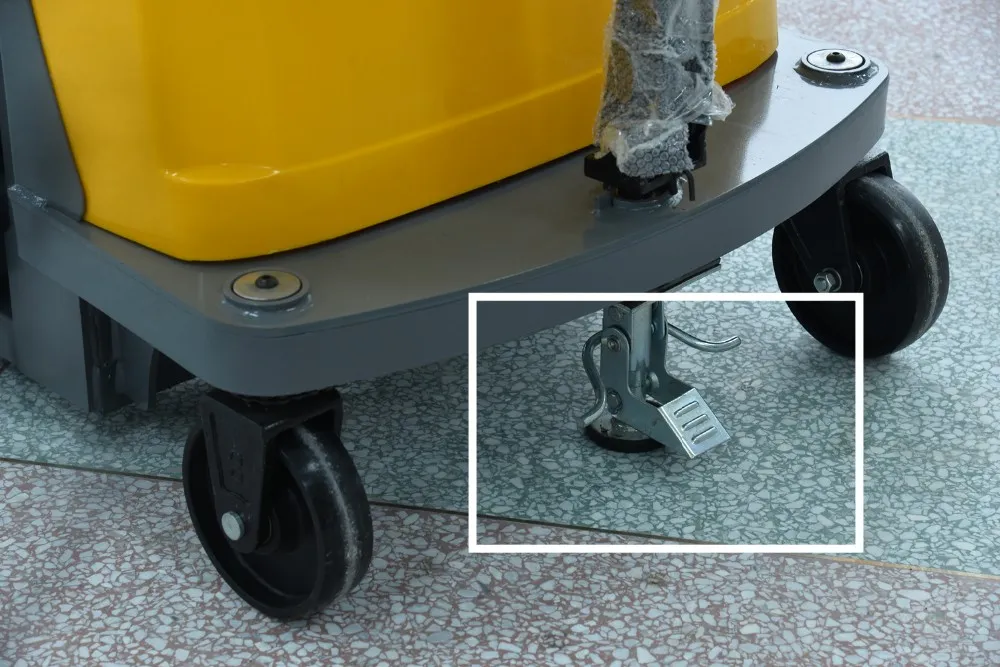

Equipped with a robust foot brake, the system is easy to operate, saves time and labor, and significantly enhances operational safety during loading.

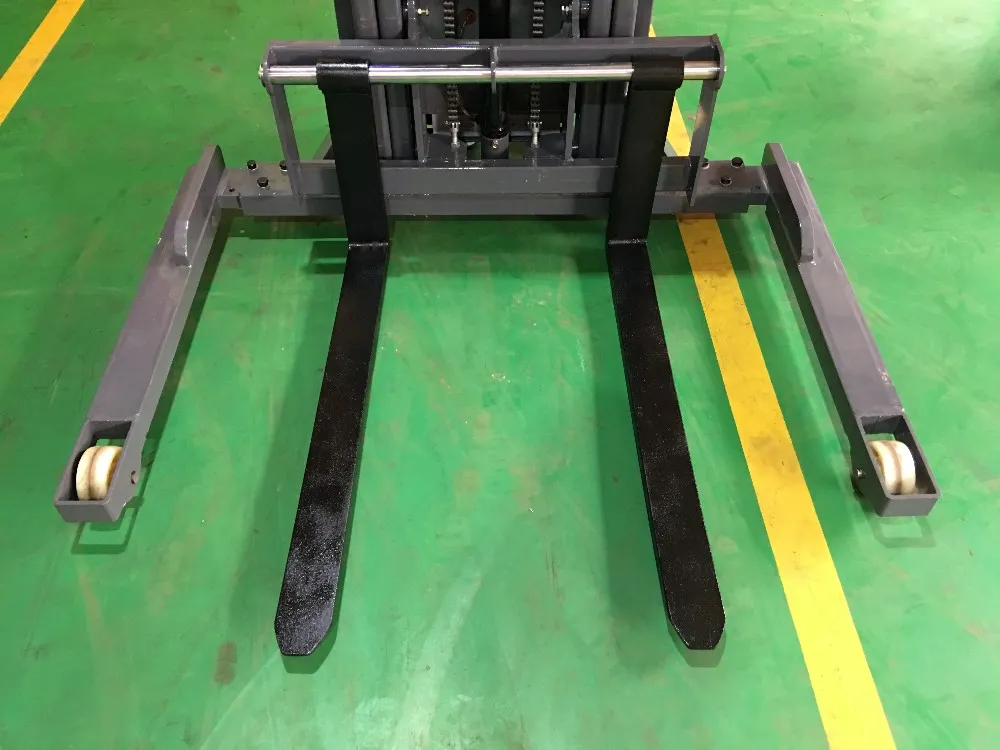

The fork and support legs can be customized to different sizes, making it applicable for various pallet types. Forged forks ensure high strength and resistance to deformation.

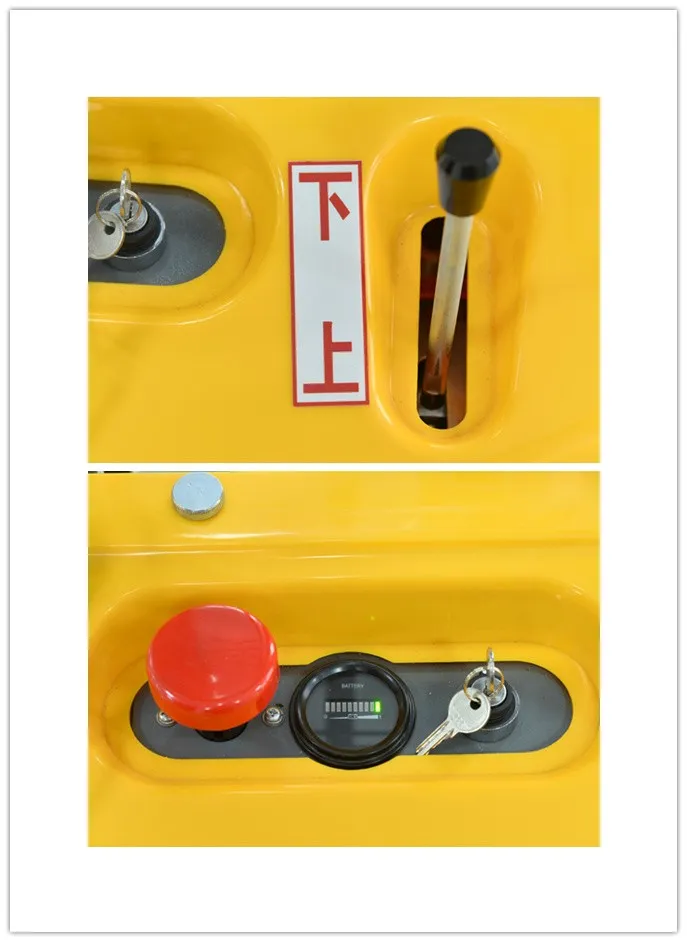

Ergonomically designed control panel with a beautiful finish, providing intuitive operation for the lifting mechanism.

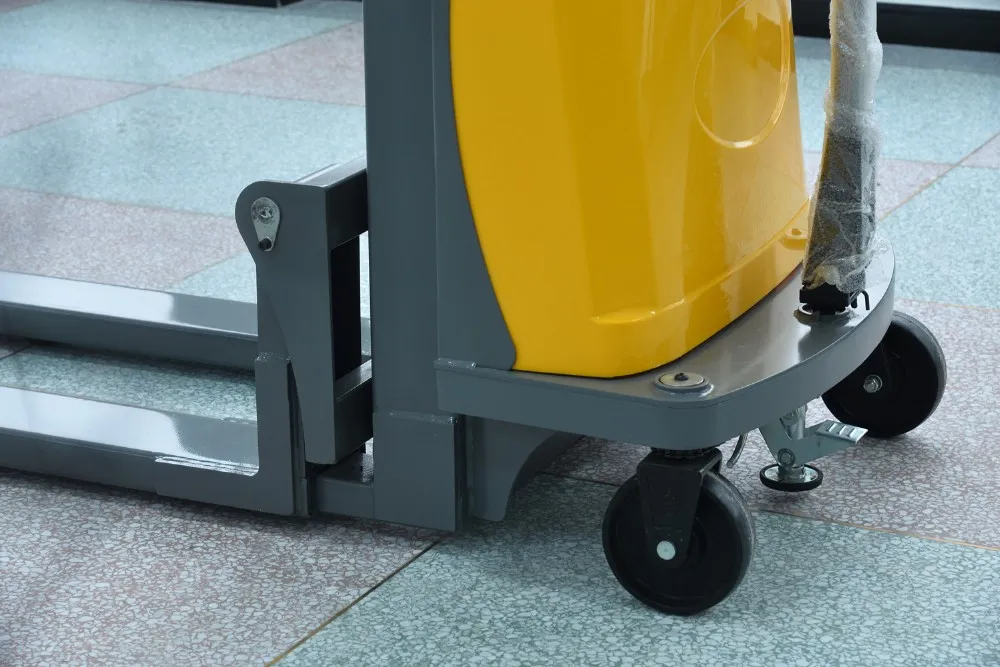

Suitable for both hard cement ground or painted floors; these wheels are strong, wearable, and provide smooth movement.
