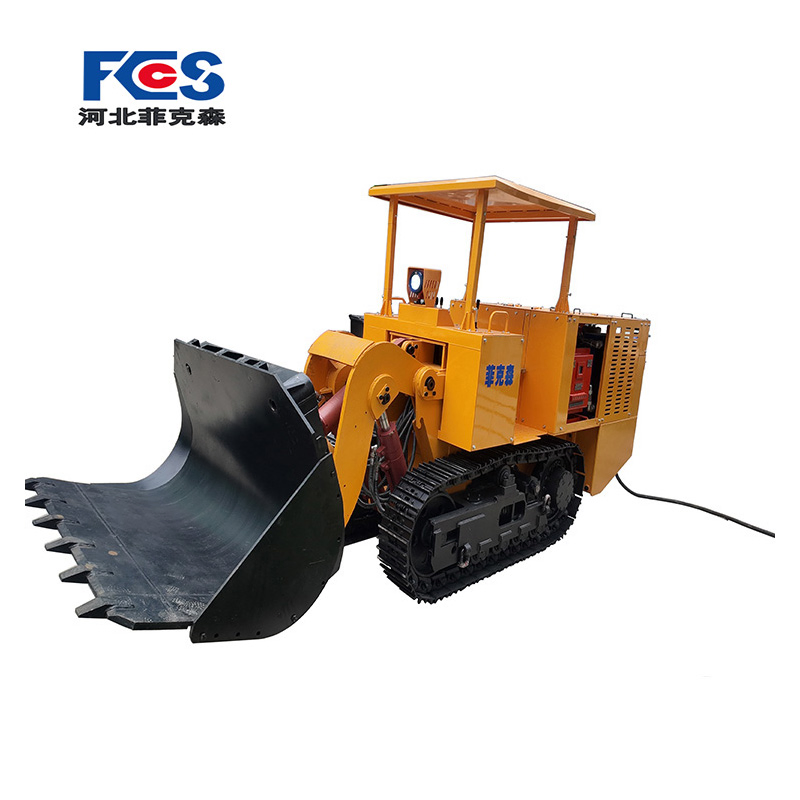

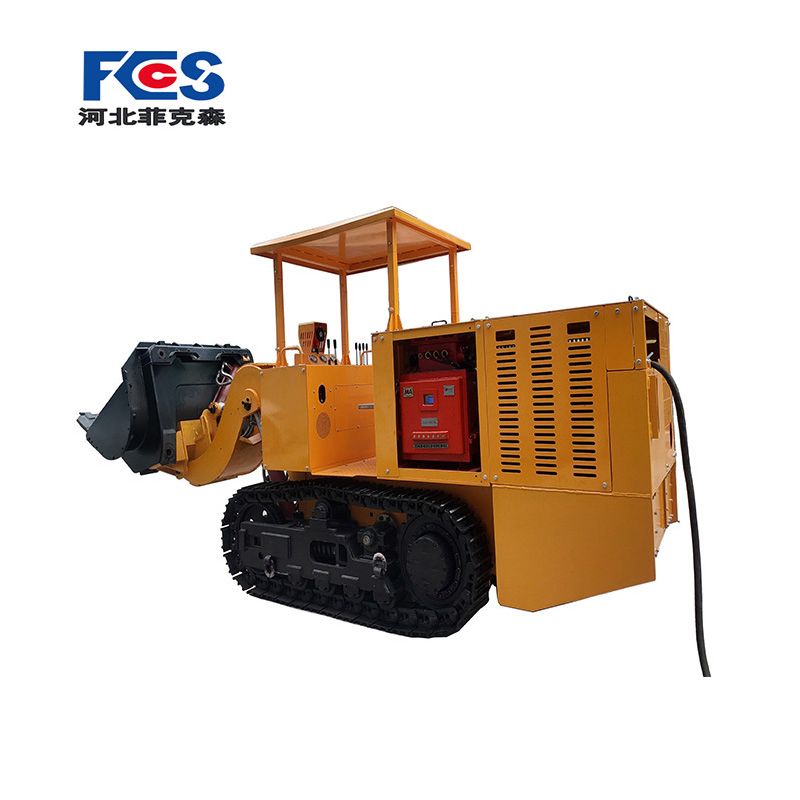

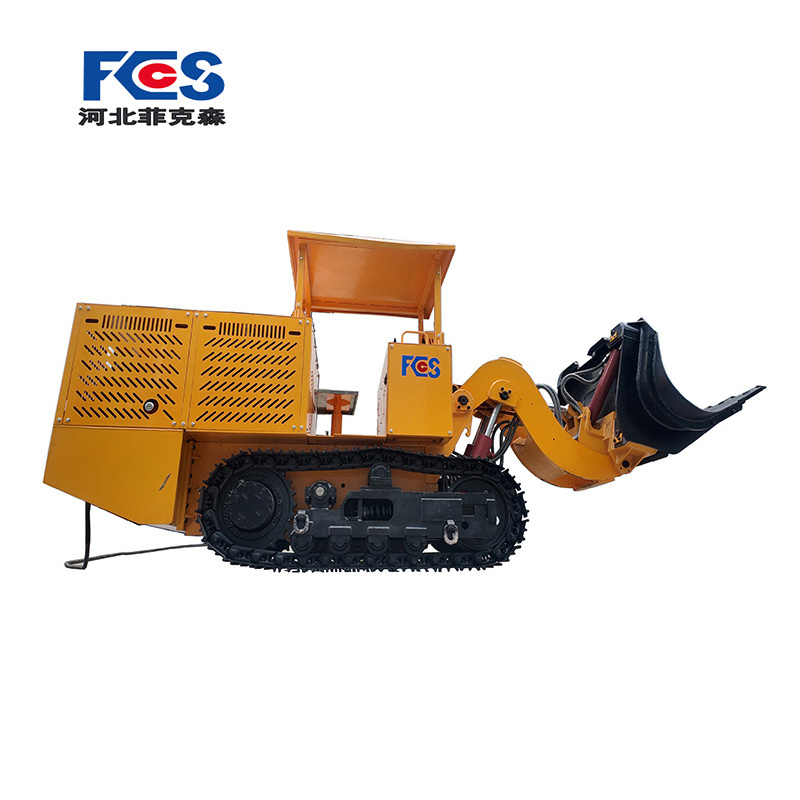

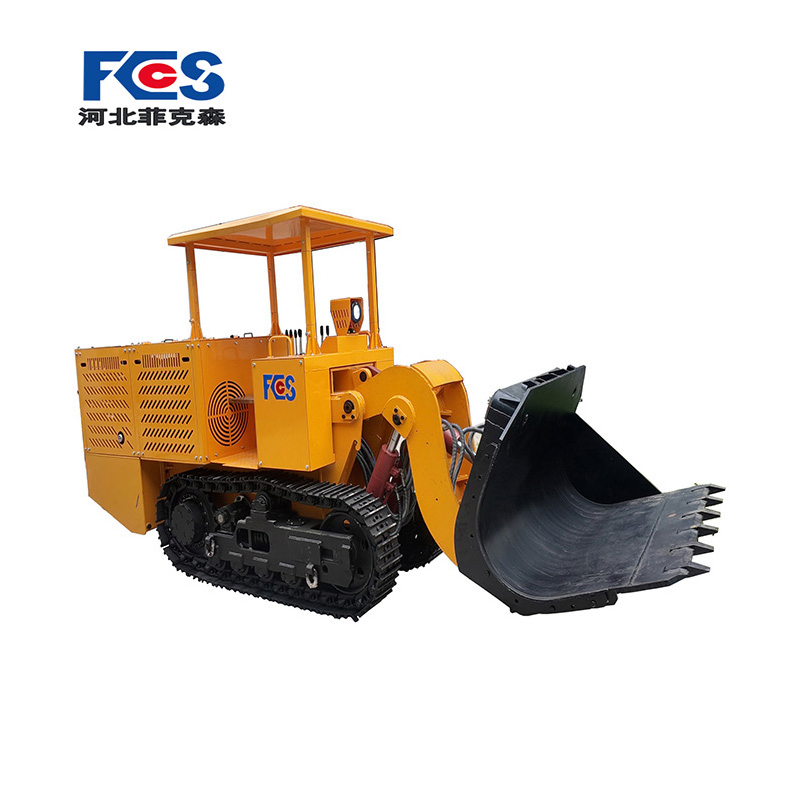

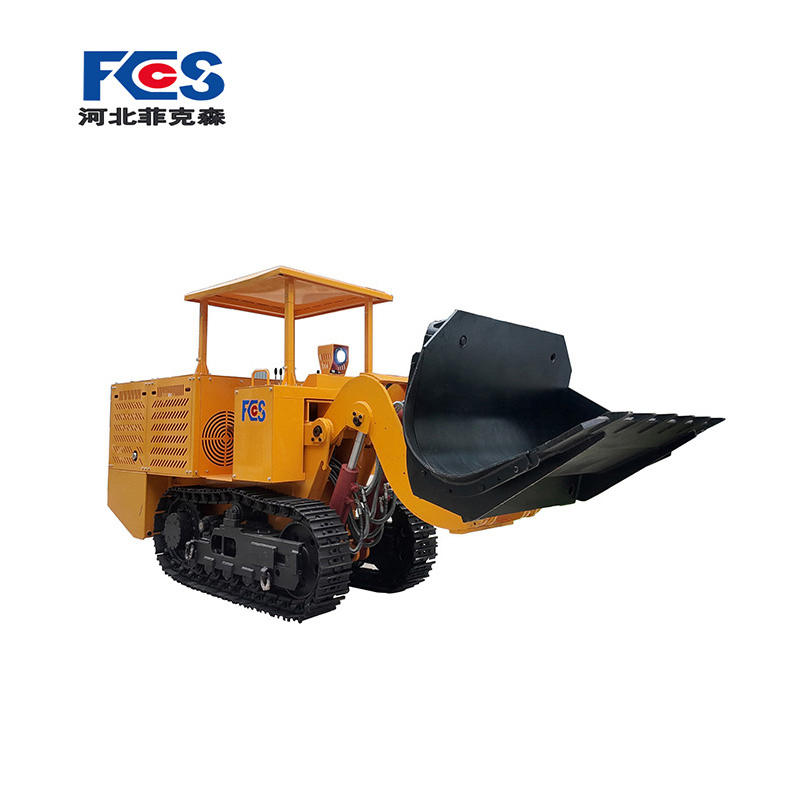

Explosion-Proof Electric Side Dump Rock Loader for Underground Coal Mining
Explosion-Proof Electric Side Dump Rock Loader for Underground Coal Mining
Explosion-Proof Electric Side Dump Rock Loader for Underground Coal Mining
Explosion-Proof Electric Side Dump Rock Loader for Underground Coal Mining
Explosion-Proof Electric Side Dump Rock Loader for Underground Coal Mining
1 / 5
Explosion-Proof Electric Side Dump Rock Loader for Underground Coal Mining
Explosion-Proof Electric Side Dump Rock Loader for Underground Coal Mining
Explosion-Proof Electric Side Dump Rock Loader for Underground Coal Mining
Explosion-Proof Electric Side Dump Rock Loader for Underground Coal Mining
Explosion-Proof Electric Side Dump Rock Loader for Underground Coal Mining

Explosion-Proof Electric Side Dump Rock Loader for Underground Coal Mining

Customization: Available
Type: Bucket Conveyor
Structure: Crawler Conveyor
Send Inquiry

Product Description

📋 Basic Information
Model NO.
ZCY
Material
Stainless Steel
Material Feature
Fire Resistant
Certification
ISO9001:2008, ISO9001:2000
Warranty
1 Year
Bucket Width
1480~1770 mm
Maximum Dump Height
1550~1650 mm
Travel Speed
34~36 M/Min
⚙️ Product Description
ZCY45R Side Dump Rock Loader is a tracked, trackless loading device primarily used in coal and semi-coal-rock roadways. It is also suitable for small-section full-rock roadways for loading coal, rock, and other materials. This product features high insertion force, excellent maneuverability, full-section operation, and high safety standards.

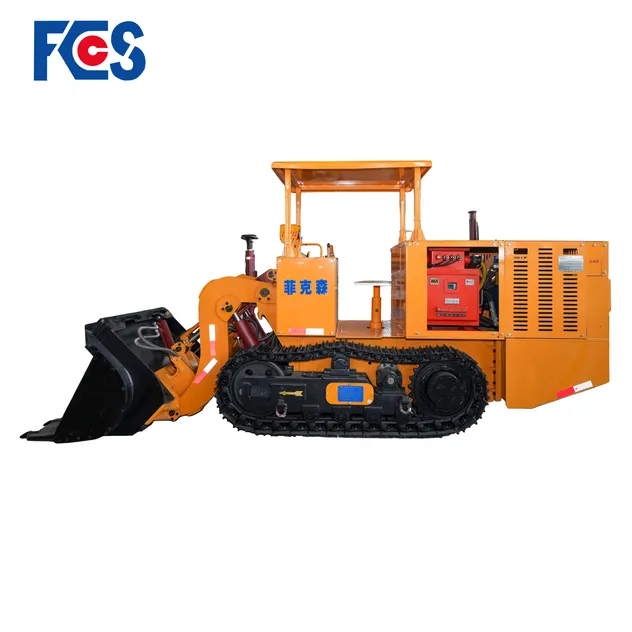

Rock Loader View 1

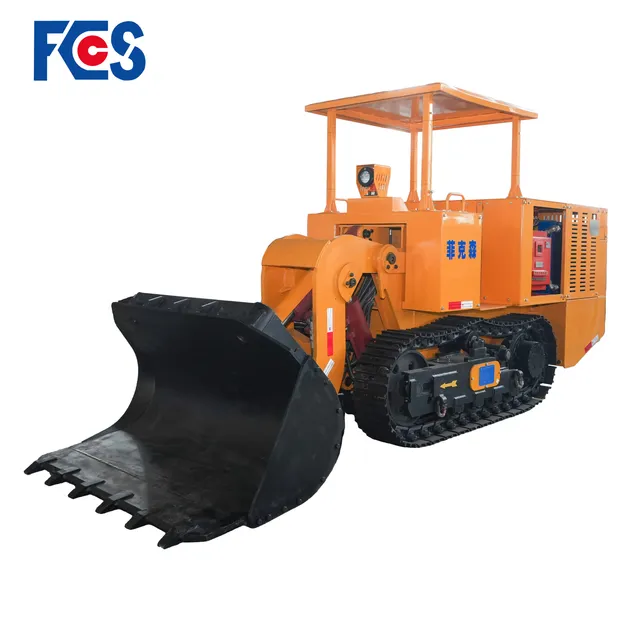

Rock Loader View 2

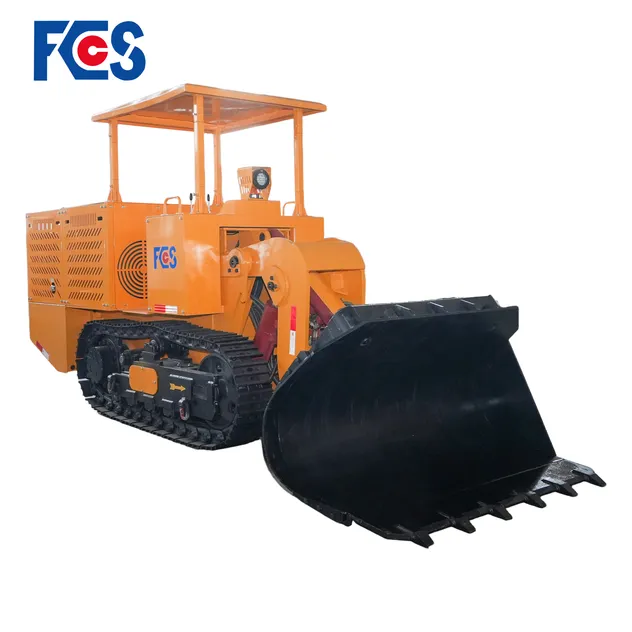

Rock Loader View 3

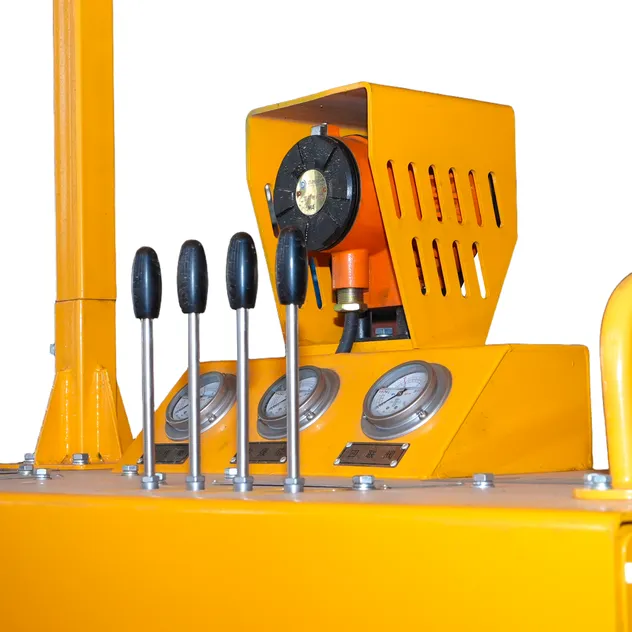

Working View 1

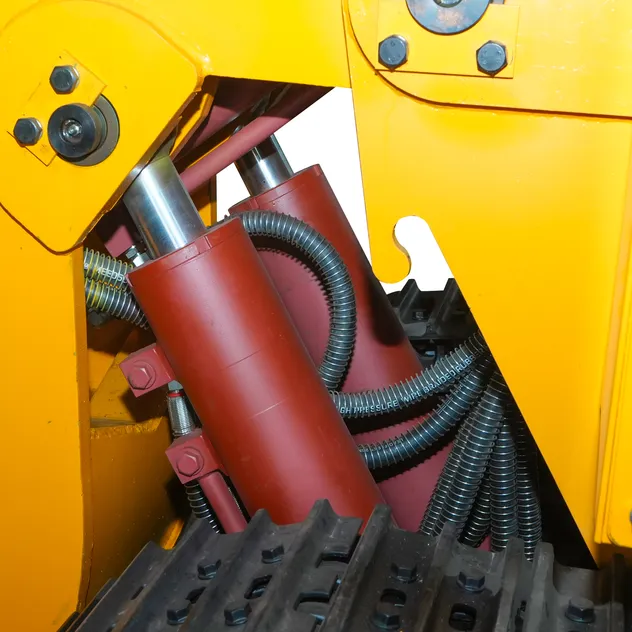

Working View 2

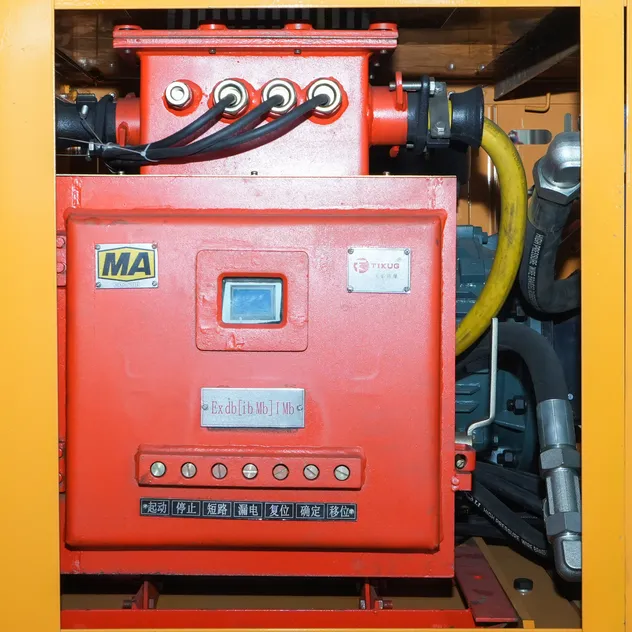

Working View 3
📊 Technical Specifications
No. Parameter Name ZCY45R Data
1Overall Dimensions (L×W×H) mm4500×1200×1560
2Technical Bucket Volume (m³)0.45
3Bucket Width (mm)1480
4Maximum Unloading Height (mm)1550
5Maximum Unloading Angle (°)55
6Maximum Travel Speed (m/min)34
7Minimum Ground Clearance (mm)180
8Climbing Ability (°)±16
9Hydraulic Pump Motor Power (kW)30
10Machine Weight (kg)5200
📐 Drawings & Main Components

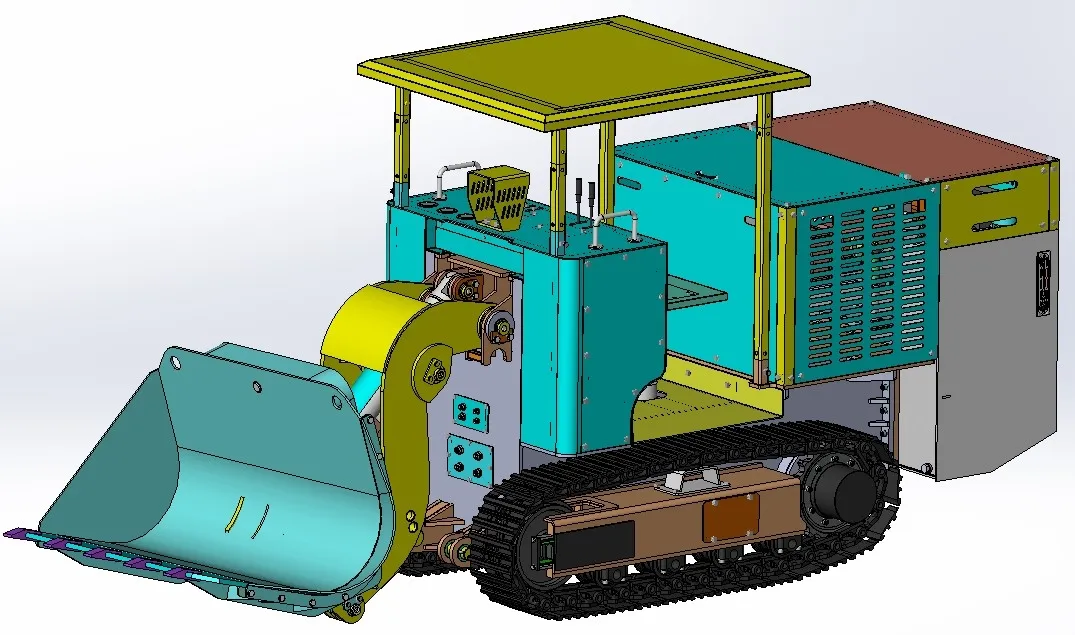

Dimensional Drawing

The equipment is a fully hydraulic side-dumping loader consisting of:

🔹 Working mechanism
🔹 Hydraulic system
🔹 Chassis running gear
🔹 Air-cooling system
🔹 Electrical system

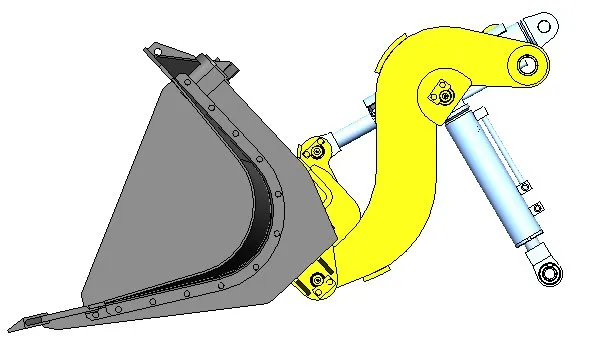

Component View 1

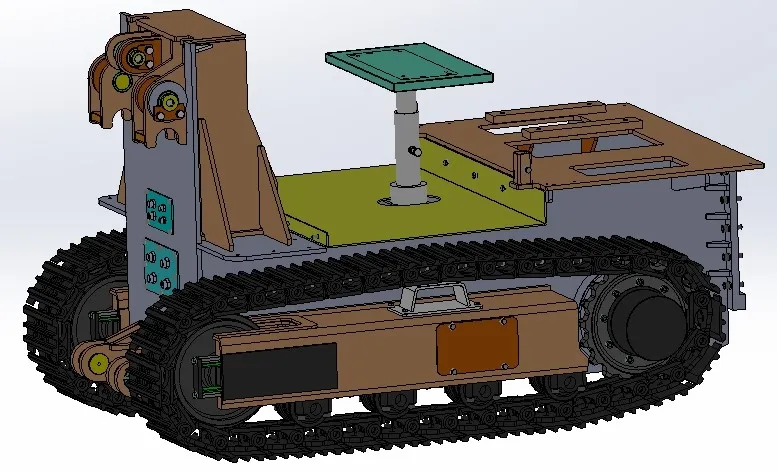

Component View 2
🛠️ After Sales Service
  • Standard Warranty: 12 months or 2,000 operating hours.
  • Extended Warranty: Optional coverage up to 36 months.
  • Global Support: 24/7 technical assistance and spare parts supply.
  • Training: On-site or remote operation and maintenance training.
🏢 Company Expertise

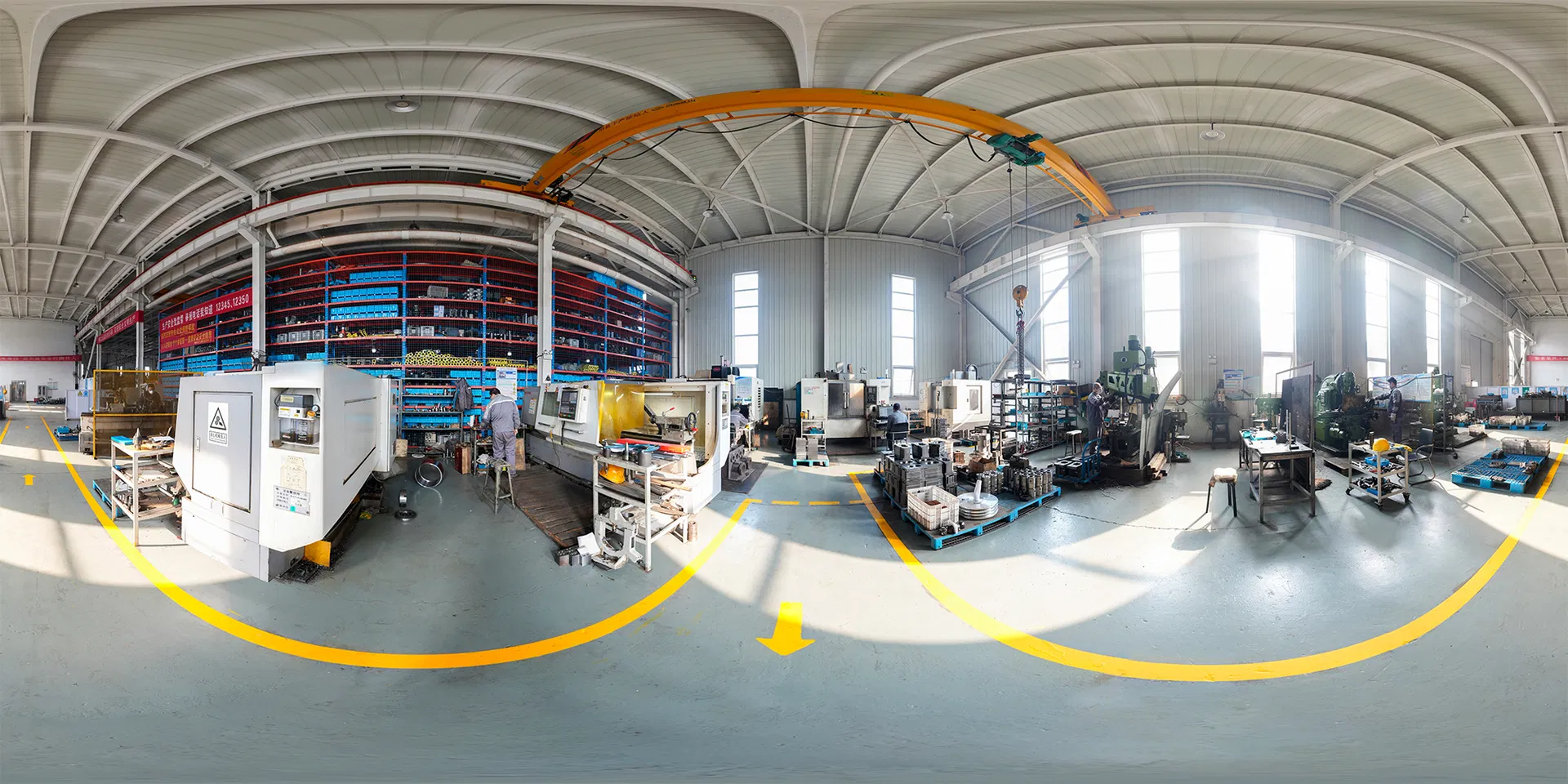

Manufacturing Facility

As a professional manufacturer of coal mining machinery, we are committed to delivering advanced equipment and integrated solutions for underground operations. Our product lines include hydraulic drilling rigs, crawler-type transportation vehicles, and auxiliary excavation equipment designed for safety, efficiency, and reliability.

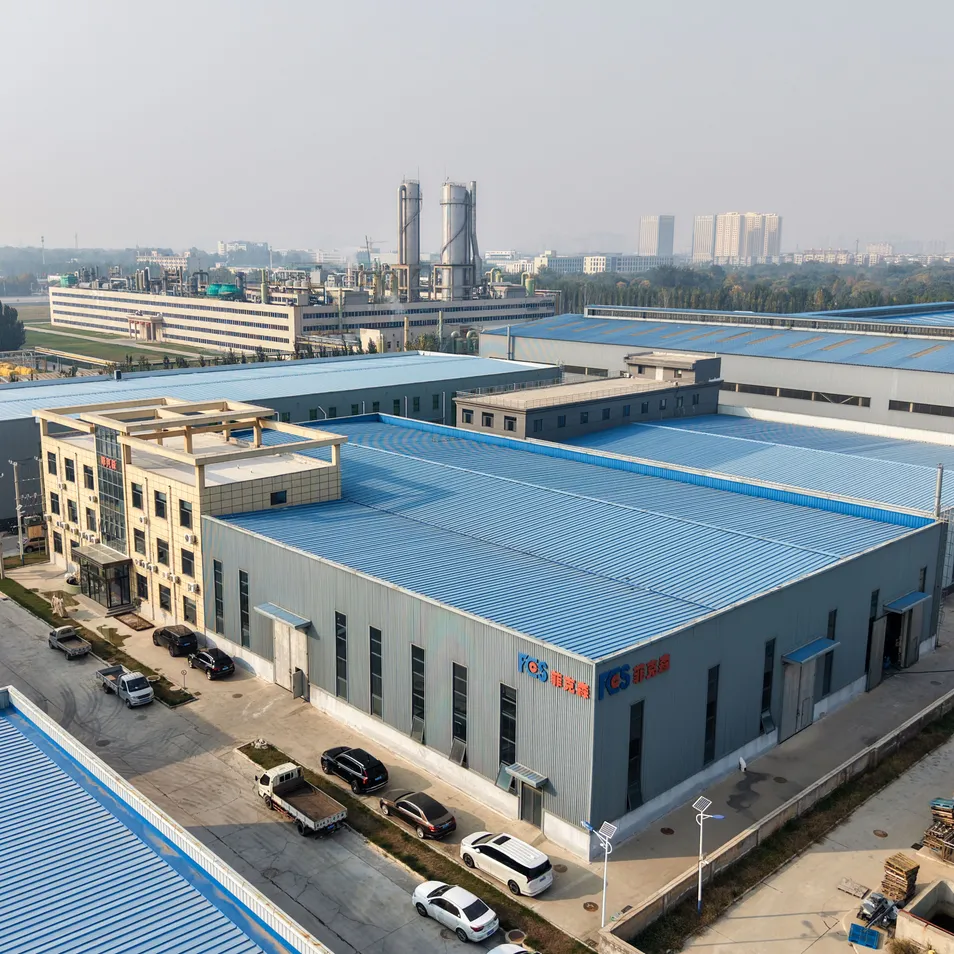

Factory View 1
Factory View 2
Certificate 1
Certificate 2
Certificate 3
❓ Frequently Asked Questions
Q: What’s the lead time for orders?
A: Standard models typically ship in 15–30 days, while customized units require approximately 30–45 days.
Q: Do you provide after-sales service overseas?
A: Yes, we provide global support through partnered service centers in key mining regions.
Q: Can I request a customized bucket size?
A: Absolutely! We offer tailored attachments and bucket sizes to meet specific site requirements.
Q: What documents do you provide for export?
A: We provide a full export package including Commercial Invoice, Packing List, Bill of Lading, and Certificate of Conformity (COC).
Q: How do I place an order?
A: Please contact our sales team for a formal quote, and the order will be confirmed upon receipt of a Purchase Order (PO).
Q: What is the climbing ability of the ZCY45R?
A: The machine features a climbing ability of ±16°, making it suitable for various underground gradients.
