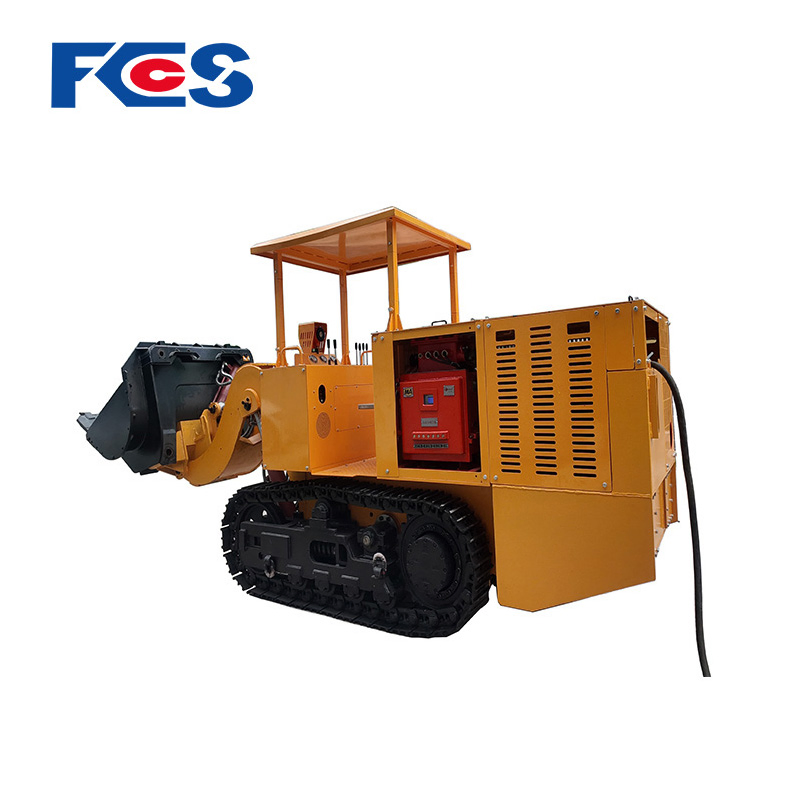

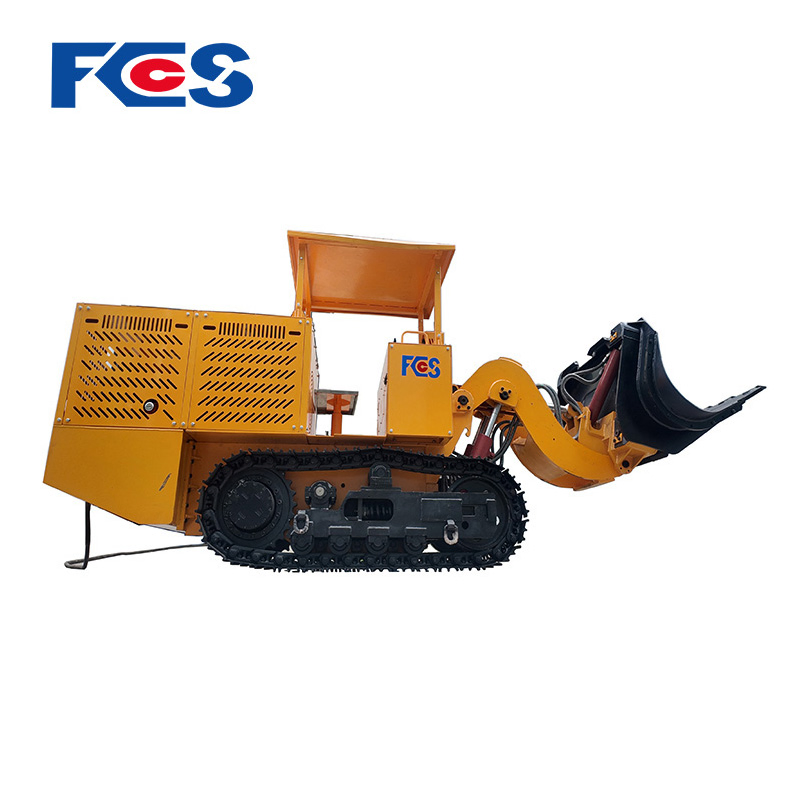

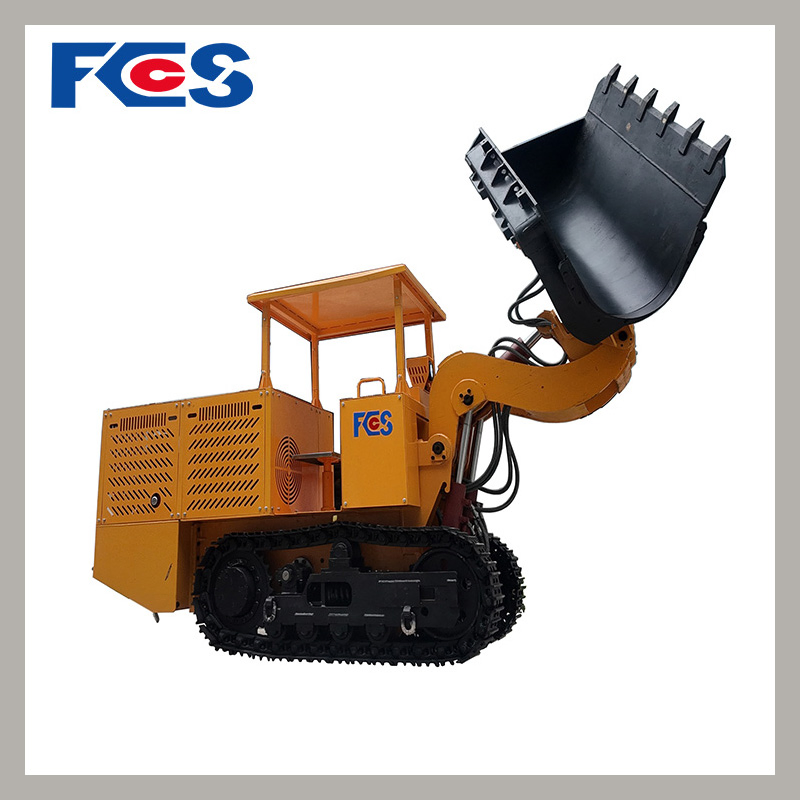

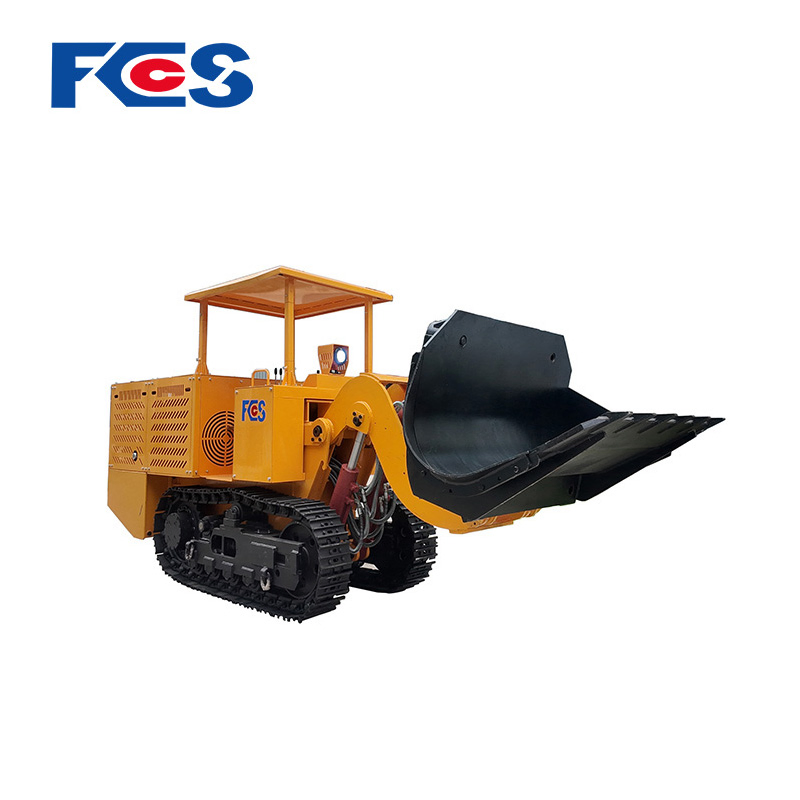

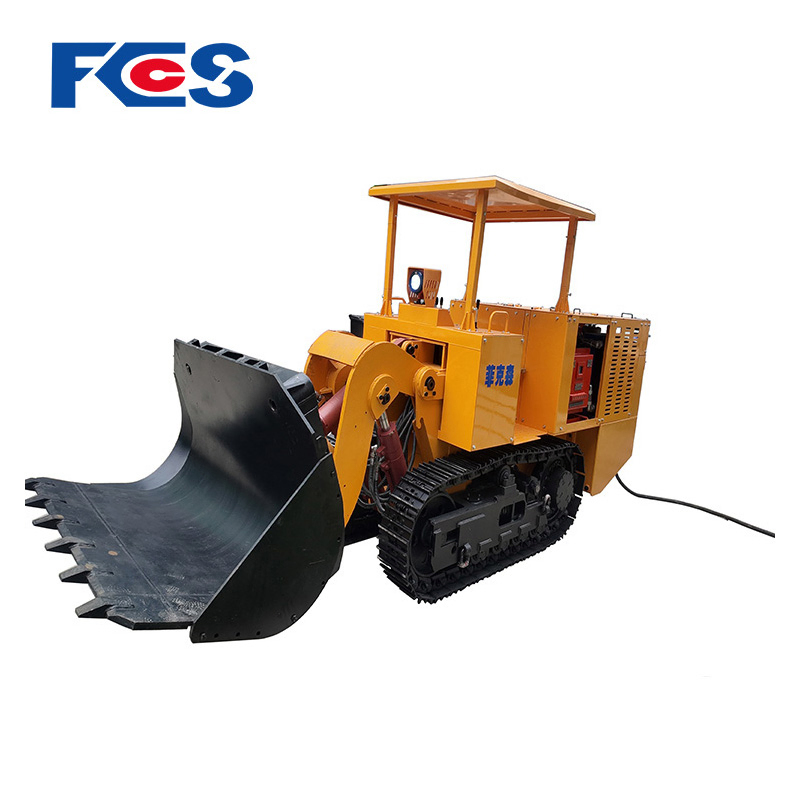

Explosion-Proof Electric Side Dump Mucking Loader for Underground Mining

1 / 5

Explosion-Proof Electric Side Dump Mucking Loader for Underground Mining

Customization:	Available
Type:	Bucket Conveyor
Structure:	Crawler Conveyor

Send Inquiry

Product Description

Basic Information & Specifications

⚙️Model: ZCY

🛠️Material: Stainless Steel

🔥Feature: Fire Resistant

📜Certification: ISO9001:2008, ISO9001:2000

🛡️Warranty: 1 Year

🎨Color: Yellow

📐Customization: Available

📦Capacity: 1000 pieces/Year

Parameter Name	Technical Data (ZCY45R)
Overall Dimensions (L×W×H)	4500×1200×1560 mm
Technical Bucket Volume	0.45 m³
Bucket Width	1480 mm
Maximum Unloading Height	1550 mm
Maximum Unloading Angle	55°
Maximum Travel Speed	34 m/min
Minimum Ground Clearance	180 mm
Maximum Bottom Depth	600 mm
Climbing Ability	±16°
Hydraulic Pump Motor Power	30 kW
Voltage	1140/660 V
Machine Weight	5200 kg

Product Description

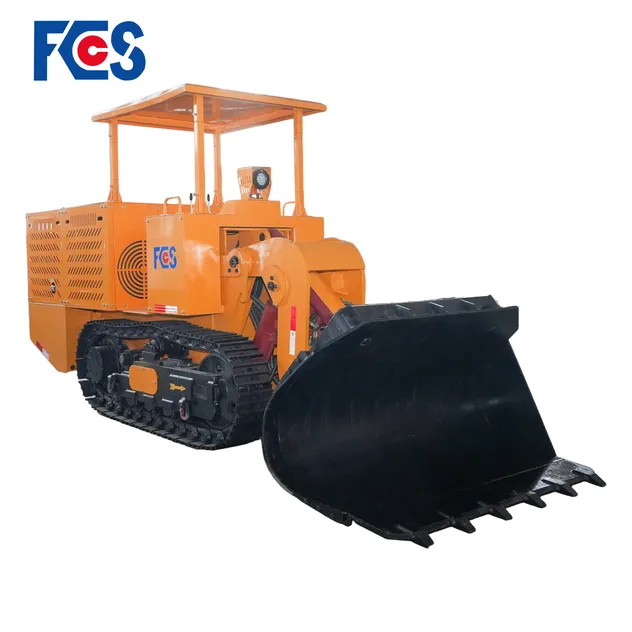

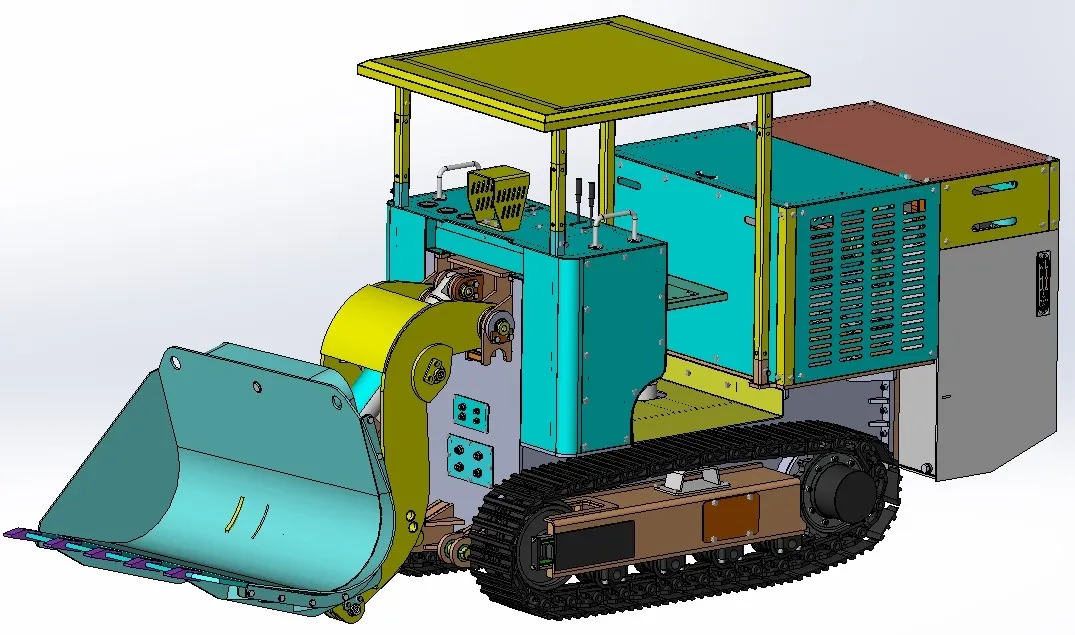

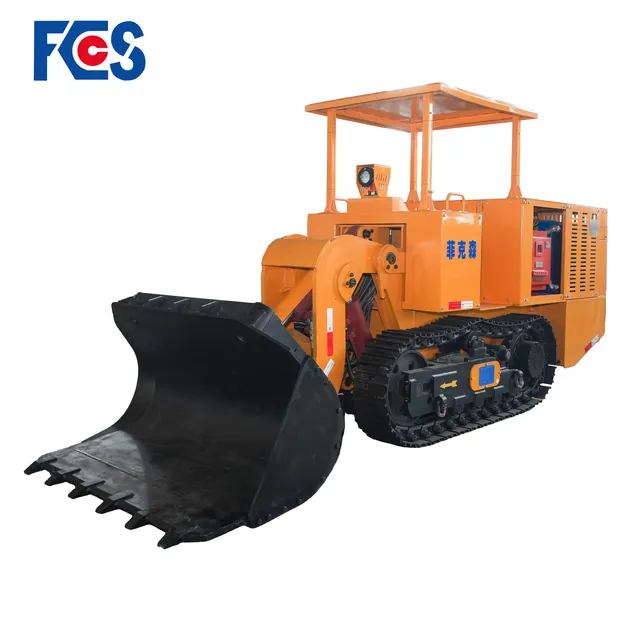

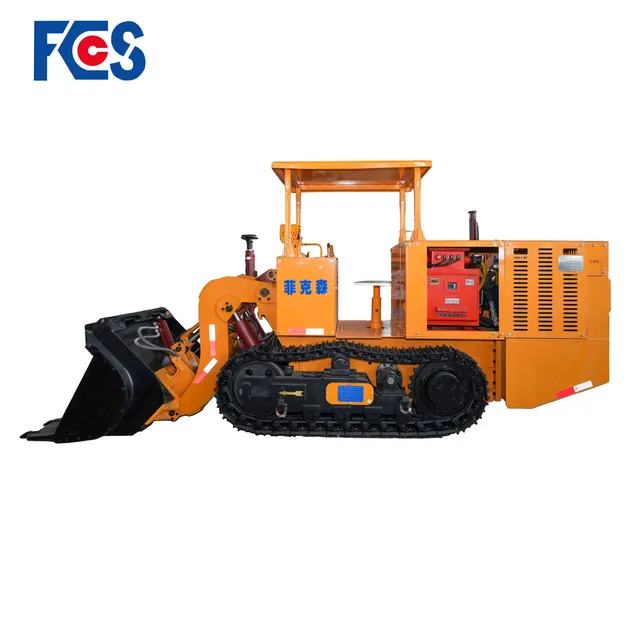

ZCY45R Side Dump Rock Loader is a tracked, trackless loading device primarily used in coal and semi-coal-rock roadways. It features high insertion force, excellent maneuverability, and multi-purpose functionality. It serves as both a loader and a working platform for support work and transport.

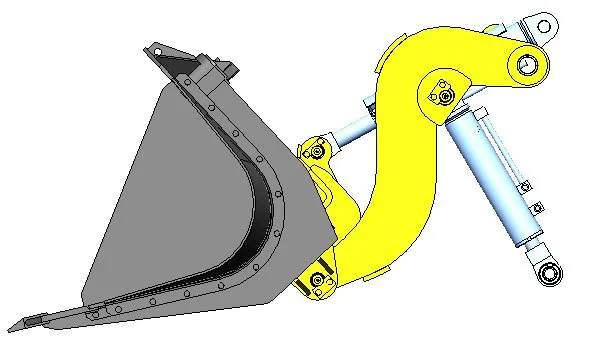

Working Mechanism

The working mechanism consists of the bucket, bucket base, bucket arm, and various hydraulic cylinders. When the bucket tilts, a parallel mechanism maintains stability. The front shovel plate is made of wear-resistant steel, ideal for hard sandstone loading. Left and right side-dumping can be switched by adjusting pin positions.

Main Components & Design

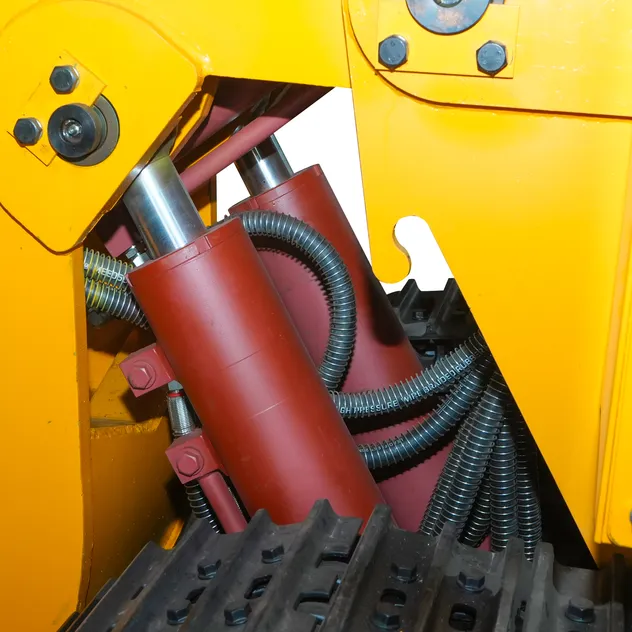

Fully Hydraulic System: Powered by an electric motor driving hydraulic tracks and cylinders.
Chassis Running Gear: Includes idler wheels, track rollers, and tensioning devices.
Braking System: Automatic parking brake that releases with hydraulic pressure during travel for maximum safety.

After-Sales Service & Support

Standard Warranty: 12 months or 2,000 operating hours.

Extended Warranty: Optional coverage up to 36 months.

Global Support: 24/7 technical assistance and spare parts supply.

Training: Comprehensive on-site or remote operation training.

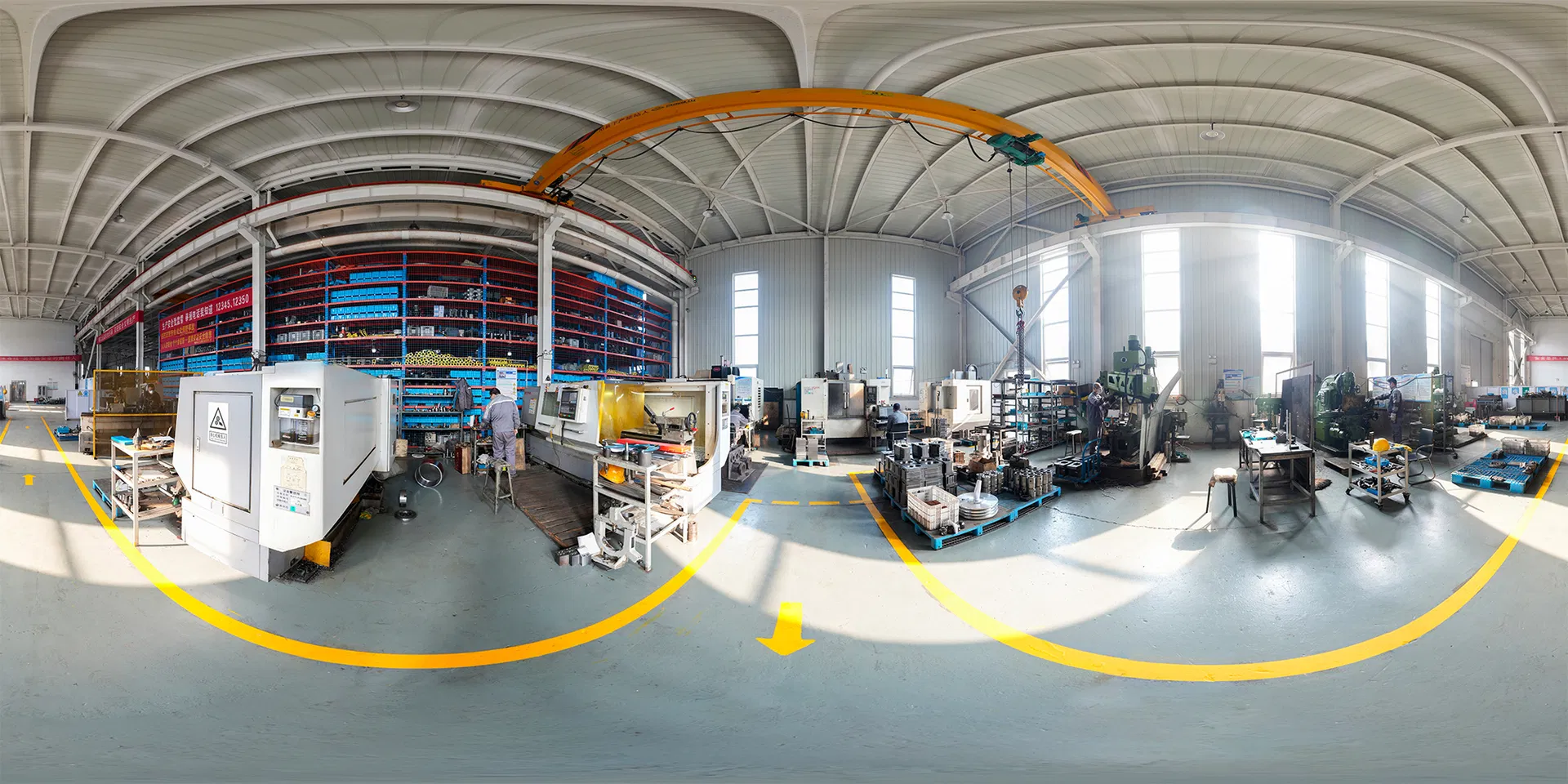

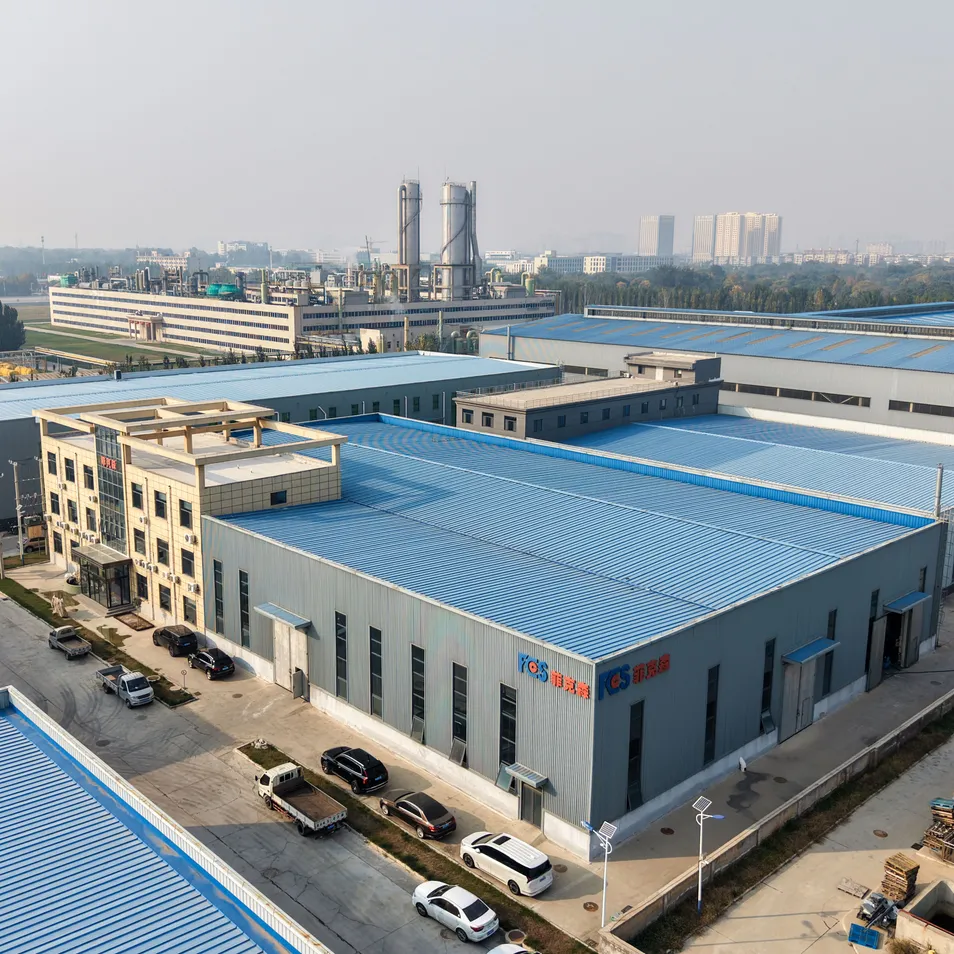

Professional Manufacturing Capabilities

As a leading manufacturer of coal mining machinery, we focus on delivering advanced equipment for underground operations. Our product lines range from hydraulic drilling rigs to crawler-type transportation vehicles designed for high efficiency and safety.

Other Specialized Equipment

✔️ Anchor & Pillar drilling rigs

✔️ Crawler transporter series

✔️ Specialized Forklifts

✔️ OEM/ODM capabilities

✔️ Turnkey project solutions

✔️ Fast global shipping

Frequently Asked Questions

What is the standard lead time for orders?

Standard models typically ship within 15–30 days. Customized units or large volume orders may require 30–45 days.

Do you support international after-sales service?

Yes, we provide 24/7 technical support globally and have partnered service centers in key mining regions to assist with maintenance.

Can the bucket size be customized for specific rock types?

Absolutely. We offer tailored bucket designs and wear-resistant material configurations to suit your specific geological conditions.

What documentation is provided for international export?

We provide a full export documentation package, including Commercial Invoices, Packing Lists, Bills of Lading, and Certificates of Conformity (COC).

Is on-site training available for operators?

Yes, we offer both on-site technical training for your staff and remote video guidance to ensure safe and efficient machine operation.

How do I initiate a purchase order?

You can request a formal quote via our contact channels. Once the specifications are confirmed, you can proceed by issuing a formal Purchase Order (PO).
