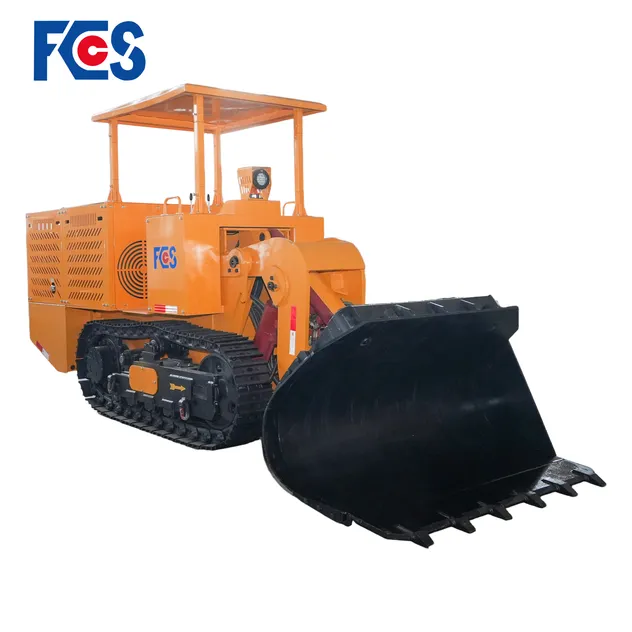

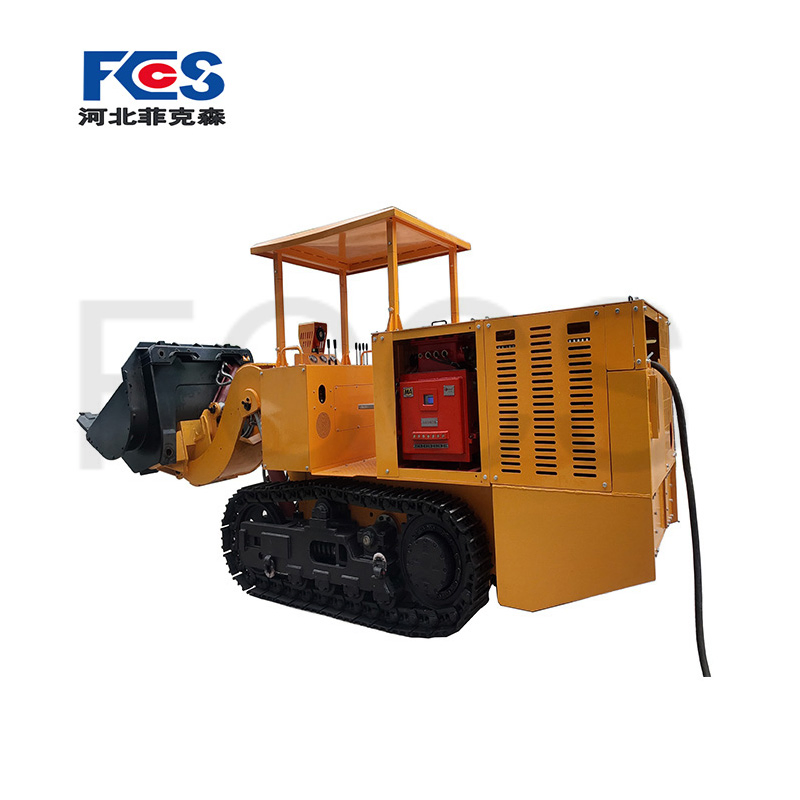

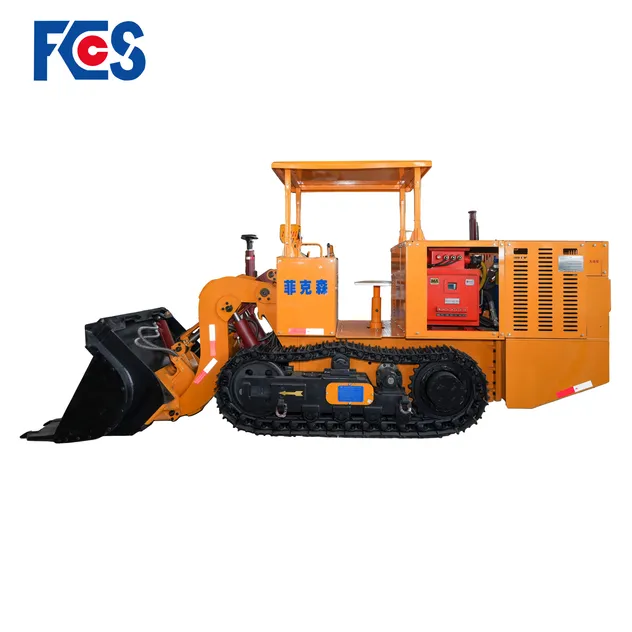

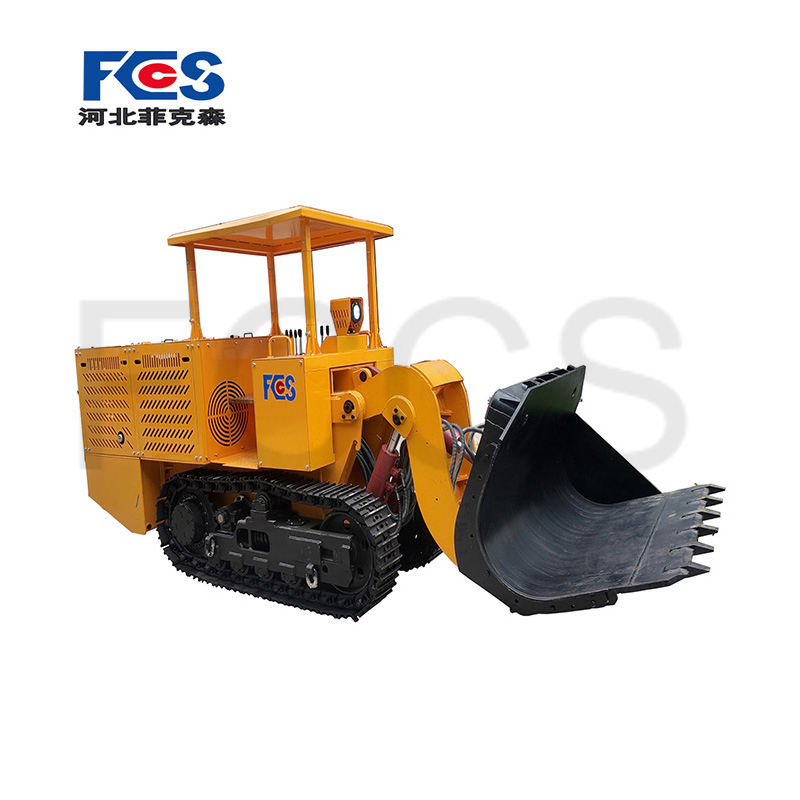

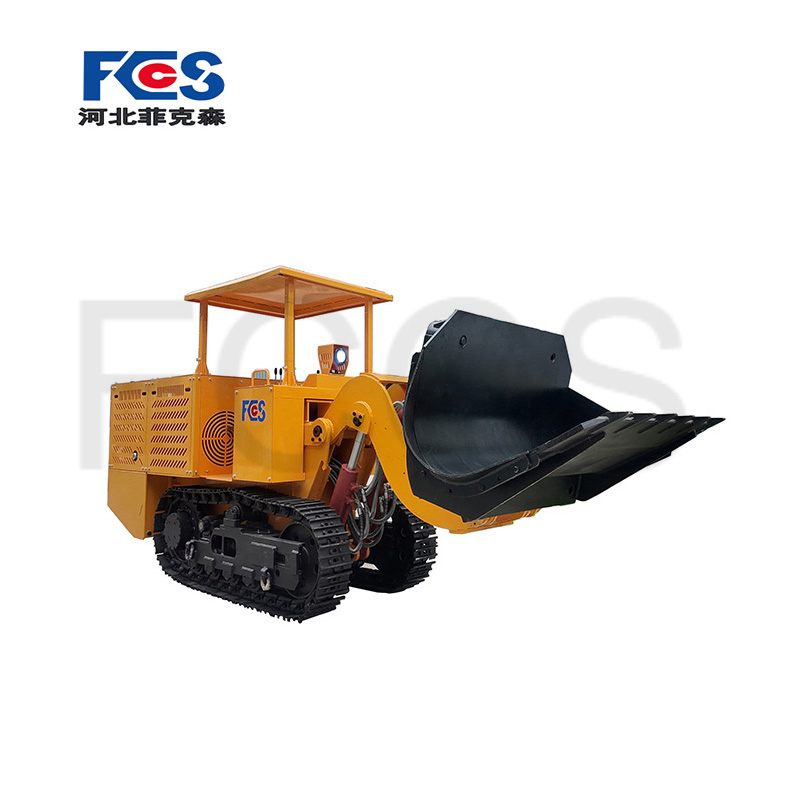

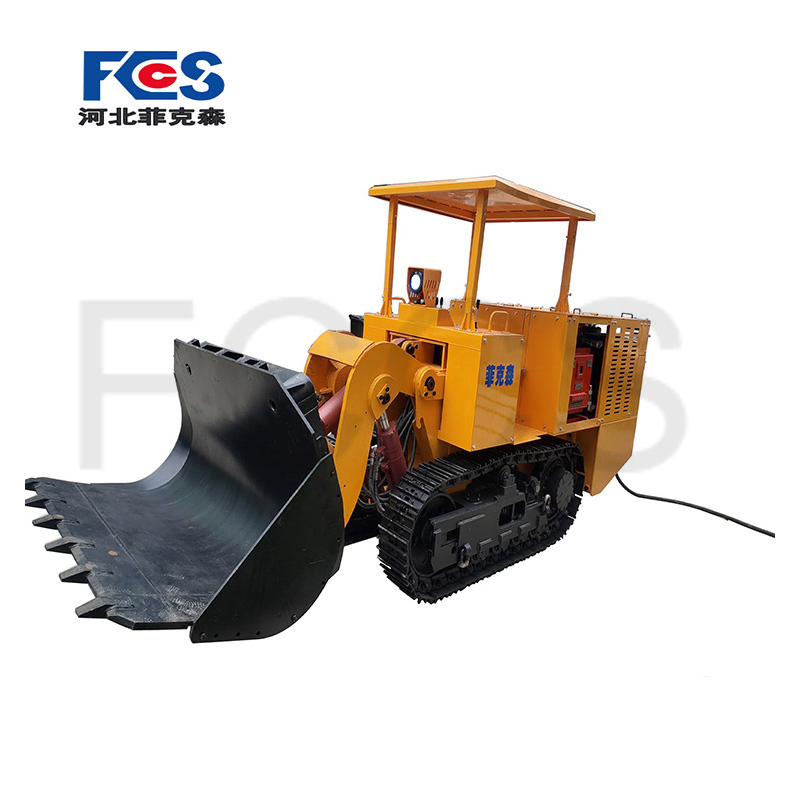

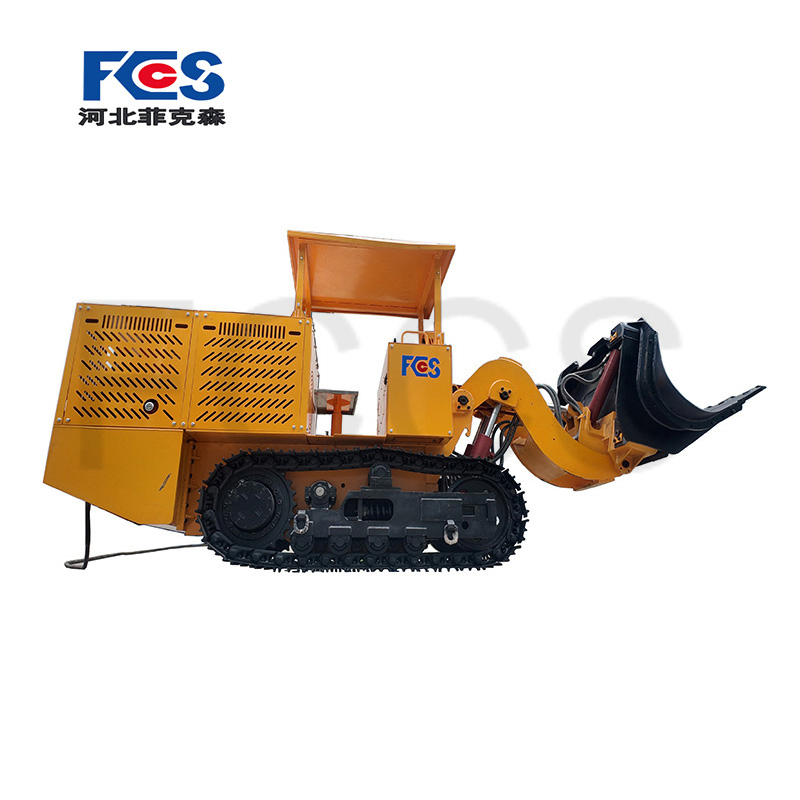

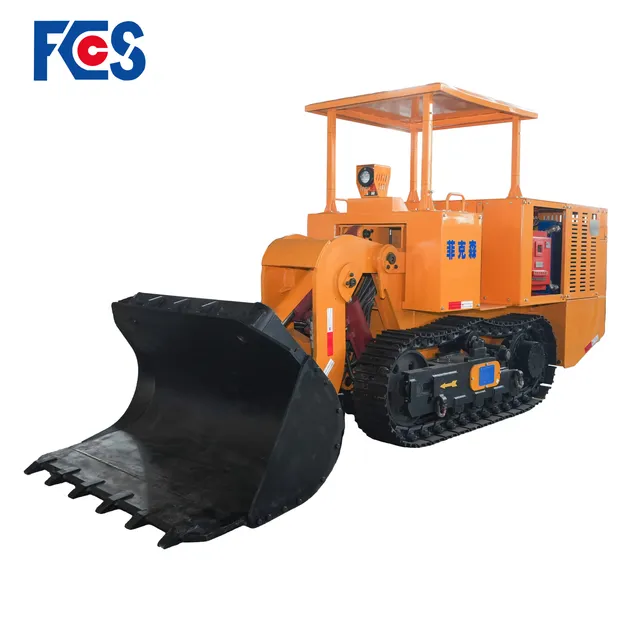

ZCY45R Side Dump Rock loader is a tracked, trackless loading device primarily used in coal and semi-coal-rock roadways, and can also be used in small-section full-rock roadways for loading coal, rock, and other materials. This product features high insertion force, good maneuverability, full-section operation, high safety, and multi-purpose functionality. In addition to loading operations, it can also serve as a working platform during support work, facilitating short-distance transport, bottom-level work, and sidewall cleaning.
*(Custom configurations available upon request.)
| Serial Number | Parameter Name | ZCY45R |
|---|---|---|
| 1 | Overall Dimensions (L×W×H) mm | 4500×1200×1560 |
| 2 | Technical Bucket Volume (m³) | 0.45 |
| 3 | Bucket Width (mm) | 1480 |
| 4 | Maximum Unloading Height (mm) | 1550 |
| 5 | Maximum Unloading Angle (°) | 55 |
| 6 | Maximum Travel Speed(m/min) | 34 |
| 7 | Minimum Ground Clearance (mm) | 180 |
| 8 | Maximum Bottom Depth (mm) | 600 |
| 9 | Climbing Ability (°) | ±16 |
| 10 | Track Shoe Width (mm) | 260 |
| 11 | Track Ground Pressure (MPa) | ≤0.1 |
| 12 | Hydraulic Pump Motor Power (kW) | 30 |
| 13 | Voltage (V) | 1140/660 |
| 14 | System working pressure (MPa) | 15 - 19 |
| 15 | Machine weight (kg) | 5200 |

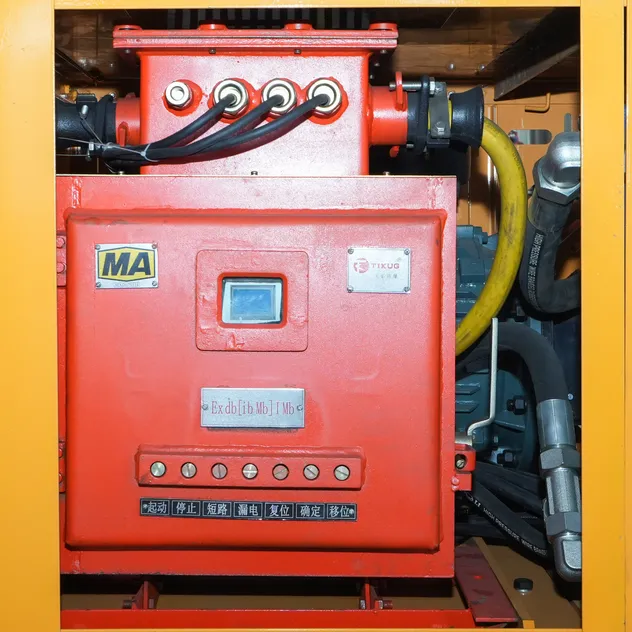

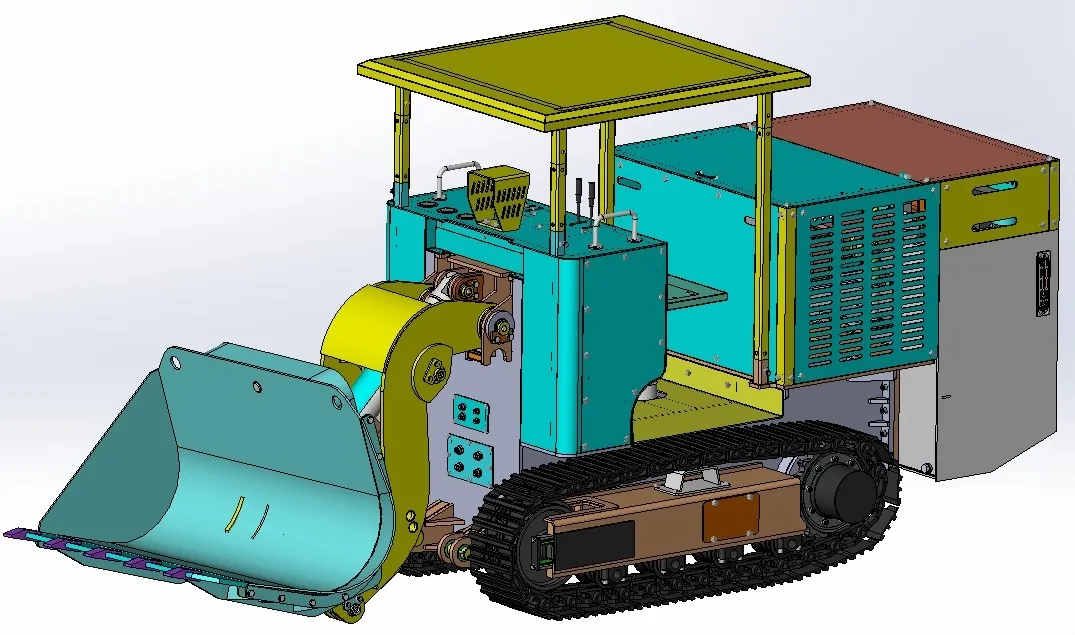

Main Components: This equipment is a fully hydraulic side-dumping loader powered by an electric motor, with hydraulic motors driving the tracks and hydraulic cylinders operating the bucket. It consists of:

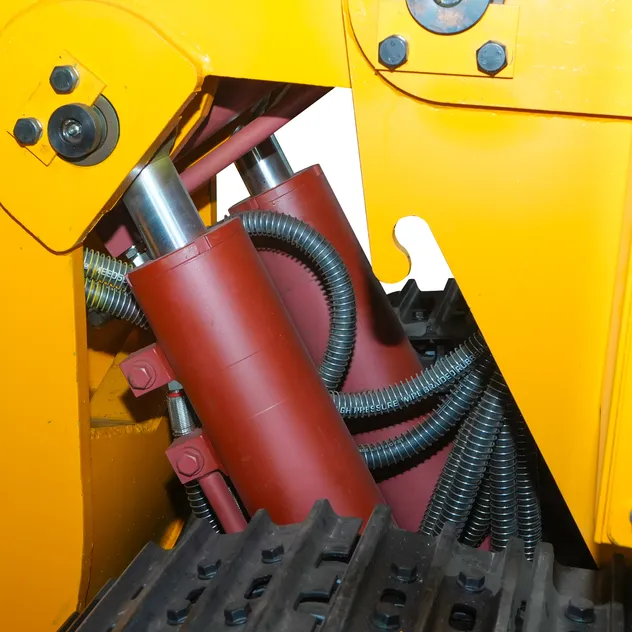

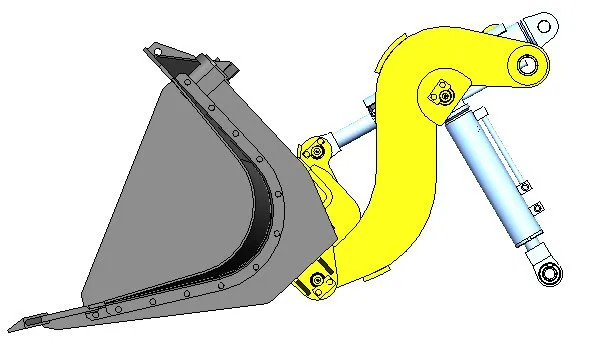

Consists of the bucket, bucket base, bucket arm, tilting cylinder, and lifting cylinder. Operating the side-dumping cylinder tilts the bucket to one side for unloading. The shovel plate is made of wear-resistant steel, ideal for hard sandstone.

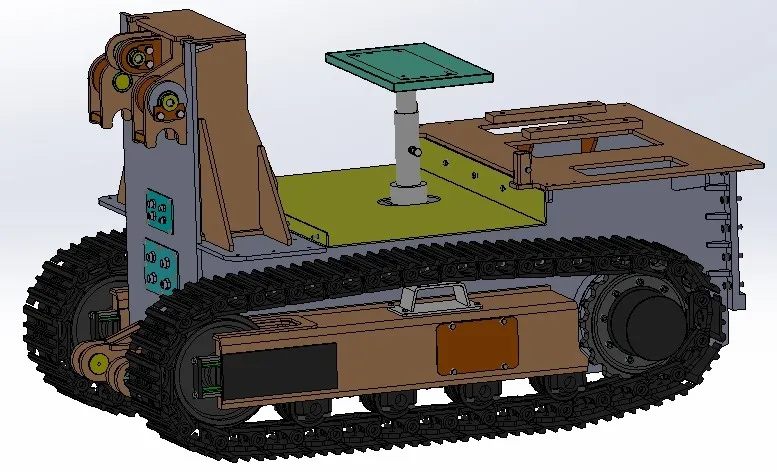

The walking mechanism includes idler wheels, track rollers, sprockets, and track assembly. It uses a parking brake that automatically engages via spring action when the travel handle is released, ensuring high safety.
🛡️ Standard Warranty: 12 months or 2,000 operating hours.
⚙️ Extended Warranty: Optional coverage up to 36 months.
🌐 Global Support: 24/7 technical assistance and spare parts supply.
🎓 Training: On-site or remote operation/maintenance training.

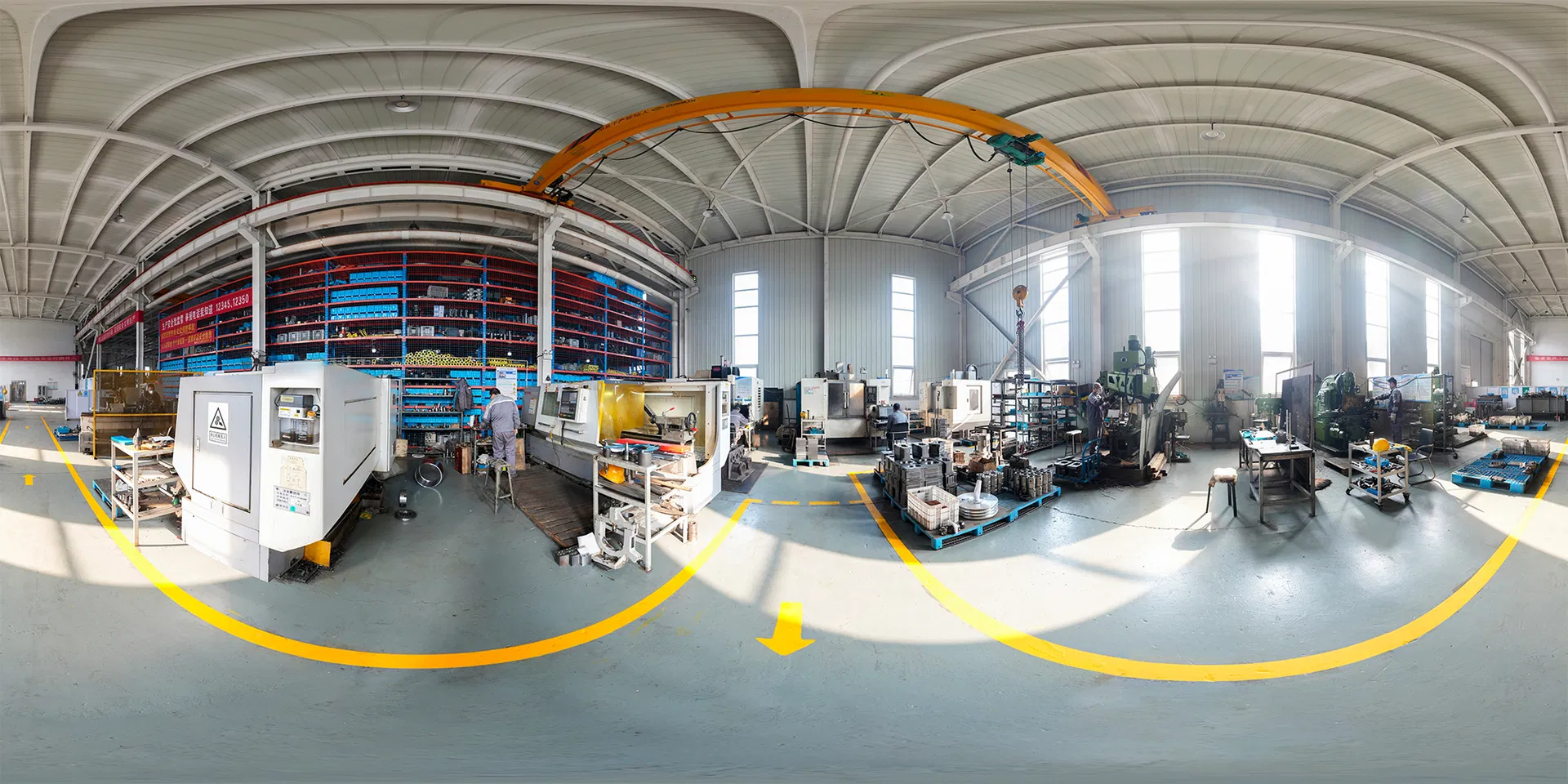

We are a professional manufacturer of coal mining machinery, committed to delivering advanced equipment and integrated solutions for underground operations. Our core product lines include hydraulic and pneumatic drilling rigs, crawler-type transportation vehicles, and auxiliary equipment.
