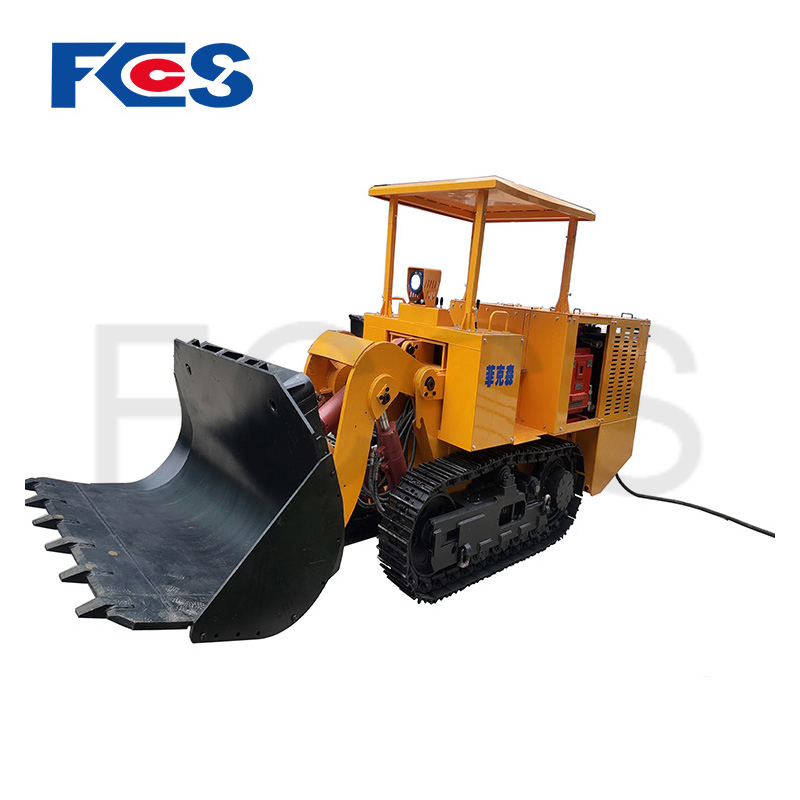

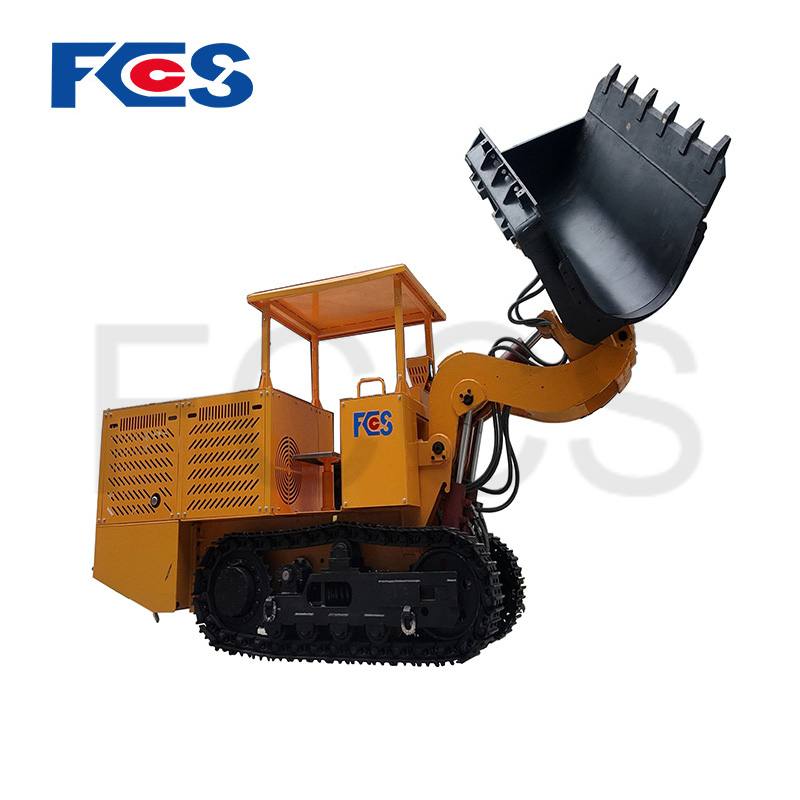

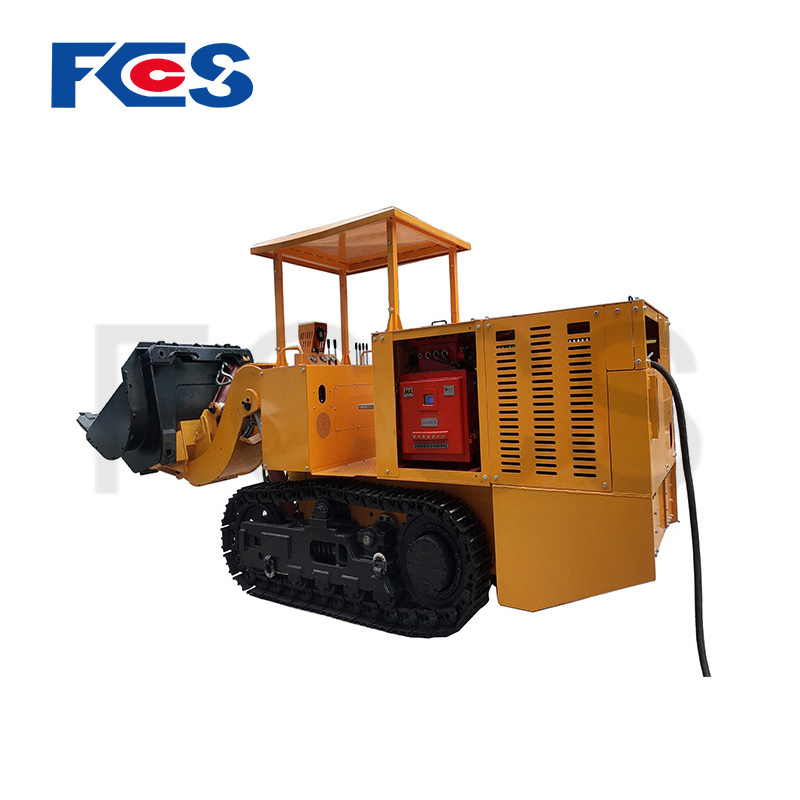

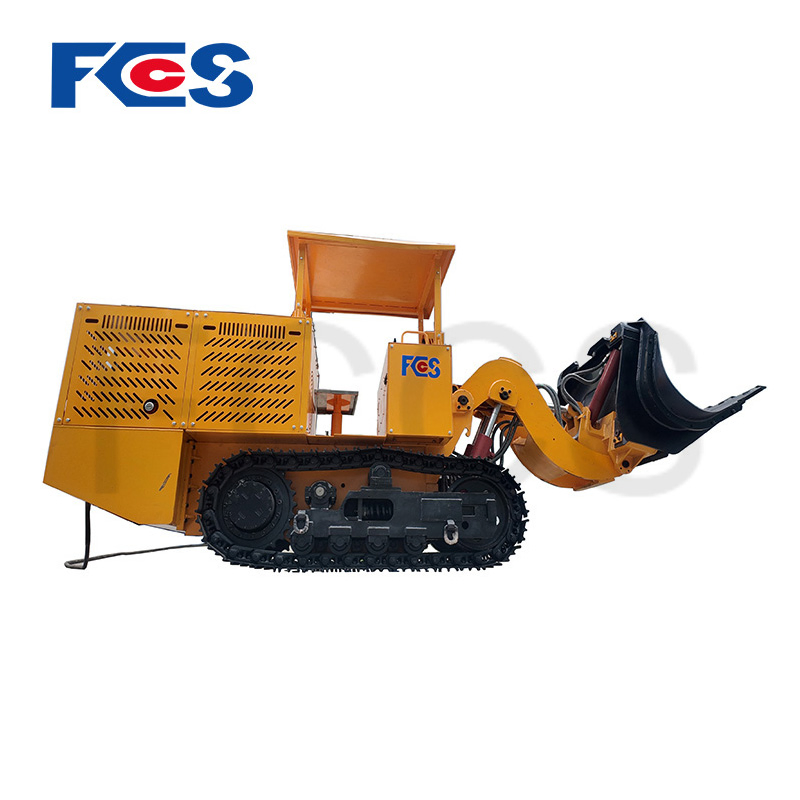

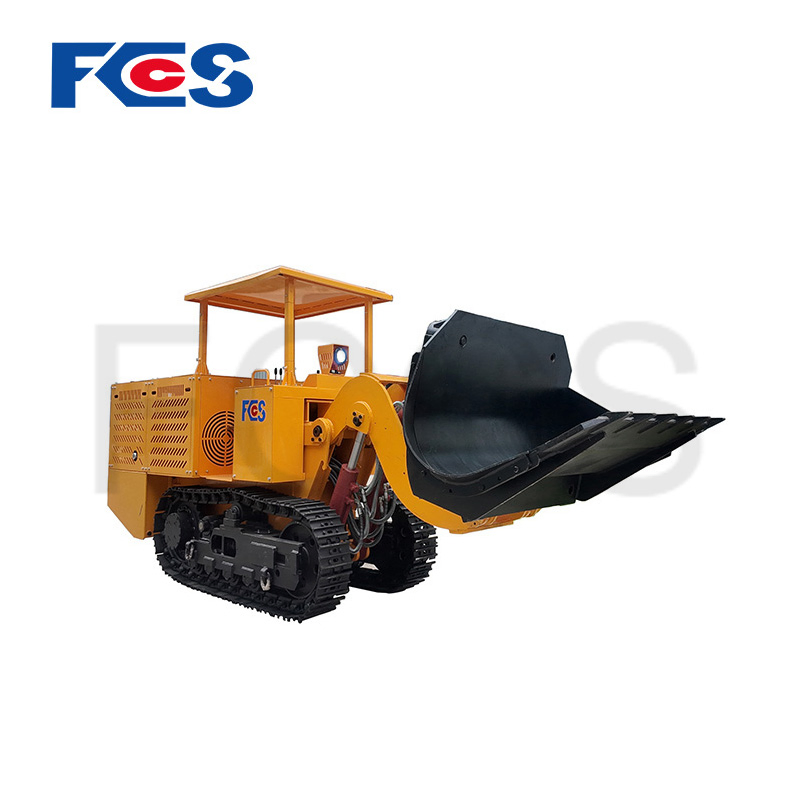

Explosion-Proof Electric Crawler Side Dump Mucking Loader for Coal Mine

1 / 5

Explosion-Proof Electric Crawler Side Dump Mucking Loader for Coal Mine

Customization:	Available
Type:	Bucket Conveyor
Structure:	Crawler Conveyor

Send Inquiry

Product Description

Product Overview

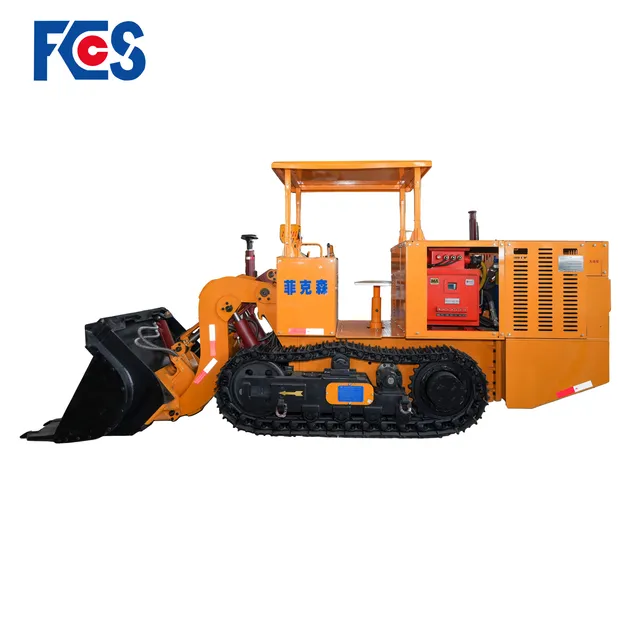

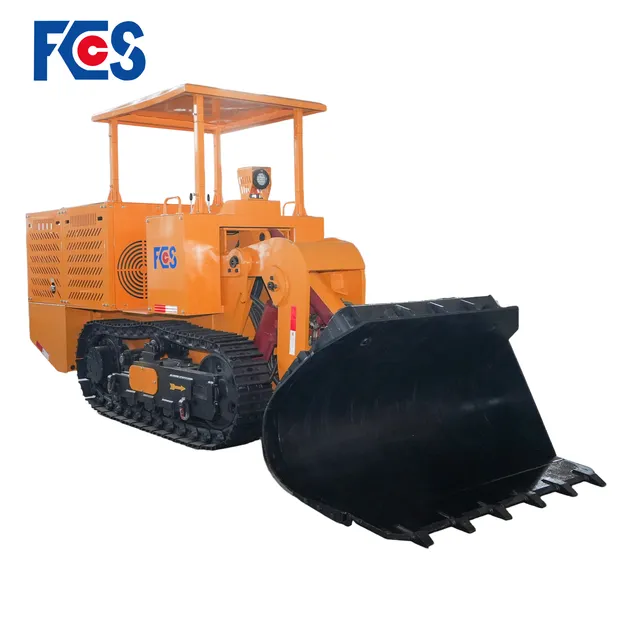

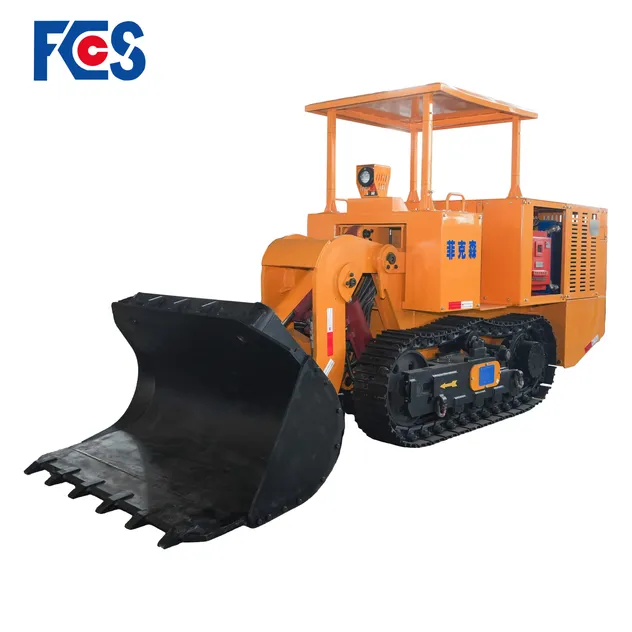

ZCY45R Side Dump Rock Loader is a high-performance tracked loading device designed specifically for coal mine environments. It is primarily used in coal and semi-coal-rock roadways, as well as small-section full-rock roadways for loading coal, rock, and other materials.

🚀 High Insertion Force

⚙️ Full-Section Operation

🛡️ High Safety Standards

🔧 Multi-purpose Functionality

Beyond loading, it serves as a versatile working platform for support work, short-distance transport, bottom-level work, and sidewall cleaning.

Technical Specifications

Serial Number	Parameter Name	ZCY45R Value
1	Overall Dimensions (L×W×H) mm	4500×1200×1560
2	Technical Bucket Volume (m³)	0.45
3	Bucket Width (mm)	1480
4	Maximum Unloading Height (mm)	1550
5	Maximum Unloading Angle (°)	55
6	Maximum Travel Speed (m/min)	34
7	Minimum Ground Clearance (mm)	180
8	Maximum Bottom Depth (mm)	600
9	Climbing Ability (°)	±16
10	Track Shoe Width (mm)	260
11	Hydraulic Pump Motor Power (kW)	30
12	Voltage (V)	1140/660
13	Machine Weight (kg)	5200

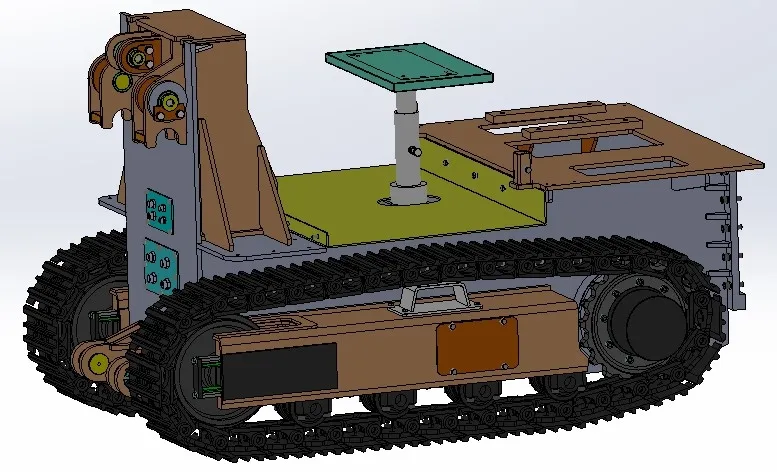

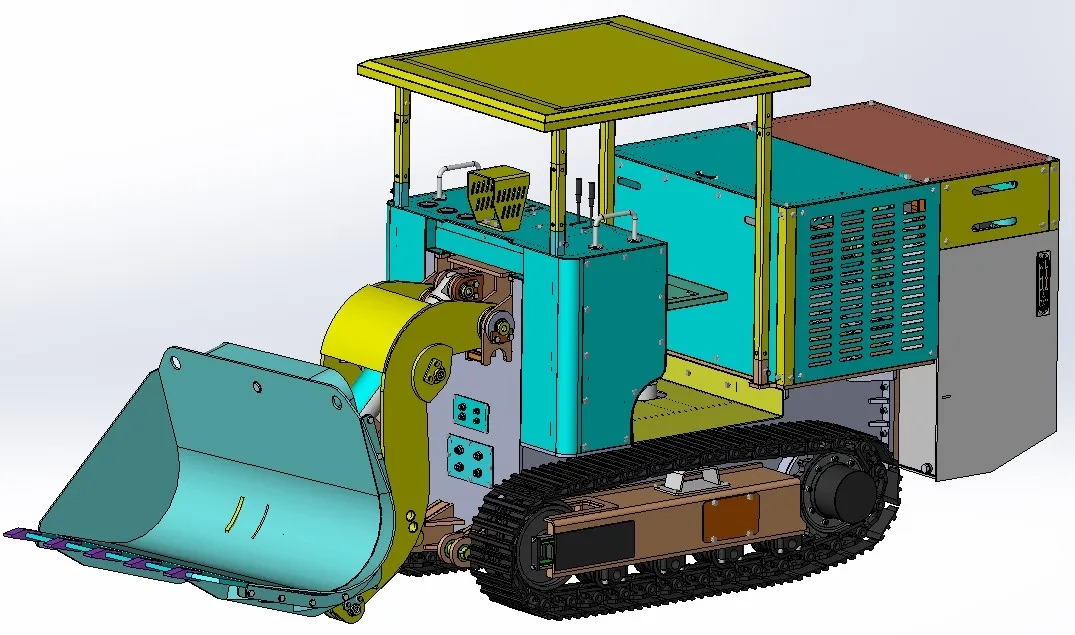

Drawings & Main Components

Our engineering team provides tailored designs to meet specific project requirements. Detailed CAD drawings and dimensional diagrams are available upon inquiry.

Component System: This equipment is a fully hydraulic side-dumping loader consisting of:

Working mechanism (Bucket, arms, cylinders)
Hydraulic system
Chassis running gear
Air-cooling system

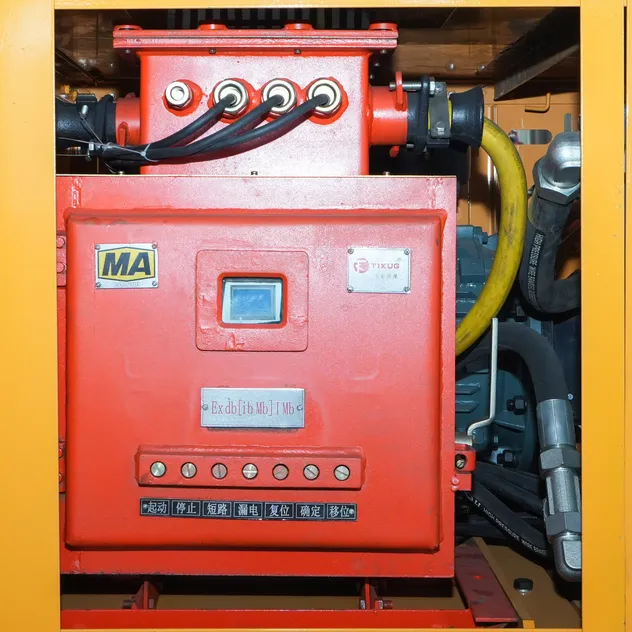

Electrical system

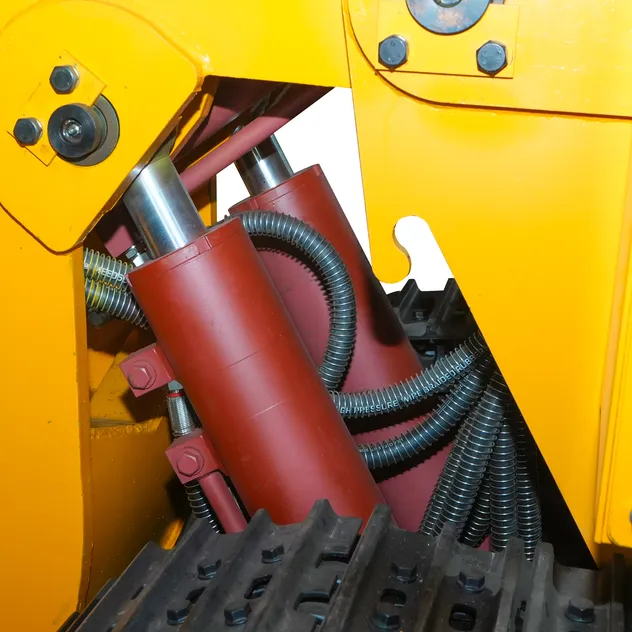

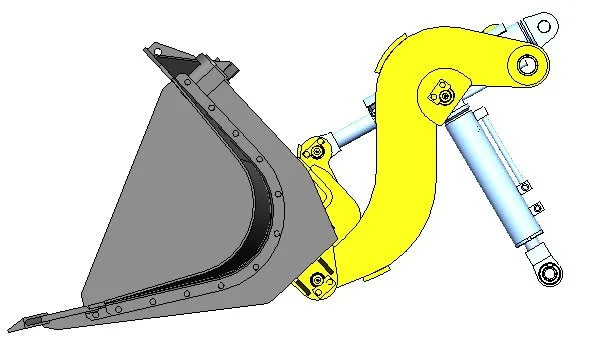

Working Mechanism & Braking

The bucket is made of wear-resistant steel, suitable for highly abrasive materials like hard sandstone. By changing the cylinder pins' positions, left and right side-dumping can be easily switched.

Braking Principle: The machine uses a spring-actuated parking brake. Pressurized oil releases the brake when the handle is engaged. When released, the oil pressure drops, and the spring automatically returns the machine to a safe braking state.

After Sales Service

🛠️ Standard Warranty: 12 months or 2,000 operating hours.
🛡️ Extended Warranty: Optional coverage up to 36 months.
🌍 Global Support: 24/7 technical assistance and spare parts supply.
🎓 Training: On-site or remote operation and maintenance training.

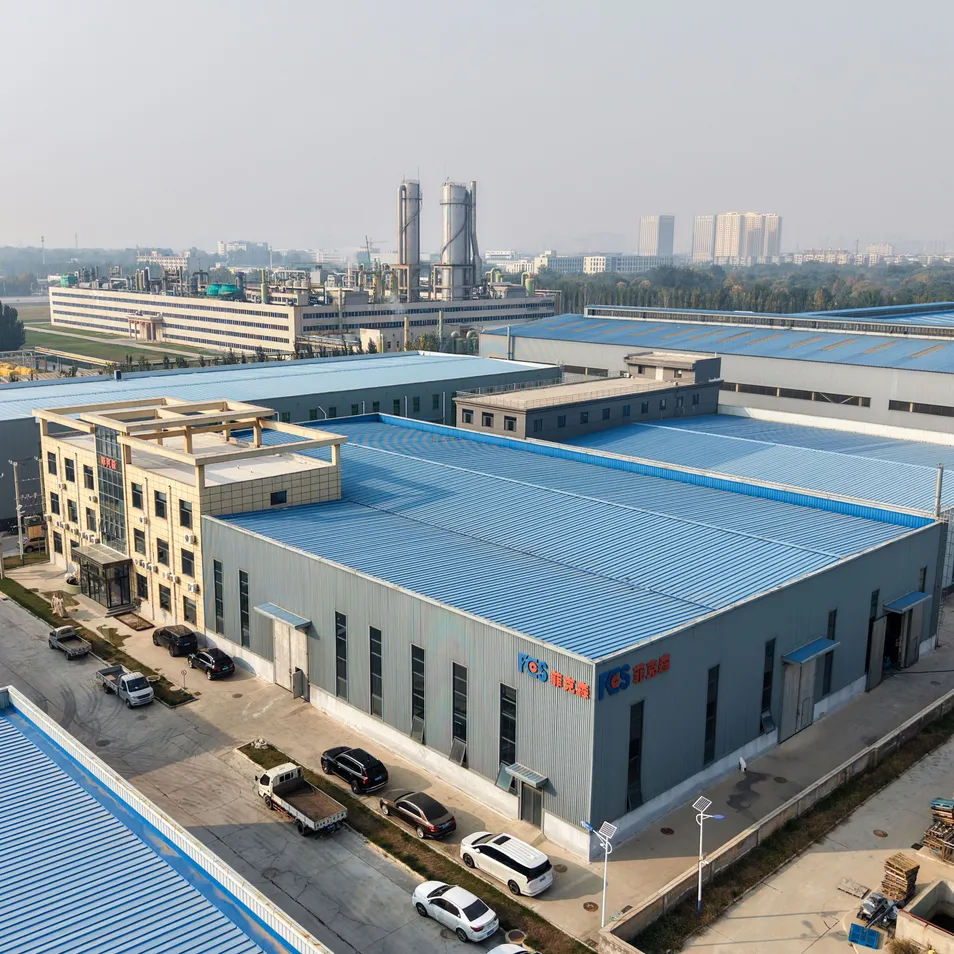

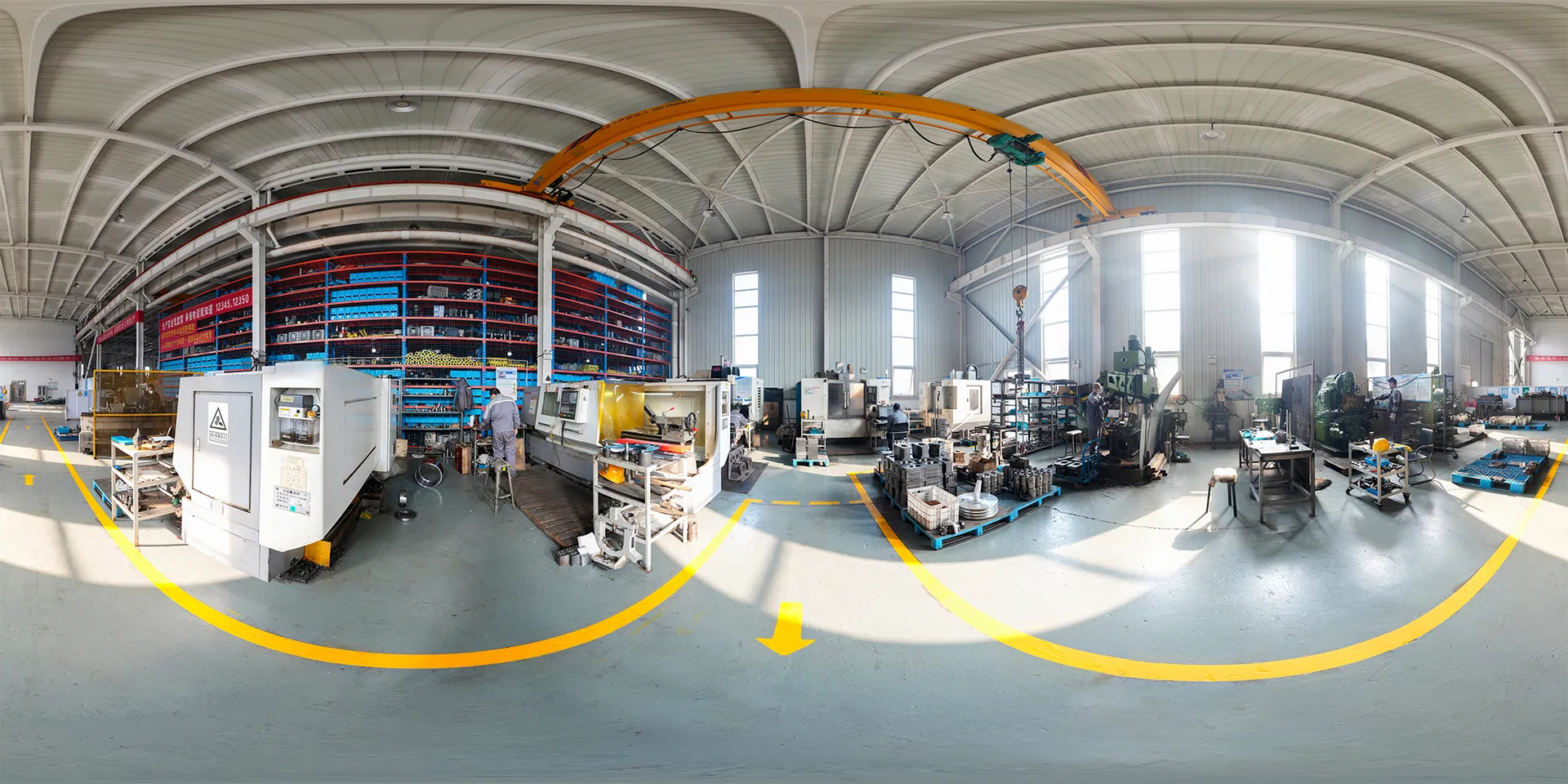

Production Excellence

We are a professional manufacturer committed to delivering advanced coal mining machinery. Our products combine safety, efficiency, and reliability, developed in line with international quality standards.

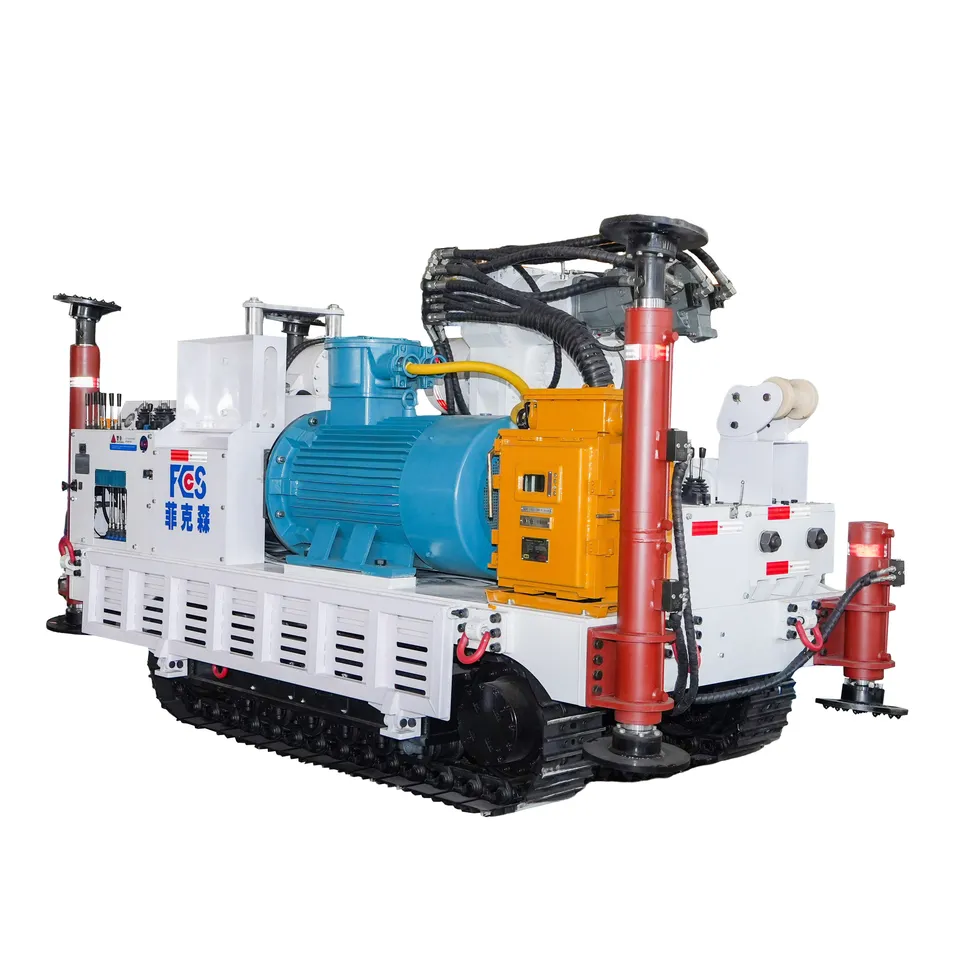

Product Series: Anchor drilling rigs, Pillar drilling rigs, Crawler transporters, and specialized Forklifts.

Frequently Asked Questions

What is the lead time for orders?

Standard models ship in 15–30 days; customized units require 30–45 days.

Do you provide after-sales service overseas?

Yes, we have partnered service centers in key regions to provide global technical assistance.

Can I request a customized bucket size?

Absolutely! We offer tailored attachments and configurations based on your specific roadway requirements.

What documents do you provide for export?

We provide a full export package including Commercial Invoice, Packing List, Bill of Lading, and Certificate of Conformity (COC).

What is the warranty period for the ZCY45R?

The standard warranty is 12 months or 2,000 operating hours, with optional extensions up to 36 months available.

How do I place an order?

Contact our sales team via the inquiry form for a formal quote, then confirm with a Purchase Order (PO).
