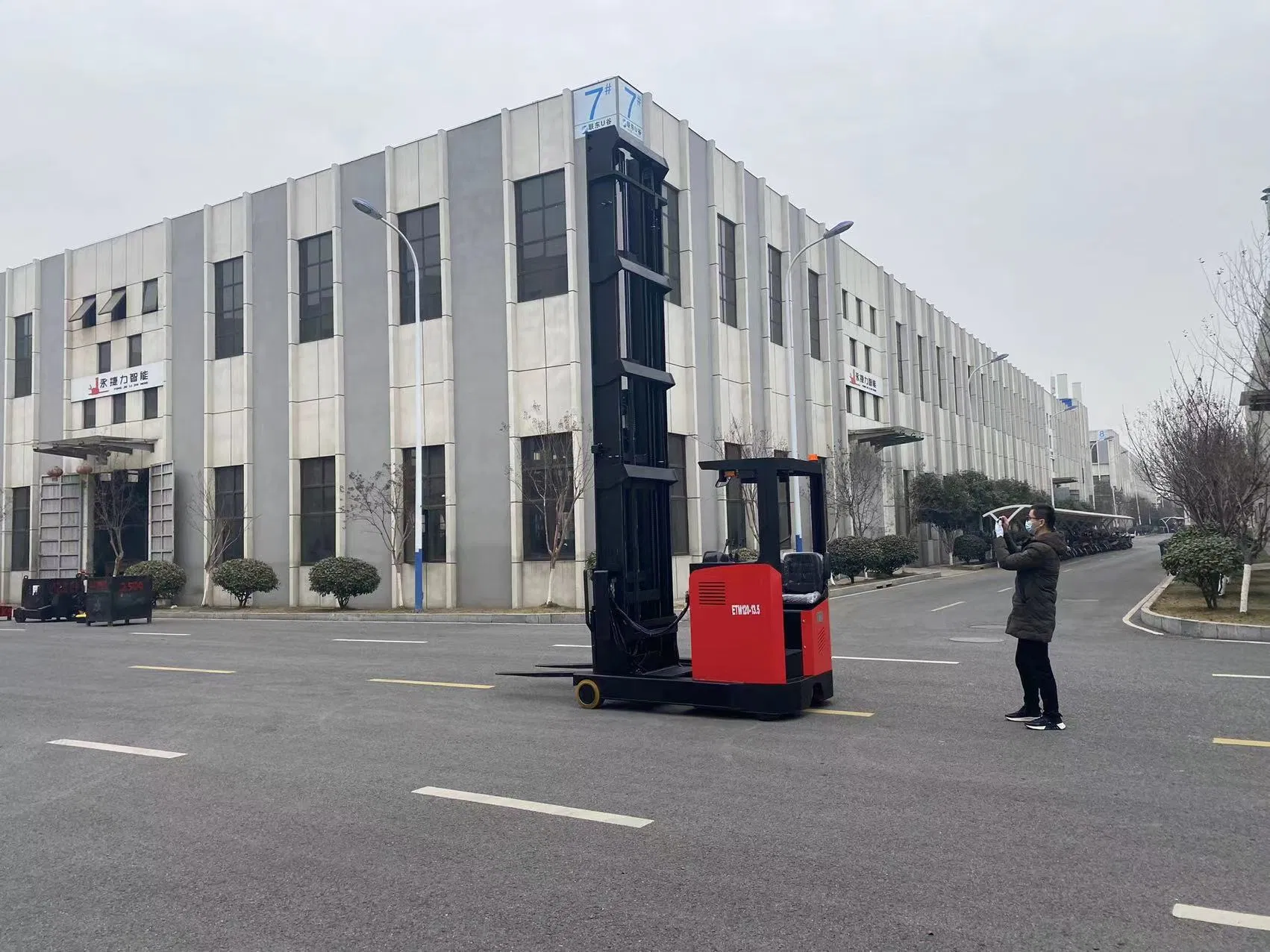

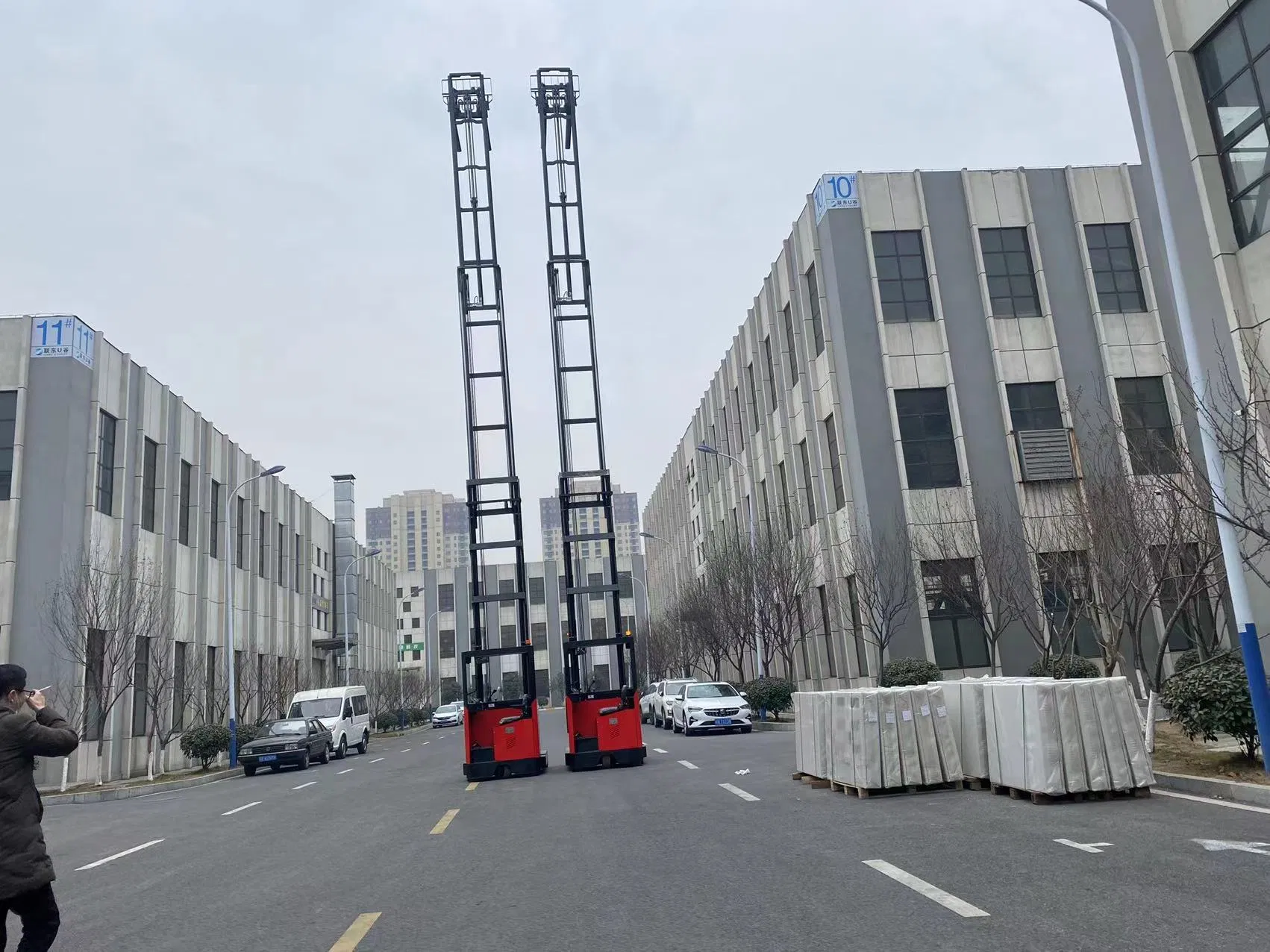

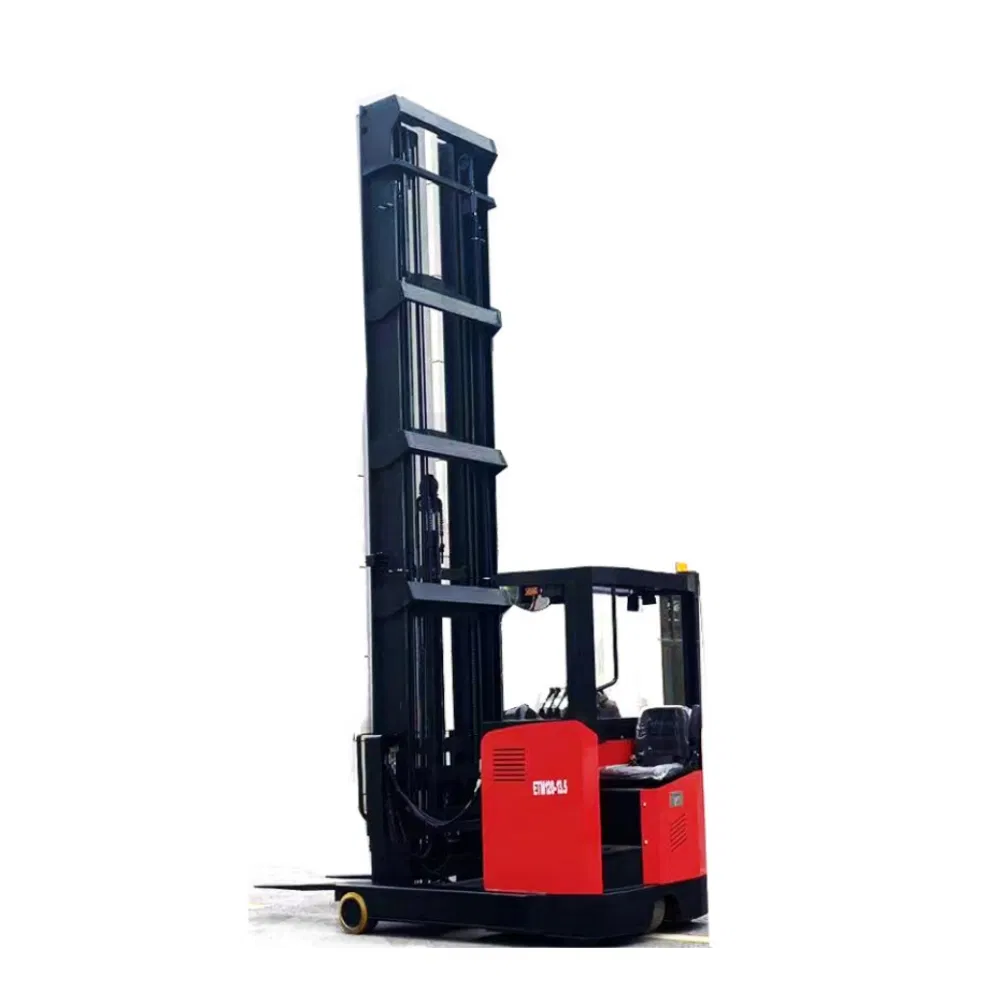

Factory Price New Design Seating Type 2ton Electric Reach Truck with High Lifting 10m 11m 12m 13m Warehouse Narrow Aisle Battery Stacker with 3 Stage Mast
Factory Price New Design Seating Type 2ton Electric Reach Truck with High Lifting 10m 11m 12m 13m Warehouse Narrow Aisle Battery Stacker with 3 Stage Mast
Factory Price New Design Seating Type 2ton Electric Reach Truck with High Lifting 10m 11m 12m 13m Warehouse Narrow Aisle Battery Stacker with 3 Stage Mast
Factory Price New Design Seating Type 2ton Electric Reach Truck with High Lifting 10m 11m 12m 13m Warehouse Narrow Aisle Battery Stacker with 3 Stage Mast
Factory Price New Design Seating Type 2ton Electric Reach Truck with High Lifting 10m 11m 12m 13m Warehouse Narrow Aisle Battery Stacker with 3 Stage Mast
1 / 5
Factory Price New Design Seating Type 2ton Electric Reach Truck with High Lifting 10m 11m 12m 13m Warehouse Narrow Aisle Battery Stacker with 3 Stage Mast
Factory Price New Design Seating Type 2ton Electric Reach Truck with High Lifting 10m 11m 12m 13m Warehouse Narrow Aisle Battery Stacker with 3 Stage Mast
Factory Price New Design Seating Type 2ton Electric Reach Truck with High Lifting 10m 11m 12m 13m Warehouse Narrow Aisle Battery Stacker with 3 Stage Mast
Factory Price New Design Seating Type 2ton Electric Reach Truck with High Lifting 10m 11m 12m 13m Warehouse Narrow Aisle Battery Stacker with 3 Stage Mast
Factory Price New Design Seating Type 2ton Electric Reach Truck with High Lifting 10m 11m 12m 13m Warehouse Narrow Aisle Battery Stacker with 3 Stage Mast

Factory Price New Design Seating Type 2ton Electric Reach Truck with High Lifting 10m 11m 12m 13m Warehouse Narrow Aisle Battery Stacker with 3 Stage Mast

Customization: Available
After-sales Service: 1year
Warranty: 1year
Send Inquiry

Product Description

ℹ️

Basic Information Overview

Model NO.
ETV120
Type
Reach Forklift
Power
AC Motor
Fuel
Electric
Load Capacity
≤1T / 2T Options
Lift height
>5000mm (Up to 13.5m)
Condition
New
Battery
48V / 500AH
Reach Distance
650mm
Origin
China
📦

Packaging & Delivery

Package Size
220.00cm * 125.00cm * 550.00cm
Gross Weight
2200.000kg
Transport
Moistureproof Package in Container
📝

Product Description

High-performance Electric Reach Truck Forklift designed for modern warehouse environments. Available in 1.5 Ton, 1.8 Ton, 2 Ton, and 2.5 Ton capacities, offering exceptional lifting heights ranging from 5m to 13.5m. Features EPS (Electric Power Steering) for precise control in narrow aisles.
Specification Unit Data (ETV120)
Power Type-Battery
Operation Type-Seated
Load Capacity (Q)kg2000
Max Lift Height (h3)mm3000 - 13500
Load Center (c)mm500
Wheelbase (Y)mm1500
Service Weightkg3300
Tyre Type-PU Wheel
Overall Lengthmm2440
Overall Width (b1)mm1260
Turning Radius (Wa)mm1820
Travel Speed (Full/No Load)Km/h8 / 8.3
Lifting Speed (Full/No Load)m/s0.19 / 0.2
Climbing Ability%10 / 12
Drive MotorkW4 (AC)
Lift MotorkW8.2
Battery Voltage/CapacityV/Ah48V / 500AH
Speed Control System-ZAPI / CURTIS / SME
📷

Product Gallery

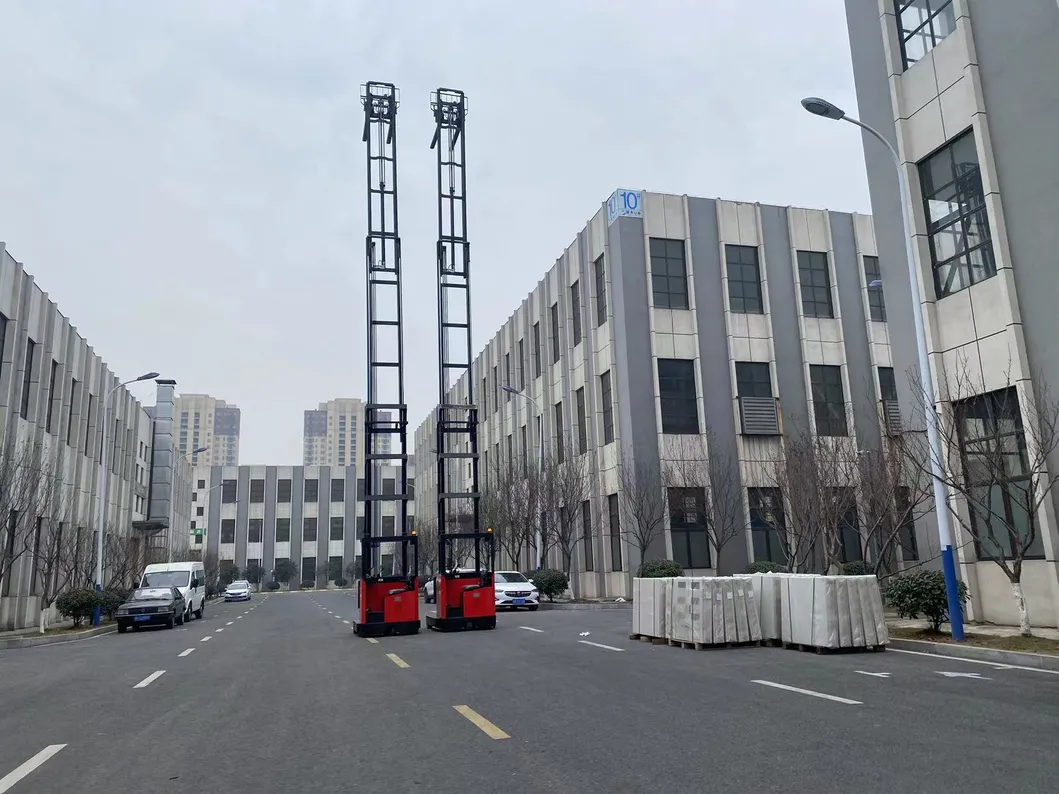

Electric Reach Truck View 1

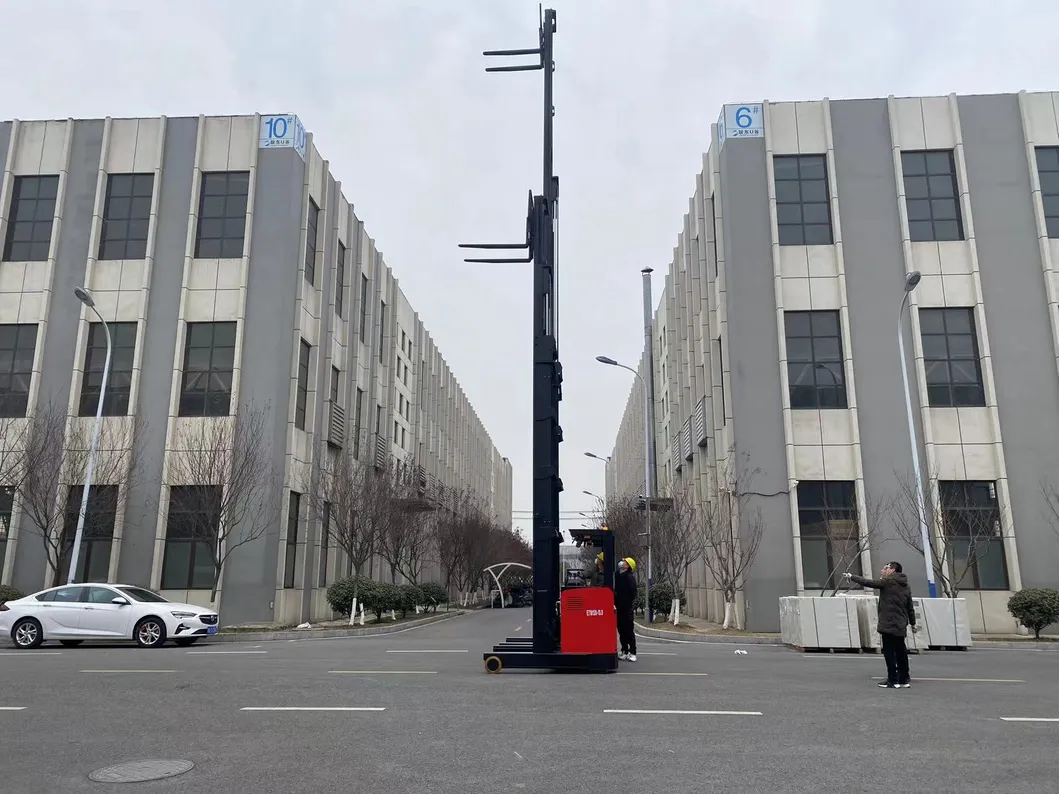

Electric Reach Truck View 2

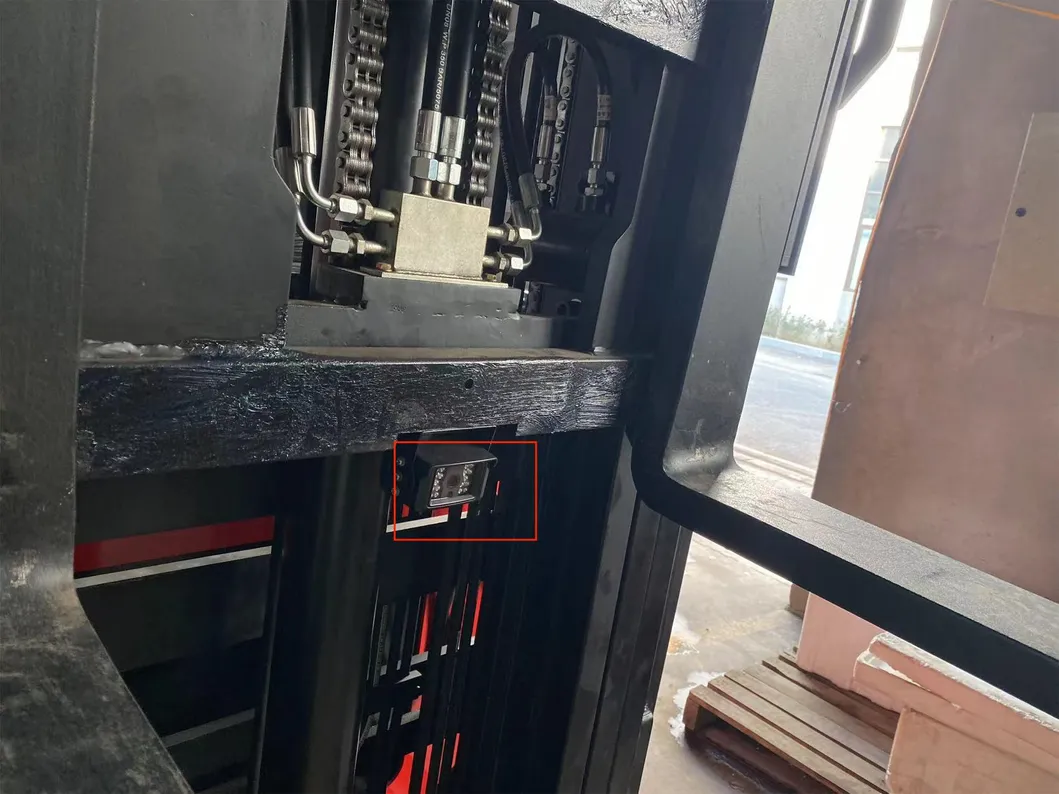

Electric Reach Truck View 3
Electric Reach Truck View 4
Electric Reach Truck View 5
Warehouse Operation

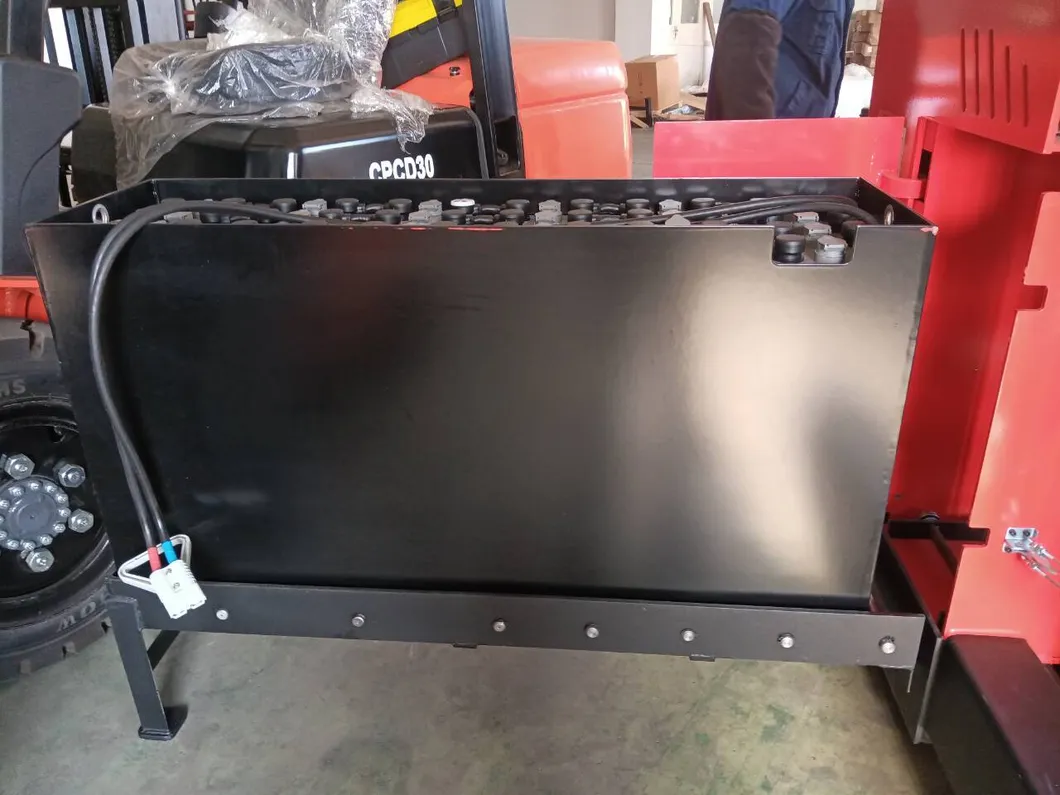

Technical Details 1

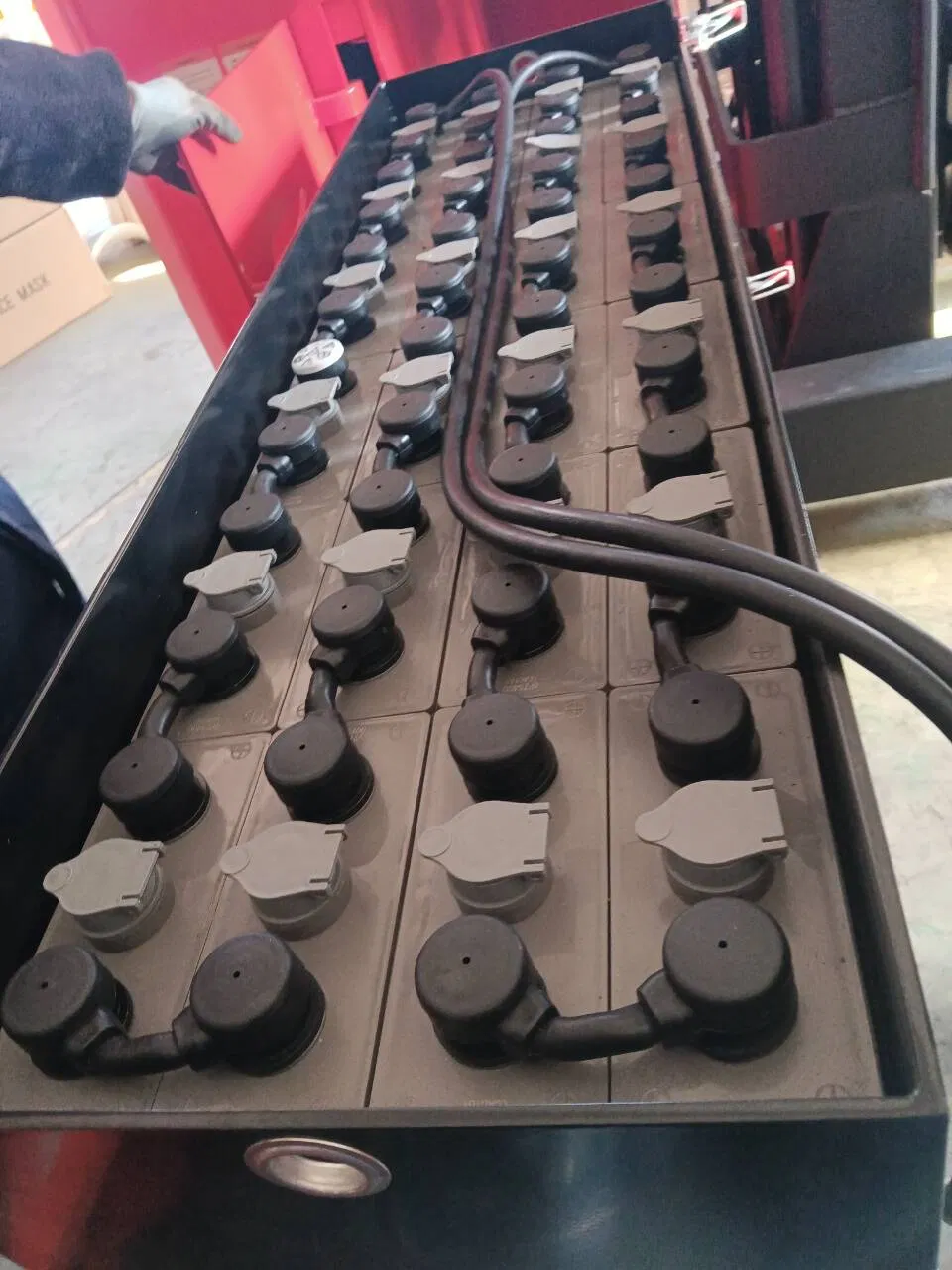

Technical Details 2
Mast Structure
Chassis Details

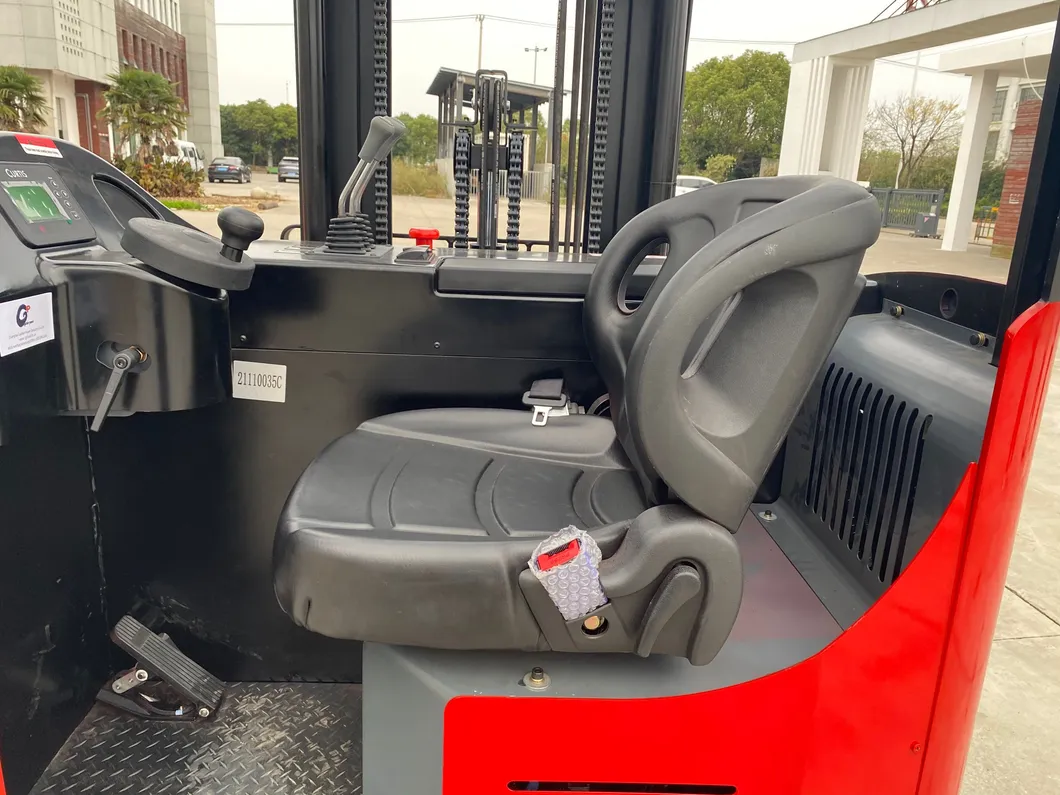

Cabin View
Battery Compartment

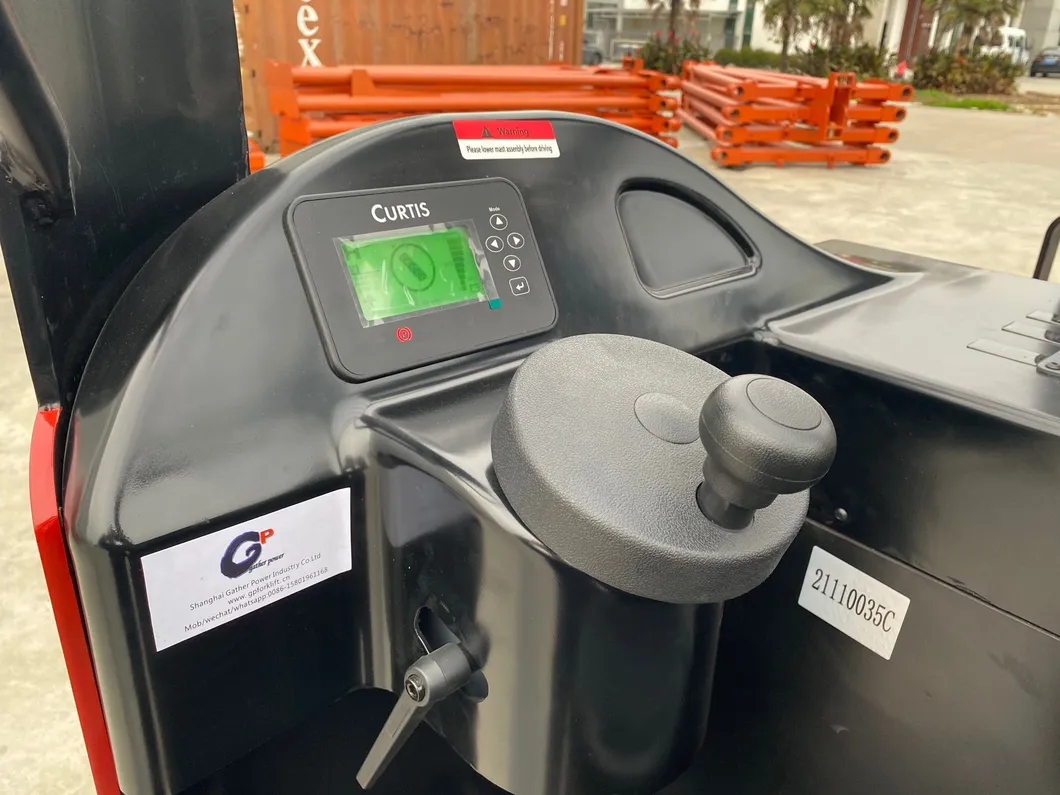

Control System
Lifting Mechanism
Rear View
Safety Features
❓

Frequently Asked Questions

What is the maximum lifting height for this reach truck?
The ETV120 series offers various mast options with lifting heights ranging from 5 meters up to a maximum of 13.5 meters for high-rack warehouse storage.
What type of battery and motor does the forklift use?
It is equipped with a high-capacity 48V/500AH battery and a powerful AC motor (4kW drive motor and 8.2kW lift motor) for efficient performance.
Is this forklift suitable for narrow aisles?
Yes, this is a "Narrow Aisle" reach truck with a compact turning radius of 1820mm, specifically designed for high-density warehouse environments.
Which speed control systems are available?
The truck can be configured with industry-leading controllers such as ZAPI, CURTIS, or SME for reliable and smooth speed management.
What are the safety features for the operator?
It includes a seated operation design with overhead guard protection, EPS (Electric Power Steering), and a hydraulic service brake system for maximum safety.
What is the load capacity of this series?
This series supports load capacities of 1.5 Ton, 1.8 Ton, 2 Ton, and 2.5 Ton depending on the specific model configuration chosen.
