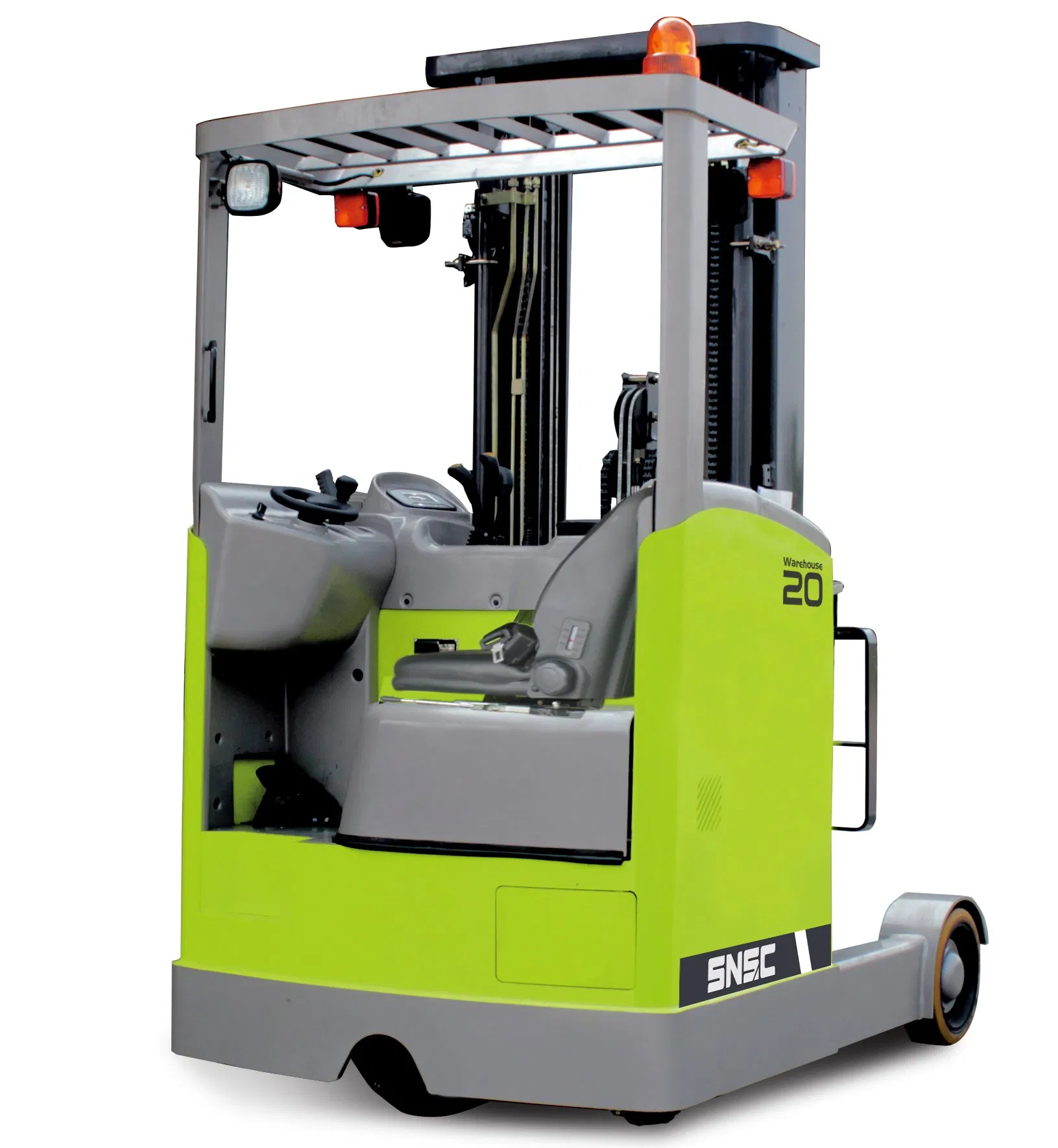

3-12 Lifting Height Electric Reach Truck 1600kg 2000kg with EPS Steering
3-12 Lifting Height Electric Reach Truck 1600kg 2000kg with EPS Steering
3-12 Lifting Height Electric Reach Truck 1600kg 2000kg with EPS Steering
3-12 Lifting Height Electric Reach Truck 1600kg 2000kg with EPS Steering
3-12 Lifting Height Electric Reach Truck 1600kg 2000kg with EPS Steering
1 / 5
3-12 Lifting Height Electric Reach Truck 1600kg 2000kg with EPS Steering
3-12 Lifting Height Electric Reach Truck 1600kg 2000kg with EPS Steering
3-12 Lifting Height Electric Reach Truck 1600kg 2000kg with EPS Steering
3-12 Lifting Height Electric Reach Truck 1600kg 2000kg with EPS Steering
3-12 Lifting Height Electric Reach Truck 1600kg 2000kg with EPS Steering

3-12 Lifting Height Electric Reach Truck 1600kg 2000kg with EPS Steering

Customization: Available
After-sales Service: Online
Warranty: 15 Months
Send Inquiry

Product Description

Technical Specifications
Model NO.YB20
TypeReach Forklift
PowerAC Motor
Load Capacity1T - 5T
FuelElectric
Lift Height3000mm-11000mm
ControllerUSA Curtis
Tire TypePolyurethane
Battery48V/500ah
ConditionNew
Product Overview

This 1.6-2Ton Electric Reach Truck is designed for high-efficiency warehouse operations, featuring a lifting range from 3m to 12m. With a compact width of 1020-1100mm and a tight turning radius of 1700-1740mm, it is engineered for narrow aisle applications in supermarkets, food factories, and logistics centers.

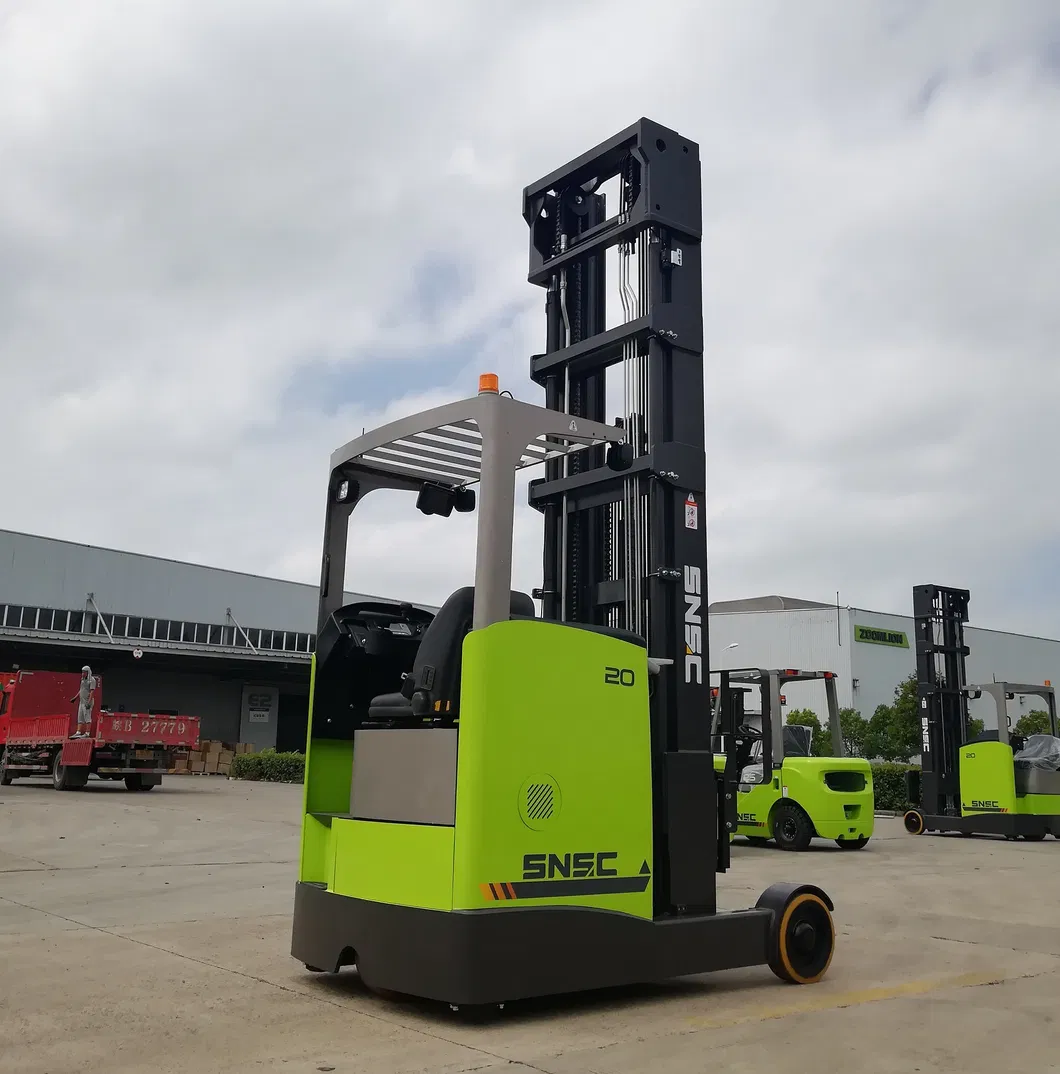

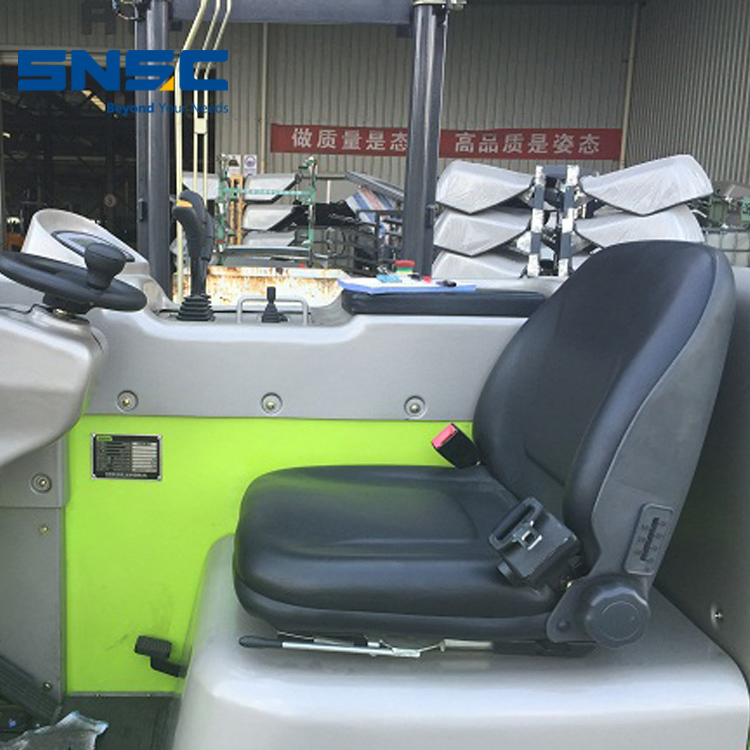

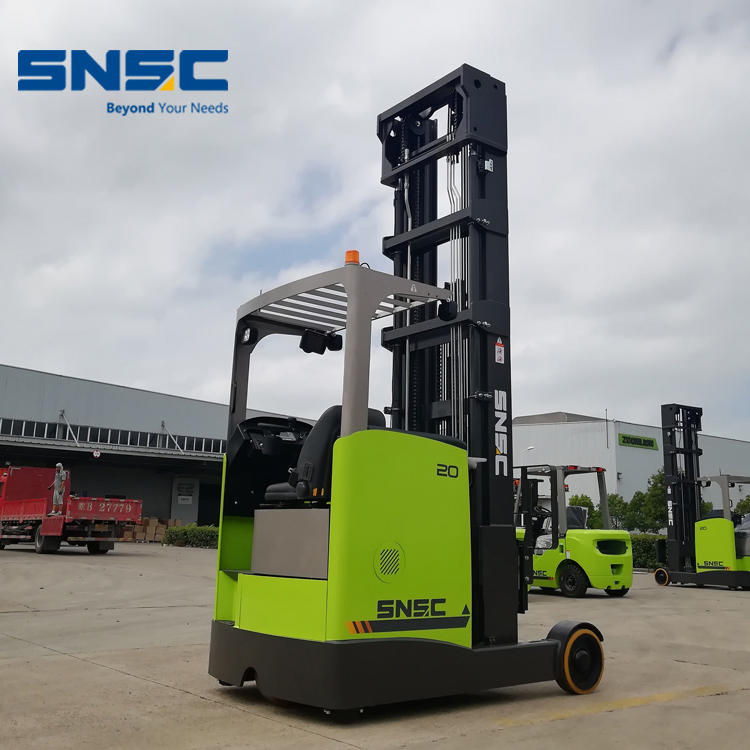

Electric Reach Truck View 1

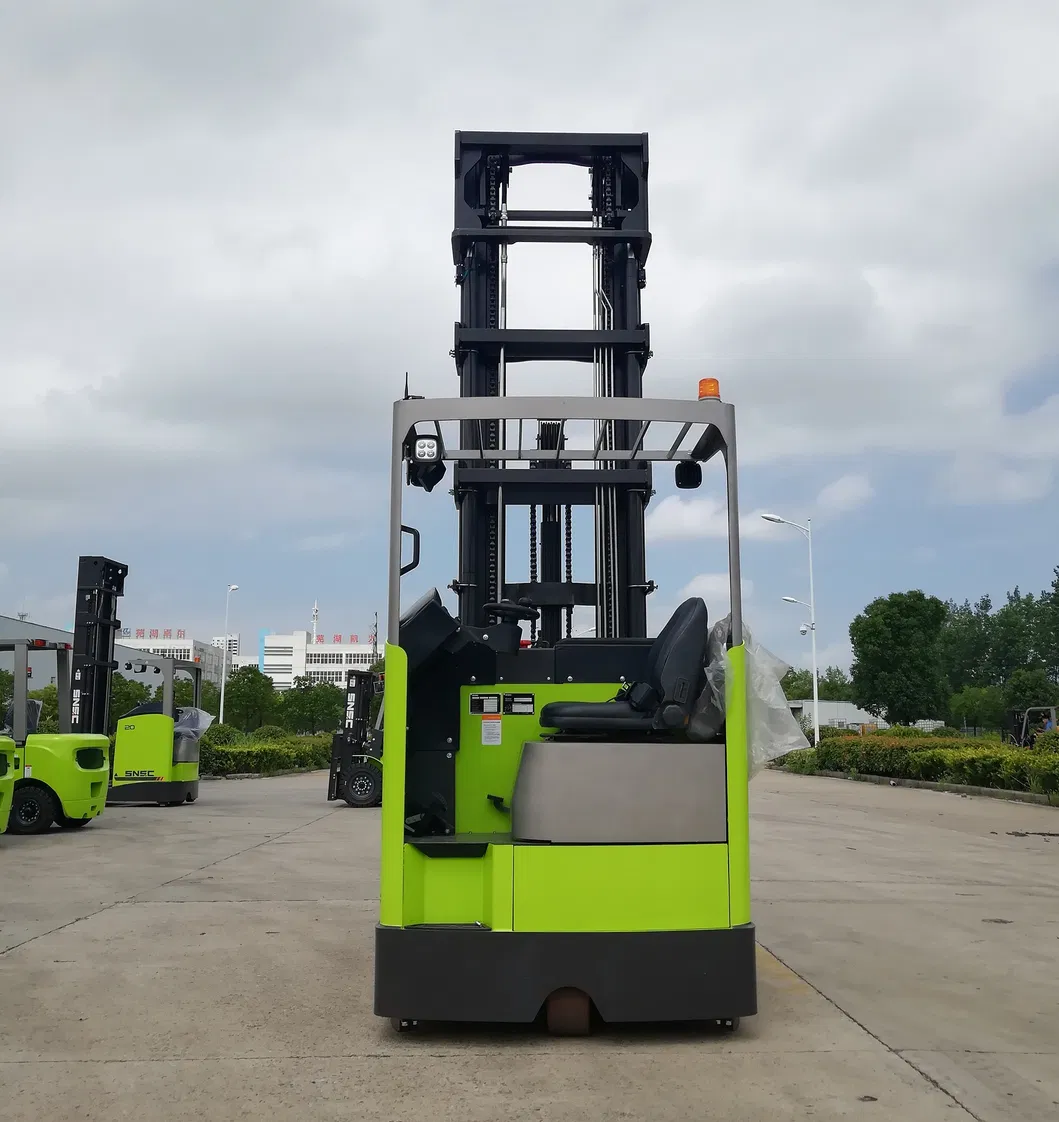

Electric Reach Truck View 2
Detailed Performance Data
Description Parameters (YB20-S2)
Operator typeSeated
Rated capacity (kg)2000
Centre of load (mm)600
Wheelbase (mm)1570
Curb weight (kg)3332
Tire materialPU/PU
Lifting height (mm)4500
Overall length (mm)2642
Travel speed, laden/unladen (km/h)9/9.5
Drive motor (kW)6.4
Lift motor (kW)11
Core Features & Advantages
🔋
Easy Battery Maintenance: For daily maintenance, you don't need to hang up the battery box. Simply using a box handle controller, you can automatically remove and replace the battery box.

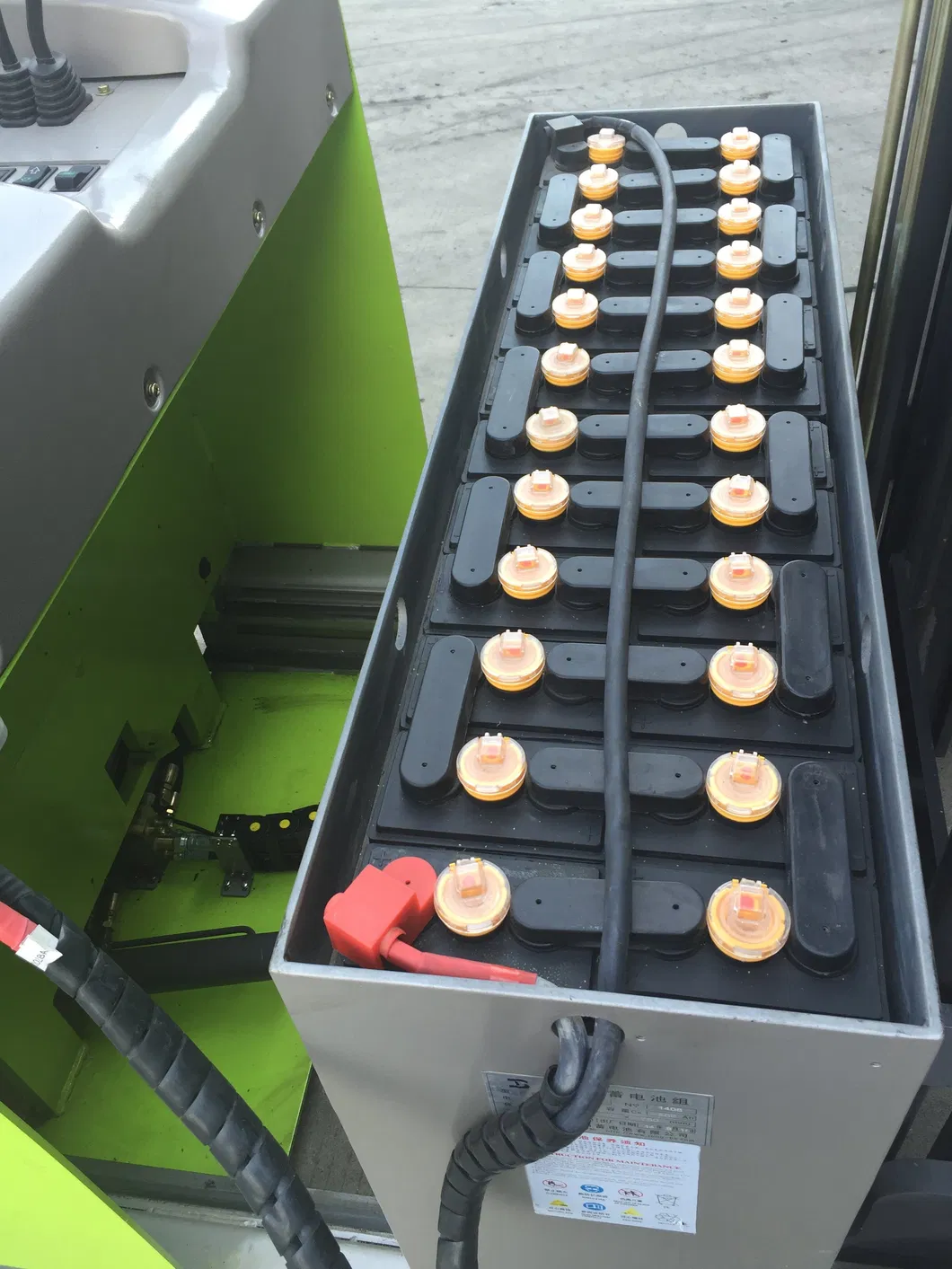

Battery System

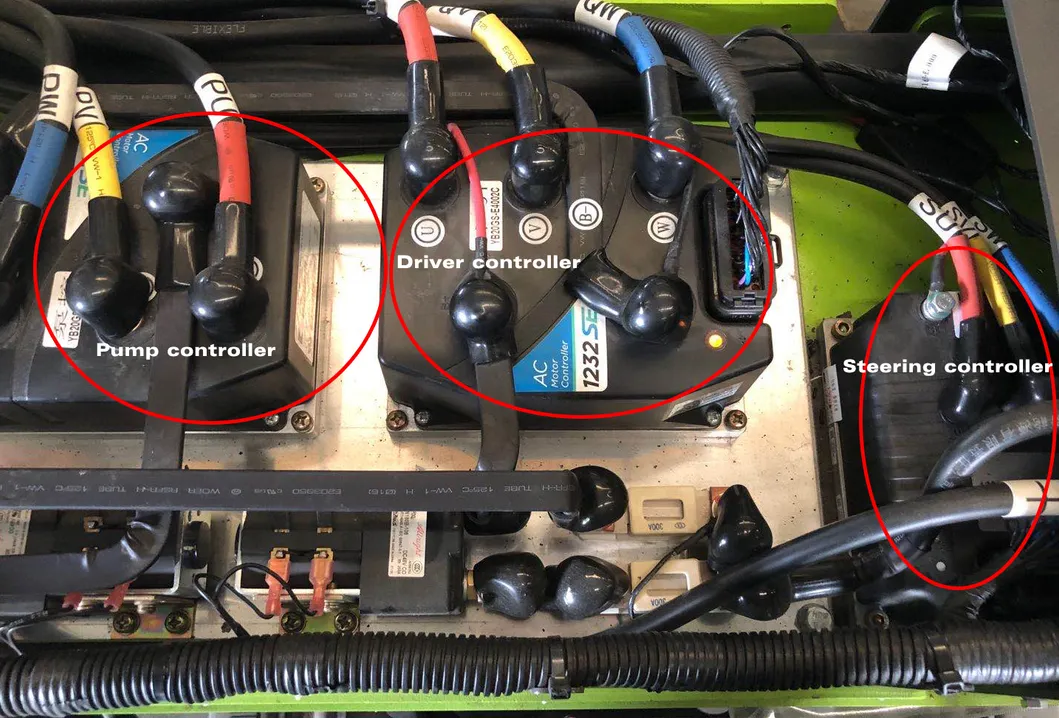

Motor Components

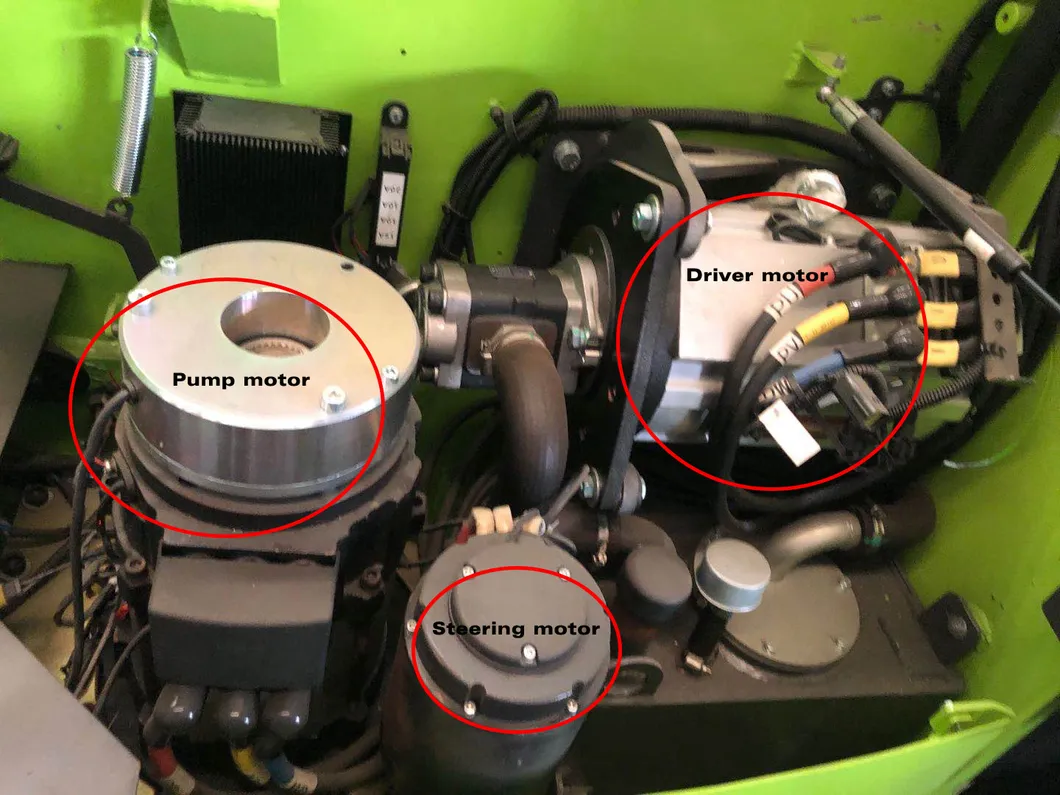

Driving System
⚙️
Advanced Propulsion: Features a dedicated drive motor for forward and backward movement, a high-performance pump motor for lifting, and a precision steering motor for electric EPS control.

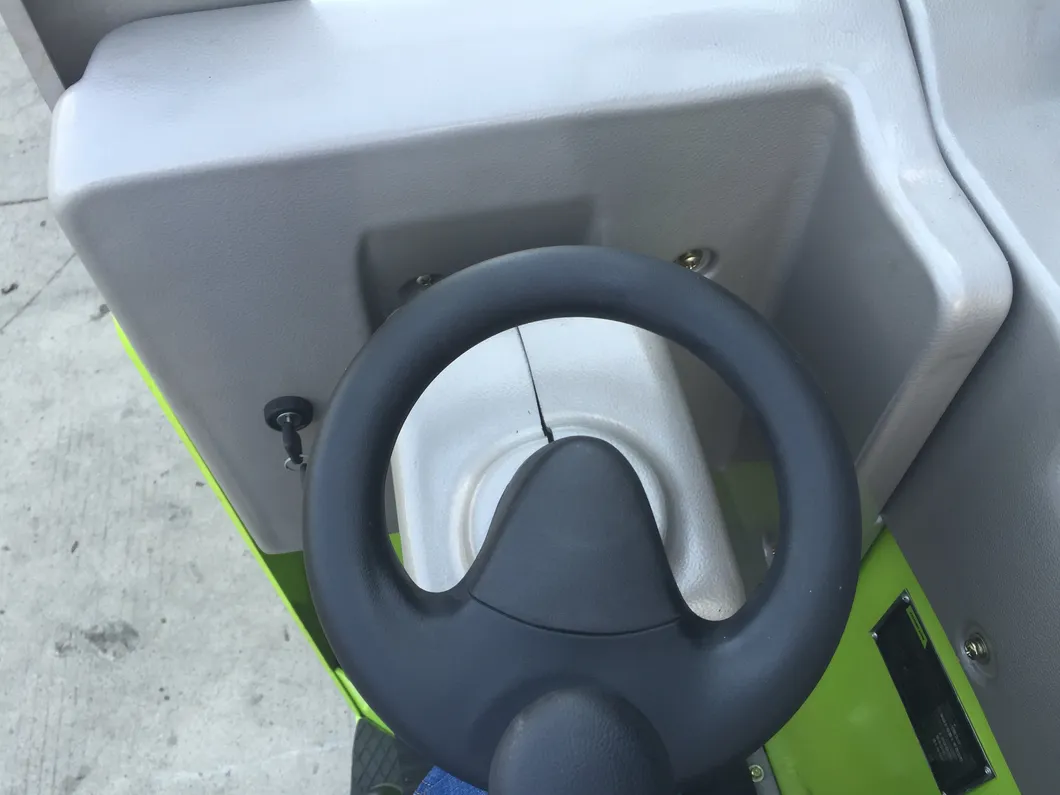

Steering System

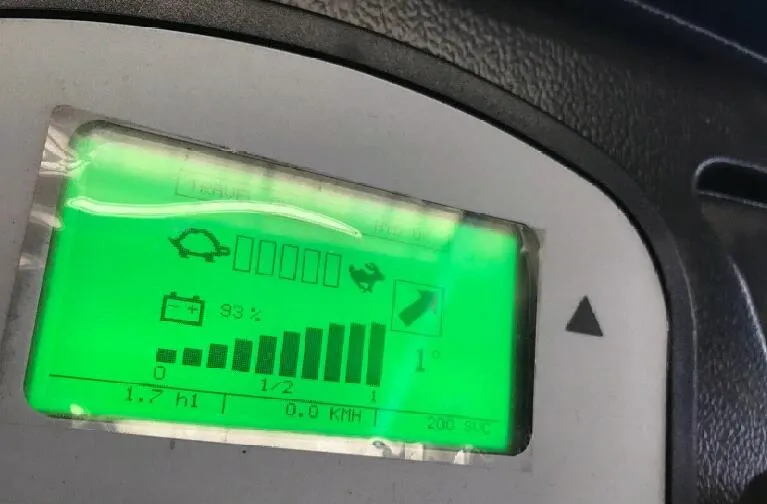

Curtis Display
🖥️
Intelligent Monitoring: Equipped with a multifunction USA CURTIS LCD display showing usage time, fault codes, battery status, and speed modes (Economic, Slow, High). This helps operators and service engineers diagnose issues quickly.
Frequently Asked Questions
Q1: What is the maximum lift height for this reach truck?
The lift height ranges from 3000mm up to 11000mm depending on the mast configuration.
Q2: What type of controller system is used?
It utilizes a high-quality USA Curtis controller with a MOSFET drive control system for precise handling.
Q3: Is the steering system manual or electric?
The truck is equipped with a fully electric steering (EPS) system to ensure flexible turning and maintenance-free operation.
Q4: How is battery maintenance handled?
The design allows for automatic removal and replacement of the battery box using a box handle controller, eliminating the need to hang the box manually.
Q5: What are the tire materials?
The truck uses high-durability Polyurethane (PU) tires for both driving and bearing wheels, ideal for indoor warehouse floors.
Q6: Can the speed modes be adjusted?
Yes, the Curtis LCD display allows for speed mode settings including Economic (E), Slow (S), and High (H) modes to suit different operational needs.
