LM Forklift
LM Forklift
| Model | CDD Series |
| Type | Gantry Stacker & Reclaimer |
| Battery Options | Lead Acid Battery / Lithium Battery |
| Lifting Height | 1.6m / 2m / 2.5m / 3m / 4m / 5m / 6m |
| Specification | 1t / 1.5t / 2t |
| Operation Mode | Stand-on Model / Walkie Full Model |
| Production Capacity | 50,000 Set/Year |

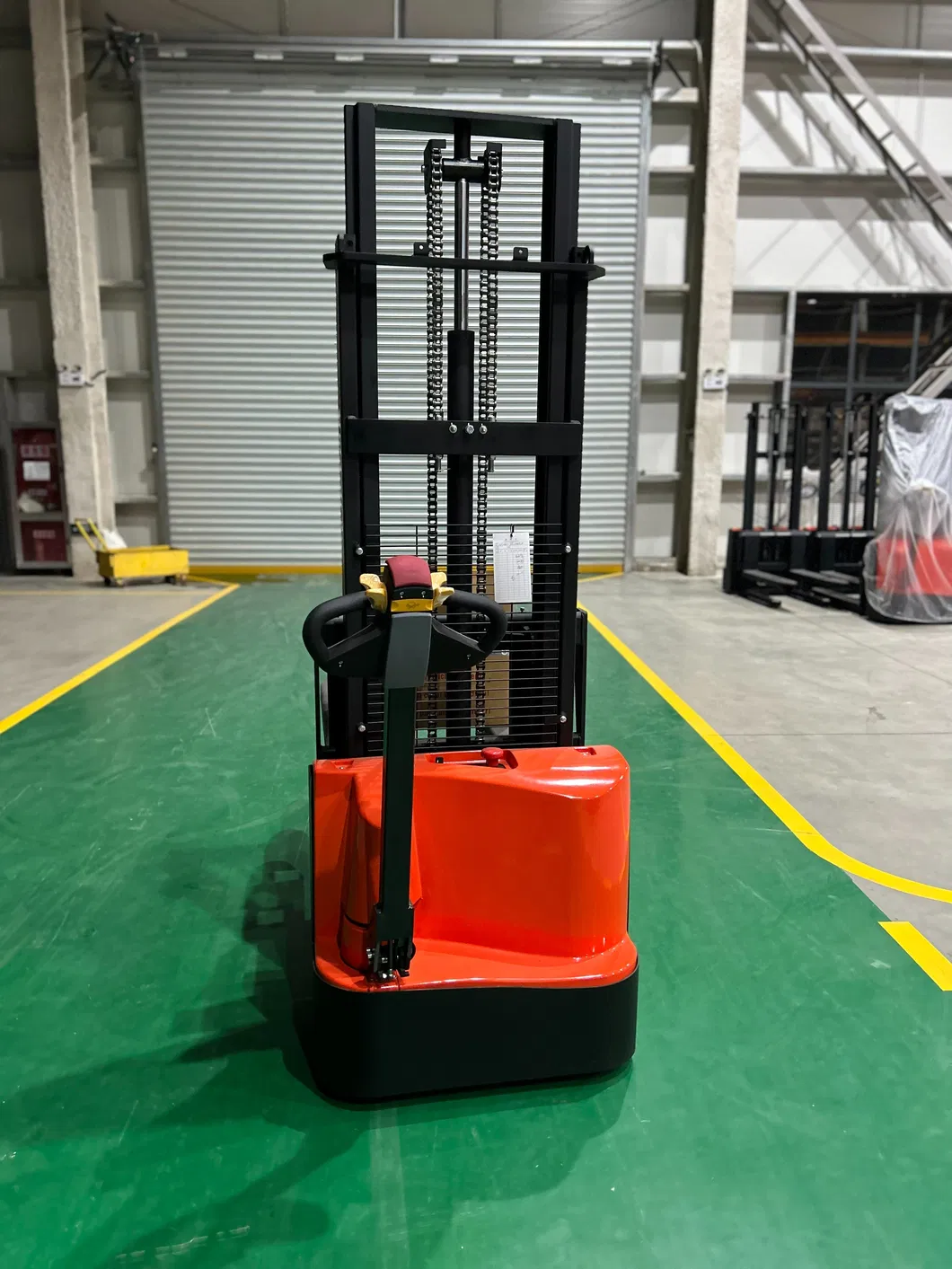

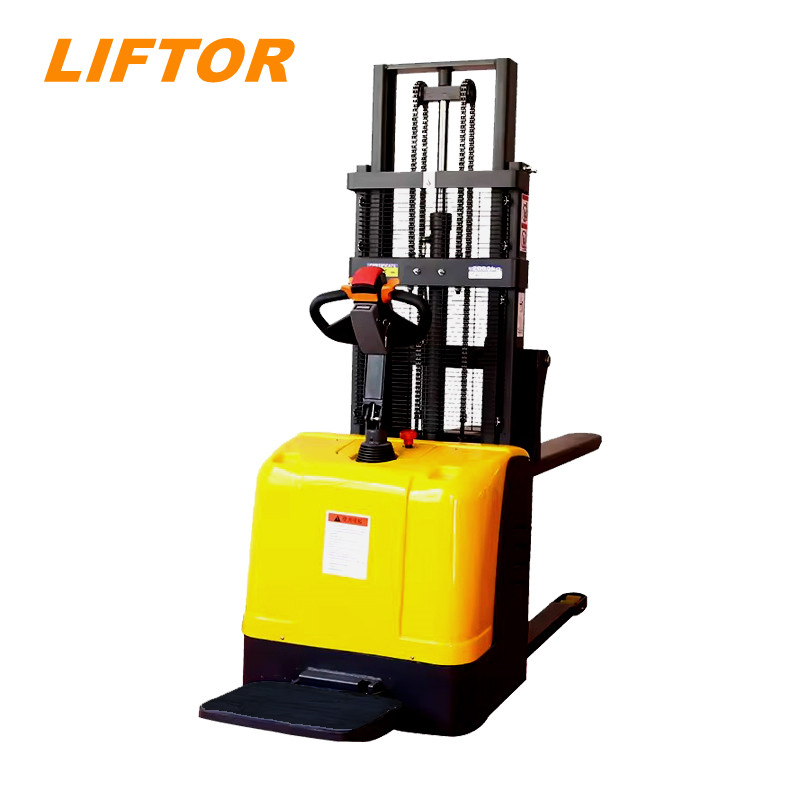

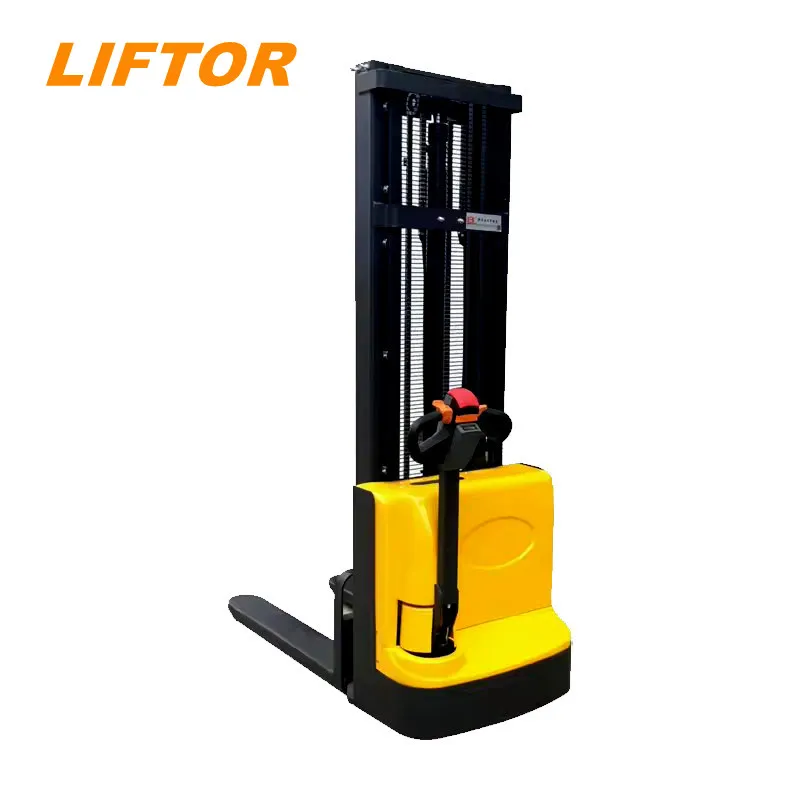

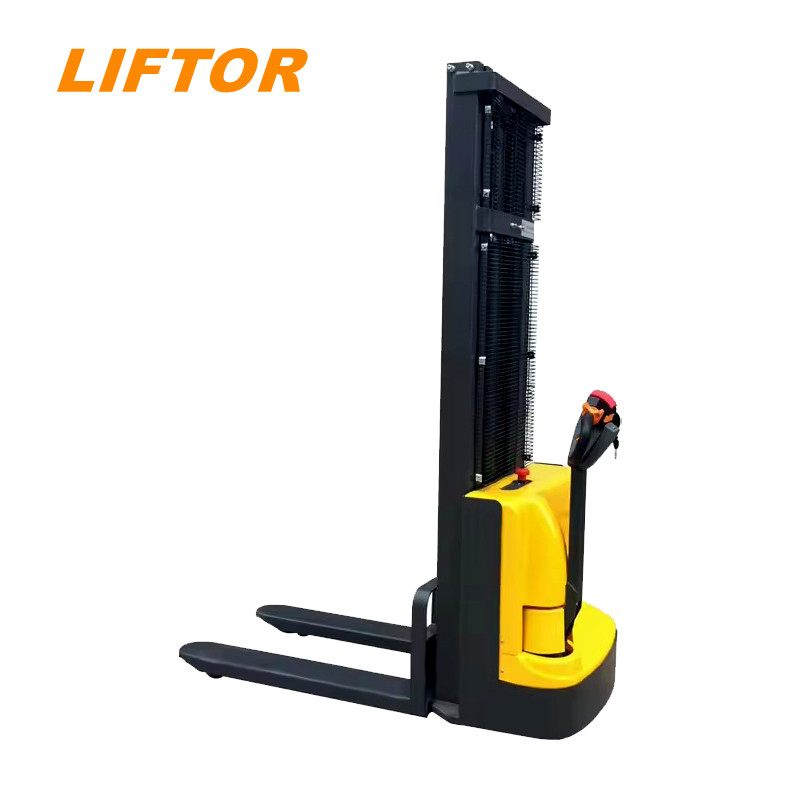

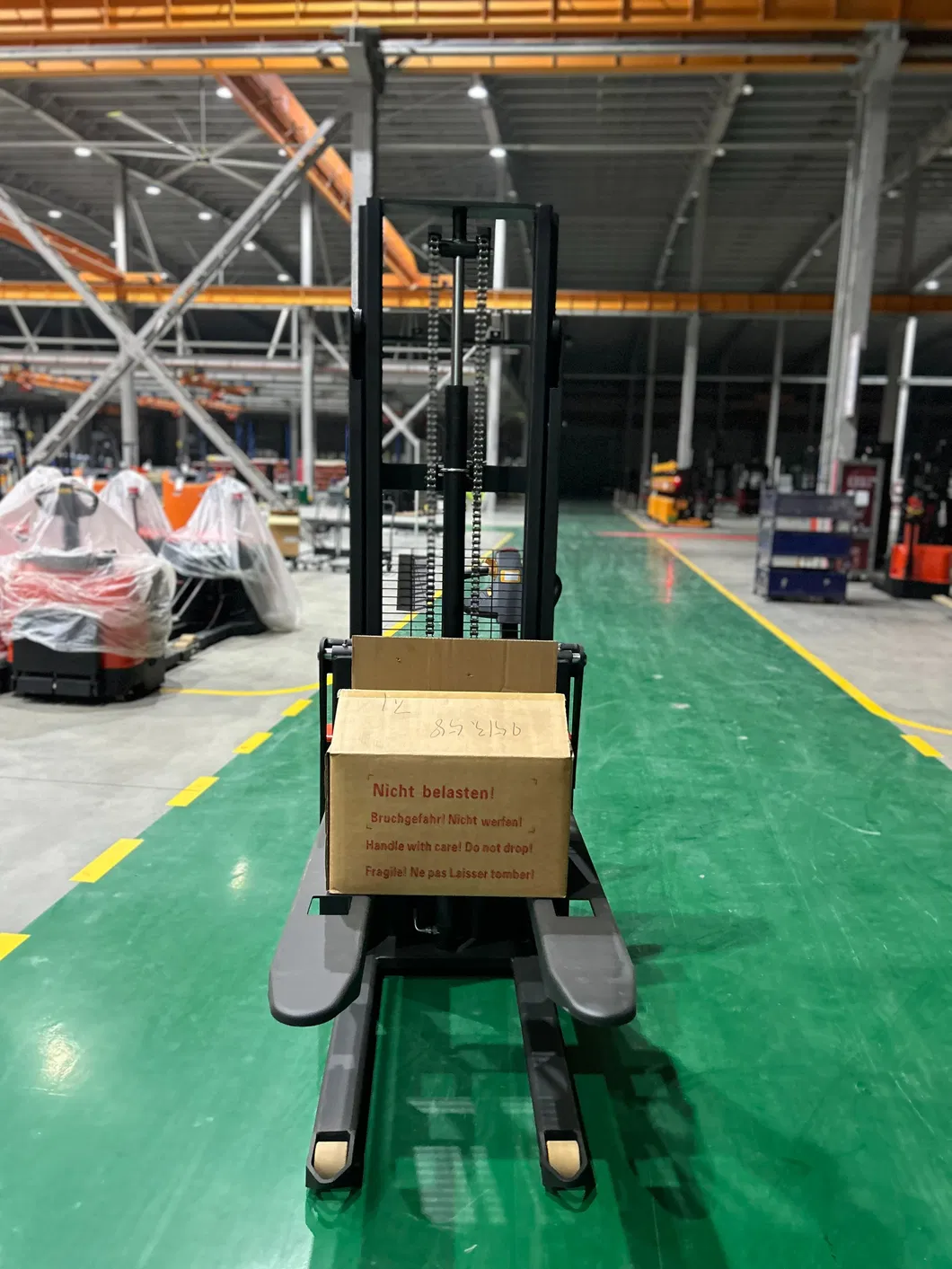

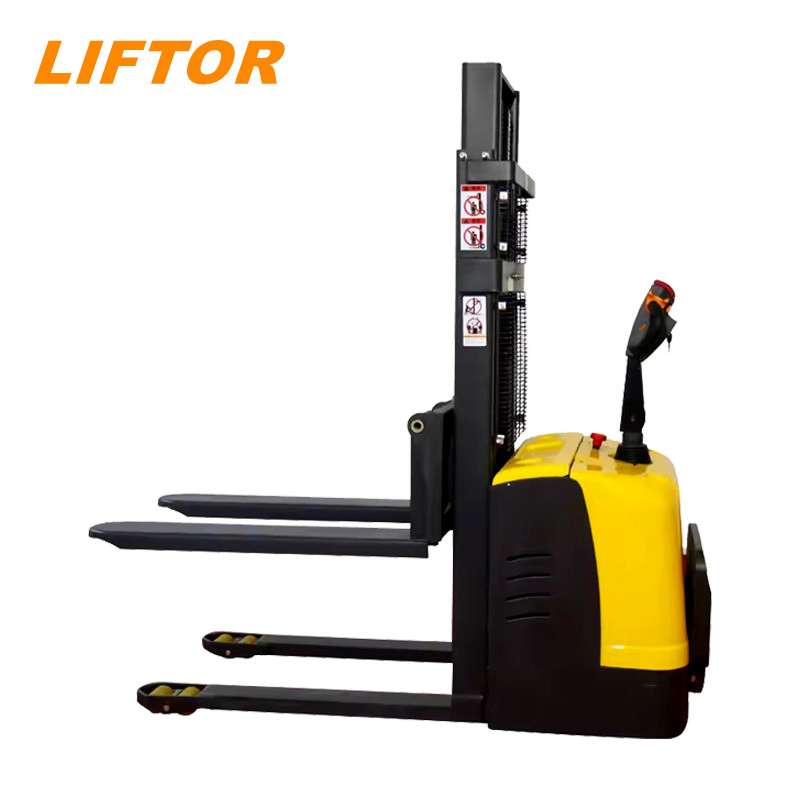

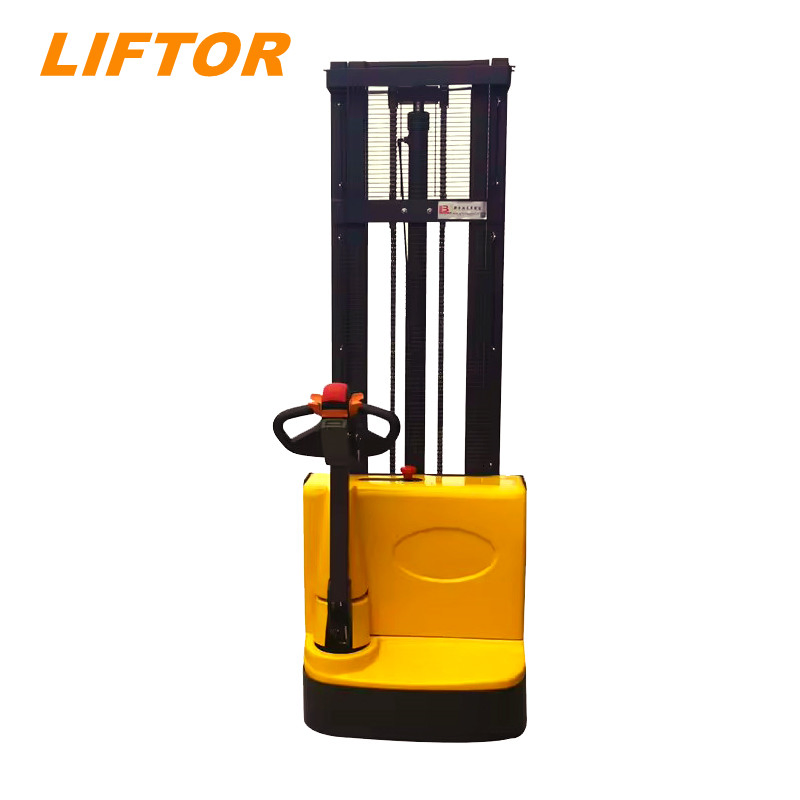

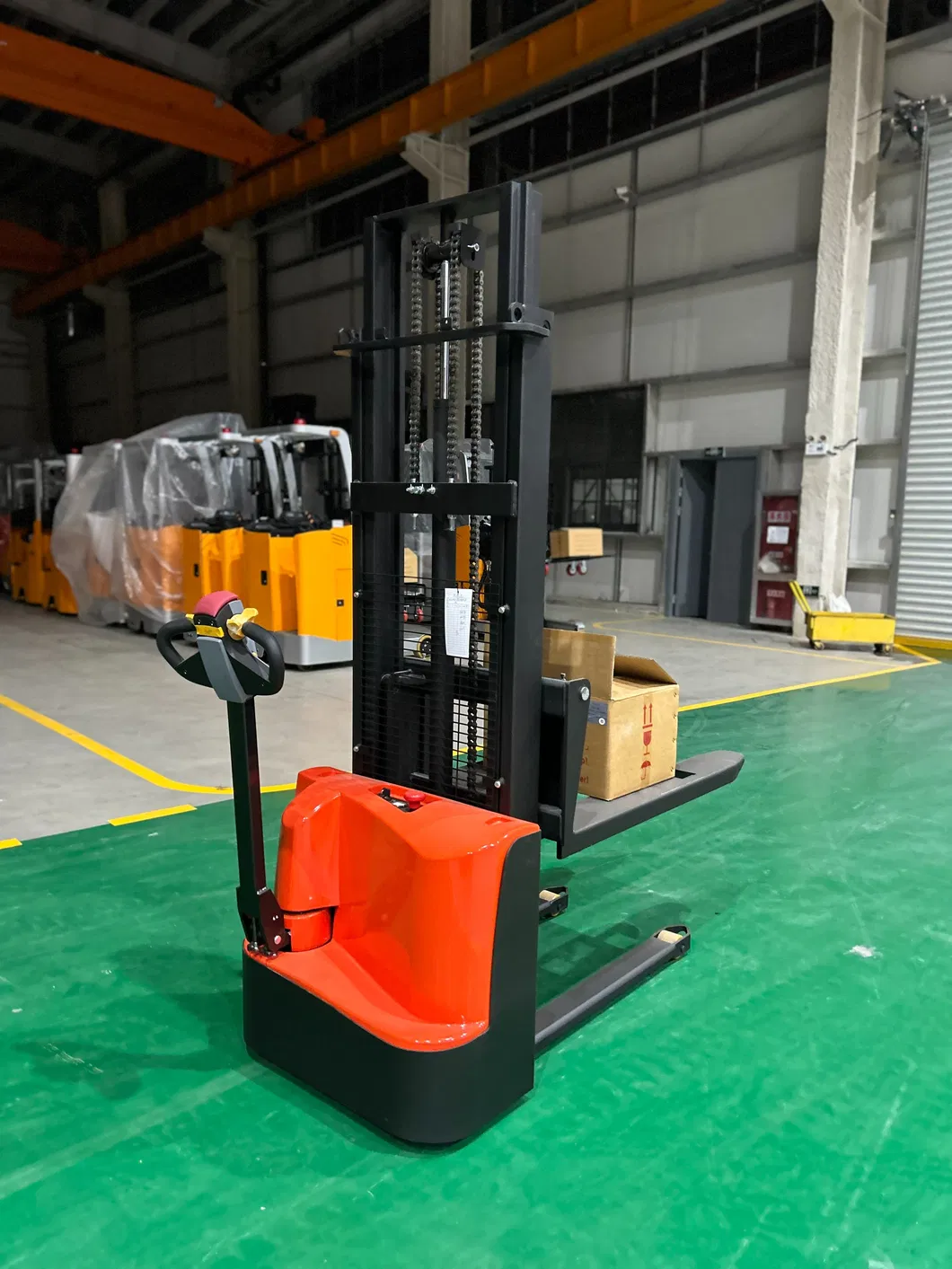

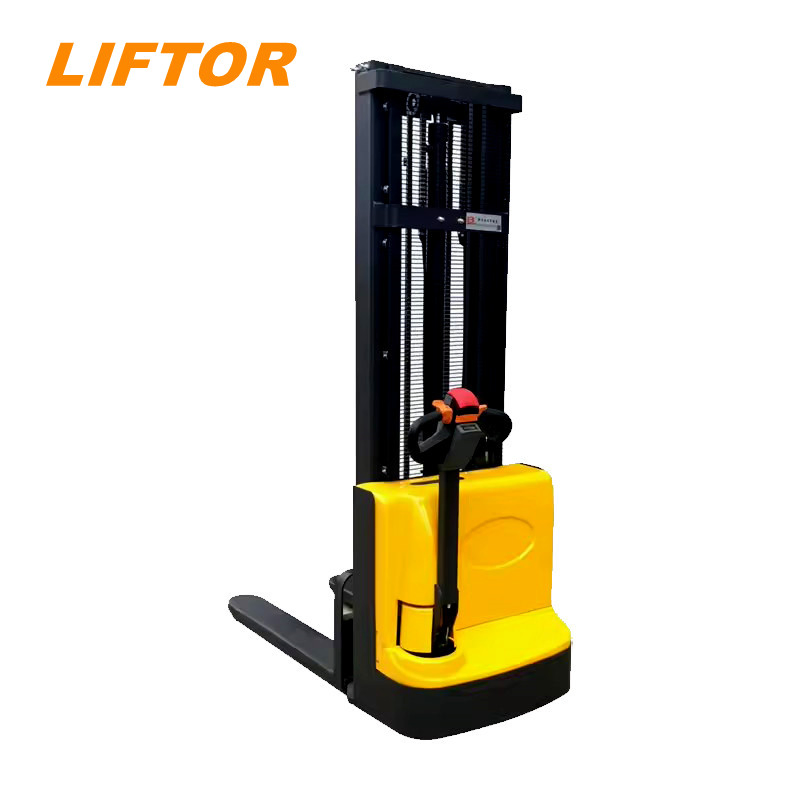

The walkie full electric stacker is a compact, energy-efficient material handling solution designed for maneuvering in tight spaces. It features a fully electric drive system, offering ease of operation, high load capacity, and improved stability. Ideal for warehouses, it reduces energy consumption while enhancing operational efficiency and safety.
Fully electric drive reduces energy consumption, improves operational efficiency, and lowers operating costs.
Small and agile, perfect for navigating narrow spaces and high-density storage shelving.
User-friendly design with intuitive controls and smart system integration for safety.
Robust load-bearing capability adaptable to various material handling needs.
| Model | CDD10A | CDD15A | CDD20A |
|---|---|---|---|
| Load | 1T | 1.5T | 2T |
| Lifting Height | 3000mm | 3000mm | 3000mm |
| Fork Length | 1070mm | 1070mm | 1070mm |
| Vehicle Size (LxWxH) | 1770x850x2090mm | 1770x850x2090mm | 1770x850x2090mm |
| Min. Turning Radius | 1390mm | 1390mm | 1390mm |
| Drive Motor | 0.75kw DC | 0.75kw DC | 0.75kw DC |
| Lifting Motor | 2.2kw DC | 2.2kw DC | 2.2kw DC |
| Battery | 24V/80A | 24V/80A | 24V/80A |

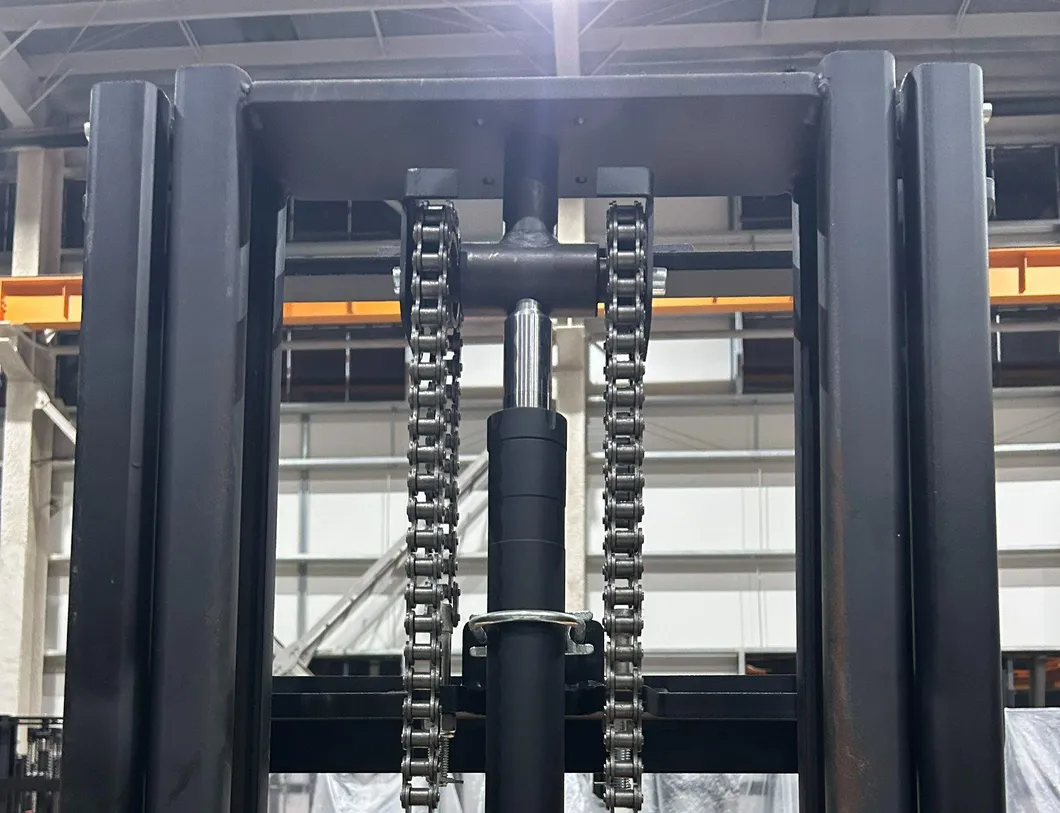

Features a thicker "C" door frame steel. The selection of high-grade, thicker steel significantly extends the operational life of the door frame.
The entire vehicle utilizes thickened steel plates, ensuring the body is sturdy, durable, and capable of heavy-duty tasks.

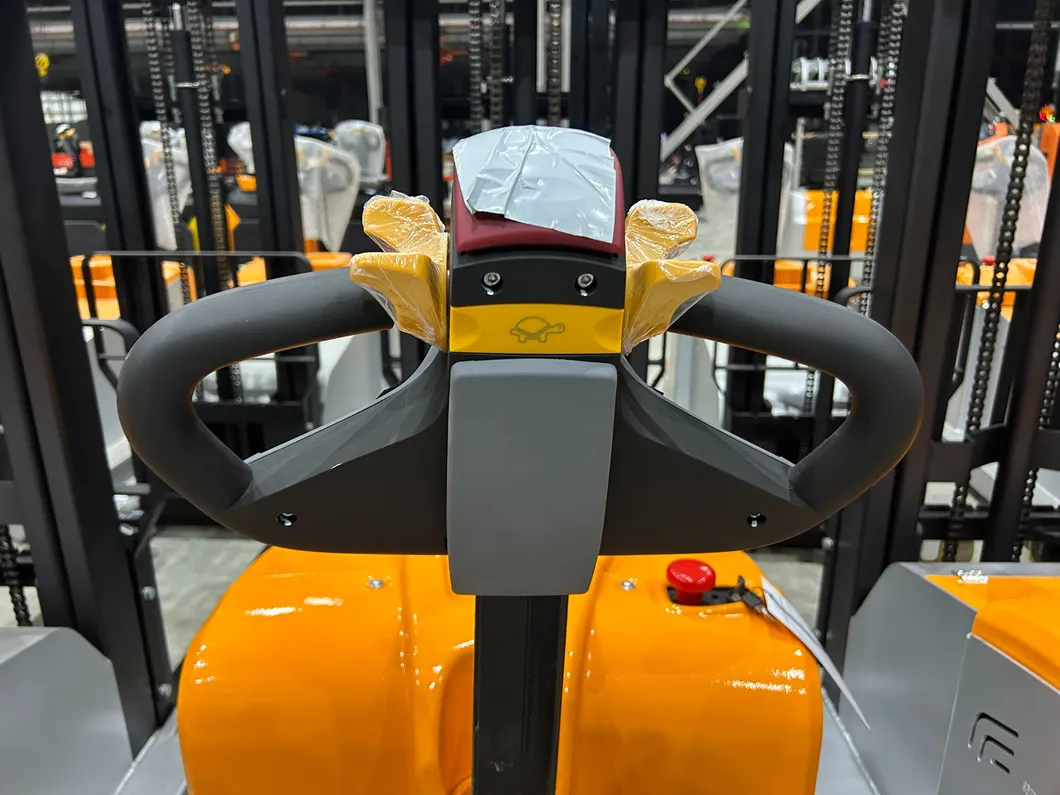

Equipped with a multifunctional handle for lifting, speed adjustment (turtle/hare mode), power display, and emergency reverse functionality.

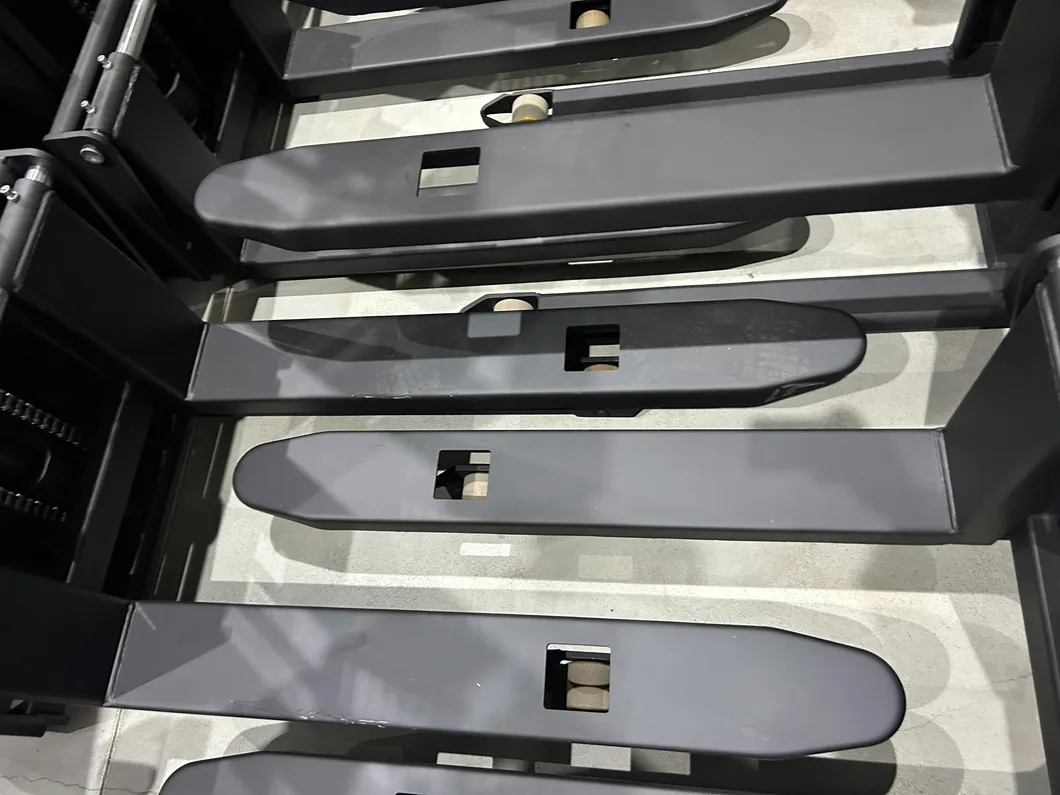

Reinforced thick forks are adjustable, making it easy to operate across various pallet sizes and warehouse configurations.

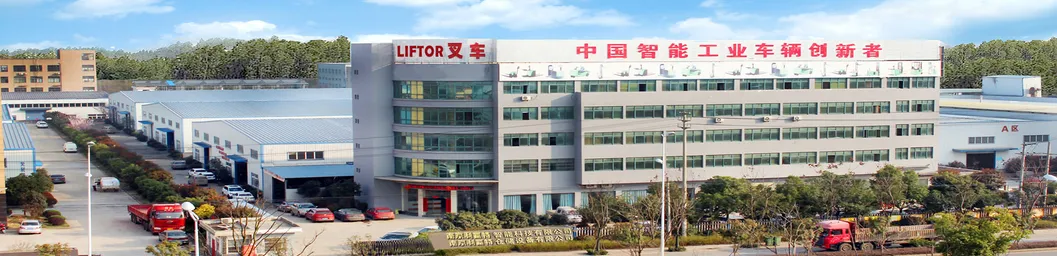

We are a high-tech enterprise professionally specialized in R&D, production, sales, and service of electric forklifts, diesel forklifts, pallet trucks, and stackers. Equipped with advanced manufacturer technology, processing equipment, and a perfect product testing center.
Our main storage equipment includes electric trucks, stacking cars, reach forklifts, towing vehicles, order pickers, AGV pilotless trucks, and counterbalanced forklifts. These are widely used in various modern logistics environments.
