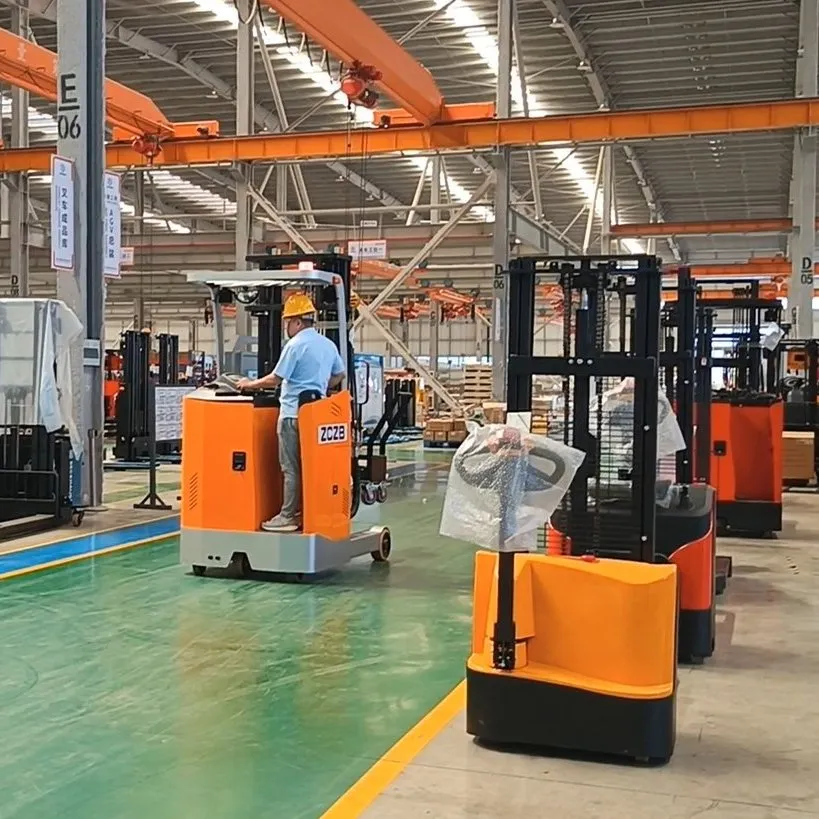

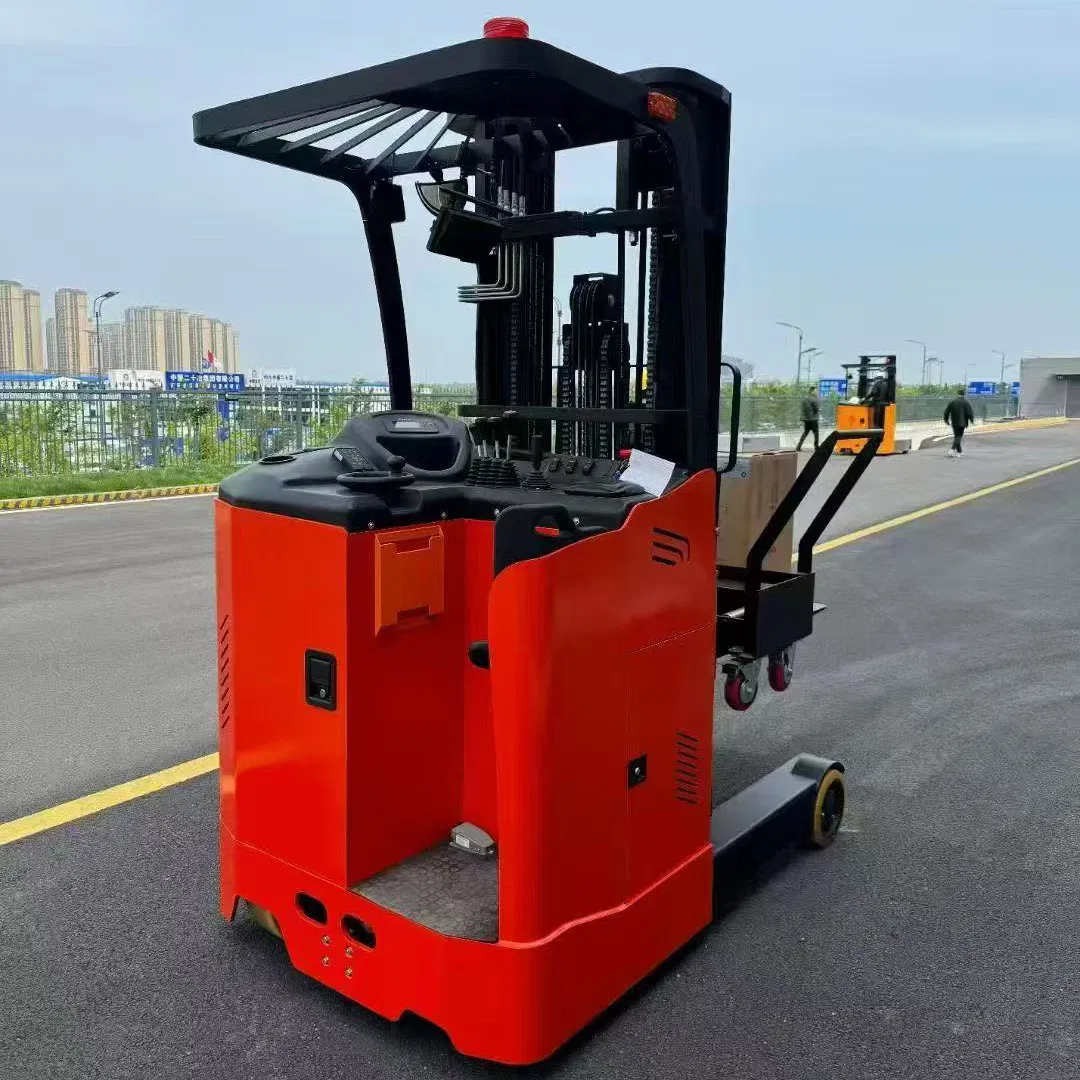

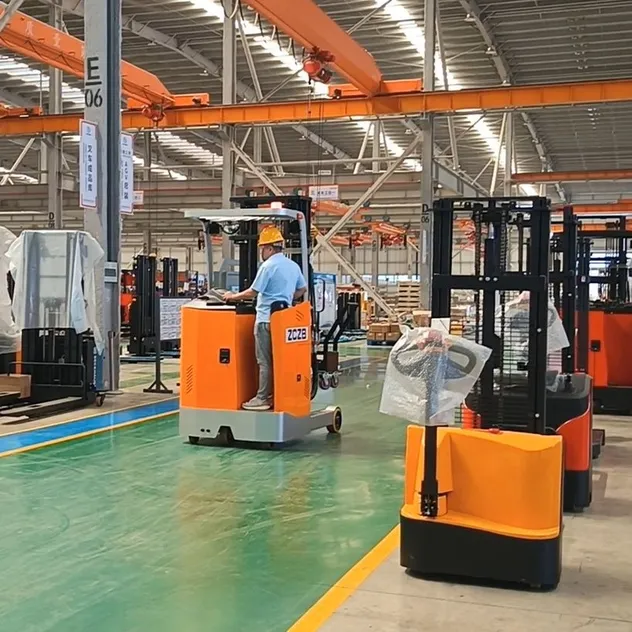

LM Forklift
LM Forklift
| Model | CQDE20H-100S | Type | Reach Forklift |
|---|---|---|---|
| Power | DC Motor / Electric | Load Capacity | 1T - 5T (Rated 2000kg) |
| Lift Height | >5000mm (Max 12000mm) | Load Center | 500mm |
| Condition | New | Driving Position | Standing, Sitting, Side-Sitting |
| Safety System | Anti-Collision, Anti-Rollover, Load Monitoring | Mast Type | Standard, Wide Field, Full Free Lifting |
| Category | Parameter | Specification |
|---|---|---|
| General | Model | CQDE20H-100S |
| General | Rated Load Capacity | 2000 kg |
| General | Wheelbase | 1650 mm |
| Weight | Weight (Incl. Battery) | 5860 kg |
| Dimensions | Lifting Height (h3) | 12000 mm |
| Dimensions | Mast Lowered Height (h1) | 4375 mm |
| Dimensions | Overall Length | 2515 mm |
| Performance | Travel Speed (Loaded) | 6.8 km/h |
| Performance | Max Gradeability | ≤10% |
| Motor | Lift Motor Power | 12 kW |
| Battery | Voltage/Capacity | 48V/350Ah (Lithium) |
Our team is comprised of highly educated, efficient, and vibrant professionals. Our technicians possess extensive experience in mechanical, electrical, and hydraulic systems.

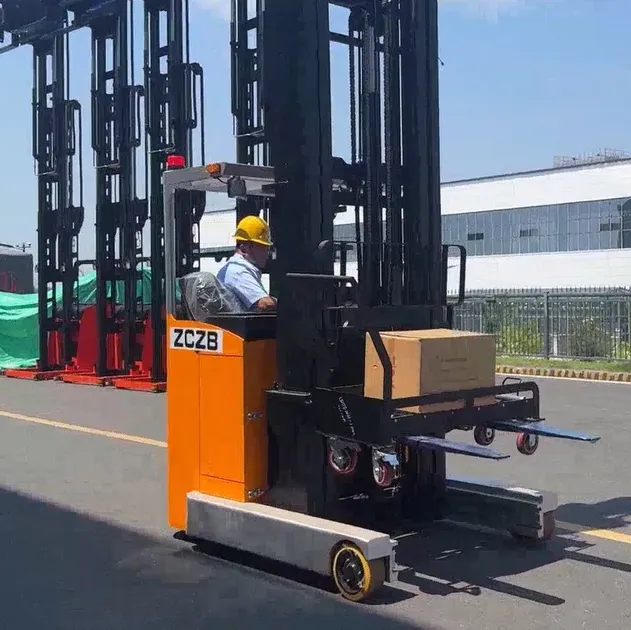

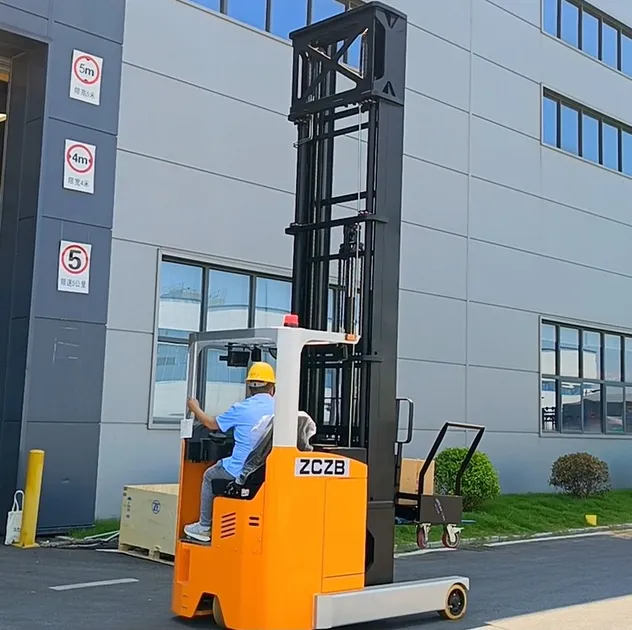

A1: This model is designed for high-reach storage, with a maximum lifting height of up to 12,000mm (12 meters).
A2: The maintenance-free AC drive system offers superior operational stability, regenerative braking, and eliminates the need for brush replacement required in traditional DC motors.
A3: For standard stock items, lead time is 5-10 days. For customized orders tailored to specific requirements, lead time is approximately 20 days.
A4: Yes, it is equipped with a branded control system featuring multi-layer automatic protection, including anti-collision and load monitoring functions.
A5: Absolutely. It features a side-extraction battery design with a standard roller cart, facilitating effortless battery changeover for multi-shift operations.

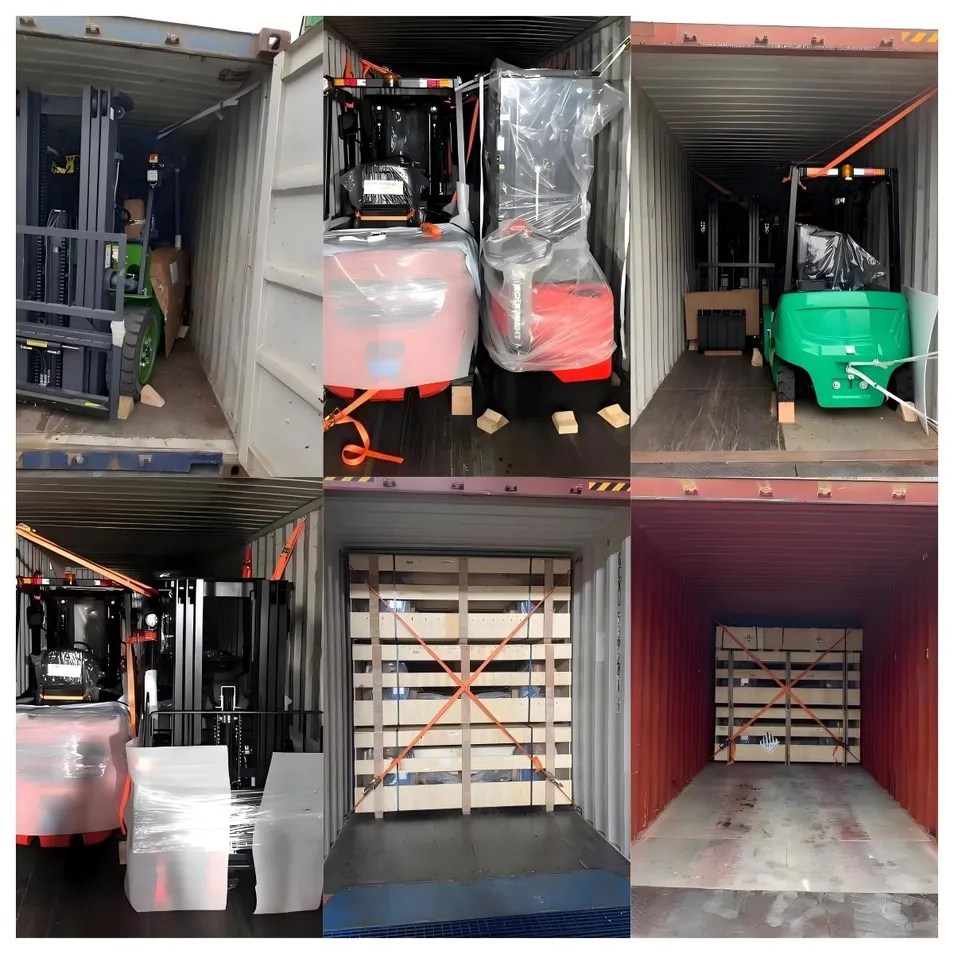

A6: We use VCI (Volatile Corrosion Inhibitor) film combined with desiccants to guarantee 30-day corrosion-free transportation during sea transit.
