LM Forklift
LM Forklift
| Model NO. | ZCY | Material | Stainless Steel |
|---|---|---|---|
| Material Feature | Fire Resistant | Certification | ISO9001:2008, ISO9001:2000 |
| Energy Saving | Energy Saving | Warranty | 1 Year |
| Color | Yellow | Customized | Customized |
| Condition | New | After-sales Service | 7*24 Hours |
| Bucket Width | 1480~1770 mm | Max Dump Height | 1550~1650 mm |
| Max Dump Angle | 55° | Max Travel Speed | 34~36 M/Min |
| Min Ground Clearance | 180~200 mm | Max Underbed Depth | 600 mm |
| Gradability | ±16° | Production Capacity | 1000pieces/Year |
| Package Size | 4500.00cm * 1200.00cm * 1560.00cm |
|---|---|
| Package Gross Weight | 5200.000kg |

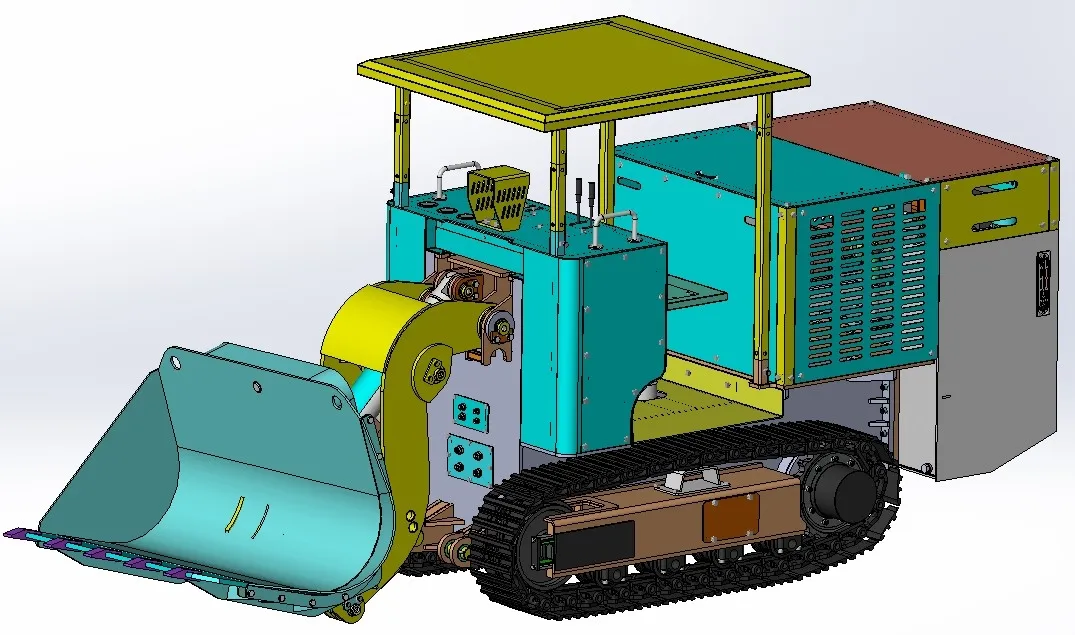

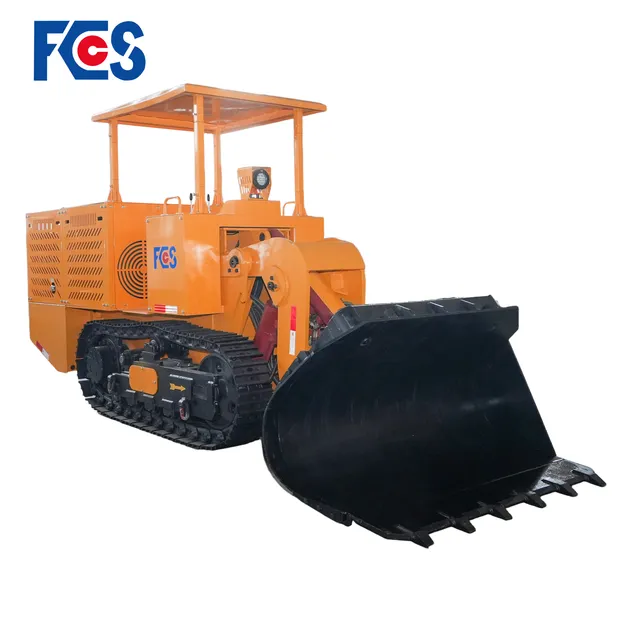

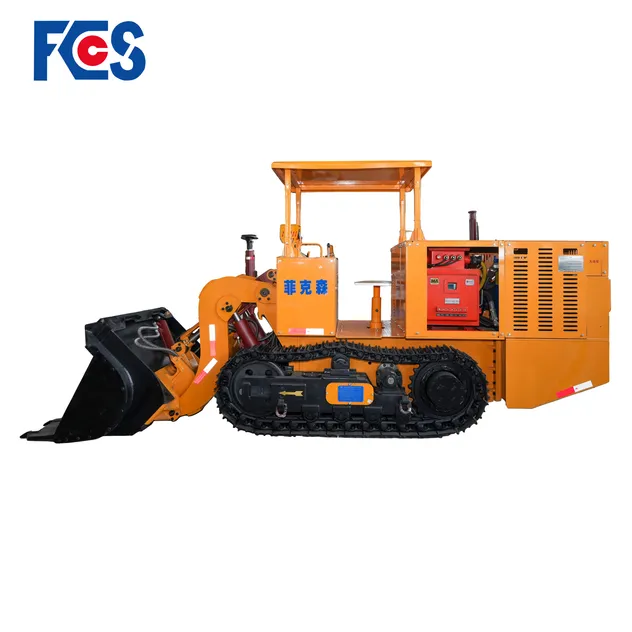

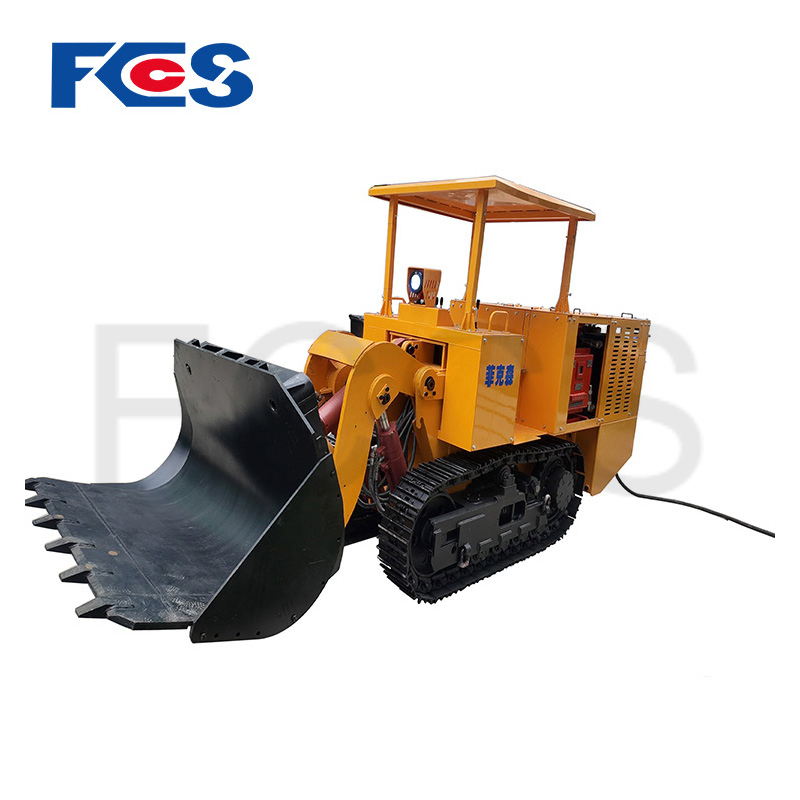

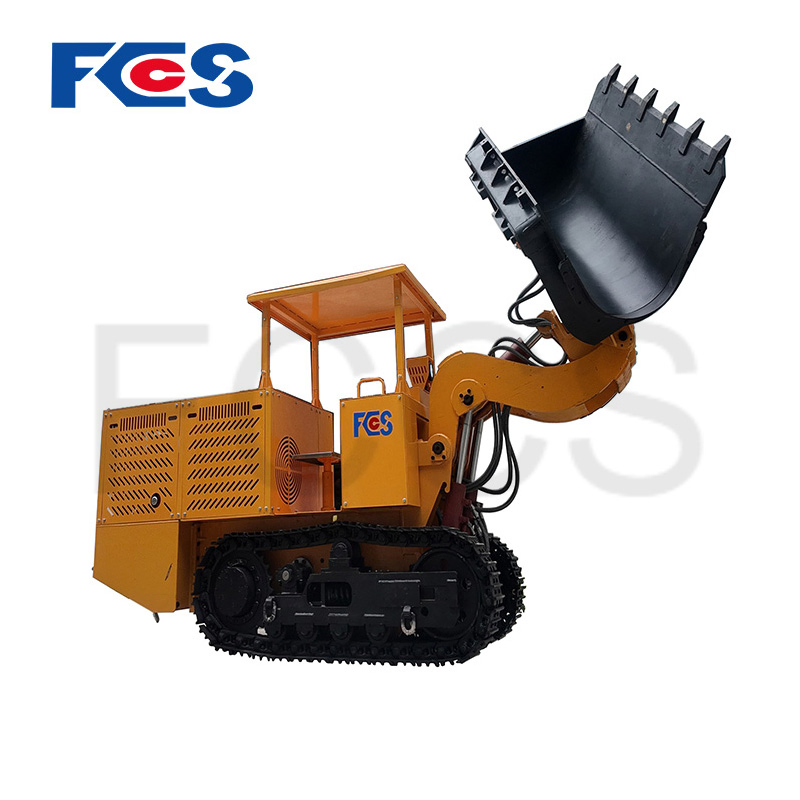

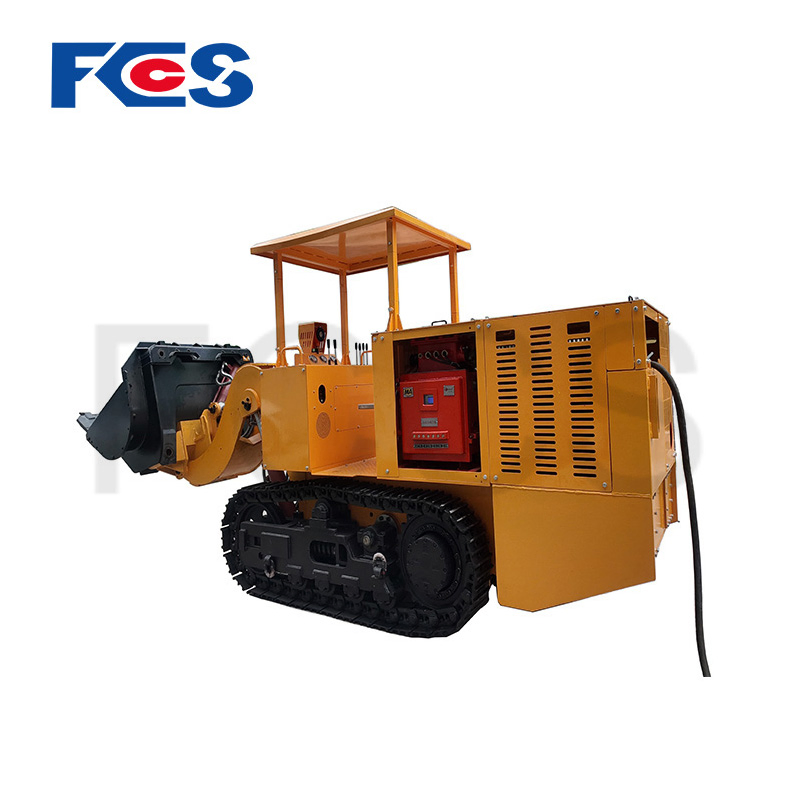

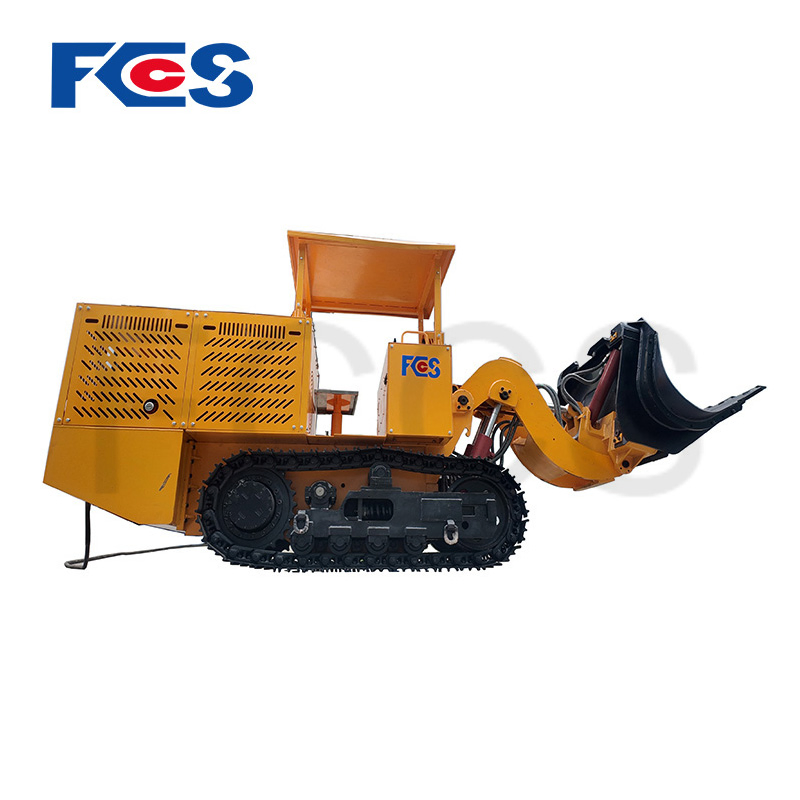

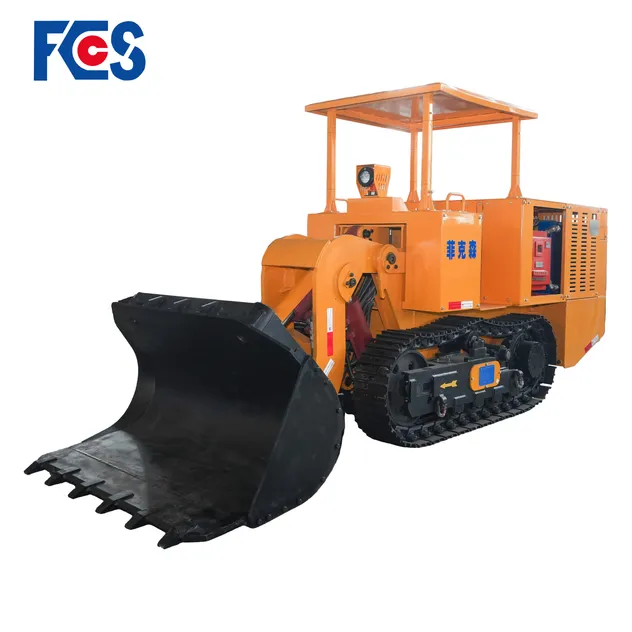

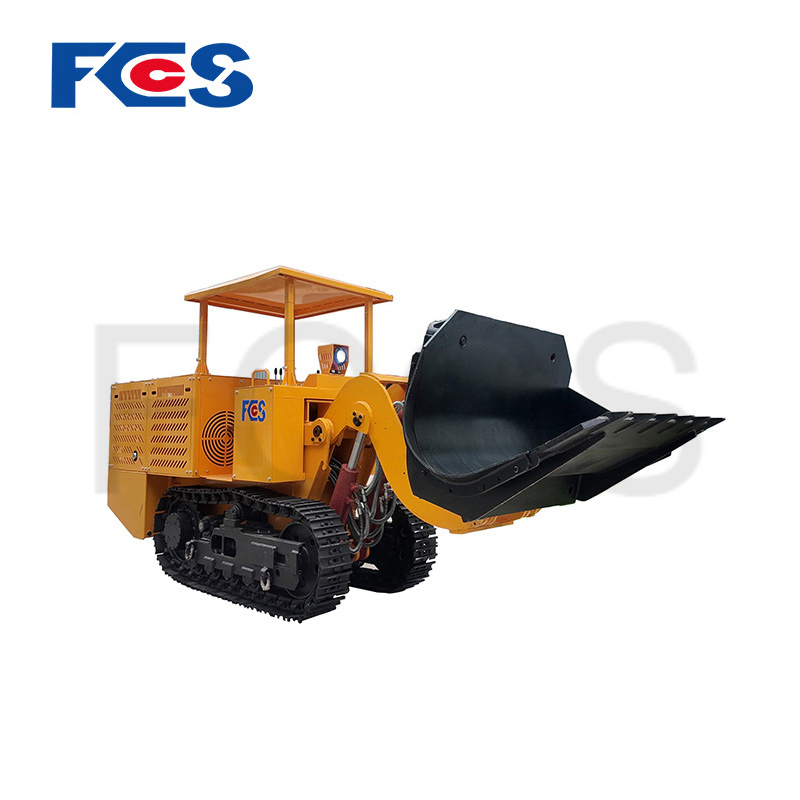

The ZCY45R Side Dump Rock loader is a tracked, trackless loading device primarily used in coal and semi-coal-rock roadways. It is also highly effective in small-section full-rock roadways for loading coal, rock, and other materials. This product features high insertion force, excellent maneuverability, full-section operation, high safety, and multi-purpose functionality. Beyond loading, it serves as a working platform during support operations, facilitating short-distance transport, bottom-level work, and sidewall cleaning.
| No. | Parameter Name | ZCY45R Data |
|---|---|---|
| 1 | Overall Dimensions (L×W×H) mm | 4500×1200×1560 |
| 2 | Technical Bucket Volume (m³) | 0.45 |
| 3 | Bucket Width (mm) | 1480 |
| 4 | Maximum Unloading Height (mm) | 1550 |
| 5 | Maximum Unloading Angle (°) | 55 |
| 6 | Maximum Travel Speed (m/min) | 34 |
| 7 | Minimum Ground Clearance (mm) | 180 |
| 8 | Maximum Bottom Depth (mm) | 600 |
| 9 | Climbing Ability (°) | ±16 |
| 10 | Track Shoe Width (mm) | 260 |
| 11 | Track Ground Pressure (MPa) | ≤0.1 |
| 12 | Hydraulic Pump Motor Power (kW) | 30 |
| 13 | Voltage (V) | 1140/660 |
| 14 | Walking/System working pressure (MPa) | 19 / 15 |
| 15 | Machine weight (kg) | 5200 |

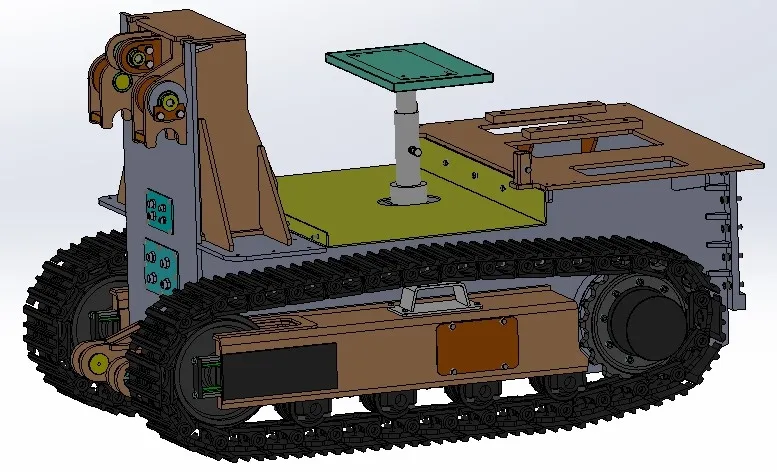

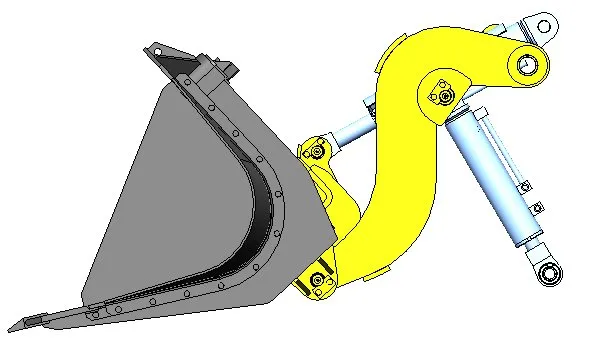

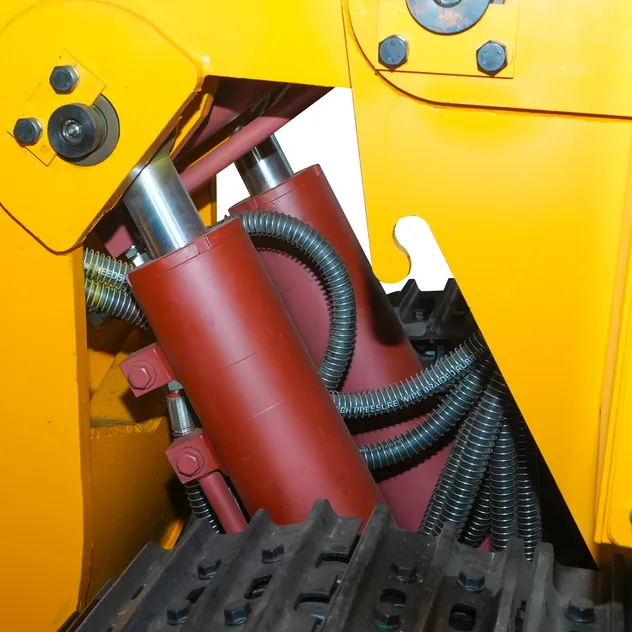

The parallel mechanism between the bucket arm and the support ensures lifting without tilting. The side-dumping cylinder allows for efficient unloading to either side. The bucket shovel plate uses high wear-resistant steel, ideal for hard sandstone and abrasive materials.
