Electric Articulated Forklifts Very Narrow Aisle Forklift Articulated Narrow Aisle Forklift Master Vna Very Narrow Aisle Turret Truck Vna Forklift Truck

1 / 5

Electric Articulated Forklifts Very Narrow Aisle Forklift Articulated Narrow Aisle Forklift Master Vna Very Narrow Aisle Turret Truck Vna Forklift Truck

Customization:	Available
After-sales Service:	1 Year
Warranty:	1 Year

Send Inquiry

Product Description

Basic Info.

Model NO.

MCC1615

Type

Electric Forklift

Power

AC Motor

Load Capacity

1T - 5T

Fuel

Electric

Load center

500mm

Lift height

3000-9000mm

Condition

New

Turning Radius

1880mm

Origin

China

HS Code

8427109000

Product Specifications

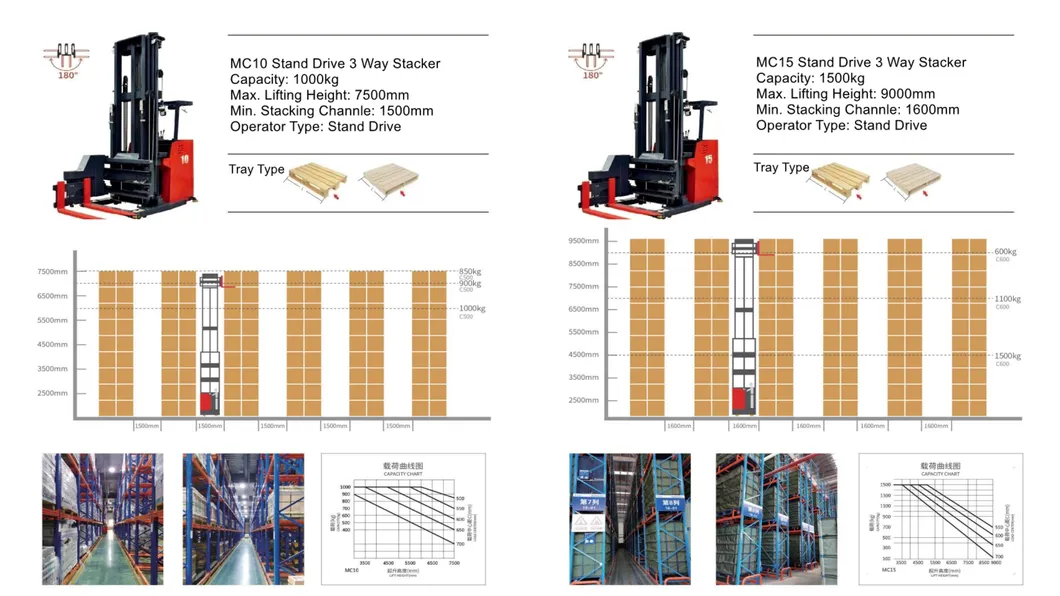

Model	Unit	MC10	MC10SQ	MC15	MC15SQ
Power type	-	Battery	Battery	Battery	Battery
Operation Type	-	Stand-on	Stand-on	Stand-on	Stand-on
Service weight	kg	4260	4800	4690	5520
Rated capacity	kg	1000	1000	1500	1500
Load center	mm	500	500	600	600
Lift height	mm	3000	4500	3000	4500
Turning radius	mm	1880	1880	1980	1980
Travelling speed (laden/unladen)	km/h	7.5/8	7.5/8	7.5/8	7.5/8

Applications

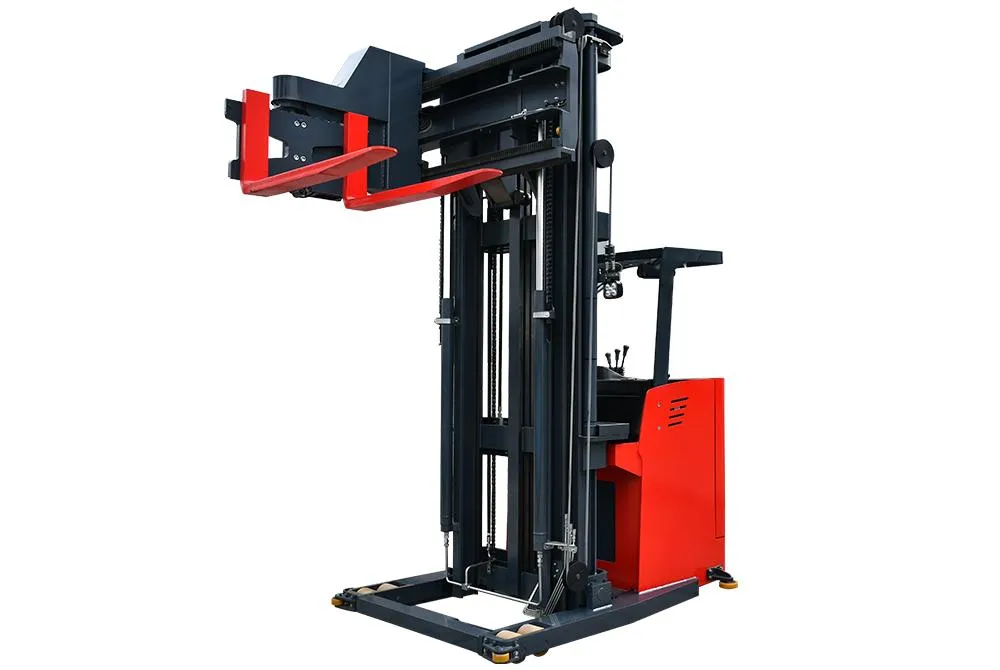

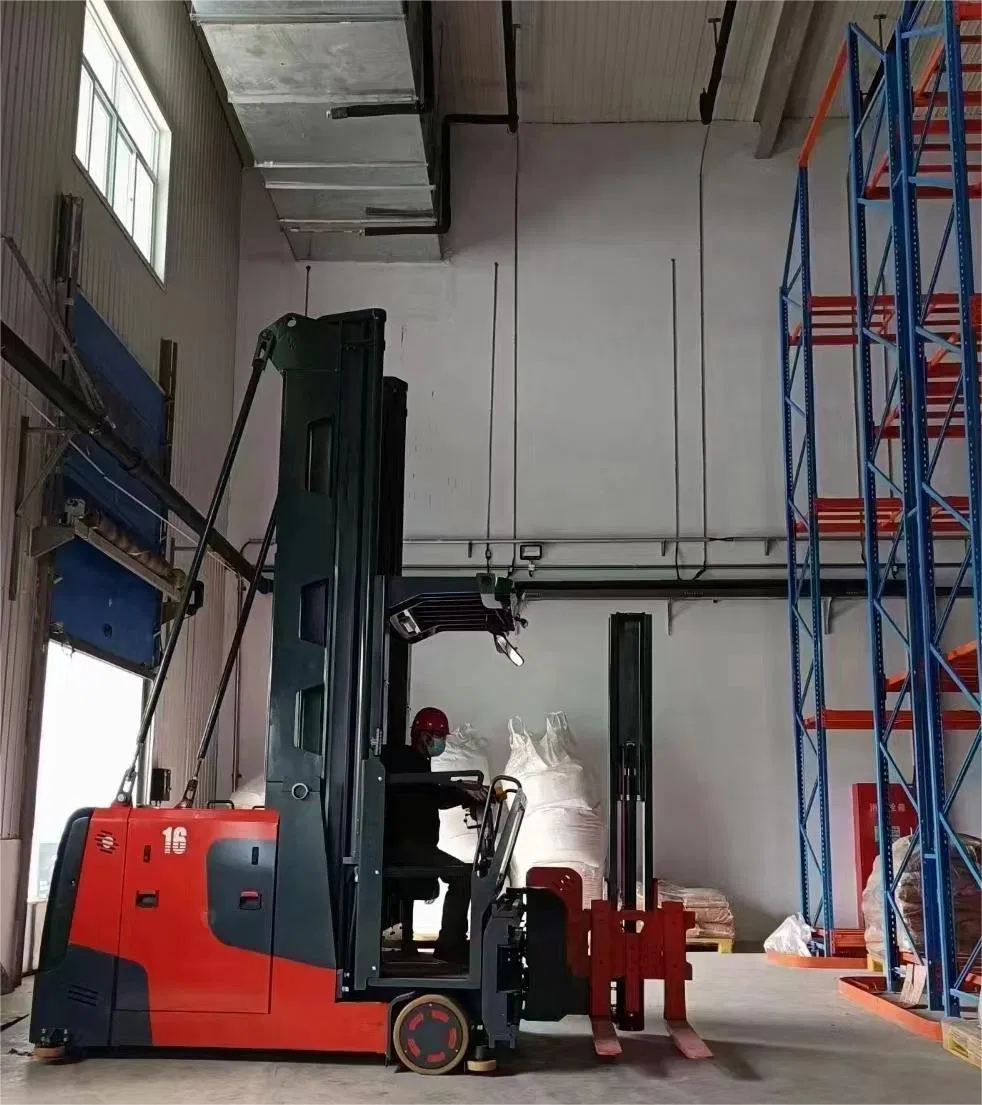

MC Series 1.0-1.5T 3-way pallet stacker (Stand-on Driving type) features a 3-way stacking function: forks can rotate 180° and perform left-right side shifts without body turning.

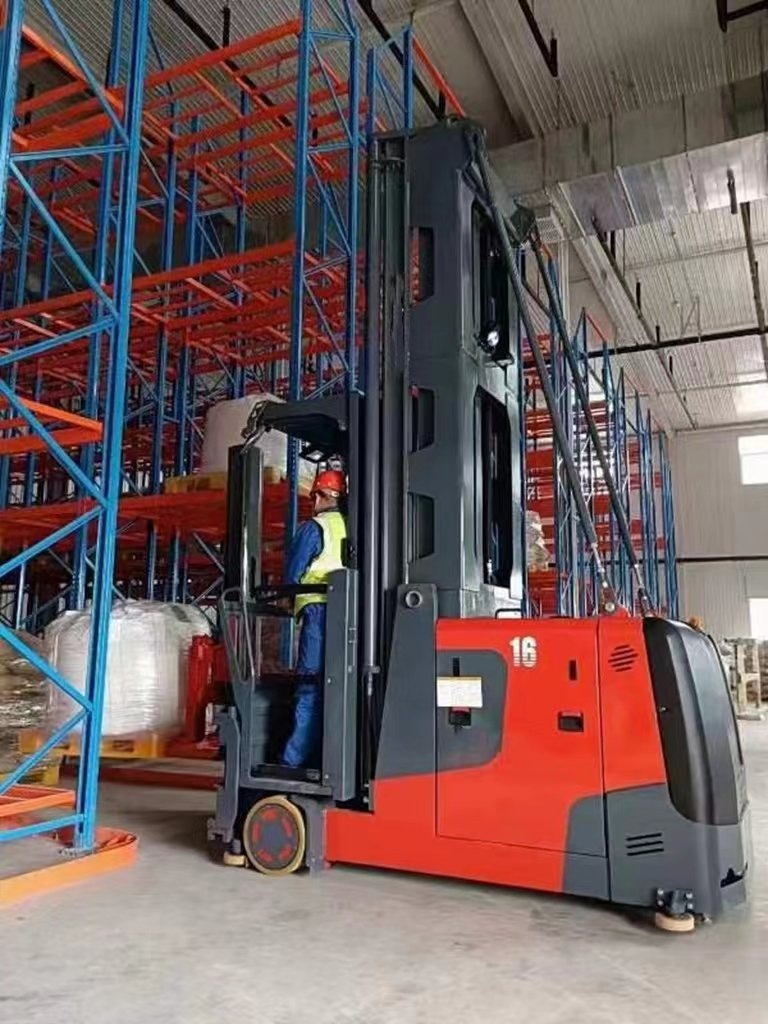

Ideal for intensive storage in logistics, medicine, food, and cold storage industries.

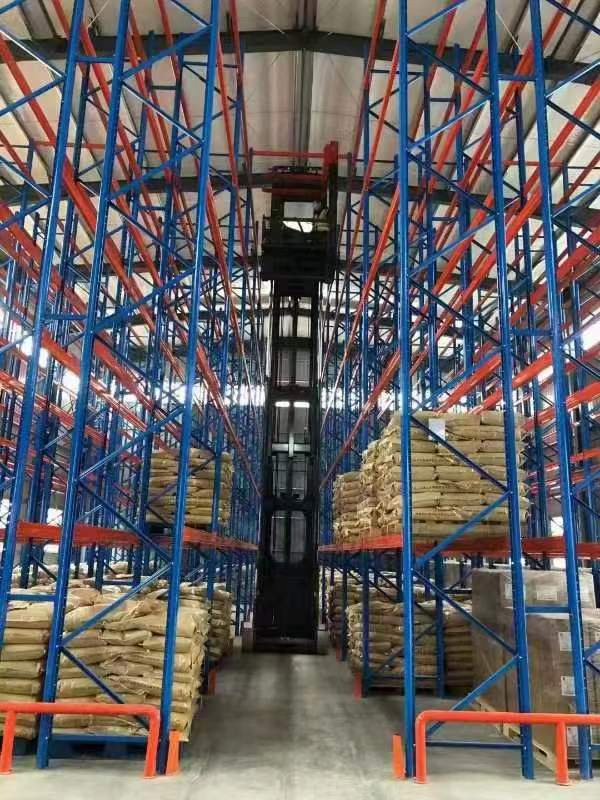

Designed for stacking in ultra-narrow roadways and high-shelf systems.
Efficient horizontal handling and cargo loading/unloading.

Main Features

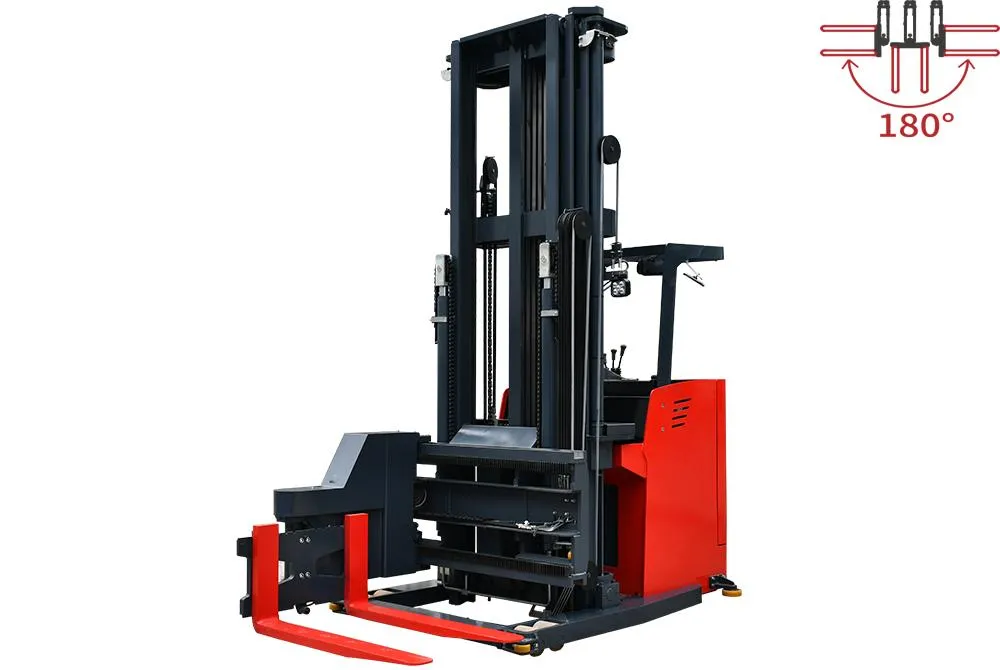

3-way forks rotate 180° with high strength mast. Min. channel: 1500mm; Max. lift: 9000mm.

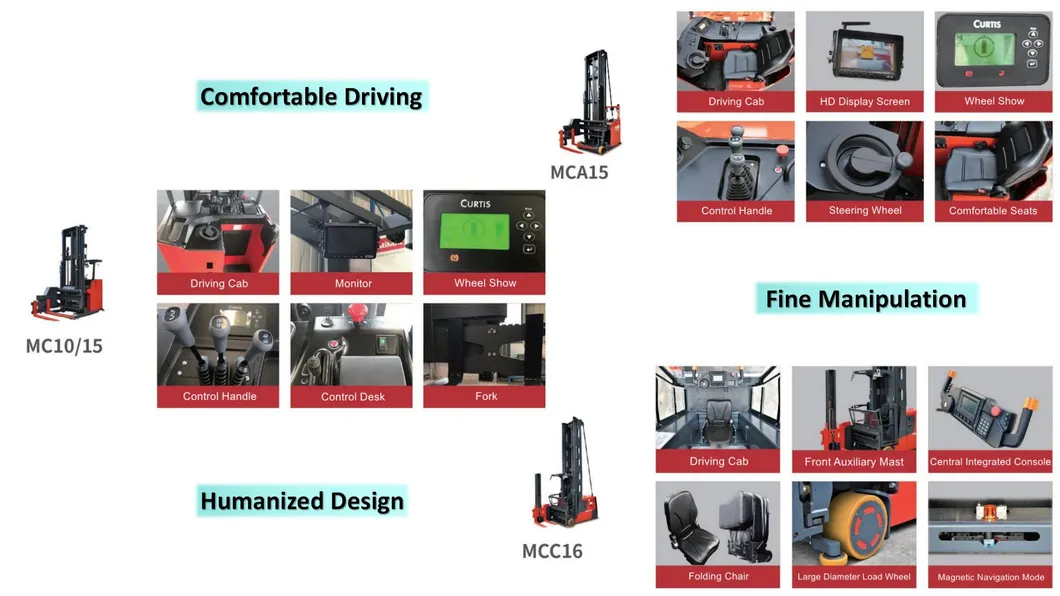

Advanced Curtis controller and full-AC system for energy conservation.
Maintenance-free AC driving system for quick, accurate reaction and low noise.
Standard electric power steering for safe and comfortable operation.
Large section mast design ensures rigidity for high shelf storage.
Imported hydraulic parts and side-pull battery for easy maintenance.

Premium Components

1	Gantry channel steel imported from Germany with shock absorption.
2	Maintenance-free AC drive motor and imported AC controller.
3	Danfoss or Eaton side shift and rotary motors.
4	Japan Tokai Rubber and Plastic Pipe; Tianjin Shimadzu Gear Oil Pump.
5	American AMP waterproof and dustproof plug-ins.
6	Japanese NOK seals and German SICK brand steering sensor switch.

Our Service

Pre-Sales

Inquiry and consulting support.
Photos & Videos of your order before shipment.
Factory visiting support.

After-Sales

Operation training and user manuals.
Life-time supply for spare parts.
24-hour technical email support.

Warranty

One year guarantee for main parts.
Maintenance tool boxes included.

Frequently Asked Questions

What is the advantage of a 3-way pallet stacker?

The forks can rotate 180° and shift left or right, allowing for stacking in ultra-narrow aisles without the need for the forklift body to turn.

What is the maximum lifting height available?

The MC series offers a lifting height range from 3000mm up to 9000mm, suitable for high-shelf storage.

Does the forklift require frequent maintenance?

No, it uses a maintenance-free AC driving system and motors, which significantly reduces maintenance costs and downtime.

Is this forklift suitable for narrow aisles?

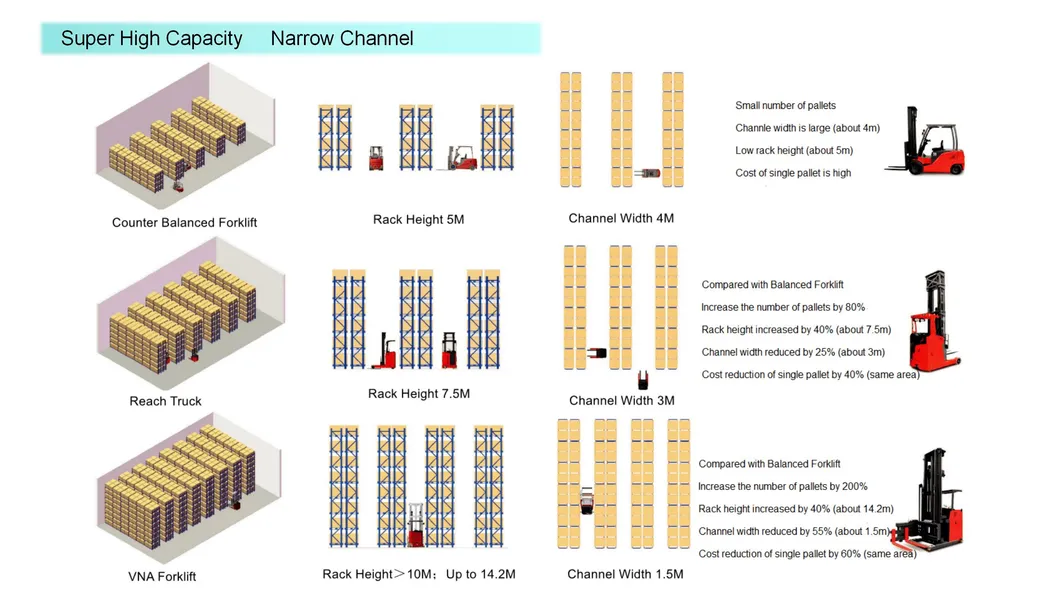

Yes, it is specifically designed for very narrow aisle (VNA) operations with a minimum net channel requirement of only 1500mm.

What kind of battery system is used?

It uses a side-pull type battery system, which makes charging and battery replacement extremely convenient for multi-shift operations.

What is the warranty period for this equipment?

We provide a one-year guarantee for all main parts of the machine, along with life-time spare parts supply.
