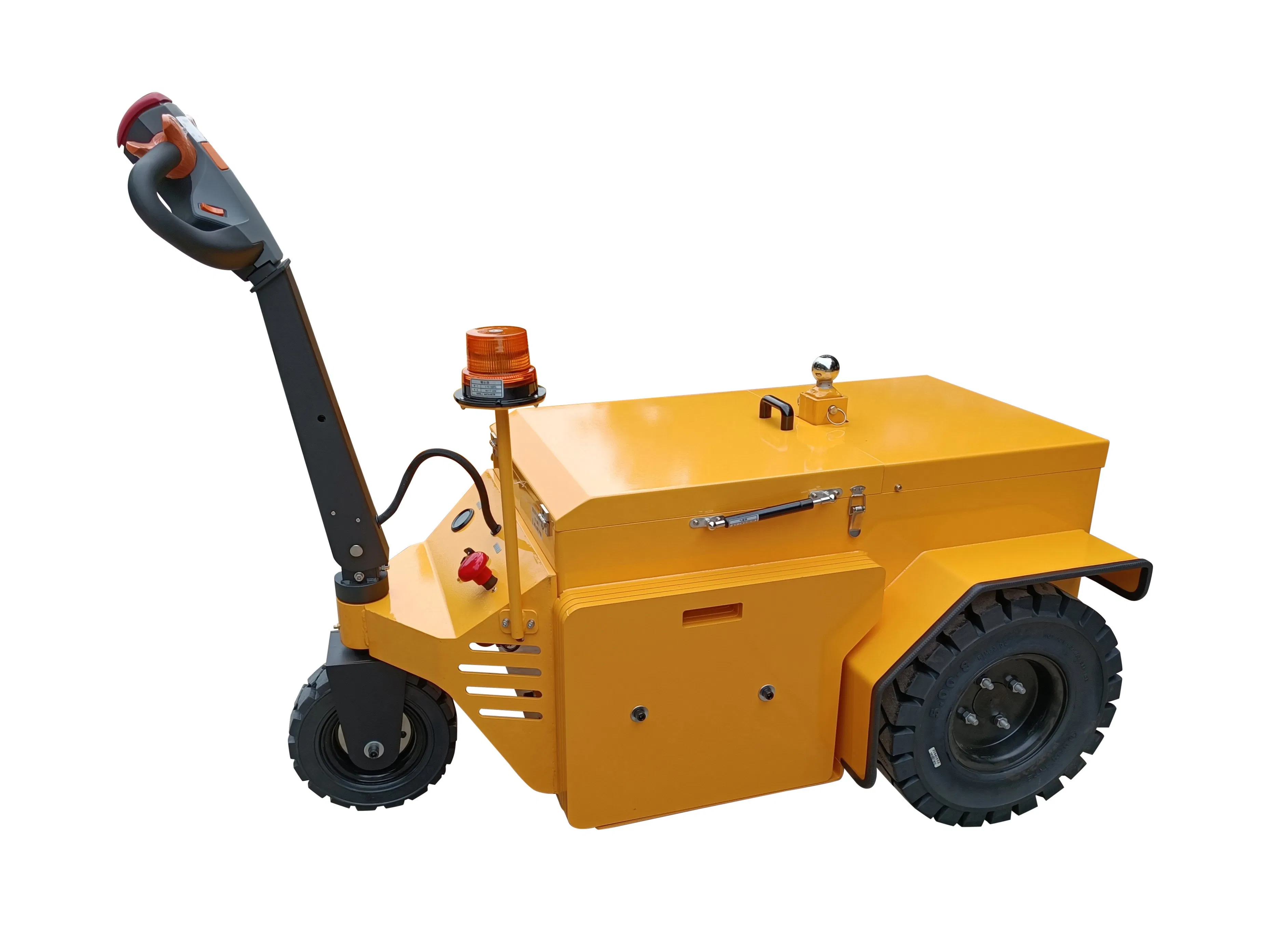

Compact Kl1200L Electric Tow Tractor for Efficient Hauling

1 / 4

Compact Kl1200L Electric Tow Tractor for Efficient Hauling

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

📋

Basic Specifications

Model NO.

KL1200L

Type

Electric Tow Tug

Power

AC Motor

Load Capacity

12000kg

Fuel

Electric

Battery

Lead-Acid Battery

Brake Type

Electromagnetic

Tyre

Rubber/PU

Condition

New

Truck Weight

1220kg (with Battery)

⚙️

Product Technical Data

Characteristic		Unit	KL1000L	KL1200L
1.1	Supply	-	Electric	Electric
1.4	Max traction weight	kg	10000	12000
1.5	Rated pulling force	N	4000	5000
Weight
2.1	Truck weight (with battery)	kg	780	820

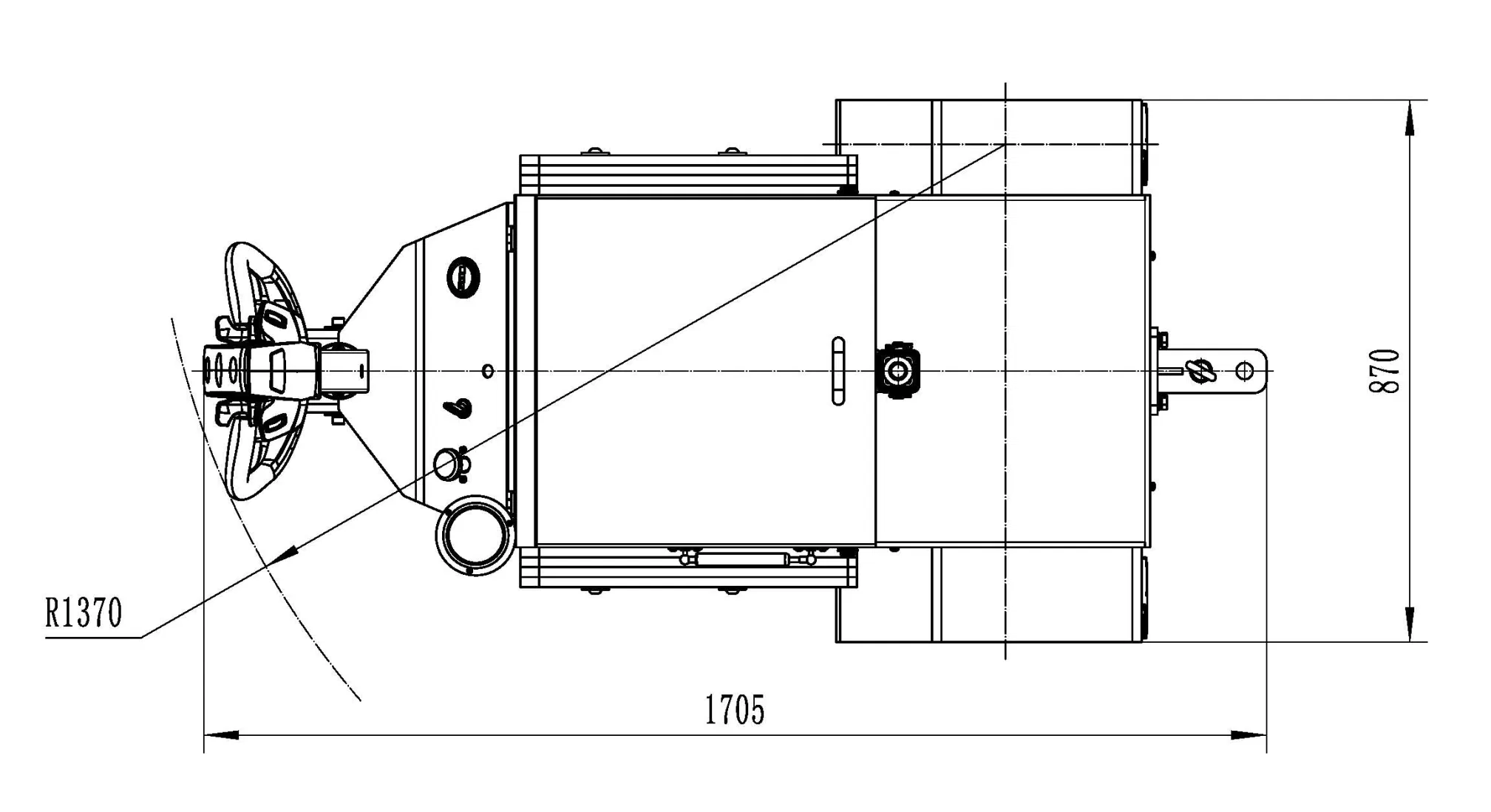

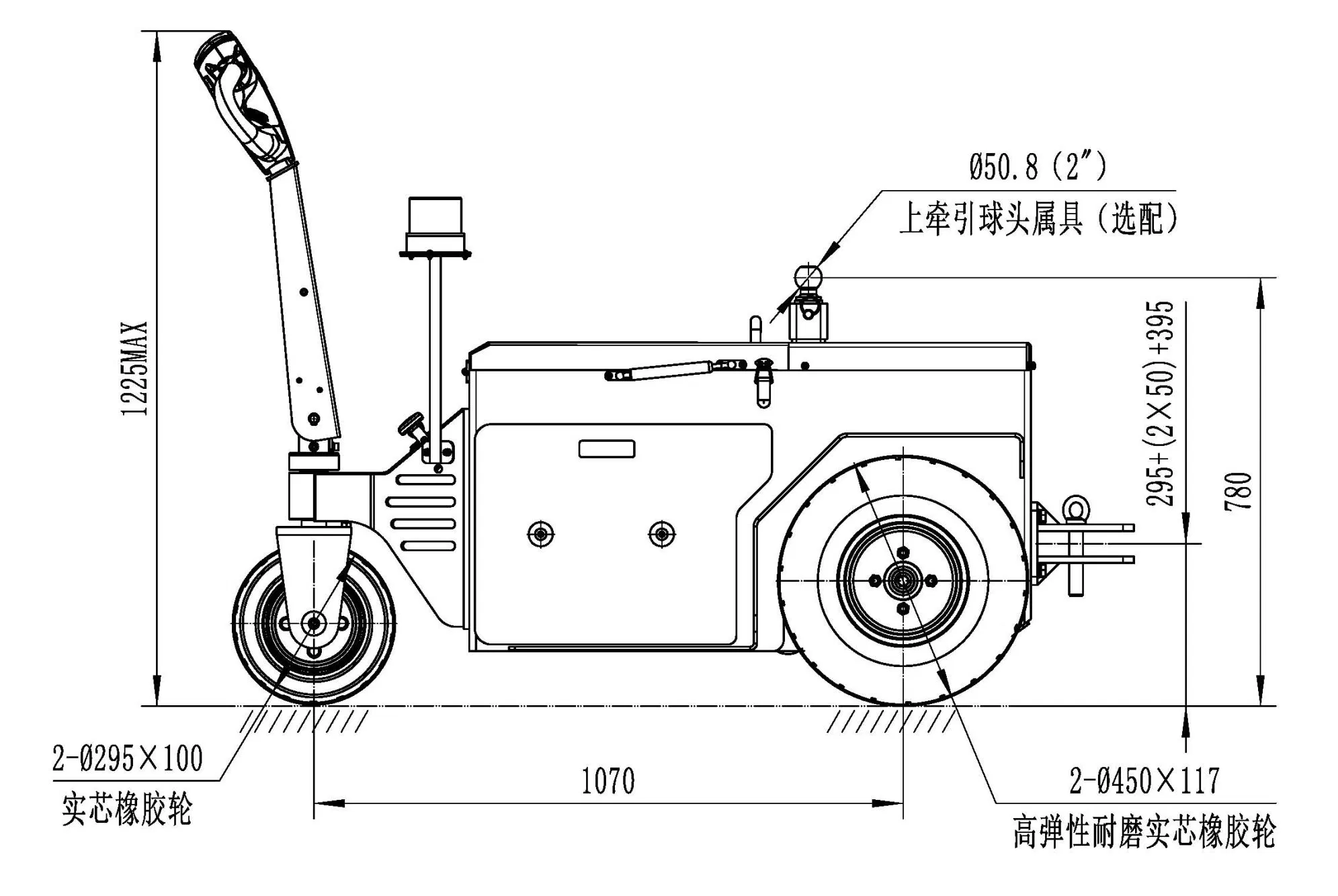

Dimensions & Performance
4.4	Overall length	mm	1705	1705
4.5	Overall width	mm	870	870
4.7	Turning radius	mm	1370	1370
5.1	Drive speed (load/unload)	km/h	2~3	2~3
5.6	Brake type	-	Electromagnetic	Electromagnetic
Motor & Battery
6.1	Drive motor rating S2 60min	V/kw	48/3.0	48/3.5
6.3	Battery voltage/capacity	V/Ah	48/157	48/210

📸

Product Gallery

❓

Frequently Asked Questions

Q1: What is the maximum towing capacity of the KL1200L?

The KL1200L is a high-capacity electric tow tug capable of handling a maximum traction weight of up to 12,000kg (12 tons).

Q2: What type of braking system does this tug use?

This model is equipped with an advanced electromagnetic braking system for reliable and safe stopping power.

Q3: Can the KL1200L be used on different floor surfaces?

Yes, it comes with durable Rubber or PU tyres, making it versatile for various industrial floor conditions while maintaining excellent traction.

Q4: What are the power specifications for the battery?

The KL1200L utilizes a 48V/210Ah lead-acid battery system paired with a 3.5kW AC drive motor for efficient performance.

Q5: What is the turning radius for narrow aisle operations?

The tug features a compact design with a turning radius of only 1370mm, allowing it to maneuver easily in tight warehouse spaces.

Q6: What is the standard lead time for this equipment?

The standard production lead time for the KL1200L electric tow tractor is approximately 15 days.
