LM Forklift
LM Forklift

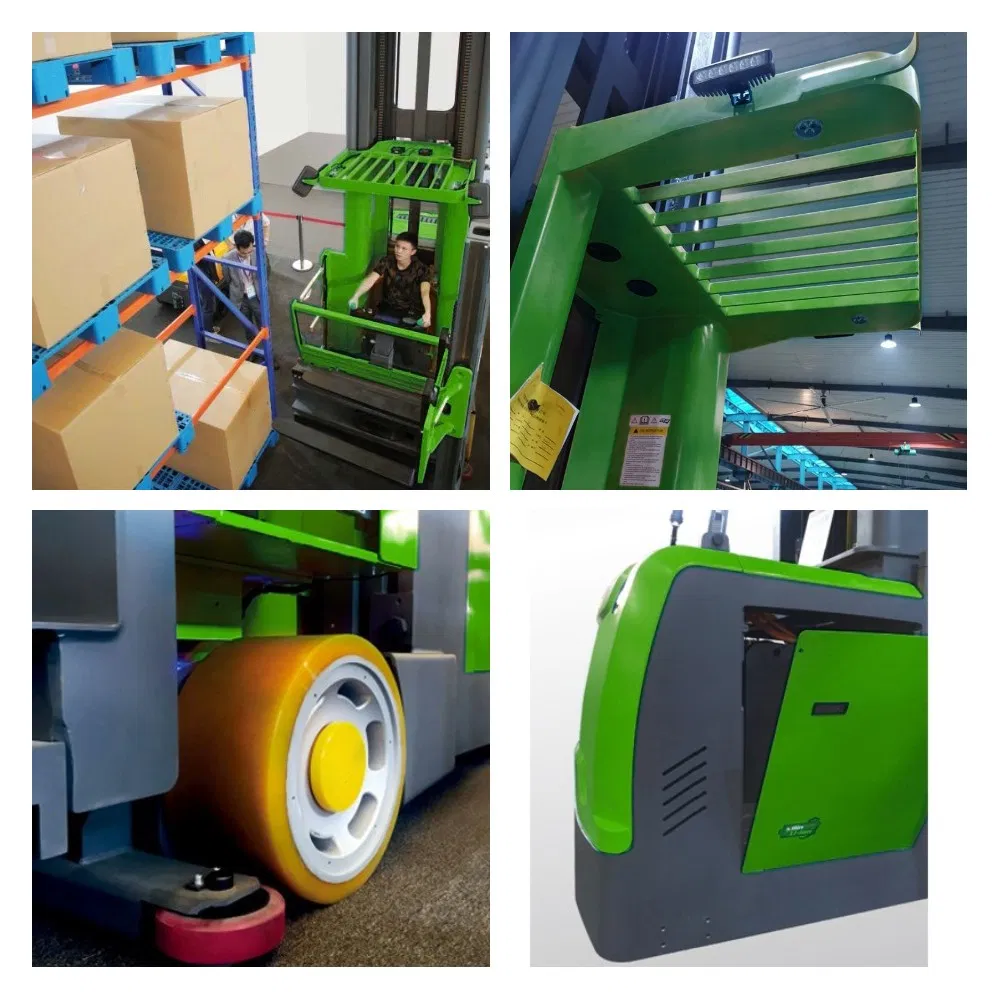

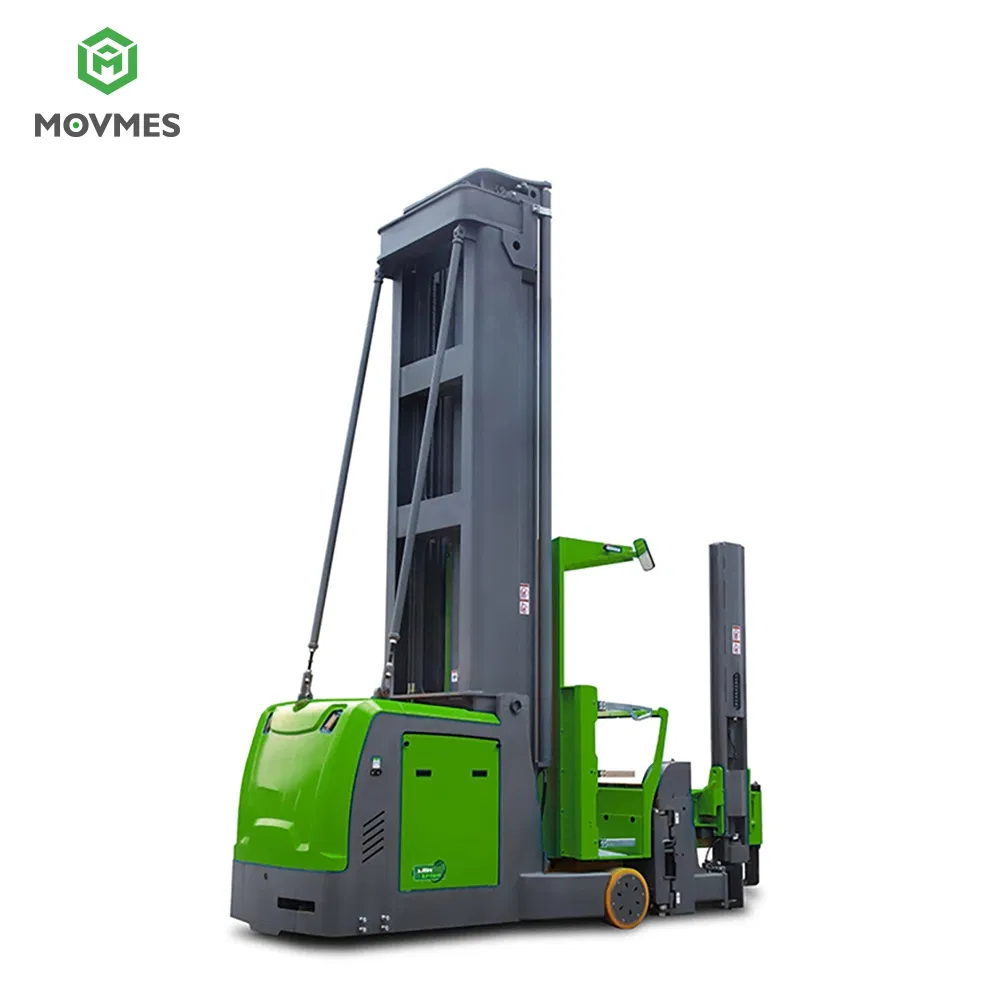

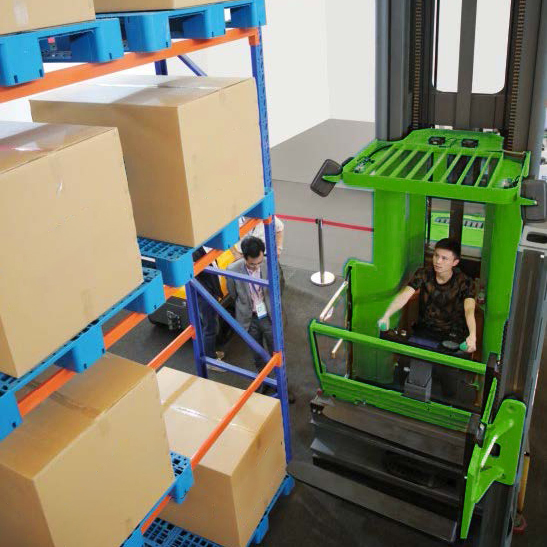

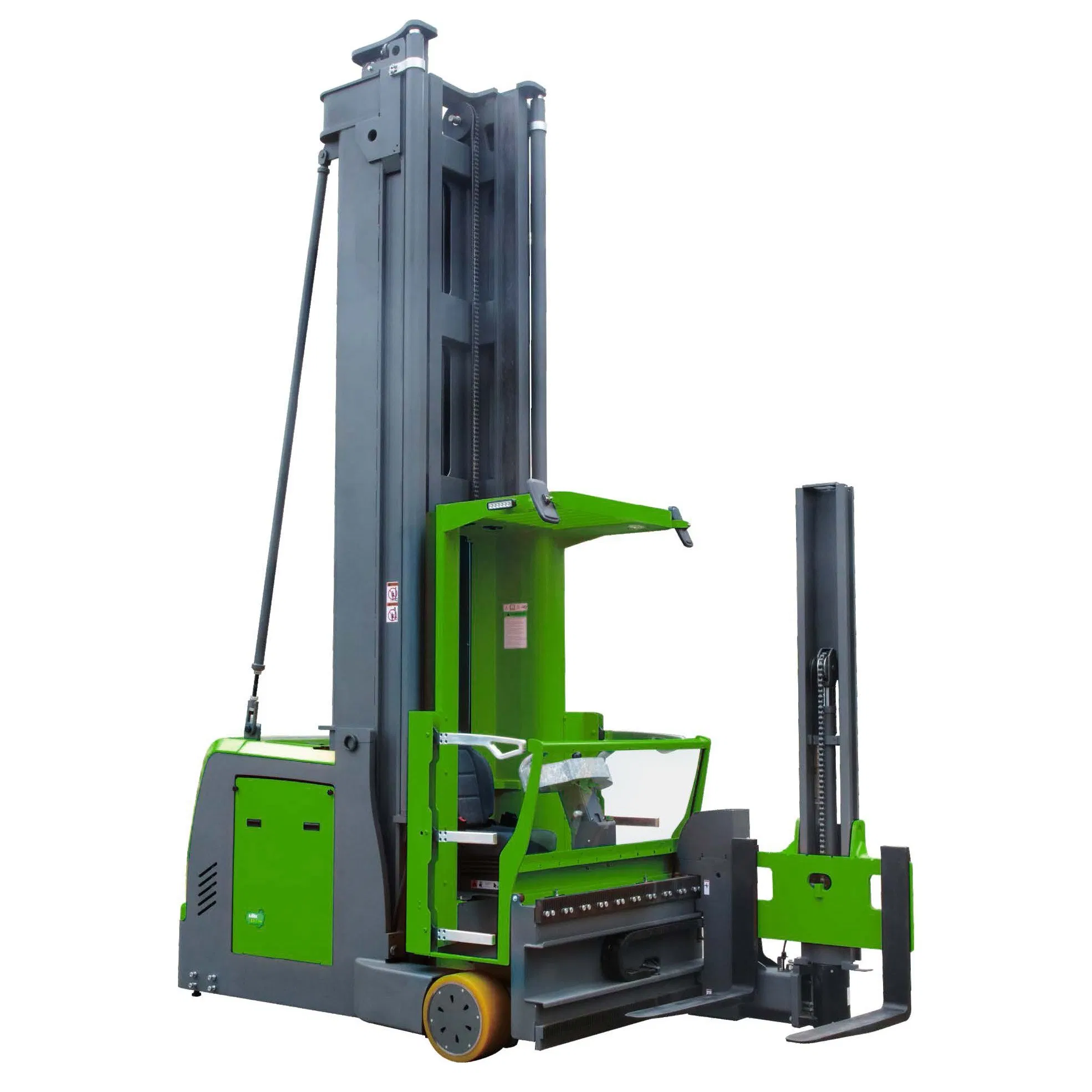

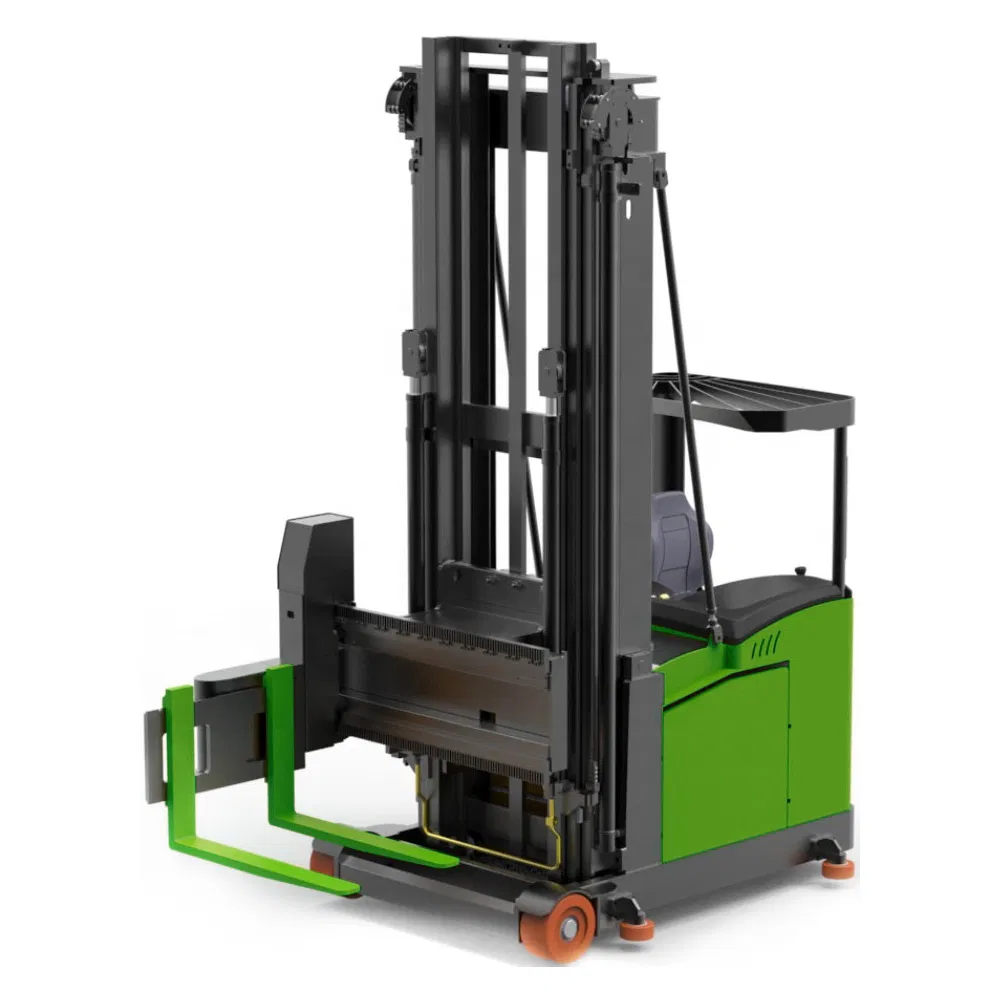

OPTS15 is a man-up tri-lateral stacker specifically engineered for narrow aisles, featuring an impressive lifting height range of 6m to 15.5m.
| Parameters | Unit | OPTS15 (9.2M) | OPTS15 (10M) | OPTS15 (13M) |
|---|---|---|---|---|
| Power | - | ELECTRIC | ELECTRIC | ELECTRIC |
| Load capacity | kg | 1500 | 1500 | 1500 |

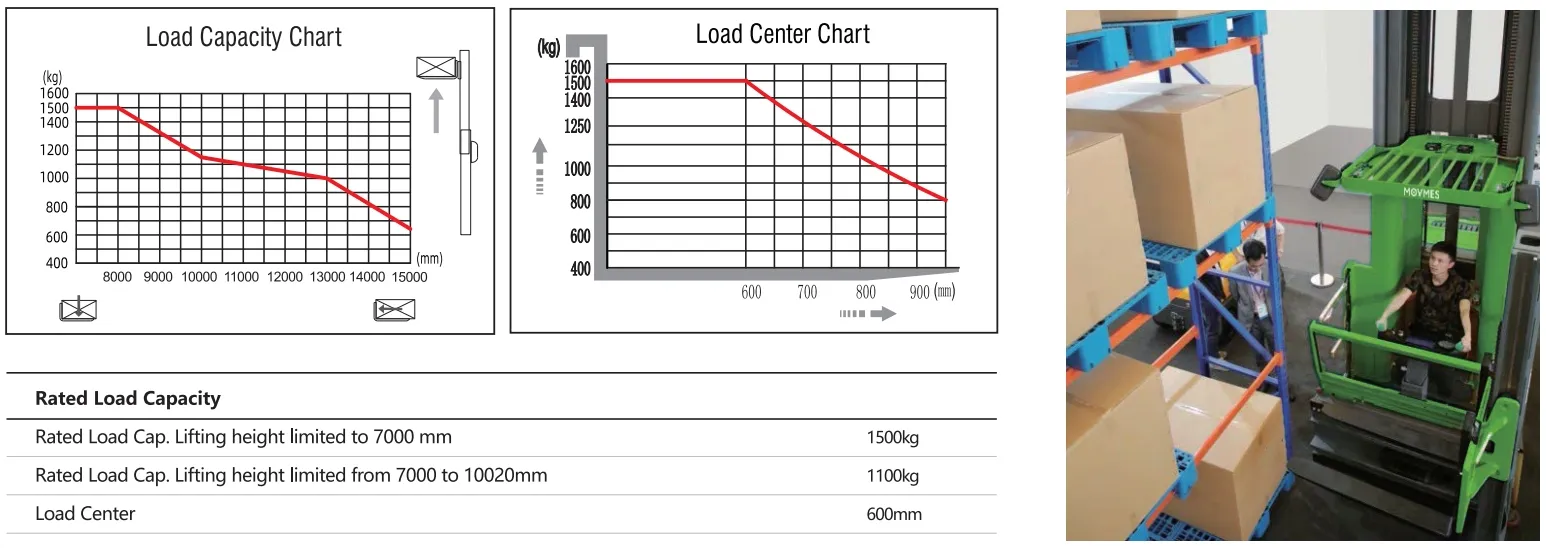

| Load capacity at max height | kg | 950 | 900 | 600 |
| Load centre distance | mm | 600 | 600 | 600 |
| Service weight (incl. battery) | kg | 8405 | 8705 | 9855 |

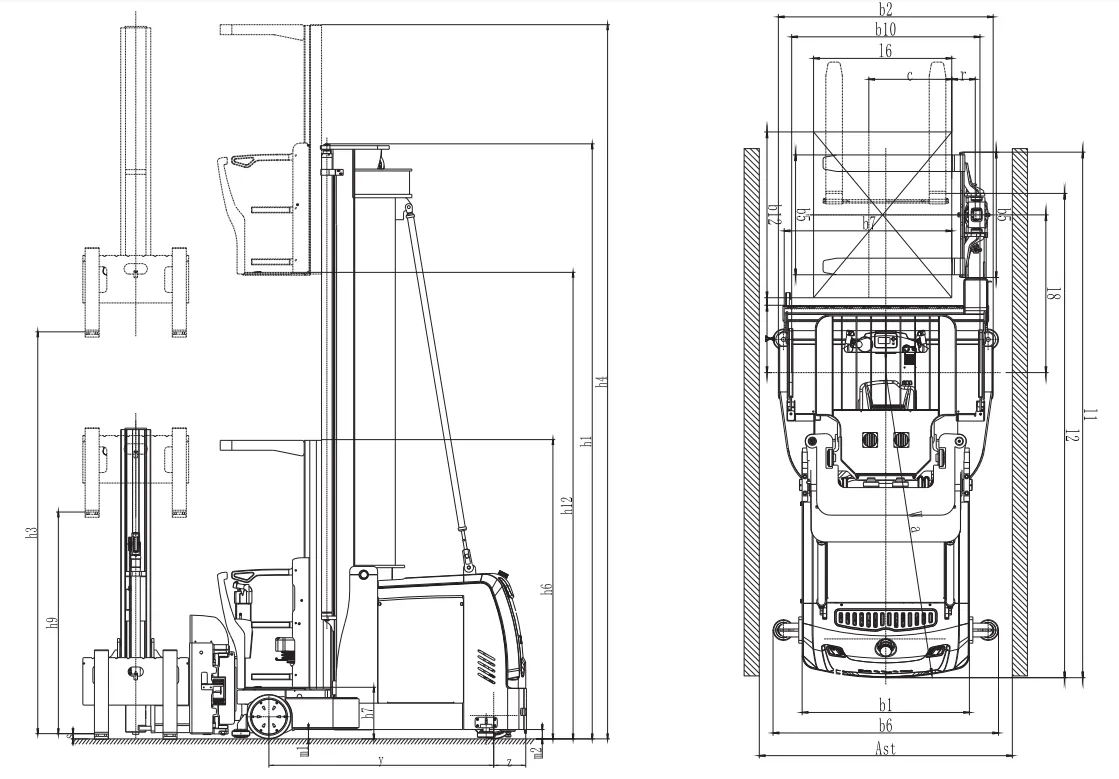

| Lifting height (h3) | mm | 7460 | 8260 | 11260 |
| Total lifting height (h3+h9) | mm | 9200 | 10000 | 13000 |
| Overall length | mm | 3805 | 3805 | 4125 |
| Turning radius | mm | 2220 | 2220 | 2540 |
| Aisle width (1200x1200pallet) | mm | 1700 | 1700 | 1700 |
As a provider of high-end intelligent logistics warehousing and handling solutions, our brand is committed to building a recognized and trusted global presence. With intelligent technology, product quality, and service experience at our core, we ensure that our warehousing material handling trucks meet the highest market standards through rigorous testing and continuous improvement.
Our mission is to provide users with advanced material handling equipment, professional after-sales support, and optimized handling solutions that improve efficiency and reduce operational costs.
