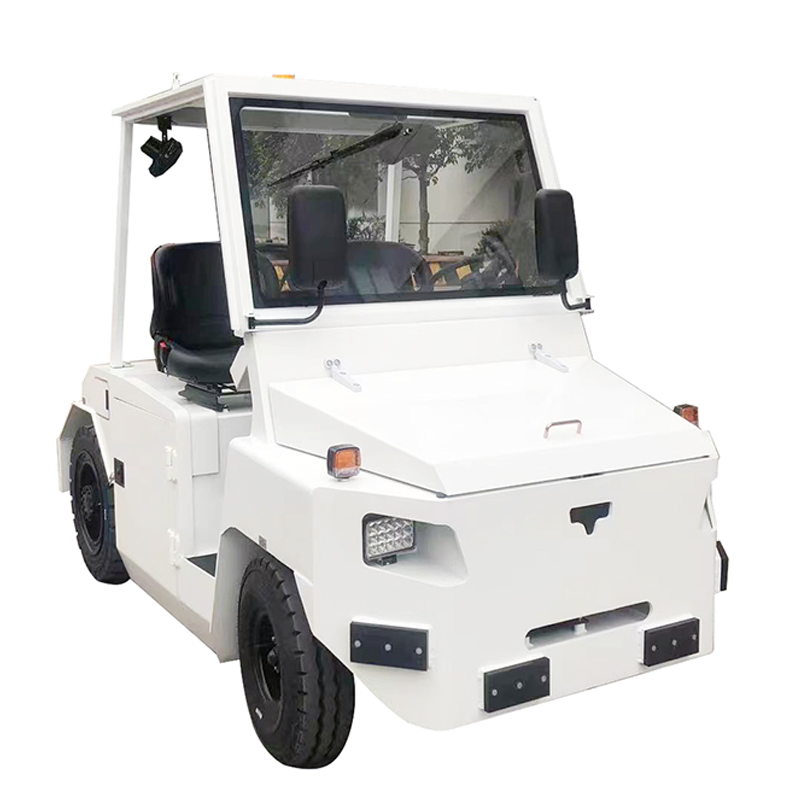

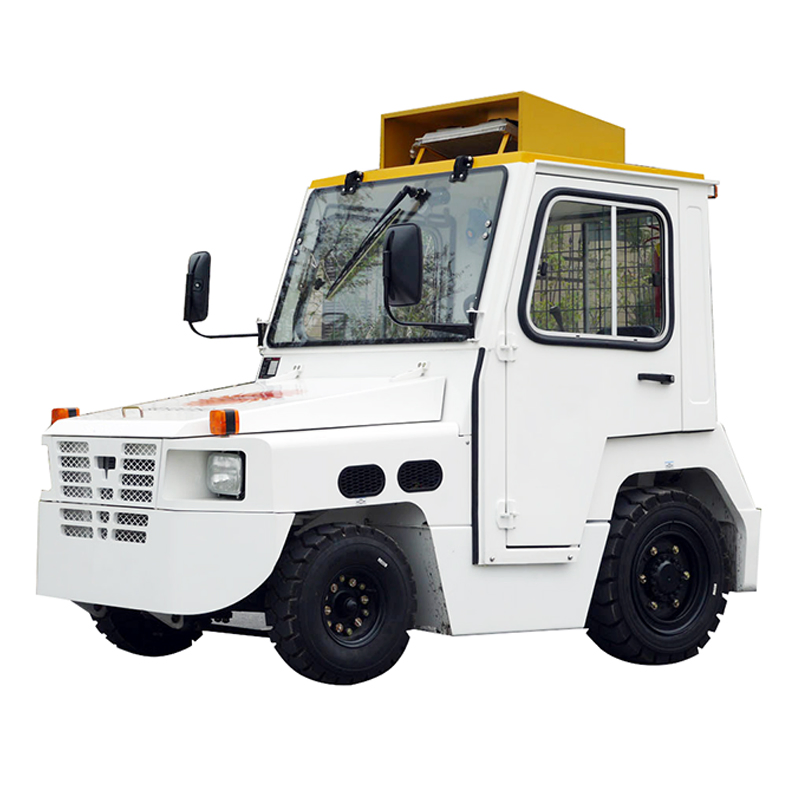

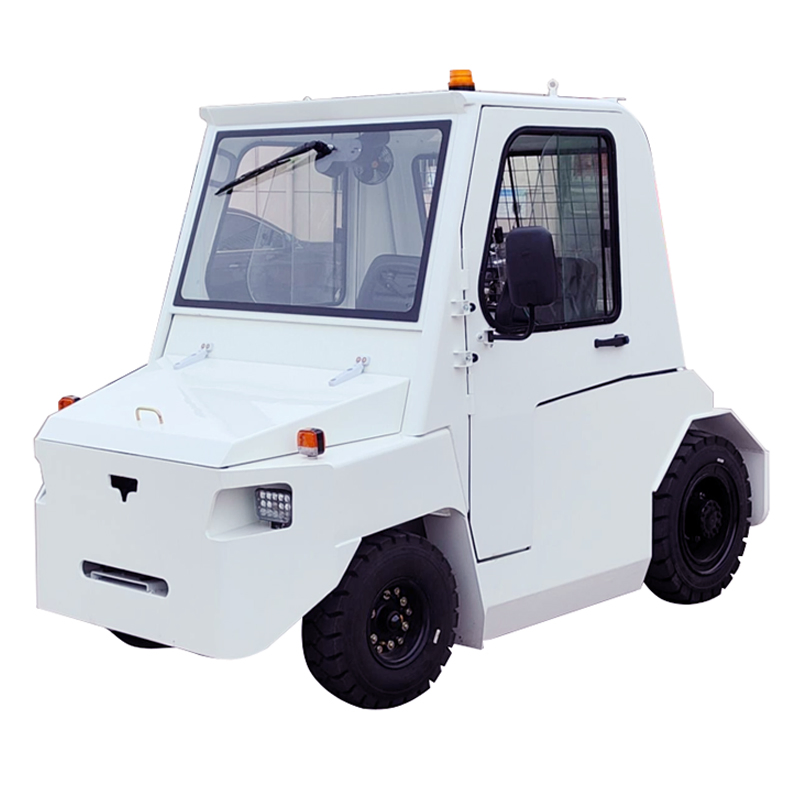

Airport Aircraft Electric Baggage Tow Towing Port Terminal Tractor

1 / 5

Airport Aircraft Electric Baggage Tow Towing Port Terminal Tractor

Customization:	Available
After-sales Service:	1 Year
Warranty:	1 Year

Send Inquiry

Product Description

📊Basic Information

Model NO.

TE-25-L-C

Transmission Type

Manual or Automatic

Power

Diesel or Electric

Load Capacity

31-40t

Emission Standard

Euro 1

Seats

≤5

Horsepower

150-250hp

Engine Capacity

4-6L

Condition

New

Tire Certification

ISO

📦Packaging & Delivery

Package Size

320.00cm * 150.00cm * 200.00cm

Package Gross Weight

2500.000kg

Transport Package

Standard Export Packing

🚜Product Description

Our towing tractor includes airport towing tractors for luggage carts/dollies and aircraft towing tractors. The specially designed space makes the driver's work easier and more comfortable.

📋Technical Specifications

Model				TE-25-L
Performance	Rated traction		kN	21
	Largest traction		kN	25
	Rated Towing Weight (dry concrete floor)		kg	25000
	Max travel speed (No-load / Full-load)		Km/h	27 / 11
	Minimum turning diameter		mm	5900
	Recharge mileage		Km	190
Weight	Total Weight		kg	3700
	Unladen axle load	Front axle	kg	1430
		Rear axle	kg	2270
Battery	Type		Lithium iron phosphate
	System Power		Kwh	56
	Rated Capacity		Ah	700
	Rated voltage		V	80

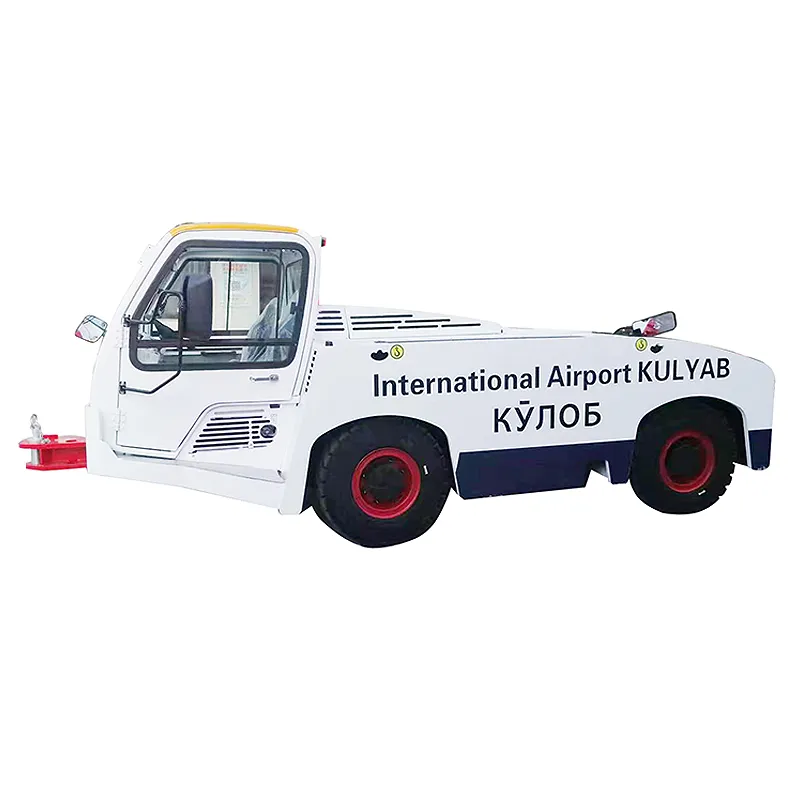

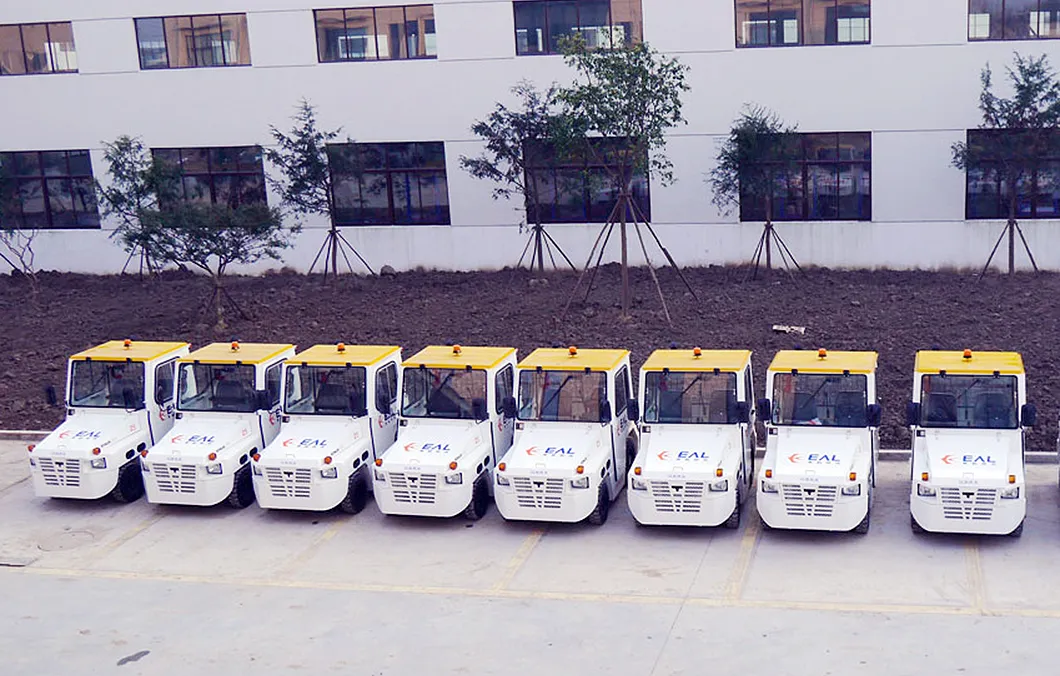

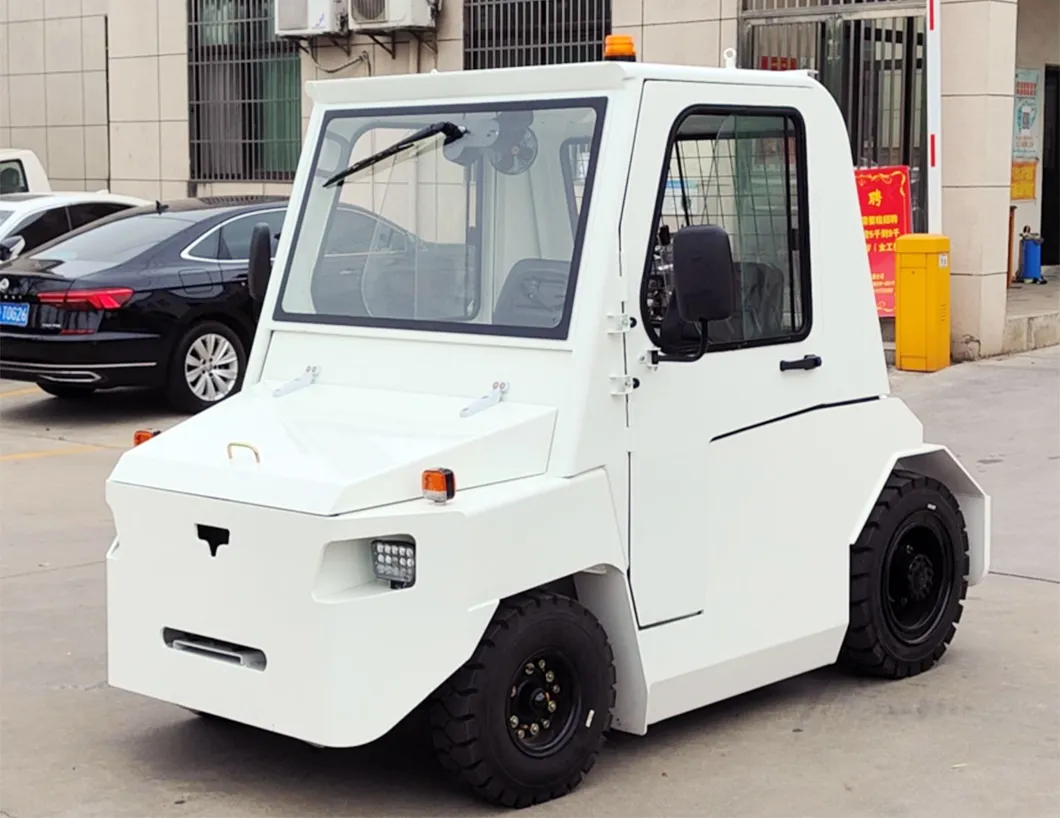

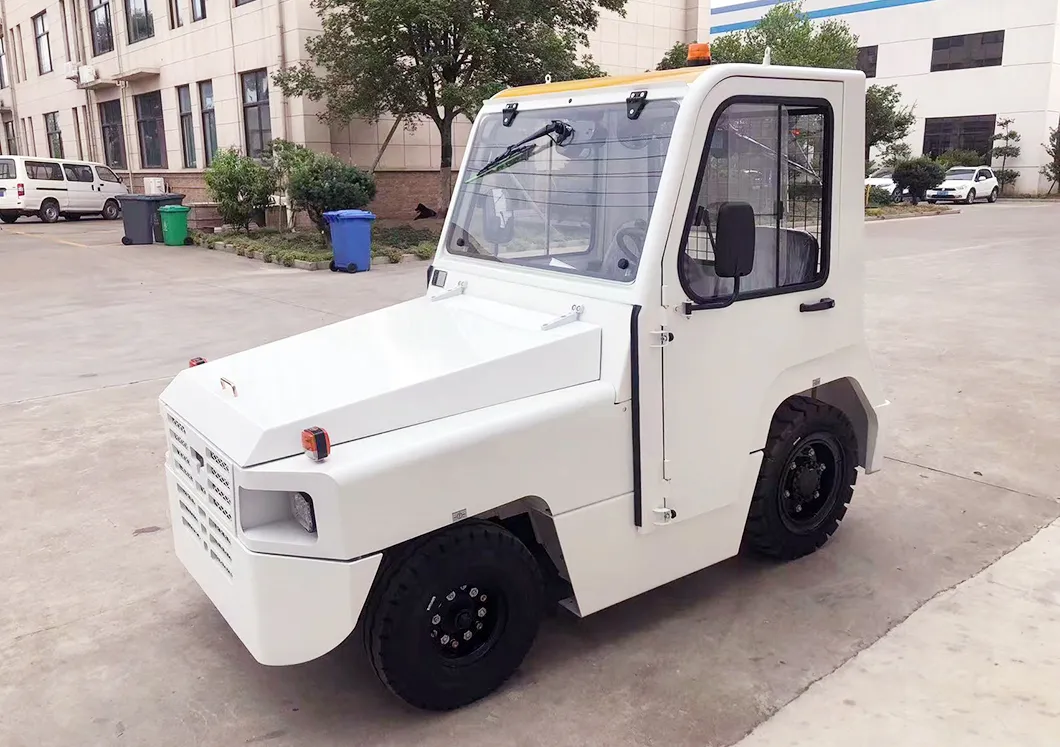

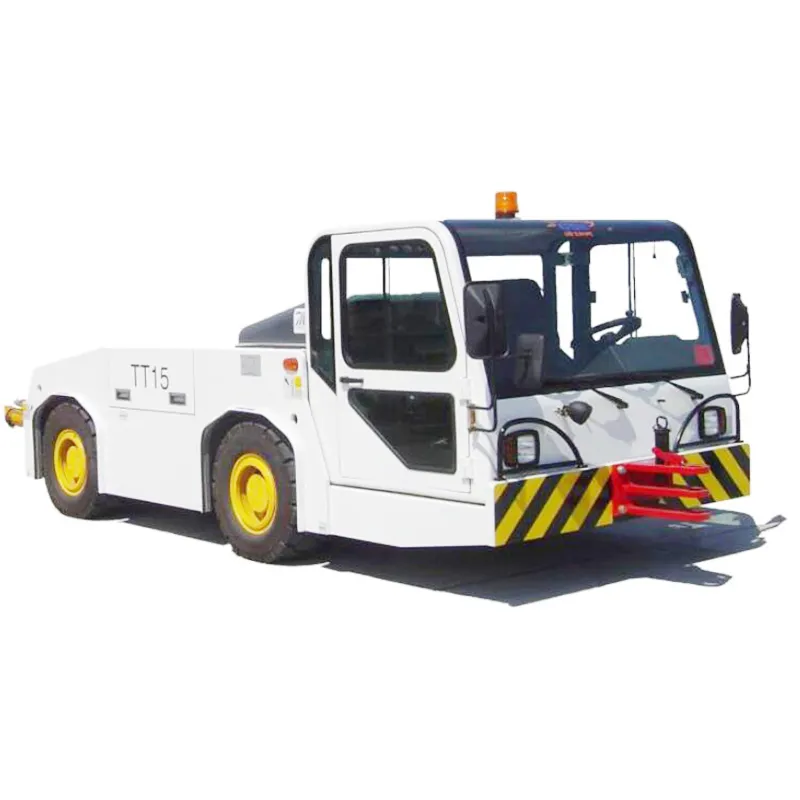

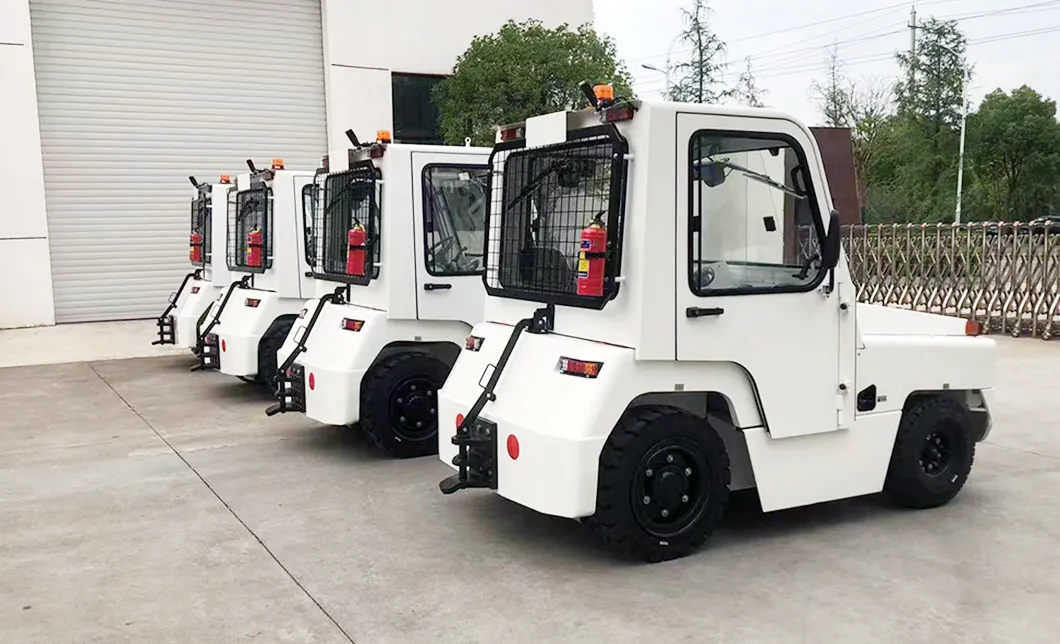

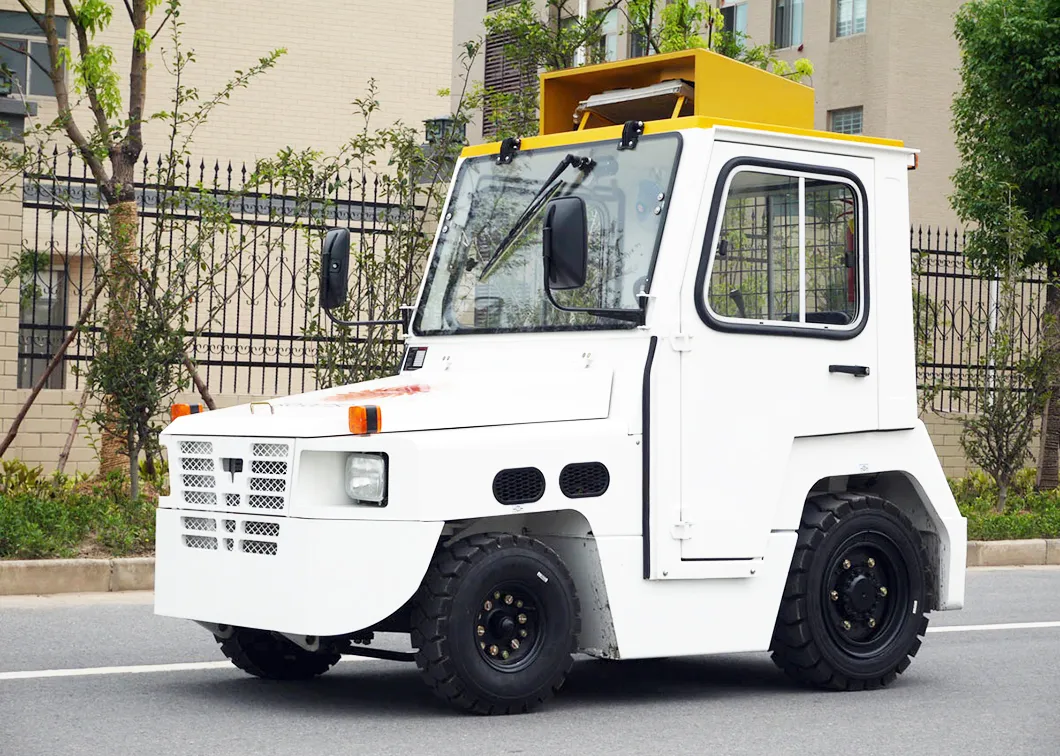

📷Product Gallery

🛡️Safety Protection

Safety interlock mounted on each hydraulic system.
Limit switch ensures the interface between platform and aircraft.
Warning buzzer alarms when van body & stabilizers are operated.
Emergency DC pump will be operated during engine or main pump failure.
Manual hand pump will be operated during total power failure.
Stop push buttons of engine are available on cab and van body control panels.
Warning lights in cab to indicate stabilizer status.
Hydraulic pressure switch prevents van from raising unless stabilizers are down.

⭐Why Choose Us

High quality products with reasonable price
High standard production process
Advanced production machinery
Strict quality control system
Advanced research & development team
Professional sales team
Experienced exporting worldwide
One-step solution service

❓Frequently Asked Questions

What is the maximum towing capacity of the TE-25-L tractor?

The TE-25-L model has a rated towing weight of 25,000 kg (25 tons) on a dry concrete floor, with a maximum traction force of 25 kN.

What type of battery system does the electric version use?

It is equipped with a high-performance Lithium Iron Phosphate battery system with an 80V rated voltage and 700Ah capacity.

How fast can the towing tractor travel when fully loaded?

When fully loaded, the tractor can reach a speed of 11 km/h. Without a load, it can reach up to 27 km/h.

What safety measures are in place for hydraulic failures?

The vehicle includes an emergency DC pump for engine/main pump failures and a manual hand pump for total power failure situations.

Is this tractor suitable for both luggage carts and aircraft?

Yes, our range includes specifically designed models for both airport luggage carts/dollies and aircraft towing operations.

What is the recharge mileage for the electric model?

The tractor provides a recharge mileage of approximately 190 km under standard operating conditions.
