LM Forklift
LM Forklift

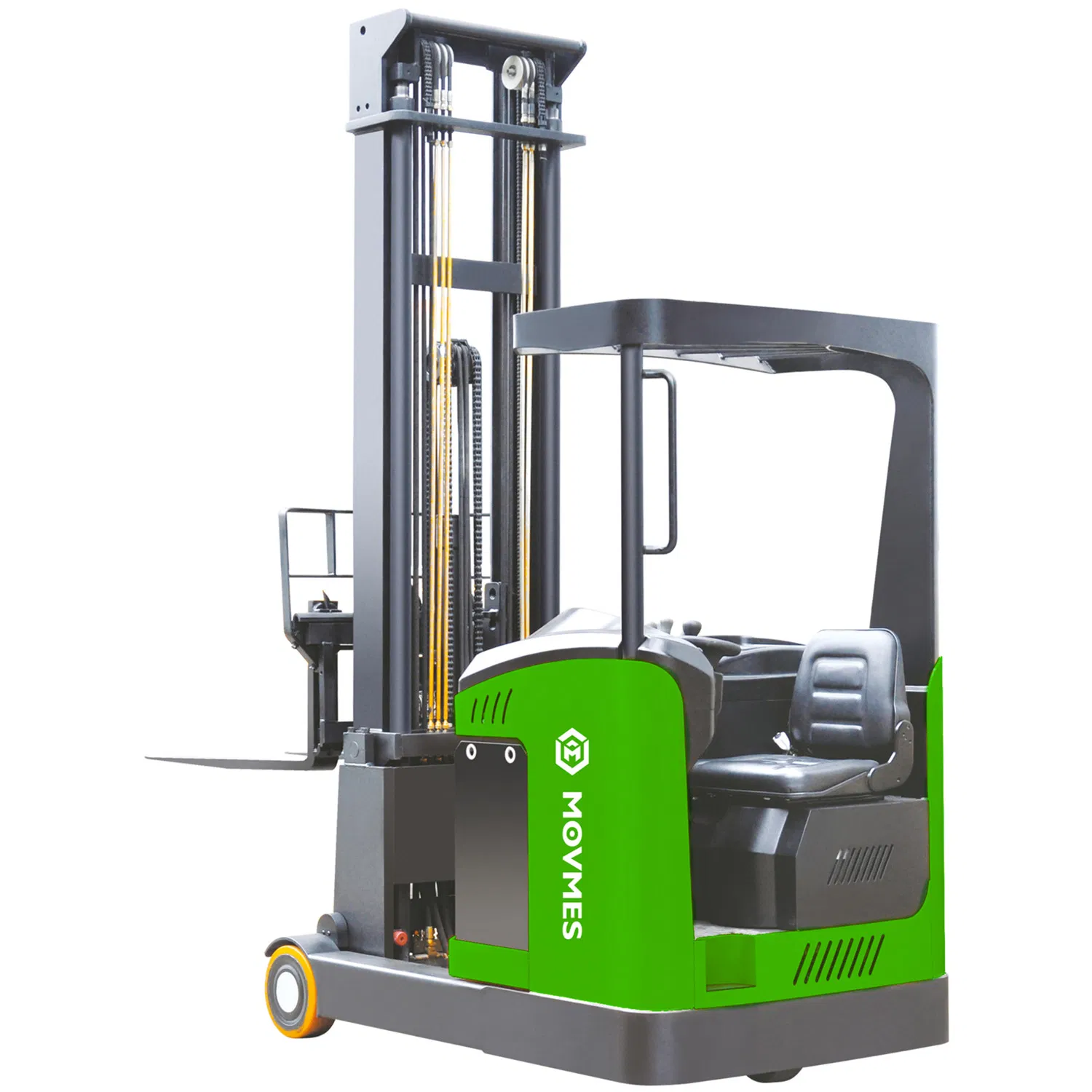

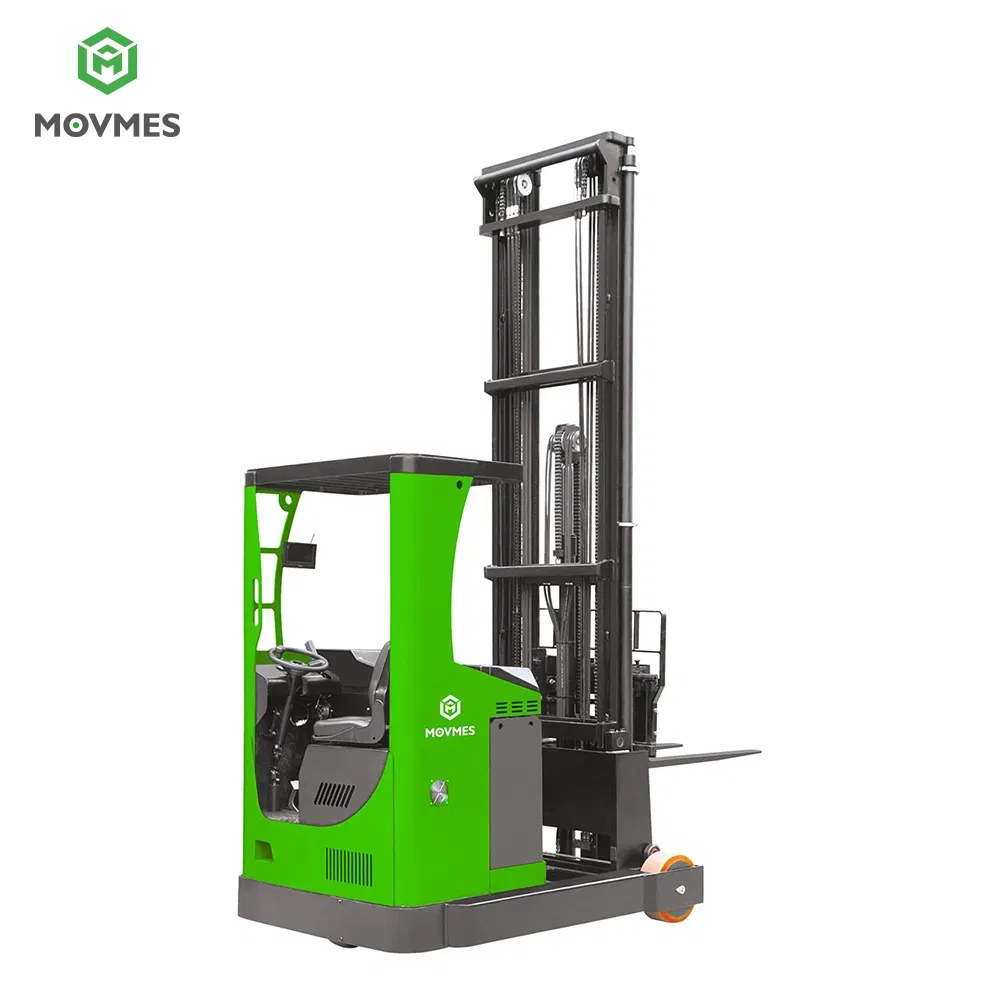

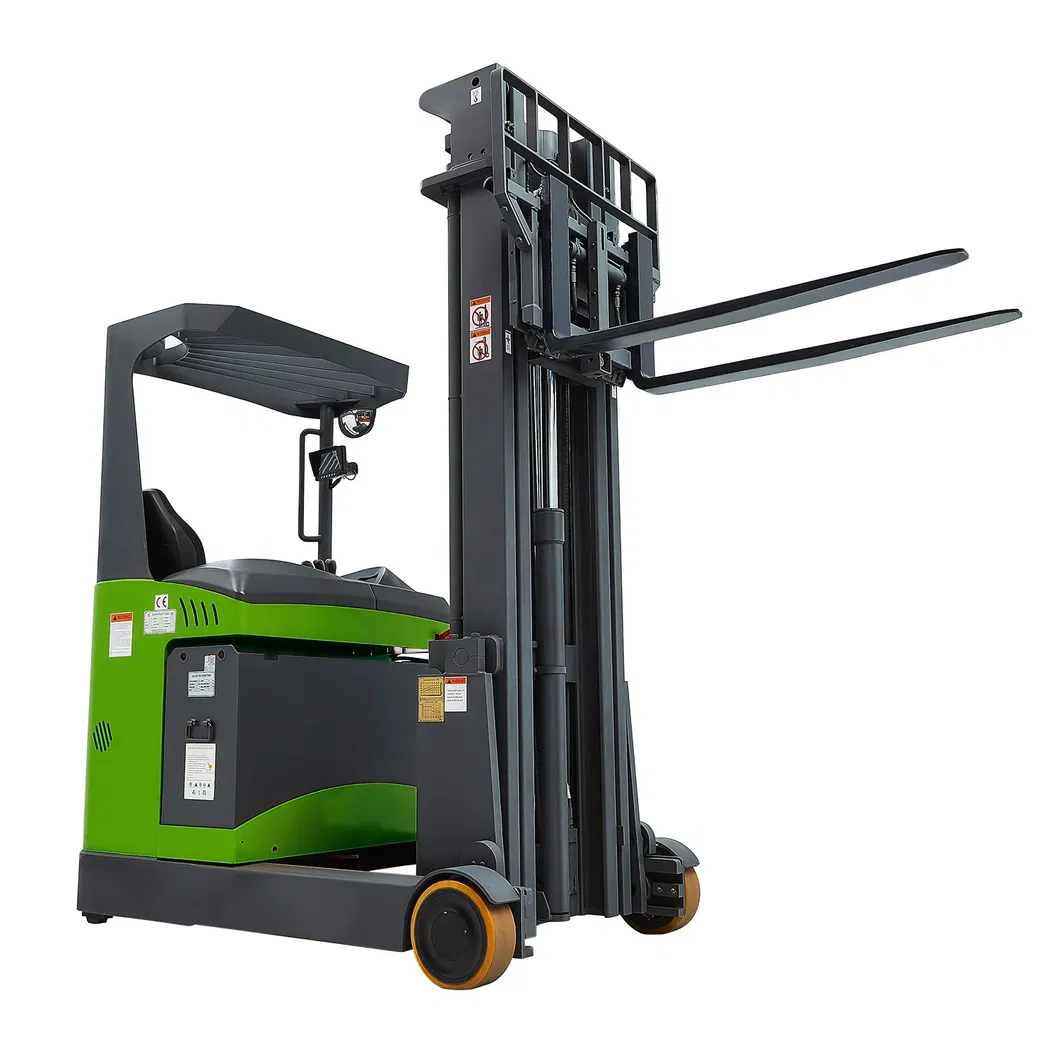

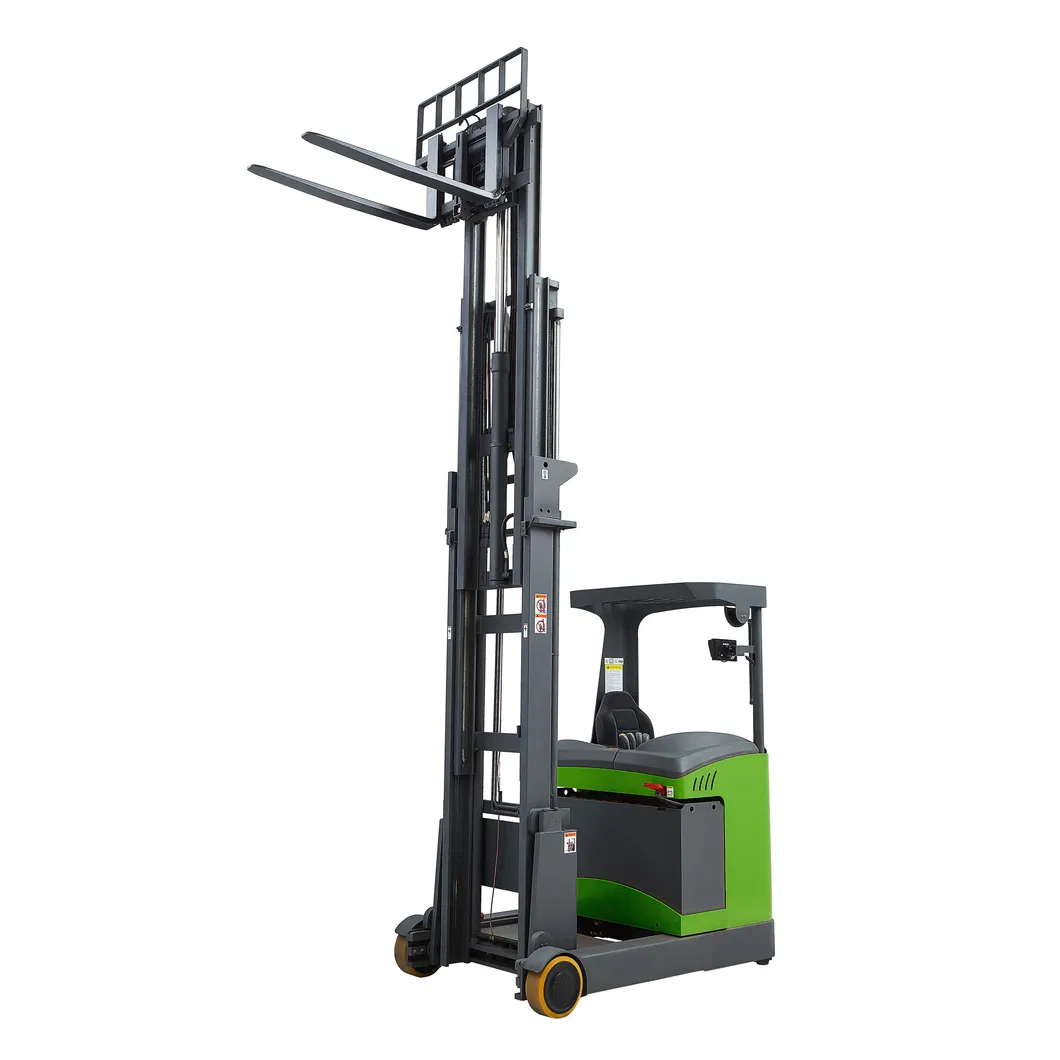

Max lifting height 14000mm electric reach truck 2000kg rated load. This high-performance reach truck is designed for very narrow aisle operations and high-density warehouse storage, offering exceptional stability at extreme heights.
| 1. 48V AC Power System | 5. 48V/50A Intelligent Charger |
| 2. Curtis Controller | 6. Integrated Side Shift |

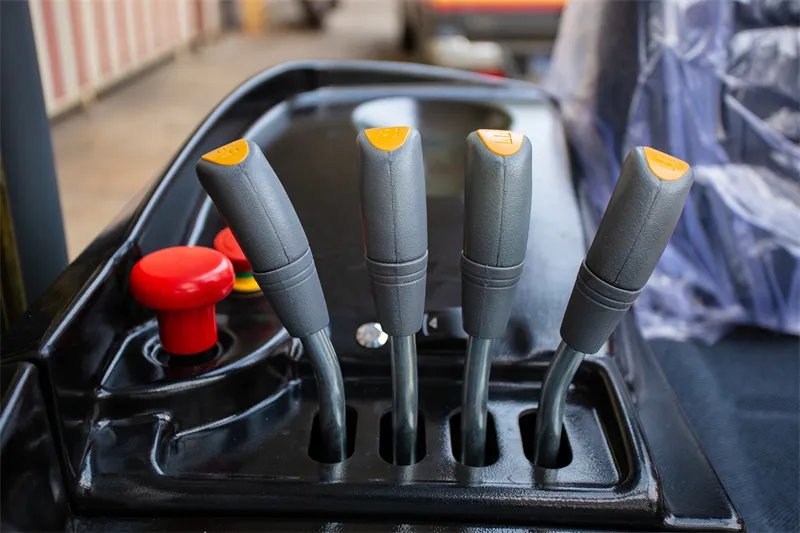

| 3. 4 Levels Hydraulic Control | 7. EPS (Electric Power Steering) |

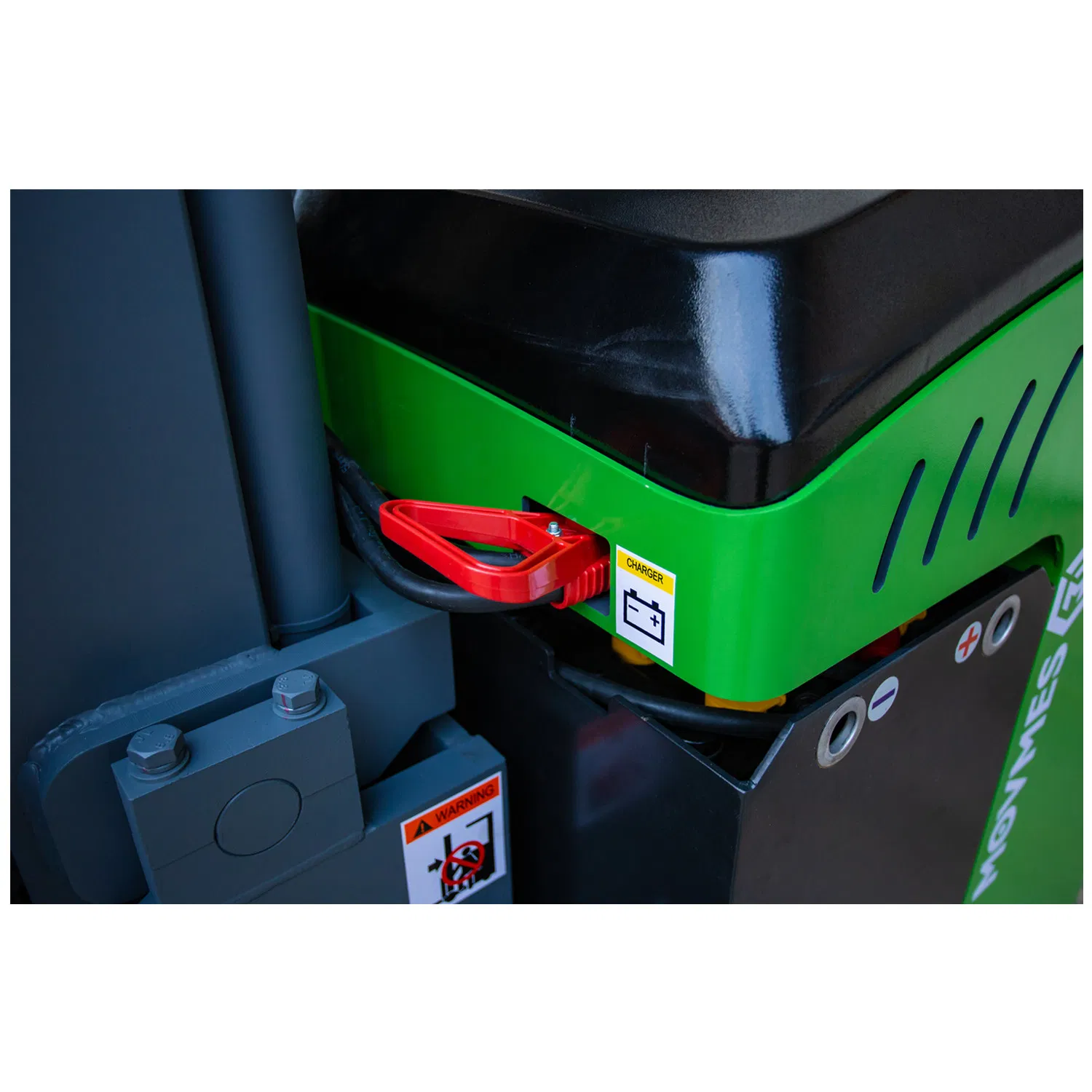

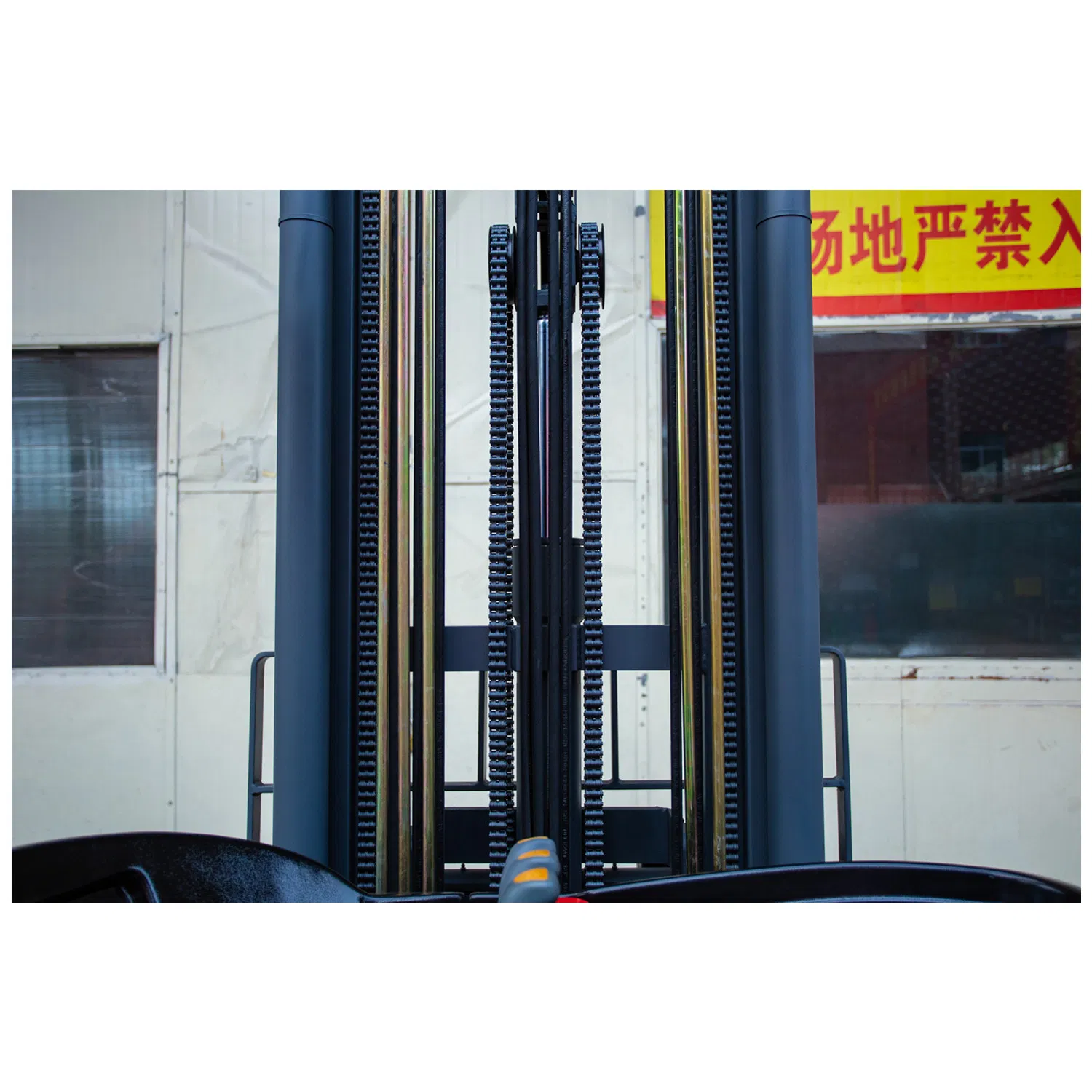

| 4. 48V400AH Lead-Acid Battery | 8. High-Strength Mast Design |

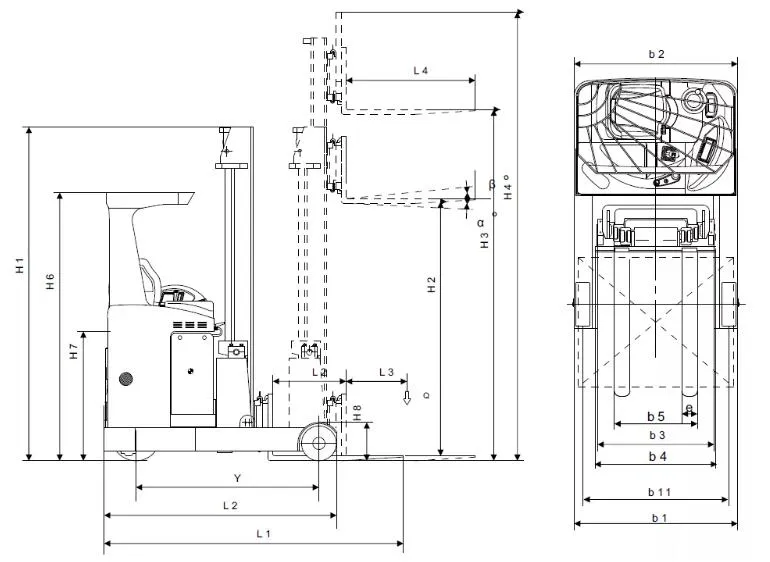

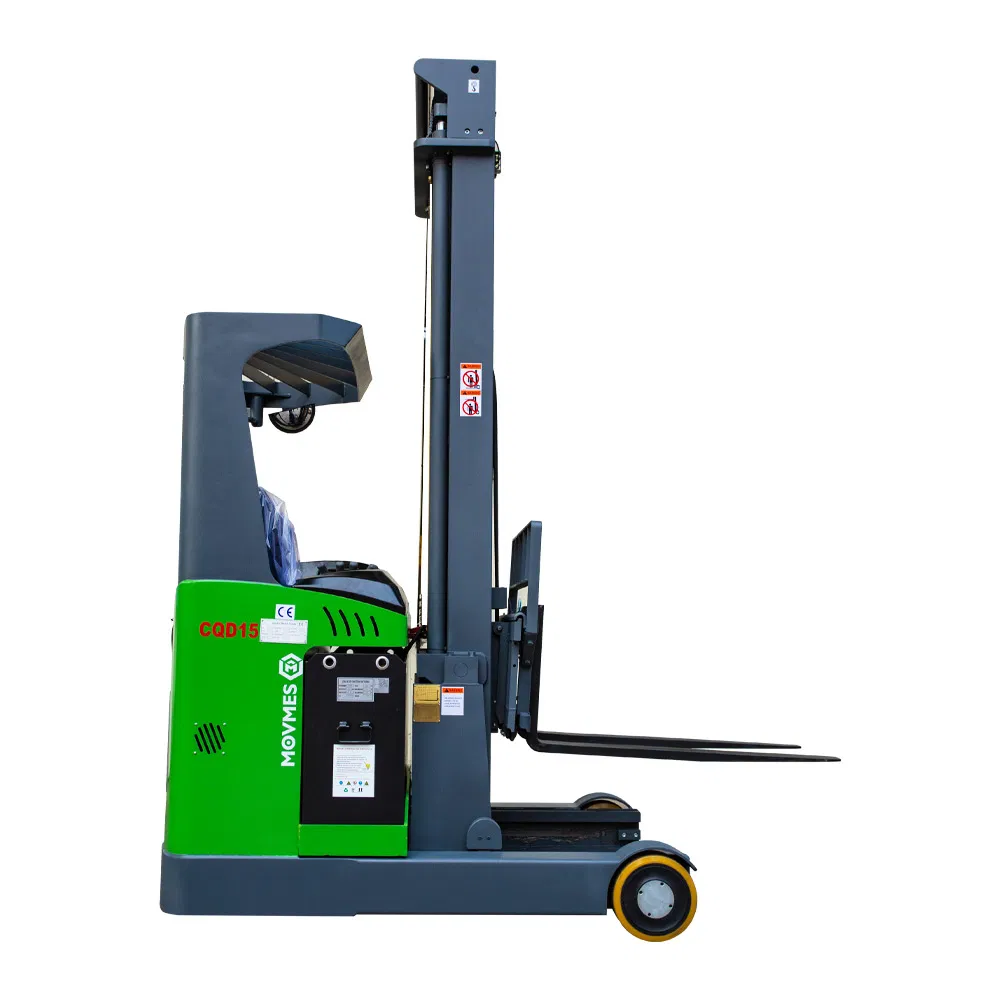

| Description | Unit | Specification (CQD15) |
|---|---|---|
| Capacity / Rated Load | Q (kg) | 1500 / 2000 |
| Max Lift Height | h3 (mm) | 3000 / 5000 / 6200 / 7400 / 8000 / 14000 |
| Load Center Distance | C (mm) | 600 |
| Drive Wheel Size | mm | Dia 310 x 125 |
| Height, Mast Lowered | h1 (mm) | 2086 / 2240 / 2740 / 3190 / 3390 |
| Overall Length | l1 (mm) | 2370 |
| Overall Width | b1 (mm) | 1200 |
| Turning Radius | Wa (mm) | 1780 |
| Travel Speed (Laden/Unladen) | Km/h | 8 / 8.3 |
| Lift Speed (Laden/Unladen) | m/s | 0.45 / 0.36 |
| Battery Voltage/Capacity | V/Ah | 48 / 400 |
 |
CDDR15 Walkie Electric Stacker 1.5 Ton capacity, 1600-3000mm lifting height, DC motor, Curtis controller. |
 |
CDDR15-III Walkie Electric Stacker 1.5 Ton capacity, 2500-5600mm lifting height, 24V AC power, 200Ah battery. |
We carefully package each truck according to customer requirements. Before delivery, photos and videos are provided for approval. Standard production time is 30-45 days after receiving payment.
