LM Forklift
LM Forklift

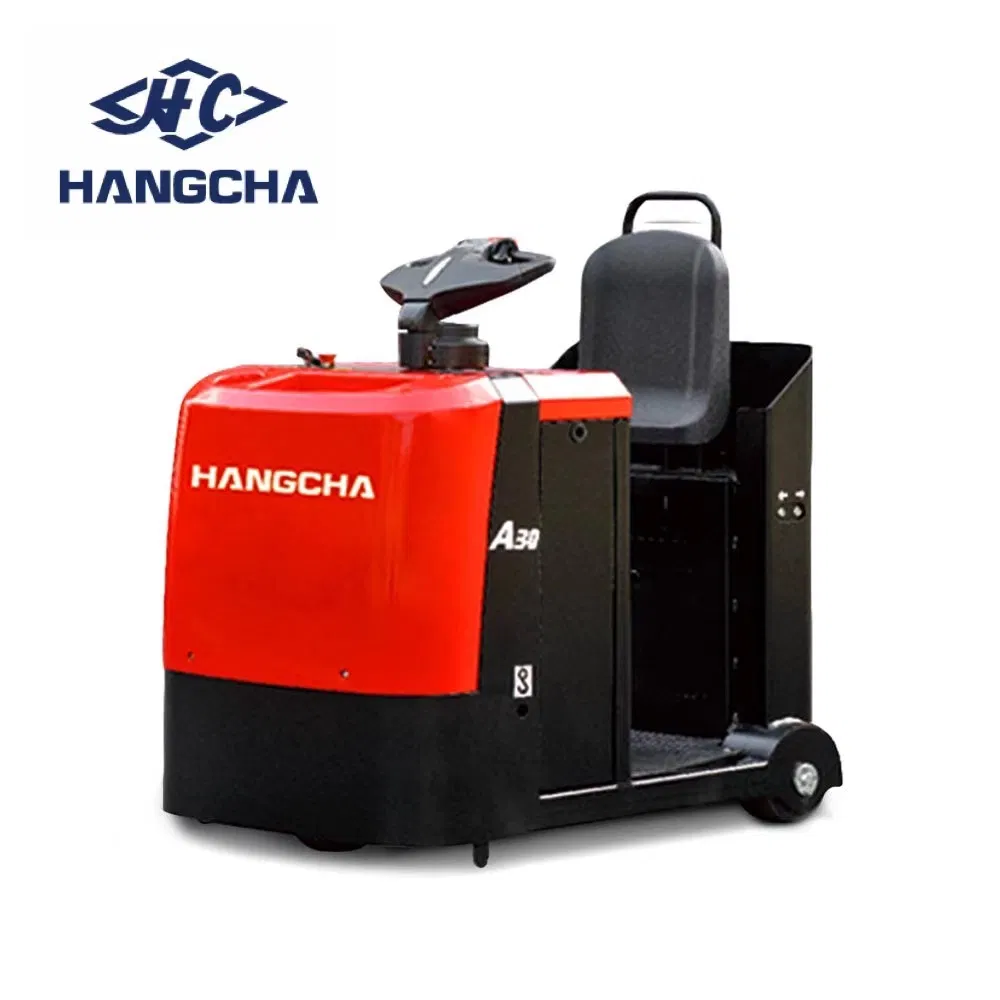

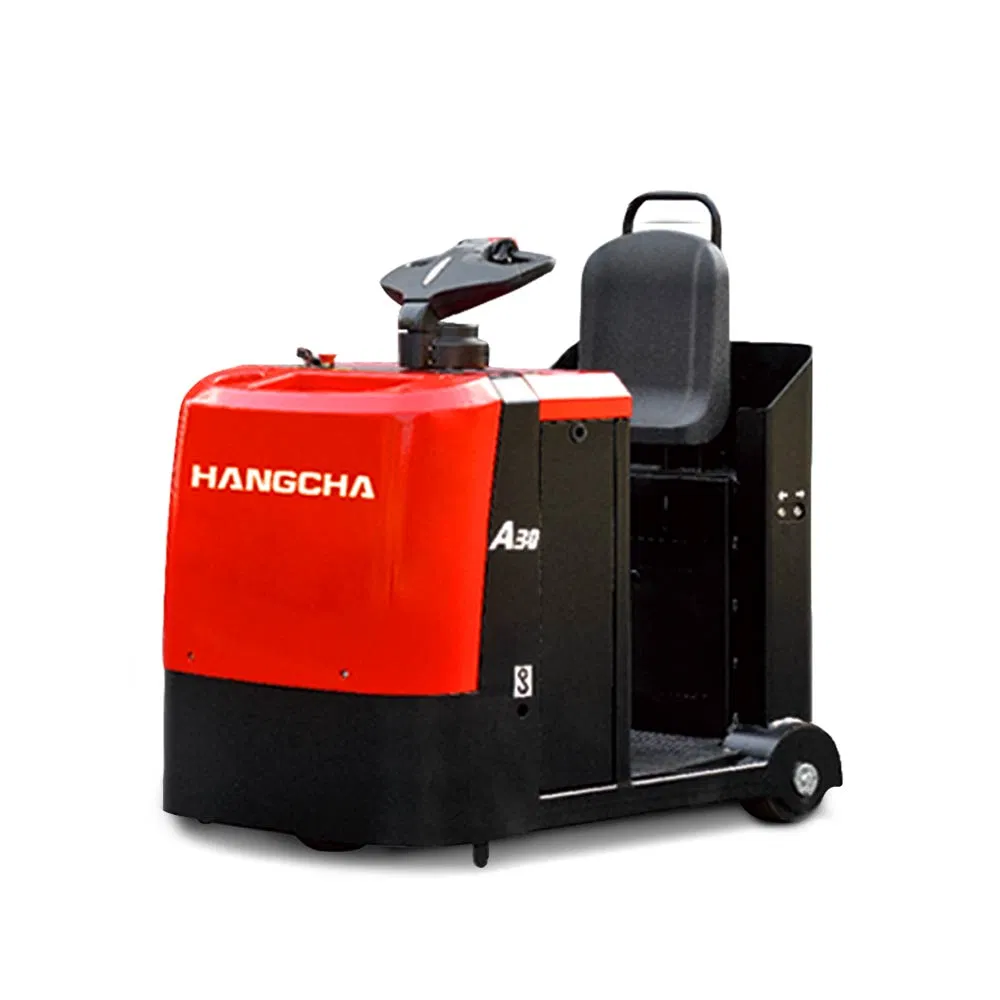

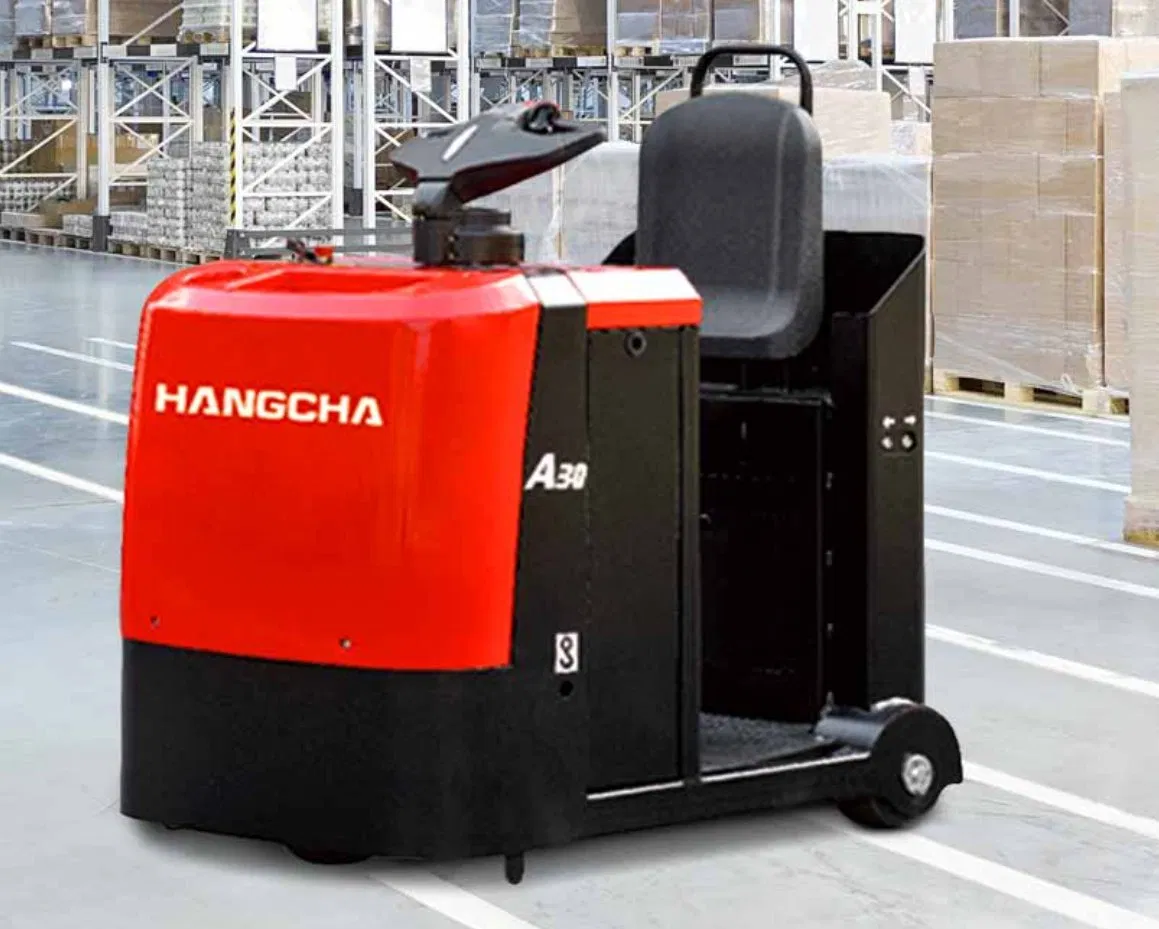

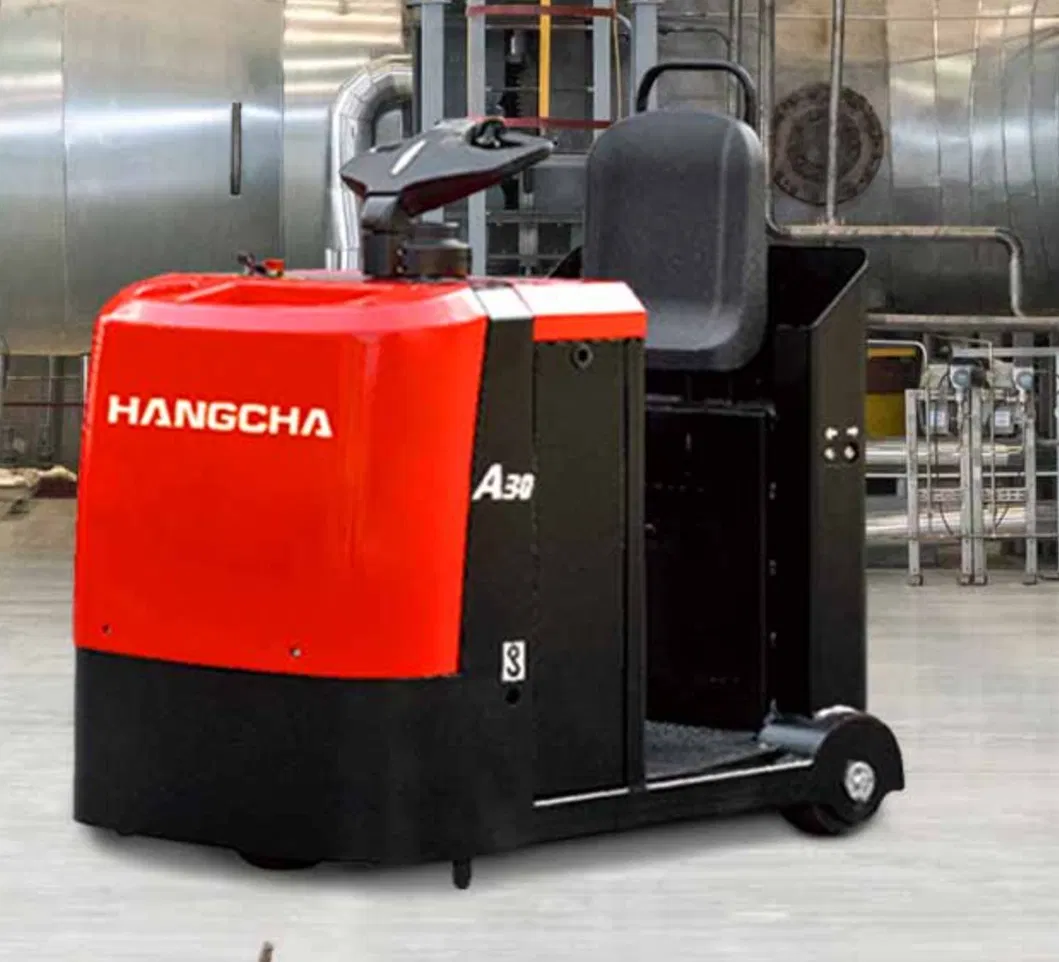

The A series 3.0-5.0t electric tow tractor applies professional industrial design with streamlined, compact aesthetics. Fully ergonomic and robust, it features steel stamping and injection molding for front and back guards that are both durable and environmentally compliant.
Equipped with automatic deceleration during turning and a safety switch on the pedal to prevent mis-operation. It utilizes a triple braking system (regenerative, reverse current, and parking brake) and a steel front shield to ensure maximum operator safety.
Standard electric power steering provides flexible operation. Powered by a maintenance-free AC traction motor, it offers excellent acceleration and climbing performance. The CAN-BUS system ensures rapid, reliable data transmission and easy vehicle inspection.
The brushless AC motor eliminates carbon brush maintenance. A fully opened hood provides easy access to all components. Integrated self-diagnostic instruments and oil cups on all shafts significantly prolong the service life of the tractor.
A 3-pivot and side support bar system design ensures stability. The electrical system is protected by imported waterproof connectors and shielded cables, while non-contact proximity switches improve the reliability of the pedal safety system.
Features a shock-absorbing pedal design and adjustable backrest with hip support to reduce operator fatigue. The compact size and flexible handling allow for easy operation even in confined spaces, supported by standard sideway battery changing.
The A Series electric tow tractor is designed to handle load capacities ranging from 3 to 5 tons, making it suitable for various industrial logistics tasks.
No, it uses a brushless AC traction motor which is maintenance-free, offering low heat generation and reducing long-term operational costs.
The tractor features an automatic deceleration function that activates during turning to maintain stability and prevent tipping or accidents.
Not at all. Sideway battery changing is a standard specification for this model, allowing for quick and safe battery swaps to maximize uptime.
Yes, its compact size, light weight, and flexible electric power steering make it extremely easy to operate even in very tight spaces.
It employs a triple braking system comprising regenerative braking (for energy recovery), reverse current braking, and a traditional parking brake.
