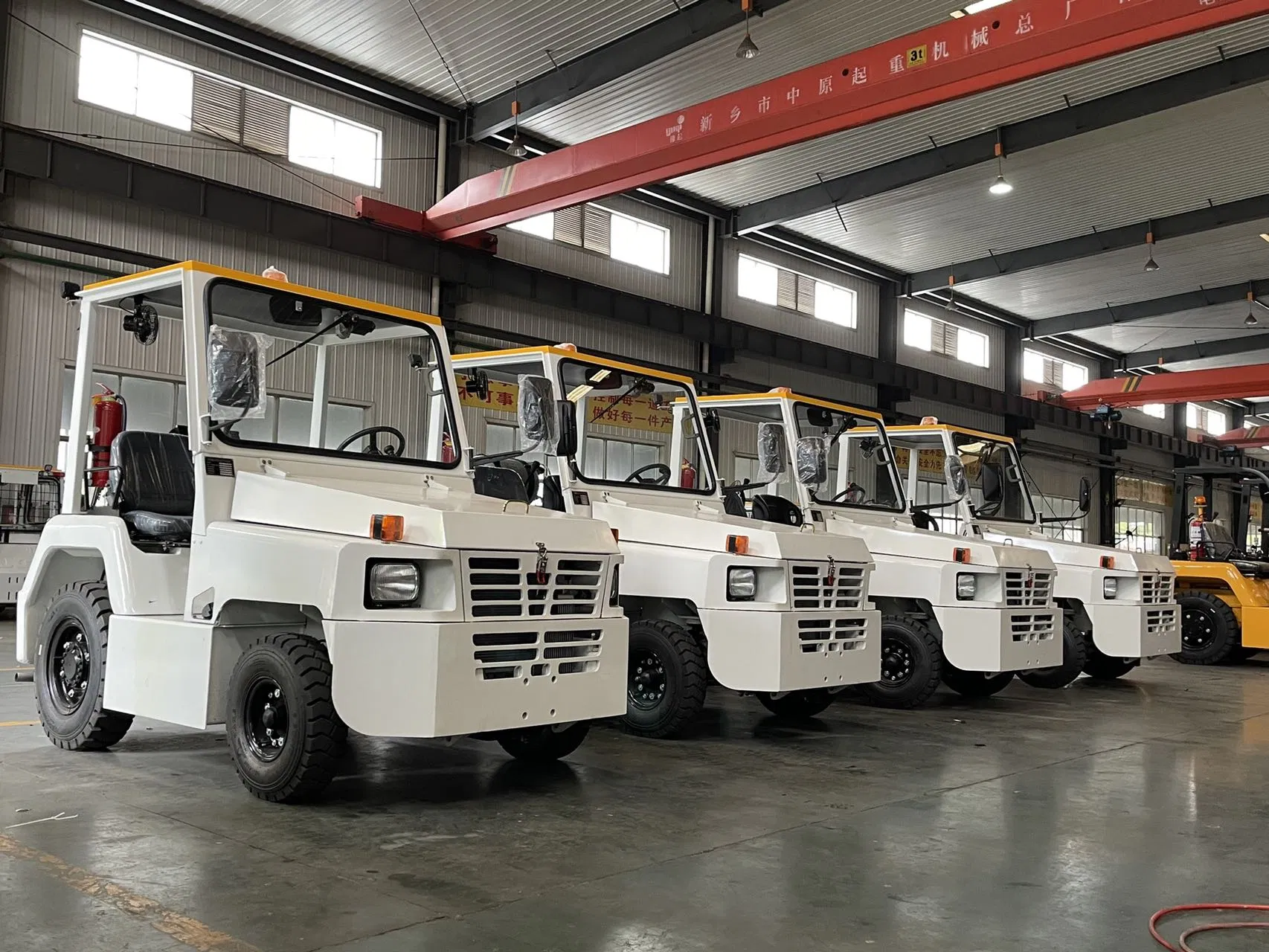

5% off Manufacture China Gp Nude Luggage Airport Drawbar Pull Diesel Electric LPG&Gas Tow Tractor Tow Hitch with ISO

5% off Manufacture China Gp Nude Luggage Airport Drawbar Pull Diesel Electric LPG&Gas Tow Tractor Tow Hitch with ISO

5% off Manufacture China Gp Nude Luggage Airport Drawbar Pull Diesel Electric LPG&Gas Tow Tractor Tow Hitch with ISO

5% off Manufacture China Gp Nude Luggage Airport Drawbar Pull Diesel Electric LPG&Gas Tow Tractor Tow Hitch with ISO

5% off Manufacture China Gp Nude Luggage Airport Drawbar Pull Diesel Electric LPG&Gas Tow Tractor Tow Hitch with ISO

1 / 5

5% off Manufacture China Gp Nude Luggage Airport Drawbar Pull Diesel Electric LPG&Gas Tow Tractor Tow Hitch with ISO

5% off Manufacture China Gp Nude Luggage Airport Drawbar Pull Diesel Electric LPG&Gas Tow Tractor Tow Hitch with ISO

5% off Manufacture China Gp Nude Luggage Airport Drawbar Pull Diesel Electric LPG&Gas Tow Tractor Tow Hitch with ISO

5% off Manufacture China Gp Nude Luggage Airport Drawbar Pull Diesel Electric LPG&Gas Tow Tractor Tow Hitch with ISO

5% off Manufacture China Gp Nude Luggage Airport Drawbar Pull Diesel Electric LPG&Gas Tow Tractor Tow Hitch with ISO

5% off Manufacture China Gp Nude Luggage Airport Drawbar Pull Diesel Electric LPG&Gas Tow Tractor Tow Hitch with ISO

Customization:	Available
After-sales Service:	1 Years
Warranty:	1 Years

Send Inquiry

Product Description

📋

Basic Information

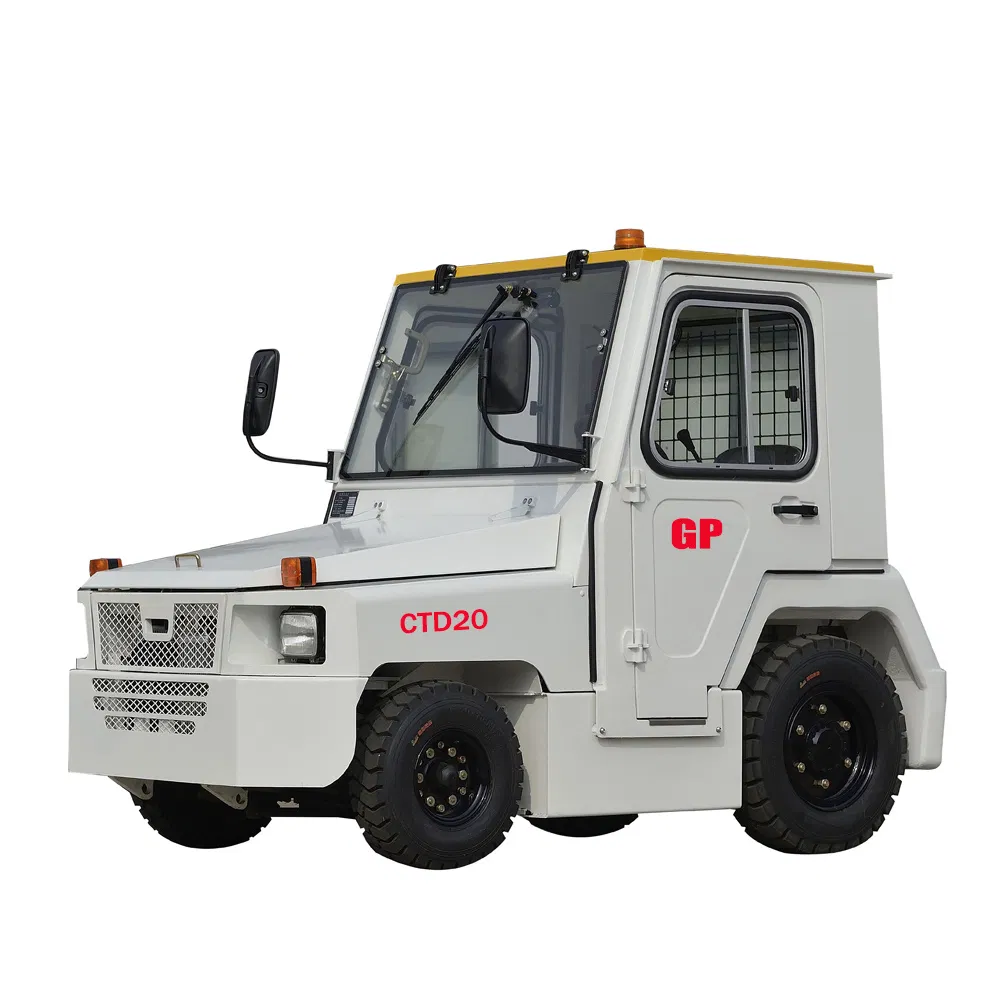

Model NO.CTD20

Transmission TypeAutomatic

Power SourceDiesel

Load Capacity20ton

Emission StandardEuro 3

Drive Wheel4×2

Engine Capacity＜4L

Tire CertificationISO

ConditionNew

TypeDiesel/Electric/LPG&Gas Tow Tractor

TyrePneumatic/Solid

📦

Packaging & Delivery

Package Size290.00cm * 150.00cm * 230.00cm

Package Gross Weight3500.000kg

Standard Lead Time30 days (1 - 1 Pieces)

⚙️

Product Description & Features

✔ The practical work table effectively raises auxiliary work efficiency.

✔ New maintenance-free motor with moisture-proof and dustproof protection.

✔ Electronic steering provides precise control for better maneuverability.

✔ Equipped with self-braking features to ensure safer operation.

✔ Specially designed cabin space allows for a more relaxed and comfortable working environment for the driver.

✔ Seater electric tow options available for convenience.

📊

Technical Parameters

Category	Description	Unit	CTD15	CTD20	CTD25	CTD30	CTD35	CTD50	CTD60
Performance	Max. Drawbar Pull	KN	15	20	25	30	35	50	60
	Max. Towed Weight	Kg	15000	20000	25000	30000	35000	50000	60000
	Travel Speed (Fwd)	km/h	22	25	25	25	27	26	26
	Max. Gradeability	%	38	38	38	35	35	35	35
Dimension	Overall Length	mm	3000	3015	3015	3015	3180	4160	4160
	Overall Width	mm	1440	1440	1440	1440	1440	2000	2000
	Wheel Base	mm	1600	1620	1620	1620	1605	2300	2300
Engine	Rated Output	KW	47	47	47	47	47	62	118
Engine	Displacement	cm3	3331	3331	3331	3331	3331	3331	6.494

🖼️

Product Gallery

Tow Tractor Side View

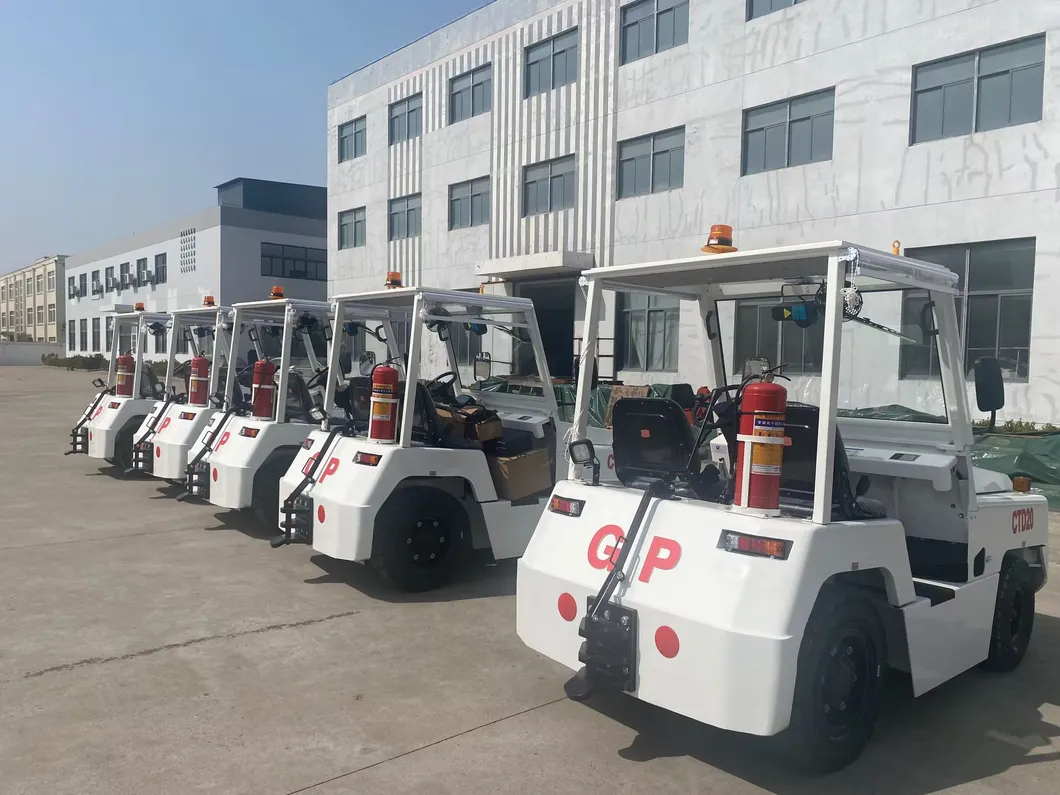

Tow Tractor Front View

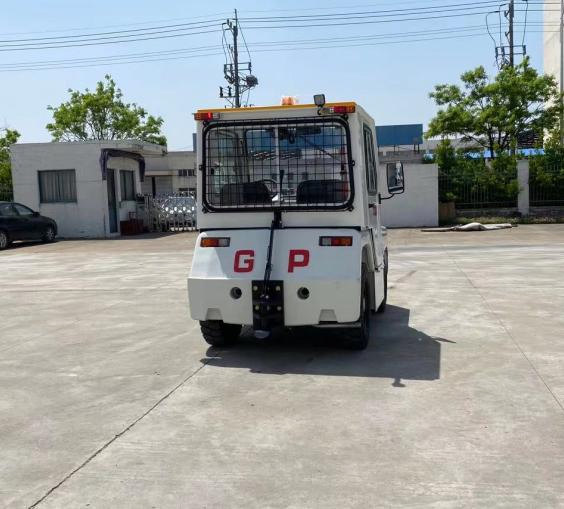

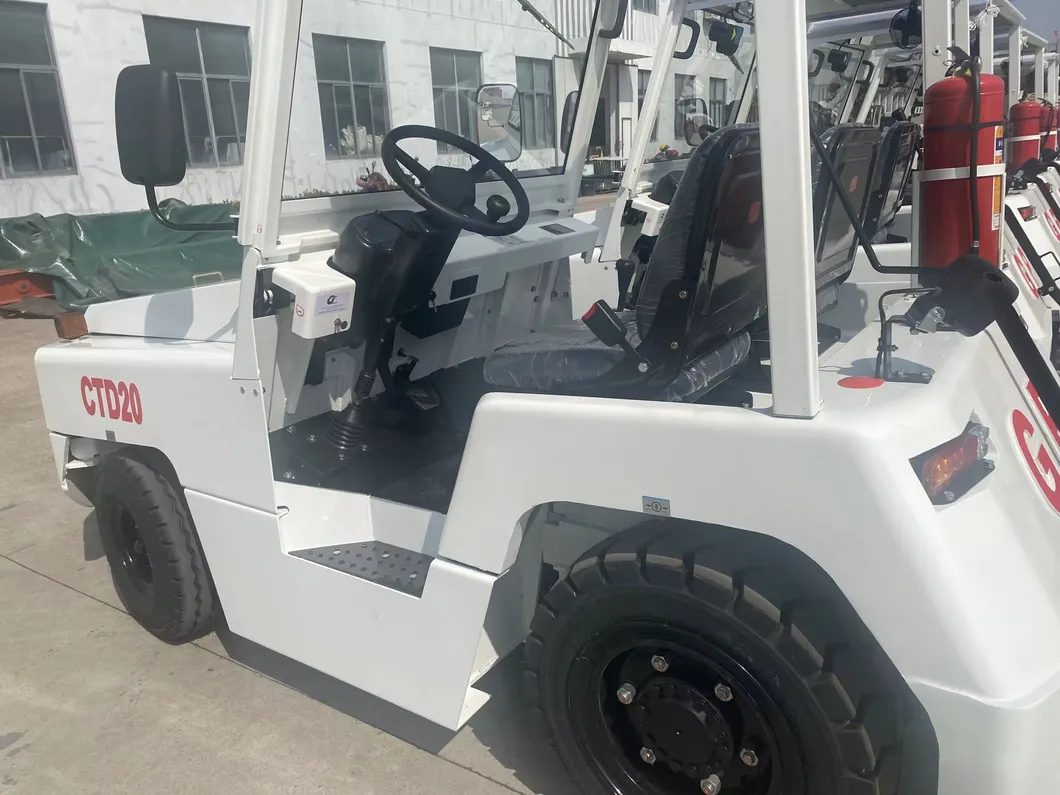

Tow Tractor Rear View

Tow Tractor Operation

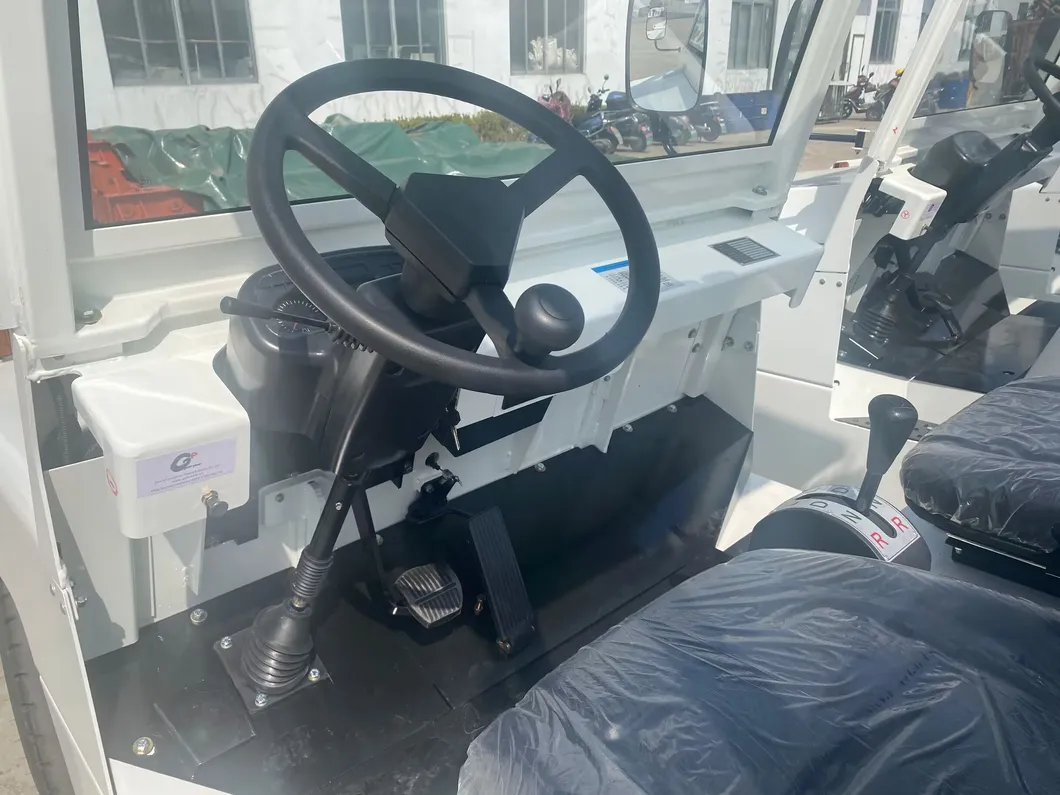

Tow Tractor Details

Airport Luggage Towing

Technical Layout

Chassis View

Engine Compartment

Tire Details

Dimensions

Specs Sheet

❓

Frequently Asked Questions

Q1: What is the maximum towing capacity of these tractors?

The capacity varies by model, ranging from 15 tons (CTD15) up to 60 tons (CTD60) on dry, even concrete surfaces.

Q2: What engine types are used in the CTD series?

The series utilizes high-quality engines including Mitsubishi S4S, Isuzu, Yanmar, and Cummins options depending on the specific model and power requirements.

Q3: Does the tractor come with an automatic transmission?

Yes, the tractors feature automatic hydraulic transmission (such as EXEDY KT or ITALY PST2) for smooth and efficient power delivery.

Q4: Are these tractors suitable for airport luggage handling?

Absolutely. These tow tractors are specifically designed for applications like airport ground support, luggage towing, and industrial material handling.

Q5: What safety systems are integrated into the design?

Safety is prioritized with features like self-braking systems, hydraulic drum service brakes, and integral power steering for precise control.

Q6: How is the maintenance handled for the electric components?

The tractor uses a new maintenance-free motor design that includes moisture-proof and dustproof protection to reduce downtime and service costs.
