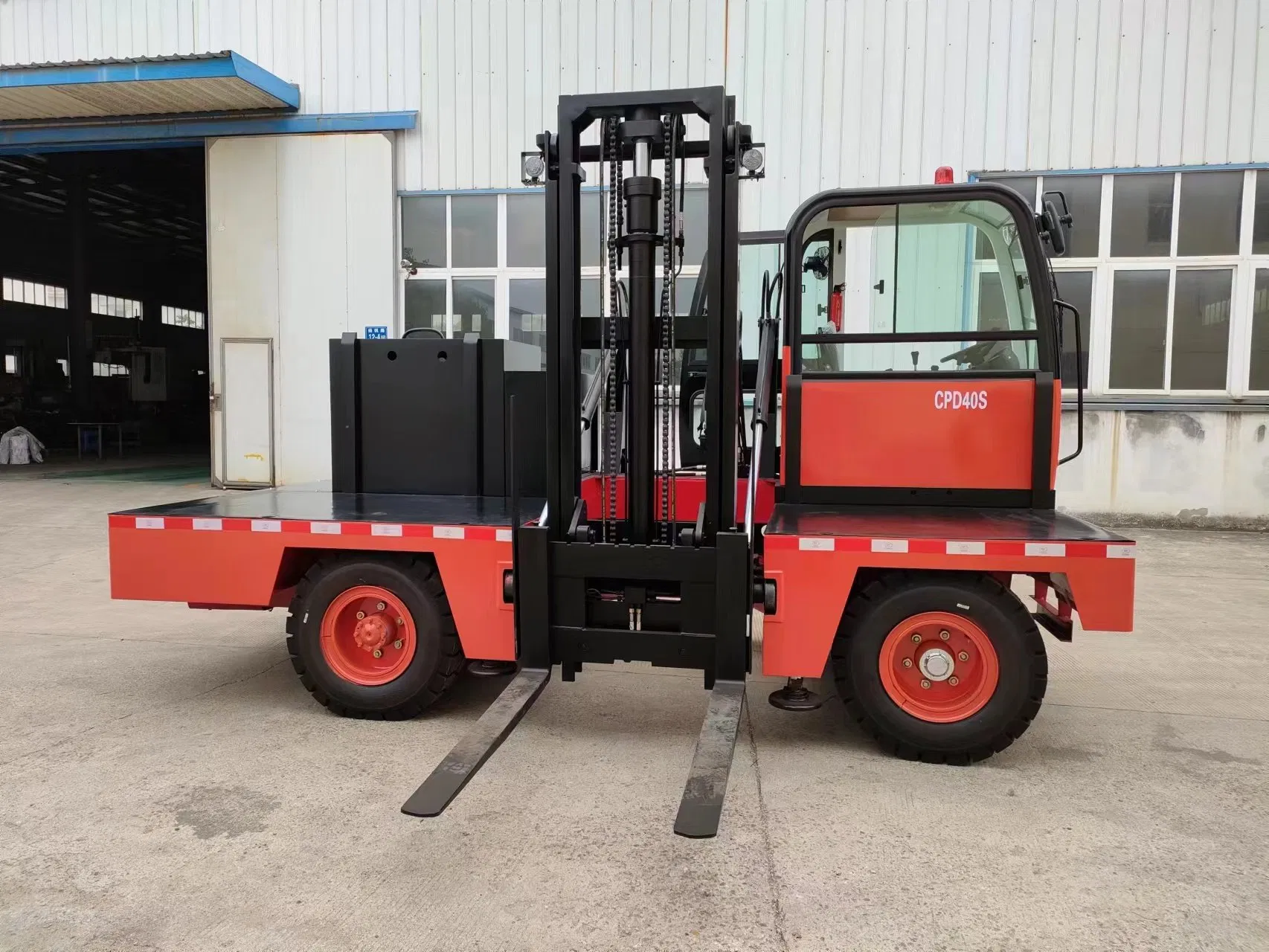

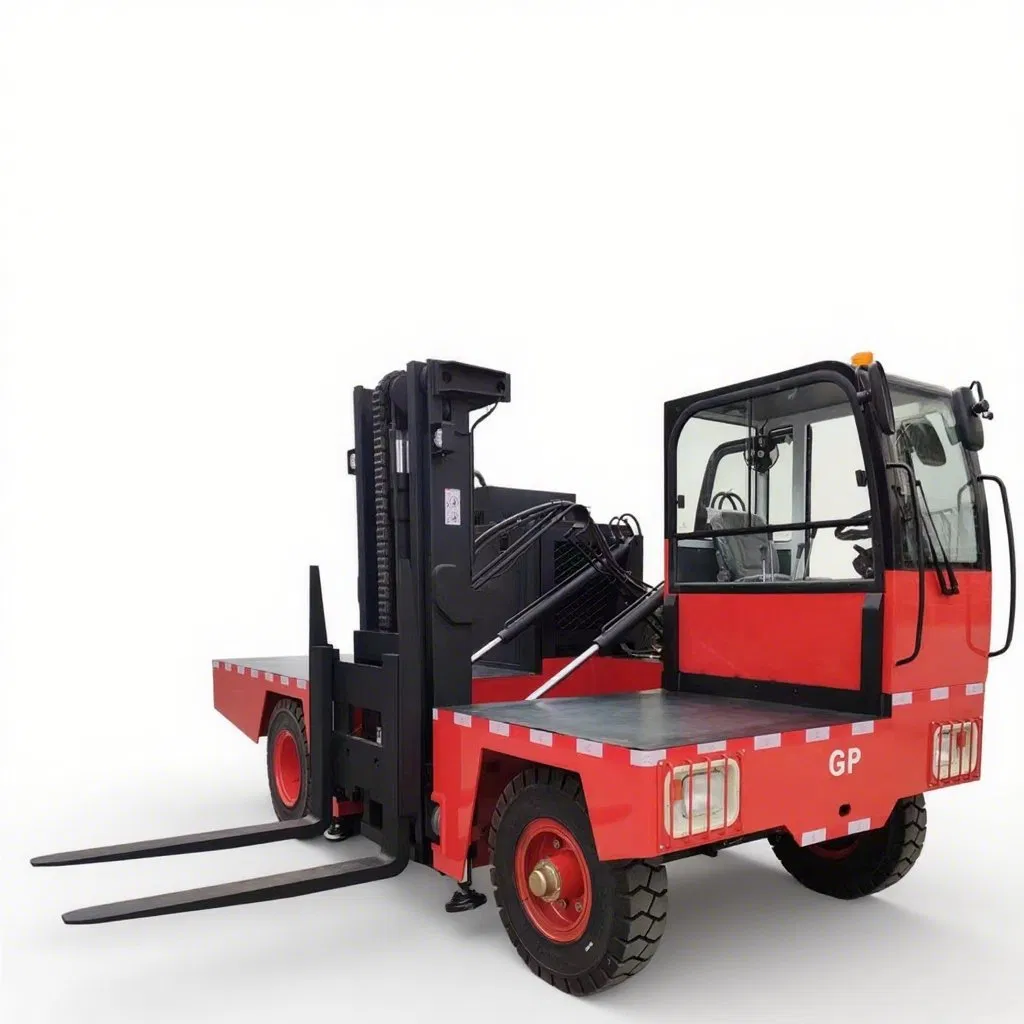

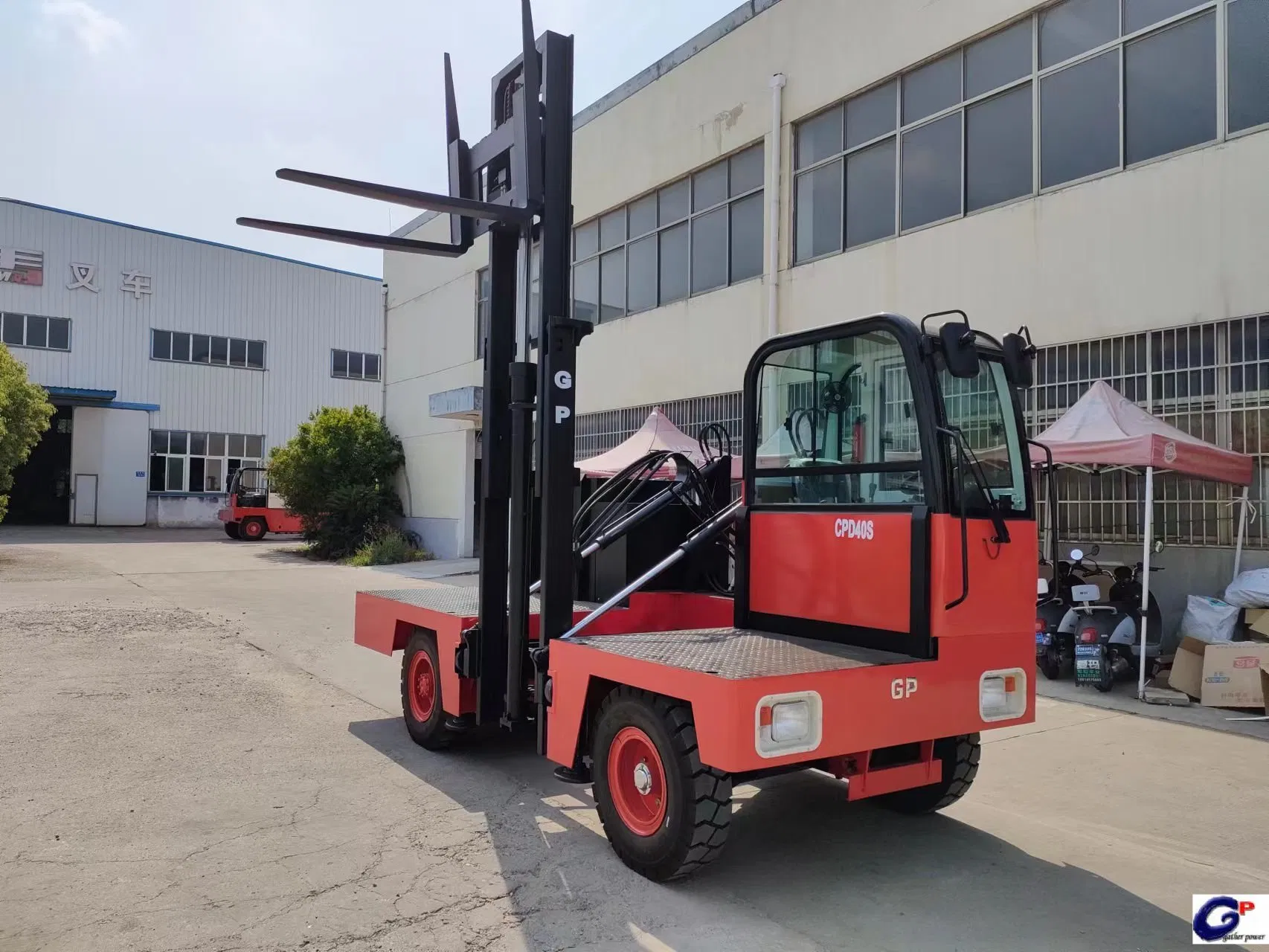

4t High-Capacity Electric Side Loader - 4.5m Extendable Forks & 360° Steering for Narrow Aisle Efficiency

Still deciding? Get samples of $ !
Order Sample

Product Description

Basic Info

Model NO.
CPD40S
Type
Electric Forklift
Power
AC Motor
Load Capacity
1T - 5T
Fuel
Electric
Lift height
3000~5000mm
Condition
New
Tyre Type
Pneumatic
Fork Size
1220*150*55
Wheel Base
2250mm
HS Code
842720900
Specification
3472*1995*2500mm

Packaging & Delivery

Package Size
420.00cm * 190.00cm * 220.00cm
Gross Weight
5515.000kg

Product Description

Side forklift truck is a new type of carrying scraper. It differs from the counter-balanced one mainly in that the forks are mounted on the side of the body. Besides lifting and tilting, the forks can also traverse to the right side of the truck frame, and retract back alongside the well in the middle section of the truck. Long cargoes can be loaded by the forks on/from the truck deck, as well as transported in limited spaces. As the long cargoes are piled lengthwise along the truck's platform, the width of the passageway required by the forklifter can be reduced remarkably. The side forklift truck is particularly suitable for handling timber, section steels, line poles, cement tubes, plastic pipes and other kind of bulky, over length cargoes. It finds wide applications in railway stations, oilfields, harbours, warehouses, factories, construction sites, etc.

Product Parameters

Main Parameters Unit CPD30S CPD40S
Rated load capacityKg30004000
Load centremm600600
Maximum Lifting Heightmm35003500
Maximum Lifting Speed (laden)mm/s280280
Tilting Angle of Fork (up/down)°3°/5°3°/5°
Grade Ability (laden)%15%15%
Minimum Ground Clearancemm200205
Width of Carriermm12001200
Length of Forkmm12201220
Wheelbasemm26002700
Dimension (L*W*H)mm4400×2000×23504400×2000×2550
Self-Weightkg55706200
Controller System-USA Curtis
Battery (Lead acid/Lithium)AH80/50080/550

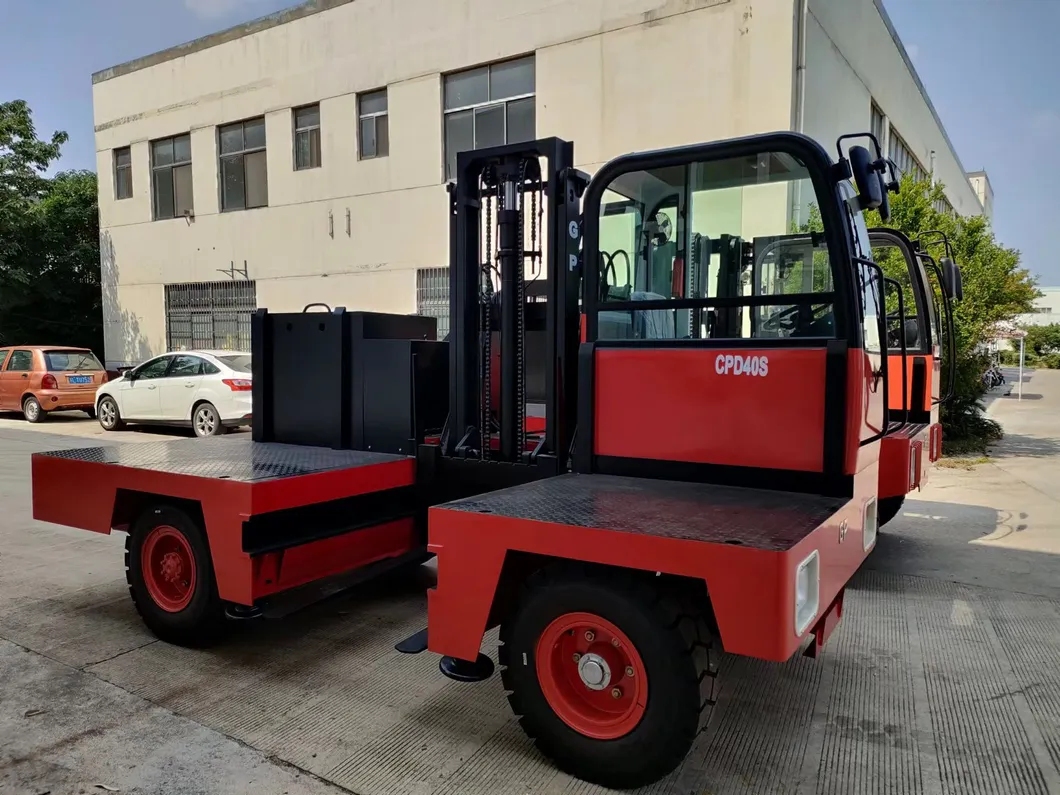

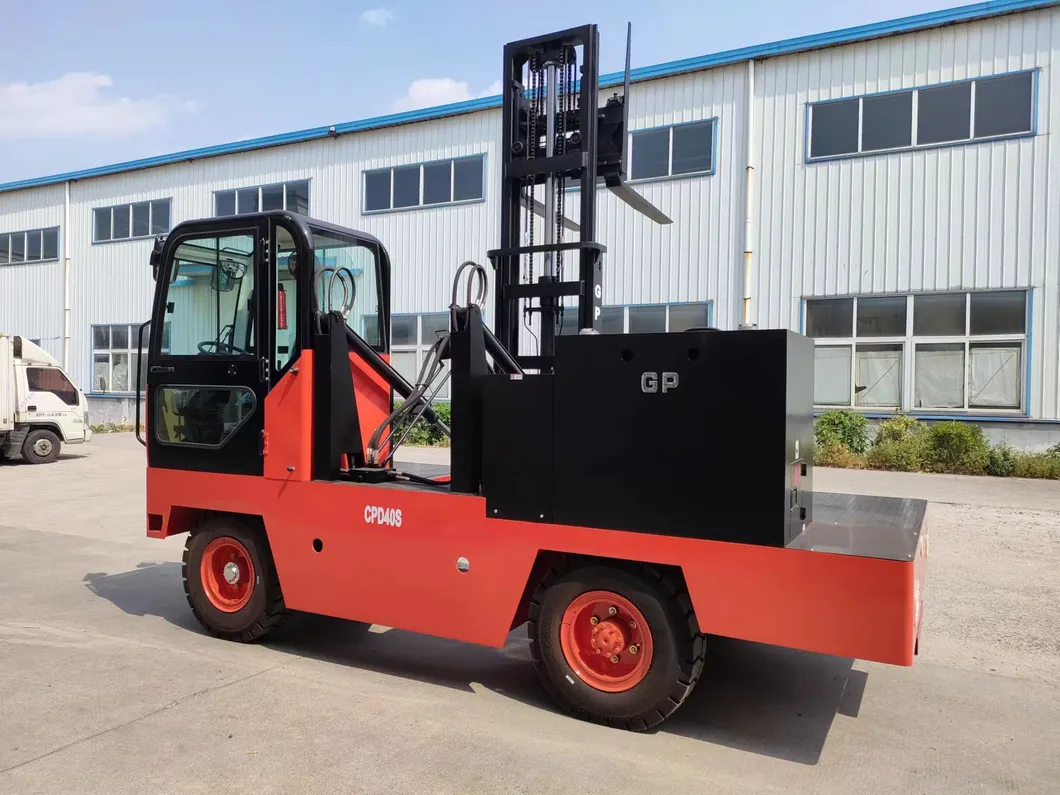

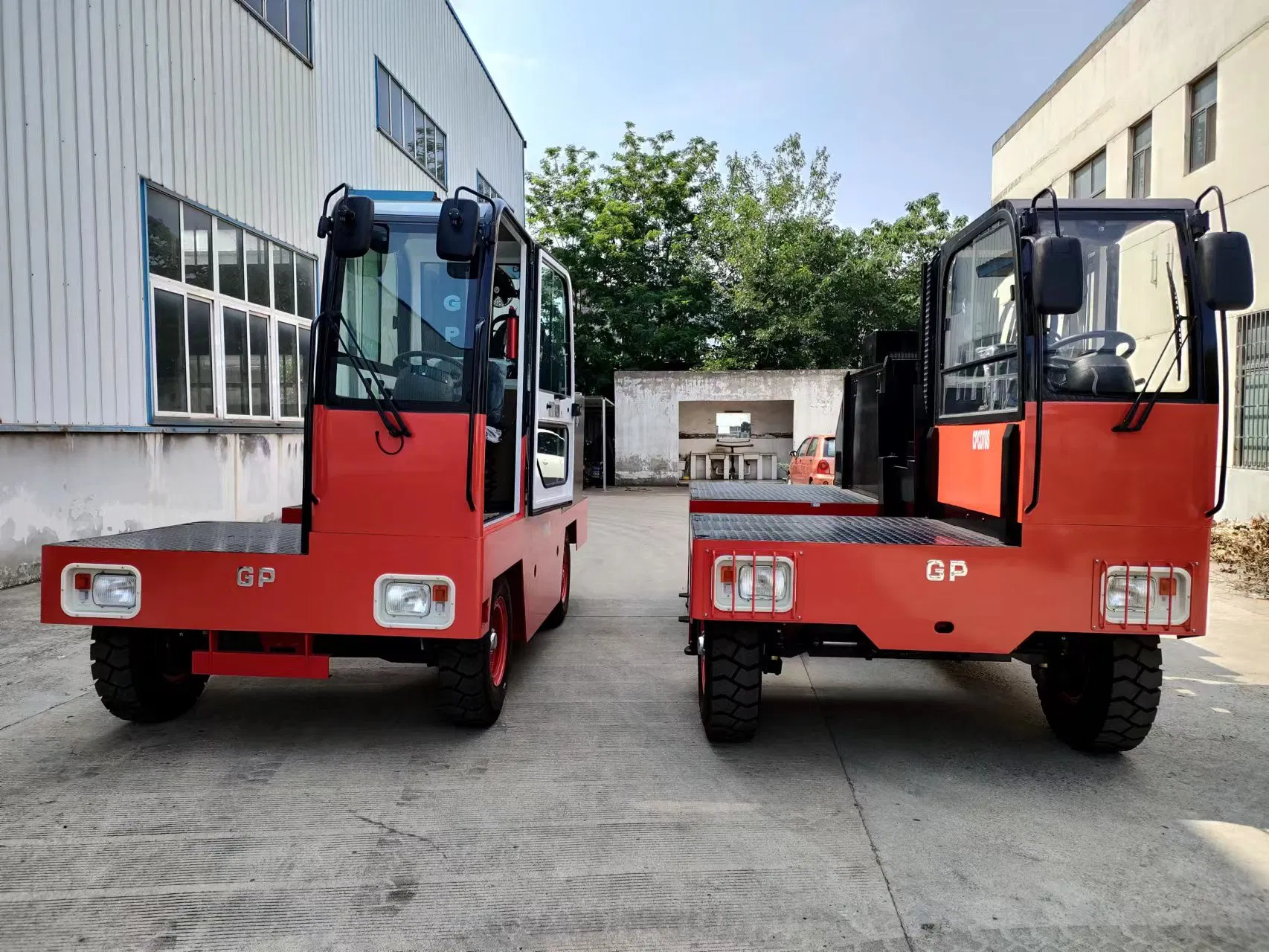

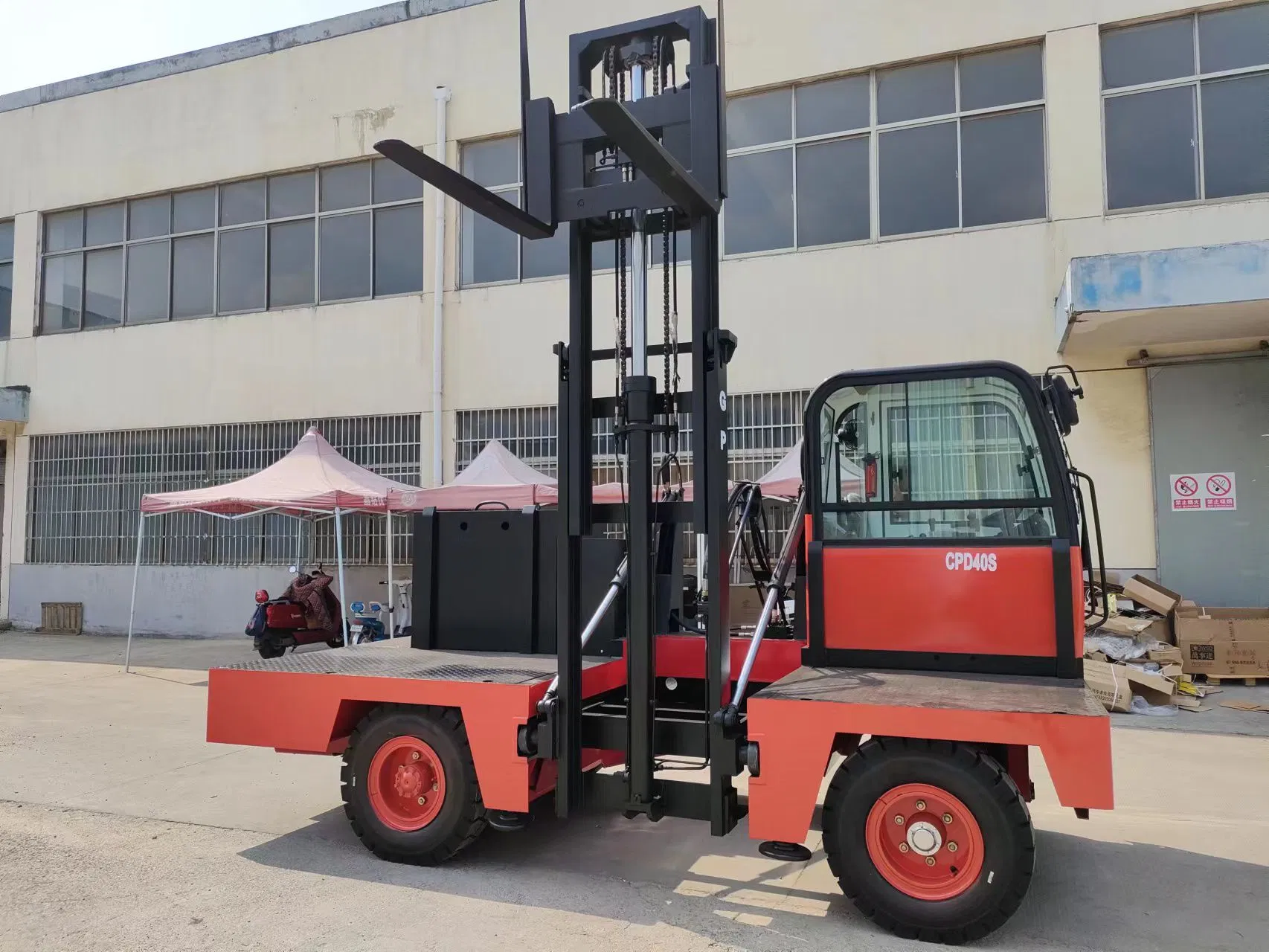

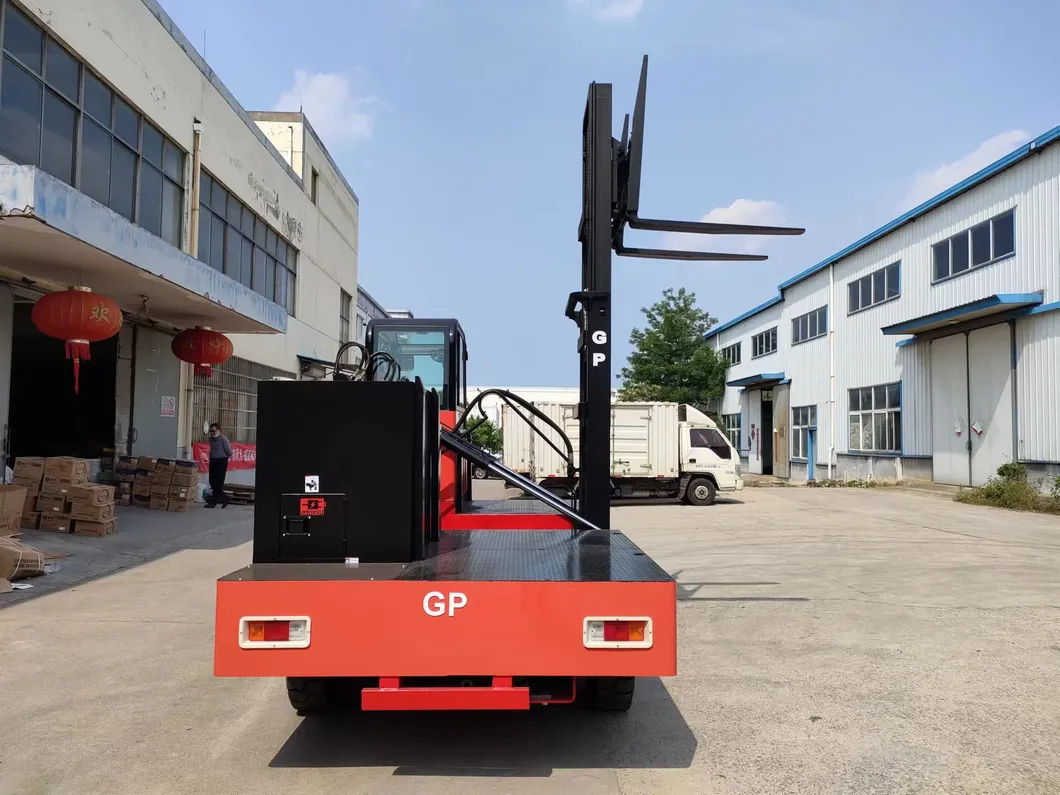

Detailed Photos

Our Advantages

Frequently Asked Questions

What are the primary benefits of a side forklift?
The side-mounted forks allow for handling long cargoes in narrow aisles by loading items lengthwise, significantly reducing the required passage width compared to standard forklifts.
What type of cargo is best suited for this forklift?
It is ideal for bulky and over-length materials such as timber, section steels, line poles, cement tubes, and plastic pipes.
What is the lifting capacity and height range?
The series offers a load capacity ranging from 1T to 5T, with lifting heights typically between 3000mm and 5000mm.
What control system does the electric side loader use?
These forklifts are equipped with a high-performance USA Curtis controller system for precise and reliable operation.
Is the battery type customizable?
Yes, both Lead-Acid and Lithium battery options are available to meet different operational endurance requirements.
What environments are these forklifts commonly used in?
They are widely used in railway stations, oilfields, harbours, warehouses, and construction sites where space is limited and cargo is long.
