2000kg 2ton Electric Reach Stacker Truck with 24V Battery

1 / 5

2000kg 2ton Electric Reach Stacker Truck with 24V Battery

Customization:	Available
After-sales Service:	Video Technical Support
Warranty:	1 Year

Send Inquiry

Product Description

Basic Specifications

Model NO.

CQDX

Cab Location

Stand on

Type

Reach Forklift

Power

AC Motor

Load Capacity

1t-2t

Fuel

Electric

Load center

500mm

Lift height

3000~5000mm

Condition

New

Origin

China

HS Code

8427109

Capacity

5000set/Month

Product Description

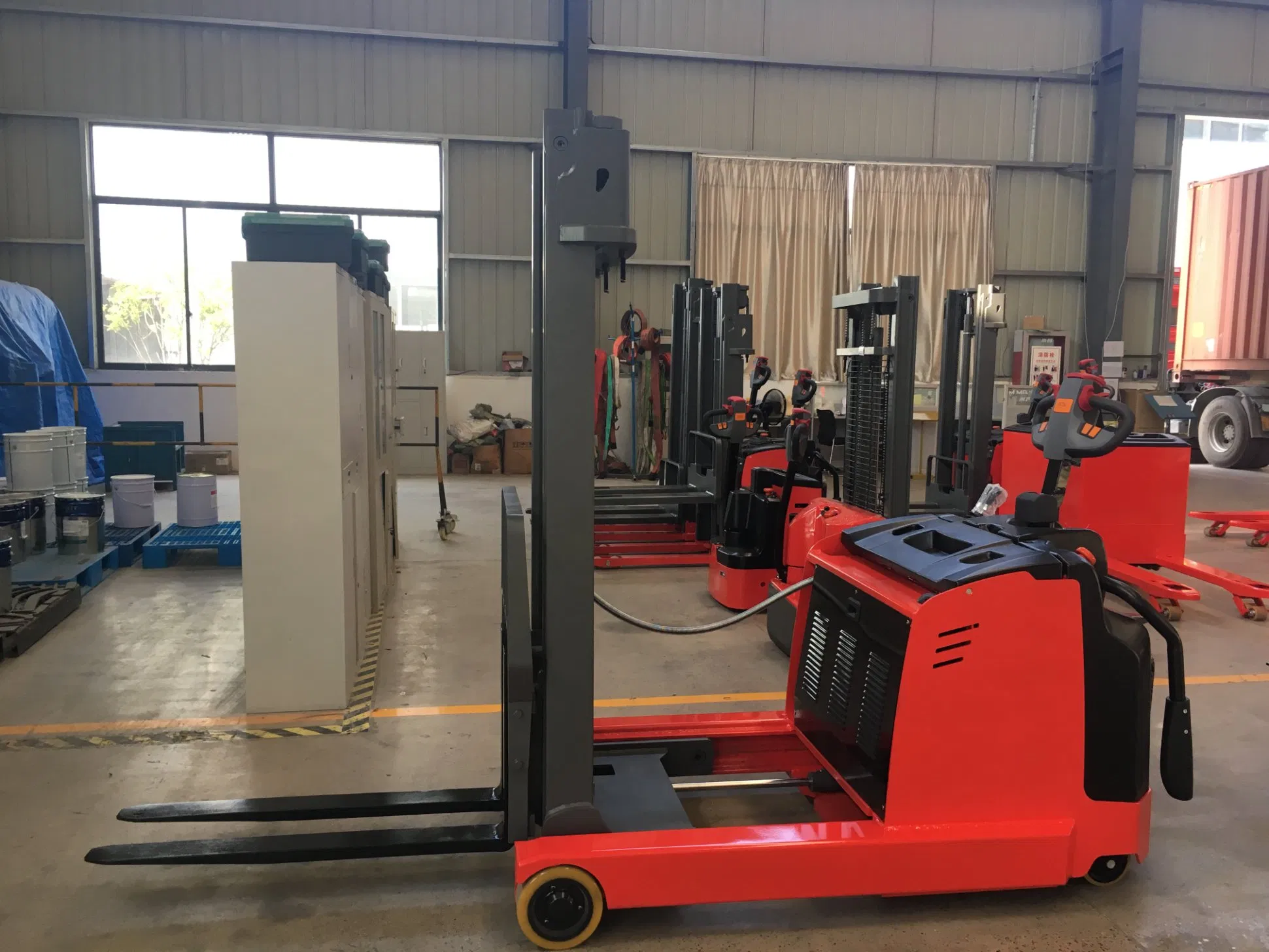

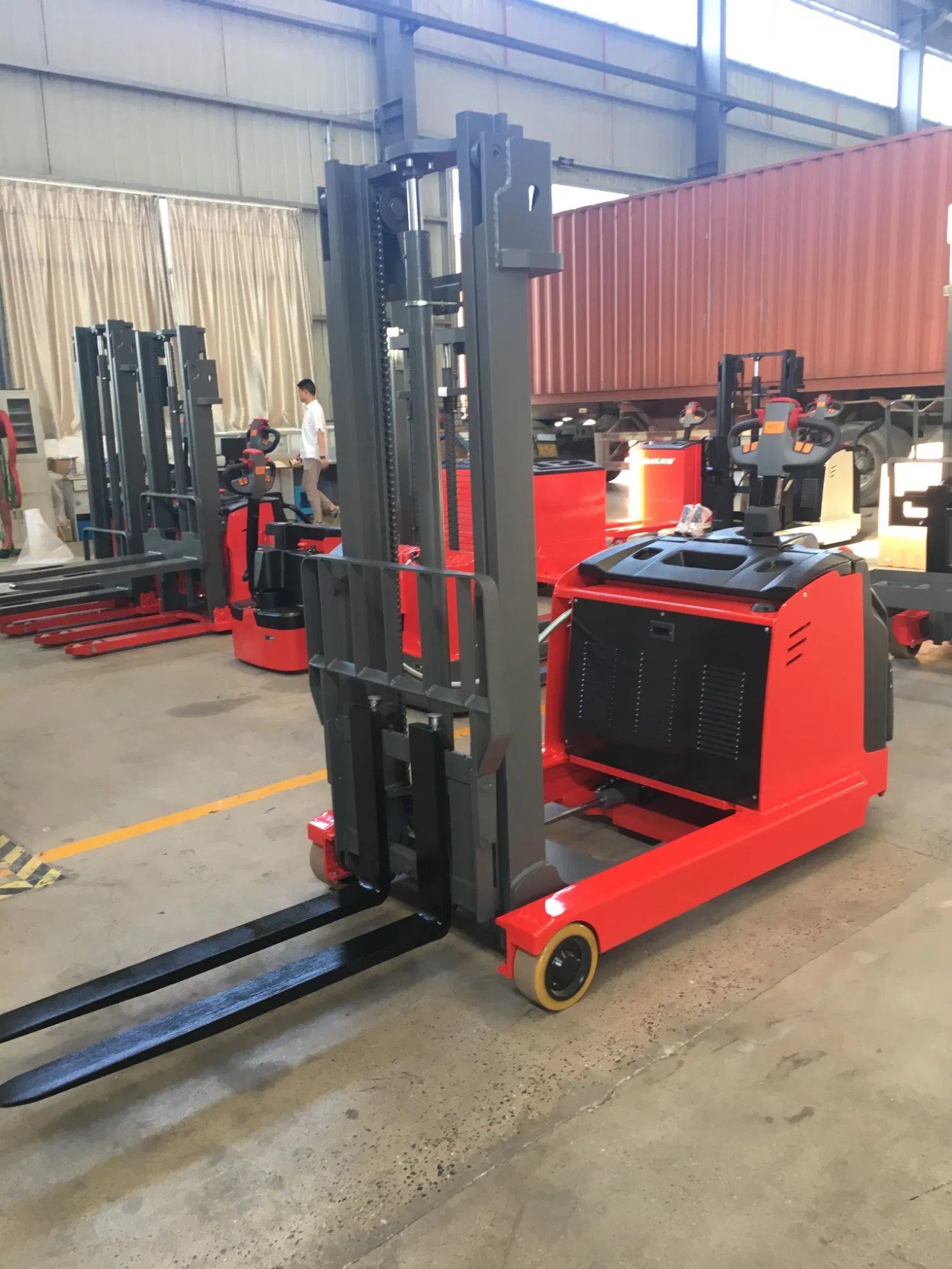

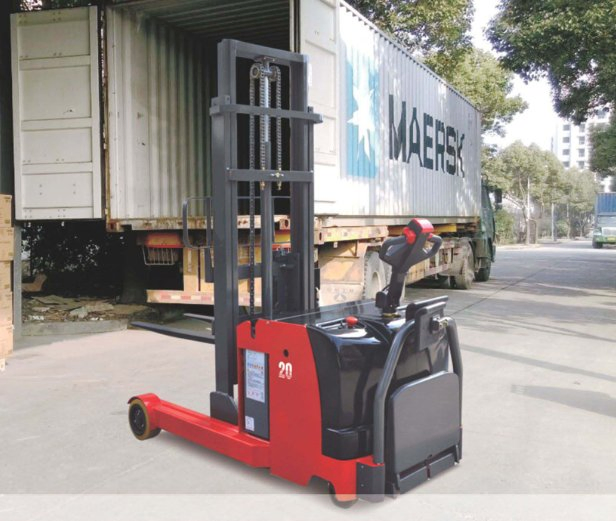

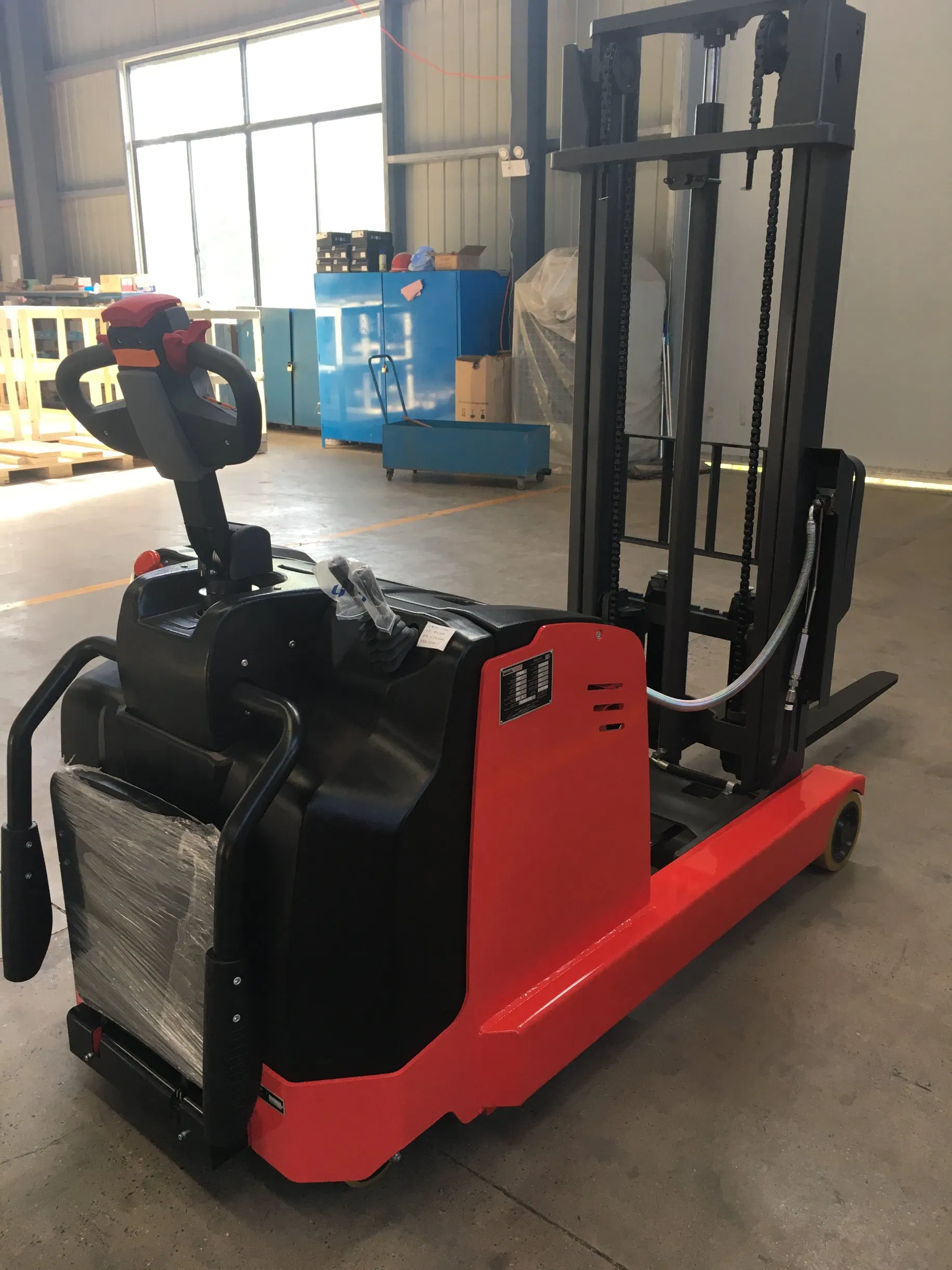

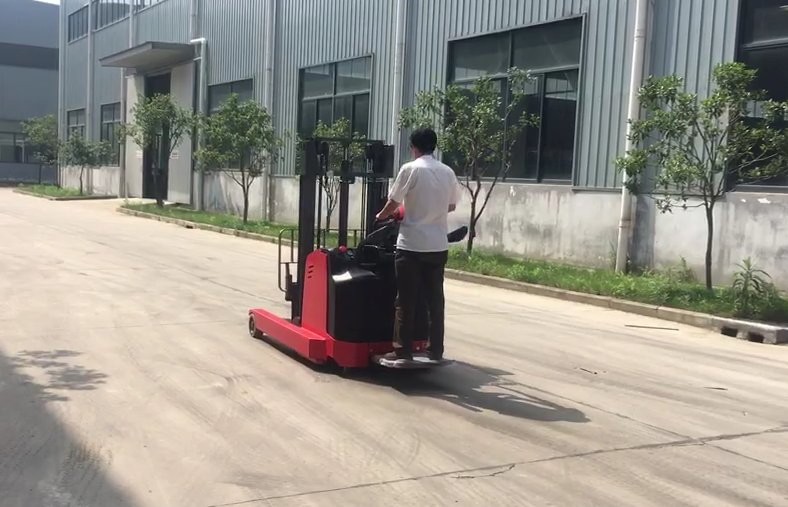

2000kg 2ton electric reach stacker truck with 24v battery

Main Configuration (CQDX Series):

1. 24V AC POWER
2. CURTIS CONTROLLER
3. EPS Steering
4. 24V210AH LEAD-ACID BATTERY
5. 24V30A CHARGER

Optional: Lithium Battery 24V160Ah

Parameters Sheet

Model	Unit	CQDX10	CQDX15	CQDX20
Operation type	-	Stand-on	Stand-on	Stand-on
Load capacity	kg	1000	1500	2000
Load center	mm	500	500	500
Wheelbase	mm	1335	1435	1585
Reach distance	mm	500	600	670
Total weight with battery	kg	1875	1900	2050
Wheel type	-	PU	PU	PU
Drive wheel size	mm	230*75	230*75	230*75
Mast lowered height	mm	1840	1840	1840
Lifting height	mm	2500	2500	2500
Max.height when lifting	mm	3416	3416	3416
Body length	mm	1615	1715	1865
Overall width	mm	1034	1034	1034
Min. turning radius	mm	1645	1740	1890
Travel speed (unload/load)	km/h	5/4	5/4	5/4
Lifting motor	kw	2.2	2.2	2.2
Battery	V/Ah	24V210Ah	24V210Ah	24V210Ah

Note: The data is for reference only, please inquire for more details or other loads and lifting heights.

Packaging & Logistics

Frequently Asked Questions

What quality certifications do your products hold?

Our workshops meet the ISO9001:2008 Quality System standards. All of our products are equipped with CE and SGS certificates to ensure international compliance.

Can you customize the equipment to specific requirements?

Yes, we aim to meet special client requirements. Customization and refitting are implemented safely and scientifically, including custom paint colors as per client needs.

What is the standard warranty period?

The standard warranty is normally 1 year or 2000 working hours, whichever occurs first.

Do you offer OEM services for client branding?

With proper brand authorization, we can provide OEM manufacturing services, labeling products with the client's own brand.

What are the accepted payment terms?

Typically, we require 30% T/T in advance as a deposit, with the balance paid before shipment. 100% L/C at sight from reputable banks is also available.

What battery options are available for the reach stackers?

The standard configuration includes a 24V210AH lead-acid battery. As an optional upgrade, we also offer a Lithium Battery (24V160Ah) for improved efficiency.
