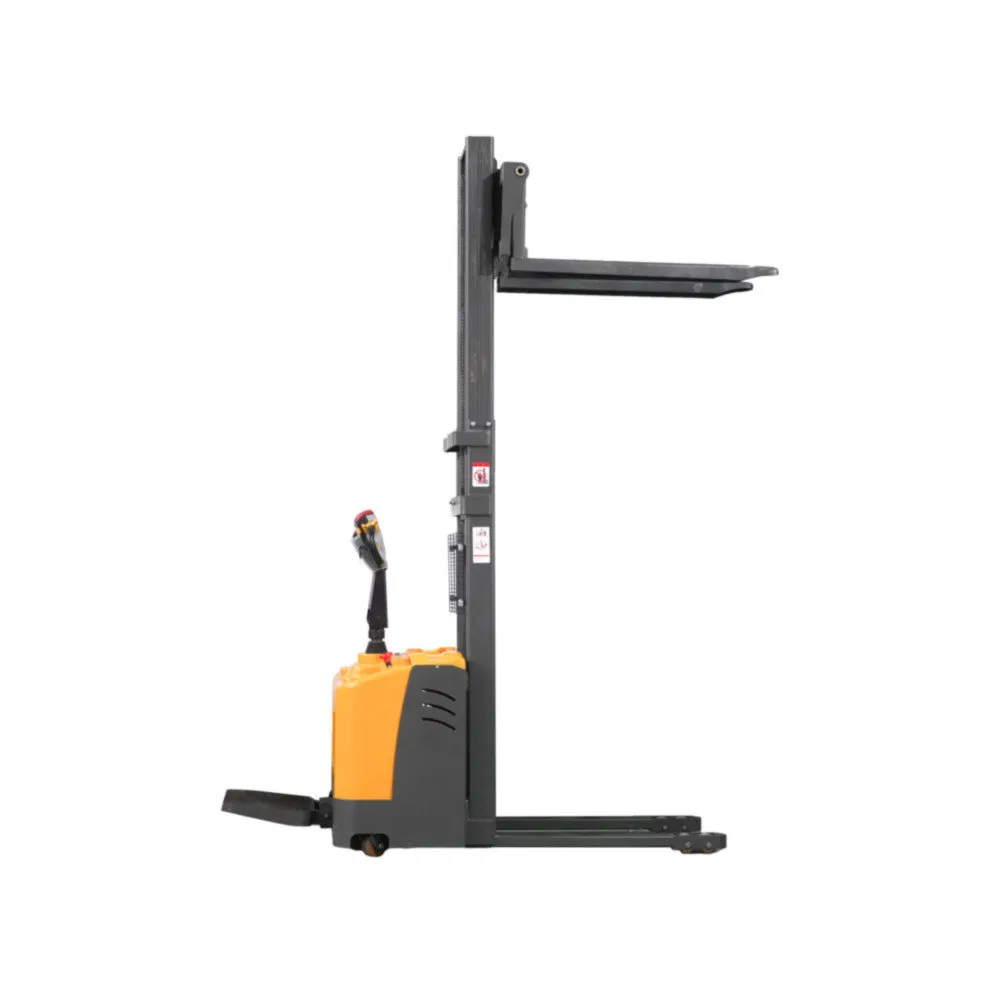

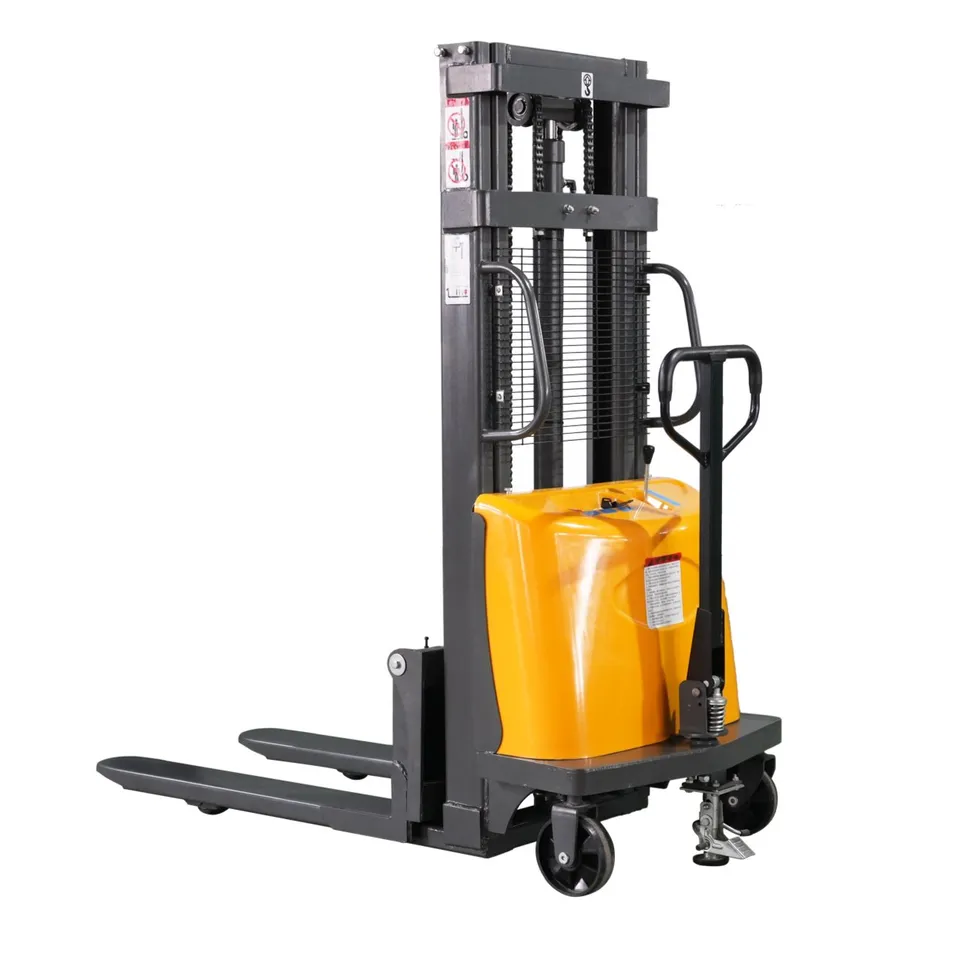

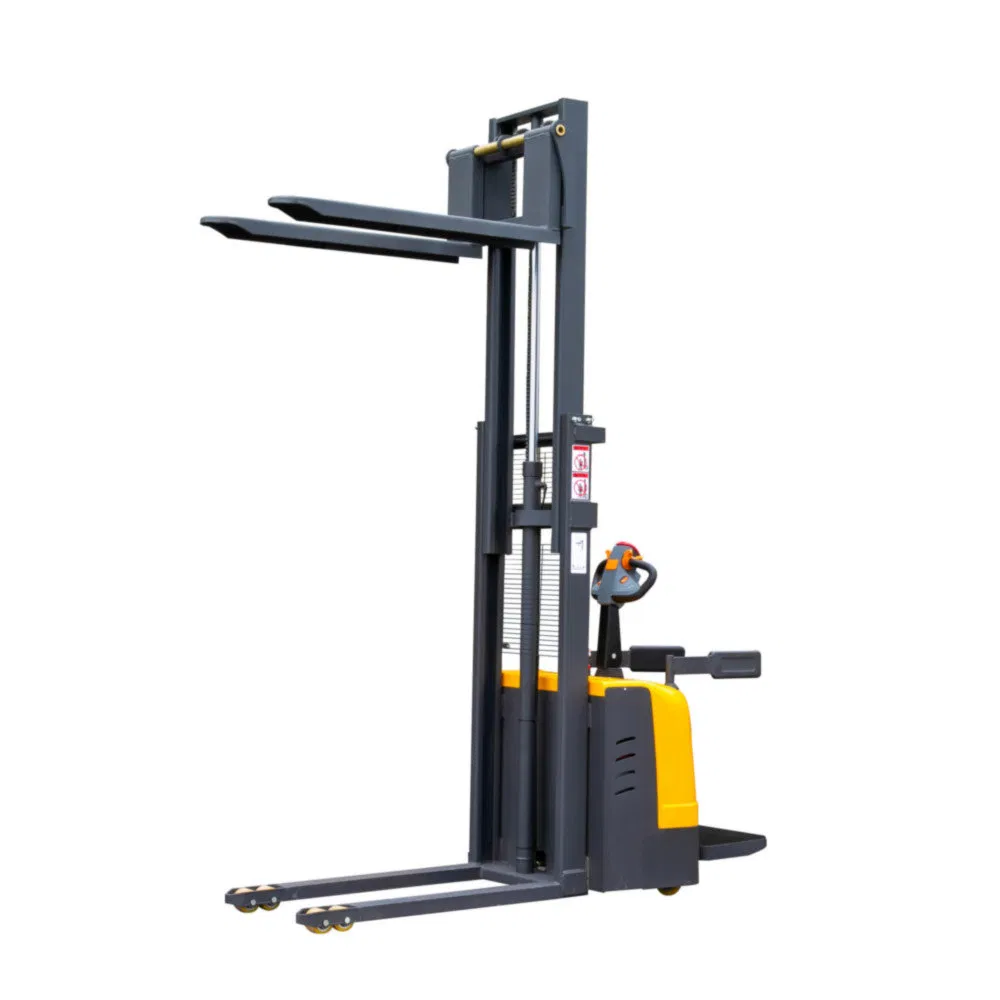

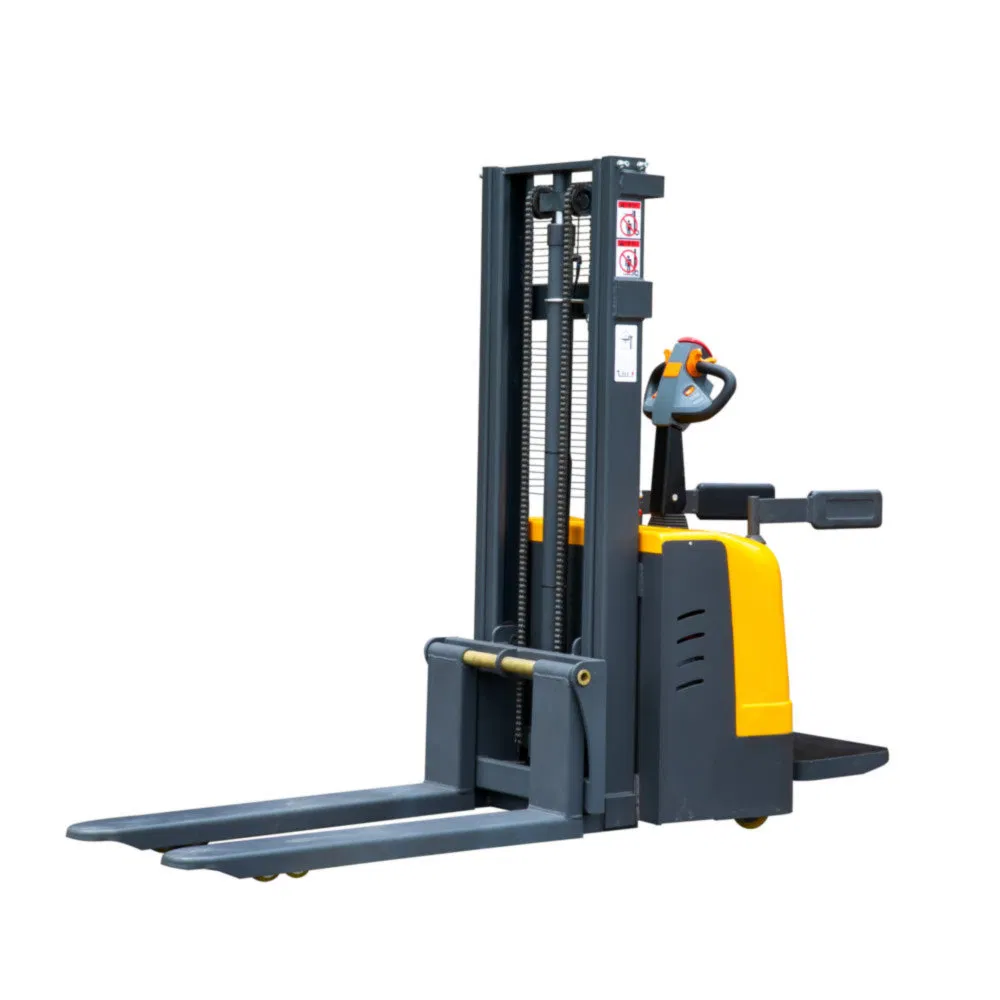

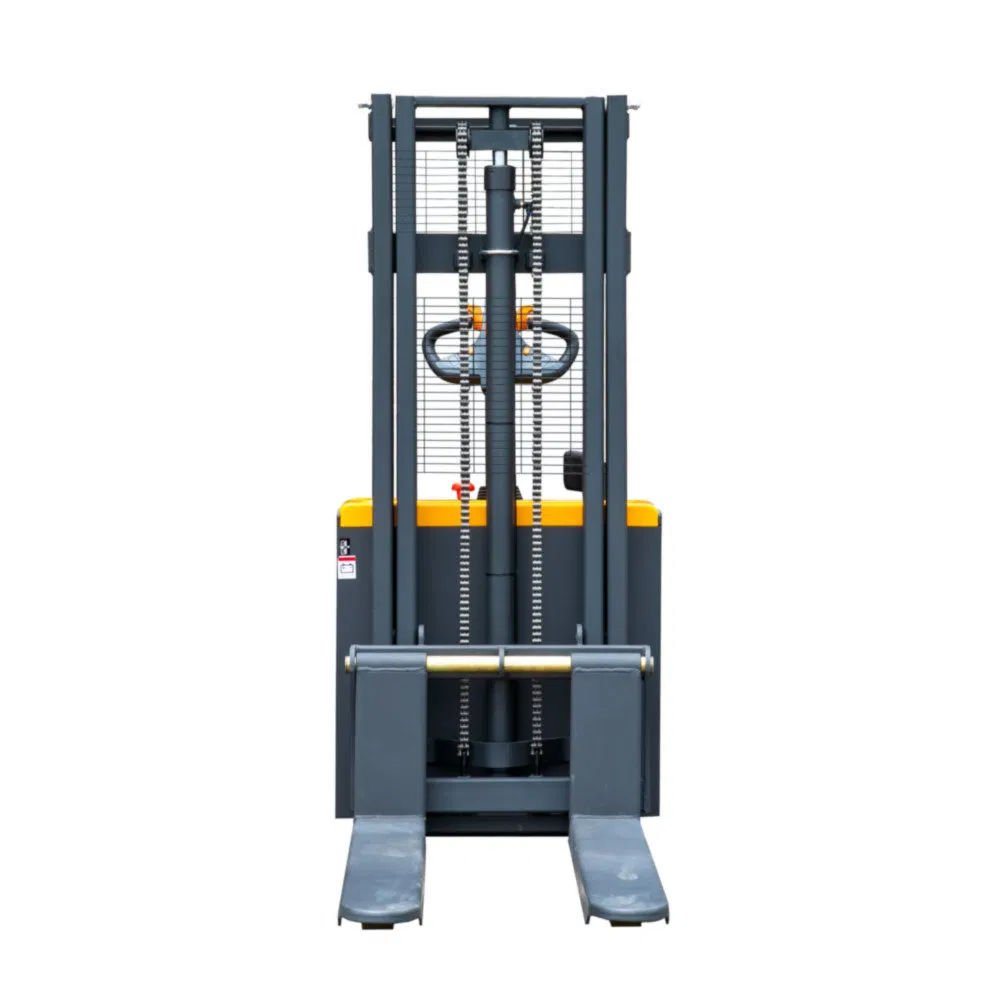

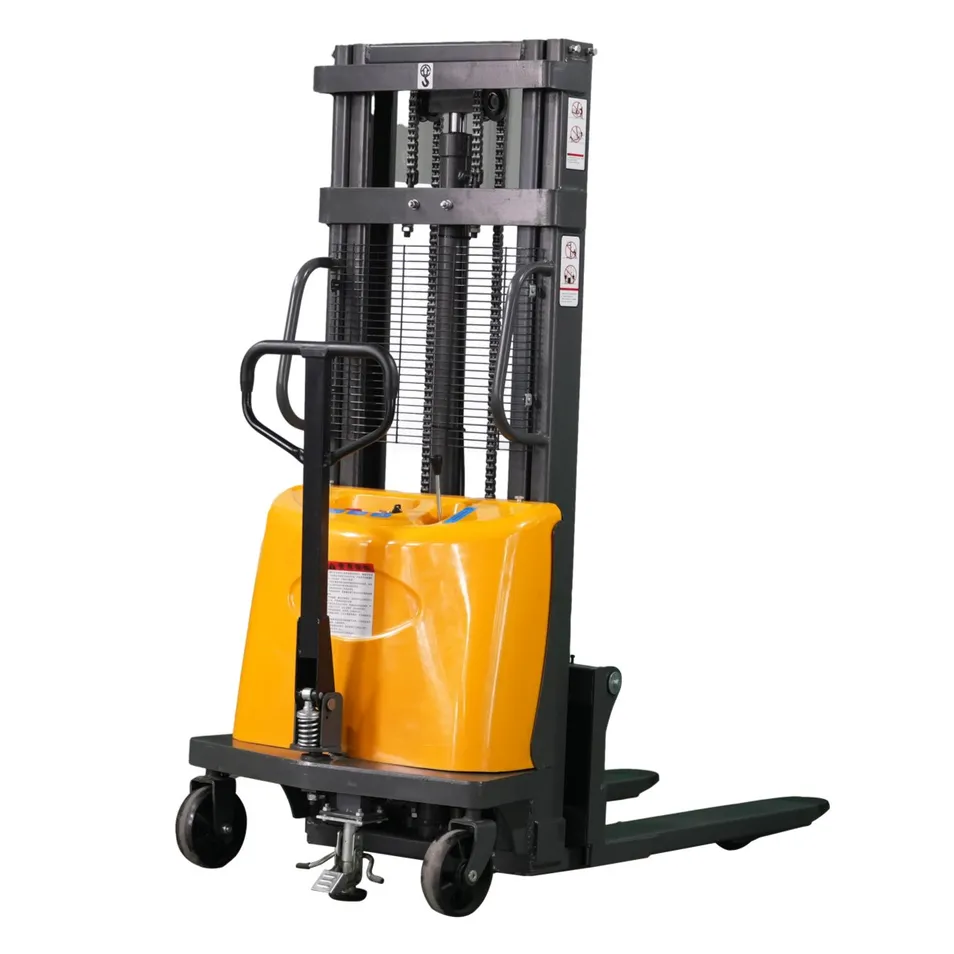

POWERFUL ELECTRIC BATTERY STACKER FOR EFFICIENT WAREHOUSE OPERATIONS
Featuring a robust AC driving motor, this battery-powered stacker delivers exceptional lifting capacity of 1,500kg to 2,000kg with adjustable fork heights ranging from 1.6m to 3.5m, making it ideal for diverse pallet stacking applications.
Engineered with a straddle leg design and adjustable forks, this electric lift stacker handles both open and closed pallets with ease. The compact footprint and tight turning radius of just 1,431mm allow seamless operation in narrow aisles and tight spaces — even inside shipping containers.
| Model | Unit | CDD-A15 | CDD-B15 | CDD-B20 |
| Rated Load | Q(kg) | 1500 | 1500 | 2000 |
| Load Center | C(mm) | 500 | 500 | 500 |
| Wheel Tread | Y(mm) | 1555 | 960 | 960 |
| Weight | kg | 520 | 580-780 | 650-860 |
| Lifting Height | mm | 1600-3500 | 1600-3500 | 1600-3500 |
| Overall Length | L(mm) | 1791 | 2140 | 2140 |
| Driving Motor | kw | 0.75 | 0.75 | 1.5 |

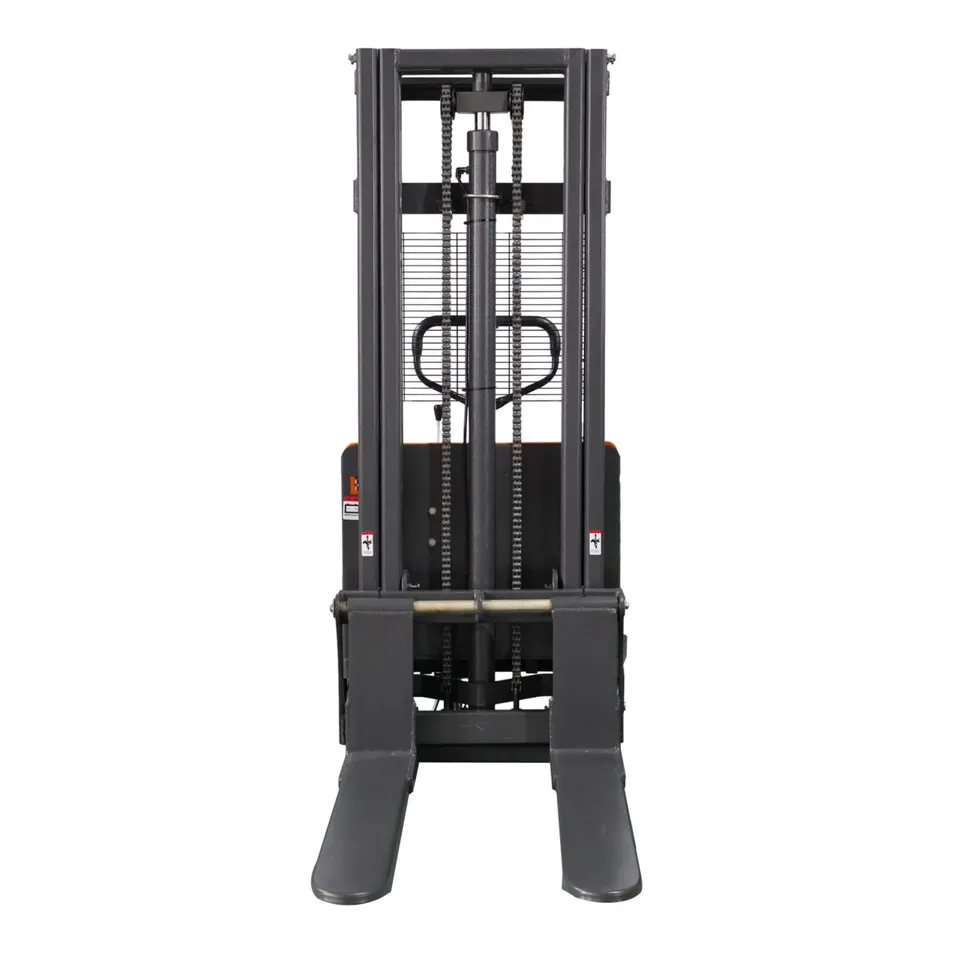

Equipped with a high-efficiency 0.75kW–1.5kW AC drive motor and 2.2kW lifting motor, delivering smooth acceleration and reduced energy consumption.

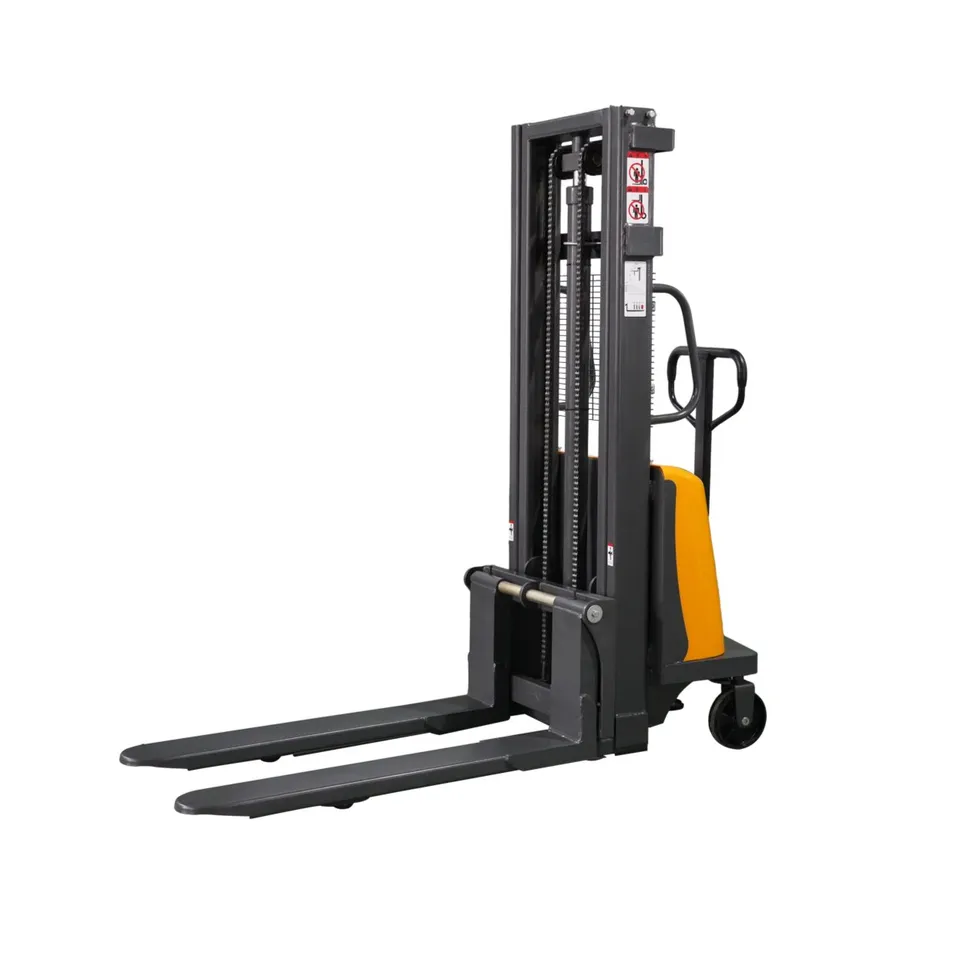

Built-in features include emergency reverse device, emergency power-off switch, turtle-speed mode, and overload protection valve.

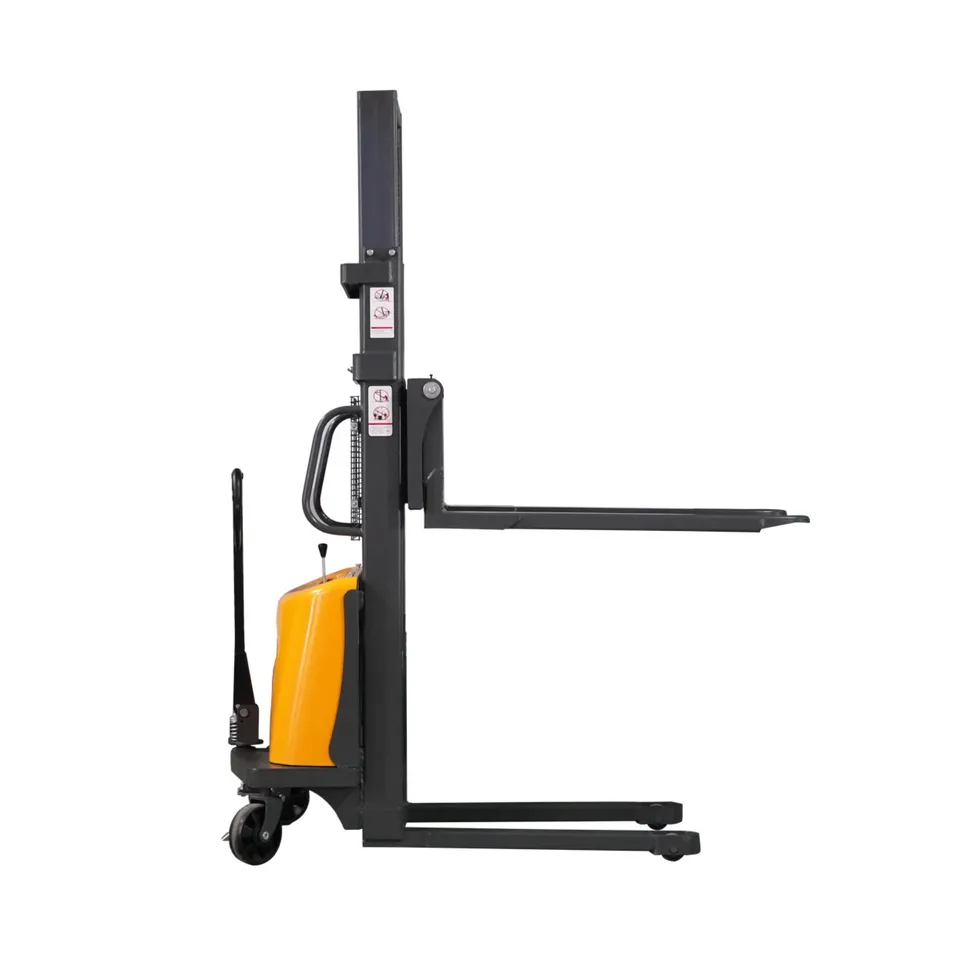

Reliable electromagnetic service brake combined with parking foot brake ensures secure stopping even on inclines.
WAREHOUSE STORAGE: Ideal for stacking and organizing palletized goods on racking systems up to 3.5m.
LOGISTICS CENTERS: Streamline order fulfillment and shipping operations with fast transport capabilities.
MANUFACTURING: Efficiently move raw materials and finished goods between production lines.
COLD STORAGE: Sealed electric drive systems operate reliably in cold chain and pharmaceutical environments.
